Improving Services To Cannon Street And Charing Cross Stations

Platform Changes At London Bridge Station

The Thameslink Programme will change the platform layout at London Bridge station considerably.

In 2012, the platform layout at London Bridge was as follows.

  • Platform 1 – From Cannon Street
  • Platform 2 – To/From Cannon Street
  • Platform 3 – To Cannon Street
  • Platform 4 – From Charing Cross
  • Platform 5 – From Charing Cross and Bedford
  • Platform 6 -To Charing Cross and Bedford
  • There was also a through line to Charing Cross without a platform.

I can’t remember much about those days, except that the platforms were very crowded.

When London Bridge station and the Thameslink Programme is completed, the new platform layout will give opportunities to create new services through London Bridge to both; Cannon Street and Charing Cross stations.

The platform layout at London Bridge station will be as follows.

  • Platform 1 – From Cannon Street
  • Platform 2 – To/From Cannon Street
  • Platform 3 – To Cannon Street
  • Platform 4 – From Thameslink
  • Platform 5 – To Thameslink
  • Platform 6 – From Charing Cross
  • Platform 7 – From Charing Cross
  • Platform 8 – To Charing Cross
  • Platform 9 – To Charing Cross

So, six through platforms and seven lines have been replaced by nine through platforms. This is a 50% increase in platforms and a 28% increase in tracks. The Borough Market Viaduct was the major engineering in creating the extra two tracks across the South Bank.

Other factors help capacity in the area include.

  • The Bermondsey dive-under sorts out all the lines South of London Bridge station and will present trains to the right platforms at London Bridge. |Spaghetti Junction is so 1960s!
  • Effectively, there are now three parallel and probably separate railway systems virtually from Bermondsey through London Bridge station, that split after the station; a pair of lines for Cannon Street, another pair for Thameslink and two pairs for Charing Cross.
  • There has been a lot of work on track and signalling.
  • The Tanners Hill Fly-Down has been built to improve capacity between London Bridge and Lewisham, which must help Cannon Street and Charing Cross services.
  • The design of London Bridge station with its wide through platforms and more escalators than a science-fiction fantasy, could mean that passengers are there in time for their trains.
  • The electrification changeover for Thameslink has been streamlined.
  • The Class 700 trains must be better at changing voltages in the Thameslink tunnel.

All of these factoras must have positive affects on the capacity of the system.

I also think that one of the major benefits  of the new layout, is what happens if something goes wrong.

If say a train breaks down on Thameslink at Blackfriars, because it is a separate railway, this doesn’t affect Cannon Street and Charing Cross services in the way it did before the new layout. There would still be the problems of fixing the train and what to do with those following behind, but the new design of London Bridge station means that passengers can be handled safely in all the space.

I’d love to see Network Rail’s thinking for handling all problems, but the design of London Bridge and its tracks could be one of those designs, that in a hundred years, engineers will look at and copy.

I can’t believe that the new layout won’t allow more trains to go to and from Cannon Street and Charing Cross, just as it allows more trains to go through the core Thameslink tunnels.

Thameslink is going from  something like fifteen trains per hour (tph) to 24 tph or an increase of 60%. So what sort of increase will we see into Charing Cross and Cannon Street?

Services To Charing Cross

In 2012, Charing Cross to London Bridge was handled on three tracks between the two stations and three platforms at London Bridge. Two of the platforms were shared with Thameslink running 15 tph through them.

These three tracks and platforms have been replaced with four tracks, each with its own platform at London Bridge and possibly Waterloo East stations.

The tracks must have been fitted with a higher-capacity signalling system and an efficient track layout.

I am surprised that the four lines to and from Charing Cross share a platform at London Bridge with the other line going the same way.

Surely, it could be better if the Thameslink and Charing Cross services shared an island platform, when they were going in the same direction.

This would give a same-platform interchange between Thameslink and Charing Cross services, which the 2012 layout had.

I suspect that sharing is not possible, as it would mean that services would have to cross other lines to get there and the track doesn’t and can’t allow it.

But if the current service level of fourteen tph to and from Charing Cross station, can be achieved with just two platforms at London Bridge station as they are in the half-completed station, then there must be potential to increase the number of services to and from Waterloo East and Charing Cross, by a worthwhile margin.

Compared to some places in the UK, Charing Cross station already has an intense level of services to stations in South East London and beyond.

These are some example of trains out of Charing Cross between eleven and twelve in the morning.

  • Abbey Wood – 2 trains
  • Ashford International – 2 trains
  • Dartford – 6 trains
  • Gravesend – 4 trains
  • Greenhithe – 4 trains
  • Hayes – 4 trains
  • Lewisham – 7 trains
  • Orpington – 6 trains
  • Rochester – 2 trains
  • Sevenoaks – 8 trains
  • Tonbridge – 6 trains
  • Woolwich Arsenal – 2 trains

If this is increased, I can’t see any complaints from passengers, especially as most trains appear to have ten-cars or more.

I do think though that there will be a need to improve capacity, onward connections and walking routes at Waterloo East and Charing Cross stations.

I say more about these two stations in A Look At Charing Cross Station and Around Waterloo East Station.

It’s just that all these passengers will need somewhere to go.

Services To Cannon Street

Cannon Street station will be getting the same number of lines in 2018, as it did in 2012.

So I doubt, that the service will be any less intense, than it was in 2012.

Currently, in the Off Peak, there is a sixteen tph service, to and from Cannon Street station, which compares well with the current fourteen to and from Charing Cross station.

There is also going to be improvement at Cannon Street station with respect to onward connections and walking routes.

  • Bank tube station is getting two new entrances, which are closer to Cannon Street.
  • The connection between Cannon Street station and the Central Line will be improved with a travelator running North-South between the two Northern Line tracks at Bank station.
  • The connection between Cannon Street station and the Northern Line will be improved with triple escalators directly down from Cannon Street, perhaps a hundred metres from Cannon Street station.
  • The link to the District and Circle Lines is already excellent and those lines will be improved and get higher frequencies in the next few years.
  • The City of London has ambitions to pedestrianise a lot of the area around Bank station.

Cannon Street station will certainly become one of London’s better-connected terminal stations.

There are more observations in Improvements At Bank Station.

Interchange At London Bridge Station

Effectively, London Bridge station has four sets of services.

  • Those that terminate in the station.
  • Through services on Thameslink
  • Through service to and from Charing Cross station.
  • Through service to and from Cannon Street station.

I’ll leave out the Underground, as the entrance to that hasn’t been fully opened yet!

All the current sets of services have their own set of platforms.

Interchange between the various services is a matter of taking an escalator down from the platform on which you arrive and then take another escalator up to your departure platform.

At present, they seem to be using the rebuilt through platforms flexibly as follows.

  • Platform 7 – From Charing Cross
  • Platform 8 – To/From Charing Cross
  • Platform 9 – To Charing Cross

As trains out from Charing Cross seem to pass through London Bridge on either platform 7 and 8, there does seem to be a degree of flexibility in the track. But then there are no Thameslink services needing to be accommodated.

I do wonder if at some time in the future, they will arrange the lines at London Bridge, so that there is some cross platform interchanges. But I suspect that given the complex layout of the tracks, changes will only be limited.

So passengers will continue to go down and up the escalators. But they don’t seem to be complaining!

The Southeastern Metro

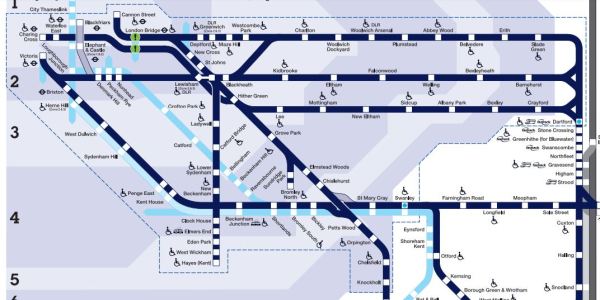

This map shows Southeastern Metro services, which are close to the London termini and fall within the Oystercard area.

Southeastern Metro

Southeastern Metro

If nothing else the map shows why Transport for London want to get control of Southeastern Metro  services  and paint them orange, as it is a ready made network that compliments the current Underground and Overground services.

The network has five Central London termini and stations; Cannon Street, Charing Cross, London Bridge, Victoria and Waterloo East.

It also connects to the following other lines.

  • Several Underground Lines including the Bakerloo, both branches of the Northern Line, the District Line and and the Circle Line.
  • The Overground at Denmark Hill, New Cross and Peckham Rye
  • The  Docklands Light Railway at Greenwich, Lewisham and Woolwich Arsenal.
  • Tramlink at Elmers End.
  • Crossrail at Abbey Wood.
  • Thameslink at Dartford, Greenwich, London Bridge and Orpington.

In addition, many of the stations have step-free access..

These are the services from a selection of stations close to London.

  • Dartford has six tph to Charing Cross and two tph to Cannon Street and Victoria.
  • Greenwich has six tph to Cannon Street.
  • Hayes has two tph to Charing Cross and Cannon Street.
  • Lewisham has eight tph to Cannon Street, 4 tph to Charing Cross and 2 tph to \Victoria.
  • Orpington has four tph to each of Cannon Street, Charing Cross and Victoria
  • Woolwich Arsenal has six tph to Cannon Street and 2 tph to Charing Cross.

So in some ways it’s an all-places-to-all-terminals Metro.

Transport for London must look at the Southeastern Metro and have all sorts of ideas about how they could use the network to the benefit of London.

These are some Off Peak service levels.

  • Sixteen tph between London Bridge and Cannon Street.
  • Fourteen tph between London Bridge and Charing Cross.
  • Ten tph between New Cross and Cannon Street.
  • Eight tph between Orpington and London Bridge.
  • Eight tph between Dartford and London Bridge
  • Twelve tph between Lewisham and London Bridge.

Also consider.

  • Would more services be possible after Thameslink is completed between London Bridge and Charing Cross.
  • Could more use be made of an interchange at New Cross to get passengers to Canada Water for Canary Wharf and Witechapel for Crossrail?
  • Could better use be made of Orpington station?
  • Could Lewisham be improved?
  • Will Brockley Lane station be rebuilt and a connection to the East London Line created?
  • How would the area be affected by an extended Crossrail to Gravesend?
  • How would New Cross cope with more than four tph on the East London Line?

I think that TfL could have lots of fun!

For instance, with a bit of reorganisation of services, it might be possible to create a ten tph or upwards set of lines  across South London.

As an example Lewisham to Charing Cross via New Cross, London Bridge, Waterloo East could easily be ten tph.

No new trains, track or signalling would be needed, but the bottleneck of London Bridge must probably be removed before it is possible. And the Thameslink Programme is doing that!

Effects On The Jubilee Line

I don’t have any figures on passengers, but the section of Jubilee Line from London Bridge, will get a high-capacity by-pass on the surface.

But if we assume the current 14 tph on the rail line and 2019 frequency of 36 tph on the Jubilee Line, these are the numbers of carriages going between London Bridge and Charing Cross/Waterloo.

Heavy rail – 14 tph x 12 cars = 168

Jubilee Line – 36 tph x 7 cars = 252

Incidentally, the seats per hour figures are 10206 for Class 377 trains and 8424 for the S Stock on the Jubilee Line.

So will passengers choose to travel on the surface, thus freeing up capacity on the Jubilee Line?

Consider.

  • Changing from say Thameslink after travelling up from Brighton to a Charing Cross service at London Bridge will be down and up two escalators and fully step-free.
  • How many passengers will walk or take a bus to and from London Bridge to complete their journey?
  • Some connections to the Underground at London Bridge require lots of walking.
  • Going between London Bridge and Waterloo by a train rather than the Jubilee Line may well be a more pleasing experience.
  • There are people like me, who prefer not to use a deep-level Underground Line, if there is an alternative.

Remember though that the the Charing Cross platforms at London Bridge are paired with 6/7 handling trains from Charing Cross and 8/9 trains the other way. Both pairs will share an island platform, escalators and a lift. So it may be quicker if you’re going to say Waterloo station, Trafalgar Square  or Covent Garden to take a train.

Every so often, various plans are put forward as to what to do with the closed Jubilee Line platforms at Charing Cross. This is said about the platforms in Wikipedia.

As the Jubilee line platforms and track are still maintained by TfL for operation reasons, they can can also be used by film and television makers requiring a modern Underground station location. While still open they were used in the 1987 film The Fourth Protocol, and after closure in numerous productions, including different episodes of the television series Spooks.

I can envisage someone coming up with a plan, whereby these platforms are used as a second Southern terminus for the Jubilee Line. By 2019, it is intended that 36 tph will be running from North Greenwich to West Hampstead.

But there could be a problem, in that depending on what you read, there may not be enough trains for this increase in service.

But if, the uprated service between London Bridge and Charing Cross takes passengers from the Jubilee Line between London Bridge and Waterloo could the service be split into two?

  • Most Jubilee Line trains would run as now and provide sufficient service between North Greenwich to West Hampstead.
  • A small proportion of trains, perhaps 10 tph, would divert into the closed platforms at Charing Cross station.

It would give some advantages.

  • There would be improved Underground connections at Charing Cross station.
  • Trafalgar Square would gain another Underground Line.
  • Charing Cross would have a two-stop link to Crossrail and the Central Line at Bond Street station.

Unlike most new station and interchange projects, the infrastructure is already there and maintained.

Consequences For Southern Crossrail

If everything works out with the Thameslink Programme and the rebuilding of London Bridge station, I can see no point to Southern Crossrail.

However, there idea of rebuilding Waterloo East station, is probably a good idea, to improve connectivity to the Underground and Waterloo station.

Waterloo East station could be handled a lot more passengers in the near future.

Conclusion

It looks to me, that Thameslink has been well-thought out and if the trains, track and signalling performs from London Bridge along the South Bank, as everybody hopes it should, we will see a world class Metro service across South-East London.

But I do feel that if the service along the South Bank is a quality one, then it will take passengers from the Jubilee Line and this line could be open for development.







September 27, 2016 - Posted by | Travel | , , , , , , , , ,

2 Comments »

  1. It is not stated in the 2014 document, but I think it will work like this: –

    Trains going with the flow will be full and take longer to load or unload, so they will alternate platforms, whereas trains against the flow will be nearly empty and their stops will be brief – so

    P1 Cannon St outbound full time
    P2 Cannon St inbound am; bi-directional pm
    P3 Cannon St inbound am; Thameslink outbound pm
    P4 Thameslink outbound full time
    P5 Thameslink inbound full time
    P6 Thameslink inbound am; Charing X outbound pm
    P7 Charing X outbound full time
    P8 Charing X inbound full time
    P9 Charing X inbound full time

    Platforms 2, 3 and 6 are bidirectional. 4 and 7 offer turnback.

    Flows
    Cannon St – 22tph
    Thameslink – 18tph (three gap, three gap…)
    Charing X – 28tph
    Low level (10 – 15) 20tph

    Comment by Mark Clayton | September 28, 2016 | Reply

    • Thanks.

      If you’re right about 28 tph into Charing Cross, if you were going between say Tower Bridge/London Bridge/City to Whitehall/Trafalgar Square on the Jubilee Line or take the panoramic view in a train?

      You probably get the same question in Manchester, where you can take a tram or a train, but in a tram, you can still enjoy the Cityscape.

      London Bridge-Waterloo East-Charring Cross would be a bit like an S-Bahn. If it had say 20 x 12 car tph, it would win the comfort stakes.

      But it’s up to the passenger.

      London Bridge is a whole new class of station, that will be widely copied.

      If you look at Birmingham New Street, Leeds, London Bridge, Manchester Victoria and Reading stations, some are poorer than others, as they cut down on the escalators.

      I think now, all stations with over a certain footfall need at least two escalators and a lift to all platforms.

      Comment by AnonW | September 28, 2016 | Reply
