Thoughts On Train Times Between London Paddington And Cardiff Central

I went to Cardiff from Paddington on Tuesday.

These were the journey details.

  • Distance – Paddington and Cardiff – 145.1 miles
  • Time – Paddington and Cardiff – 110 minutes – 79.1 mph
  • Time – Cardiff and Paddington- 114 minutes – 76.4 mph

There were four stops. Each seemed to take between two and three minutes.

I do feel though, that the trains are still running to a timetable, that could be run by an InterCity 125.

I watched the Speedview app on my phone for a lot of both journeys.

  • There was quite an amount of 125 mph running on the route.
  • Some stretches of the route seemed to be run at a line speed of around 90 mph.
  • The Severn Tunnel appears to have a 90 mph speed.
  • Coming back to London the train ran at 125 mph until the Wharncliffe Viaduct.

These are my thoughts.

Under Two Hour Service

The current service is under two hours, which is probably a good start.

Improving The Current Service

It does strike me that the current timetable doesn’t take full advantage of the performance of the new Hitachi Class 80x trains.

  • Could a minute be saved at each of the four stops?
  • Could more 125 mph running be introduced?
  • Could the trains go faster through the Severn Tunnel?
  • If two trains per hour (tph) were to be restored, would that allow a more efficient stopping pattern?
  • The route has at least four tracks between Paddington and Didcot Parkway and the Severn Tunnel and Cardiff.

I would reckon that times of between one hour and forty minutes and one hour and forty-five minutes are possible.

These times correspond to average speeds of between 87 and 83 mph.

Application of In-Cab Digital Signalling

Currently, a typical train leaving Paddington completes the 45.7 miles between Hanwell and Didcot Parkway with a stop at Reading in 28 minutes, which is an average speed of 97.9 mph.

This busy section of the route is surely an obvious one for In-cab digital signalling., which would allow speeds of up to 140 mph.

  • Services join and leave the route on branches to Bedwyn, Heathrow, Oxford and Taunton.
  • The Heathrow services are run by 110 mph Class 387 trains.
  • There are slow lines for local services and freight trains.

If an average speed of 125 mph could be attained between Hanwell and Didcot Parkway, this would save six minutes on the time.

Would any extra savings be possible on other sections of the route, by using in-cab digital signalling?

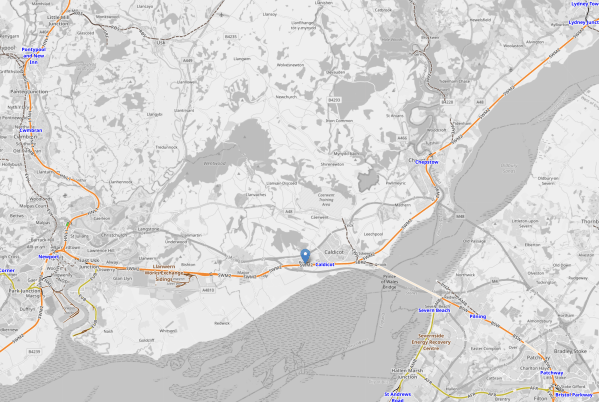

I suspect on the busy section between Bristol Parkway and Cardiff Central stations several minutes could be saved.

Would A Ninety Minute Time Between Paddington And Cardiff Be Possible?

To handle the 145.1 miles between Paddington and Cardiff Central would require an average speed including four stops of 96.7 mph.

This average speed is in line with the current time between Hanwell and Didcot Parkway with a stop at Reading, so I suspect that with improvements to the timetable, that a ninety minute service between Paddington and Cardiff Central is possible.

It may or may not need in-cab digital signalling.

My Control Engineer’s nose says that this signalling upgrade will be needed.

Would A Sixty Minute Time Between Paddington And Cardiff Be Possible?

A journey time of an hour between Paddington and Cardiff Central would surely be the dream of all politicians the Great Western Railway and many of those involved with trains.

To handle the 145.1 miles between Paddington and Cardiff Central would require an average speed including four stops of 145.1 mph.

It would probably be difficult to maintain a speed a few mph above the trains current maximum speed for an hour.

  • How many minutes would be saved with perhaps a single intermediate stop at Bristol Parkway station?
  • Perhaps the Cardiff service could be two tph in ninety minutes and one tph in sixty minutes.
  • Full in-cab digital signalling would certainly be needed.
  • Faster trains with a maximum speed of up to 155-160 mph would certainly be needed.
  • There may be a need for some extra tracks in some places on the route.

A journey time of an hour will be a few years coming, but I feel it is an achievable objective.

The Extended Route To Swansea

Cardiff Central and Swansea is a distance of 45.7 miles

A typical service takes 55 minutes with three stops, at an average speed of 49.8 mph.

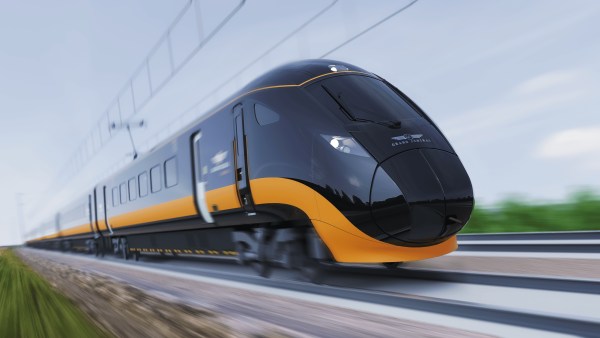

This would be an ideal route for a Hitachi Intercity Tri-Mode Battery Train, which is described in this Hitachi infographic.

It would probably be needed to be charged at Swansea station, to both enable return to Cardiff Central or extend the service to the West of Swansea.

Conclusion

Big improvements in journey times between Paddington and Cardiff Central are possible.



June 10, 2021 Posted by | Transport | , , , , , , , , | 6 Comments

Ealing Broadway Station – 31st May 2021

This article on Rail Technology Magazine, which is entitled Transport for London Completes Step-Free Access At Ealing Broadway, alerted me that the station might be worth a look.

I took these pictures this morning.

This map from cartometro.com shows the station layout.

Note.

  1. The black lines in Platforms 1 and 2 are the Great Western Railway main line platforms.
  2. The black/blue lines in Platforms 3 and 4 are the Great Western Railway slow line platforms, which are also used by Crossrail.
  3. The red tracks in Platforms 5 and 6 are the Central Line platforms.
  4. The green tracks in Platforms 7, 8 and 9 are the District Line platforms.

These are my thoughts.

Step-Free Access

Consider.

  • Access between platforms 4, 5, 6, 7, 8 and 9 is on the level, as it has been for years.
  • There are a pair of lifts to access these six platforms from street level.
  • There are also two other lifts to Platform 1 and Platform 2/3.
  • There are three typical Network Rail stairs to the platforms, with double-handrails, which at 73, I can still manage.

I’ve certainly seen much worse stations with supposedly step-free access.

I also wonder if another lift will be added to directly serve the District Line platforms.

It could be one of those additions, that has been catered for, so it can be added if necessary.

Crossrail And Routes Into And Out Of London

Crossrail will change commuting and leisure routes, into and out of London.

  • Crossrail serves the West End, the North of the City and Canary Wharf directly.
  • Crossrail has good connections to the Central, Circle, District and Jubilee Lines.
  • Crossrail has a direct connection to Thameslink.
  • All Crossrail interchanges will be step-free.

After it has been opened for a few months, I can see that direct connections and ducking and diving will have seriously changed London’s well-established commuting and travel patterns.

Using Ealing Broadway Station As An Interchange

It will certainly be easier with all the new step-free access, but I suspect some passengers, who previously changed at Ealing Broadway station, will go straight through on Crossrail.

In Will Crossrail Open To Reading in 2019?, I said that Ealing Broadway station will get the following total number of Crossrail trains.

  • 12 tph in the Peak
  • 10 tph in the Off-Peak

Note.

  1. tph is trains per hour.
  2. Six tph would go between London Paddington and Heathrow.
  3. Two tph would go between London Paddington and Reading.

It will be interesting to see what Crossrail timetable is delivered.

The Overall Design

It is a fairly conservative design, that follows the principles of good step-free access.

Interchange is level and good between Crossrail and the tube lines.

There are still a few details to be finished and I suspect it will be a well-thought of station.

A Few Questions

These are a few questions.

Will The Station Be A Gateway To Heathrow?

I suspect it could be, as the station is well-connected by bus and tube to large numbers of places.

Conclusion

Ealing Broadway will be a busy interchange and I’m sure, it’s been designed to handle a lot of passengers.





May 31, 2021 Posted by | Transport | , , , , , , | Leave a comment

Somerset: Plans For New Railway Station On Levels

The title of this post, is the same as that of this article on the BBC.

This is the first two paragraphs.

Plans for a new railway station have moved forward after councillors agreed to help fund a feasibility study.

The stations at Somerton and Langport on the Somerset Levels were closed in the Beeching cuts during the 1960s.

I put my thoughts on this station in Beeching Reversal – New Station For Langport And Somerton Area.

The BBC article says this about the study.

The study, to be carried out by the Langport Transport Group (LTG) will identify possible sites, which may include a parkway-style station between the towns, possibly on the site of the former Long Sutton and Pitney station.

This Google Map shows the railway between the two villages of Langport and Somerton.

Note.

  1. Langport is in the South-West corner of the map.
  2. Somerton is in the North-East corner of the map.
  3. The Reading-Taunton Line goes through both villages, although both stations are now closed.

The map is probably best clicked to show on a larger scale.

This second Google Map shows the area between the two villages of Long Sutton and Pitney.

Note.

  1. Pitney is in the North-West corner of the map.
  2. Long Sutton is in the South-East corner of the map.
  3. The railway runs across the middle of the map it looks as if there was a station site to the North of the village of Upton.
  4. The only major road in the area; the A372, runs across the bottom of the map.

It is certainly a possibility for a Parkway station, but are the road connections good enough?

May 29, 2021 Posted by | Transport | , , , , | 1 Comment

Through Settle And Carlisle Service Under Consideration

The title of this post, is the same as that of an article in the June 2021 Edition of Modern Railways.

This is the first paragraph.

Plans for a new Leeds to Glasgow through service via the Settle and Carlisle line are being developed, with CrossCountry and the Department for Transport starting to look at the possible scheme.

It sounds like a sensible idea to me.

The article also suggests the following.

  • CrossCountry is a possible operator.
  • CrossCountry are keen to improve services between Leeds and Glasgow
  • The trains could be InterCity 125s, freed up, by a the arrival of Class 221 trains from Avanti West Coast, when they receive their new Class 805 trains.
  • Maintenance of the trains wouldn’t be a problem, as this could be done at Neville Hill in Leeds or Craigentinny in Edinburgh.
  • Services could start in December 2023.

I have a few thoughts of my own!

The Route

The route between Leeds and Carlisle is obvious, but there are two routes between Carlisle and Glasgow.

Trains would probably choose a route and call at stations to maximise passenger numbers.

These stations are on the various routes.

  • Settle and Carlisle – Shipley, Bingley, Keighley, Skipton, Gargrave, Hellifield, Long Preston, Settle, Horton in Ribblesdale, Ribblehead, Dent, Garsdale, Kirkby Stephen, Appleby, Langwathby, Lazonby & Kirkoswald and Armathwaite
  • Glasgow South Western – Dunlop, Stewarton, Kilmaurs, Kilmarnock, Auchinleck, New Cumnock, Kirkconnel, Sanquhar, Dumfries, Annan and Gretna Green
  • West Coast Main – Motherwell, Carstairs and Lockerbie

There are certainly a lot of possibilities.

 Upgrading The InterCity 125 Trains

CrossCountry appear to have enough InterCity 125 trains to muster five in a two Class 43  locomotives and seven Mark 3 coach formation.

They may not be fully in-line with the latest regulations and there may be a need for a certain degree of refurbishment.

These pictures show some details of a refurbished Great Western Railway Castle, which has been fitted with sliding doors.

Will The InterCity 125 Trains Be Shortened?

Scotrail’s Inter7City trains and Great Western Railway’s Castle trains have all been shortened to four or five coaches.

This picture shows a pair of Castles.

Journey Times, Timetable And Frequency

The current journey time between Leeds and Glasgow Central stations via the East Coast Main Line is four hours and eight minutes with nine stops.

The Modern Railways article says this about the current service.

The new service would be targeted at business and leisure travellers, with through journey times competitive with road and faster than the current direct CrossCountry Leeds to Glasgow services via the East Coast main line.

I would expect that CrossCountry are looking for a time of around four hours including the turn round.

  • Stops could be removed to achieve the timing.
  • The trains could run at 125 mph on the West Coast Main Line.

This could enable a train to have the following diagram.

  • 0800 – Depart Leeds
  • 1200 – Depart Glasgow Central
  • 1600 – Depart Leeds
  • 2000 – Depart Glasgow Central
  • Before 2400 – Arrive Leeds

Note.

  1. A second train could start in Glasgow and perform the mirrored timetable.
  2. Timings would probably be ideal for train catering.
  3. Trains would leave both termini at 0800, 1200, 1600 and 2000.
  4. The timetable would need just two trains.

I also think, if a second pair of trains were to be worked into the timetable, there could be one train every two hours on the route, if the demand was there.

I certainly believe there could be a timetable, that would meet the objectives of attracting business and leisure passengers away from the roads.

Tourism And Leisure Potential

The Settle and Carlisle Line is known as one of the most scenic railway lines in England, if not the whole of the UK.

There are important tourist sites all along the route between Leeds and Glasgow

Many of the stations are used by walkers and others interested in country pursuits.

I believe that it is a route that needs a quality rail service.

Travel Between London and Towns Along The Settle And Carlisle Line

In Thoughts On Digital Signalling On The East Coast Main Line, I said this.

I think it is highly likely that in the future, there will be at least one train per hour (tph) between London Kings Cross and Leeds, that does the trip in two hours.

It may seem fast compared to today, but I do believe it is possible.

With a timely connection at Leeds station, will this encourage passengers to places along the Settle and Carlisle line to use the train?

What About the Carbon Emissions?

The one problem with using InterCity 125 trains on this route, is that they are diesel-powered, using a pair of Class 43 locomotives.

But then there are over a hundred of these diesel-electric locomotives in service, nearly all of which are now powered by modern MTU diesel engines, which were fitted in the first decade of this century.

Consider.

  • The locomotives and the coaches they haul have an iconic status.
  • Great Western Railway and Scotrail have recently developed shorter versions of the trains for important routes.
  • There are over a hundred of the locomotives in service.
  • Companies like ULEMCo are developing technology to create diesel-powered vehicles that can run on diesel or hydrogen.
  • There is plenty of space in the back of the locomotives for extra equipment.
  • MTU have a very large number of diesel engines in service. It must be in the company’s interest to find an easy way to cut carbon emissions.
  • I believe that the modern MTU diesel engines could run on biodiesel to reduce their carbon footprint.

And we shouldn’t forget JCB’s technology, which I wrote about in JCB Finds Cheap Way To Run Digger Using Hydrogen.

If they could develop a 2 MW hydrogen engine, it could be a shoe-in.

I believe that for these and other reasons, a solution will be found to reduce the carbon emissions of these locomotives to acceptable levels.

Conclusion

In this quick look, it appears to me that a Glasgow and Leeds service using InterCity 125 trains could be a very good idea.

May 21, 2021 Posted by | Transport | , , , , , , , , , , , , , , , , , , | 2 Comments

Work Begins On Okehampton Parkway Railway

The title of this post, is the same as that of this article on Rail Technology Magazine.

These are the first two paragraphs.

Following confirmation of government funding from the ‘Restoring Your Railway ideas’ fund, work has started on the Okehampton Parkway railway station that will serve the east of the town when the Dartmoor Line reopens.

Services are expected to restart later this year on the 14-mile stretch of railway for the first time in almost 50 years, providing a regular, daily passenger rail service between Okehampton and Exeter.

Okehampton Parkway station will be a completely new station for the Dartmoor Line.

This Google Map shows the probable location of the station.

The Wikipedia entry for the station, says this about its location.

The station is to be sited at the A30 junction at Stockley Hamlet and would be sited at the Business Park at Okehampton as well as serving a further 900 homes close to the site.

Stockey Hamlet is in the North-East corner of the map with the Dartmoor Line running along its Western side. Wikipedia also says this about the station design.

In April 2018, two preferred options for a new station which included an option for a double-sided platform which included a through platform and a bay platform. Another is for a platform single-sided platform on the south side of the railway with staggered faces. Exeter-bound trains would use the north through platform and the Dartmoor Railway would use the bay platform.

But as the track is only single-track and Devon has several single-platform stations, I will be surprised if the station has more than a single platform initially.

May 6, 2021 Posted by | Uncategorized | , , , | 1 Comment

Would A Mutant Many-Parent Child Help To Solve London’s Transport Problems?

London needs to increase the capacity of its public transport system, as the City continues to get larger and larger.

Current Major Projects

There are only three major rail projects ongoing in London at the present time.

The Bank Station Upgrade

The Bank Station Upgrade appears to be progressing well, albeit perhaps it’s a bit late due to the pandemic.

It is a complex project and from what I have heard and observed, it has been well designed and planned.

The Barking Riverside Extension

As with the Bank Station Upgrade the Overground extension to the new Barking Riverside station, appears to be going reasonably well.

But compared to that project, it is a relatively simple project, built mainly in the open air, with no tunneling.

Crossrail

Crossrail is in trouble, after what many believe was a very good tunnelling phase of the project.

But then tunnels under London usually seem to go well. I can remember the Victoria Line tunnelling and many other under London since the 1960s and all of these tunnels seem to have been dug without trouble. As I write, there don’t seem to be any tunneling problems with the Thames Tideway Tunnel.

Crossrail now has been reduced to a series of station builds and rebuilds, some of which are as large as the Bank Station Upgrade, with other ongoing projects like the testing of trains and systems.

So why are some of these stations running late in their delivery?

If you walk along the route of Crossrail in the City of London and through Clerkenwell and the West End, it is one massive building side as developers raise massive clusters of new developments around and above the Crossrail stations.

The picture shows Farrington station’s Eastern entrance, with a new development on top.

This one wasn’t a big one, but it went up in record time.

These buildings are often funded by Sovereign Wealth Funds, who want their buildings finished ASAP and as they have bottomless pockets, they are prepared to pay more to get the builders and tradesmen they need.

And where did they get the workers from? Other projects, including Crossrail.

This problem happened in Aberdeen at the height of the oil boom in the last century.

I also think that Brexit worsened the problem, as workers from mainland EU moved to large projects closer to home, like Stuttgart 21 and the new Berlin Brandenburg airport, that were both very much in trouble and could have been offering premium salaries as well!

The solution would have been to phase developments so that the limited pool of workers was not exhausted.

But that probably wouldn’t have suited the developers and politicians for all sorts of reasons.

  • An uncompleted building doesn’t bring in money and jobs.
  • Early completion must improve chances of letting the building.
  • Delaying the building would probably have meant fewer holidays for politicians in exotic locations.

Hopefully, a comprehensive enquiry into the lateness of Crossrail will provide answers.

High Speed Two

High Speed Two is to my mind a London local project. But only in a secondary way!

  • Rebuilding Euston station will improve Underground connections and interchange at Euston and Euston Square stations.
  • It is claimed by High Speed Two, that the rebuilt Euston station will create 16000 jobs and 2200 homes.
  • High Speed Two will enable massive development at Old Oak Common, with tens of thousands of homes and jobs.
  • Old Oak Common station will be a very important rail hub in North-West London.

With seventeen trains per hour (tph) between Euston and Old Oak Common will High Speed Two attract local traffic?

  • I suspect High Speed Two between Manchester Airport and Manchester Piccadilly and between Birmingham Interchange and Birmingham Curzon Street will also attract local traffic.
  • I’ve used TGVs between Nice and Antibes.
  • Tourists might visit, just like they did and still do at the Olympic Park.
  • Many Londoners will join High Speed Two at Old Oak Common.

Some wag will suggest putting it on the Tube Map. But is it such a stupid idea?

Where Does London Need More Rail Services?

Having lived in London on and off for over seventy years, I feel the worst areas for rail links are probably.

  • North West London
  • South East London
  • South Central London between Wimbledon and Croydon.
  • South West London

Note.

  1. Over the years, there is no doubt that East and North London have improved considerably, with the development of the East London, North London and Gospel Oak to Barking Lines.
  2. Thameslink has been improved in North London and now it is being supported with improvements to the Northern City Line. Both routes now have new Siemens trains, which give a whole new dimension to using ironing-boards as seats.
  3. Crossrail will produce major improvements in West, East and South East London.
  4. Building of a new Penge Interchange station, which I wrote about in Penge Interchange could improve routes to and from South East London.
  5. Hopefully the work in recent years at Waterloo will improve suburban services out of Waterloo. In An Analysis Of Waterloo Suburban Services Proposed To Move To Crossrail 2, I showed that four tph could be run to Chessington South, Epsom, Hampton Court and Shepperton stations.

It looks like North West and South Central London are missing out.

How Can Services Be Improved In North West London?

There are radial routes from the centre of London to the suburbs.

Starting from the North and going to the West, there are the following lines.

When I used to live at Cockfosters as a child,  to visit my many cousins in North West London, there was no alternative but to use a bus and take well over an hour each way.

There are now some circular rail routes in London but nothing in the North West of the capital.

The Dudding Hill Line And The West London Orbital Railway

But there is the little-used freight route called Dudding Hill Line.

  • It runs between Cricklewood on the Midland Main Line and Acton Central on the North London Line.
  • It is four miles of double-track railway.

This YouTube video shows a cab ride from Acton to Cricklewood.

Plans exist to turn it into the West London Orbital Railway, which will run two services.

  • West Hampstead and Hounslow via Cricklewood, Neasden, Harlesden, Old Oak Common Lane, Acton Central, South Acton, Lionel Road, Brentford, Syon Lane and Isleworth
  • Hendon and Kew Bridge via Brent Cross West, Neasden, Harlesden, Old Oak Common Lane, Acton Central, South Acton

Note.

  1. The proposed frequency of both services is four tph.
  2. There would be some stations to be built, but the track exists.
  3. There would be no new tunnels.
  4. The route is technically feasible.
  5. The route would connect West London to High Speed Two.
  6. There would be little disruption whilst it was built.
  7. The services could be run by dual-voltage battery-electric trains charged on the electrification at both ends of the route.
  8. The scheme represents a high value for money, with a benefit-cost ratio (BCR) of 2.2.

On the other hand, the scheme has two serious problems, as far as the current London Mayor is concerned.

  • Transport for London has no money, partly because of London’s Fare Freeze.
  • The project is not in South London.

This important and value-for-money project will not be built, whilst Sadiq Khan is still Mayor of London.

Harlesden Interchange

I believe that if we get the interchanges right on the West London Orbital Railway correct we can do things like.

  • Increase the benefit cost ratio.
  • Link the route to South London to make the Mayor a bit happier about the North London Scheme.

This Google Map shows Harlesden station.

Note.

  1. The Bakerloo Line/Watford DC Line running North-West/South-East through Harlesden station.
  2. The West Coast Main Line in the Southern section of the map.
  3. The Dudding Hill Line running North-South across the map.

Platforms will be built on the Dudding Hill Line to connect that would probably be new or extended platforms in the current Harlesden station to enable interchange between the West London Orbital and the Watford DC Lines.

I also think there is a possibility that platforms could be added to the slow tracks of the West Coast Main Line, so that suburban services into London Euston can also connect to the West London Orbital Line.

It would also enable a connection between Southern’s Clapham Junction and Milton Keynes service and the West London Orbital Railway.

Looking at this from various angles, I think that an architect good at designing three-dimensional structures could develop a quality Harlesden Interchange station.

Neasden Interchange

Like Harlesden, Neasden is another possibility for a comprehensive interchange.

This Google Map shows Neasden station.

Note.

  1. There are a lot of lines going through Neasden station.
  2. The Dudding Hill Line goes across the South-East corner of the map.
  3. There is plenty of space in the area.

This map from cartometro.com shows the lines in the area.

Note.

  1. The Dudding Hill Line is indicated by the former Dudding Hill station.
  2. The red tracks are Metropolitan Line tracks.
  3. The silver tracks are Jubilee Line tracks.
  4. The Southerly pair of lines through Neasden and Dollis Hill stations are Chiltern’s lines into Marylebone.
  5. The Chiltern tracks divide to the West of Neasden station, with the Aylesbury line following the other tracks and the Chiltern Main Line diverging to the West.
  6. London’s largest Underground Depot at Neasden, lies to the North-West in an area of London noted for few merits with the North Circular Road passing through.

I wonder, if the station and the depot offers a unique opportunity to offer large scale additions to London’s housing stock over the top of a rebuilt station and depot.

This Google Map shows the wider area.

Note.

  1. Much of the depot appears to be open-air stabling for trains.
  2. The North Circular Road passes North-South between the depot and Neasden station.
  3. The Dudding Hill Line cuts across the South-East corner of the map.
  4. This corner of the map is labelled as Dudden Hill.
  5. According to Wikipedia, Dudding Hill is considered a more genteel spelling of Dudden Hill and could be as old as 1544.

It looks as if it would be relatively easy to develop over the top of the depot to create housing, industrial or commercial properties.

But why stop there and cover both the North Circular Road and the six tracks through Neasden station?

Neasden station could be rebuilt into a station with platforms on the following lines.

  • Metropolitan Line
  • Jubilee Line
  • Chiltern Lines
  • Dudding Hill Lines

Note.

  1. I estimate that Chiltern has a train about every six minutes, so some could stop.
  2. There might be space for a bay platform for Chiltern.

Neasden could be a major housing and transport hub.

  • There could be large amounts of parking.
  • Road access would be good.
  • It would have good rail connections.
  • It could have a bus interchange.
  • London needs housing.

It might even be an alternative to Chiltern’s plan for a West Hampstead Interchange.

The Mayor of London, Transport for London and the Borough of Brent need to be bold!

Improvements To Chiltern’s Routes

Chiltern Railways have some plans that could improve services in North West London.

Using The Acton-Northolt Line

Wikipedia says this about using the Acton-Northolt Line to access new platforms at Old Oak Common station.

Upgrading the Acton–Northolt line (formerly the “New North Main Line”) to new platforms at Old Oak Common. This upgrade will also extend to London Paddington to increase capacity on the Chiltern Main Line as there is no room to expand the station at Marylebone.

This scheme has merit.

  • The platforms would be connected to the Chiltern Main Line along the route of a partly-disused railway.
  • The route could be double-tracked.
  • There must be space for at least two new platforms.
  • The new platforms could easily handle four tph.
  • There may be a case for some new stations.

The scheme could add valuable extra capacity for Chiltern.

A Chiltern Metro

Wikipedia says this about a  proposed metro service between Marylebone and West Ruislip stations.

  • The Metro would have a frequency of four tph.
  • It would call at Wembley Stadium, Sudbury & Harrow Road, Sudbury Hill Harrow, Northolt Park and South Ruislip.
  • The service would require a reversing facility at West Ruislip.
  • There would need to be passing loops at Sudbury Hill Harrow, and  Wembley Stadium.

Given that the Chiltern Metro was first proposed over a decade ago, perhaps the concept could be increased in scope.

  • Housing and other developments along the route may suggest that a station further out like High Wycombe might be a better terminal.
  • ERTMS in-cab digital signalling is likely to be installed at some time, which would decrease headways between trains and allow more services.
  • Electrification is likely in some form before 2040 and this will improve train performance.
  • If Neasden station were to be rebuilt, as a comprehensive transport and residential development, I believe that this Metro service should also call at Neasden, as it would complement the West London Orbital Railway.

I believe that a review of the Chiltern Metro may mean, that an improved version is worth building.

Improvements To The Milton Keynes And Clapham Junction Service

I feel that this service could be key in improving services between North London and South London via the West London Line and High Speed Two’s station at Old Oak Common.

Currently, this service is as follows.

  • It runs between Milton Keynes and Clapham Junction stations.
  • It has a frequency of one tph.
  • It calls at Bletchley, Leighton Buzzard, Tring, Berkhamsted, Hemel Hempstead, Watford Junction, Harrow & Wealdstone, Wembley Central, Shepherd’s Bush, Kensington (Olympia), West Brompton and Imperial Wharf stations.
  • The service used to extend to South Croydon via Wandsworth Common, Balham, Streatham Common, Norbury, Thornton Heath, Selhurst and East Croydon.
  • It uses Class 377 trains.
  • It shares parts of the route with the London Overground.

I also think it has various issues and questions with respect to the future.

  • The Class 377 trains are only 100 mph units, whereas the outer suburban trains on the West Coast Main Line are 110 mph Class 350 trains, which will soon be replaced by 110 mph Class 730 trains. Do the slower trains cause timetabling problems?
  • Is one tph enough?
  • The route doesn’t serve High Speed Two at Old Oak Common station.
  • Is the service run by the right operator?
  • What is the ideal Southern terminal?

These are my thoughts on the various issues.

The Service As A North-South Link

A friend, who lives in South London has told me, that if you go to an event at Wembley stadium the route is busy.

On the other hand, I’ve used it at midday on a Tuesday and found the trains empty.

But developed properly it could connect the following.

  • Milton Keynes Central
  • Bletchley for the East West Rail Link
  • Watford for the West Coast Main Line to the North
  • Wembley Central for Wembley Stadium and other entertainments
  • Willesden Junction for the North London Line
  • Hythe Road for High Speed Two, Crossrail and the Great Western Railway
  • Shepherd’s Bush for the shopping.
  • Clapham Junction for most of South London and the South of England

It would be a very useful cross-London route to complement Thameslink and the East London Line.

The Frequency

The current Milton Keynes and Clapham Junction has a frequency of one tph.

This may be enough for some parts of the route, as other services also provide services.

But many would argue, that perhaps South of Watford Junction, the service needs to be increased to connect the area to Old Oak Common and Clapham Junction.

I feel that High Speed Two, Crossrail and the Great Western Railway give so much connectivity, that between Clapham Junction and Willesden Junction needs a frequency of at least eight tph.

As the North London Line and the Watford DC Line are working at a frequency of four tph, this could indicate that a four tph direct service Watford Junction and Clapham Junction be ideal. Perhaps, it could continue North to Milton Keynes with a frequency of two tph.

The Trains

I am absolutely certain, that the full service needs to be operated by dual voltage trains, that are capable of running at 110 mph.

The Class 350/1 trains of West Midlands Trains would probably be ideal for the full service.

  • They are dual voltage trains.
  • They are 110 mph trains.
  • They have a long distance interior.

They are being replaced with new Class 730 trains, so would be available.

If some services were running only as far North as Watford Junction, these could be either Class 378 or Class 710 trains of the London Overground.

The Connection To The West London Line And High Speed Two

This map from Wikipedia by Cnbrb shows the latest iteration of the lines at Old Oak Common station.

Note.

  1. The green route is taken by the Milton Keynes and Clapham Junction trains.
  2. The bright blue is High Speed Two.
  3. The purple is Crossrail.
  4. The orange is the Overground
  5. Hythe Road station is proposed for the West London Line to connect to Old Oak Common station for High Speed Two.
  6. Hythe Road station will have a bay platform to turn trains from the South.
  7. Old Oak Common Lane station is proposed for the North London Line to connect to Old Oak Common station for High Speed Two.

But where is the connection between the Milton Keynes and Clapham Junction service and Old Oak Common station for High Speed Two?

  • Access from the South is not a problem as the Overground can be used to Hythe Road station.
  • Extra services from the South can be run to and from the bay platform at Hythe Road station.
  • Access from the East is not a problem as the Overground can be used to Hythe Road station.
  • How do passengers go between say Wembley Central and Heathrow?

In addition for access from the West is the Overground can be used to Old Oak Common Lane station.

But as things stand at the moment the Milton Keynes and Clapham Junction service bypasses Hythe Road station and the only ways to go from Milton Keynes to Old Oak Common station for either High Speed Two, Crossrail or the Great Western is to do one of the following.

  • Change to the Watford DC Line at Watford Junction, Harrow & Wealdstone or Wembley Central and then change to the Overground at Willesden Junction for either Old Oak Common Lane or Hythe Road station.
  • Continue South to Shepherd’s Bush station, cross over to the other platform and then come back to Hythe Road station.
  • Go via Euston station. OK for High Speed Two, but not for Crossrail or the Great Western.

They cannot be serious!

I hope that there is a cunning plan to enable the Milton Keynes and Clapham Junction service to connect.

Whilst on the subject of connections at Old Oak Common, where is the promised connection of Crossrail to the West Coast Main Line?

Were all these connections just kicked into the long grass and quietly forgotten, as they were deemed too difficult and/or expensive?

I think serious questions need to be asked about the design of Crossrail and High Speed Two at Old Oak Common.

Why weren’t Crossrail and High Speed Two designed to connect directly to the London Overground at Willesden Junction station perhaps by the use of a North South people mover serving the following lines?

  • Bakerloo, Watford DC, West Coast Main and West London Orbital Lines at a rebuilt Harlesden station.
  • London Overground at the high-level Willesden Junction station.
  • High Speed Two
  • Crossrail and the Great Western Railway
  • The new Chiltern platforms.
  • Central Line at East Acton station.

Note.

  1. Hythe Road and Old Oak Common stations would not be needed.
  2. The Milton Keynes and Clapham Junction service would call additionally at the rebuilt Harlesden station.

The current design of Old Oak Common stinks like a horse designed by a committee!

The Northern Terminal

I suggested earlier that some trains use Watford Junction and others use Milton Keynes Central.

Both stations have the capacity and the connectivity.

The Southern Terminal

In the last ten years, South Croydon, East Croydon and Clapham Junction have been used as the Southern terminal.

Thameslink seems to have chosen its various terminals to satisfaction of the travelling public, so perhaps the same method or personnel should be used.

The Operator

The Gibb Report said that this service should be transferred to the London Overground and I wrote about this proposal in Gibb Report – East Croydon – Milton Keynes Route Should Be Transferred To London Overground.

This is one suggestion, but I do wonder, if it should be transferred to West Midlands Trains and run in conjunction with their West Coast Main Line services.

  • The service needs 110 mph trains.
  • Timetabling and operation should be easier.
  • London Overground trains don’t have a long-distance interior.

On the other hand, trains running between Watford Junction and Clapham Junction would probably be better if they were London Overground trains.

Conclusion

I believe that by using the current network and some modern trains and signalling, the passenger services to the West of the capital can be substantially improved.









May 1, 2021 Posted by | Transport | , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , | 12 Comments

Dartmoor Rail Service Reopens This Year In Reversal Of Beeching Cuts

The title of this post is the same as that of this article on The Times.

This is the introductory paragraph.

A largely redundant Victorian railway line will be reopened this year as part of plans to resurrect routes closed in the infamous Beeching cuts.

This line was always likely to be one of the first to reopen, as there is a terminal station at Okehampton, with a bus interchange and other facilities, that has been hosting a service from Exeter on summer Sundays for some years.

The BBC have a reporter there this morning and the station looks in better condition, than some I could name.

This paragraph from The Times describes works to be done.

Network Rail said engineers would start a range of works including improvements to drainage, fencing by the trackside, rebuilding embankments and upgrading Okehampton station. Some 11 miles of track will also be replaced. It is envisaged that test trains will run later this year before it fully reopens to passengers.

Some of the BBC footage, showed a great pile of new track by the station, so it looks like Network Rail are starting to relay the track.

It is hoped to run a one train per two hour service by the end of the year, which could go hourly next year.

In Okehampton Railway Return ‘Clear Reality’ After £40m Commitment In Budget, I said more about this reopening project and I speculated that both Okehampton and Barnstaple services will terminate at Exmouth Junction, as the Barnstaple services do now.

Barnstaple has roughly an hourly service from Exeter and to run two hourly services between Exeter and Coleford Junction, where the two routes divide, may need extra work to be done, so that trains can pass each other at convenient points.

This extra work probably explains, why the service won’t be hourly until next year.

I do wonder, if this reopening also enables other improvement and possibilities.

Meldon Quarry

Meldon Quarry used to be an important source of track ballast for British Rail and it is situated a few miles past Okehampton.

This Google Map shows Meldon Quarry and Okehampton.

Note.

  1. Meldon Quarry is in the South-West corner of the map marked by a red marker.
  2. To its West is Meldon Viaduct, which is part of the old railway line between Okehampton and Plymouth, which is now a walking and cycling route.
  3. The town of Okehampton is in the North-East of the map.
  4. Okehampton station is in the South-East of the town close to the A 30.

I wouldn’t be surprised to find, that Network Rail are upgrading the line to Okehampton, so that if they need to obtain quality track ballast from Meldon Quarry, it would not require upgrades to the track East of Okehampton.

Okehampton Camp

Note Okehampton Camp to the South of Okehampton.

Many Army bases like this one need heavy vehicles to be transported to and from the base.

Have Network Rail future-proofed the design of the route to Okehampton, so that heavy vehicles can be transported to the area?

A Railhead For North Devon And North Cornwall

There are two main roads between Exeter and Cornwall.

  • The A30 goes to the North of Dartmoor and via Launceston
  • The A38 goes to the South of Dartmoor and then via Plymouth

In the past, I’ve always driven to and from Cornwall via the Northern route and I describe one journey in Dancing with Hippopotami.

This Google Map shows the A30, as it passes Okehampton.

Note that although the station and the A30 are physically close, there would be a few minutes to drive between the two.

But I do feel there is scope to create an appropriate transport interchange between.

  • Trains to and from Exeter.
  • Buses and coaches to North Cornwall and North Devon.
  • Cars on the A30.

It could effectively become a parkway station.

An Alternative Route In Case Of Trouble Or Engineering Works At Dawlish

Bodmin Parkway and Okehampton stations are about 43 miles apart and I suspect a coach could do the journey in around fifty minutes.

Would this be a sensible alternative route in times of disruption?

  • It is dual-carriageway all the way.
  • Okehampton station can certainly handle a five-car Class 802 train and could probably be improved to handle a nine- or even ten-car train.
  • Trains from London could get to Okehampton with a reverse at Exeter St. Davids.

I don’t know the area well, but it must be a possibility.

Could Okehampton Have A London Service?

As I said in the previous section, it looks like Okehampton station can handle five-, nine- and possibly ten-car Class 802 trains and there are many pictures of Great Western Railway’s InterCity 125s or HSTs at Okehampton station in years gone by.

I think it would be feasible to run a small number of services between Okehampton and London.

  • The service would have to reverse at Exeter St. Davids station.
  • As one service every two hours runs between London Paddington and Exeter St. Davids stations, a service to Okehampton could be run as an extension to the current Exeter service.
  • It could also stop at Crediton station.

There must also be the possibility of running a pair of five car trains from Paddington, that split at Exeter St. Davids, with one service going to Okehampton and the second one to Paignton.

  • Exeter St. Davids and Paignton are 26.3 miles apart and a fast train takes 34 minutes
  • Exeter St. Davids and Okehampton are probably a slightly shorter distance.

I suspect that a sensible  timetable could be devised.

The specification of the Hitachi InterCity Tri-Mode Train is given in this Hitachi infographic.

Note.

  1. It is intended to run these trains to Exeter, Plymouth and Penzance.
  2. The range of the train on batteries is not given.

These trains could use a mixture of diesel and battery power to travel to and from Okehampton and Paignton.

But I also believe that as Hitachi develop this train and batteries have an increased capacity, that it will be possible for the trin to do a round trip from Exeter to  Okehampton or Paignton without using diesel, provided the train can leave Exeter with a full battery.

According to Hitachi’s infographic, the train will take 10-15 minutes to fully charge at a station like Exeter. But that would add up to fifteen minutes to the timetable.

I feel if the roughly thirty-five miles of track between Exeter St Davids station  and Cogload Junction, which is to the North of Taunton, were to be electrified, then this would mean.

  • Trains would be fully charged for their excursions round Devon.
  • Trains would be fully charged for onward travel to Plymouth and Penzance.
  • Trains going to London would leave Taunton with full batteries to help them on their way on the ninety mile stretch without electrification to Newbury.
  • Trains going between Exeter and Bristol could take advantage of the electrification.

Eventually, this section of electrification might even help to enable trains to run between London and Exeter without using diesel.

As the railway runs alongside the M5 Motorway, this might ease planning for the electrification.

The gap in the electrification between Cogload Junction and Newbury could be difficult to bridge without using diesel.

  • Cogload Junction and Newbury are 85 miles apart.
  • I’ve never seen so many bridges over a railway.
  • I actually counted twenty-one bridges on the twenty miles between Westbury and Pewsey stations.
  • I suspect some will object, if some of the bridges are replaced with modern ones.
  • There would be a lot of disruption and expense, if a large proportion of these bridges were to be replaced.
  • Currently, Great Western Railway run expresses to Exeter, Plymouth and Penzance via Taunton and Newbury.

I think, there needs to be some very radical thinking and low cunning to solve the problem.

  • Battery technology and the best efforts of engineers from Hitachi and Hyperdrive Innovation may stretch the battery range sufficiently.
  • It might be possible to extend the electrification at the Newbury end to perhaps Bedwyn, as there are only a few bridges. This would shorten the distance by up to thirteen miles.
  • It may also be possible to extend the electrification at the Taunton end.
  • I would expect some bridges could be dealt with using discontinuous electrification techniques.

But I believe that full electrification between Newbury and Cogload junction might be an extremely challenging project.

There must also be the possibility of using lightweight overhead line structures, where challenges are made about inappropriate overhead gantries.

There is also a video.

Note.

  1. Electrification doesn’t have to be ugly and out-of-character with the surroundings.
  2. The main overhead structure of this gantry is laminated wood.

These gantries would surely be very suitable for the following.

  • Electrifying secondary routes and especially scenic ones.
  • Electrifying single lines and sidings.
  • Electrifying a bay platform, so that battery electric trains could be charged.

Innovative design could be one of the keys to more electrification.













March 19, 2021 Posted by | Transport | , , , , , , , , , , , , , | 5 Comments

The Proposal For Stonehenge And Wilton Junction Station

This article on the Salisbury Journal is entitled Wilton Railway Project On Track As Bid Submitted.

It starts with this paragraph.

An application to reopen the railway station in Wilton has reached the third round of the Restoring Your Railway Ideas Fund.

There are also more details in the February 2021 Edition of Modern Railways.

The following sections give more information and some of my thoughts.

Station Name

The station appears to be called Stonehenge and Wilton Junction in all the articles and reports.

Station Location

This page on the TransWilts web site, says this about the station.

Wilton is at the junction between the Salisbury to Bristol line and the Salisbury to Exeter line.
It is 7 miles to Stonehenge Visitor Centre. A consultants report by Atkins shows an economic case and a developer for housing at the site has been identified. Station cost is in the order of £15m.

This Google Map shows the area.

Note.

  1. The Wilton Park-and-Ride site at the top of the Map.
  2. The railway going South-East and North-West across the map is the Wessex Main Line, that links Salisbury and Bristol.
  3. The railway going South-East and West across the map is the West of England Main Line, that links Salisbury and Exeter.
  4. Both routes are double track.

It would appear that the new station would have platforms on both rail lines through the station.

Station Design

If Atkins reckon the station can be built for £15 million as I quoted earlier, it can’t be a very grand station.

The Modern Railways article says this about the station.

A park-and-ride facility at the station would reduce congestion in the centre of Salisbury. Improving London services in the proposal improves the cost-benefit ratio, so what is now envisaged is a four-platform station, with platforms on both the TransWilts and the Yeovil to London lines. The thinking is that the new station could work in tandem with the lengthening of the Tisbury loop and other proposals for possible expansion on the South Western route to Exeter that was floated in the latest Network Rail Continuous Modular Strategy.

My feelings are that a radical approach could yield an efficient station with a smaller number of platforms.

Train services through the station could include.

  • GWR – Cardiff Central and Portsmouth Harbour – Hourly – Transwilts Lines – Also calls at Salisbury
  • GWR – Great Malvern and Brighton or Southampton – Hourly – Transwilts Lines – Also calls at Salisbury
  • SWR – London Wareloo and Exeter – Hourly – Yeovil and London Lines – Also calls at Salisbury

There is also talk of extending the Transwilts hourly service between Swindon and Westbury to Salisbury and then on to Southampton via Romsey.

This would do the following.

  • Create a link to Southampton Airport.
  • Give the new station a Turn-Up-And-Go service to Salisbury.
  • The fourth service would mean that three services called on the Transwilts platforms and one service called on the Yeovil and London platforms.

So why not have one large platform between the two pairs of lines?

  • It would have a tunnel connecting it to the buses and the car parking.
  • One large lift would take passengers with limited mobility to the platform.
  • The Southern face of the platform, would handle all trains running on the Yeovil and London line. A single platform can easily handle an hourly fast service in both directions.
  • The Northern face of the platform, would handle all trains running on the Transwilts.
  • Three trains per hour (tph) in both directions, could probably be handled with some innovation and a long platform.

Why complicate everything with four platforms?

Link To Stonehenge

I haven’t been to Stonehenge since the 1950s, although I have observed it from traffic jams on nearby roads many times.

Surely, there is a chance here to connect the new station and the World Heritage Site with a zero-carbon battery or hydrogen bus.

As the distance between the station and Stonehenge is only about seven miles, it would probably be the easiest way to get large number of visitors to the unique site.

We probably need more well-planned zero-carbon bus links to historic, tourist and other important sites.







March 12, 2021 Posted by | Transport | , , , , | 4 Comments

Will Hitachi Announce A High Speed Metro Train?

As the UK high speed rail network increases, we are seeing more services and proposed services, where local services are sharing tracks, where trains will be running at 125 mph or even more.

London Kings Cross And Cambridge/Kings Lynn

This Great Northern service is run by Class 387 trains.

  • Services run between London Kings Cross and Kings Lynn or Cambridge
  • The Class 387 trains have a maximum operating speed of 110 mph.
  • The route is fully electrified.
  • The trains generally use the fast lines on the East Coast Main Line, South of Hitchin.
  • Most trains on the fast lines on the East Coast Main Line are travelling at 125 mph.
  • When in the future full digital in-cab ERTMS signalling is implemented on the East Coast Main Line, speeds of up to 140 mph should be possible in some sections between London Kings Cross and Hitchin.

I also believe that digital signalling may be able to provide a solution to the twin-track bottleneck over the Digswell Viaduct.

Consider.

  • Airliners have been flown automatically and safely from airport to airport for perhaps four decades.
  • The Victoria Line has been running automatically and safely at over twenty trains per hour (tph) for five decades. It is now running at over 30 tph.
  • I worked with engineers developing a high-frequency sequence control system for a complicated chemical plant in 1970.

We also can’t deny that computers are getting better and more capable.

For these reasons, I believe there could be an ERTMS-based solution to the problem of the Digswell Viaduct, which could be something like this.

  • All trains running on the two track section over the Digswell Viaduct and through Welwyn North station would be under computer control between Welwyn Garden City and Knebworth stations.
  • Fast trains would be slowed as appropriate to create spaces to allow the slow trains to pass through the section.
  • The driver would be monitoring the computer control, just as they do on the Victoria Line.

Much more complicated automated systems have been created in various applications.

The nearest rail application in the UK, is probably the application of digital signalling to London Underground’s Circle, District, Hammersmith & City and Metropolitan Lines.

This is known at the Four Lines Modernisation and it will be completed by 2023 and increase capacity by up to twenty-seven percent.

I don’t think it unreasonable to see the following maximum numbers of services running over the Digswell Viaduct by 2030 in both directions in every hour.

  • Sixteen fast trains
  • Four slow trains

That is one train every three minutes.

Currently, it appears to be about ten fast and two slow.

As someone, who doesn’t like to be on a platform, when a fast train goes through, I believe that some form of advanced safety measures should be installed at Welwyn North station.

It would appear that trains between London Kings Cross and King’s Lynn need to have this specification.

  • Ability to run at 125 mph on the East Coast Main Line
  • Ability to run at 140 mph on the East Coast Main Line, under control of full digital in-cab ERTMS signalling.

This speed increase could reduce the journey time between London Kings Cross and Cambridge to just over half-an-hour with London Kings Cross and King’s Lynn under ninety minutes.

The only new infrastructure needed would be improvements to the Fen Line to King’s Lynn to allow two tph, which I think is needed.

Speed improvements between Hitchin and Cambridge could also benefit timings.

London Kings Cross And Cambridge/Norwich

I believe there is a need for a high speed service between London Kings Cross and Norwich via Cambridge.

  • The Class 755 trains, that are capable of 100 mph take 82 minutes, between Cambridge and Norwich.
  • The electrification gap between Ely and Norwich is 54 miles.
  • Norwich station and South of Ely is fully electrified.
  • Greater Anglia’s Norwich and Cambridge service has been very successful.

With the growth of Cambridge and its incessant need for more space, housing and workers, a high speed train  between London Kings Cross and Norwich via Cambridge could tick a lot of boxes.

  • If hourly, it would double the frequency between Cambridge and Norwich until East-West Rail is completed.
  • All stations between Ely and Norwich get a direct London service.
  • Cambridge would have better links for commuting to the city.
  • London Kings Cross and Cambridge would be less than an hour apart.
  • If the current London Kings Cross and Ely service were to be extended to Norwich, no extra paths on the East Coast Main Line would be needed.
  • Trains could even split and join at Cambridge or Ely to give all stations a two tph service to London Kings Cross.
  • No new infrastructure would be required.

The Cambridge Cruiser would become the Cambridge High Speed Cruiser.

London Paddington And Bedwyn

This Great Western Railway service is run by Class 802 trains.

  • Services run between London Paddington and Bedwyn.
  • Services use the Great Western Main Line at speeds of up to 125 mph.
  • In the future if full digital in-cab ERTMS signalling is implemented, speeds of up to 140 mph could be possible on some sections between London Paddington and Reading.
  • The 13.3 miles between Newbury and Bedwyn is not electrified.

As the service would need to be able to run both ways between Newbury and Bedwyn, a capability to run upwards of perhaps thirty miles without electrification is needed. Currently, diesel power is used, but battery power would be better.

London Paddington And Oxford

This Great Western Railway service is run by Class 802 trains.

  • Services run between London Paddington and Oxford.
  • Services use the Great Western Main Line at speeds of up to 125 mph.
  • In the future if full digital in-cab ERTMS signalling is implemented, speeds of up to 140 mph could be possible on some sections between London Paddington and Didcot Parkway.
  • The 10.3 miles between Didcot Parkway and Oxford is not electrified.

As the service would need to be able to run both ways between Didcot Parkway and Oxford, a capability to run upwards of perhaps thirty miles without electrification is needed. Currently, diesel power is used, but battery power would be better.

Local And Regional Trains On Existing 125 mph Lines

In The UK, in addition to High Speed One and High Speed Two, we have the following lines, where speeds of 125 mph are possible.

  • East Coast Main Line
  • Great Western Main Line
  • Midland Main Line
  • West Coast Main Line

Note.

  1. Long stretches of these routes allow speeds of up to 125 mph.
  2. Full digital in-cab ERTMS signalling is being installed on the East Coast Main Line to allow running up to 140 mph.
  3. Some of these routes have four tracks, with pairs of slow and fast lines, but there are sections with only two tracks.

It is likely, that by the end of the decade large sections of these four 125 mph lines will have been upgraded, to allow faster running.

If you have Hitachi and other trains thundering along at 140 mph, you don’t want dawdlers, at 100 mph or less, on the same tracks.

These are a few examples of slow trains, that use two-track sections of 125 nph lines.

  • East Midlands Railway – 1 tph – Leicester and Lincoln – Uses Midland Main Line
  • East Midlands Railway – 1 tph – Liverpool and Norwich – Uses Midland Main Line
  • Great Western Railway – 1 tph – Cardiff and Portsmouth Harbour – Uses Great Western Main Line
  • Great Western Railway – 1 tph – Cardiff and Taunton – Uses Great Western Main Line
  • Northern – 1 tph – Manchester Airport and Cumbria – Uses West Coast Main Line
  • Northern – 1 tph – Newcastle and Morpeth – Uses East Coast Main Line
  • West Midlands Trains – Some services use West Coast Main Line.

Conflicts can probably be avoided by judicious train planning in some cases, but in some cases trains capable of 125 mph will be needed.

Southeastern Highspeed Services

Class 395 trains have been running Southeastern Highspeed local services since 2009.

  • Services run between London St. Pancras and Kent.
  • Services use Speed One at speeds of up to 140 mph.
  • These services are planned to be extended to Hastings and possibly Eastbourne.

The extension would need the ability to run on the Marshlink Line, which is an electrification gap of 25.4 miles, between Ashford and Ore.

Thameslink

Thameslink is a tricky problem.

These services run on the double-track section of the East Coast Main Line over the Digswell Viaduct.

  • 2 tph – Cambridge and Brighton – Fast train stopping at Hitchin, Stevenage and Finsbury Park.
  • 2 tph – Cambridge and Kings Cross – Slow train stopping at Hitchin, Stevenage, Knebworth, Welwyn North, Welwyn Garden City, Hatfield, Potters Bar and Finsbury Park
  • 2 tph – Peterborough and Horsham – Fast train stopping at Hitchin, Stevenage and Finsbury Park.

Note.

  1. These services are run by Class 700 trains, that are only capable of 100 mph.
  2. The fast services take the fast lines South of the Digswell Viaduct.
  3. South of Finsbury Park, both fast services cross over to access the Canal Tunnel for St, Pancras station.
  4. I am fairly certain, that I have been on InterCity 125 trains running in excess of 100 mph in places between Finsbury Park and Stevenage.

It would appear that the slow Thameslink trains are slowing express services South of Stevenage.

As I indicated earlier, I think it is likely that the Kings Cross and King’s Lynn services will use 125 mph trains for various reasons, like London and Cambridge in well under an hour.

But if 125 mph trains are better for King’s Lynn services, then they would surely improve Thameslink and increase capacity between London and Stevenage.

Looking at average speeds and timings on the 25 miles between Stevenage and Finsbury Park gives the following.

  • 100 mph – 15 minutes
  • 110 mph – 14 minutes
  • 125 mph – 12 minutes
  • 140 mph – 11 minutes

The figures don’t appear to indicate large savings, but when you take into account that the four tph running the Thameslink services to Peterborough and Cambridge stop at Finsbury Park and Stevenage and have to get up to speed, I feel that the 100 mph Class 700 trains are a hindrance to more and faster trains on the Southern section of the East Coast Main Line.

It should be noted, that faster trains on these Thameslink services would probably have better acceleration and and would be able to execute faster stops at stations.

There is a similar less serious problem on the Midland Main Line branch of Thameslink, in that some Thameslink services use the fast lines.

A couple of years ago, I had a very interesting chat with a group of East Midlands Railway drivers. They felt that the 100 mph Thameslink and the 125 mph Class 222 trains were not a good mix.

The Midland Main Line services are also becoming more complicated, with the new EMR Electric services between St. Pancras and Corby, which will be run by 110 mph Class 360 trains.

Hitachi’s Three Trains With Batteries

Hitachi have so far announced three battery-electric trains. Two are based on battery packs being developed and built by Hyperdrive Innovation.

Hyperdrive Innovation

Looking at the Hyperdrive Innovation web site, I like what I see.

Hyperdrive Innovation provided the battery packs for JCB’s first electric excavator.

Note that JCB give a five-year warranty on the Hyperdrive batteries.

Hyperdrive have also been involved in the design of battery packs for aircraft push-back tractors.

The battery capacity for one of these is given as 172 kWh and it is able to supply 34 kW.

I was very surprised that Hitachi didn’t go back to Japan for their batteries, but after reading Hyperdrive’s web site about the JCB and Textron applications, there would appear to be good reasons to use Hyperdrive.

  • Hyperdrive have experience of large lithium ion batteries.
  • Hyperdrive have a design, develop and manufacture model.
  • They seem to able to develop solutions quickly and successfully.
  • Battery packs for the UK and Europe are made in Sunderland.
  • Hyperdrive are co-operating with Nissan, Warwick Manufacturing Group and Newcastle University.
  • They appear from the web site to be experts in the field of battery management, which is important in prolonging battery life.
  • Hyperdrive have a Taiwanese partner, who manufactures their battery packs for Taiwan and China.
  • I have done calculations based on the datasheet for their batteries and Hyperdrive’s energy density is up with the best

I suspect, that Hitachi also like the idea of a local supplier, as it could be helpful in the negotiation of innovative applications. Face-to-face discussions are easier, when you’re only thirty miles apart.

Hitachi Regional Battery Train

The first train to be announced was the Hitachi Regional Battery Train, which is described in this Hitachi infographic.

Note.

  1. It is only a 100 mph train.
  2. The batteries are to be designed and manufactured by Hyperdrive Innovation.
  3. It has a range of 56 miles on battery power.
  4. Any of Hitachi’s A Train family like Class 800, 802 or 385 train can be converted to a Regional Battery Train.

No orders have been announced yet.

But it would surely be very suitable for routes like.

  • London Paddington And Bedwyn
  • London Paddington And Oxford

It would also be very suitable for extensions to electrified suburban routes like.

  • London Bridge and Uckfield
  • London Waterloo and Salisbury
  • Manchester Airport and Windermere.
  • Newcastle and Carlisle

It would also be a very sound choice to extend electrified routes in Scotland, which are currently run by Class 385 trains.

Hitachi InterCity Tri-Mode Battery Train

The second train to be announced was the Hitachi InterCity Tri-Mode Battery Train, which is described in this Hitachi infographic.

Note.

  1. Only one engine is replaced by a battery.
  2. The batteries are to be designed and manufactured by Hyperdrive Innovation.
  3. Typically a five-car Class 800 or 802 train has three diesel engines and a nine-car train has five.
  4. These trains would obviously be capable of 125 mph on electrified main lines and 140 mph on lines fully equipped with digital in-cab ERTMS signalling.

Nothing is said about battery range away from electrification.

Routes currently run from London with a section without electrification at the other end include.

  • London Kings Cross And Harrogate – 18.3 miles
  • London Kings Cross And Hull – 36 miles
  • London Kings Cross And Lincoln – 16.5 miles
  • London Paddington And Bedwyn – 13.3 miles
  • London Paddington And Oxford – 10.3 miles

In the March 2021 Edition of Modern Railways, LNER are quoted as having aspirations to extend the Lincoln service to Cleethorpes.

  • With all energy developments in North Lincolnshire, this is probably a good idea.
  • Services could also call at Market Rasen and Grimsby.
  • Two trains per day, would probably be a minimum frequency.

But the trains would need to be able to run around 64 miles each way without electrification. Very large batteries and/or charging at Cleethorpes will be needed.

Class 803 Trains For East Coast Trains

East Coast Trains have ordered a fleet of five Class 803 trains.

  • These trains appear to be built for speed and fast acceleration.
  • They have no diesel engines, which must save weight and servicing costs.
  • But they will be fitted with batteries for emergency power to maintain onboard  train services in the event of overhead line failure.
  • They are planned to enter service in October 2021.

Given that Hyperdrive Innovation are developing traction batteries for the other two Hitachi battery trains, I would not be the least bit surprised if Hyperdrive were designing and building the batteries for the Class 803 trains.

  • Hyperdrive batteries are modular, so for a smaller battery you would use less modules.
  • If all coaches are wired for a diesel engine, then they can accept any power module like a battery or hydrogen pack, without expensive redesign.
  • I suspect too, that the battery packs for the Class 803 trains could be tested on an LNER Class 801 train.

LNER might also decide to replace the diesel engines on their Class 801 trains with an emergency battery pack, if it were more energy efficient and had a lighter weight.

Thoughts On The Design Of The Hyperdrive innovation Battery Packs

Consider.

  • Hitachi trains have a sophisticated computer system, which on start-up can determine the configuration of the train or whether it is more than one train running as a longer formation or even being hauled by a locomotive.
  • To convert a bi-mode Class 800 train to an all-electric Class 801 the diesel engines are removed. I suspect that the computer is also adjusted, but train formation may well be totally automatic and independent of the driver.
  • Hyperdrive Innovation’s battery seem to be based on a modular system, where typical modules have a capacity of 5 kWh, weighs 32 Kg and has a volume of 0.022 cu metres.
  • The wet mass of an MTU 16V 1600 R80L diesel engine commonly fitted to AT-300 trains of different types is 6750 Kg or nearly seven tonnes.
  • The diesel engine has a physical size of 1.5 x 1.25 x 0.845 metres, which is a volume of 1.6 cubic metres.
  • In How Much Power Is Needed To Run A Train At 125 mph?, I calculated that a five-car Class 801 electric train, needed 3.42 kWh per vehicle-mile to maintain 125 mph.
  • It is likely, than any design of battery pack, will handle the regenerative braking.

To my mind, the ideal solution would be a plug compatible battery pack, that the train’s computer thought was a diesel engine.

But then I have form in the area of plug-compatible electronics.

At the age of sixteen, for a vacation job, I worked in the Electronics Laboratory at Enfield Rolling Mills.

It was the early sixties and one of their tasks was at the time replacing electronic valve-based automation systems with new transistor-based systems.

The new equipment had to be compatible to that which it replaced, but as some were installed in dozens of places around the works, they had to be able to be plug-compatible, so that they could be quickly changed. Occasionally, the new ones suffered infant-mortality and the old equipment could just be plugged back in, if there wasn’t a spare of the new equipment.

So will Hyperdrive Innovation’s battery-packs have the same characteristics as the diesel engines that they replace?

  • Same instantaneous and continuous power output.
  • Both would fit the same mountings under the train.
  • Same control and electrical power connections.
  • Compatibility with the trains control computer.

I think they will as it will give several advantages.

  • The changeover between diesel engine and battery pack could be designed as a simple overnight operation.
  • Operators can mix-and-match the number of diesel engines and battery-packs to a given route.
  • As the lithium-ion cells making up the battery pack improve, battery capacity and performance can be increased.
  • If the computer, is well-programmed, it could reduce diesel usage and carbon-emissions.
  • Driver conversion from a standard train to one equipped with batteries, would surely be simplified.

As with the diesel engines, all battery packs could be substantially the same across all of Hitachi’s Class 80x trains.

What Size Of Battery Would Be Possible?

If Hyperdrive are producing a battery pack with the same volume as the diesel engine it replaced, I estimate that the battery would have a capacity defined by.

5 * 1.6 / 0.022 = 364 kWh

In an article in the October 2017 Edition of Modern Railways, which is entitled Celling England By The Pound, Ian Walmsley says this in relation to trains running on the Uckfield Branch, which is not very challenging.

A modern EMU needs between 3 and 5 kWh per vehicle mile for this sort of service.

As a figure of 3.42 kWh per vehicle-mile to maintain 125 mph, applies to a Class 801 train, I suspect that a figure of 3 kWh or less could apply to a five-car Class 800 train trundling at around 80-100 mph to Bedwyn, Cleethorpes or Oxford.

  • A one-battery five-car train would have a range of 24.3 miles
  • A two-battery five-car train would have a range of 48.6 miles
  • A three-battery five-car train would have a range of 72.9 miles

Note.

  1. Reducing the consumption to 2.5 kWh per vehicle-mile would give a range of 87.3 miles.
  2. Reducing the consumption to 2 kWh per vehicle-mile would give a range of 109.2 miles.
  3. Hitachi will be working to reduce the electricity consumption of the trains.
  4. There will also be losses at each station stop, as regenerative braking is not 100 % efficient.

But it does appear to me, that distances of the order of 60-70 miles would be possible on a lot of routes.

Bedwyn, Harrogate, Lincoln and Oxford may be possible without charging before the return trip.

Cleethorpes and Hull would need a battery charge before return.

A Specification For A High Speed Metro Train

I have called the proposed train a High Speed Metro Train, as it would run at up to 140 mph on an existing high speed line and then run a full or limited stopping service to the final destination.

These are a few thoughts.

Electrification

In some cases like London Kings Cross and King’s Lynn, the route is already electrified and batteries would only be needed for the following.

  • Handling regenerative braking.
  • Emergency  power in case of overhead line failure.
  • Train movements in depots.

But if the overhead wires on a branch line. are in need of replacement, why not remove them and use battery power? It might be the most affordable and least disruptive option to update the power supply on a route.

The trains would have to be able to run on both types of electrification in the UK.

  • 25 KVAC overhead.
  • 750 VDC third rail.

This dual-voltage capability would enable the extension of Southeastern Highspeed services.

Operating Speed

The trains must obviously be capable of running at the maximum operating speed on the routes they travel.

  • 125 mph on high speed lines, where this speed is possible.
  • 140 mph on high speed lines equipped with full digital in-cab ERTMS signalling, where this speed is possible.

The performance on battery power must be matched with the routes.

Hitachi have said, that their Regional Battery trains can run at up to 100 mph, which would probably be sufficient for most secondary routes in the UK and in line with modern diesel and electric multiple units.

Full Digital In-cab ERTMS Signalling

This will be essential and is already fitted to some of Hitachi’s trains.

Regenerative Braking To Batteries

Hitachi’s battery electric  trains will probably use regenerative braking to the batteries, as it is much more energy efficient.

It also means that when stopping at a station perhaps as much as 70-80% of the train’s kinetic energy can be captured in the batteries and used to accelerate the train.

In Kinetic Energy Of A Five-Car Class 801 Train, I showed that at 125 mph the energy of a full five-car train is just over 100 kWh, so batteries would not need to be unduly large.

Acceleration

This graph from Eversholt Rail, shows the acceleration and deceleration of a five-car Class 802 electric train.

As batteries are just a different source of electric power, I would think, that with respect to acceleration and deceleration, that the performance of a battery-electric version will be similar.

Although, it will only achieve 160 kph instead of the 200 kph of the electric train.

I estimate from this graph, that a battery-electric train would take around 220 seconds from starting to decelerate for a station to being back at 160 kph. If the train was stopped for around eighty seconds, a station stop would add five minutes to the journey time.

London Kings Cross And Cleethorpes

As an example consider a service between London Kings Cross and Cleethorpes.

  • The section without electrification between Newark and Cleethorpes is 64 miles.
  • There appear to be ambitions to increase the operating speed to 90 mph.
  • Local trains seem to travel at around 45 mph including stops.
  • A fast service between London Kings Cross and Cleethorpes would probably stop at Lincoln Central, Market Rasen and Grimsby Town.
  • In addition, local services stop at Collingham, Hykeham, Barnetby and Habrough.
  • London Kings Cross and Newark takes one hour and twenty minutes.
  • London Kings Cross and Cleethorpes takes three hours and fifteen minutes with a change at Doncaster.

I can now calculate a time between Kings Cross and Cleethorpes.

  • If a battery-electric train can average 70 mph between Newark and Cleethorpes, it would take 55 minutes.
  • Add five minutes for each of the three stops at Lincoln Central, Market Rasen and Grimsby Town
  • Add in the eighty minutes between London Kings Cross and Newark and that would be  two-and-a-half hours.

That would be very marketing friendly and a very good start.

Note.

  1. An average speed of 80 mph would save seven minutes.
  2. An average speed of 90 mph would save twelve minutes.
  3. I suspect that the current bi-modes would be slower by a few minutes as their acceleration is not as potent of that of an electric train.

I have a feeling London Kings Cross and Cleethorpes via Lincoln Central, Market Rasen and Grimsby Town, could be a very important service for LNER.

Interiors

I can see a new lightweight and more energy efficient interior being developed for these trains.

In addition some of the routes, where they could be used are popular with cyclists and the current Hitachi trains are not the best for bicycles.

Battery Charging

Range On Batteries

I have left this to last, as it depends on so many factors, including the route and the quality of the driving or the Automatic Train Control

Earlier, I estimated that a five-car train with all three diesel engines replaced by batteries, when trundling around Lincolnshire, Oxfordshire or Wiltshire could have range of up to 100 miles.

That sort of distance would be very useful and would include.

  • Ely and Norwich
  • Newark and Cleethorpes
  • Salisbury and Exeter

It might even allow a round trip between the East Coast Main Line and Hull.

The Ultimate Battery Train

This press release from Hitachi is entitled Hitachi And Eversholt Rail To Develop GWR Intercity Battery Hybrid Train – Offering Fuel Savings Of More Than 20%.

This is a paragraph.

The projected improvements in battery technology – particularly in power output and charge – create opportunities to replace incrementally more diesel engines on long distance trains. With the ambition to create a fully electric-battery intercity train – that can travel the full journey between London and Penzance – by the late 2040s, in line with the UK’s 2050 net zero emissions target.

Consider.

  • Three batteries would on my calculations give a hundred mile range.
  • Would a train with no diesel engines mean that fuel tanks, radiators and other gubbins could be removed and more or large batteries could be added.
  • Could smaller batteries be added to the two driving cars?
  • By 2030, let alone 2040, battery energy density will have increased.

I suspect that one way or another these trains could have a range on battery power of between 130 and 140 miles.

This would certainly be handy in Scotland for the two routes to the North.

  • Haymarket and Aberdeen, which is 130 miles without electrification.
  • Stirling and Inverness, which is 111 miles without electrification, if the current wires are extended from Stirling to Perth, which is being considered by the Scottish Government.

The various sections of the London Paddington to Penzance route are as follows.

  • Paddington and Newbury – 53 miles – electrified
  • Newbury and Taunton – 90 miles – not electrified
  • Taunton and Exeter – 31 miles – not electrified
  • Exeter and Plymouth – 52 miles – not electrified
  • Plymouth and Penzance – 79 miles – not electrified

The total length of the section without electrification between Penzance and Newbury  is a distance of 252 miles.

This means that the train will need a battery charge en route.

I think there are three possibilities.

  • Trains can take up to seven minutes for a stop at Plymouth. As London and Plymouth trains will need to recharge at Plymouth before returning to London, Plymouth station could be fitted with comprehensive recharge facilities for all trains passing through. Perhaps the ideal solution would be to electrify all lines and platforms at Plymouth.
  • Between Taunton and Exeter, the rail line runs alongside the M5 motorway. This would surely be an ideal section to electrify, as it would enable battery electric trains to run between Exeter and both Newbury and Bristol.
  • As some trains terminate at Exeter, there would probably need to be charging facilities there.

I believe that the date of the late 2040s is being overly pessimistic.

I suspect that by 2040 we’ll be seeing trains between London and Aberdeen, Inverness and Penzance doing the trips without a drop of diesel.

But Hitachi are making a promise of London and Penzance by zero-carbon trains, by the late-2040s, because they know they can keep it.

And Passengers and the Government won’t mind the trains being early!

Conclusion

This could be a very useful train to add to Hitachi’s product line.







March 9, 2021 Posted by | Transport | , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , | Leave a comment

Possible Destinations For An Intercity Tri-Mode Battery Train

Currently, the following routes are run or are planned to be run by Hitachi’s Class 800, 802, 805 and 810 trains, where most of the route is electrified and sections do not have any electrification.

  • Avanti West Coast – Euston and Chester – 21 miles
  • Avanti West Coast – Euston and Shewsbury – 29.6 miles
  • Avanti West Coast – Euston and Wrexham General – 33 miles
  • Grand Central – Kings Cross and Sunderland – 47 miles
  • GWR – Paddington and Bedwyn – 13.3 miles
  • GWR – Paddington and Bristol Temple Meads- 24.5 miles
  • GWR – Paddington and Cheltenham – 43.3 miles
  • GWR – Paddington and Great Malvern – 76 miles
  • GWR – Paddington and Oxford – 10.4 miles
  • GWR – Paddington and Penzance – 252 miles
  • GWR – Paddington and Swansea – 45.7 miles
  • Hull Trains – Kings Cross and Hull – 36 miles
  • LNER – Kings Cross and Harrogate – 18.5 miles
  • LNER – Kings Cross and Huddersfield – 17 miles
  • LNER – Kings Cross and Hull – 36 miles
  • LNER – Kings Cross and Lincoln – 16.5 miles
  • LNER – Kings Cross and Middlesbrough – 21 miles
  • LNER – Kings Cross and Sunderland – 47 miles

Note.

  1. The distance is the length of line on the route without electrification.
  2. Five of these routes are under twenty miles
  3. Many of these routes have very few stops on the section without electrification.

I suspect that Avanti West Coast, Grand Central, GWR and LNER have plans for other destinations.

A Battery Electric Train With A Range of 56 Miles

Hitachi’s Regional Battery Train is deescribed in this infographic.

The battery range is given as 90 kilometres or 56 miles.

This battery range would mean that of the fifteen destinations I proposed, the following could could be achieved on a full battery.

  • Chester
  • Shewsbury
  • Wrexham General
  • Bedwyn
  • Bristol Temple Meads
  • Cheltenham
  • Oxford
  • Swansea
  • Hull
  • Harrogate
  • Huddersfield
  • Lincoln
  • Middlesbrough

Of these a return trip could probably be achieved without charging to Chester, Shrewsbury, Bedwyn, Bristol Temple Meads, Oxford, Harrogate, Huddersfield, Lincoln and Middlesbrough.

  • 86.7 % of destinations could be reached, if the train started with a full battery
  • 60 % of destinations could be reached on an out and back basis, without charging at the destination.

Only just over a quarter of the routes would need, the trains to be charged at the destination.

Conclusion

It looks to me, that Hitachi have done some analysis to determine the best battery size. But that is obviously to be expected.







December 30, 2020 Posted by | Transport | , , , , , , , , , | Leave a comment
