Network Rail’s Big Push

The title of this press release on the Network Rail web site is 11,000 Tonne Tunnel To Be Installed On The Railway In First For UK Engineering.

They have also released this aerial photograph of the tunnel, before it is pushed into place.

Note.

  1. The tunnel, which is just a curved concrete box is in the middle of the picture.
  2. To its left is the double-track Peterborough-Lincoln Line.
  3. Running across the far end of the tunnel are the multiple tracks of the East Coast Main Line.
  4. Peterborough is a few miles to the left, with the North to the right.

This Google Map shows the same area from directly above.

Note.

  1. The double-tracks of the Stamford Lines closest to the South-West corner of the map.  These link the Peterborough-Birmingham Line to Peterborough.
  2. Next to them are the triple tracks of the East Coast Main Line.
  3. The third rail line is the double-track of the Peterborough and Lincoln Line.
  4. The new tunnel can be seen at the top of the map.

This map from Network Rail, shows the new track layout.

The map shows that the Stamford Line will divide with two tracks (1 and 4) going North to Stamford as now. Two new tracks (2 and 3) will dive-under the East Coast Main Line to join the  existing Peterborough and Lincoln Line.

The tracks will run through the tunnel in the pictures, after it has been pushed under the East Coast Main Line.

  • This will mean that the many freight trains between Peterborough and Lincoln will not have to cross the East Coast Main Line on the flat.
  • This in turn could allow faster running of trains on the East Coast Main Line, that are not stopping at Peterborough.

This second Google Map shows the area to the North of the first map.

Note.

  1. The East Coast Main Line in the South-West corner of the map.
  2. The Peterborough and Lincoln Line curving from North-South across the map.
  3. A bridge would appear to be being constructed to take the A15 road over the new tracks, that will go through the tunnel.
  4. Another bridge will be constructed to take Lincoln Road over the new tracks.

It is certainly not a small project.

That is emphasised by this third Google Map, which is to the North of the previous map.

This map would appear to show space for more than a pair of tracks.

It looks to me, that space is being left for future rail-related development.

  • Could it be for a small freight yard, where trains could wait before proceeding?
  • If it were electrified, it could be where freight trains to and from London, switched between electric and diesel power.
  • Could it be passing loops, so that freight trains can keep out of the way of faster passenger trains?
  • Would it be a place for a possible new station?

If it is to be a full rail freight interchange, I can’t find any mention of it on the Internet.

The Big Push

Summarising, what is said in the press release, I can say.

  • Major works to occur over nine days between 16 and 24 January
  • It will be pushed at 150cm per hour.
  • A reduced level of service will operate.
  • It will take several weekends.

I hope it’s being filmed for later broadcasting.

Thoughts On Services

I have a few thoughts on passenger services.

London And Lincoln Via Spalding And Sleaford

Consider.

  • Peterborough and Lincoln is 57 miles.
  • The route has lots of level crossings.
  • Much of the route between Peterborough and Lincoln has an operating speed of 75 mph
  • There is a 50 mph limit through Spalding. Is this to cut down noise?
  • Trains between Peterborough and Lincoln take a shortest time of one hour and twenty-three minutes, with four stops.
  • Peterborough and Lincoln is 57 miles.
  • This is an average speed of 41 mph.

I wonder what time a five-car Class 800 train would take to do the journey.

  • At an average speed of 50 mph, the train would take 68 minutes and save 15 minutes.
  • At an average speed of 60 mph, the train would take 57 minutes and save 26 minutes.
  • At an average speed of 70 mph, the train would take 49 minutes and save 18 minutes.

As the fastest London Kings Cross and Peterborough time is 46 minutes, this would mean that with an average speed of 60 mph, a time between London Kings Cross of one hour and forty-three minutes could be possible.

  • There could be additional time savings by only stopping at Peterborough, Spalding and Sleaford.
  • The Werrington Dive Under looks to be built for speed and could save time.
  • If the 50 mph limit through Spalding is down to noise, battery electric trains like a Hitachi Intercity Tri-Mode Battery Train might be able to go through Spalding faster.
  • Could some track improvements save time between Peterborough and Lincoln?

As the fastest journeys via Newark to Lincoln take one hour and fifty-six minutes, it looks to me, that LNER might be able to save time by going via Spalding and Sleaford after the Werrington Dive Under opens.

London And Skegness

If there were a fast London train from Sleaford, it will take under an hour and thirty minutes between London Kings Cross and Sleaford.

  • Currently, the connecting train between Skegness and Sleaford takes an hour for the forty miles.
  • The service is currently run by Class 158 trains.
  • With some 100 mph trains on the Skegness and Sleaford service, it might be possible to travel between London and Skegness in two hours and fifteen minutes with a change at Sleaford.

There would appear to be possibilities to improve the service between London and Skegness.

Lincoln And Cambridge

I used to play real tennis at Cambridge with a guy, who was a Cambridge expansionist.

He believed that Cambridge needed more space and that it should strongly rcpand high-tech research, development and manufacturing all the way across the fens to Peterborough and beyond.

I listened to his vision with interest and one thing it needed is a four trains per hour express metro between Cambridge and Peterborough.

  • Ely and Peterborough should be electrified for both passenger and freight trains.
  • March and Spalding should be reopened.
  • Cambridge has the space for new services from the North.

Extending the Lincoln and Peterborough service to Cambridge could be a good start.

Conclusion

The Werrington Dive Under will certainly improve services on the East Coast Main Line.

I also feel, that it could considerably improve rail services between London and South Lincolnshire.

It certainly looks, like Network Rail have designed the Werrington Dive Under to handle more traffic than currently uses the route.

Towns like Boston, Skegness, Sleaford and Spalding aren’t going to complain.











January 11, 2021 Posted by | Transport | , , , , , , , , | Leave a comment

Beeching Reversal – Ferryhill Station Reopening

This is one of the Beeching Reversal projects that the Government and Network Rail are proposing to reverse some of the Beeching cuts. There used to be a Ferryhill station on the East Coast Main Line. It closed in 1967 and burnt down in 1969, before being demolished.

I first noted the station in Boris Johnson Backs Station Opening Which Could See Metro Link To County Durham, after Boris promised it would be built in PMQs.

I then mentioned the station in Northern Powerhouse Rail – Significant Upgrades Of The East Coast Main Line From Leeds To Newcastle (Via York And Darlington) And Restoration Of The Leamside Line.

Last night, I read this document from Railfuture, which talks about rail improvements in the North East and on the East Coast Main Line.

In the document, Ferryhill station is mentioned eighteen times.

Reopening Ferryhill station would appear to have support at all levels.

The Location Of Ferryhill Station

This Google Map shows the general area of the proposed Ferryhill station.



Note.

  1. Ferryhill is the village in the North-West corner of the map.
  2. The lion-shaped quarry in the North-East is destined to become a landfill site.
  3. Below this is Thrislington Plantation, which is a National Nature Reserve.
  4. The East Coast Main Line runs North-South between the village and the quarry.

South of the village the line splits, as is shown in detail in this second Google Map.

Note.

  • Ferryhill South junction by Denhamfields Garage, with the nearby Ferryhill Station Primary School
  • The line going South-East is the Stillington freight line to Teesside.
  • The other line going in a more Southerly direction is the electrified East Coast Main Line to Darlington and the South.
  • Between Ferryhill South junction and Tursdale Junction with the Leamside Line is a 2.5 mile four-track electrified railway.

I suspect the station could be any convenient location, to the North of the junction.

Railfuture have strong opinions on the station and feel it should be a Park-and-Ride station for the settlements in the former North Durham coalfield, with frequent services to Newcastle.

Current Passenger Train Services Through Ferryhill

These services currently pass the location of the proposed Ferryhill station.

  • LNER – London Kings Cross and Edinburgh via York, Darlington. Newcastle and Berwick-upon-Tweed
  • LNER – London Kings Cross and Edinburgh via Peterborough, Newark North Gate, Doncaster, York, Darlington, Durham and Newcastle
  • CrossCountry – Plymouth and Edinburgh via Totnes, Newton Abbot, Exeter St Davids, Tiverton Parkway, Taunton, Bristol Temple Meads, Bristol Parkway, Cheltenham Spa, Birmingham New Street, Derby, Chesterfield, Sheffield, Wakefield Westgate, Leeds, York, Darlington, Durham and Newcastle
  • CrossCountry – Southampton and Newcastle via Birmingham New Street, Derby, Sheffield, Doncaster, York, Darlington and Durham
  • TransPennine Express – Liverpool Lime Street and Edinburgh via Newton-le-Willows, Manchester Victoria, Huddersfield, Leeds, York, Darlington, Durham, Newcastle and Morpeth
  • TransPennine Express – Manchester Airport and Newcastle via Manchester Piccadilly, Manchester Oxford Road, Manchester Victoria, Huddersfield, Dewsbury, Leeds, York, Northallerton, Darlington and Durham

Note.

  1. All trains have a frequency of one train per hour (tph)
  2. All trains call at York, Darlington and Newcastle.
  3. I have missed out some of the intermediate stations, where trains don’t call at least hourly.
  4. I have missed out stations South of Birmingham New Street.
  5. A few Northern Trains services pass through at Peak times or to go to and from depots.

I suspect some of these services could stop and to encourage commuters to Newcastle, Durham and Darlington to swap from car to train,

I also suspect that Ferryhill station needs a frequency of at least two tph and if possible four! Four tph would give a Turn-up-and-Go service to Darlington, Newcastle and York.

Planned And Possible Future Passenger Train Services Through Ferryhill

From various sources, these services are either planned or possible.

High Speed Two

High Speed Two are planning the following services, that will pass through.

  • Birmingham Curzon Street and Newcastle via East Midlands Hub, York, Darlington and Durham.
  • London Euston and Newcastle via Old Oak Common, East Midlands Hub and York.
  • London Euston and Newcastle via Old Oak Common, East Midlands Hub, York and Darlington.

Note.

  1. All trains have a frequency of one tph.
  2. All trains call at York, East Midlands Hub, York and Newcastle.
  3. All trains will be 200 metres long.

I feel that Ferryhill station should have platforms long enough to accommodate these trains and other long trains, to future-proof the design and to cater for possible emergencies.

The longest trains on the route would probably be one of the following.

  • A pair of five-car Class 800 trains or similar, which would be 260 metres long.
  • A High Speed Two Classic-Compatible train, which would be 200 metres long.

Unless provision needed to be made for pairs of High Speed Two Classic-Compatible trains.

East Coast Trains

From next year, East Coast Trains, intend to run a five trains per day (tpd) service between London and Edinburgh via Stevenage, Newcastle and Morpeth.

Note that in Thoughts On East Coast Trains, I said this service would stop at Durham, as that was said in Wikipedia at the time.

Northern Powerhouse Rail

Northern Powerhouse Rail has an objective to to run four tph between Leeds and Newcastle in 58 minutes.

At present there are only three tph on this route, two tph from TransPennine Express and one tph from CrossCountry. All three services stop at Leeds, York, Darlington, Durham and Newcastle.

I believe that the best way to provide the fourth service between Leeds and Newcastle would be to run a third LNER service between London Kings Cross and Edinburgh, when upgrades to the East Coast Main Line give the train operating company another path.

  • The service would only stop en route at Leeds and Newcastle.
  • It would increase the frequency between London Kings Cross and Leeds to three tph
  • It would increase the frequency between London Kings Cross and Newcastle to three tph
  • It would increase the frequency between London Kings Cross and Edinburgh to three tph
  • It would increase the frequency between London Leeds and Newcastle to four tph
  • It would run non-stop between London Kings Cross and Leeds, in under two hours.

I believe that, when all the upgrades to the East Coast Main Line are complete, that such a service could match or even better High Speed Two’s time of three hours and forty-eight minutes between London and Edinburgh.

Ferryhill And Teesside Via The Stillington Freight Line

The Clarence Railway is described in this paragraph in its Wikipedia entry.

The Clarence Railway was an early railway company that operated in north-east England between 1833 and 1853. The railway was built to take coal from mines in County Durham to ports on the River Tees and was a competitor to the Stockton and Darlington Railway (S&DR). It suffered financial difficulty soon after it opened because traffic was low and the S&DR charged a high rate for transporting coal to the Clarence, and the company was managed by the Exchequer Loan Commissioners after July 1834.

But it has left behind a legacy of useful rail lines, that connect important factories, ports, towns, works on other railways on Teesside.

This Google Map shows the triangle between Eaglescliffe, Stockton-on-Tees and Thornaby stations.

Note.

  1. Eaglescliffe station is in the South-West corner of the map and lines from the station lead to Darlington and Northallerton stations.
  2. Thornaby station is in the North-East corner of the map and connects to Middlesbrough station.
  3. Stockton station is at the North of the map.

Tracks connect the three stations.

This Google Map shows the connection between Thornaby and Stockton stations.

Note.

  1. Stockton station is at the North of the map.
  2. Thornaby station is at the East of the map.
  3. In the South-Western corner of the map is a triangular junction, that links Eaglescliffe, Stockton-on-Tees and Thornaby stations.

Currently, this triangular junction, allows trains to go between.

  • Middlesbrough and Newcastle via Thornaby, Stockton, Hartlepool and Sunderland.
  • Middlesbrough and Darlington via Thornaby and Eaglescliffe.
  • Middlesbrough and Northallerton via Thornaby and Eaglescliffe.

But it could be even better.

This Google Map shows another triangular junction to the North of Stockton station.

Note.

  1. The Southern junction of the triangle leads to Stockton station and ultimately to Darlington, Eaglescliffe, Middlesbrough, Northallerton and Thornaby.
  2. The Eastern junction leads to Hartlepool, Sunderland and Newcastle.

So where does the Western Junction lead to?

The railway is the Stillington Branch Line.

  • It leads to Ferryhill.
  • It is about ten miles long.
  • It is double-track.
  • There used to be intermediate stations at Radmarshall, Stillington and Sedgefield.

Looking at timings for trains on the various sections of the route gives.

  • Middlesbrough and Stockton – 11 minutes
  • Stockton and Ferryhill South Junction – 23 minutes
  • Ferryhill South Junction and Newcastle – 20 minutes

This gives a timing of 54 minutes compared with up to 78 minutes for the current service on the Durham Coast Line.

In their document, Railfuture gives this as one of their campaigns.

Providing Faster Journeys Teesside to Tyneside by running passenger services from
Middlesbrough, Thornaby and Stockton via the 10 mile Stillington freight only line and then via the
East Coast Main Line to Newcastle. Our aim is to reduce overall journey time on direct train
between Middlesbrough to Newcastle from 1 hour 15 minutes to 55 minutes and so open up many
additional job opportunities to the residents of both areas.

My calculations say that it should be possible, to run a useful service between Middlesbrough and Newcastle, via the Stillington freight line.

  • The route is used regularly for freight trains and by LNER for what look to be testing or empty stock movements.
  • Will any station be built at Radmarshall, Stillington or Sedgefield?
  • I estimate that between Ferryhill South Junction and Middlesbrough, is about fifteen miles, so it might be possible to run a Middlesbrough and Newcastle service using battery electric trains, like Hitachi’s Regional Battery Trains, which would be charged on the East Coast Main Line.

Activating the route, doesn’t look to be the most expensive passenger reopening on the cards.

I suspect though, that if passenger services were to be run on the Stillington Line, that Ferryhill station, will need platforms on both the East Coast Main Line and the Stillington Line.

Services could include.

  • Newcastle and Middlesbrough via Ferryhill
  • Newcastle and Hartlepool via Ferryhill
  • Newcastle and York via Eaglescliffe and Ferryhill, with a reverse at Middlesbrough.



Note.

  1. The Northern terminus could be Ferryhill for some trains.
  2. Two tph between Stockton and Ferryhill would be a useful service.
  3. Would a Newcastle and Middlesbrough service call at the poorly-served Chester-le-Street station to improve services?

I also feel that as some of these services will be running on the East Coast Main Line between Ferryhill and Newcastle, it probably would be desirable for these services to be run by Hitachi’s Regional Battery Trains, which would be capable of maintaining the maximum speed for the route, as all the other passenger services can at present!

Ferryhill And Tyneside Via The Leamside Line

The reopening of the Leamside Line is a high priority of Northern Powerhouse Rail, which I wrote about in Northern Powerhouse Rail – Significant Upgrades Of The East Coast Main Line From Leeds To Newcastle (Via York And Darlington) And Restoration Of The Leamside Line.

In their document, Railfuture gives this as one of their campaigns.

Reopening the rail line from Ferryhill to Pelaw (the Leamside Line) with the aim of providing
services that will improve local connections and open new opportunities to people living in this part
of County Durham, as well as providing relief for congestion on the existing line through Durham.

This reopening has been talked about for years, so I suspect that Network Rail know the problems and at least have a rough estimate for what needs to be done and how much it will cost.

The Wikipedia entry for the Leamside Line has a section, which is entitled Proposed Re-Opening, Upgrade and Development, where this is the first paragraph.

Since the line’s closure in the early 1990s, a number of proposals to re-open the Leamside Line were put forward, including plans by AECOM, ATOC, Durham County Council, Railtrack and Tyne and Wear PTE. The line has been considered for a number of potential uses, including a regional suburban rail service linking Tyneside and Teesside, a diversionary freight route for the East Coast Main Line, and an extension to the Tyne and Wear Metro network.

Wikipedia also states that an application to the Restoring Your Railway Fund for money for a feasibility study was unsuccessful.

All that could change with the developments needed between Leeds and Newcastle for High Speed Two and Northern Powerhouse Rail.

  • High Speed Two are planning to run at least three tph to and from Newcastle.
  • Northern Powerhouse Rail are planning to run an extra service between Leeds and Newcastle.
  • LNER will have an extra path on the East Coast Main Line, that could be used through the area.

Using the Leamside Line as a diversion for freight and slower passenger trains would appear to be a possibility.

It could also be combined with the Stillington Line and Northallerton and Stockton to create a double-track diversion, alongside the double-track section of the East Coast Main Line between Northallerton and Newcastle.

Extending The Tyne And Wear Metro Along The Leamside Line

This has been talked about for some time.

In the Wikipedia entry for the Tyne and Wear Metro. there is a section, which is entitled Extension To Washington IAMP, where this is said.

There have been a number of proposals looking in to the possibility of re-opening the former Leamside Line to Washington, including a 2009 report from the Association of Train Operating Companies (ATOC), and a 2016 proposal from the North East Combined Authority (NECA), as well as the abandoned Project Orpheus programme, from the early 2000s. Most recently, proposals are being put forward to link the current network at Pelaw and South Hylton, with the International Advanced Manufacturing Park in Washington, using part of the alignment of the former Leamside Line.

If the Tyne and Wear Metro were to be extended to the Southern end of the Leamside Line, Ferryhill station could be a Southern terminal.

  • There is space to create a line alongside the East Coast Main Line between Tursdale Junction, where it connects with the Leamside Line and Ferryhill station.
  • The new Tyne and Wear trains have been designed to share tracks with other trains on Network Rail tracks.
  • This would enable interchange between East Coast Main Line, Stillington Line and Metro services, without going North to Newcastle.

At the present time, all that would be needed would be for the Metro connection to be safeguarded.

Railfuture’s Campaigns In The North East

This is a tidying up of several improvements, which are campaigns of Railfuture, that are outlined in this document.

They will be covered in separate posts.

Conclusions

I can separate conclusions into sections.

The Design Of Ferryhill Station

These are my conclusions about the design of Ferryhill station.

  • It should be built as a Park-and-Ride station.
  • It should have platforms long enough for any train that might stop at the station. I suspect this would be a pair of Class 800 trains, which would be 260 metres long.
  • Platforms should be on both the East Coast Main Line and the Stillington Line.
  • There should be safeguarding of a route, so that Metro trains could access the station from the Leamside Line.

As the station could be a Park-and-Ride station, I will assume the station will need good road access.

Train Services At Ferryhill Station

These are my conclusions about the services calling at Ferryhill station.

There should be four tph between Leeds and Newcastle, all of which would stop at York, Darlington, Ferryhill and Durham, with some services calling at Northallerton and Chester-le-Street.

There should also be less frequent services at Ferryhill to Scotland and London. Perhaps a frequency of around six tpd would be sufficient, as changes could be made at Leeds, Newcastle of York.

Two tph would probably be ideal for services on the Stillington Line to Hartlepool, Middlesbrough and Redcar.

It would certainly be a busy and well-connected station.



December 13, 2020 Posted by | Design, Transport | , , , , , , , , , , , , , , , , , , | 5 Comments

Is The Eastern Leg Of High Speed Two Under Threat?

This page on the High Speed Two web site is entitled HS2 Phase 2b Eastern Leg.

These are the opening three paragraphs.

Earlier this year the government made clear in its response to the Oakervee Review its commitment to Phase 2b of HS2, ensuring we boost capacity, improve connectivity between our regions and share prosperity.

As part of this, the government plans to present an Integrated Rail Plan for the North and Midlands by the end of the year, informed by an assessment from the National Infrastructure Commission, which will look at how to deliver HS2 Phase 2b, Northern Powerhouse Rail, Midlands Rail Hub and other rail programmes better and more effectively.

In the meantime, the government has asked HS2 Ltd to pause work on the Eastern Leg. We recognise that this causes uncertainty and our Eastern Leg community engagement teams remain in place to support you.

The page then says that the work on the Western Leg should proceed, with the aim of a Western Leg Bill in early 2022.

In Northern Powerhouse Rail – Significant Upgrades Of The East Coast Main Line From Leeds To Newcastle (Via York And Darlington) And Restoration Of The Leamside Line, I showed that the current and future upgrades to the East Coast Main Line, required by the East Coast Main Line, Northern Powerhouse Rail and High Speed Two, will greatly reduce the times on services from London Kings Cross to Doncaster, Yorkshire, the North East and Scotland.

I said this on timings on the East Coast Main Line.

  • London Kings Cross and Doncaster could be around an hour.
  • London Kings Cross and Leeds could be around one hour and thirty minutes, using the current Doncaster and Leeds time, as against the one hour and twenty-one minutes for High Speed Two.
  • London Kings Cross and York could be around one hour and twenty-three minutes, using the current Doncaster and York time, as against the one hour and twenty-four minutes for High Speed Two.
  • Timings between York and Newcastle would be the same fifty-two minutes as High Speed Two, as the track will be the limitation for both services.
  • High Speed Two’s timing for York and Newcastle is given as fifty-two minutes, with York and Darlington as twenty-five minutes.
  • London Kings Cross and Darlington could be around one hour and forty-nine minutes
  • London Kings Cross and Newcastle could be around two hours and sixteen minutes.
  • London Kings Cross and Edinburgh would be under three-and-a-half hours, as against the proposed three hours and forty-eight minutes for High Speed Two.

LNER’s Azuma cavalry will hold the fort for as long as is needed.

I’ll now look at how various stations, will be affected if the Eastern Leg of High Speed Two is not built, until a couple of decades in the future.

Leeds

Current Long Distance Services At Leeds Station

Leeds station has the following long distance services in trains per hour (tph)

  • CrossCountry – 1
  • LNER – 2
  • TransPennine Express – 5

It is a bit thin compared to say Birmingham or Manchester.

Northern Powerhouse Rail And Leeds

Northern Powerhouse Rail has plans for Leeds with these services to other Northern cities.

  • Hull – two tph in 38 minutes
  • Manchester – six tph in 25 minutes
  • Newcastle – four tph in 58 minutes
  • Sheffield – four tph in 28 minutes.

From what they have written, the following could also be possible.

  • Bradford – six tph in a few minutes
  • Liverpool – four or more tph in 51 minutes
  • Manchester Airport – four or more tph in 35 minutes

It is an ambitious plan.

High Speed Two And Leeds

High Speed Two is planning to run the following trains to Leeds in every hour.

  • Birmingham Curzon Street and Leeds – 200 metre train
  • Birmingham Curzon Street and Leeds via East Midlands Hub – 200 metre train
  • London Euston and Leeds via Old Oak Common and East Midlands Hub – 200 metre train
  • London Euston and Leeds via Old Oak Common and East Midlands Hub – 400 metre train
  • London Euston and Leeds via Old Oak Common, Birmingham Interchange and East Midlands Hub – 400 metre train

Timings will be as follows.

  • Birmingham Curzon Street and Leeds – 49 minutes.
  • London Euston and Leeds – One hour and 21 minutes.

There will be about 1000 seats per hour between Birmingham Curzon Street and Leeds and 2500 seats per hour Between London Euston and Leeds.

High Speed Two And Leeds Via Manchester

This report on the Transport for the North web site, is entitled At A Glance – Northern Powerhouse Rail.

This map shows Transport for the North’s ideas for connections in the West linking Crewe, Liverpool, Manchester, Manchester Airport, Warrington and Wigan.

A black line goes East from Manchester to link it to Leeds via Huddersfield and Bradford.

  • This is proposed as a route shared between High Speed Two and Northern Powerhouse Rail.
  • High Speed Two are promising that London Euston and Manchester will be timed at one hour and eleven minutes.
  • London Euston and Manchester will have a frequency of three tph and will all be 400 metre High Speed Two Full Size trains, with about a thousand seats.
  • Northern Powerhouse Rail have an objective of a twenty-five minute journey time between Manchester and Leeds.

I would also build the Manchester and Leeds route with the following characteristics.

  • As a full-size tunnel capable of taking High Speed Two Full Size trains and the largest freight trains.
  • Intermediate and underground stations at Huddersfield and Bradford.
  • It could be built as a base tunnel, like the similarly-sized Gotthard base tunnel in Switzerland.
  • The Swiss tunnel has a maximum operating speed for passenger trains of 125 mph.

If it can be built for a reasonable cost and in a reasonable time-scale, it could be a way of doing the following.

  • Creating a straight 150 mph plus route across the Pennines, with a capacity of 18 tph.
  • Running high-capacity fast trains between London Euston and Leeds via Manchester Airport and Manchester.
  • Running freight trains between the two sides of the Pennines.
  • Creating a high frequency route between Liverpool and Hull via Manchester Airport, Manchester, Huddersfield and Bradford and Leeds.

The passenger service between Liverpool and Hull could be the world’s first high speed metro.

If the London Euston and Manchester trains, were to be extended to Leeds, London Euston and Leeds would take one hour and thirty-six minutes, which would only be fifteen minutes slower, than is promised for the route going via the Eastern Leg of High Speed Two.

London Kings Cross And Leeds

When the in-cab digital signalling is complete between London Kings Cross and Leeds, I am fairly confident that with a few other improvements and more zoom from the Azumas, that a London Kings Cross and Leeds time of one hour and fifty minutes will be possible.

But will two nine-car or pairs of five-car trains per hour (tph), be enough capacity? Especially, as pairs of five-car trains will split and join to serve a wider catchment area, which will harvest more passengers.

LNER will in a couple of years have an extra path every hour into Kings Cross.

I would feel that best use of this path would be to run between London Kings Cross and Edinburgh via Leeds and Newcastle.

  • Leeds and Newcastle could be the only intermediate stops.
  • Leeds would be the ideal place to change to Northern Powerhouse Rail for anywhere in the North of England.
  • My estimates, say it could run between London Kings Cross and Edinburgh in around three-and-a-half hours.
  • It would run non-stop between London Kings Cross and Leeds, Leeds and Newcastle and Newcastle and Edinburgh.

It would increase capacity, between the four major destinations on the route; London Kings Cross, Leeds, Newcastle and Edinburgh.

It could start running, once the digital signalling and current improvements to the East Coast Main Line are complete.

London St. Pancras And Leeds

I discussed, Northern Powerhouse Rail’s plan for Sheffield and Leeds in Northern Powerhouse Rail – Connecting Sheffield To HS2 And On To Leeds.

This could see the following new infrastructure.

  • Electrification between Clay Cross North Junction and Sheffield station of the route shared by the Midland Main Line and High Speed Two.
  • Electrification through Sheffield and on to Leeds, via the Wakefield Line
  • New stations for High Speed trains at Rotherham and Barnsley Dearne Valley.

I could see East Midlands Railway taking advantage of this route, with their new Class 810 trains and running a regular Leeds and St. Pancras service.

  • It would call at Wakefield Westgate, Barnsley Dearne Valley, Rotherham and Meadowhall. between Leeds and Sheffield stations.
  • It would take twenty-eight minutes between Leeds and Sheffield, if it met Northern Powerhouse Rail’s objective.
  • Perhaps one of the two tph between London St. Pancras and Sheffield could be extended to Leeds.

As the current time between London St. Pancras and Sheffield, is a few minutes under two hours, I can see a time of comfortably under two-and-a-half hours between London St. Pancras and Leeds.

A Summary Of Journey Times Between London And Leeds

I can summarise my estimates, between London and Leeds.

  • High Speed Two – Direct via Eastern Leg – One hour and twenty-one minutes.
  • High Speed Two – via Manchester – One hour and thirty-six minutes.
  • East Coast Main Line – via Doncaster – One hour and thirty minutes.
  • Midland Main Line – via Derby and Sheffield – Two hours and twenty minutes.

The direct High Speed Two route is the fastest., but others could be viable alternatives for some passengers.

Bradford

Consider.

  • Under current plans Bradford won’t be getting any high speed service from High Speed Two.
  • The best it can get under current plans is several direct services per day, between Bradford Forster Square and London Kings Cross in perhaps two hours.
  • The layout of the city and its two stations doesn’t give good connectivity.

Bradford, Harrogate, Huddersfield and Skipton could probably be served by trains to and from London Kings Cross that join and split at Leeds.

But if Northern Powerhouse Rail goes for a tunnel between Manchester and Leeds with Bradford as an underground station, it could be served by High Speed Two services going between London Euston and Leeds via Manchester.

I would estimate that if London Euston and Leeds via Manchester took around one hour and thirty-six minutes, London Euston and Bradford could take around an hour-and-a-half.

Darlington

I can summarise my estimates, between London and Darlington.

  • High Speed Two – Direct via Eastern Leg – One hour and forty-nine minutes.
  • High Speed Two – via Manchester and Leeds – Two hours and six minutes.
  • East Coast Main Line – via Doncaster – One hour and forty-nine minutes.

Improvements on the East Coast Main Line, needed to enable and speed-up High Speed Two services to York, Darlington and Newcastle; will speed up East Coast Main Line services to Darlington.

Edinburgh

I can summarise my estimates, between London and Edinburgh.

  • High Speed Two – Direct via Western Leg – Three hours and Forty minutes.
  • High Speed Two – via Manchester and Leeds – Three hours and forty-eight minutes.
  • East Coast Main Line – via Doncaster – Three hours and thirty minutes.

Improvements on the East Coast Main Line, needed to enable and speed-up High Speed Two services to York, Darlington and Newcastle; will speed up East Coast Main Line services to Newcastle.

Harrogate

Consider.

  • Under current plans Harrogate won’t be getting any high speed service from High Speed Two.
  • The best it can get under current plans is several direct services per day, between Harrogate and London Kings Cross in perhaps two hours.

Bradford, Harrogate, Huddersfield and Skipton could possibly  be served by trains to and from London Kings Cross that join and split at Leeds.

Huddersfield

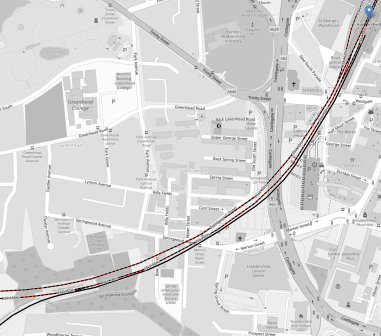

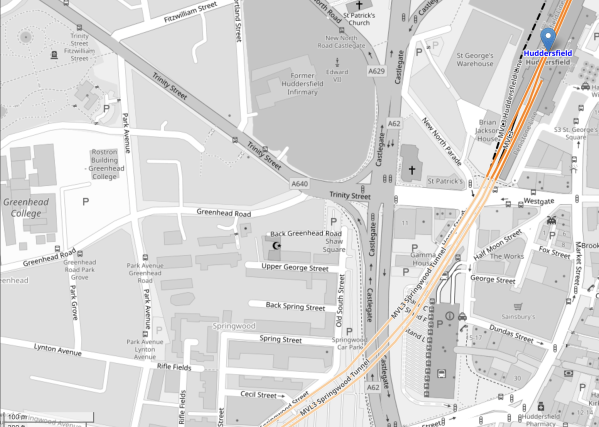

  • If Huddersfield is served by underground platforms beneath the current Huddersfield station, a lot of what I said for Bradford would apply to Huddersfield.
  • The timings would probably be around an-hour-and-a-half from London Euston.

Bradford, Harrogate, Huddersfield and Skipton could possibly be served by trains to and from London Kings Cross that join and split at Leeds.

Hull

Hull is an interesting destination.

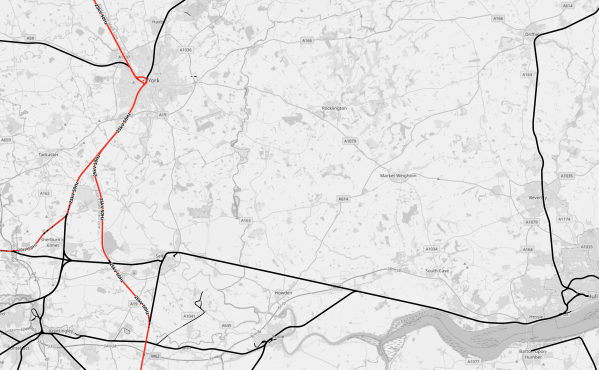

  • Reaching Hull from the current High Speed Two network will need a change at Leeds or another station.
  • Using Northern Powerhouse Rail’s objectives on timings, London Euston and Hull via Manchester on High Speed Two, would be a few minutes under two-and-a-half hours.
  • I strongly feel, that London Kings Cross and Hull via Selby could be reduced to below two hours.

Hull would also make a superb Eastern terminal station for both Northern Powerhouse Rail and a High Speed Two service from London via Manchester and Leeds.

You pays your money and takes your choice.

Middlesbrough

Reaching Middlesbrough from the proposed High Speed Two network will need a change at York or another station.

But a time of two hours and twenty minutes, should be possible using the East Coast Main Line via Doncaster.

Improvements on the East Coast Main Line, needed to enable and speed-up High Speed Two services to York, Darlington and Newcastle, will speed up East Coast Main Line services to Middlesbrough.

Newcastle

I can summarise my estimates, between London and Newcastle.

  • High Speed Two – Direct via Eastern Leg – Two hours and seventeen minutes.
  • High Speed Two – via Manchester and Leeds – Two hours and thirty-four minutes.
  • East Coast Main Line – via Doncaster – Two hours and sixteen minutes.

Improvements on the East Coast Main Line, needed to enable and speed-up High Speed Two services to York, Darlington and Newcastle; will speed up East Coast Main Line services to Newcastle.

Nottingham

I will compare average speeds on the Midland Main Line between London St. Pancras and Nottingham and on the East Coast Main Line, between London Kings Cross and Leeds.

Currently.

  • London St. Pancras and Nottingham services, over the 126 mile route, take one hour and fifty minutes. which is an average speed of 69 mph.
  • London Kings Cross and Leeds services, over the 186 mile route, take two hours and thirteen minutes, which is an average speed of 94 mph.

Note.

  1. The two routes are of similar character and are fairly straight with large sections of 125 mph running and quadruple tracks.
  2. The East Coast Main Line to Leeds  is fully electrified, whereas the Midland Main Line is only partially electrified.
  3. Both routes have a small number of stops.
  4. In a few years time, services on both routes will be run by different members of the Hitachi AT-300 train family.

I don’t feel it would be unreasonable to assume that a London St. Pancras and Nottingham service could be run at an average speed of 94 mph, if the Midland Main Line were upgraded to the same standard as the East Coast Main Line.

This could mean a time of around one hour and twenty-one minutes between London St. Pancras and Nottingham, or a saving of twenty-nine minutes.

Is that possible?

  • The new Class 810 trains, will have four engines instead of the normal three for a five-car AT-300 train. Will they be able to be closer to the 125 mph line-speed on diesel power, where it is available on the Midland Main Line.
  • The trains will be able to use electrification between London St. Pancras and Market Harborough.
  • There have been hints, that more electrification may be installed on the Midland Main Line.
  • Hitachi have announced a battery electric version of the AT-300 train called a Regional Battery Train, where one or more of the diesel engines are replaced by battery packs.
  • The new trains will be ready to accept in-cab ERTMS digital signalling, so they could be able to run at up to 140 mph, if the track were to be upgraded.

I certainly feel, that substantial time savings could be possible between London St. Pancras and Nottingham.

Eighty-one minutes would be very convenient, as it would comfortably allow a three hour round trip, which would mean just six trains or more likely pairs of trains would be needed for the current two tph service.

Eighty-one minutes would not be the fifty-two minute service promised by High Speed Two!

But!

  • The new trains are planned to be introduced from 2023.
  • Who knows, when High Speed Two will arrive at the East Midlands Hub station?
  • They won’t need any new substantial infrastructure to replace the current trains.

I also suspect the new trains will have more seats, but, the capacity of the Class 810 train, has not been published.

Nottingham could also be served by a high speed service from London Kings Cross via Grantham, which I estimate would take about one hour and twenty minutes.

Sheffield

A lot of what I said for Nottingham can be applied to Sheffield.

  • Currently, London St. Pancras and Sheffield services, over the 165 mile route, take two hours, which is an average speed of 82.5 mph.
  • High Speed Two is promising a journey time of one hour and twenty-seven minutes.
  • An average speed of 90 mph, would mean a journey time of one hour and fifty minutes.
  • This would allow a four hour round trip, which would mean just eight trains or more likely pairs of trains would be needed for the current two tph service.

It would be very convenient for the operator.

It looks like if pairs of trains were to be run on both the Nottingham and Sheffield routes, that twenty-eight trains would be needed to run both services.

This fits well with a fleet size of thirty-three trains.

The only caveat, is that to get the required journey times, it might be necessary to rebuild and electrify the tracks, between Sheffield and Clay Cross North Junction.

  • These tracks will be shared with the future Sheffield Branch of High Speed Two.
  • It would only be 15.5 miles of double-track to rebuild and electrify.
  • It could be rebuilt to allow 140 mph running. Several minutes could be saved!

The electrification could allow Hitachi’s Regional Battery trains to be able to run the Sheffield service.

These trains would certainly be a way of avoiding the tricky electrification of the Derby and Clay Cross section of the route, which goes through the World Heritage Site of the Derwent Valley Mills.

Sheffield could also be served by a high speed service from London Kings Cross via Doncaster, which I estimate would take about one hour and thirty minutes.

Skipton

Consider.

  • Under current plans Skipton won’t be getting any high speed service from High Speed Two.
  • The best it can get under current plans is several direct services per day, between Skipton and London Kings Cross in perhaps two hours.

Bradford, Harrogate, Huddersfield and Skipton could possibly  be served by trains to and from London Kings Cross that join and split at Leeds.

Sunderland

Reaching Sunderland from the proposed High Speed Two network will need a change at York or another station.

But a time of two hours and thirty minutes, should be possible using the East Coast Main Line via Doncaster.

Improvements on the East Coast Main Line, needed to enable and speed-up High Speed Two services to York, Darlington and Newcastle, will speed up East Coast Main Line services to Sunderland.

York

I can summarise my estimates, between London and York.

  • High Speed Two – Direct via Eastern Leg – One hour and twenty-four minutes.
  • High Speed Two – via Manchester and Leeds – One hour and forty-two minutes.
  • East Coast Main Line – via Doncaster – One hour and twenty-four minutes.

Improvements on the East Coast Main Line, needed to enable and speed-up High Speed Two services to York, Darlington and Newcastle; will speed up East Coast Main Line services to York.

I believe strongly, that York would be about as fast from London, by either of the direct routes, but both would serve different intermediate destinations.

Conclusion

My first conclusion is a surprising one, but the promised timings from High Speed Two and the current timings in the timetable make it clear.

To achieve the required timings for High Speed Two, major improvements must be made to existing track and these improvements will mean that existing services will be competitive with High Speed Two on time.

These improvements fall into this category.

  • Improving the East Coast Main Line between York and Newcastle, will make East Coast Main Line services to York, Darlington, Durham and Newcastle competitive with High Speed Two services.
  • Improving the East Coast Main Line between York and Newcastle, may also mean that London Kings Cross and Edinburgh will be faster than the High Speed Two service between London Euston and Edinburgh.
  • Electrifying the route shared between Sheffield and Clay Cross North Junction, will speed up London St. Pancras and Sheffield services and make them more competitive with High Speed Two.

I suspect there may be similar mutual improvements on the Western leg of High Speed Two.

Other smaller conclusions from my analysis of the improvements include.

  • These improvements will create some extra capacity on the East Coast and Midland Main Lines, by removing bottlenecks and improving line speeds.
  • Electrification, even if it is only partial or discontinuous, will improve services on the Midland Main Line.
  • Some places like Harrogate, Middlesbrough and Skipton will never be served directly by High Speed Two, but are easily served by East Coast Main Line services from London Kings Cross.
  • Northern Powerhouse Rail is very much part of the North-South capacity for England.
  • In-cab ERTMS signalling will play a large part in increasing capacity and line speeds.

Perhaps in our planning of High Speed Two, we should plan all the routes in the North and Midlands in a much more holistic way.

If we look at the capacity between London and the North, I feel that with the addition of Phase 1 of High Speed Two to Birmingham in 2029-2033 and hopefully Phase 2a soon afterwards, that Phase 2b will not be needed for reasons of speed and capacity until years later.

So, I would pause most construction of the Eastern Leg of High Speed Two until Phase 1 and Phase 2a are complete.

I would make exceptions for the following.

  • Improvements to the shared section of the East Coast Main Line and High Speed Two, between York and Newcastle.
  • Building a high speed connection between Leeds and York for the use of Northern Powerhouse Rail and the East Coast Main Line.
  • Rebuilding and electrification of the shared section of the Midland Main Line and High Speed Two, between Clay Cross North Junction and Sheffield.
  • Improve and electrify the route between Sheffield and Leeds.

But I would continue with the design, as I feel that East of Leeds is very much sub-optimal at the present time.

The route of the Eastern leg of High Speed Two would be safeguarded.









December 7, 2020 Posted by | Transport | , , , , , , , , , , , , , , , , , | Leave a comment

Northern Powerhouse Rail – Significant Upgrades Of The East Coast Main Line From Leeds To Newcastle (Via York And Darlington) And Restoration Of The Leamside Line

In this article on Transport for the North, which is entitled Northern Powerhouse Rail Progress As Recommendations Made To Government, one of the recommendations proposed for Northern Powerhouse Rail is significant upgrades to the East Coast Main Line and reopening of the Leamside Line.

Northern Powerhouse Rail’s Objective For The Leeds and Newcastle Route

Wikipedia, other sources and my calculations say this about the trains between Leeds and Newcastle.

  • The distance between the two stations is 106 miles
  • The current service takes around 85 minutes and has a frequency of three trains per hour (tph)
  • This gives an average speed of 75 mph for the fastest journey.
  • The proposed service with Northern Powerhouse Rail will take 58 minutes and have a frequency of four tph.
  • This gives an average speed of 110 mph for the journey.

This last figure of 110 mph, indicates to me that a faster route will be needed.

These are example average speeds on the East Coast Main Line.

  • London Kings Cross and Doncaster – 156 miles – 98 minutes – 95.5 mph
  • London Kings Cross and Leeds – 186 miles – 133 minutes – 84 mph
  • London Kings Cross and York  – 188.5 miles – 140 minutes – 81 mph
  • London Kings Cross and Hull – 205.3 miles – 176 minutes – 70 mph
  • York and Newcastle – 80 miles – 66 minutes – 73 mph

I also predicted in Thoughts On Digital Signalling On The East Coast Main Line, that with full digital in-cab ERTMS signalling and other improvements, that both London Kings Cross and Leeds and York would be two-hour services, with Hull a two-and-a-half service.

  • London Kings Cross and Leeds in two hours would be an average speed of 93 mph.
  • London Kings Cross and York in two hours would be an average speed of 94.2 mph.
  • London Kings Cross and Hull in two-and-a-half hours would be an average speed of 94.2 mph.

I am fairly certain, that to achieve the required 110 mph average between Leeds and Newcastle to meet Northern Powerhouse Rail’s objective of four tph in under an hour will need, at least the following.

  • Full digital in-cab ERTMS signalling
  • Completion of the electrification between Leeds and York.
  • Ability to run at up to 140 mph in places.
  • Significant track upgrades.

It could also eliminate diesel traction on passenger services on the route.

High Speed Two’s Objective For The York and Newcastle Route

At the present time, High Speed Two is not planning to run any direct trains between Leeds and Newcastle, so I’ll look at its proposed service between York and Newcastle instead.

  • Current Service – 80 miles – 66 minutes – 73 mph
  • High Speed Two – 80 miles – 52 minutes – 92 mph

Note.

  1. High Speed Two will be running three tph between York and Newcastle.
  2. Northern Powerhouse Rail have an objective of 58 minutes for Leeds and Newcastle.

High Speed Two and Northern Powerhouse Rail do not not have incompatible ambitions.

Current Direct Leeds And Newcastle Services

These are the current direct Leeds and Newcastle services.

  • TransPennine Express – 1 tph – Liverpool Lime Street and Edinburgh
  • TransPennine Express – 1 tph – Manchester Airport and Newcastle.
  • CrossCountry – 1 tph – Plymouth and Edinburgh

Timings appear to be between 81 and 91 minutes.

What Would A Leeds And Newcastle In Under An Hour Do For London Kings Cross And Edinburgh Timings?

This question has to be asked, as a 58 minute time between Leeds and Newcastle will mean that timings between York and Newcastle must reduce.

York And Newcastle at various average speeds give the following times.

  • 73 mph (current average) – 66 minutes
  • 80 mph – 60 minutes
  • 90 mph – 53 minutes
  • 92 mph – 52 minutes (High Speed Two promise)
  • 100 mph – 48 minutes
  • 110 mph – 44 minutes

If any speed over 90 mph can be averaged between York and Newcastle, this means that with a London and York time of under two hours the following times are possible.

  • London Kings Cross and Newcastle in under three hours. – High Speed Two are promising two hours and seventeen minutes.
  • London Kings Cross and Edinburgh in under four hours. – High Speed Two are promising three hours and forty minutes.

Consider.

  • An InterCity 225 achieved a time of under three-and-a-half hours between London and Edinburgh. in 1991.
  • That record journey was at an average speed of 112 mph.
  • There must be opportunities for speed improvements North of Newcastle.
  • Train and signalling technology is improving.
  • High Speed Two is promising three hours and forty minutes between London and Edinburgh.

I can see a fascinating rivalry between trains on High Speed Two and the East Coast Main Line, developing, about who can be faster between London and Edinburgh.

Current Projects Between Leeds And Newcastle

These projects are in planning or under way on the section of the East Coast Main Line between Leeds and Newcastle.

Phase 2 Of The East Coast Main Line Power Supply Upgrade

Phase 1 between London and Doncaster should have been completed, if the covids allowed and now work can be concentrated on Phase 2 to the North of Doncaster.

This page on the Network Rail web site describes the project. These paragraphs are the introduction to Phase 2.

Phase 2 of the project will involve the installation of feeder and substations along the route, capacity upgrades, new 132kv connection at Hambleton junction and upgrades to existing power supply connections.

The second phase of the project is currently in design stages and dates for carrying out the work are still being finalised.

Phase 2 will be delivering upgraded power to the East Coast Mainline railway between Bawtry and Edinburgh.

This project may not improve speeds on the railway, but it will certainly improve reliability and reduce the use of diesel power.

I do wonder, that as the reliability of the East Coast Main Line increases, this will reduce the need for the electric Class 801 trains, to have diesel engines for when the power supply fails.

It is known, that the Class 803 trains, that are under construction for East Coast Trains, will have only a small battery for emergency use.

A sensible weight saving would surely improve the acceleration and deceleration of the trains.

York to Church Fenton Improvement Scheme

This page of the Network Rail web site, describes the project. These paragraphs introduce the project.

Our work between York and Church Fenton is in preparation for the Transpennine Upgrade, which will provide more capacity and faster journeys between Manchester Victoria and York, via Leeds and Huddersfield.

The five mile stretch between Church Fenton and Colton Junction – the major junction where trains from Leeds join the East Coast Main Line towards York – sees over 100 trains each day, with up to one freight or passenger train passing through every five minutes. This is one of the busiest stretches of railway in the North.

The work will include.

  • Modernising the signalling.
  • Replacing about five miles of track between Holgate (York) and Colton Junction.
  • Completing the eleven miles of electrification between York and Church Fenton stations.

I estimate that when the project is completed, there will be only around thirteen miles of track without electrification between Church Fenton station and Neville Hill TMD in Leeds.

The route between Church Fenton and Garforth stations, is shown in this map clipped from High Speed Two.

Note.

  1. York is just off the North-East corner of the map.
  2. Garforth is in the South-West corner of the map.
  3. Shown in orange is the new route of High Speed Two from East of Leeds towards York.
  4. Shown in blue is existing tracks, that will be used to take High Speed Two Trains to York and further North.
  5. The rail line running North-South on the edge of the map is the Selby Diversion, which opened in 1983 and  was built to avoid possible subsidence from the Selby coalfield.
  6. The pre-Selby Diversion route of the East Coast Main Line goes South from the join of the blue and orange sections of High Speed Two.
  7. At Church Fenton station, this route splits, with one route going West through Micklefield, East Garforth and Garforth stations to Neville Hill TMD and Leeds.
  8. The main road going North-South is the A1 (M).

It seems to me, that High Speed Two’s and Northern Powerhouse Rail’s plans in this area, are still being developed.

  • There has been no decision on the electrification between Church Fenton and Neville Hill TMD.
  • How do Northern Powerhouse Rail trains go between Leeds and Hull?
  • How do Northern Powerhouse Rail trains go between Leeds and York?
  • How do High Speed Two trains go between Leeds and York?

I suspect, when the full plans are published, it will answer a lot of questions.

Darlington Station Remodelling

A remodelling of Darlington station is under consideration.

I outlined this in £100m Station Revamp Could Double Local Train Services.

This was my conclusion in the related article.

I think that this will happen.

    • The Tees Valley Line trains will be greatly improved by this project.
    • Trains will generally run at up to 140 mph on the East Coast Main Line, under full digital control, like a slower High Speed Two.
    • There will be two high speed platforms to the East of the current station, where most if not all of the High Speed Two, LNER and other fast services will stop.
    • There could be up to 15 tph on the high speed lines.

With full step-free access between the high speed and the local platforms in the current station, this will be a great improvement.

It will create a major interchange, where high speed trains from High Speed Two, LNER and Northern Powerhouse Rail will do the following.

  • Approach at 140 mph or more.
  • Perform a controlled stop in the station.
  • Drop and pick-up passengers.
  • Accelerate back up to linespeed.

The station stop will be highly-automated and monitored by the driver.

One of the objectives would be to save time for all fast trains.

Capacity And Other Problems Between Leeds And Newcastle Listed In Wikipedia

These problems are listed in a section called Capacity Problems in the Wikipedia entry for the East Coast Main Line.

The North Throat Of York Station Including Skelton Bridge Junction

On the thirty mile stretch of the East Coast Main Line, between York and Northallerton stations, the route is mainly four tracks.

But three miles North of York there is Skelton Bridge over the River Ouse, which is shown in this Google Map.

Zooming closer, I clipped this second Google Map.

Note.

  1. There are actually two bridges over the River Ouse.
  2. The East bridge is a double-track bridge and is the original stone arch bridge.
  3. The West bridge was added later and I suspect has little architectural merit.
  4. The tracks on both sides of the bridge are extremely complicated.

If you look at the timings, trains seem to take one of two timings between York and Northallerton.

  • 17-18 minutes, which is almost an average speed of 100 mph.
  • 27 minutes, which is 67 mph.

Incidentally, one of Drax’s long biomass trains managed a time of 27 minutes.

Would going faster save any minutes?

  • A 110 mph average would give a time of 16.4 minutes
  • A 120 mph average would give a time of 15 minutes
  • A 125 mph average would give a time of 14.4 minutes
  • A 140 mph average would give a time of 12.9 minutes

On the face of it, it doesn’t appear that there are very large time savings, to be achieved.

On the other hand, if all trains can pass through Skelton Bridge and its complicated junction, without slowing, delays will be minimised and timetables can be faster.

But there is an anomaly in all the express trains that pass through York station. All stop, except those planned for East Coast Trains. In fact, their trains won’t stop between Stevenage and Newcastle.

The obvious solution to the Skelton Bridge problem, is to do what British Rail didn’t have the courage to do, when they electrified the East Coast Main Line in the 1980s. And that is to demolish the bridge and build a stylish modern four-track bridge!

It would eliminate many of the things, that could go wrong and would surely improve reliability. This could help to maintain a higher operating speed.

But would it be allowed by the Planning Authorities and English Heritage?

Hopefully, it doesn’t matter!

  • I am a Control Engineer and mathematical modeller, who has programmed some immensely complex systems in the last fifty-five years.
  • I have also flown light aircraft on instruments for many hours, where you control the plane according to what Air Traffic Controllers and the instruments tell you.

My experience tells me that, it would be possible to control a busy junction, like Skelton Bridge safely, by a well-programmed computer system helping the driver, arrive at the junction at the right time to go straight through.

I also believe that if modern in-cab digital ERTMS signalling can handle twenty-four tph on Thameslink going to and from scores of stations, then it can handle Skelton Bridge Junction.

In Could ERTMS And ETCS Solve The Newark Crossing Problem?, I proposed a similar solution to the problem at Newark.

Use Of The Leamside Line

Wikipedia says this about capacity to the South of Newcastle.

South of Newcastle to Northallerton (which is also predominately double track), leading to proposals to reopen the Leamside line to passenger and freight traffic.

I could have included it in the previous section, but as it such a important topic, it probably deserves its own section.

Looking at maps, reopening is more than a a possibility. Especially, as reopening is proposed by Northern Powerhouse Rail and mentioned in the title of this post.

I discussed the Leamside Line in detail in Boris Johnson Backs Station Opening Which Could See Metro Link To County Durham, which I wrote in June this year.

These are some extra thoughts, that update the original post.

Ferryhill Station

I was prompted to write the related post, by something Boris Johnson said at PMQs and it was mainly about Ferryhill station.

In the latest copy of this document on the Government web site, which is entitled Restoring Your Railway: Successful Bids, a new station at Ferryhill has been successful. Another bid in the same area to restore rail services between Consett and Newcastle has also been successful.

This map shows the East Coast Main Line as it goes North South between Durham and Darlington.

Note.

  1. Ferryhill is in the South-West of the map opposite the sand-pits in the South-East
  2. The East Coast Main Line runs North-South between the village an d the sand-pits.
  3. Follow the railway North and you come to Tursdale, where there is a junction between the East Coast Main Line and the Leamside Line.
  4. The East Coast Main Line goes North-Westerly towards Durham and Newcastle.
  5. The Leamside Line goes North to Washington and Newcastle.
  6. There is also the Stillington Freight Line going South-Easterly to Sedgefield and Stockton from Ferryhill.

Could Ferryhill be a useful interchange to local services connecting to Newcastle, Sunderland and Washington in the North and Hartlepool, Middlesbrough and Stockton in the South?

The Leamside Line As An East Coast Main Line Diversion

I didn’t discuss using the line as a diversion for the East Coast Main Line in my original post, but if the infrastructure is to the required standard, I don’t see why it can’t take diverted traffic, even if it is also used for the Tyne and Wear Metro.

It should be remembered, that to create extra capacity on the East Coast Main Line between Peterborough and Doncaster, the route of the Great Northern and Great Eastern Joint Railway, was upgraded. I first wrote about this line six years ago in Project Managers Having Fun In The East and the route seems to be working well. It is now being augmented by the addition of the £200 million Werrington Dive Under. See Werrington Dive-Under – 8th November 2018, for more details of this project, which will speed up all trains on the East Coast Main Line.

After the undoubted success of the upgrade  of the Great Northern and Great Eastern Joint Railway, surely the team responsible for it, should be given the task of devising a similar plan for the Leamside Line, to take pressure off the East Coast Main Line between Newcastle and Northallerton.

Sharing The Leamside Line

The Tyne and Wear Metro also has its eyes on the Leamside Line for an extension.

It should be noted that the Extension To Wearside, uses the Karlsruhe Model to allow the Metro trains to share with freight and other passenger trains.

The new Stadler trains will probably make this even easier, so I wouldn’t be surprised to see a reopened Leamside Line handling a varied assortment of trains of all types.

The Sunderland Example

Sunderland station is a station, which has both Metro and mainline services from the same platforms.

Could a station at Washington be built to similar principles, so that some long distance services to Newcastle used this station?

A Terminal Station On The Leamside Line

Newcastle station may be a Grade One Listed station, but it is built on a curve and would be a nightmare to expand with more platforms.

Sunderland station is already used as a terminal for London trains, so would it be sensible to provide a terminal at somewhere like Washington?

My Final Thought  On The Leamside Line

Reopen it!

A Few Random Final Thoughts

This post has got me thinking.

Newcastle Station Capacity

I have seen reports over the years that Newcastle station, is lacking in capacity.

  • There could be extra services, as High Speed Two is proposing two tph from London Euston stations and one tph from Birmingham Curzon Street station.
  • There may be extra services because of Northern Powerhouse Rail, which has an objective of four tph from Leeds station.
  • There may be extra services because of new services to Ashington and Blyth.
  • There may be extra services because of new services to Consett.

Note.

  1. The first two services could use two hundred metre long trains.
  2. Some platforms can accept 234 metre long Class 800 trains.
  3. The last two services might use the Metro platforms.

As the station has twelve platforms, I feel with careful operation, that the station will have enough capacity.

This Google Map shows the station.

And this second Google Map shows the station, its position with relation to the Tyne and the lines rail routes to and from the station.

Note.

  1. Trains from the South arrive over the King Edward VII Bridge and enter Newcastle station from the West.
  2. Trains from England to Scotland go through the station from West to East and then go straight on and turn North for Berwick and Scotland.
  3. Next to the King Edward VII Bridge is the blue-coloured Queen Elizabeth II Bridge, which takes the Tyne and Wear Metro across the Tyne, where it uses two platforms underneath Newcastle station.
  4. The next bridge is the High Level Bridge, which connects the East end of the station to the rail network, South of the Tyne. It connects to the Durham Coast Line to Teeside and the Leamside Line.

History has delivered Newcastle a comprehensive track layout through and around Newcastle station.

  • Services from the East can be run back-to-back with services from the West.
  • The Metro and its two underground platforms removes a lot of traffic from the main station.
  • There are seven through platforms, of which at least three are over two hundred metres long.
  • There are four West-facing bay platforms and one facing East.

But most intriguingly, it looks like it will be possible for trains to loop through the station from the South, by perhaps arriving over the King Edward VII bridge and leaving over the High Level bridge. Or they could go the other way.

Could this be why reoopening the Leamside Line is important?

LNER’s Extra Paths

The sentence, from an article entitled LNER Seeks 10 More Bi-Modes, in the December 2020 Edition of Modern Railways   indicates that more capacity will be available to LNER.

Infrastructure upgrades are due to prompt a timetable recast in May 2022 (delayed from December 2021) from which point LNER will operate 6.5 trains per hour, out of Kings Cross, compared to five today.

I suspect that LNER could use the half path to run a one train per two hour (tp2h) service to Hull.

  • Currently, London Kings Cross and Hull takes a few minutes under three hours.
  • Currently, Doncaster and Hull takes around 55 minutes.
  • I have estimated that once full digital in-cab signalling is operational, that London Kings Cross and Hull could take a few minutes under two-and-a-half hours.

The full path to Hull could be shared with Hull Trains to provide an hourly service between London Kings Cross and Hull.

LNER could do something special with the full extra path.

Consider.

  • Some train operating companies have said, that they’ll be looking to attract customers from the budget airlines.
  • There could be a need for more capacity between London Kings Cross and all of Edinburgh, Leeds and Newcastle.
  • Faster services would be attractive to passengers.
  • York and Leeds will be fully electrified or trains could be fitted with batteries to bridge the thirteen mile gap in the electrification.

A limited-stop service between London Kings Cross and Edinburgh via Leeds could be an interesting addition.

  • The train would only stop at Leeds and possibly Newcastle.
  • One objective would be a time under three-and-a-half hours between London Kings Cross and Edinburgh.
  • What time could be achieved between London Kings Cross and Leeds?

It would certainly give High Speed Two a run for its money!

A New Elizabethan

In LNER Seeks 10 More Bi-Modes, I said this under a heading of A New Elizabethan.

I can remember The Elizabethan, which was a steam-hauled non-stop express between London and Edinburgh between 1953 and 1961.

    • The steam-hauled train took six-hours-and-a-half.
    • It used to be the longest non-stop railway service in the world.
    • Today, the service could be run by the current or refurbished Azumas or perhaps a new flagship train, built for the service.
    • It could be easily under four hours.

It could be an interesting concept, to increase capacity between London and Edinburgh.

As I indicated in the previous section, LNER certainly have a path, that could be used to their advantage.

High Speed Two

The East Coast Main Line and High Speed Two have a lot in common.

  • The two routes will share tracks between a junction near Ulleskelf station and Newcastle station.
  • High Speed Two Classic Compatible trains could be based on Hitachi AT-300 train technology.
  • High Speed Two Classic Compatible trains would probably be able to run on the East Coast Main Line between London Kings Cross And Edinburgh.
  • Trains from both routes will share platforms at York, Darlington, Durham and Newcastle stations.
  • I would hope that the signalling systems on both routes are compatible.

From a project management point of view, this commonality means that in an ideal world the new route of both High Speed Two and Northern Powerhouse Rail, and the upgrades to the East Coast Main Line should be planned together.

I believe there are still details on the design of the joint route, that have not been disclosed, or perhaps not even decided.

  • Will between Church Fenton station and Neville Hill depot be electrified?
  • How will Northern Powerhouse Rail connect Leeds and Hull stations?
  • How will Northern Powerhouse Rail connect Leeds and York stations?
  • Will High Speed Two connect Leeds and York stations?
  • What will be the operating speed of the joint section of the East Coast Main Line?
  • What will be the capacity in trains per hour of the joint section of the East Coast Main Line?
  • Will Newcastle station need an extra platform to handle three High Speed Two tph from London Euston

Two projects have been discussed in this post.

  • The unlocking of the bottleneck at Skelton Bridge.
  • The reopening of the Leamside Line.

I feel that these projects are important and will probably be needed for efficient operation of High Speed Two.

Other early projects could include.

  • Upgrading and electrification of the chosen route between Leeds and Hull,
  • Installation of the chosen system of in-cab ERTMS digital signalling on the route.
  • Electrification between Church Fenton station and Neville Hill depot.

I would deliver these and other joint projects early, so that travellers see a positive benefit from High Speed Two before the main work has even started.

High Speed East Coast

I wonder what is the maximum speed of the Class 80x trains, that are the backbone of services on the East Coast Main Line.

Consider.

  • It is known, that with in-cab digital ERTMS  signalling, these trains will be capable of 140 mph, but could they go even faster.
  • High Speed Two Classic Compatible trains will be capable of 225 mph.
  • Will Hitachi’s offering for these trains, be based on the Class 80x trains?

I would think, that it is fairly likely, that the existing Class 80x trains could be updated to an operating speed in the range of 150-160 mph.

In Thoughts On Digital Signalling On The East Coast Main Line, I said this.

The combined affect of both track and signalling improvements is illustrated by this simple calculation.

    • As Dalton-on-Tees is North of Doncaster, the route between Woolmer Green and Doncaster should be possible to be run at 140 mph
    • Woolmer Green and Doncaster stations are 132.1 miles apart.
    • Non-stop York and London Kings Cross trains are currently timed at 70 minutes between Doncaster and Woolmer Green stations.
    • This is an average speed of 113.2 mph.

If 140 mph could be maintained between Doncaster and Woolmer Green, the section of the journey would take 56.6 minutes, which is a saving of 13.4 minutes.

I can do this calculation for higher speeds.

  • 150 mph would take 52.8 minutes
  • 160 mph would take 49.5 minutes
  • 170 mph would take 46.6 minutes
  • 180 mph would take 44 minutes
  • 200 mph would take 39.6 minutes

Note.

  1. Eurostar’s latest Class 374 trains are capable of operating at 200 mph.
  2. A Class 395 train, which is closely related to the Class 80x trains, has attained a record speed of 157 mph.

There may be worthwhile time savings to be made, on some of the straighter sections of the East Coast Main Line.

Other improvements will also be needed.

Note, that I am assuming, that the Digswell Viaduct section would not be updated, as it would cause too much disruption.

I also believe that by using selective joining and splitting at Edinburgh, Leeds and perhaps Doncaster, Grantham, Newark or York, that a very comprehensive network of direct trains to and from London can be built from Grantham Northwards.

Beverley, Bradford, Cleethorpes, Glasgow, Grimsby, Harrogate, Huddersfield, Hull, Lincoln, Middlesbrough, Nottingham, Perth, Redcar, Sheffield, Skipton, Sunderland and Washington could all be served at an appropriate frequency.

  • Some like Bradford, Glasgow, Harrogate, Hull, Lincoln and Middlesbrough would have several trains per day.
  • Others might have a much more limited service.

What sort of timings will be possible.

  • London Kings Cross and Doncaster could be around an hour.
  • London Kings Cross and Leeds could be around one hour and thirty minutes, using the current Doncaster and Leeds time, as against the one hour and twenty-one minutes for High Speed Two.
  • London Kings Cross and York could be around one hour and twenty-three minutes, using the current Doncaster and York time, as against the one hour and twenty-four minutes for High Speed Two.
  • Timings between York and Newcastle would be the same fifty-two minutes as High Speed Two, as the track will be the limitation for both services.
  • High Speed Two’s timing for York and Newcastle is given as fifty-two minutes, with York and Darlington as twenty-five minutes.
  • London Kings Cross and Darlington could be around one hour and forty-nine minutes
  • London Kings Cross and Newcastle could be around two hours and sixteen minutes.
  • London Kings Cross and Edinburgh would be under three-and-a-half hours, as against the proposed three hours and forty-eight minutes for High Speed Two.

High Speed East Coast would be a serious and viable alternative to High Speed Two for the Eastern side of England and Scotland.

Conclusion

This is an important joint project for Northern Powerhouse Rail, High Speed Two and the East Coast Main Line.



Project Management Recommendations

This project divides neatly into several smaller projects..

  • Upgrade the power supply on the East Coast Main Line.
  • Finish the York to Church Fenton Improvement Scheme
  • Remodel Darlington station.
  • Install of in-cab ERTMS digital signalling.
  • Complete the electrification between Neville Hill TMD and York.
  • Solve the problem of Skelton Bridge and its complicated track layout.
  • Reopen the Leamside Line.

Most of these projects are independent of each other and all would give early benefits to the East Coast Main Line.

When complete, we’ll see the following timing improvements.

  • Leeds and Newcastle will drop from 85 minutes to 56 minutes, with an increase in frequency from three to four tph.
  • York and Newcastle will drop from 57-66 minutes to 52 minutes.
  • There could be ten minutes savings on Edinburgh services.

Passengers and operators would welcome this group of projects being started early.









November 30, 2020 Posted by | Transport | , , , , , , , , , , , , , , , , , , , , , , , | 3 Comments

LNER Seeks 10 More Bi-Modes

The title of this post, is the same as that of an article in the December 2020 Edition of Modern Railways.

This is the opening paragraph.

LNER has launched the procurement of at least 10 new trains to supplement its Azuma fleet on East Coast Main Line services.

Some other points from the article.

  • It appears that LNER would like to eliminate diesel traction if possible.
  • On-board energy storage is mentioned.
  • No form of power appears to be ruled out, including hydrogen.
  • LNER have all 65 of their Azumas in service.

The last paragraph is very informative.

Infrastructure upgrades are due to prompt a timetable recast in May 2022 (delayed from December 2021) from which point LNER will operate 6.5 trains per hour, out of Kings Cross, compared to five today. As an interim measure, LNER is retaining seven rakes of Mk 4 coaches hauled by 12 Class 91 locomotives to supplement the Azuma fleet and support its timetable ambitions until the new trains are delivered.

These are my thoughts.

More Azumas?

Surely, It would require a very innovative train at perhaps a rock-bottom price from another manufacturer, for LNER to not acquire extra Azumas.

A Flagship Train For Aberdeen And Inverness

The InterCity 225s, which consist of a Class 91 locomotive and a rake of nine Mark 4 coaches, have given thirty years top-quality service on the East Coast Main Line and appear to be being asked to handle services until the new trains are delivered.

  • Full-length InterCity 225s are 245 metres long and have 406 Standard and 129 First seats or a total of 535 seats.
  • Nine-car Azumas are 234 metres long and have 510 Standard and 101 First seats or a total of 611 seats.
  • Two five-car Azumas working as a pair are 260 metres long and have 604 seats. They can also be handled on most platforms, that are used by LNER.
  • The power of a Class 91 locomotive is 4.83 MW.
  • A Class 91 locomotive is 19.4 metres long and weighs 81.5 tonnes.
  • Both Azumas and InterCity 225s can maintain 125 mph with ease on the East Coast Main Line and both will be able to reach 140 mph with in-cab signalling.

There would appear to be nothing wrong with locomotive-hauled high speed services, in terms of capacity and performance.

In The Mathematics Of A Hydrogen-Powered Freight Locomotive, I laid out my thoughts on a high-powered railway locomotive fuelled by hydrogen, that used one or possibly two Rolls-Royce gas-turbine engines to generate electricity for traction.

With all the work done, by companies like Alstom, CAF, Hitachi, Siemens and Talgo into very high speed trains, I believe that at least one company could build a locomotive with this specification.

  • 140 mph operation on 25 KVAC overhead electrification. As I said, that was done by British Rail almost forty years ago.
  • Ability to use full digital in-cab signalling. This is on its way and already working in some applications.
  • 110 mph operation on hydrogen. Hitachi are planning 100 mph battery trains, so it should be possible.
  • 200 mile range on one filling of hydrogen. This is working in Germany.
  • Ability to be upgraded to higher speeds on electric power, should the East Coast Main Line be upgraded for higher speeds in the future. The train manufacturers are probably ahead of track designers with this one.

Such a locomotive would be key to building a train with this specification.

  • Sub-four hour time between London and Edinburgh.
  • Sub-seven hour time between London and Aberdeen, which has 130 miles without wires.
  • Sub-eight hour time between London and Inverness, which has 146 miles without wires.
  • Hydrogen would be used, where there is no electrification.
  • Zero-carbon at all times.
  • A maximum length of 260 metres, which I estimate could give a passenger capacity of around 640 seats.
  • The last coach would include a driving van trailer.
  • They would not need the ability to split and join, except for the purpose of rescue, as there is no platform on the route, that could accommodate the resulting 520 metre long pair of trains.

I estimate that a fleet of around seven trains would be needed to run the current Aberdeen and Inverness services.

A few extra thoughts.

  • Could they have an up-market more spacious interior, as their main competition to the North of Scotland, would be the budget airlines?
  • Could they be slightly longer, with some platform work at Kings Cross and other stations?
  • Add a few extra trains to the order, so that extra services between London and Edinburgh could be added to the timetable.
  • Hydrogen refuelling shouldn’t be a problem in Scotland, as the country is developing a hydrogen economy.
  • Hydrogen refuelling wouldn’t be needed in England, as they’d be using the electrification.

I suspect that Talgo, would be very happy to tender.

  • They are developing hydrogen-powered trains as I wrote in Talgo: Our Hydrogen Train Will Be Ready In 2023.
  • They are building a factory in Scotland, close to the Forth Bridge.
  • Because of the factory, Talgo probably have the ear of the Scottish Government, who would probably welcome a Scottish-built train.
  • A shorter version of these trains without the hydrogen, could be the design for a High Speed Two Classic-Compatible train, for which Talgo, are on the short list of suppliers.

What better way, would there be to sell your hydrogen-powered high speed trains, than to give prospective clients a ride up from London to the factory in the luxury version?

A New Elizabethan

I can remember The Elizabethan, which was a steam-hauled non-stop express between London and Edinburgh between 1953 and 1961.

  • The steam-hauled train took six-hours-and-a-half.
  • It used to be the longest non-stop railway service in the world.
  • Today, the service could be run by the current or refurbished Azumas or perhaps a new flagship train, built for the service.
  • It could be easily under four hours.

It could be an interesting concept, to increase capacity between London and Edinburgh.

Splitting And Joining

Some of LNER’s philosophy to serve places like Harrogate, Huddersfield and Middlesbrough, depends on the ability to split and join trains.

A pair of Azumas could leave London and go to Leeds, where they would split, with one train going to Harrogate and the other going to Huddersfield.

When returning to London, the two trains would join at Leeds.

The big advantage of splitting and joining, is that it increases the capacity on the main line, as services can be arranged, so that every path always carries a full-length train. I would expect that LNER would prefer never to run a single five-car Azuma into Kings Cross.

Currently LNER have these paths to and from Kings Cross.

  • 2 tph between London Kings Cross and Leeds
  • 1 tph between London Kings Cross and Lincoln and East Yorkshire
  • 2 tph between London Kings Cross and Edinburgh

Note.

  1. LNER have already started to extend services from Leeds, so will we see splitting and joining being used on one tph at Leeds to provide services to several destinations, throughout the day.
  2. Splitting and joining at Edinburgh is surely another possibility, to serve Stirling and Glasgow, with the same train.
  3. Splitting and joining at York could serve destinations like Middlesbrough, Newcastle, Redcar, Scarborough and Sunderland.
  4. In A Trip To Grantham Station – 4th November 2020, I advocated splitting at Grantham station to serve both Nottingham and Lincoln.

There are a lot of possibilities for splitting and joining.

As LNER has a fleet of twenty-two five-car Azumas, if the new trains are needed to split and join on certain services, this might mean more five-car Azumas are a better buy.

What Will Happen To Nine Car Azumas?

Hitachi have launched the Regional Battery Train concept, the specification of which is given in this Hitachi infographic.

The diesel engines in LNER’s Class 800 trains will be able to be replaced with batteries, making them all-electric trains.

  • Destinations like Cleethorpes, Dundee, Grimsby, Harrogate, Huddersfield, Hull, Lincoln, Middlesbrough Nottingham, Perth, Redcar, Scarborough, Sheffield and Sunderland will be within range of battery electric Azumas.
  • Some destinations would need the ability to charge the train before it returned, but I can see lots of places getting an appropriate service, even if it was just one or two trains per day.
  • Unfortunately, Aberdeen and Inverness would be too far for battery electric Azumas, so services will still need to be run by nine-car bi-mode Azumas.
  • Five-car battery electric Azumas working in pairs from London could be the key to increasing LNER services.

I can see that LNER may end up with too many nine-car Azumas, if nine-car trains are replaced by pairs of five-car trains to serve two destinations by splitting and joining.

Would it be possible to shorten nine-car Azumas to five-car trains?

These are the formations of the two trains.

  • nine-car: DPTS-MS-MS-TS-MS-TS-MC-MF-DPTF
  • five-car: DPTS-MS-MS-MC-DPTF

It is known, that the trains have a computer, that does a quick check on start-up to determine, what cars are present and correct in the train.

  • This means that if LNER needed twelve-car trains for say London and Edinburgh, they could create a sub-fleet by just buying the requisite number of extra TS (Trailer Standard) and MS (Motor Standard) cars and coupling them up.
  • This feature also means that operators running fleets of five-car Hitachi trains, like TransPennine Express and Hull Trains can increase capacity by just purchasing the extra cars.
  • It would also allow, cars to be shuffled to create viable trains, after say several cars were damaged by vandalism.

All trains these days seem to have this very operator-friendly feature.

With LNER’s trains, I suspect that all cars of the same type are identical.

This would mean, that a nine-car train can be converted to a five-car by removing two TS (Trailer Standard), one MS (Motor Standard) and one MF (Motor First) cars.

The four cars, that have been removed could be reconfigured to form the middle three cars of a new five-car train, which would be completed by adding new DPTS (Driver Pantograph Trailer Standard) and DPTF (Driver Pantograph Trailer First) cars.

An Increase In Paths From 5 To 6.5

This will certainly allow LNER to run more services.

The odd half path could be easy to explain.

  • Hull is a city, that is on the up.
  • I suspect that it could support a five-car direct service from London with a frequency of one tph.
  • But Hull Trains are also running a successful service on the route.

Perhaps a fair solution, would be to allow both LNER and Hull Trains to run a one train per two hour (tp2h) service.

If LNER didn’t want to use the path to just run a five-car train to Hull, there are several possibilities for a split and join.

  • With a Cleethorpes, Lincoln or Nottingham service at Grantham.
  • With a Cleethorpes or Lincoln service at Newark.
  • With a Cleethorpes, Middlesbrough, Sheffield or Sunderland service at Doncaster.

I can only see splitting and joining increasing, which surely means an Azuma order is more likely.

As someone, who spent a working life, writing software to schedule projects, I can’t resist speculating on what to do with the extra whole path, that LNER will be allocated, when the infrastructure allows.

  • Many travellers wouldn’t mind LNER providing more seats between the English and Scottish capitals.
  • Many would like an alternative to flying.
  • Others would like a faster service.
  • Leeds and York will soon be a route, that LNER’s Azumas will be able to use without diesel, because of extra electrification and Azumas with traction batteries.

This leads me to believe that LNER could use the extra path for a third London and Edinburgh service, that ran via Leeds.

  • Additionally, it might stop at stations like Peterborough, York, Darlington or Newcastle.
  • It could also provide a non-stop London and Leeds service.
  • Some services could go non-stop between London and Edinburgh.
  • The direct London and Edinburgh service would be under four hours.
  • Going via Leeds would add under an hour.

It would be run by a nine-car all-electric Azumas, of which there will be unlikely to be a shortage.

How Many Azumas Could Be Fitted With Batteries Instead Of Diesel Engines?

The Wikipedia entry for the Class 800 train, has a section called Powertrain, where this is said.

Despite being underfloor, the generator units (GU) have diesel engines of V12 formation. The Class 801 has one GU for a five to nine-car set. These provide emergency power for limited traction and auxiliaries if the power supply from the overhead line fails. The Class 800 and Class 802 bi-mode has three GU per five-car set and five GU per nine-car set. A five-car set has a GU situated under vehicles 2/3/4 and a nine-car set has a GU situated under vehicles 2/3/5/7/8.

Consider.

  • Class 807 trains for Aventi West Coast will have to batteries or diesel engines. Does this save weight?
  • Class 803 trains for East Coast Trains will only have a small battery for emergency hotel power, in case of catenary failure. Does this save weight?
  • Saving weight should improve acceleration and deceleration, which could shorten journey times.
  • Removal of diesel engines would reduce the trains carbon footprint.
  • Removal of diesel engines could reduce maintenance costs.
  • Diesel engines are only needed for services that run North of Edinburgh. Other sections without electrification are probably within battery range or could be easily made so.
  • It appears every Motor car (MC, MF and MS) can be fitted with a diesel engine, although in Class 801 trains, only one is fitted. Does that mean that every Motor car in the future, could have a battery?

I think this could lead to the following.

  • The Class 801 trains are fitted with sufficient batteries to enable handling of expected emergencies. These could be similar to those in the Class 803 trains.
  • Enough nine-car Class 800 trains would be kept with diesel engines to work the Aberdeen and Inverness services. These routes at 130 and 146 miles without wires are too long for battery trains, without a succession of chargers along the routes.
  • If a third Edinburgh service were to be introduced, could some of the remainder of the nine-car Class 800 trains be converted to Class 801 trains, by removing the diesel engines?
  • I would expect most of the five-car thirty-six Class 800 trains would be fitted with batteries to run services to destinations, that can be reached on battery power. In a few years time, these will probably mean splitting and joining at Edinburgh, Leeds and other places.
  • Could we even see the twelve five-car Class 801 trains converted to battery electric Class 800 trains, which would surely give maximum flexibility about their use?

If the software on the trains, is as intelligent as it could be and can accept cars with diesel engines, batteries or no extra power, then LNER will have an enormous amount of flexibility, to configure the trains as they need.

I could even see a nine-car Class 800 train with a mix of batteries and diesel engines, that can be used as range extenders, reaching further towards Aberdeen and Inverness.

Consider a five-car Class 800 train with two batteries and a single diesel engine!

  • If I assume that Hitachi’s specification for the Regional Battery Train, is for a five-car train with three diesel engines replaced with battery packs, then a two battery pack train could have a range of 60 km or 37 miles.
  • If the route wasn’t very challenging, and the computer made judicious use of the diesel engine, could the train’s range be extended to beyond the ninety kilometres of the three-battery pack train.
  • The diesel engine could also be used to charge the batteries, before returning to the electrification of the main line.

In Vivarail’s Plans For Zero-Emission Trains, I talked about Adrian Shooter and his concept of a Pop-Up Metro, run for perhaps a year, to test if a Metro service would be viable, instead of spending the money on consultants.

The two-battery pack/one diesel Class 800 train, could run a Pop-Up London Service to test the need for a London service. All it would need is a convenient platform long enough to take a 130 metre long Class 800 train.

Possible destinations to test could include Cleethorpes, Dundee, Glenrothes-with-Thornton, Grimsby, Nottingham, Norwich, Perth, Redcar, Sheffield and Sunderland

Conclusion

There is a lot of scope to develop LNER’s services.

I think it is likely that the order will go to Hitachi.

But as I indicated, I do believe that there is scope for a manufacturer to design a zero-carbon train, that was able to serve the Aberdeen and Inverness.

  • I suspect a fleet of ten trains would be sufficient.
  • Trains would use the 25 KVAC overhead electrification, where it exists and hydrogen or battery power North of the wires.

The trains would also be capable of being upgraded to high speeds, should the East Coast Main Line be turned into a High Speed Line.

I also think, that whatever trains are bought, there will be a large upgrading of the existing Hitachi fleet, which will add batteries to a lot of trains.

November 25, 2020 Posted by | Hydrogen, Transport | , , , , , , , , , , , , , , , , | 4 Comments

Northern Powerhouse Rail – Connecting Sheffield To HS2 And On To Leeds

In this article on Transport for the North, which is entitled Northern Powerhouse Rail Progress As Recommendations Made To Government, one of the recommendations proposed for Northern Powerhouse Rail is connecting Sheffield to High Speed Two and on to Leeds.

Northern Powerhouse Rail’s Objective For The Sheffield and Leeds Route

Wikipedia, other sources and my calculations say this about the trains between Leeds and Sheffield.

  • The distance between the two stations is 39 miles
  • The current service takes around 40 minutes and has a frequency of one train per hour (tph)
  • This gives an average speed of 58.5 mph for the fastest journey.
  • The proposed service with Northern Powerhouse Rail will take 28 minutes and have a frequency of four tph.
  • This gives an average speed of 84 mph for the journey.

This last figure of 84 mph, indicates to me that a fast route will be needed.

But given experience of 100 mph lines in other parts of the UK, 100 mph trains and infrastructure could make this demanding objective of twenty-eight minutes between Sheffield and Leeds a reality

Connecting Sheffield To High Speed Two

Sheffield is to be accessed from a branch off the Main High Speed Two route to Leeds.

This map clipped from High Speed Two’s interactive map, shows the route of the Sheffield Branch, from where it branches North West from the main Eastern Leg of High Speed Two.

Note.

  1. Orange indicates new High Speed Two track.
  2. Blue indicates track that High Speed Two will share with other services.
  3. The orange route goes North to Leeds, along the M1
  4. The blue route goes North to Chesterfield and Sheffield, after skirting to the East of Clay Cross.
  5. The orange route goes South to East Midlands Hub station.

This second map, shows where the Erewash Valley Line joins the Sheffield Branch near the village of Stonebroom.

Note.

  1. Red is an embankment.
  2. Yellow is a cutting.
  3. The Sheffield Branch goes North-West to Clay Cross, Chesterfield and Sheffield
  4. The Sheffield Branch goes South-East to East Midlands Hub station.
  5. The Sheffield Branch goes through Doe Hill Country Park.
  6. The Sheffield Branch runs alongside the existing Erewash Valley Line, which goes South to Langley Mill, Ilkeston and the Derby-Nottingham area.

The Sheffield Branch and the Erewash Valley Line appear to share a route, which continues round Clay Cross and is shown in this third map.

Note

  1. Doe Hill Country Park is in the South-East corner of the map.
  2. The dark line running North-South is the A61.
  3. Running to the West of the A61 is the Midland Main Line, which currently joins the Erewash Valley Line at Clay Cross North junction.

High Speed Two and the Midland Main Line will share a route and/or tracks from Clay Cross North junction to Sheffield.

This fourth map, shows where the combined route joins the Hope Valley Line to Manchester to the South West of Sheffield.

Note.

  1. Sheffield is to the North East.
  2. Chesterfield is to the South East,
  3. Totley junction is a large triangular junction, that connects to the Hope Valley Line.

These are some timings for various sections of the route.

  • Clay Cross North Junction and Chesterfield (current) – 4 minutes
  • Clay Cross North Junction and Sheffield (current) – 17 minutes
  • Chesterfield and Sheffield (current) – 13 minutes
  • Chesterfield and Sheffield (High Speed Two) – 13 minutes
  • East Midlands Hub and Chesterfield (High Speed Two) – 16 minutes
  • East Midlands Hub and Sheffield (High Speed Two) – 27 minutes

As Class Cross North Junction and Sheffield are 15.5 miles, this means the section is run at an average speed of 53 mph.

Can I draw any conclusions from the maps and timings?

  • There would appear to be similar current and High Speed Two timings between Chesterfield and Sheffield.
  • The various junctions appear to be built for speed.

The Midland Main Line will be electrified from Clay Cross North Junction to Sheffield, so that High Speed Two trains can use the route.

What will be the characteristics of the tracks between Clay Cross North Junction and Sheffield?

  • Will it be just two tracks as it mainly is now or will it be a multi-track railway to separate the freight trains from the high speed trains?
  • Will it have a high enough maximum speed, so that East Midland Railway’s new Class 810 trains can go at their maximum speed of 140 mph?
  • Will it be capable of handling a frequency of 18 tph, which is the maximum frequency of High Speed Two?

Surely, it will be built to a full High Speed Two standard to future-proof the line.

Before finishing this section, I will answer a few questions.

Would It Be Possible For Class 810 Trains Fitted With Batteries To Run Between London St. Pancras And Sheffield?

East Midlands Railway’s new Class 810 trains could be fitted with batteries to become Regional Battery Trains with the specification, given in this Hitachi infographic.

Note.

  1. This would give the trains a range of 90 kilometres or 56 miles on batteries, if a number of diesel engines were exchanged for batteries.
  2. The trains would only be a few mph slower on batteries, than the current Hitachi trains on diesel.
  3. The Class 810 trains have four diesel engines. Is this to enable 125 mph running on diesel?

By perhaps replacing two diesel engines with batteries and using the remaining two diesel engines as range extenders or some other combination, I feel that Hitachi might be able to obtain a longer self-powered range for the train.

Consider.

  • Between Sheffield and Clay Cross North Junction will be fully-electrified and at 15.5 miles, it will be long enough to fully-charge the batteries on the train.
  • Between London St. Pancras and Market Harborough will be fully-electrified and at 83 miles, it will be long enough to fully-charge the batteries on the train.
  • The section between Market Harborough and Clay Cross North Junction is not electrified and is 66 miles.

I feel that Hitachi and their partner; Hyperdrive Innovation can design a battery electric Class 810 train, that can travel between London St. Pancras and Sheffield, without using a drop of diesel.

A great advantage of this approach, is that, as more electrification is added to the Midland Main Line, as it surely will be, the trains will be able to use the wires to reduce journey times.

I believe there are two sections on the Midland Main Line. where traditional electrification is less likely.

  • The bridge at the Southern end of Leicester station is low and would need to be rebuilt causing immense disruption to both road and rail in the city.
  • Between Derby and Alfreton is the World Heritage Site of the Derwent Valley Mills. Will electrification be fought by the heritage lobby?

Both sections may eventually be electrified at some far off date in the future.

Why Is There A Spur Of Electrification At Totley Junction?

This map clipped from High Speed Two’s interactive map, shows the Southern Leg of Totley Junction, where the Hope Valley Line joins the Midland Main Line.

Note that a short length of electrification is shown, between the Midland Main Line and a tunnel on the Southern leg.

This Google Map shows the same area.

Note, that the line disappears into a tunnel.

  1. In Northern Powerhouse Rail -Significant Upgrades And Journey Time Improvements To The Hope Valley Route Between Manchester And Sheffield, I indicated, that running battery electric trains between Manchester and Sheffield would be a possibility and could be a way of meeting Northern Powerhouse Rail’s objectives for the route.
  2. A short length of electrification might help battery electric trains turn out to go South.
  3. I don’t think any passenger trains ever go that way now, but I have seen articles and heard complaints from passengers, that want a better service between Derby and/or Nottingham and Manchester.
  4. It might also help with the decarbonisation of freight trains to and from the quarries.

I also suspect, that if building High Speed Two in Manchester temporarily reduced the capacity of Manchester Piccadilly station, trains could use the Hope Valley Line to get to the city, as they have done previously, with Project Rio.

Accessing The Infrastructure Depot At Staveley

This map clipped from High Speed Two’s interactive map, shows the location of the infrastructure depot at Staveley.

Note.

  1. Chesterfield is shown by the large blue dot.
  2. High Speed Two’s Sheffield Branch runs North from Chesterfield station.
  3. High Speed Two’s Eastern Leg runs down the Eastern side of the map.
  4. Two spurs from East and West go towards each other and would meet to the North of the town of Staveley.

The infrastructure depot will be located where they meet.

The route from the Sheffield Branch uses the Barrow Hill Line, which might be reopened as another passenger route between Chesterfield and Sheffield.

I wrote about this idea in Reinstatement Of The Barrow Hill Line Between Sheffield And Chesterfield.

If the line is being upgraded and electrified as far as Barrow Hill for the Infrastructure Depot, would it be worthwhile to create a new electrified route into Sheffield?

I also wrote in Could East Midlands Railway’s Liverpool And Norwich Service Avoid A Reverse At Sheffield By Using the Barrow Hill Line?, that the Barrow Hill Line might be an alternative route for the Liverpool and Norwich service.

When the railway routes in the area of the Infrastructure Depot are developed, I wouldn’t be surprised to see some routes changed.

Between Sheffield And Meadowhall Stations

One of the original designs for High Speed Two had it calling at Meadowhall station.

This map clipped from High Speed Two’s interactive map, clearly shows High Speed Two running across Sheffield.

Note.

  1. Sheffield station is the big Blue dot in the South-West corner of the map.
  2. The M1 runs across the North-East corner of the map.
  3. The railway between Sheffield and Meadowhall stations already exists.
  4. Sheffield and Meadowhall stations are 3.5 miles apart and trains take seven minutes.

Is there any reason, why High Speed Two trains shouldn’t serve both Sheffield and Meadowhall stations, by just taking the existing line across the city?

Taking The Wakefield Line Towards Leeds

In extending to Meadowhall, High Speed Two’s route seems to be taking the current Wakefield Line.

This map clipped from High Speed Two’s interactive map, clearly shows High Speed Two passing through Sheffield and Rotherham and then going towards Leeds.

Note.

  1. Orange indicates new High Speed Two track.
  2. Blue indicates track that High Speed Two shares with other lines.
  3. The Wakefield Line is shown in blue and has stations at Meadowhall, Swinton, Bolton-upon-Dearne, Goldthorpe and Thurscoe.
  4. The main High Speed Two leg to Leeds is shown in orange.

It looks to me, that High Speed Two are aiming to provide a route, so that trains going to Sheffield can extend the journey to Leeds.

As Leeds will have three tph to and from London, why is this service being extended to Leeds?

I will explore a few reasons why in the next few sub-sections.

It’s Convenient For Running Trains

Consider.

  • High Speed Two are saying London and Sheffield will be one hour and twenty-seven minutes.
  • Northern Powerhouse Rail have an objective of Leeds and Sheffield in twenty-eight minutes.
  • One hour and fifty-five minutes could be a convenient time for a London and Leeds service, as it could be a four hour round trip.

But High Speed Two are saying London and Leeds will be one hour and twenty-one minutes.

It looks to me, that it is a convenient way to serve Meadowhall, Rotherham, Bolton-upon-Dearne, Goldthorpe and Thurscoe stations

High Speed Two Through Rotherham

This map clipped from High Speed Two’s interactive map, clearly shows High Speed Two passing through Rotherham to the North of the Parkgate Shopping Park.

Note.

  1. High Speed Two is the bright blue line running North-East from the Western edge of the map.
  2. The grey blocks are the stores in the Shopping Park.
  3. The Rotherham Parkgate tram-train stop is marked.

This Google Map shows a similar area.

To the East of the Parkgate Shopping Park, is a large brownfield site, as this Google Map shows.

Could Rotherham have a station on the line North of this site?

  • The rail line running SW-NE across this map is drawn in blue on High Speed Two’s interactive map.
  • Rotherham Masborough station used to be in this area.

If High Speed Two is supposed to be a railway for all the people, or at least as many as possible, surely there should be a station in the town.

High Speed Two Through Bolton-upon-Dearne

In July 2019, I wrote a post called Sheffield Region Transport Plan 2019 – A New Station At Barnsley Dearne Valley.

So have High Speed Two taken on this feature of the Sheffield Region Transport Plan 2019, to add another station to their list of destinations?

Approach To Leeds

This map clipped from High Speed Two’s interactive map, clearly shows route High Speed Two will take to approach Leeds from the South East.

Note.

  1. Leeds station is the blue dot in the North West corner of the map.
  2. High Speed Two is shown in orange and continues North to York, where it joins the East Coast Main Line.
  3. Wakefield is in the middle at the bottom of the map and is on the Wakefield Line and the current route for LNER’s expresses from London.

It looks to me, that Leeds and Sheffield will eventually end up with two faster routes between the two cities.

  • An upgraded Wakefield Line
  • A route based on the Southern section of the Wakefield Line and the Eastern leg of High Speed Two route to Leeds.

If High Speed Two’s trains are to be able to get across Sheffield and call at Sheffield, Meadowhall, Rotherham and Barnsley Dearne Valley stations, then these conditions must be met.

  • The trains must be High Speed Two’s Classic-Compatible trains or a train to a similar specification.
  • Some platform lengthening might be needed to allow the two hundred metre long trains to call.
  • The Wakefield Line must be electrified between Sheffield and just North of Goldthorpe station, where it will be able to join the link to the Eastern leg of High Speed Two.

It would probably be sensible to electrify the Wakefield Line all the way to Fitzwilliam station, from where the line is electrified all the way to Leeds.

This would enable the following.

  • Electric trains to run between Sheffield and Leeds via Wakefield Westgate station.
  • Would Northern Powerhouse Rail’s objective of a twenty-eight minute journey be achieved?
  • East Midlands Railway could run their Class 810 trains between London St. Pancras and Leeds under electric power.
  • High Speed Two could serve Leeds before the Northern infrastructure of the Eastern leg of High Speed Two is complete.
  • High Speed Two could offer services to Wakefield, Barnsley and Rotherham via Sheffield.

I can see reasons for early upgrading of the Wakefield Line.

Conclusion

It appears that High Speed Two are planning an electrified route through Sheffield between Clay Cross North Junction on the Midland Main Line and Goldthorpe station on the Wakefield Line.

Once complete it would enable the following.

  • Rotherham and Barnsley to have direct electric services to and from the capital.
  • When East Midlands Railway introduce their new Class 810 trains, the electrification North of Clay Cross North Junction would mean faster services and less running on diesel power.
  • I believe these Class 810 trains could run between London and Sheffield, if their four diesel engines are replaced with batteries, which would power the trains between Clay Cross North Junction and Market Harborough.
  • The electrification at Sheffield would allow battery electric trains to work between Manchester and Sheffield as I outlined in Northern Powerhouse Rail -Significant Upgrades And Journey Time Improvements To The Hope Valley Route Between Manchester And Sheffield.

I think it is a good plan.

Project Management Recommendations

It is my view that the following projects should be started as soon as possible.

  • Electrification between Clay Cross North Junction and Sheffield station.
  • Electrification of the Wakefield Line between Sheffield and Fitzwilliam stations.
  • Provision of new stations at Rotherham and Barnsley Dearne Valley on the Wakefield Line.

These projects could deliver worthwhile improvements in services in a couple of years, rather than the tens of years for High Speed Two.









November 24, 2020 Posted by | Transport | , , , , , , , , , , , , , , , , , , , , , , | 3 Comments

East Coast Main Line Electrification Research Agreement

The title of this post, is the same as that of this article on Railway Gazette.

These are the first two paragraphs.

An outline £10m co-investment agreement has been signed by the University of Leeds and the Rail Electrification Alliance which is undertaking the East Coast Main Line power supply upgrade programme.

The agreement provides for two years of research into the best and most efficient way of managing electrical power flow on the route, with the university’s scientists and engineers having access to data collected from lineside static frequency converters.

Sounds good to me. I have analysed countless projects and systems, in the early stages and in many cases, the budget and project time have been reduced or a better method of operation has been developed.





November 16, 2020 Posted by | Transport | , , , , | 2 Comments

High Speed Two And Scotland

In this post, I will only look at services and capacity.

I will leave the economics to others with the appropriate data.

Current Anglo-Scottish Services

Currently, these services run between England and Edinburgh Waverley and Glasgow Central stations.

  • 1 train per hour (tph) – Avanti West Coast – London Euston and Glasgow Central via Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Carlisle.
  • 1 train per two hours (tp2h) – Avanti West Coast – London Euston and Glasgow Central via Milton Keynes Central, Coventry, Birmingham International, Birmingham New Street, Sandwell and Dudley, Wolverhampton, Crewe, Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Carlisle.
  • 1 tp2h – CrossCountry – South-West England and Edinburgh Waverley via Bristol Temple Meads, Birmingham New Street, Derby, Chesterfield, Sheffield, Wakefield Westgate, Leeds, York and Newcastle.
  • 1 tp2h – CrossCountry – South-West England and Glasgow Central via Bristol Temple Meads, Birmingham New Street, Derby, Chesterfield, Sheffield, Wakefield Westgate, Leeds, York, Newcastle and Edinburgh Waverley.
  • 1 tph – LNER – London Kings Cross and Edinburgh Waverley via York, Darlington, Newcastle and Berwick-upon-Tweed
  • 1 tph – LNER – London Kings Cross and Edinburgh Waverley via Peterborough, Newark North Gate, Doncaster, York, Northallerton, Darlington, Durham and Newcastle
  • 1 tph – TransPennine Express – Liverpool Lime Street and Edinburgh Waverley via Newton-le-Willows, Manchester Victoria, Huddersfield, Leeds, York, Darlington, Durham, Newcastle and Morpeth
  • 1 tp2h – TransPennine Express – Manchester Airport and Edinburgh Waverley via Manchester Piccadilly, Manchester Oxford Road, Bolton, Preston, Lancaster and Carlisle.
  • 3 trains per day (tpd) – TransPennine Express – Liverpool Lime Street and Glasgow Central via St. Helen’s Central, Wigan North Western, Preston, Lancaster and Carlisle.
  • 1 tp2h – TransPennine Express – Manchester Airport and Glasgow Central via Manchester Piccadilly, Manchester Oxford Road, Bolton, Preston, Lancaster and Carlisle.

Note.

  1. I’ve not included service extensions to Aberdeen and Inverness.
  2. I’ve cut out a few smaller stations
  3. Some services call at both Edinburgh and Glasgow.
  4. Because of signalling and track improvements it is likely that London Kings Cross and Edinburgh timings will come down to four hours.

The services can be roughly summarised as follows.

  • Birmingham and Edinburgh – 0.5 tph
  • Birmingham and Glasgow – 1 tph
  • London and Edinburgh – 2 tph
  • London and Glasgow – 1.5 tph
  • Leeds and Edinburgh – 1.5 tph
  • Leeds and Glasgow – 0.5 tph
  • Liverpool and Edinburgh – 1 tph
  • Liverpool and Glasgow – 3 tpd
  • Manchester and Edinburgh – 1.5 tph
  • Manchester and Glasgow – 0.5 tph
  • Manchester Airport and Edinburgh – 0.5 tph
  • Manchester Airport and Glasgow – 0.5 tph

Note.

  1. I have ignored the five tpd London Kings Cross and Edinburgh service, that starts next year, which will be run by East Coast Trains.
  2. 0.5 tph is equivalent to one tp2h.

It looks a fairly well-balanced and comprehensive service.

High Speed Two Anglo-Scottish Services

According to a table in the June 2020 Edition of Modern Railways, these High Speed Two services will run between England and Edinburgh Waverley and Glasgow Central.

  • 1 tph – London Euston and Edinburgh Waverley via Old Oak Common, Preston, Carlisle and Edinburgh Haymarket
  • 1 tph – London Euston and Edinburgh Waverley via Old Oak Common, Birmingham Interchange, Preston, Carlisle and Edinburgh Haymarket
  • 1 tph – London Euston and Glasgow Central via Old Oak Common, Preston and Carlisle
  • 1 tph – London Euston and Glasgow Central via Old Oak Common, Birmingham Interchange, Preston and Carlisle
  • 1 tp2h – Birmingham Curzon Street and Edinburgh Waverley via Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Oxenholme or Penrith, Carlisle and Edinburgh Haymarket.
  • 1 tp2h – Birmingham Curzon Street and Glasgow Central via Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Oxenholme or Penrith, Carlisle, Lockerbie and Motherwell.

Note.

  1. All trains will be High Speed Two’s 200 metre long Classic-Compatible trains.
  2. The four one tph services will run as two pairs of trains and split and join at Carlisle.

The services can be roughly summarised as follows.

  • Birmingham and Edinburgh – 1.5 tph
  • Birmingham and Glasgow – 1.5 tph
  • London and Edinburgh – 2 tph
  • London and Glasgow – 2 tph

Note.

  1. Passengers between Liverpool or Manchester and Scotland will have to change at Preston.
  2. There is no connection between the Eastern Leg of High Speed Two and Edinburgh.
  3. London and Edinburgh Waverley will take three hours and forty minutes, which saves twenty minutes on the likely four hours on the East Coast Main Line.
  4. London and Glasgow Central will take three hours and forty minutes, which saves fifty minutes on the current time.

High Speed Two certainly provides good services between London, Birmingham and Scotland, but it leaves out travelling between the cities of the North and North of the Border.

High Speed Two Classic-Conventional Trains

In Thoughts On Class 807 Trains And High Speed Two’s Classic-Compatible Trains, I discussed a design of Classic-Compatible High Speed Two train based on the recently-ordered Class 807 trains for Avanti West Coast.

Except for the required speeds, the specifications of the  trains are similar and this was my conclusion.

I wouldn’t be surprised that Hitachi’s offering for more trains on the West Coast Main Line and the Classic-Compatible trains for High Speed Two are very similar to the Class 807 trains.

    • The Classic-Compatible trains for High Speed Two could be eight-car trains with twenty-five metre cars.
    • The replacements for the eleven-car Class 390 trains could be nine-car trains with twenty-six metre cars.

Both would be based on the Class 807 train.

A common design would surely ease operation of the combined West Coast Partnership.

TransPennine Express Between Liverpool Lime Street And Edinburgh

Will this TransPennine Express service still be the primary connection between the North of England and Edinburgh?

  • It has a frequency of one tph.
  • It takes about four hours and fifty minutes.
  • It connects Liverpool, Manchester, Huddersfield, Leeds, York, Darlington, Durham and Newcastle to the Scottish capital.
  • According to Real Time Trains, it runs as far as York on diesel and then using the electrification.

Current plans envisage Northern Powerhouse Rail will create an electrified route across the Pennines.

This report on the Transport for the North web site, is entitled At A Glance – Northern Powerhouse Rail.

It gives these times and frequencies for the various legs of the route.

  • Liverpool and Manchester via Manchester Airport – 26 minutes – 6 tph
  • Manchester and Leeds – 25 minutes – 6 tph
  • Leeds and Newcastle – 58 minutes – 4 tph
  • Newcastle and Edinburgh – 90 minutes

This totals to three hours and nineteen minutes.

Note.

  1. The Newcastle and Edinburgh time is that currently achievable today by Class 801 trains.
  2. Liverpool and Manchester city centres have a six tph high speed service via Manchester Airport.
  3. Manchester and Edinburgh will be under three hours.
  4. Leeds and Edinburgh will be under two-and-a-half hours.
  5. The Manchester and Manchester Airport leg could be shared with High Speed Two.

Most of this will be achievable with the current TransPennine Express Class 802 trains, which are capable of 140 mph.

In addition, I think that it is likely that the East Coast Main Line will be upgraded between York and Newcastle  for High Speed Two.

Liverpool Lime Street and Edinburgh will unlikely be to High Speed Two standards, but it could match the standards of the East Coast Main Line.

Improvements To The East Coast Main Line Between Newcastle and Edinburgh

Consider

  • There have been reports that the power supply on the route is not very robust and Class 800 and Class 802 trains have to use diesel power.
  • The route is fairly straight and could probably be partially-upgraded for 140 mph running with appropriate signalling.
  • The route carries about five tph in both directions. Modern digital signalling could probably double this frequency.
  • The Scottish Government has suggested adding new stations at East Linton and Reston.
  • Edinburgh and Newcastle are 124.5 miles apart and trains typically take ninety minutes.

In addition, High Speed Two might like to extend some or all of their three Newcastle services to Edinburgh.

  • 1 tph – Birmingham Curzon Street and Newcastle via East Midlands Hub, York, Darlington and Durham
  • 1 tph – London Euston and Newcastle via Old Oak Common and York
  • 1 tph – London Euston and Newcastle via Old Oak Common, York and Darlington.

High Speed Two will run between London Euston and Newcastle in two hours and seventeen minutes.

I think it could be possible, that an upgraded Newcastle and Edinburgh route could be covered in seventy minutes by either one of High Speed Two’s Classic Compatible trains or a Class 80x train.

This could mean these timings.

  • Under four hours for classic services between London Kings Cross and Edinburgh.
  • Around three hours for classic services between Liverpool and Edinburgh.
  • Under three-and-a-half hours for High Speed Two services between London Euston and Edinburgh.

This shows the importance of improving the East Coast Main Line to the North of Newcastle.

Improvements To The West Coast Main Line Between Carlisle and Glasgow/Edinburgh

If the frequency and speed of trains on the East Coast Main Line can be increased, what can be done on the West Coast Main Line?

Consider.

  • High Speed Two are showing Carlisle and Glasgow Central as a one hour and nineteen minute journey. Avanti West Coast do the journey in one hour and eleven minutes.
  • High Speed Two are showing Carlisle and Edinburgh as a one hour and eleven minute journey. Avanti West Coast do the journey in one hour and fifteen minutes.
  • Could the route be fully upgraded for 140 mph running with appropriate signalling?
  • In a typical hour, there are two Avanti West Coast trains and one TransPennine Express passing along all or part of the West Coast Main Line North of Carlisle.
  • The route carries a total of about four tph in both directions. Modern digital signalling could probably increase this frequency.
  • Hitachi and Avanti West Coast seem to be saying that their new Class 807 trains have similar performance to the Class 390 trains, but without using tilting technology.

There doesn’t appear to be the scope for such dramatic improvement in the West, as in the East, but I can still see a succession of 140 mph trains running between Carlisle and Glasgow or Edinburgh in no more than an hour and eleven minutes.

These passenger services could be running North of Carlisle, when High Speed Two is fully open.

  • 2 tph – High Speed Two – London Euston and Edinburgh – High Speed Two Classic-Compatible train
  • 2 tph – High Speed Two – London Euston and Glasgow Central – High Speed Two Classic-Compatible train
  • 0.5 tph – High Speed Two – Birmingham Curzon Street and Edinburgh – High Speed Two Classic-Compatible train
  • 0.5 tph – High Speed Two – Birmingham Curzon Street and Glasgow Central – High Speed Two Classic-Compatible train
  • 0.5 tph – TransPennine Express – Manchester Airport and Edinburgh – Class 397 train
  • 0.5 tph – TransPennine Express – Manchester Airport and Glasgow Central – Class 397 train
  • 3 tpd – TransPennine Express – Liverpool and Glasgow Central – Class 397 train

Note.

  1. I am assuming that Avanti West Coast’s services will be replaced by the High Speed Two services.
  2. As the TransPennine Express services share a path, it would appear that six tph will be running between Carlisle and Edinburgh or Glasgow.

There would appear to be space for more trains on the West Coast Main Line, to the North of Carlisle.

A Few Random Thoughts

These are a few random thoughts and ideas.

Avanti West Coast And High Speed Two Classic-Compatible Trains

Avanti West Coast will have these fleets of high-speed trains.

  • 11-car Class 390 electric trains, which are 265.3 metres long
  • 9-car Class 390 electric trains, which are 217.5 metres long.
  • 7-car Class 807 electric trains, which will be 182 metres long
  • 5-car Class 805 bi-mode trains, which will be 130 metres long
  • High Speed Two Classic-Compatible trains, which will be 200 metres long
  • Full-size High Speed Two trains, which will be 400 metres long.

It would appear that there could be some fleet simplification.

All Passenger Trains Between Newcastle Or Carlisle and Glasgow Central Or Edinburgh Should Be Capable Of Operating At 140 mph

Both the East and West Coast Main Lines between Carlisle and Newcastle in England and Edinburgh and Glasgow in Scotland are not far off being capable of running trains at 140 mph. Modern digital in-cab signalling and some track works will be needed.

Once 140 mph running is achieved, then all trains will need to be capable of making use of the speed, to maximise the capacity of the routes.

Freight Trains Between Newcastle Or Carlisle and Glasgow Central Or Edinburgh Should Be Capable Of Operating As Fast As Possible

Freight trains will need to be hauled by electric locomotives, at as high a speed as possible, to avoid slowing the express passenger trains.

More well-positioned freight loops may be needed.

Will TransPennine’s Manchester And Scotland Service Transfer To High Speed Two?

I think, that this is highly likely.

  • The service would be run by High Speed Two Classic-Compatible trains.
  • Depending on track layout, the Liverpool and Scotland service on the West Coast Main Line could be upgraded to the High Speed Two Classic-Compatible trains or discontinued.

This would mean, that  all passenger trains on the West Coast Main Line North of Lancaster would be High Speed Two Classic-Compatible trains.

  • 2 tph – High Speed Two – London Euston and Edinburgh – High Speed Two Classic-Compatible train
  • 2 tph – High Speed Two – London Euston and Glasgow Central – High Speed Two Classic-Compatible train
  • 0.5 tph – High Speed Two – Birmingham Curzon Street and Edinburgh – High Speed Two Classic-Compatible train
  • 0.5 tph – High Speed Two – Birmingham Curzon Street and Glasgow Central – High Speed Two Classic-Compatible train
  • 0.5 tph – High Speed Two – Manchester Airport and Edinburgh – High Speed Two Classic-Compatible train
  • 0.5 tph – High Speed Two – Manchester Airport and Glasgow Central – High Speed Two Classic-Compatible train
  • 3 tpd – High Speed Two – Liverpool and Glasgow Central – High Speed Two Classic-Compatible train

This must mean that if the operating speed on the West Coast Main Line were to be increased, all passenger services could take advantage, which would surely improve timings.

What About CrossCountry?

CrossCountry run a single hourly service between Plymouth and Edinburgh.

  • The route goes via Bristol Temple Meads, Birmingham New Street, Derby, Chesterfield, Sheffield, Wakefield Westgate, Leeds, York, Newcastle.
  • Some services are extended to Glasgow Central and Aberdeen.

Currently, this service is run by a diesel train, which surely will need to be replaced with a zero-carbon train.

Consider.

  • Scotland is keen to electrify or allow electric trains to run between Edinburgh and Aberdeen.
  • High Speed Two will provide an electrified route between Birmingham and York via East Midlands Hub for Derby, Chesterfield, Sheffield and Leeds.
  • The likes of Hitachi and Adrian Shooter of Vivarail are very bullish about battery electric trains.
  • Great Western Railway, Hitachi and Network Rail have probably hired Baldrick for a cunning plan to run battery electric trains between Bristol and Penzance.

Could it be possible for Hitachi or another manufacturer to design a High Speed Two Classic-Compatible train, with a battery capability?

A train with this specification, could be ideal for the Plymouth and Edinburgh service.

It might also be useful for these CrossCountry services.

  • Southampton and Newcastle
  • Bournemouth and Manchester Piccadilly
  • Exeter St. Davids/Bristol and Manchester Piccadilly
  • Cardiff Central and Nottingham
  • Birmingham and Nottingham
  • Birmingham and Stansted Airport

Note.

  1. All could run on High Speed Two fpr part of the route.
  2. Birmingham and Nottingham has already been proposed for running using High Speed Two Classic-Compatible train, by Midlands Engine Rail, as I wrote about in Classic-Compatible High Speed Two Trains At East Midlands Hub Station.
  3. I proposed a Birmingham and Cambridge service using High Speed Two Classic-Compatible trains in A Trip To Grantham Station – 4th November 2020.

High Speed Two could have a big positive effect on CrossCountry services.

Future Anglo-Scottish Services After High Speed Two Opens Fully

It is possible, that when High Speed Two fully opens, these services will run between England and Edinburgh Waverley and Glasgow Central stations.

  • 1 tp2h – CrossCountry – South-West England and Edinburgh Waverley via Bristol Temple Meads, Birmingham New Street, Derby, Chesterfield, Sheffield, Wakefield Westgate, Leeds, York and Newcastle.
  • 1 tp2h – CrossCountry – South-West England and Glasgow Central via Bristol Temple Meads, Birmingham New Street, Derby, Chesterfield, Sheffield, Wakefield Westgate, Leeds, York, Newcastle and Edinburgh Waverley.
  • 1 tph – LNER – London Kings Cross and Edinburgh Waverley via York, Darlington, Newcastle and Berwick-upon-Tweed
  • 1 tph – LNER – London Kings Cross and Edinburgh Waverley via Peterborough, Newark North Gate, Doncaster, York, Northallerton, Darlington, Durham and Newcastle
  • 1 tph – High Speed Two – London Euston and Edinburgh Waverley via Old Oak Common, Preston, Carlisle and Edinburgh Haymarket
  • 1 tph – High Speed Two – London Euston and Edinburgh Waverley via Old Oak Common, Birmingham Interchange, Preston, Carlisle and Edinburgh Haymarket
  • 1 tph – High Speed Two – London Euston and Glasgow Central via Old Oak Common, Preston and Carlisle
  • 1 tph – High Speed Two – London Euston and Glasgow Central via Old Oak Common, Birmingham Interchange, Preston and Carlisle
  • 1 tp2h – High Speed Two – Birmingham Curzon Street and Edinburgh Waverley via Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Oxenholme or Penrith, Carlisle and Edinburgh Haymarket.
  • 1 tp2h – High Speed Two – Birmingham Curzon Street and Glasgow Central via Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Oxenholme or Penrith, Carlisle, Lockerbie and Motherwell.
  • 1 tph – TransPennine Express – Liverpool Lime Street and Edinburgh Waverley via Newton-le-Willows, Manchester Victoria, Huddersfield, Leeds, York, Darlington, Durham, Newcastle and Morpeth
  • 1 tp2h – High Speed Two – Manchester Airport and Edinburgh Waverley via Manchester Piccadilly, Manchester Oxford Road, Bolton, Preston, Lancaster and Carlisle.
  • 3 trains per day (tpd) – High Speed Two – Liverpool Lime Street and Glasgow Central via St. Helen’s Central, Wigan North Western, Preston, Lancaster and Carlisle.
  • 1 tp2h – High Speed Two – Manchester Airport and Glasgow Central via Manchester Piccadilly, Manchester Oxford Road, Bolton, Preston, Lancaster and Carlisle.

Note.

  1. I have assumed that the Liverpool/Manchester services to Scotland via the West Coast Main Line have transferred to High Speed Two.
  2. All trains would be run by High Speed Two Classic-Compatible trains.

The services can be roughly summarised as follows.

  • Birmingham and Edinburgh – 1.5 tph (0.5 tph)
  • Birmingham and Glasgow – 1.5 tph (1 tph)
  • London and Edinburgh – 4 tph (2 tph)
  • London and Glasgow – 2 tph (1.5 tph)
  • Leeds and Edinburgh – 1.5 tph (1.5 tph)
  • Leeds and Glasgow – 0.5 tph (0.5 tph)
  • Liverpool and Edinburgh – 1 tph (1 tph)
  • Liverpool and Glasgow – 3 tpd (3 tpd)
  • Manchester and Edinburgh – 1.5 tph (1.5 tph)
  • Manchester and Glasgow – 0.5 tph (0.5 tph)
  • Manchester Airport and Edinburgh – 0.5 tph (0.5 tph)
  • Manchester Airport and Glasgow – 0.5 tph (0.5 tph)

Note.

  1. My estimates for the number of trains in the future, are probably best described as minimum figures.
  2. The figures in brackets are the current frequencies.
  3. Currently, there are eleven express trains between England and Scotland and after High Speed Two is fully open there could be at least fifteen express trains.

I have a few final thoughts.

Capacity Between England And Scotland

Capacity of the current and future Anglo-Scottish trains is as follows.

  • High Speed Two Classic-Compatible train – 500-600
  • Eleven-car Class 390 train – 589
  • Nine-car Class 800 train – 611

It appears that the all the longer trains have roughly the same capacity.

As there are now eleven Anglo-Scottish long trains and these will be increased to fifteen, that indicates an minimum 36 % increase in capacity.



Will High Speed Two And Northern Powerhouse Rail Share A Route Across The Pennines?

Northern Powerhouse Rail have talked about extending High Speed Two services from Manchester to Huddersfield, Leeds, Hull, York and Newcastle.

I wrote about this in Changes Signalled For HS2 Route In North.

I like this plan for the following reasons.

It gives more places like Huddersfield and Hull access to High Speed Two.

It increases frequencies across the North.

But most importantly, as infrastructure is shared, it saves a lot of money.

It also opens up possibilities for services.

  • The Liverpool and Edinburgh service could be run on the High Speed Two route across the Pennines and up the East Coast Main Line.
  • London and Manchester services could be extends to Leeds, York, Newcastle and Scotland.

If Northern Powerhouse Rail were to be cleared for High Speed Two’s Full-Size trains, it opens up the possibility of running them further North.

Conclusion

High Speed Two will increase Anglo-Scottish capacity by more than a third.









November 13, 2020 Posted by | Transport | , , , , , , , , , , , , , , | Leave a comment

A Trip To Grantham Station – 4th November 2020

I hadn’t intended to go to Grantham station, but that’s what I did on the last day before lockdown.

Over the last couple of weeks, I’ve been talking to a guy in Lincolnshire, who read Energy In North-East Lincolnshire, on this blog.

Last week, we both realised that we’d worked together in the 1970s, when he worked at a bank in the City, and I did some data analysis for the section, where he worked.

He is unwell with cancer at the moment and suggested I come down and see him in Skegness, where he now lives with his wife.

So I arrived at Grantham and found that the connecting train was running nearly an hour late and even then it was terminating at Boston.

After a quick exchange of texts, I told him the bad news and he gave me the good news, that his condition had improved and would be able to see me after Christmas and/or lockdown.

Luckily, I was able to change my ticket and took the next train back to London, after taking these pictures of the station.

I just had time to have a last drink of Aspall cyder before lockdown, in the station bar.

These are some thoughts.

Platform Layout At Grantham

The Wikipedia entry for Grantham station says this about the platforms.

It is composed of four platforms; platforms 1 and 2 are on the East Coast Main Line and are responsible for express services between London and Scotland. Platform 1 serves exclusively London King’s Cross via Peterborough and Stevenage; Platform 2 serves cities of northern England and Edinburgh. Platform 2, 3 and 4 are formed from a large island platform structure. Platform 3 is a bay platform at the northern end of the station that is used to allow local trains to reverse, while Platform 4 is a two-way platform that is used by East Midlands Railway. Only Platform 1 has amenities, including toilets, refreshments and a buffet.

This Google Map shows the station.

Note.

  1. Platforms are numbered 1 to 4 from East to West.
  2. Platforms 1 and 2 are long enough to take two five-car Class 800 trains working as a pair.
  3. Platform 4 may be long enough for these pairs of trains or could be made so.
  4. All trains to and from Nottingham call in Platform 4.
  5. Trains from Nottingham to Peterborough call in Platform 4 before crossing over to the down lines.
  6. There would appear to be no easy way for a Southbound train on the East Coast Main Line to access Platform 4.
  7. Platform 3 didn’t get much use on the day I visited.

There is also an avoiding line to allow freight and other passing trains to avoid going through the platforms.

Services Through Grantham Station

Services stopping at Grantham are as follows.

  • LNER – One tp2h – London Kings Cross and Harrogate via Stevenage, Grantham, Doncaster, Wakefield Westgate, Leeds
  • LNER – One tp2h – London Kings Cross and Bradford Forster Square via Stevenage, Grantham, Doncaster, Wakefield Westgate, Leeds
  • LNER – One tp2h – London Kings Cross and Lincoln via Stevenage, Peterborough, Grantham and Newark North Gate
  • LNER – One tp2h – London Kings Cross and York via Stevenage, Peterborough, Grantham, Newark North Gate, Retford and Doncaster.
  • Hull Trains – Five tpd – London Kings Cross and Hull via Stevenage, Grantham, Retford, Doncaster, Selby, Howden and Brough
  • Hull Trains – Two tpd – London Kings Cross and Beverley via Stevenage, Grantham, Retford, Doncaster, Selby, Howden, Brough, Hull and Cottingham.
  • East Midlands Railway – One tph – Liverpool Lime Street and Horwich via Peterborough and Nottingham
  • East Midlands Railway – One tph – Nottingham and Skegness

Note.

  1. tph is trains per hour
  2. tp2h is trains per two hours.
  3. tpd is trains per day.

Adding the services together, there is a frequent service between Stevenage, Peterborough, Grantham and Newark North Gate.

Train Timings Between London Kings Cross and Grantham

The fastest trains take 67 minutes between London Kings Cross and Grantham.

  • The distance is 105.5 miles
  • This would be an average speed of 94.5 mph.
  • The East Coast Main Line is being upgraded with in-cab digital ERTMS signalling, which will allow 140 mph running.
  • The works at Kings Cross station will have increased the station’s capacity.

I wouldn’t be surprised to see a time between London Kings Cross and Grantham, of under an hour, time-tabled in the near future.

Could There Be A London Kings Cross and Nottingham Service Via Grantham?

On this page on UK Rail Forums, this was posted in 2010.

According to today’s East Midlands news on BBC1, Network Rail is considering inviting tenders to run a faster service from Nottingham to London King’s Cross via Grantham, from 2014. The present service of around 1hr 45m is considered too slow by passengers.

How would this new service be reconciled with the much-publicised capacity constraints at Welwyn and at King’s Cross itself? Will the proposed possible service be diesel-powered under the wires from Grantham, or will the Grantham-Nottingham stretch be electrified? Interesting times.

Technology has changed since 2010 and the East Coast Main Line has improved.

  • King;s Cross station is being sorted.
  • Digital ERMTS signalling is coming to the East Coast Main Line
  • Hatachi’s new Class 800 trains have arrived and could go between Grantham and Nottingham on diesel power.
  • Grantham and Nottingham takes 35 minutes on a service with three stops, that’s timed for a Class 153 train.
  • Grantham and Nottingham is just over twenty miles.

As I said earlier, that I believe Grantham and London could be inside an hour, I wouldn’t be surprised to see a Nottingham and London Kings Cross service in under an-hour-and-a-half.

But it could be better than that?

Hitachi’s Regional Battery Train

This is the train that could unlock the potential of a London Kings Cross and Nottingham service.

This Hitachi infographic gives details of the train.

Note that the train has a range of 90 kilometres or 56 miles, at speeds of up to 100 mph.

The trains would be ideal for a London Kings Cross and Nottingham service.

  • They would charge the batteries, whilst using the electrification on the East Coast Main Line.
  • The battery range is such, that it would not need any charging between leaving Grantham and returning there from Nottingham.
  • They could travel at speeds of up to 140 mph on the East Coast Main Line, once the digital ERTMS  signalling is installed.
  • Stops could be at Stevenage, Peterborough and Grantham.

LNER’s five-car Class 800 trains, which are branded Azumas can be turned into Regional Battery Trains, by replacing the three diesel engines with battery packs.

I would suspect that times of around eighty minutes, between London Kings Cross and Nottingham, could be in order.

A Park-And-Ride For Nottingham And London

Nottingham has several Park-and-Ride sites, that are served by the trams. of the Nottingham Express Transit, which already calls at Nottingham station.

Would another site on the rail line between Grantham and Nottingham be useful?

This map shows. where the rail line crosses the A46, near its junction with the A52.

Note the Grantham and Nottingham line running across the top of the map and the big junction between the A52 and the A46.

It looks to be a good place for a Park-and-Ride station, if it was decided one needed to be built.

There might also be sites further in towards Nottingham, close to the racecourse or the Holme Pierpoint National Watersports Centre.

A Combined Nottinghamshire And Lincolnshire Service

I originally called this section a Combined Nottingham And Lincoln Service, but I don’t see why it can’t serve most of both counties.

Consider.

  • Birmingham, Brighton, Cambridge, Oxford and Southend get two services from the capital by different routes.
  • Hitachi’s Class 800 trains can Split/Join in around two minutes.
  • Running five-car Class 800 trains all the way between London Kings Cross and Lincoln is not a good use of a valuable train path on the East Coast Main Line.
  • Lincoln is just 16.5 miles and 24 minutes from the East Coast Main Line.
  • Nottingham is 22 miles and could be 20 minutes from the East Coast Main Line.
  • Both Lincoln and Nottingham would be in battery range for a return trip from the East Coast Main Line.
  • Platforms 1, 2 and 4, at Grantham are long enough to handle two Class 800 trains, running as a pair and regularly pairs call in Platforms 1 and 2.

I believe it would be possible for a pair of Regional Battery Trains to do the following.

  • Leave London Kings Cross and run to Grantham in an hour, stopping at Stevenage and Peterborough.
  • Stop in Platform 4 at Grantham station, where the trains would split.
  • One train would continue on the East Coast Main Line to Newark North Gate station, where it would leave the East Coast Main Line and go to Lincoln.
  • The other train would continue to Nottingham.

Note.

  1. Coming back, the process would be reversed with trains joining in Platform 1 or Platform 4 at Grantham.
  2. There may need to be some track and signalling modifications, but nothing too serious or challenging.

Connections to other parts of Nottinghamshire and Lincolnshire would be as follows.

  • Nottingham and Nottinghamshire would be connected using the Nottingham Express Transit and the Robin Hood and Maid Marian Lines from Nottingham station.
  • All stations between Grantham and Nottingham would be reached from either Grantham or Nottingham.
  • All stations to Boston and Skegness would be reached from Grantham.
  • All stations between Newark and Lincoln would be reached from either Lincoln or Newark.
  • All stations between Doncaster and Lincoln would be reached from either Doncaster or Lincoln.
  • All stations between Peterborough and Lincoln would be reached from either Lincoln or Peterborough.
  • All stations to Market Rasen, Grimsby Town and Cleethorpes would be reached from Lincoln.

Note.

  1. I feel that some Lincoln services could be extended to Cleethorpes via Market Rasen and Grimsby Town.
  2. Hopefully, a timetable could be developed, so that no connection was overly long.

Most of the distances are not unduly long and I would hope that most secondary services could be battery electric trains, which would be charged in the larger stations like Boston, Cleethorpes, Doncaster, Grantham, Lincoln, Mansfield, Nottingham, Peterborough, Sleaford, Spalding and Worksop.

Doncaster, Grantham and Peterborough already have 25 KVAC overhead electrification and this could be used to charge the trains, with possibly some small extensions.

The other stations will need a number of systems to charge the trains, as they pass through.

Some stations will be suitable for the installation of the standard 25 KVAC overhead electrification, but others will need specialised charging systems.

It appears that Adrian Shooter of Vivarail has just announced a One-Size-Fits-All Fast Charge system, that has been given interim approval by Network Rail.

I discuss this charger in Vivarail’s Plans For Zero-Emission Trains, which is based on a video on the Modern Railways web site.

There is more about Vivarail’s plans in the November 2020 Print Edition of the magazine, where this is said on page 69.

‘Network Rail has granted interim approval for the fast charge system and wants it to be the UK’s standard battery charging system’ says Mr. Shooter. ‘We believe it could have worldwide implications.’

Vivarail’s Fast Charge system must surely be a front-runner for installation.

What frequency of the Combined Nottinghamshire And Lincolnshire service would be needed and could be run?

Consider.

  • Currently, Lincoln is served with one tp2h with a five-car Class 800 train running the service.
  • The Lincoln service alternates with a one tp2h service to York, which also calls at Retford and Doncaster.
  • Work is progressing on increasing the number of high speed paths on the East Coast Main Line.

Obviously, an hourly service to both Nottingham and Lincoln would be ideal and would give most of the two counties an hourly service to and from London Kings Cross with a single change at either Doncaster, Grantham. Lincoln, Newark, Nottingham or Peterborough.

  • An hourly service might be difficult to timetable because of the York service.
  • But I don’t believe it would be impossible to setup.

Especially if after, the Eastern leg of High Speed Two opens, East Coast Main Line services from London Kings Cross to North of York are replaced in part, by High Speed Two services.

The Effect Of High Speed Two

High Speed Two will build a new station at Toton called East Midlands Hub station.

  • The station will be situated about halfway between Nottingham and Derby, with frequent connections to both cities.
  • There will be frequent services to Birmingham, Leeds, London, Newcastle and Sheffield.
  • I wouldn’t be surprised to see a direct service to Edinburgh and Glasgow from the station.
  • There will be a lot of economic growth around the station.

I very much feel, that a lot of passengers were travel to East Midlands Hub station for both long distance trains and to access the Derby-Nottingham area.

A Cambridge And Birmingham Service

In How Many Trains Are Needed To Run A Full Service On High Speed Two?, I proposed a Cambridge and Birmingham Curzon Street service.

This is what I said.

The obvious one is surely Cambridge and Birmingham

  • It would run via Peterborough, Grantham, Nottingham and East Midlands Hub.
  • It would connect the three big science, engineering and medical centres in the Midlands and the East.
  • It would use High Speed Two between Birmingham Curzon Street and East Midlands Hub.
  • It could be run by High Speed Two Classic-Compatible trains.

It might even be a replacement for CrossCountry’s Stansted Airport and Birmingham service.

Timings for the various legs could be.

  • Cambridge and Peterborough – CrossCountry – 49 minutes
  • Peterborough and Grantham – LNER – 19 minutes
  • Grantham and Nottingham -Best Estimate – 20 minutes
  • Nottingham and Birmingham Curzon Street – Midlands Rail Engine – 33 minutes

Note.

  1. This totals to two hours and one minute.
  2. The current service takes two hours and forty-four minutes.
  3. The Ely and Peterborough and Grantham and Nottingham legs are not electrified.

If the route were to be fully electrified or the trains were to be fitted with batteries, the time via High Speed Two, would surely be several minutes under two hours.

Conclusion

These objectives are possible.

  • An hourly service between London Kings Cross and Grantham, Lincoln, Newark and Nottingham.
  • A very much more comprehensive train service for Nottingham and Lincolnshire.
  • A two hour service between Cambridge and Birmingham.

Most of the services would be zero carbon.

No major infrastructure would be needed, except possibly completing the electrification between Nottingham and Ely, some of which is probably needed for freight trains anyway.

Alternatively, the High Speed Two Classic-Compatible trains could be fitted with batteries.



November 9, 2020 Posted by | Health, Transport | , , , , , , , , , , , , , , , , | 6 Comments

Darlington Station – 28th October 2020

I went to Teesside to have a look round yesterday.

These are my thoughts on Darlington station.

Platform 1 And Platform 4

These pictures show the two main platforms at Darlington station.

Note.

  1. They are affectively a very wide island platform.
  2. Platform 1 handles all trains going South and East to Middlesbrough and Saltburn.
  3. Platform 4 handles all trains going North and West to Bishop Auckland.
  4. The platforms are well over 200 metres long.
  5. Both the main platforms have a second track, between the current track and the walls of the station.
  6. Both main platforms have a large clock.
  7. Platform 1 has some innovative seating.
  8. Uniquely, there is a London Rail Map on the London-bound Platform 1. Every London-bound platform needs a copy of this map, but they are very rare.

They appear to handle all the current services easily.

There is certainly a lot of space to improve the station.

Station Structure

The station stricture is probably best described as grand, stylish and Victorian and it appears to be in good condition.

  • The tracks through the station are enclosed in two large brick walls.
  • A roof of the period, is supported on the walls and a number of perhaps forty cash-iron columns.

These pictures give a flavour of the station.

There must be few better station structures than Darlington in the UK and as it is Listed Grade II*. I would expect this is recognised by English Heritage.

The Southern Bay Platforms

There are two bay platforms at the Southern end of the station.

There were bay platforms at the Northern end, but these have now been removed.

I wonder, if these two bay platforms could be invaluable in the expansion of services both on the Tees Valley Line and generally in the area.

Current plans envisage the following.

  • Four trains per hour (tph) between Saltburn and Darlington.
  • Two tph between Darlington and Bishop Auckland.

One obvious way to achieve this objective would be to do the following.

  • Run two tph between Saltburn and Bishop Auckland. These trains would run as now with Saltburn services using Platform 1 and Bishop Auckland services using Platform 4 at Darlington station.
  • Run two tph between Saltburn and Darlington. These trains would use Platform 2 at Darlington station.

The advantages of this are.

  • To get to Middlesbrough or Saltburn, you would go to the island Platform 1/2, as you do now.
  • To get to Bishop Auckland, you would go to Platform 4, as you do now.
  • If battery trains were to be used the bay platforms would be ideal for a Vivarail Fast Charge system

There would probably need to be some changes to the tracks serving Platform 1 and 2.

Other possibilities might include.

  • Darlington might also be a useful terminal for a service to Whitby via Middlesbrough.
  • Using the station as a Northern terminus for an Express Parcels Service from London.

Lengthened platforms able to take a five-car Class 802 train, could be useful for service recovery.

The Western Pedestrian Entrance To The Station

Darlington Town Centre lies to the West of the station and these pictures show what probably was a very grand entrance to the station connected to it by a subway.

This Google Map shows the size of the entrance.

It is one of those buildings that would be described by a certain breed of estate agent, as having development potential.

  • There are no lifts to the subway.
  • It could be turned into a retail experience.
  • Does the clock tell the right time?
  • Buses were signposted in this direction, but there appeared to be little information.

Surely, it could be turned into an asset to both the railway and the town.

The Southern Approaches To The Station

These pictures show the Southern approach to the station.

The Tees Valley Line to and from Middlesbrough and Saltburn joins to the South of the station and trains going to Bishop Auckland have to cross over the two tracks of the East Coast Main Line.

This Google Map shows the track layout just to the South of the station.

Note.

  1. The Southern ends of the platforms can just be seen at the top of the map.
  2. Platforms are numbered 1 to 4 from West to East.
  3. The two avoiding lines going past the East side of the station.
  4. The yellow train is one of Network Rail’s Mobile Maintenance Trains.

The Mobile Maintenance Train was parked in the same place yesterday, as this picture shows.

The second Google Map shows Darlington South Junction, where the Tees Valley Line from Middlesbrough joins the East Coast Main Line.

These two maps indicate the problem of train operation at Darlington.

A train between Bishop Auckland in the West and Middlesbrough and Saltburn in the East, can sneak down the Southbound East Coast Main Line and take the Tees Valley Line to continue on its way.

But a train going the other way, needs to cross both tracks of the East Coast Main Line on the flat, which means precision working by drivers and signallers, to avoid causing delays to both main line and local trains.

I suspect all the following are true.

  • The number of London and Scotland expresses will increase.
  • London and Scotland expresses will be running faster.
  • The number of freight services on the route will increase.
  • The number of services between Bishop Auckland and Saltburn will increase from the current hourly only service.
  • High Speed Two will eventually start to run services between London and Birmingham, and at least as far North as Newcastle

All will make the need for improvements South, and probably North, of Darlington station increasingly important.

Could it be that the simplest solution would be to create a dive-under?

  • It would only need to be single-track.
  • It could probably be built without affecting current services, as was the Acton dive-under.
  • There would appear to be plenty of space.

It would only need to allow trains from the Eastern branch of the Tees Valley Line to access Platform 4 at Darlington station.

High Speed Two Is Coming

High Speed Two is coming to Darlington and I wrote about that in £100m Station Revamp Could Double Local Train Services.

This was my conclusion about what will happen to services at Darlington in that post.

I think that this will happen.

  • The Tees Valley Line trains will be greatly improved by this project.
  • Trains will generally run at up to 140 mph on the East Coast Main Line, under full digital control, like a slower High Speed Two.
  • There will be two high speed platforms to the East of the current station, where most if not all of the High Speed Two, LNER and other fast services will stop.
  • There could be up to 15 tph on the high speed lines.

With full step-free access between the high speed and the local platforms in the current station, this will be a great improvement.

So what will the step-free access be like?

The young assistant in WH Smith told me that a hole will be made in the wall on the East side of the current Platform 1.

It does seem that a new bridge could reach over all the platforms with an entrance for the Town Centre in a refurbished Western entrance.

Passengers would arrive by high speed train every few minutes from the South, Newcastle or Scotland.

  • Those for the Town Centre would walk across the bridge and exit the station in a refurbished Western entrance.
  • Those needing onward local train travel would descend into the current station to catch another frequent train.
  • Hopefully, there would be space somewhere for a bus station.

It would be a real gateway station for Darlington.





October 29, 2020 Posted by | Transport | , , , , | 2 Comments
