Garmisch-Partenkirchen Train Derailment

The Garmisch-Partenkirchen train derailment, which took place a few days ago, seems a strange one to me.

A push-pull train of five Bombardier double-deck carriages being pushed by a Class 111 locomotive derailed on a single-track line.

This map from OpenRailwayMap shows the are of the derailment.

Note.

  1. The derailment took place between Garmisch-Partenkirchen and Farchant.
  2. The train was heading North.
  3. The accident happened close to the junction of the B2 and B23 roads.
  4. The speed limit through the area would appear to be between 100 and 110 kph.

This Google Map shows the area in detail.

Note the railway curving to the left.

As an engineer, I used to be worried, where a heavy powerful locomotive pushed a rake of coaches at a high speed.

But then I had a long talk with a British Rail engineer, with whom I was working on the analysis of signal failures. He put my worries to rest.

In recent years in the UK, we have had four services, where a heavy, powerful locomotive runs a service in a push-pull mode, with a driving van trailer (DVT) at the other end of the train.

  • Chiltern Railways – Marylebone and Birmingham.
  • East Coast Main Line – London and Leeds and Edinburgh.
  • Great Eastern – London and Norwich.
  • TransPennine – Across the Pennines.

There has only been two serious accidents on these services.

Strangely, the same locomotive was involved in both crashes. It was pulling at Hatfield, but pushing at Selby.

It should also be noted that prior to the introduction of the driving van trailer, a less sophisticated control car calla a Driving Brake Standard Open (DBSO) was used.

  • They were converted from Mark 2 coaches.
  • Some are still in services with Network Rail.

One was destroyed in the Polmont rail accident, where an Edinburgh to Glasgow train struck a cow.

In a section entitled Background in its entry for the Polmont rail accident, Wikipedia says this.

Glasgow Queen Street and Edinburgh Waverley were operated by the push-pull technique with a single British Rail Class 47 locomotive located at one end of the train at all times (the locomotive usually pulled the carriages from Glasgow to Edinburgh and pushed them on the return journey). At the other end of the train was a Driving Brake Standard Open (DBSO). DBSO carriages were introduced on the line in 1980 and consisted of a passenger carriage with a control cab at the front for the driver; a DBSO would be situated at the front of the train allowing the driver to control the locomotive with a set of remote controls from which control signals were sent through the lighting circuits of the train to the locomotive pushing from behind. This system meant that the train could continuously run between the two cities without having to allow time to switch the locomotive to the front of the train between departures. However, it left the front of the train vulnerable when being pushed from behind because the front end was lighter than the rear and had the risk of being pushed over an obstruction, leading to derailment.

To summarise in the UK, of the three major accidents involving push-pull trains, two were caused by substantial objects getting on the line, that was hit by the DVT or DBSO.

  • All three accidents have been fully explained.
  • Recommendations have been made to ensure better track security.
  • I notice that now, where push-pull trains are used for replacement services, they seem to be run using two locomotives.
  • Hitachi and Stadler both build quality bi-mode trains, which can replace push-pull operation using diesel locomotives.

I doubt that we’ll see many more new push-pull services in the UK, except where there is a shortage of suitable new rolling stock or on heritage services.

No reports from Germany have indicated that anything was on the line.





June 7, 2022 Posted by | Transport/Travel | , , , | 8 Comments

UK Energy Exports To Europe At Record High

The title of this post, is the same as that of this article on The Times.

This is the first two paragraphs.

Britain has exported record amounts of gas to Europe so far this year as its liquefied natural gas terminals receive shipments destined for the Continent.

Electricity exports also have surged to unprecedented highs in recent weeks after an unexpected glut of gas pushed down short-term gas prices and resulted in gas-fired power plants generating more for export.

Who’d have thought it, that all those gas pipelines and electricity interconnectors between the UK and the Continent of Europe would be part of the replacementliqui for Russian gas.

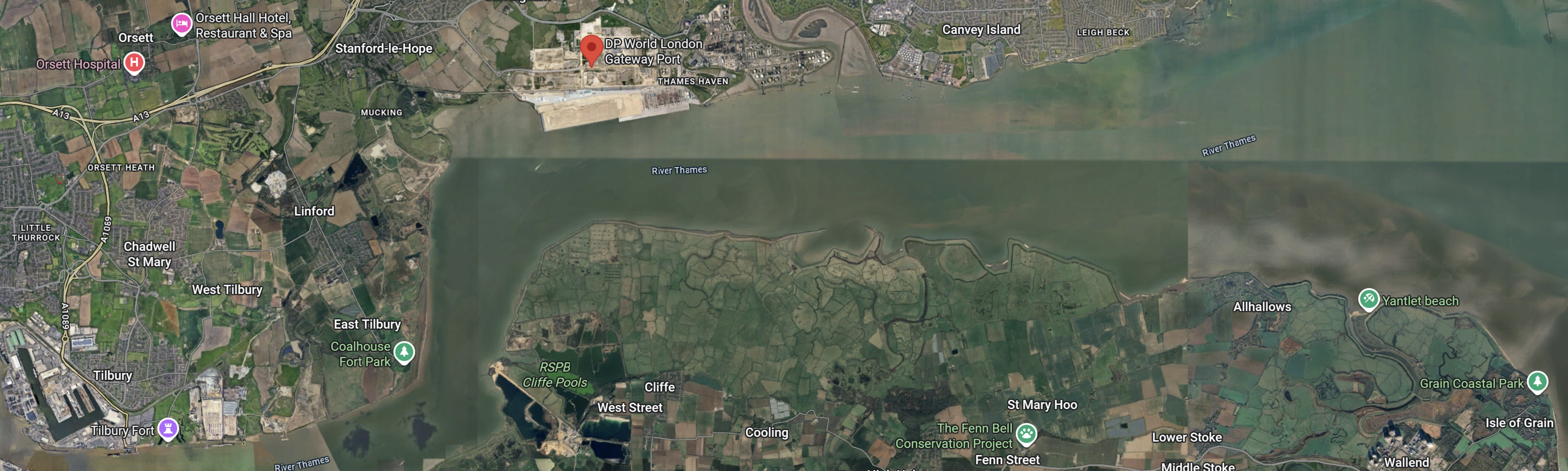

According to Wikipedia, we have three liquified natural gas terminals; two at Milford Haven; South Hook and Dragon, and Grain on the Isle of Grain.

Note.

  1. South Hook is Europe’s largest liquified natural gas terminal and is owned by a partnership of the Qataris, ExxonMobil and Elf.
  2. South Hook and Dragon together can provide 25 % of the UK’s natural gas needs.

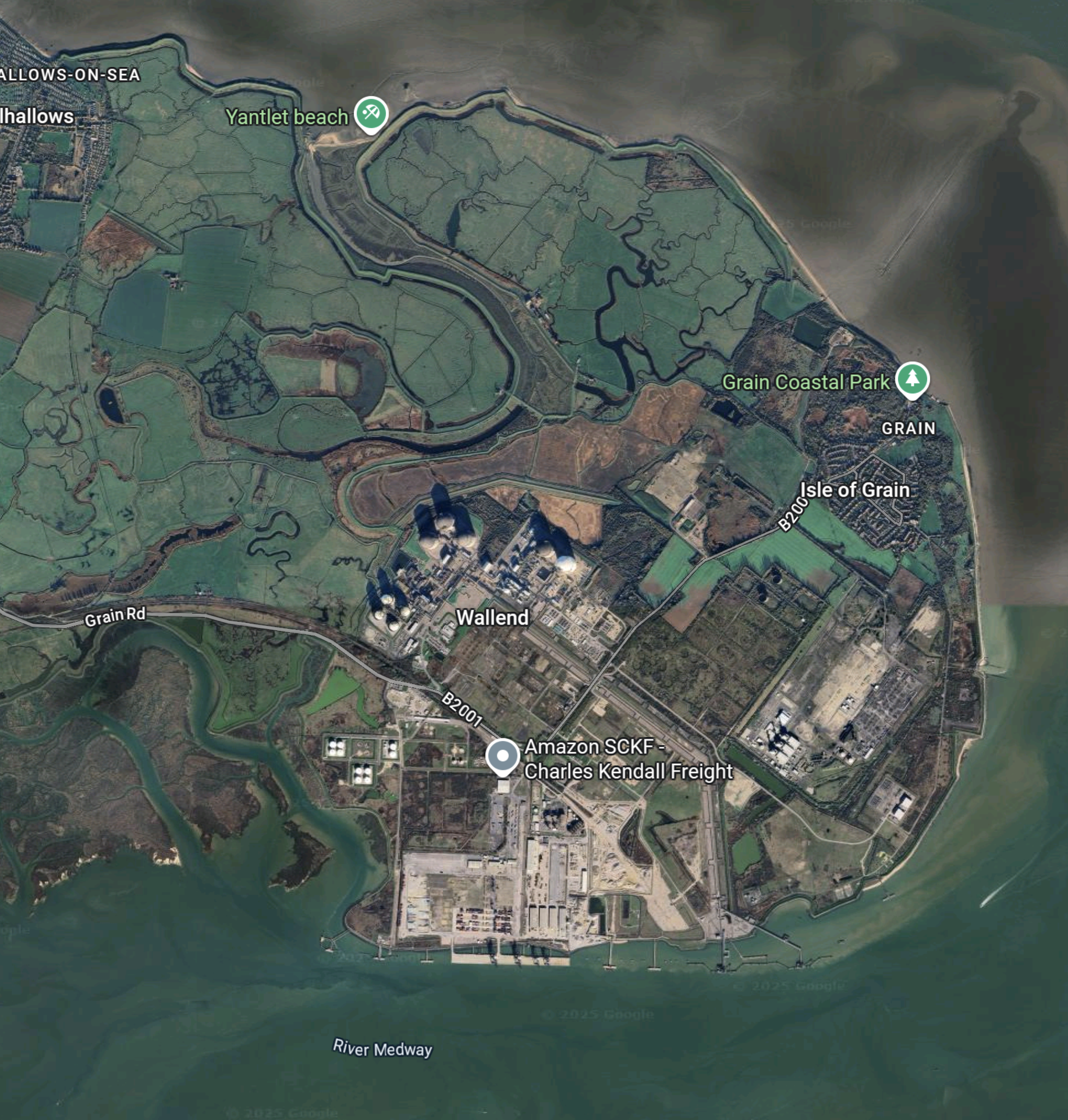

  3. Grain is owned by National Grid and according to Wikipedia, is in terms of storage capacity it is the largest LNG facility in Europe and the eighth largest in the world.
  4. Grain can supply 20 % of the UK’s natural gas needs.
  5. Grain has a reloading facility, so that gas can be exported.
  6. Grain seems to be continually expanding.
  7. Both Milford Haven and the Isle of Grain have large gas-fired power-stations.

Politicians say we don’t have enough gas storage, but we do seem to have world-class LNG terminals.

I have a couple of extra thoughts.

Blending Natural Gas With Hydrogen

HyDeploy is a project investigated blending hydrogen natural gas to cut carbon emissions. The project is described in this post called HyDeploy.

Surely, these terminals could be places, where hydrogen is blended with our natural gas supply.

  • The terminals are connected to the UK gas network.
  • Both Milford Haven and the Isle of Grain should have access to large amounts of offshore wind energy in the next few years, which could be used to generate green hydrogen.
  • The terminals would need electrolysers to generate the hydrogen.

The Isle of Grain already has a blending capability.

NeuConnect

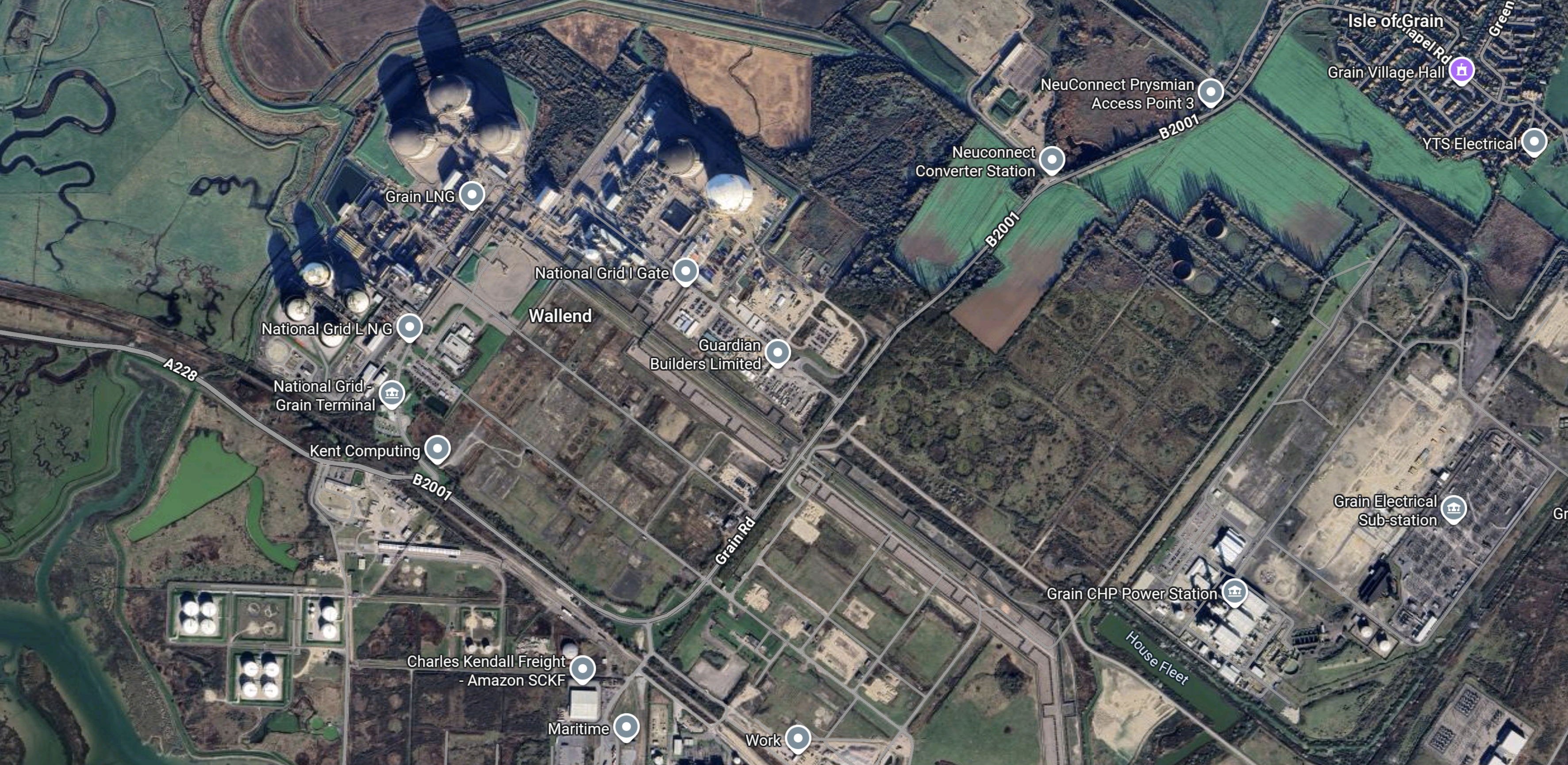

NeuConnect is an under-development interconnector between the Isle of Grain in Kent and Wilhelmshaven in Germany.

  • It will have a capacity 1.4 GW.
  • All the planning permissions seem to be in place.
  • Prysmian have won a € 1.2 million contract to deliver the interconnector.
  • Arup and German engineering firm Fichtner have formed a joint venture to provide project services for the interconnector.
  • Construction could start this year.

It looks like the Germans will be replacing some of Putin’s bloodstained gas with clean zero-carbon energy from the UK.

Should We Develop More Gas Fields?

There are some gas fields in the seas around the UK, like Jackdaw, that could be developed.

Suppose, we extracted the gas and sent it to the reloading terminal on the Isle of Grain through the gas transmission network, where it could be exported by ship, to the Continent.

The UK would not be increasing its carbon emissions, as that would surely be the responsibility of the end-user.

Should We Develop More Gas Fired Power-Stations?

I believe it is possible to develop carbon-capture technology for gas-fired power stations.

The carbon dioxide would be either used in a beneficial way or stored in perhaps a worked-out gas field under the North Sea.

So long as no carbon dioxide is released into the atmosphere, I don’t see why more gas-fired power stations shouldn’t be developed.

What is happening at Keadby near Scunthorpe would appear to be one model for zero-carbon power generation.

Keadby Power Station



This is an existing

Conclusion

We will be exporting more energy to the Continent.

May 20, 2022 Posted by | Energy, Energy Storage, Hydrogen | , , , , , , , , , , , , | 1 Comment

Siemens Mobility and Deutsche Bahn Present New Hydrogen Train

The title of this post, is the same as that of this article on Global Railway Review.

This is the sub-title.

Deutsche Bahn and Siemens Mobility have presented the newly developed Mireo Plus H and a newly designed mobile hydrogen storage trailer.

It seems that Deutsche Bahn and Siemens Mobility have put together a well-thought out plan to use hydrogen on a lot of unelectrified lines.

The Germans have given the project, the catchy name of H2goesRail.

How does that translate into German?



May 5, 2022 Posted by | Hydrogen, Transport/Travel | , , , , , , , | 4 Comments

How Britannia With Help From Her Friends Can Rule The Waves And The Wind

The Government doesn’t seem to have published its future energy plans yet, but that hasn’t stopped the BBC speculating in this article on their web site, which is entitled Energy Strategy: UK Plans Eight New Nuclear Reactors To Boost Production.

These are the first two paragraphs.

Up to eight more nuclear reactors could be delivered on existing sites as part of the UK’s new energy strategy.

The plan, which aims to boost UK energy independence and tackle rising prices, also includes plans to increase wind, hydrogen and solar production.

Other points include.

  • Up to 95% of the UK’s electricity could come from low-carbon sources by 2030.
  • 50 gigawatts (GW) of energy through offshore wind farms, which  would be more than enough to power every home in the UK.
  • One of the big points of contention is thought to have been the construction of onshore wind turbines.
  • Targets for hydrogen production are being doubled to help provide cleaner energy for industry as well as for power, transport and potentially heating.
  • A new licensing round for North Sea oil and gas projects.
  • A heat pump accelerator program.

In this post I shall only be looking at one technology – offshore wind and in particular offshore floating wind.

Who Are Our Friends?

I will start with explaining, who I see as our friends, in the title of this post.

The Seas Around Us

If we are talking about offshore winds around the the UK, then the seas around the UK are surely our biggest and most-needed friend.

The Island Of Ireland

The seas are shared with the island of Ireland and the UK and the Republic must work together to maximise our joint opportunities.

As some of the largest offshore wind farm proposals, between Wales and Ireland involve a Welsh company called Blue Gem Wind, who are a partnership between Irish company; Simply Blue Energy, and French company; TotalEnergies, we already seem to be working with the Irish and the French.

The City Of London

Large insurance and pension companies, based in the City of London like, abrdn, Aviva, L & G and others are always looking for investments with which to provide income to back their insurance business and our pensions.

In World’s Largest Wind Farm Attracts Huge Backing From Insurance Giant, I describe why and how, Aviva back wind farms.

Germany

Germany are certainly on our side, despite being in a mess of Mutti Merkel’s making, because she got the country too deeply dependant on Vlad the Mad’s tainted gas.

  • German utilities are providing finance to build wind farms in British waters.
  • German company; Siemens is manufacturing turbine blades in Hull.
  • Germany wouldn’t mind buying any electricity and hydrogen we have spare. Especially, as we haven’t invaded them since 1944.

I suspect a mutually-beneficial relationship can be negotiated.

Norway

I have customised software for a number of countries, including Iran, Saudi Arabia, South Korea and the United States and despite selling large numbers of systems to Norway, the Norwegians never requested any modifications.

They are generally easy-going people and they are great friends of the UK. They were certainly a fertile country for the sale of Artemis systems.

Just as the UK worked together with the Norwegians to deliver North Sea Oil, we are now starting to work together to develop renewable energy in the North Sea.

In UK To Norway Sub-Sea Green Power Cable Operational, I describe how we have built the North Sea Link with the Norwegians, which will link the British and Norwegian energy networks to our mutual benefit.

In Is This The World’s Most Ambitious Green Energy Solution?, I describe an ambitious plan called Northern Horizons, proposed by Norwegian company; Aker to build a 10 GW floating wind farm, which will be 120 km to the North-East of the Shetlands.

Floating Wind Turbines

This is the introduction of the Wikipedia entry for floating wind turbines.

A floating wind turbine is an offshore wind turbine mounted on a floating structure that allows the turbine to generate electricity in water depths where fixed-foundation turbines are not feasible. Floating wind farms have the potential to significantly increase the sea area available for offshore wind farms, especially in countries with limited shallow waters, such as Japan, France and US West coast. Locating wind farms further offshore can also reduce visual pollution, provide better accommodation for fishing and shipping lanes, and reach stronger and more consistent winds.

At its simplest a floating wind farm consists of a semi-submersible platform, which is securely anchored to the sea-bed to provide a firm platform on which to erect a standard wind turbine.

There are currently two operational floating wind farms off the East Coast of Scotland and one in the Atlantic off the Portuguese coast.

  • These wind farms are fairly small and use between three and five turbines to generate between 25-50 MW.
  • The largest current floating turbines are the 9.5 MW turbines in the Kincardine Wind Farm in Scotland, but already engineers are talking of 14 MW and 20 MW floating turbines.
  • Experience of the operation of floating wind turbines, indicates that they can have capacity factors in excess of 50 %.
  • Floating wind turbines can be erected on their floats in the safety of a port using a dockside crane and then towed into position.
  • Floating wind turbines can be towed into a suitable port for servicing and upgrading.

Many serious engineers and economists, think that floating wind farms are the future.

The Energy Density of Fixed Foundation And Floating Wind Farms

In ScotWind Offshore Wind Leasing Delivers Major Boost To Scotland’s Net Zero Aspirations, I summarised the latest round of Scotwind offshore wind leases.

  • Six new fixed foundation wind farms will give a capacity of 9.7 GW in 3042 km² or about 3.2 MW per km².
  • Ten new floating wind farms will give a capacity of 14.6 GW in 4193 km² or about 3.5 MW per km².

Note.

  1. Floating wind farms have a small advantage in terms of energy density over those with fixed foundations.
  2. Suppose these energy densities are achieved using 14 MW turbines.
  3. Engineers are talking of 20 MW turbines.
  4. Using large turbines could increase the energy density by 20/14 or 43 %

We could see in a few years with 20 MW turbines, fixed foundation turbines having an energy density of 4.6 MW per km², with floating turbines having 5 MW per km².

The Potential Of A Ten-Mile Square In The Seas Around Us

I will assume.

  • It is at least 100 km from land.
  • The water would be at least 100 metres deep.
  • There are no structures in the area.

And calculate.

  • The area will be a hundred square miles, which is smaller than the county of Rutland.
  • This will be 259 square kilometres.

If it were to be filled with floating wind turbines at a density of 5 MW per km², the capacity would be 1300 MW or 1.3 GW.

There must be hundreds of empty ten-mile squares in the seas around us.

Offshore Hydrogen Production And Storage

I believe in the near future, that a lot of offshore wind energy will be converted to hydrogen offshore.

  • Electrolysers could be combined with wind turbines.
  • Larger electrolysers could be combined with sub-stations collecting the electricity.
  • In Torvex Energy, I discuss a method to create hydrogen from seawater, without having to desalinate the water. Surely, this technology would be ideal for offshore electrolysis.

Hydrogen would be brought to shore using pipelines, some of which could be repurposed from existing gas pipelines, that are now redundant, as the gas-fields they served have no gas left.

I also suspect that hydrogen could be stored in a handy depleted gas field or perhaps some form of specialist storage infrastructure.

Combining Wind And Wave Power In A Single Device

Marine Power Systems are a Welsh company, that has developed a semi-submersible structure, that can support a large wind turbine and/or a wave-power generator.

This is the mission statement on their home page.

Marine Power Systems is revolutionising the way in which we harvest energy from the world’s oceans.

Our flexible technology is the only solution of its type that can be configured to harness wind and wave energy, either as a combined solution or on their own, in deep water. Built on common platform our devices deliver both cost efficiency and performance throughout the entire product lifecycle.

Our structurally efficient floating platform, PelaFlex, brings excellent stability and straightforward deployment and maintenance. The PelaGen wave energy converter represents market-leading technology and generates energy at an extremely competitive cost of energy.

Through optimised farm layout and the combination of wind and wave energy, project developers can best exploit the energy resource for any given area of seabed.

We are unlocking the power of oceans.

There is a link on the page to more pages, that explain the technology.

It looks to me, that it is well-designed technology, that has a high-chance of being successful.

It should also be noted that according to this news page on the Marine Power Systems web site, which is entitled MPS Lands £3.5M Of Funding From UK Government, the UK government feel the technology is worth backing.

I certainly believe that if Marine Power Systems are not successful, then someone else will build on their original work.

If wind and wave power can successfully be paired in a single float, then this must surely increase the energy production at each float/turbine in the floating wind farm.

Energy Storage In Wind Turbines

The output of wind farms can be very variable, as the wind huffs and puffs, but I believe we will see energy storage in wind turbines to moderate the electricity and deliver a steadier output.

Using lithium-ion or other batteries may be possible, but with floating offshore turbines, there might be scope to use the deep sea beneath the float and the turbine.

Hybrid Wind Farms

In the latest round of Scotwind offshore wind leases, one wind farm stands out as different. Magnora ASA’s ScotWind N3 Offshore Wind Farm is described as a floating offshore wind farm with a concrete floater.

I can see more wind farms built using this model, where there is another fixed or floating platform acts as control centre, sub-station, energy store or hydrogen electrolyser.

How Much Electricity Could Be Produced In UK And Irish Waters?

I will use the following assumptions.

  • Much of the new capacity will be floating wind turbines in deep water.
  • The floating wind turbines are at a density of around 5 MW per km²

This Google Map shows the British Isles.

I will look at various seas.

The Celtic Sea

The Celtic Sea is to the South-West of Wales and the South of Ireland.

In Blue Gem Wind, I posted this extract from the The Our Projects page of the Blue Gem Wind web site.

Floating wind is set to become a key technology in the fight against climate change with over 80% of the worlds wind resource in water deeper than 60 metres. Independent studies have suggested there could be as much as 50GW of electricity capacity available in the Celtic Sea waters of the UK and Ireland. This renewable energy resource could play a key role in the UK meeting the 2050 Net-Zero target required to mitigate climate change. Floating wind will provide new low carbon supply chain opportunities, support coastal communities and create long-term benefits for the region.

Consider.

  • The key figure would appear 50 GW of electricity capacity available in the Celtic Sea waters of the UK and Ireland.
  • Earlier I said that floating turbines can have a wind turbine density of 5 MW per km².
  • According to Wikipedia, the surface area of the Celtic Sea is 300,000 km².

To accommodate enough floating turbines to generate 50 GW would need 10000 km², which is a 100 km. square, or 3.33 % of the area of the Celtic Sea.

This wind generation capacity of 50 GW would appear to be feasible in the Celtic Sea and still leave plenty of space for the shipping.

The Irish Sea

According to Wikipedia, the surface area of the Irish Sea is 46,000 km².

Currently, there are ten wind farms in the Irish Sea.

  • Six are in English waters, three are in Welsh and one is in Irish.
  • None are more than sixteen kilometres from the coast.

The total power is 2.7 GW.

I feel that the maximum number of wind farms in the Irish Sea would not cover more than the 3.33 % proposed for the Celtic Sea.

3.33 % of the Irish Sea would be 1532 km², which could support 7.6 GW of wind-generated electricity.

I can’t leave the Irish Sea without talking about two wind farms Mona and Morgan, that are being developed by an enBW and BP joint venture, which I discussed in Mona, Morgan And Morven. This infographic from the joint venture describes Mona and Morgan.

That would appear to be a 3 GW development underway in the Irish Sea.

Off The Coast Of South-East England, East Anglia, Lincolnshire And Yorkshire

These wind farms are proposed in these areas.

Note.

All wind farms have comprehensive web sites or Wikipedia entries.

The total capacity of these wind farms is 22.5 GW

The North Sea

According to Wikipedia, the surface area of the North Sea is 570,000 km².

Would it is reasonable to assume, that perhaps a tenth of this area would be available for new wind farms in UK waters?

3.33 % of the available North Sea would be 1898 km², which could support 9.5 GW of wind-generated electricity.

On The East Coast Of Scotland

In Wind Farms On The East Coast Of Scotland, I summarised the wind farms off the East coast of Scotland, that are being built in a cluster in the First of Forth.

This map shows the proposed wind farms in this area.

There are five wind farms in the map.

  • The green area is the cable corridor for Seagreen 1a
  • Inch Cape is the odd-shaped wind farm to the North and West of the green area
  • Seagreen at the top of the map, to the North of Inch Cape.
  • Marr Bank with the pink NE-SW hatching
  • Berwick Bank with the green NW-SE hatching
  • Neart Na Gaoithe is edged in blue to the South of the green area.

Berwick Bank and Marr Bank are both owned by SSE and appear to have been combined.

The capacity of the wind farms can be summarised as follows.

  • Seagreen – 1075 MW
  • Neart Na Gaoithe – 450 MW
  • Inch Cape – 1000 MW
  • Berwick Bank and Marr Bank – 4100 MW

This gives a total of 6625 MW or just over 6.6 GW.

Around The North Of Scotland

This map shows the latest successful ScotWind leases.

Note.

  1. Several of these proposed wind farms have detailed web sites.

These seventeen leases total up to 24.3 GW.

An Interim Total

I believe these figures are realisable.

  • Celtic Sea – 50 GW
  • Irish Sea – 7.6 GW – 3 GW already underway
  • South East England, East Anglia, Lincolnshire And Yorkshire – 22.5 GW
  • North Sea – 9.5 GW
  • On The East Coast Of Scotland – 6.6 GW
  • Around The North Of Scotland – 24.3 GW

Note.

  1. I have tried to be as pessimistic as possible.
  2. Irish and North Sea estimates are based on Blue Gem Wind’s professional estimate for the Celtic Sea.
  3. I have used published figures where possible.

My estimates total up to 120.1 GW of extra wind-power capacity. As I write this, current UK electricity production is around 33 GW.

Vikings Will Invade

This Google Map shows the Faroe Islands, the North of Scotland, Norway and Denmark.

To get an idea of scale, the Shetland Isles are around 70 miles or 113 km. from North to South.

In Is This The World’s Most Ambitious Green Energy Solution?, I talked about Norwegian company; Aker Solutions’s plan for Northern Horizons.

  • It would be a 10 GW offshore floating wind farm 136 km to the North-East of the Shetlands.
  • This position would probably place it about halfway between the Faroes and the Norwegian coast.
  • The project is best described in this article on the Engineer, which is entitled Northern Horizons Plans Clean Energy Exports For Scotland.
  • In the article, there is a good graphic and a video.

This will be offshore engineering of the highest class, but then I first came across Norwegian offshore engineering like this in the 1970s, where nothing was too difficult for Norwegian engineers.

There are two major points to remember about the Norwegians.

  • They have the Sovereign Wealth Fund to pay for the massive investment in Northern Horizons.
  • They need to replace their oil and gas income, with a zero-carbon investment stream.

I feel that Northern Horizons will not be a one-off and the virgin sea in the map above will be liberally carpeted with more floating wind farms.

  • On Shetland, electricity can be fed into the UK grid.
  • On Norway, electricity can be fed into the Norwegian grid or stored in Norwegian pumped storage systems.
  • On Scotland, more pumped storage systems can be built to store energy.
  • Hydrogen can be piped to where it is needed to decarbonise heavy industry and transport.
  • Norwegian fjords, Shetland harbours, Scottish lochs and possibly Scapa Flow would be ideal places to assemble and service the giant floating turbines and build the other needed floating infrastructure.
  • I can also see Denmark getting in on the act, as they will probably want to decarbonise the Faroe Islands.

I estimate that between the Faroes, Scotland and Norway, there are 510,000 km² of virgin sea.

With a potential of 5 MW per km², that area has the potential to create an amazing amount of both electricity and hydrogen.

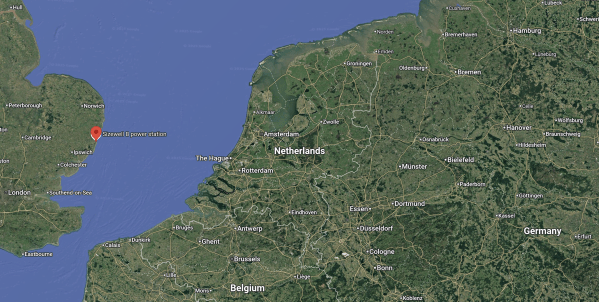

Exporting Power To Europe

There will need to be more interconnectors from the UK to Europe.

These are already working.

These are proposed.

There are also gas interconnectors, that could be converted to hydrogen.

This press release from National Grid, which is entitled Undersea Electricity Superhighways That Will Help Deliver Net Zero Move A Step Closer, has these bullet points.

  • Positive progress on plans for £3.4bn electricity super-highway projects – Scotland to England Green Links.
  • Ofgem opens consultation that recognises the “clear case” and “consumer benefit” of two subsea high voltage cables to transport clean between Scotland and England.
  • The cables form part of a planned 16 project £10 billion investment from National Grid to deliver on the government’s target of 40GW of offshore wind generation by 2030.

This paragraph expands on the work by National Grid to meet the third point.

These projects are part of National Grid’s work upgrading the electricity transmission system to deliver the UK government’s target of 40GW of offshore wind generation by 2030. In addition to the Eastern Links, it is developing 14 major projects across its network to facilitate the target representing a £10 billion investment. This includes two further Scotland to England high voltage links (also in partnership with the Scottish transmission network owners) and proposals in the Humber, Lincolnshire, East Midlands, North of England, Yorkshire, North Kent, as well as four in East Anglia (one of which is a proposed offshore link between Suffolk and Kent).

I think we can assume, that National Grid will do their part to allow the UK government’s target of 40GW of offshore wind generation by 2030 to be met.

Will The UK Have 40 GW Of Offshore Wind Generation By 2030?

In the Wikipedia entry for Windpower In The UK, this is the opening sentence.

The United Kingdom is one of the best locations for wind power in the world and is considered to be the best in Europe. By the beginning of March 2022, the UK had 11,091 wind turbines with a total installed capacity of over 24.6 gigawatts (GW): 14.1 GW of onshore capacity and 10.4 GW of offshore capacity.

It would appear an extra 30 GW of wind power is needed.

In An Interim Total earlier, I gave these figures.

  • Celtic Sea – 50 GW
  • Irish Sea – 7.6 GW – 3 GW already underway
  • South East England, East Anglia, Lincolnshire And Yorkshire – 22.5 GW
  • North Sea – 9.5 GW
  • On The East Coast Of Scotland – 6.6 GW
  • ScotWind – 24.3 GW

The wind farms in South East England, East Anglia, Lincolnshire And Yorkshire and ScotWind and Mona and Morgan are either being planned or under construction, and in many cases leases to construct wind farms are being paid.

I would feel, that at least 30 GW of these 56.4 GW of wind farms will be completed by 2030.

Conclusion

Boris’s vision of the UK becoming a Saudi Arabia of wind is no fantasy of a man with massive dreams.

Standard floating wind turbines, with the possibility of also harvesting wave power could be assembled in ports along the coasts, towed into position and then connected up.

Several GW of wind-power capacity could probably be added each year to what would become the largest zero-carbon power station in the world.

By harvesting the power of the winds and waves in the seas around the British Isles it is an engineering and mathematical possibility, that could have been developed by any of those great visionary Victorian engineers like Armstrong, Bazalgette, Brunel and Reynolds, if they had had access to our modern technology.

Up Yours! Putin!







April 19, 2022 Posted by | Energy, Energy Storage, Hydrogen | , , , , , , , , , , , , , , , , , , , , , , , , , , | 2 Comments

NeuConnect Awards Two Major Contracts

This page on the NeuConnect web site is entitled NeuConnect Awards Over £1.5 billion Of Major Contracts As First Ever UK-German Energy Link Moves An Important Step Closer.

NeuConnect is a proposed interconnector between England and Germany.

  • It will have a capacity of 1.4 GW.
  • The interconnector will be around 450 miles long.
  • It will be HVDC, like many similar undersea power cables.
  • As the title says, it will be the first-ever UK-German energy link.

Wikipedia describes the route like this.

The cable will run between the Greystones substation on the Isle of Grain, in Kent in England to the new Fedderwarden substation in Wilhelmshaven in the Lower Saxony region of Germany. Landfall will be next to Grain Coastal Park, in Kent, and at Hooksiel, near Wilhemshaven in Germany.

Two contracts have been awarded.

  • The contract to design, manufacture, install, test and commission the 725km interconnector has been awarded to Prysmian Group.
  • The contract to design and build two converter stations in the UK and Germany has been awarded to Siemens Energy.

This sounds like a very simple plan to add an important interconnector between the UK and Germany.

I have some observations and thoughts.

The Isle Of Grain

The Isle of Grain is described in Wikipedia like this.

Isle of Grain (Old English Greon, meaning gravel) is a village and the easternmost point of the Hoo Peninsula within the district of Medway in Kent, south-east England. No longer an island and now forming part of the peninsula, the area is almost all marshland and is a major habitat for diverse wetland birds. The village constitutes a civil parish, which at the 2011 census had a population of 1,648, a net decrease of 83 people in 10 years.

Apart for the birds, over the last few decades it has been home to the following.

  • Until 1982, it was the location of a BP oil refinery.
  • In the 1990s, the isle was used to make the segments for the lining of the Channel Tunnel.
  • Following completion of the Channel Tunnel, the site is now part-occupied by Thamesport, the UK’s third largest container port.
  • Next to the former BP site is Grain Power Station, built in the 1970s, which previously burnt oil.
  • This power station was demolished in the 2015 and replaced with a 1.275 GW gas-fired power station.
  • Another major installation is a new Grain Liquefied Natural Gas (LNG) import facility, which takes heat from the gas-fired power station.
  • The Isle of Grain is the landing point for the BritNed undersea power cable between The Netherlands and the UK.

The Google Map shows the Isle of Grain.

Note.

  1. Thamesport is in the South-West corner
  2. To its North is the LNG import facility.
  3. To the North-East of Thamesport is the 735 MW Medway power station.
  4. There is a rail connection to Hoo Junction on the North Kent Line.

This second Google Map shows the Eastern side of the Isle.

Note.

  1. Grain Coastal Park, where NeuConnect will make landfall, is marked by the green arrow at the top of the map.
  2. Towards the South-Eastern corner of the map is the 1.275 GW Grain gas-fired power station.
  3. To the East of the power station, there is more switchgear than you see in a bad Frankenstein film.
  4. The smaller square at the bottom with the two white squares could be the converter station for the BritNed interconnector.

I am sure there is space on the island for a connection for NeuConnect.

There is also a total of 2.01 GW of gas-fired power stations on the Isle of Grain.

Wind Power In The Thames Estuary

This Google Map shows the Thames Estuary.

Note that the red arrow indicates the Isle of Grain.

This map from Wikipedia shows the wind farms in the area.

These are the ones that are operational.

  • 2 – East Anglia Array – 714 MW
  • 8 – Greater Gabbard – 504 MW
  • 9 – Gunfleet Sands – 184 MW
  • 13 – Kentish Flats – 140 MW
  • 15 – London Array – 630 MW
  • 27 – Thanet – 300 MW

Note.

  1. The Isle of Grain is just above the second o in London.
  2. I have ignored the Ramplion wind farm (21!), as it is too far from the Isle of Grain.
  3. This is a total of nearly 2.5 GW.

Planned extensions in the area include.

  • East Anglia Array – 3.1 GW – Completion date of 2026

But the Wikipedia entry for the East Anglia Array says this about the wind farm.

The target capacity for the entire East Anglia Zone is 7200 MW which could require up to 1200 turbines.

Could we see one of the following?

  • A connector from the East Anglia Array to the Isle of Grain.
  • One or more new wind farms in the Thames Estuary connected to the Isle of Grain.
  • German investment in a wind farm or farms connected to the Isle of Grain.

The Isle of Grain could become an island of energy providing power for London, the South-East of England, Germany and The Netherlands.

An Electrolyser On The Isle Of Grain

Consider.

  • There will be plenty of renewable electricity.
  • As there is a liquified natural gas terminal, there is plenty of gas storage.
  • One or both of the gas-fired power stations can be converted to run on hydrogen.
  • As more and more trucks are converted to hydrogen, there will be a large demand for hydrogen for heavy transport.

This must surely make a large electrolyser on the Isle of Grain a possibility.

The BritNed Interconnector

The BritNed interconnector is described like this in Wikipedia.

BritNed is a 1,000 MW high-voltage direct-current (HVDC) submarine power cable between the Isle of Grain in Kent, the United Kingdom; and Maasvlakte in Rotterdam, the Netherlands.

The BritNed interconnector would serve as a link for the foreseeable European super grid project.

Up to now, most of the electricity flow has been to the UK.

But surely, as more wind farms are developed power will flow the other way.

Wilhelmshaven Will Be A German Hub For Green Hydrogen

In Uniper To Make Wilhelmshaven German Hub For Green Hydrogen; Green Ammonia Import Terminal, I described plans by the Germans for a hydrogen hub at Wilhelmshaven.

The original story came from an article with the same name on Green Car Congress.

This is the first two paragraphs.

Under the name “Green Wilhelmshaven,” Germany-based international energy company Uniper plans to establish a German national hub for hydrogen in Wilhelmshaven and is working on a corresponding feasibility study.

Plans include an import terminal for green ammonia. The terminal will be equipped with an ammonia cracker for producing green hydrogen and will also be connected to the planned hydrogen network. A 410-megawatt electrolysis plant is also planned, which—in combination with the import terminal—would be capable of supplying around 295,000 metric tons or 10% of the demand expected for the whole of Germany in 2030.

As I said in the original post, I’m not happy about green ammonia, but the 1.4 GW NeuConnect interconnector has more than enough power to run a 410 MW electrolyser plant at full capacity.

It could even run three electrolysers of this size.

Hooksiel And Wilhelmshaven

NeuConnect will make landfall at Hooksiel.

This Google Map shows Hooksiel and Wilhelmshaven.

Note.

  1. Hooksiel is the village outlined in red.
  2. The water to the right of the map is the Jade Bight.
  3. The square block sticking out into the bight appears to be a container port.
  4. There appears to be chemical works or oil refineries North of the port.
  5. Wilhelmshaven is the town to the South of the port.

There would appear to be plenty of space for Uniper to construct Green Wilhelmshaven.

German And UK Wind Power Production

According to this page on Wikipedia, which is entitled Wind Power By Country, in 2020, these were installed wind power in various countries.

  • Germany – 62,184 MW
  • Spain – 27,089 MW
  • UK – 24,665 MW
  • France – 17,382 MW
  • Italy – 10,389 MW
  • Netherlands – 6,600 MW

In 2020 we were 37.5 GW behind Germany.

It looks like we’ll commission 3.3 GW this year and 6.1 in 2023, with Wikipedia saying that 12.9 GW is under development, which should close the gap to a certain extent.

In ScotWind Offshore Wind Leasing Delivers Major Boost To Scotland’s Net Zero Aspirations, I described how Scotland will add 15.1 GW of floating and 9.7 GW of fixed foundation offshore wind.

It looks like initially, we’ll be buying German wind-generated electricity, but in the future the direction could easily change around.

Boris And Olaf

There were mumblings from Boris, that energy was talked about in their meeting in Downing Street last week.

It does appear there is a lot of ways that the UK and Germany can co-operate in the future with respect to energy.

  • German finance can be used to build wind farms in UK waters.
  • German companies can build the turbines and the interconnectors we need to develop vast offshore wind farms.
  • We can supply surplus energy to Germany through the NeuConnect interconnector.

I wouldn’t be surprised if Boris and Olaf had signed a very comprehensive energy co-operation agreement.



April 11, 2022 Posted by | Energy, Hydrogen | , , , , , , , , , , , , , , , | Leave a comment

Armoured Vehicles For Ukraine

I have just listened to extracts of the press conference by Boris and Olaf on the BBC and there was talk of boxers.

Not the Mayor of Kyiv, the admirable Vitali Klitschko, but the German-produced armoured fighting vehicle.

Looking at the Wikipedia entry for the Boxer, it states that up to 1500 Boxers for the British Army will start to be delivered from an updated BAe factory in Telford this year, for entry into service in 2023. So with two factories in Europe and another in Australia, will this allow older armoured vehicles to be passed on to Ukraine?

Australia has already stated they will send the Ukraine twenty of their thousand Bushmasters.

Perhaps we could send Ukraine some Mastiffs.

April 9, 2022 Posted by | World | , , , , , , , , | 4 Comments

Lidl Supermarket Chain Dumps Battery Electrics For Hydrogen Fuel Cell Fleet

The title of this post, is the same as that of this article on Hydrogen Fuel News.

These are a few points from the article.

  • Lidl Germany is replacing electric vehicles with hydrogen fuel cell vehicles.
  • They are the first retailer to do this in Europe.
  • They are also replacing electric fork-lifts in a major depot in France with hydrogen-powered ones.
  • The green hydrogen for the depot will be produced by Lhyfe 75 kilometres away from wind energy.
  • Lidl is also considering converting some of its delivery trucks to hydrogen.

With respect to the forklifts the article lists the advantages of hydrogen forklifts over electric.

  • Hydrogen forklifts have a 97 % availability, as opposed to 50 % for battery ones.
  • Refuelling a hydrogen forklift takes 2 to 3 minutes, whereas recharging a battery forklift can take several hours.
  • Hydrogen forklifts allow a smaller fleet.
  • Hydrogen forklifts need less refuelling bays.

The article shows some of the advantages of using hydrogen.

Conclusion

How many other supermarket groups will switch to hydrogen?

April 6, 2022 Posted by | Hydrogen, Transport/Travel | , , , , , | Leave a comment

Fortescue And E.ON To Supply Europe With Green Hydrogen

The title of this post, is the same as that of this article on Hydrogen Fuel News.

This is the introductory paragraph.

Fortescue Future Industries Pty Ltd. of Australia and E.ON SE, energy giant from Germany, have teamed up to supply green hydrogen to Europe. This strategy is meant to help the EU to reduce its reliance on Russian energy.

These are other points from the article.

  • FFI intends to supply five million tonnes of hydrogen per year by 2030.
  • The hydrogen will be produced by renewable hydrogen in Australia.
  • E.ON will handle the distribution.
  • Five million tonnes is about a third of Germany’s energy imports.

I have some further thoughts.

How Much Energy Is Needed to Produce Five Million Tonnes Per Year Of Hydrogen?

In Can The UK Have A Capacity To Create Five GW Of Green Hydrogen?, I said the following.

Ryze Hydrogen are building the Herne Bay electrolyser.

  • It will consume 23 MW of solar and wind power.
  • It will produce ten tonnes of hydrogen per day.

The electrolyser will consume 552 MWh to produce ten tonnes of hydrogen, so creating one tonne of hydrogen needs 55.2 MWh of electricity.

55.2 MWh/tonne is 55.2 kWh/kg.

To produce five million tonnes of hydrogen will need 55.2 * 5.000,000 / 10 MWh.

  • This is 27,600,000 MWh or 27,600 GWh.
  • It works out at an average of 75.6 GWh per day or 3.15 GWh per hour.

This article on vox is entitled The Economic Limitations Of Wind And Solar Power, where this is said.

“Capacity factor” refers to how often a power plant runs and thus how much power it produces relative to its total potential (capacity). Nuclear power plants in the US run around 90 percent of the time, so they have a 90 percent capacity factor. On average, the capacity factor of solar ranges anywhere from 10 to just over 30 percent. For wind, it ranges from 20 to just over 50 percent, averaging around 34 percent in the US.

If FFI is using solar to generate electricity in Australia, I suspect that the capacity factor will be around twenty percent at best.

So will FFI need around 16 GW of solar power to satisfy the supply to Germany?

The Wikipedia entry for Solar Power In Australia gives a good insight into its capability of providing the 16 GW of energy needed. This statement is key.

Using solar to supply all the energy needed would use less than 0.1% of land.

It does look that Australia could provide Germany with some of the hydrogen it needs.

Would It Be Cheaper To Produce The Hydrogen In The North Sea?

This is probably heresy to Andrew Forrest, who is the Australian billionaire behind Fortescue Future Industries.

Consider.

  • North Sea Hydrogen could be piped to Germany.
  • Australia and Germany would probably need transfer by liquid hydrogen tanker.
  • Electrolysers would need to be used to create hydrogen from renewable energy in both Australia and the North Sea.
  • Floating wind farms in the North Sea could be more efficient than solar in Australia, as the capacity factor is higher.

We obviously won’t know until both wind and solar technologies are fully developed.

Will There Be Price Competition Between Australian And North Sea Hydrogen?

It does appear that Andrew Forrest believes in research and I wouldn’t be surprised to see his company developing ideas that drop the price of solar-produced hydrogen.

Research and good engineering on both sides will also drop prices, so I suspect price competition will occur.

Will Fortescue Future Industries Develop North Sea Hydrogen?

Given the ambition being shown by Andrew Forrest to be the Hydrogen King, I wouldn’t be surprised if he joined the streams of international investors in the North Sea, who are developing wind farms.

Conclusion

Go! Aussie! Go!





April 2, 2022 Posted by | Hydrogen | , , , , , , , , , , , | 2 Comments

Germany Weighs Norway Hydrogen Pipeline To Avoid Russian Energy

The title of this post, is the same as that of this article on Hydrogen Central.

This the introductory paragraphs.

Germany and Norway are considering building a hydrogen pipeline linking the two nations to reduce Europe’s dependence on Russian energy supplies.

The countries plan to soon conduct a feasibility study on the project that would eventually transport green hydrogen from Norway to Germany, they said after a meeting between German Economy Minister Robert Habeck and Norwegian Prime Minister Jonas Gahr Store.

There is a joint statement that gives more details.

Developments like this and lots of wind power in the North Sea and around the UK, are the sort of actions, that could seriously reduce the size of Russia’s oil and gas industry and the money it pays to that group of war criminals like Vlad the Mad and his friends.

March 21, 2022 Posted by | Energy, Hydrogen | , , , , , , , , , | Leave a comment

Deutsche Bahn Is Building Overhead Line ‘Islands’ For Battery Trains

The title of this post, is the same as that of this article on Railway News.

This paragraph describes the concept.

This means, instead of electrifying a line in full, as is conventional for electric trains to draw traction power, these lines will feature intermittent electrification. The first of these lines to become operational will be in Schleswig-Holstein in December 2023. Deutsche Bahn says it will only electrify short stretches (a few hundred metres up to a few kilometres) or stations – enough to allow battery-powered trains to recharge on these lines. The state rail operator estimates that this move will mean that more than ten million train kilometres can be completed using electric rather than diesel traction in Schleswig-Holstein. The diesel trains currently in use will be decommissioned. DB estimates an annual diesel fuel saving of around ten million litres.

It looks like a simple concept will save a lot of diesel fuel.

I first talked about electrification islands to charge battery-electric trains in The Concept Of Electrification Islands, which I wrote in April 2020.

March 16, 2022 Posted by | Energy, Transport/Travel | , , , , | 1 Comment
