Beeching Reversal – Magor And Undy Walkway Station

This is one of the Beeching Reversal projects that the Government and Network Rail are proposing to reverse some of the Beeching cuts.

I actually covered this proposal before in ‘Walkway’ Rail Station Plan For Magor As M4 Relief Road Scrapped,

I’ll repeat the start of that post.

The title of this post is the same as that of this article on the BBC.

These are the introductory paragraphs.

A village heavily affected by the decision to scrap the planned M4 relief road is bidding for help to build a £7m railway station there.

Residents of Magor in Monmouthshire have the mainline rail service to London running through the village, but no station.

They want to create a “walkway” station – one with no car parking that travellers will walk or cycle to.

The original Magor station was shut in the Beeching cuts in November 1964.

The Villages Of Magor And Undy

This Google Map shows the villages of Magor and Undy and their relationship to the roads and railway in the area.

Note.

  1. The Northern motorway is the M48, which leads to the original Severn Bridge.
  2. The Southern motorway is the M4, which leads to the newer Second Severn Crossing.
  3. Between the two lies the South Wales Main Line, with the two stations; Severn Tunnel Junction and Caldicot.
  4. At the Western end of the map, the railway runs between the two villages of Magor and Undy.

This second Google Map shows the villages.

Note.

  1. The M4 running East-West to the North of Magor.
  2. Magor services is in the North-West corner of the map.
  3. The South Wales Main Line running through the villages.

There certainly seems to be a lot of housing to provide passengers for the new station.

The Location Of Magor And Undy Station

On this web page on Rail Future, which is entitled Magor, this is said.

The station site is where the B4245 road passes closest to the railway line. The Monmouthshire County Council traffic survey shows that some 11 – 12,000 cars a day pass along this road through the middle of the villages. The shift from car to train use is primarily aimed at capturing those who at present are not prepared to drive the two and half miles to the east just to catch the train at Severn Tunnel Junction to travel the two and a half miles back passing their homes for the seven and a half mile journey into Newport, and hence at present use their car for the whole journey instead. The site also has the advantage of direct integration with the buses as the bus services pass the entrance to the site of the proposed Station and Community centre every half an hour.

This Google Map shows the B4245 road and the railway.

Note.

  1. The B4245 curving across the map.
  2. There are already two bus stops, which are marked by blue dots.
  3. There is a footbridge over the railway, which doesn’t appear to be step-free.

As Rail Future is probably correct, the position of the station is fairly obvious.

Various documents on the Internet talk about the station being built on the Three Field Site, which the local council bought for community purposes some years ago. Could the triangle of land between the B4245 and the railway, be this site?

Thoughts On The Station

Reading the web page on Rail Future, the following seems to be stated.

  • The platforms will be on the two outside tracks of the four through the station. These are the Relief Lines.
  • The two Fast Lines will be in the centre.
  • Existing crossovers will allow trains from the Fast Lines to call in the station.

Unlike at other proposed stations to the West of Newport, the tracks will not need major works to slew them to accommodate the new platforms.

I would also do the following.

Incorporate Wide Platforms

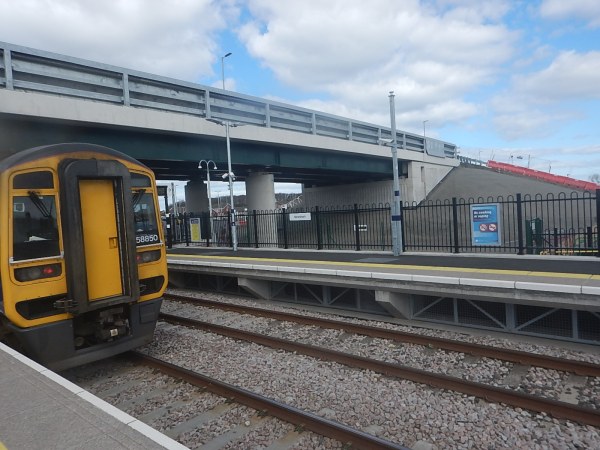

This picture was taken of the new platform at Stevenage station.

If the station gets busy, a wide platform will ease loading and unloading.

As Magor and Undy station, will be one that encourages passengers to cycle to the station, would a wide platform make it easier for passengers, who are travelling with bicycles?

Step-Free Between Train And Platform

Greater Anglia are using similar trains to South Wales and the Stadler Flirts in East Anglia offer step-free access between train and platform, as this picture shows.

South Wales should offer a similar standard of step-free access. as it eases access and cuts train delays.

A Step-Free Footbridge

In Winner Announced In The Network Rail Footbridge Design Ideas Competition, I wrote how the competition was won by this bridge.

So could a factory-built bridge like this be installed at Magor and Undy station?

  • The bridge can be sized to fit any gap.
  • If the platforms were wide enough, I think it would be possible.
  • It can have lifts that can take bicycles.
  • A bridge like this would also reduce the cost.

So the station can have a stylish, affordable, fully step-free footbridge.

A Walkway Along The Railway

It strikes me that a walkway on the Southern side of the railway to connect the communities South of the railway to the station could be very useful.

Electrification

The South Wales Main Line is electrified between London and Cardiff and Great Western Railway’s Class 802 trains between London and Swansea, change between electricity and diesel at Cardiff Central station.

All four lines at Severn Tunnel Junction appear to be electrified, so will all four lines at Magor and Undy station be electrified?

They certainly should be, to improve the reliability of electric services between London and South Wales.

Train Services

I suspect that the calling pattern of train will be similar to that at Severn Tunnel Junction, which is the next station to the East. The Wikipedia entry for Severn Tunnel Junction says this about services at that station.

The station is served by two main routes – Transport for Wales’ Cheltenham Spa to Cardiff Central and Maesteg via Chepstow local service and Great Western Railway’s Cardiff to Taunton via Bristol line. Both run hourly on weekdays & Saturdays, albeit with some two-hour gaps on the Chepstow line. In the weekday peaks, certain Cardiff to Portsmouth Harbour also stop here, whilst there is a daily train to Fishguard Harbour. CrossCountry also provides very limited services to/from Manchester Piccadilly via Bristol and to Nottingham via Gloucester and Birmingham New Street.

On Sundays, the Bristol to Cardiff service is once again hourly (and runs to/from Portsmouth) whist the Cheltenham service is two-hourly.

I think that this could result in these train frequencies in trains per hour (tph), from Magor station.

  • Caldicot – 2 tph
  • Cardiff Central – 4 tph
  • Cjeltenham – 1 tph
  • Chepstow – 2 tph
  • Gloucester – 1 tph
  • Newport – 4 tph
  • Severn Tunnel Junction – 4 tph

Note.

  1. I have assumed that the CrossCountry services don’t stop.
  2. As there seem to be proposals to add extra stations between Newport and Cardiff Central, these new stations could also get a service with a frequency of between two and four tph.

Working on rules that apply in Liverpool and London, and may apply to the South Wales Metro, I think that a Turn-Up-And-Go service of a train every fifteen minutes is needed between Magor and Undy station and the important Newport and Cardiff stations.

Battery Electric Trains Along The South Wales Main Line

The railways are being decarbonised and plans will have to be made to run all secondary services on the South Wales Main Line without diesel.

Hitachi have already played their cards, with the announcement of a Regional Battery Train, which will be created by replacing some of the numerous diesel engines on a Class 802 train with battery packs.

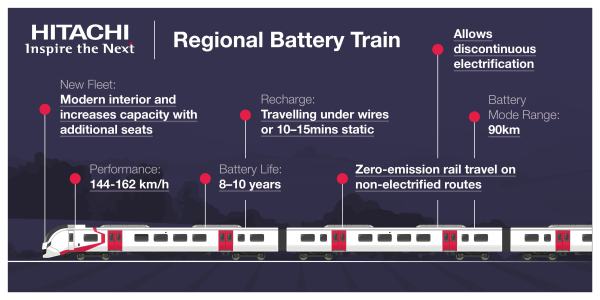

This is Hitachi’s infographic for the train.

The range of ninety kilometres or fifty-six miles is interesting.

  • Cardiff Central and Swansea are 46 miles apart, so with a charging facility at Swansea, Great Western Railway could run diesel-free between London Paddington and Swansea.
  • I suspect too, that destinations to the West of Swansea could also be served with intelligent placing of a second charging facility at perhaps Carmarthen.

But it’s not just Hitachi, who have made plans for battery electric trains.

  • Transport for Wales have ordered twenty-four Stadler Class 756 trains, which are tri-mode and can run on electrification, diesel or battery power.
  • Transport for Wales have also ordered eleven Stadler Class 231 trains, which are only bi-mode.
  • Both these fleets seem very similar to Greater Anglia’s Class 755 trains, which Stadler have said can be converted to 100 mph tri-mode operation, with perhaps a forty mile range on battery power.
  • I have ridden several times in Class 755 trains and without doubt, they are one of the best diesel-powered trains, I have used in the UK.

So I don’t think it is unreasonable to believe that Transport for Wales have the capability to run battery electric services with the fleet they have ordered given a few simple upgrades, that may already be planned for Greater Anglia.

But will the Welsh train builder; CAF, be happy with Hitachi and Stadler running their battery electric trains at high speed past their factory and onward to England and West Wales?

I doubt it and CAF have already made a response.

In Northern’s Battery Plans, I said this about CAF’s plans to create a battery electric Class 331 train for Northern.

It appears that CAF will convert some three-car Class 331 trains into four-car battery-electric trains.

  • A three-car Class 331 train has a formation of DMSOL+PTS+DMSO.
  • A fourth car with batteries will be inserted into the train.
  • Batteries will also be added to the PTS car.

I suspect that CAF  would be happy to convert some of Transport for Wales order for diesel Class 197 trains into one for suitable battery electric trains.

I believe some of the services that are planned to be run by these diesel trains into Birmingham, Liverpool and Manchester, appear to be ideal routes for battery electric trains.

These diesel trains will still be serviceable in 2060, which will be long past the cut-off date for diesel trains in the UK.

So why not replace them before they are built?

  • The CAF Civity train is modular, so I doubt it would make much difference to CAF’s manufacturing process.
  • The diesel version of the Civity has a noisy transmission compared to the electric version.

It would surely, be better for CAF’s marketing.

Could the various routes through Magor be operated by battery electric trains?

These are my thoughts on the various routes.

Maesteg And Cheltenham Spa

This service is hourly and run by Transport for Wales.

  • Currently, the service seems to be running to Gloucester.
  • Maesteg and Cardiff Central is not electrified and 28.5 miles long.
  • Trains seem to take over 8-9 minutes to turn back at Maesteg.
  • Cardiff Central and Severn Tunnel Junction is electrified.
  • Severn Tunnel Junction and Gloucester is not electrified and is 35 miles long.
  • Trains seem to take over 25 minutes to turn back at Gloucester.

It certainly looks that with charging facilities at Maesteg and Gloucester, this service could be run by a battery electric train with a range of forty miles on battery power.

Fishguard And Gloucester

This service is occasional and run by Transport for Wales.

The problem with this service will be to the West of Swansea.

But if Great Western Railway and Transport for Wales put their heads and services together, I feel there is a cunning plan to run battery electric trains to Fishguard, with perhaps charging facilities at Fishguard, Carmarthen and Swansea.

Cardiff And Bristol Temple Meads

This service is two tph and run by Great Western Railway.

On the Welsh side of the Severn Tunnel, this could be an electric service.

On the English side, there is only ten miles of line without electrification between the South Wales Main Line and Bristol Temple Meads station.

This service in wales can be considered an electric service, as it is only onwards from Bristol Temple Meads to Taunton and Portsmouth Harbour, that charging facilities will be needed.

Conclusion

I like this scheme and as it looks like the trains will be running on electric power, through Magor and Undy station, it could be a very good one.





August 26, 2020 Posted by | Transport | , , , , , , , , | 3 Comments

Coulsdon South Station Has Gone Step-Free

Coulsdon South station went step-free a couple of months ago, so I went to take a look.

These are my thoughts.

The Bridge

Mechanically, the bridge is typical of many in the UK, but someone has taken care over the design, by the use of well-chosen colours and bricks.

The Café

We need more station cafes like Jaconelli’s Espresso Bar.

  • Full range of proper coffee and other drinks.
  • Cakes and snacks.
  • Gluten-free options.
  • Wude selection of alternative milks
  • Knowledgeable and friendly staff.

I suspect it is also owner-managed, as most cafes of this type would be in Italy.

It’s one of the best cafes of its type, that I’ve found in a long time.

The Old Bridge

According to one of the guys in the café the old bridge needed replacing.

But leaving it intact, gives the young, fit or agile a second route across the tracks.

Local Walks And Attractions

There are walks nearby in the Surrey Hills and on the London Loop.

I was also told, that you can get a bus to the Lavender Fields.

Zone Six Station On Thameslink

The station is in Zone Six, which puts it in Freedom Pass territory.

It also has two Thameslink and two Southern trains per hour, so it is easily reached.

Car Parking And A Taxi Service

This Google Map shows the station.

Note the car parking and a taxi service, which is called District Cars.

Conclusion

Coulsdon South is now a very well-equipped station and it must be an ideal place to meet a friend, family member or work colleague to either have a chat or a serious discussion.

Surely, with more people continuing to work from home, the need for meetings between those in the office and those at home will grow! Zoom etc. can only do so much and the cpncept doesn’t suit everybody!

So perhaps we’ll see more community-managed meeting rooms, like the one I described in The Newly-Decorated White Horse Room In Westbury Is Open For Bookings.



August 14, 2020 Posted by | Food, Transport | , , , , , | Leave a comment

A Visit To Stevenage Station’s New Fifth Platform

These pictures show the new fifth platform at Stevenage station.

These are a few thoughts.

The New Spacious Platform

As the pictures show, the platform is spacious with plenty of shelter, which probably indicates that it has been designed to handle more than the current two trains per hour (tph).

Why Is Train-and-Platform Not Step-Free?

Look at this picture.

Surely, with a new platform and trains specifically-designed for the route, passengers in wheelchairs, pushing buggies or trailing heavy cases should be able to just stroll in?

If as is likely this route goes to Transport for London because of their policy of allowing those needing assistance to just turn up, this could become a problem in the future. Especially, if a more intensive service was run on this route between Moorgate and Stevenage, where turnround times have been reduced!

Track Layout

It looks like the new Platform 5 at Stevenage station is directly connected to the Down Line of the Hertford Loop, so that trains from London come straight in from the Down Platform  2 at Watton-at-Stone station. My return train appeared to run the other way until crossing over to the Up Line before it arrived back at Watton-at-Stone station.

Google Maps have not been updated in the area, so I’m not sure of the full track layout.

Following freight trains through Watton-at-Stone, it would appear that they use these platforms at Stevenage station.

  • Platform 1 – Going South
  • Platform 4 – Going North

As would be expected, it looks like it is possible for a freight train to pass through Stevenage to and from the Hertford Loop, with a train in Platform 5.

How Many Trains Per Hour Can Run Between Moorgate And Stevenage?

The timetable has appeared to have been setup, so that a very relaxed two tph can run very reliably between Moorgate and Stevenage stations.

Currently, there are four tph from Moorgate on the Hertford Loop, which alternate between terminating at Hertford North station or the new platform in Stevenage station.

So, if a commuter going home to Stevenage missed his train, they’d be thirty minutes late for supper.

Perhaps not a disaster, but as I indicated in Stevenage Station’s New Fifth Platform Opened A Year Early, Stevenage has an important hospital and increasingly trains for the North are calling at the station.

I suspect, that Network Rail and Great Northern will be investigating, if the two tph to Hertford North station can be extended to Stevenage.

Certain things must be in their favour.

  • It is generally accepted, that a well-designed single platform can turn back up to four, and in some cases, six tph.
  • The new Class 717 trains have better performance than the former Class 313 trains.
  • The route is now run exclusively by the new fleet of trains.
  • There are turn-back platforms at Hertford North and Gordon Hill stations.

But the biggest factor, must be that the Hertford Loop along with the rest of the Southern part of the East Coast Main Line, is going to be equipped with ERTMS digital signalling.

I can certainly see a day in the not-to-distant future, when at certain times in the day four tph run between Moorgate and the new fifth platform at Stevenage.

Freight Trains Through The Hertford Loop

According to Real Time Trains, during yesterday about ten freight trains ran through the Hertford Loop.

In addition, there appear to be up to two-three paths in some hours, which were not used.

In the future, after ERTMS digital signalling has been added to the route and more freight services are equipped, I can see increasing numbers of freight services on the Hertford Loop.

More Passenger Services On The Hertford Loop

In the past, whilst returning from the North to London, during periods of disruption caused by track and catenary problems, engineering works or other incidents, the train has taken some unusual routes. In one instance, the InterCity 125 used the Hertford Loop.

These are timings of trains between Finsbury Park and Stevenage stations.

  • Moorgate services – 51 minutes
  • Thameslink – Cambridge and Brighton – 19 minutes
  • Great Northern – Cambridge Express – 16 minutes

To help with the bottleneck of the Digswell Viaduct, it is likely that the Cambridge Expresses will be 140 mph trains, so they can mix it with all the LNER, East Coast Trains, Hull Trains and the other high speed trains between Kings Cross and Hitchin, as I wrote in Call For ETCS On King’s Lynn Route.

Perhaps, other tricks can be employed using Stevenage station and the Hertford Loop Line.

  • Could some services go non-stop on the Hertford Loop Line instead of over Digswell?
  • Could some services split and join in the long platforms at Stevenage?
  • Could some services from the North turnback at Stevenage?

I obviously don’t know all the technicalities, but it does seem that the recent works at Stevenage and the upcoming ERTMS signalling may open up possibilities.

Conclusion

This looks to be a major improvement at Stevenage!

Except for the lack of step-free access!

I





August 5, 2020 Posted by | Transport | , , , , | Leave a comment

Beeching Reversal – Carshalton Beeches Step-Free Access

This is one of the Beeching Reversal projects that the Government and Network Rail are proposing to reverse some of the Beeching cuts.

Although, I don’t think this bridge had anything to do with Beeching.

These pictures show Carshalton Beeches station.

Note.

  1. The station appears to be in pretty good condition.
  2. That can’t be said for the bridge.
  3. There is a ramp at one side of the station by not at the other.

I feel, that with a replacement footbridge, this could be a much more than adequate station.

I wonder, if this project was the local MP’s pick. Possibly, because he was getting masses of complaints about the bridge.

July 2, 2020 Posted by | Transport | , , | 1 Comment

Eridge Station – 23rd June 2020

Eridge station is going to have a makeover, which starts this weekend.

So I went to have a look and took these pictures.

Note.

  1. The station certainly needs a new footbridge.
  2. The builders were clearing a work site to get access to the station.
  3. The station will be kept open throughout the work according to this article on Crowborough Life.

The station could end up as a good mix of ancient and modern.

June 24, 2020 Posted by | Transport | , , , | Leave a comment

Existing Stations Where High Speed Two Trains Will Call

The June 2020 Edition Of Modern Railways has an article called HS2 Minister Backs 18 tph Frequency, which gives a detailed diagram of the route structure of High Speed Two and it is possible to summarise the stations, where High Speed Two trains will call.

  • Carlisle – 3 tph – 400 metres – Split/Join
  • Chesterfield – 1 tph – 200 metres
  • Crewe – 2 tph – 400 metres – Split/Join
  • Darlington – 2 tph – 200 metres
  • Durham – 1 tph – 200 metres
  • East Midlands Hub HS2 – 7 tph – 400 metres – Split/Join
  • Edinburgh Haymarket – 2.5 tph – 200 metres
  • Edinburgh Waverley – 2.5 tph – 200 metres – Terminal
  • Glasgow Central – 2.5 tph – 200 metres – Terminal
  • Lancaster – 2 tph – 200 metres – Terminal
  • Leeds HS2 – 5 tph – 400 metres
  • Liverpool Lime Street – 2 tph – 200 metres – Terminal
  • Lockerbie – 1 tph – 200 metres
  • Macclesfield – 1 tph – 200 metres – Terminal
  • Manchester Airport HS2 – 5 tph – 400 metres
  • Manchester Piccadilly HS2 – 5 tph – 400 metres
  • Motherwell – 0.5 tph – 200 metres
  • Newcastle – 3 tph – 200 metres – Terminal
  • Oxenholme – 0.5 tph – 200 metres
  • Penrith – 0.5n tph – 200 metres
  • Preston – 4 tph – 400 metres
  • Runcorn – 2 tph – 200 metres
  • Sheffield – 2 tph – 200 metres
  • Stafford – 1 tph – 200 metres
  • Stoke-on-Trent – 1 tph – 200 metres
  • Warrington Bank  Quay – 1 tph – 200 metres
  • Wigan North Western – 1 tph – 200 metres
  • York – 4 tph – 200 metres

Note.

  1. HS2 after the station name indicates a new station for High Speed Two
  2. tph is trains per hour
  3. 0.5 tph is one train per two hours (tp2h).
  4. 200/400 metres is the maximum length of trains that will call.
  5. Terminal indicates that trains will terminate at these stations.
  6. Split/Join indicates that trains will split and join at these stations.

These are more detailed thoughts on how existing stations will need to be modified.

Train Lengths

Before, I look at the individual stations, I’ll look at the train lengths.

  • High Speed Two train – Single – 200 metres
  • High Speed Two train – Pair – 400 metres
  • Class 390 train – 11-car – 265.3 metres
  • Class 390 train – 9-car – 217.5 metres
  • Class 807 train – 7-car – 182 metres
  • Class 810 train – 5-car – 120 metres
  • Class 810 train – Pair of 5-car – 240 metres
  • InterCity 125 – 2+8 – 220 metres
  • InterCity 225 – 9-car – 245 metres
  • Class 222 train – 4-car – 93.34 metres
  • Class 222 train – 5-car – 116.16 metres
  • Class 222 train – 7-car – 161.8 metres
  • Class 222 train – 4-car+5-car – 209.5 metres
  • Class 222 train – 5-car+5-car – 232.32 metres

These are the thoughts on the individual stations.

Carlisle

Carlisle station will need two 400 metre through platforms, so each can accommodate a pair of 200 metre trains.

This Google Map shows the station.



I estimate the platforms are about 380 metres, but it looks like, they could be lengthened, without too much difficulty.

As High Speed Two trains to the North of Carlisle will be 200 metres long, there would probably be no need for platform lengthening North of Carlisle, as these trains are shorter than the Class 390 trains, that currently work the routes to Edinburgh and Glasgow.

Carlisle station is step-free, has good secondary rail connections and is within walking distance of the city centre.

The only thing it needs, is a connection to Edinburgh on a rebuilt Borders Railway.

Chesterfield

Consider.

  • Chesterfield station will need to handle 200 metre trains.
  • Chesterfield station may be rebuilt for High Speed Two.
  • Chesterfield station can handle an InterCity 125, which is 220 metres.
  • It will need to handle a pair of Class 810 trains, which would be 240 metres.

This Google Map shows Chesterfield station.

Note.

  1. The slow lines passing the station on the Eastern side.
  2. There are two long through platforms and a third bi-directional platform on the down slow line.

There is space to build two long platforms for High Speed Two, but is it worth it, when one one tph will stop?

  • According to High Speed Two’s Journey Time Calculator, trains will take just twelve minutes between Sheffield and Chesterfield stations.
  • This compares with 12-15 minutes for the current diesel trains.
  • The distance between the two stations is 14 miles, which means that a twelve minute trip has an average speed of 70 mph.
  • If there are still two tph to St. Pancras, there will be four tph, that run fast between the Sheffield and Chesterfield stations, of which three will stop at Chesterfield.

I think this could result in a simple and efficient design for the tracks between Sheffield and South of Clay Cross, where High Speed Two joins the Erewash Valley Line.

Chesterfield station is step-free.

Crewe

Crewe station will need two 400 metre through platforms, so each can accommodate a pair of 200 metre trains.

This Google Map shows the station.

There have been references to rebuilding of Crewe stations, but it does appear that some platforms are over 300 metres long.

Darlington

Darlington station will need to accommodate 200 metre trains.

As it already accommodates 245 metre InterCity 225 trains, there shouldn’t be too much of a problem.

Durham

Durham station will need to accommodate 200 metre trains.

As it already accommodates 245 metre InterCity 225 trains, there shouldn’t be too much of a problem.

Edinburgh Haymarket

Edinburgh Haymarket station will need to accommodate 200 metre trains.

As it already accommodates 245 metre InterCity 225 trains, there shouldn’t be too much of a problem.

Edinburgh Waverley

Edinburgh Waverley station will need to accommodate 200 metre trains.

As it already accommodates 245 metre InterCity 225 trains, there shouldn’t be too much of a problem.

Glasgow Central

Glasgow Central station will need to accommodate 200 metre trains.

As it already accommodates 265 metre Class 390 trains, there shouldn’t be too much of a problem.

Currently, Avanti West Coast runs the following services to Glasgow Central.

  • One tph from London Euston calling at Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Oxenholme Lake District (1tp2h), Penrith (1tp2h) and Carlisle.
  • One tp2h from London Euston calling at Milton Keynes Central, Coventry, Birmingham International, Birmingham New Street, Sandwell and Dudley, Wolverhampton, Crewe, Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Oxenholme Lake District (1tp2h), Penrith (1tp2h) and Carlisle.

High Speed Two is proposing to run the following trains to Glasgow Central.

  • Two tph from London Euston calling at Old Oak Common, Preston and Carlisle.
  • One tp2h from Birmingham Curzon Street calling at Wigan North Western, Preston, Lancaster, Oxenholme (1tp2h), Penrith (1tp2h), Carlisle, Lockerbie and Motherwell (1tp2h)

If the current services to Glasgow Central  were to be replaced by the High Speed Two services, most travellers would get a similar or better service.

But if Avanti West Coast decide to drop their classic services to Glasgow via Birmingham, will travellers starting between Milton Keynes and Crewe, be a bit miffed to lose their direct services to Glasgow?

Glasgow Central station would appear to be ready for High Speed Two.

Lancaster

I was initially surprised, that on High Speed Two, one tph would terminate at Lancaster station.

This Google Map shows the station.

Note.

  1. There are two bypass lines without any platforms on the Western side of the tracks, where trains can speed through.
  2. The station has five platforms.
  3. Some Avanti West Coast services terminate at Lancaster station.
  4. 265 metre, eleven-car Class 390 trains, stop in Lancaster station.

As High Speed Two services will use 200 metre trains, which are shorter than all Class 390 trains, I would suspect that High Speed Two services will be able to be turned at Lancaster station, without too much difficulty.

Liverpool Lime Street

Liverpool Lime Street station will need to be able to turn two 200 metre High Speed Two tph.

  • The remodelling of the station in 2018, probably allowed for two tph between London Euston and Liverpool Lime Street station.
  • From 2022-2023, it will be turning two Class 807 trains per hour, which will probably be 182 metres long.

Liverpool Lime Street station may well be ready for Phase One of High Speed Two. It’s also very much step-free.

There are also alternative plans for a new High Speed station in Liverpool.

  • It would be alongside the current Liverpool Lime Street station.
  • The station would have a route to High Speed Two at Crewe via Warrington and a junction at High Legh.
  • Northern Powerhouse Rail would start in the station and go to Manchester via Warrington, High Legh and Manchester Airport.
  • It would enable six tph between Liverpool and Manchester, in a time of just 26 minutes.

I talked about this plan in Changes Signalled For HS2 Route In North, where I included this map.

High Legh Junction is numbered 5 and 6.

Nothing published about High Speed Two, would appear to rule this plan out.

Lockerbie

Lockerbie station will need to accommodate 200 metre trains.

As it already accommodates 265 metre Class 390 trains, there shouldn’t be too much of a problem.

Macclesfield

I was initially surprised, that on High Speed Two, one tph would terminal at Macclesfield station.

This Google Map shows the station.

Wikipedia says this about the platforms in the station.

There are three platforms but only two are in regular use, the up platform for services to Manchester and the down platform to Stoke-on-Trent and Birmingham. Platform 3 sees a small number of services. Evidence of a fourth platform can be seen, on which a Network Rail building now exists.

As the station has a regular Avanti West Coast service every hour, the platforms must be over 200 metres long and they will be long enough for the 200 metre High Speed Two trains.

So why would High Speed Two want to terminate a train at Macclesfield, rather than at Manchester Piccadilly as they do now?

Currently, Avanti West Coast runs these services between London Euston and Manchester Piccadilly.

  • One tph via Milton Keynes Central, Stoke-on-Trent and Stockport.
  • One tph via Stoke-on-Trent, Macclesfield and Stockport
  • One tph via Stafford, Crewe, Wilmslow and Stockport

The diagram in the Modern Railways article shows these High Speed Two services to Manchester Piccadilly.

  • One tph from London Euston via Old Oak Common, Birmingham Interchange and Manchester Airport
  • Two tph from London Euston via Old Oak Common and Manchester Airport
  • Two tph from Birmingham Curzon Street via Manchester Airport.

Note.

  1. None of these five tph serve Macclesfield, Milton Keynes Central, Stockport, Stoke-on-Trent or Wilmslow.
  2. All five proposed services are shown to call at Manchester Airport.
  3. It is likely, that a tunnel will be bored between Manchester Airport and Manchester Piccadilly stations.
  4. The High Speed Two station at Manchester Piccadilly might even be in a tunnel under the current Manchester Piccadilly station or central Manchester.
  5. A below-ground High Speed Two station for Manchester could also serve Northern Powerhouse Rail services to Leeds and the East.
  6. According to the plans, I talked about under Liverpool Lime Street earlier, there could also be up to six tph running between Liverpool and Manchester via Manchester Airport, as part of Northern Powerhouse Rail.

Plans need to be developed to serve the towns and cities, that will not be served by High Speed Two’s current proposals.

  • It appears Stafford, Stoke-on-Trent and Macclesfield will be served by an independent High Speed Two service from London Euston.
  • Terminating one tph at Macclesfield station doesn’t appear to be challenging.

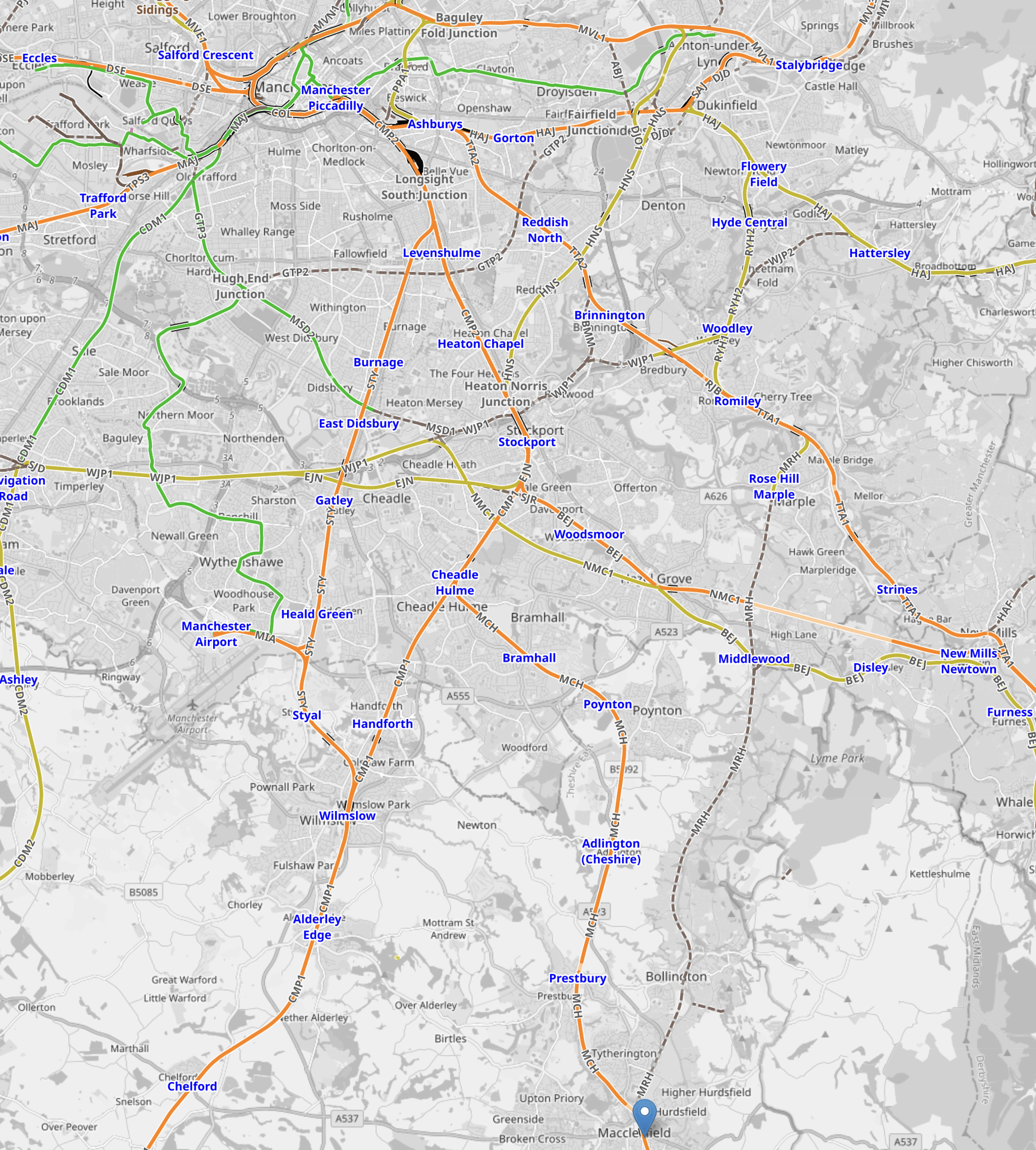

  • A rail route between Macclesfield and Manchester Airport to link up with the proposed tunnel could be very difficult.
  • Manchester Piccadilly and Macclesfield stations have a frequent rail connection, with most trains calling at Stockport station.
  • Perhaps during construction work for High Speed Two in the centre of Manchester, Macclesfield station can be used as an alternative route into the city, using the existing Manchester Piccadilly station.

The London Euston and Macclesfield service via Stafford and Stoke-on-Trent could be a pragmatic solution to part of the problem, but what about Milton Keynes, Wilmslow and Stockport?

According to the title of the Modern Railways article, High Speed Two will have a maximum frequency of 18 tph.

When fully-developed, the current proposed timetable shows the following.

  • A frequency of 17 tph between London Euston and Birmingham Interchange stations.
  • A frequency of 11 tph between Birmingham and Crewe.
  • A frequency of 9 tph through East Midlands Hub station.

It would appear that if there is a capacity bottleneck, it is between London and Birmingham.

However if classic services to Manchester Piccadilly are replaced by the High Speed Two services to the city via the new tunnel from Manchester Airport to a new station in the City Centre, there will be spare capacity on the Crewe and Manchester Piccadilly route via Wilmslow and Stockport stations.

This could lead to a number of solutions.

  • A direct High Speed Two service runs using the spare path, between London and the current Manchester Piccadilly station.
  • Similar to the previous service, but the service splits and joins at Crewe, with one individual train going to Manchester Piccadilly and the other somewhere else. Blackpool?
  • One service between London and Liverpool is planned to split and join at Crewe with individual trains going to Lancaster and Liverpool. The other Liverpool service could split at Crewe with individual trains going to Liverpool and Manchester Piccadilly.
  • The service between London and Macclesfield is run by a pair of trains, that split at Birmingham Interchange, with individual trains going to Macclesfield and Manchester Piccadilly. The advantage of this service, is that if you got into the wrong train, you’d still be going to roughly the same destination.
  • Wikipedia says “At peak times, the current Avanti West Coast services may additionally call at one or more of: Watford Junction, Rugby, Nuneaton, Tamworth, Lichfield Trent Valley.” So why not run classic services on the West Coast Main Line between Euston and Manchester Piccadilly via Milton Keynes using suitably fast trains. Perhaps, the new Class 807 trains would be ideal.

Note.

  1. All services serving the current Manchester Piccadilly station would call at Crewe, Wilmslow and Stockport stations.
  2. Passengers going to or from Manchester Airport would change at Crewe.

The more I look at Macclesfield, the more I like using it as a High Speed Two destination.

Motherwell

Motherwell station will need to accommodate 200 metre trains.

As it already accommodates 265 metre Class 390 trains, there shouldn’t be too much of a problem.

Newcastle

Newcastle station will need to accommodate 200 metre trains.

As it already accommodates 245 metre InterCity 225 trains, there shouldn’t be too much of a problem.

Oxenholme

Oxenholme station will need to accommodate 200 metre trains.

As it already accommodates 265 metre Class 390 trains, there shouldn’t be too much of a problem.

Penrith

Penrith station will need to accommodate 200 metre trains.

As it already accommodates 265 metre Class 390 trains, there shouldn’t be too much of a problem.

Preston

Preston station will need two 400 metre through platforms, so each can accommodate a pair of 200 metre trains.

This Google Map shows the station.



I estimate that the main through platforms aren’t much short of the required 400 metres.

But something must be done to make the station step-free.

Runcorn

Runcorn station will need to accommodate 200 metre trains.

As it already accommodates 217 metre Class 390 trains, there shouldn’t be too much of a problem. The station is also step-free.

Sheffield

Sheffield station will need to accommodate 200 metre trains.

This Google Map shows the station.

As the station can already handle a 220 metre InterCity 125, there shouldn’t be too much of a problem. The station is also substantially step-free.

Stafford

Stafford station will need to accommodate 200 metre trains.

This Google Map shows the station.

As it already accommodates 265 metre Class 390 trains, there shouldn’t be too much of a problem. The station is also step-free.

Wikipedia says this about Stafford station and High Speed Two.

Under current proposals, Stafford will be a part of the High Speed 2 network, via a ‘Classic Compatible’ junction, which will allow HS2 trains to operate to Stafford, and further on towards Liverpool. This would shorten journey time from Stafford to London, to an estimated 53 minutes. Under current proposals it is expected that an hourly services will operate in both directions, however it is currently unclear if these services will terminate at Stafford, or Liverpool.

This does appear to be rather out of date with High Speed Two’s latest proposals as disclosed in the Modern Railways article, which say that Stafford is served by the following service.

  • One tph between London Euston and Macclesfield.
  • Calls at Old Oak Common, Stafford and Stoke-on-Trent.
  • A 200 metre train.

One possibility must surely be to run a pair of 200 metre trains to and from Stafford, where they would split and join.

  • One could go as currently proposed to Stoke-on-Trent and Macclesfield.
  • The second train could go to Liverpool via Crewe and Runcorn or Manchester Piccadilly via Crewe, Wilmslow and Stockport.
  • The recent works at Norton Bridge Junction will have improved the route for the second train.

There would need to be platform lengthening at Stafford to accommodate the 400 metre pair of trains.

A split and join at Stafford does show the possibilities of the technique.

Another possibility is mentioned for Stafford in Wikipedia.

There is also been proposals to reintroduce services to Stafford to terminate on the Chase Line which was cutback to Rugeley Trent Valley in 2008. The Key Corridors states “Extension of Chase Line services to Stafford”. This is proposed to be in development.

It will surely connect a lot of people to Stafford for High Speed Two.

The extract from Wikipedia, that I used earlier, mentions a Classic Compatible junction, which will allow High Speed Two trains to reach Stafford.

This map clipped from the High Speed Two web site, shows the junction North of Lichfield, where High Speed Two connects to the Trent Valley Line through Stafford.

Note.

  1. High Speed Two runs North-South across the map.
  2. After the Junction by Fradley South,
  3. High Speed Two to Crewe and the North, is the branch to the East.
  4. The other branch connects to the Trent Valley Line, which can be picked out North of Lichfield, where it passes through Lichfield Trent Valley station.

The Trent Valley Line is no Victorian double-track slow-speed bottleneck.

  • Most of the route between Rugby and Stafford is three or four tracks.
  • The speed limit is generally 125 mph.
  • I wouldn’t be surprised to see Avanti West Coast’s Class 390 and Class 807 trains running at 140 mph on the route.
  • This speed would probably be attained by High Speed Two trains.

London Euston and Stafford would only have under twenty miles of slower line and that could be 140 mph, so High Speed Two  times on the route could be very fast. High Speed Two is quoting 54 minutes on their Journey Time Calculator.

Stoke-on-Trent

Stoke-on-Trent station will need to accommodate 200 metre trains.

This Google Map shows the station.

As it already accommodates 265 metre Class 390 trains, there shouldn’t be too much of a problem. The station is also step-free.

Warrington Bank Quay

Warrington Bank Quay station will need to accommodate 200 metre trains.

As it already accommodates 265 metre Class 390 trains, there shouldn’t be too much of a problem.

Wigan North Western

Wigan North Western station will need to accommodate 200 metre trains.

In Is Wigan North Western Station Ready For High Speed Two?, I said this.

Wigan North Western station would accept a single-train now, but the platforms would need lengthening to handle a double-train.

As all trains through Wigan North Western station will only be 200 metre single trains and the station is step-free, the station appears to be ready for High Speed Two.

York

York station will need to accommodate 200 metre trains.

As it already accommodates 245 metre InterCity 225 trains, there shouldn’t be too much of a problem.

Conclusion

I have come to these conclusions.

  • Because most of these stations have been rebuilt in the last few decades to accommodate the 200-plus metre InterCity 125s, InterCity 225s and Class 390 trains, all the stations can handle a 200 metre High Speed Two train without significant lengthening.
  • Some stations like Carlisle, Crewe, Preston and Stafford may need a small amount of platform lengthening to accommodate a pair of trains, but most of the improvements needed for a world-class High Speed railway will be more refurbishment than a complete rebuild.
  • Using existing platforms at Lancaster and Macclesfield stations as terminal platforms is an elegant and a much more affordable solution than building new stations or even platforms.
  • Because all five tph into the High Speed Two station at Manchester Piccadilly go via Manchester Airport, I would envisage that this will be in a tunnel, that can be part of a future Northern Powerhouse Rail.

I also think that the plan has been devised with the Project Management and minimising disruption to travellers in mind.





June 13, 2020 Posted by | Transport | , , , , , , , , , , , , | 6 Comments

Syon Lane Station – 26th May 2020

These pictures show the current state of Syon Lane station.

A few questions.

Is The Station Complete?

The stairs are blocked off, but most appears complete. Perhaps, serious testing of the lifts are needed.

Has the testing been held up by COVID-19?

Will There Be A Second Lift Tower?

As the walkway is still closed off, I couldn’t check at the top, but it does look there is space for a second lift tower on the London-bound platform.

What Is Happening Behind The London-Bound Platform?

Behind the London-bound platform is a patch of waste land and some scruffy garages.

Is the site being cleared? And to what purpose?



May 28, 2020 Posted by | Transport | , , | Leave a comment
