Kent On The Cusp Of Change – Abbey Wood Station

The Kent On The Cusp Of Change article in the July 2017 Edition of Modern Railways talks about Kent and Crossrail.

This is said.

In December 2018, the Elizabeth Line is due to reach its south-eastern terminus at Abbey Wood, where there will be interchange with the North Kent line.

A wide range of new journey opportunities will open up, which over time will influence many choices over work and home locations. A train every five minutes from Abbey Wood to Canary Wharf and central London is expected to have a dramatic effect in North Kent.

The article goes on to say that a working group called Crossrail Gravesend is pushing to extend the Elizabeth Line to Ebbsfleet International station for High Speed One.

In this post, I will talk about issues at Abbey Wood station.

The Modern Railways article says that Abbey Wood station is a cross-platform interchange, as do other articles.

Track Layout At Abbey Wood Station

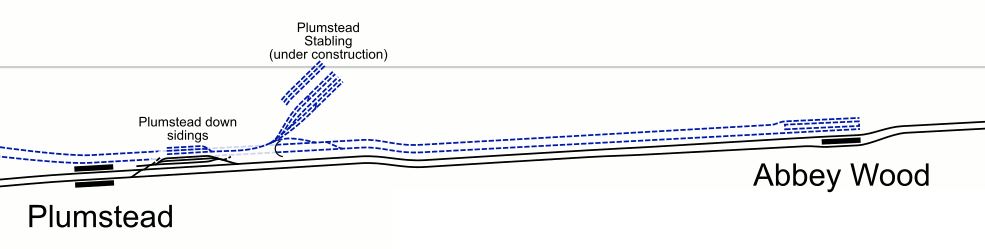

This map from carto.metro.free.fr shows the layout of lines at Abbey Wood station.

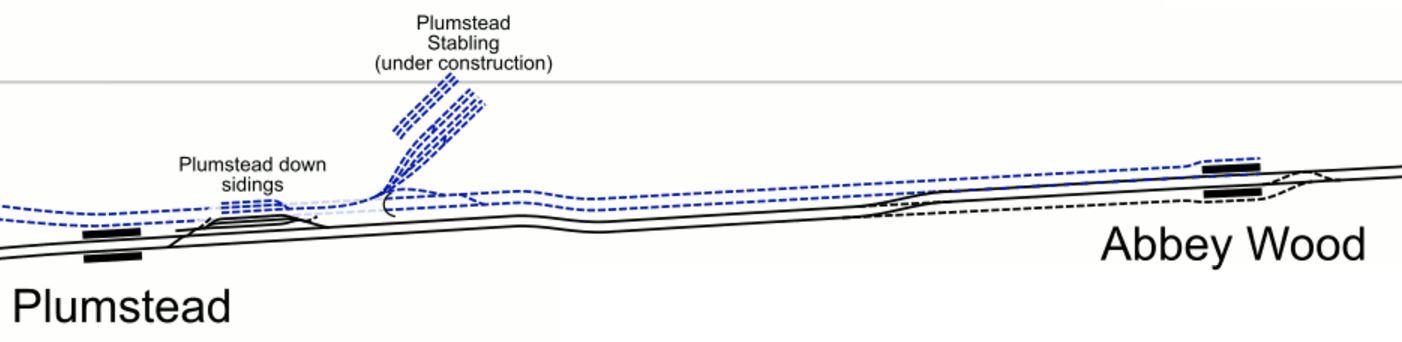

Compare this with this track layout, that I posted in Abbey Wood Station –  29th August 2016.

Note the following.

  • The older layout shows cross-platform interchange.
  • The current one has two pairs of platforms, with Platforms 3 and 4 for Crossrail and Platforms 1 and 2 for other services.
  • The current layout probably connects better to the existing lines to Dartford.

These pictures were taken on the 28th June 2017 and show pictures generally taken from the West of the station.

They show a similar layout, of two Northern platforms (3 & 4) for Crossrail and two Southern platforms (1 & 2) for all other services.

Note.

  • The two cross-overs to the West of Abbey Wood station to get the Crossrail trains to and from the right platforms.
  • The station building and the two footbridges over the lines.
  • The solid wooden fence between the two pairs of lines.
  • The robust nature of the overhead wiring.

I suspect, that if they had wanted to have Eastbound and Westbound lines each share an island platform, it would have required a flyover, which would have been a large expense.

These pictures were taken on the 10th July 2017 to the East of the station.

Note that the first seven pictures were taken from a public footbridge that crosses the tracks about five hundred metres to the East of Abbey Wood station and the last few pictures were taken from a train leaving Abbey Wood station for Dartford station.

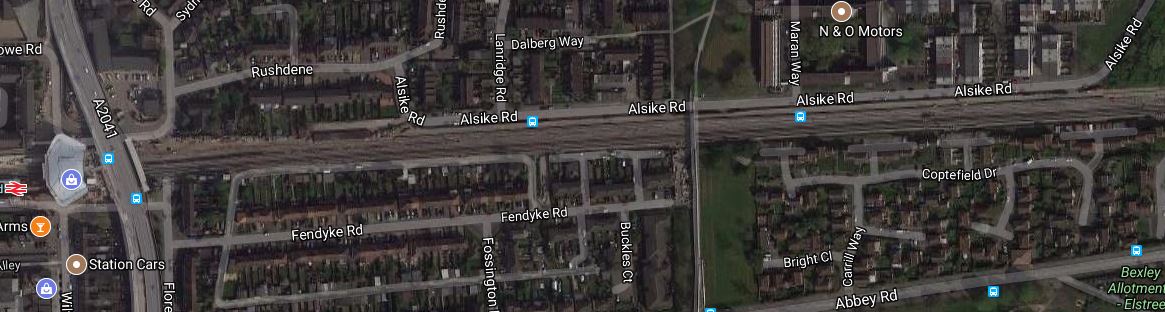

This recent Google Map shoews from Abbey Wood station, to where the reversing siding ends close to where Aliske Road turns North

The pictures and the map show the following.

  • The two third-rail electrified tracks of the North Kent Line run between Platforms 1 and 2 at Abbey Wood station to Belvedere station.
  • The North Kent tracks are fully in use, by services between London and Kent.
  • The two Crossrail Platforms 3 and 4 at Abbey Wood station are electrified with overhead wires.
  • The two tracks in Platforms 3 and 4 would appear to join together into a single line mainly without electrification, that connects to the North Kent Line about a kilometre to the East of Abbey Wood station.
  • There is only a short length of electrification to the East of the station.

It is not what I expected, as it means that there is no cross-platform interchange between services going to North Kent and Crossrail, as various sources including the The Kent On The Cusp Of Change article have said.

Passengers changing between the North Kent Lines and Crossrail will have to go over through the station or use the bridge.

So how will the station handle the various train movements?

Comparison Between Abbey Wood and Shenfield Stations

Abbey Wood will after rebuilding be a station with two North Kent and two Crossrail platforms

Shenfield station has now been converted into a station with six platforms, three of which can be used as Crossrail platforms.

In the Peak, services to the two stations are as follows.

  •  Shenfield – 10 trains per hour (tph)
  • Abbey Wood – 12 tph

In addition 4 tph on the Shenfield Branch turn-back at Gidea Park station.

In the Off Peak, services to the two stations are as follows.

  •  Shenfield – 8 tph
  • Abbey Wood – 8 tph

So it would appear that Abbey Wood is the harder station to operate with more services in the Peak and one less platform.

Train Stabling At Abbey Wood Station

Train stabling needs to be provided on a busy branch line, as it makes it easier to adjust the number of trains running to the demand throughout the day.

At Shenfield, the stabling sidings are beyond the station, which must be easier operationally, than the position of the sidings at Abbey Wood, where they are back down the line at the Plumstead tunnel portal.

If you look at the second set of pictures taken to the East of the station, spaqce would appear to be very limited. So is this why stabling is not ast of Abbey Wood station.

Turning Back Crossrail Trains At Abbey Wood

At Shenfield, train operators have been turning back Class 315 trains at a rate of six tph since 1980, so with the addition of a new platform and modern trains and signalling, the handling of ten tph should be achievable.

But at Abbey Wood in the Peak, there is a need to turn trains round at a rate of twelve tph or a train every five minutes.

The operation could involve each of Platform 3 and 4 handling six tph, using the cross-overs to the West of the station to get the train between each platform and the right Crossrail track, but handling six tph on two platforms feeding a 12 tph double track railway is a tough ask.

From what I have seen, I think that Crossrail will turnback their trains like this.

  • All Crossrail trains from London arrive in Platform 4.
  • All Crossrail trains to London depart from Platform 3.
  • All trains arriving in Platform 4 use the unelectrified single track line as a reversing siding to get to Platform 3
  • As the pictures show, the single track line is probably long enough to store a failed train, for later recovery.

But the Class 345 trains have a system called Auto-Reverse.

When the train is ready to leave Platform 4,the driver initiates an Auto-Reverse and the train moves automatically into the reversing siding, whilst the driver starts to walk back through the train to the other cab.

  • By the time, the train is in the reversing siding, the driver is ready to drive the train into Platform 3.
  • The process will have to be done within five minutes.
  • The process could also involve the basic cleaning and removal of rubbish, with cleaners getting on at Platform 4 and getting off at Plstform 3.

Crossrail is not your bog-standard railway.

Trains Leaving Service At Abbey Wood

Suppose a train was leaving service at Abbey Wood.

Normally, it would probably perform the Auto-Reverse and go to the stabling sidings at the Plumstead tunnel portal.

It might even go the wrong way directly out of Platform 4, if the signalling was bi-directiomal.

Remember too, that Class 345 trains could be two independent half-trains, so if one half fails, the other could be designed to get the train to safety and out of the way.

Class 345 trains are not a bog-standard trains.

Running Crossrail Trains To And From Gravesend

From what I have seen, I’m convinced that the track layout at Abbey Wood station, means that Crossrail can be easily extended to and from Dartford, Gravesend, Rochester, Gillingham or Rainham.

Let’s assume the terminal for four tph is Gravesend.

Crossrail trains from London to Gravesend will do the following.

  • Stop in Platform 4 at Abbey Wood station.
  • Lower the pantograph
  • Take the single uon-electrified line alongside the North Kent Line.
  • Cross over to the Down North Kent Line.
  • Use the third-rail electrification to travel to Gravesend.

Crossrail trains from Gravesend to London will do the following.

  • Use the third-rail electrification to travel from Gravesend.
  • Cross over to the single non-electrified line alongside the North Kent Line before Abbey Wood station.
  • Stop in Platform 3 at Abbey Wood station.
  • Raise the pantograph.

The Crossrail trains would be needed to be fitted with third-rail shoes.

Interchange BetweenThe Extended Crossrail And Other Services.

Suppose you are going from Ramsgate to Paddington, you would get a Highspeed service to Gravesend and then wait for a Crossrail train to call at the same platform.

To repeat myself, Crossrail is not a bog-standard railway.

Crossrail’s Trump Card

When the trains turnback at Abbey Wood or extend to and from Gravesend, the Class 345 trains will have to use the non-electrified single track line shown in the pictures.

It may be electrified in the next year! But why bother?

The distances that need to be handled without power are not much more than a kilometre at slow speed.

The Class 345 trains could be fitted with batteries to bridge the gaps in the electrification.

These batteries will also do the following.

  • Handle regenerative braking.
  • Provide emergency power, in the event of complete tunnel power failure.

Conclusion

To repeat myself again, Crossrail is not a bog-standard railway.

See Also

These are related posts.

To know more read Kent On The Cusp Of Change in the July 2017 Edition of Modern Railways.
