Will Crossrail Go Up The West Coast Main Line?

This report on the BBC from August 2014, is entitled Crossrail Extension To Hertfordshire Being Considered.

This is the opening paragraph.

Proposals to extend Crossrail to Hertfordshire are being considered by the government, Transport Secretary Patrick McLoughlin has announced.

But then in August 2016, the proposal was cancelled as being poor value for money.

The Wikipedia entry for Crossrail has a section called To the West Coast Main Line, under Extensions.

This is said.

Network Rail’s July 2011 London & South East Route Utilisation Strategy (RUS) recommended diverting West Coast Main Line (WCML) services from stations between London and Milton Keynes Central away from Euston, to Crossrail via Old Oak Common, to free up capacity at Euston for High Speed 2. This would provide a direct service from the WCML to the Shenfield, Canary Wharf and Abbey Wood, release London Underground capacity at Euston, make better use of Crossrail’s capacity west of Paddington, and improve access to Heathrow Airport from the north. Under this scheme, all Crossrail trains would continue west of Paddington, instead of some of them terminating there. They would serve Heathrow Airport (10 tph), stations to Maidenhead and Reading (6 tph), and stations to Milton Keynes Central (8 tph)

That sounds all very sensible. So why was the scheme cancelled?

I will look at various factors to see if I can get an idea!

Current Local Services To Milton Keynes

London Midland currently runs five trains per hour (tph) between Euston and Milton Keynes Central stations using Class 350 trains capable of 110 mph.

The new operator; West Midlands Trains will replace these trains with 110 mph Aventras.

Note that both these trains have to be capable of running at 110 mph, as this is necessary for efficient operation of the West Coast Main Line.

Crossrail Local Services To Milton Keynes

Crossrail’s Class 345 trains are only capable of 90 mph running, but then again, West Midlans Trains will have Aventras capable of 110 mph.

So for a start, the current Crossrail trains would be unable to work services to Milton Keynes in an efficient manner.

I would estimate around twenty trains  would have to be updated for 110 mph running to provide eight tph.

An Upgrade Of Milton Keynes Central Station

With a fast eight tph running to and from Central London, the nature of the train services at Milton Keynes would change dramatically.

How many of Virgin’s passengers to and from the North would prefer to change to a local train at Milton Keynes, rather than lug heavy baggage on the Underground?

HS2 would have an unexpected competitor.

ERTMS On The West Coast Main Line

Would ERTMS need to be installed on the West Coast Main Line to accommodate al these trains?

This will probably happen soon anyway, but Crossrail to Milton Keynes could bring it forward.

Connecting Crossrail To The West Coast Main Line

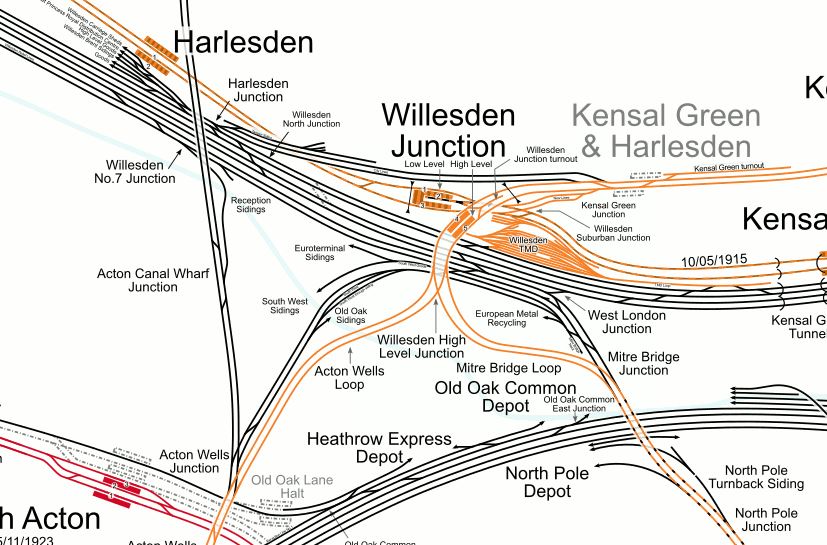

Look at this map from carto.map.free.fr, which shows the lines in the Old Oak Common area.

Note.

  • The West Coast Main Line is the multi-track railway towards the top of the map.
  • The Great Western Main Line is the multi-track railway towards the bottom of the map.
  • The Slow Lines on both main lines are on the Northern side of the tracks.
  • The Old Oak Common station will be on the Great Western Main Line, just to the West of the North Pole Depot.

This all means that a flyover or a tunnel must be built to connect the two pairs of Slow Lines. It’s not simple!

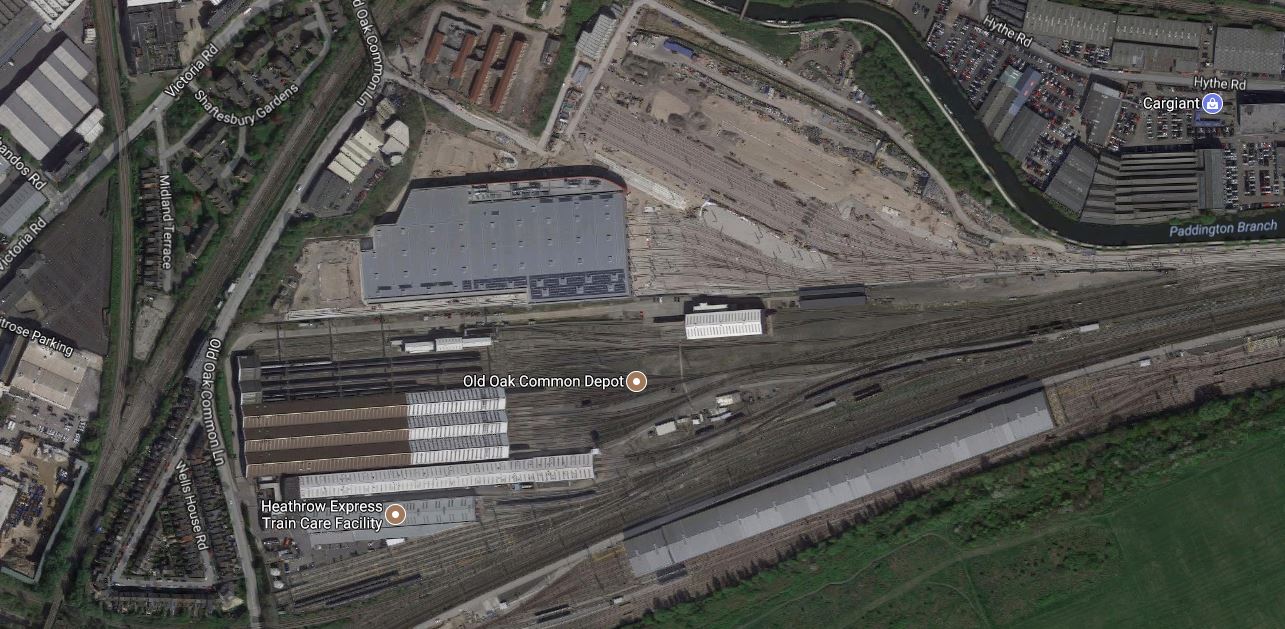

This Google Map of the area illustrates the problem.

Note.

  • The Great Western Main Line going across the bottom of the map.
  • The North Pole Depot alongside the Great Western Main Line.
  • The Dudding Hill Line and the West London Line at the Western side of the map.
  • Crossrail’s newly-built depot is the large grey rectangular building.
  • There’s also some housing to the North-West of Crossrail’s Depot

I doubt that a flyover could pass over all that.

But a tunnel starting at the surely soon-to-be-redundant Heathrow Express Depot , that turned North-West would be a possibility.

A tunnel could emerge to the North-West of Harlesden station.

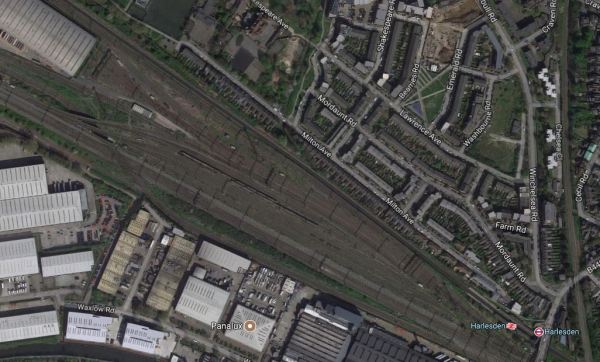

This Google Map shows that area.

Note.

  • The silver building in the top-left corner is the Princess Royal Distribution Centre.
  • The West Coast Main Line runs diagonally across the map.
  • The Dudding Hill Line runs up the Eastern side of the map.

I suspect that space for a tunnel portal can be found.

  • Twin tunnels would probably be bored.
  • I estimate that they, would need to be just over two kilometres long.
  • I suspect too, that they could be build without an additional ventilation shaft in the middle.

Looking at these maps, I’m very much of the opinion, that boring a tunnelled solution, would be possible, but what would be the cost?

The Lee Tunnel in East London is about twice as long and larger in diameter. From the cost of that tunnel, which was opened in 2016, I feel that the two tunnels could be built for just under a billion pounds.

A Tunnel-Free Solution

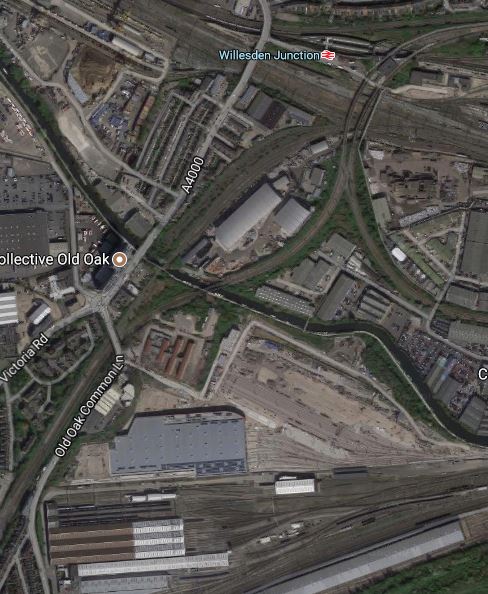

This Google Map shows Old Oak Common between the Great Western Main Line and the West Coast Main Line.

The Crossrail station would be at the bottom just above the North Pole Depot.

I wonder if a line could go through or behind the Heathrow Express site and then follow the North London Line behind the Crossrail Depot to Willesden High Level Junction.

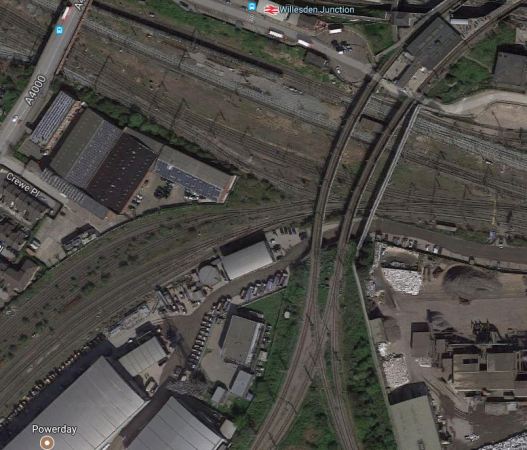

This Google Map shows Willesden High Level Junction and the tracks of the London Overground as they pass over the West Coast Main Line.

I suspect modern three-dimensional design and structural analysis can create a connecting viaduct.

I doubt the track will be much more than a kilometre long and I suspect with the right signallinmg and a degree of Sutomatic Train Control, eight tph each way could be handled on a single track.

Conclusion

It looks like updating the Class 345 trains, ERTMS and building a tunnel under Old Oak Common could be a sizeable bill.

Have cost estimates been such, that the project was not deemed to be value for money?

October 23, 2017 - Posted by | Travel | , , , , ,

3 Comments »

  1. No idea it was real or not, but I did hear that converting all the stations to be step-free was a significant cost too – which seems an unlikely dealbreaker to me, especially given the obvious benefits.

    Comment by Phil J | October 23, 2017 | Reply

  2. I heard the same story from a trusted source, so I assume that could be a factor.

    Comment by AnonW | October 23, 2017 | Reply

  3. […] In Will Crossrail Go Up The West Coast Main Line?, I looked at why the extension of Crossrail to Milton Keynes was announced and then cancelled as it was thought to be bad value for money. […]

    Pingback by Should Crossrail Be Extended From Old Oak Common? « The Anonymous Widower | October 27, 2017 | Reply
