A Report On The Bakerloo Line Extension

Transport for London, have released a report on the Bakerloo Line Extension that they call the Option Selection Summary Report.

It is one of those worthy documents, you get from analysing the data from consultations.

But it is full of several nuggets, which although not directly associated with the Bakerloo Line could be very important for passengers coming from or venturing to South London.

They have also provided this helpful map, which lays out possible actions and improvements.

Rail Improvements South Of The Thames

Rail Improvements South Of The Thames

I hope that the boxes can be read.

I shall deal with the various boxes in separate sections, going in a vaguely East to West direction. I will leave out the Crosrail 2 related topics for the moment.

Bakerloo Line Extension

The summary on the map says thirty trains per hour (tph) into Central London, releasing peak capacity on South Eastern. They describe the extension like this in the Executive Summary of the report.

Following the 2014 consultation, we have conducted a comprehensive assessment of the consulted route options alongside alternatives suggested by respondents and stakeholders. The work has concluded that an extension to Lewisham via the Old Kent Road is currently the best option as a first phase, as the route would serve the Old Kent Road Opportunity Area and support significant numbers of new homes and jobs for London. This would include a major new interchange at Lewisham. It is estimated that the selected corridor could enable over 25,000 new homes by serving Opportunity Areas and regeneration areas along its length.

From the map, the route of the extended Bakerloo Line, would be a simple one from the current terminus at Elephant and Castle station to Lewisham station, via two new stations in the Old Kent Road and an interchange at New Cross Gate station with the London Overground and main line services from London Bridge.

These are various highlighted points from the report.

  • Assessment of the alternative route options suggested during the 2014 public consultation has demonstrated that the options towards Lewisham remain the most effective for addressing the challenges in south east London.
  • An extension should serve Lewisham station due to the new homes that could be unlocked in growth areas along its route, and the wider transport connectivity and access improvements it would provide. 4.2.1. Our assessment work has found that although shor
  • We currently recommend a route to Lewisham via Old Kent Road for further development as part of an initial phase for an extension. We have found that this option has the greatest potential to unlock new homes to support London’s growth and significantly improve transport provision in south east London.
  • An extension via Old Kent Road would provide a step-change in the capacity, connectivity, accessibility and speed of travel for residents.
  • By improving transport and unlocking new homes and jobs growth, the economic benefits of the Old Kent Road option are higher than the route via Camberwell and Peckham Rye. The latter option is estimated to be more expensive to deliver and has a lower potential of obtaining funding.
  • Delivering a major transport infrastructure project is a challenging and often risky process. By integrating planning with the Opportunity Area development, the proposed route via the Old Kent Road offers the best prospect of successful delivery.
  • An initial extension to Lewisham could form part of a wider package of complementary rail improvements across south and south east London, providing improved journeys via Tube and rail connections.

The report doesn’t rule out extensions beyond Lewisham. This is said.

The assessment shows there could be significant additional benefits from an extension beyond Lewisham and therefore it has not been ruled out at this stage, with further work required to develop the deliverability and case further.

Under Next Steps, this is said.

We will focus developing plans for the first phase of an extension to Lewisham via the Old Kent Road, with further public consultation anticipated in 2016.

TfL’s proposals for the Bakerloo Line Extension would appear to be simple and deliverable at an acceptable cost to give the greatest benefit to South East London.

It should also not be the most difficult line to build, as it is only three stations, with it would appear plenty of green space and cleared sites on the surface for access.

It would almost be a repeat of the Northern Line Extension, except that it is shorter.

For people like me living on the East London Line, the interchange to the Bakerloo Line at New Cross Gate will be very much welcomed, as it improves connectivity to that difficult-to-access area between Piccadilly Circus and Elephant and Castle. Try getting from Dalston to Charing Cross in the rush hour!

I think the biggest problem of this short extension, is going to be that even at an increased frequency of 30 tph, it will quickly get close to capacity.

Lewisham Station

The map also labels Lewisham station with a box saying upgraded major hub for SE London.

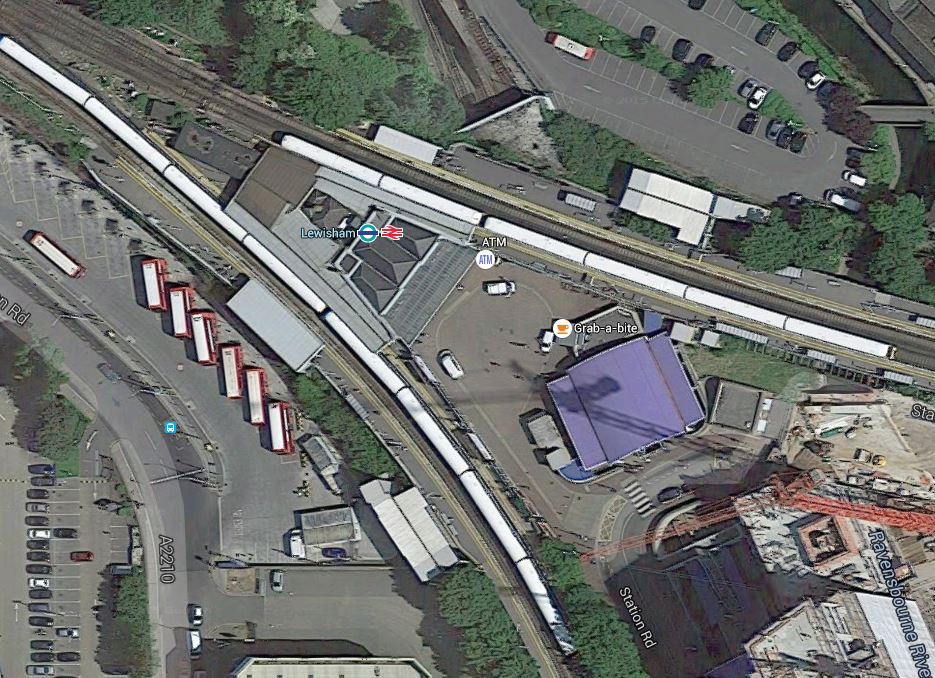

This Google Map shows Lewisham station.

Lewisham Station

Lewisham Station

I think that there would appear space for improvements and digging the shafts for the creation of the Bakerloo Line Extension.

South Eastern Improvements

The summary on the map says explore potential for further service upgrades to further improve journeys, including access to Tube at Lewisham.

Some stations have been upgraded to a modern standard, but many still don’t have the fscilities that passengers expect these days.

Nothing is said about TfL’s long term ambition to take over the Metro services of Southeastern.

South Central Improvements

The summary on the map says consider increased services through major station upgrades, new interchanges and new trains.

I could repeat what I said in the previous section for South Eastern Improvements.

New Trains

This is very much a general point about new trains.

London’s latest train fleets are increasingly becoming walk-through from one end to the other.

Passengers are also getting very savvy in their train usage and often board a train in a coach, that will be close to their exit at the destination.

And if they get on at the wrong point, they will often walk to their desired exit position, before the train stops.

So could this be used to advantage in the design of stations, with more perhaps having multiple exit points, as do some Crossrail stations?

Brockley Station

The map also labels Brockley station with a box saying potential new interchange hub.

This Google Map shows Brockley  station.

Brockley Station

Brockley Station

The Bexleyheath Line between Nunhead and Lewisham stations crosses the East London Line and Brockley station at a high level.

I wrote A Four-Poster Station about connecting these two lines.

It would appear that Transport for London have advanced this project from one word in their 2050 Infrastructure Plan to a proposal.

This is the sort of connectivity, that us plebs in Dalston will like a lot. From 2018, as I wrote in Increased Frequencies on the East London Line, there will be ten services per hour between Dalston Junction and Brockley stations and one change at Brockley, will open up many transport opportunities.

East Croydon Station

The map also labels East Croydon station with a box saying extra platforms & grade separation.

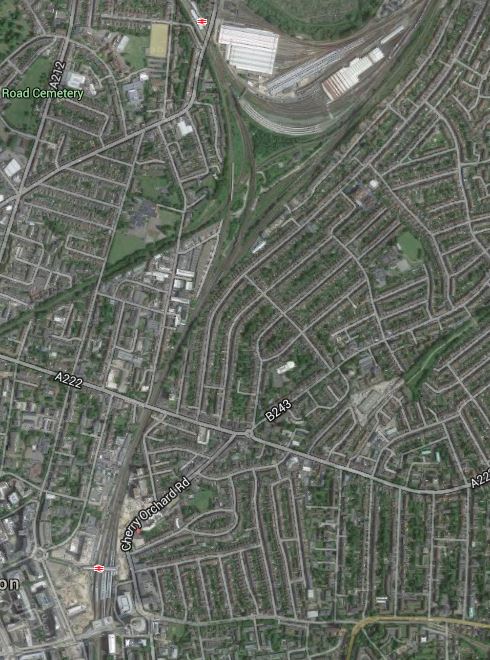

This Google Map shows East Croydon station.

East Croydon Station

East Croydon Station

The station is towards the bottom of the map and the semi-circular shape at the top is Selhurst Depot.

There is a large section labelled Future in the station’s Wikipedia entry and given the legendary congestion and the large expansion plans for Croydon, I think it is highly likely that expansion of the station and grade separation will go ahead even if the Bakerloo Line Extension doesn’t!

Camberwell Station

The map also labels the now-disused Camberwell station with a box saying potential new Thameslink station. The TfL report says this.

Similarly, we are working with Southwark Council to look into the re-opening Camberwell station on the Thameslink line to improve access into Central London and support local development.

This Google Map shows the area around the disused station.

Camberwell Station

Camberwell Station

Camberwell station used to be where Camberwell New Road crosses under the railway.

The TfL report makes these points.

  • Camberwell has no direct rail connection.
  • A two-branch extension of the Bakerloo Line; Old Kent Road and Camberwell, will be very costly.
  • A Thameslink station at Camberwell, would serve the same area as an Underground station and is a much more affordable option.

The TfL report gives this concise summary.

A new station at Camberwell would be a significantly lower cost option to a Tube extension, whilst serving the same catchment area. Investigations show significant journey time improvements could accrue to Camberwell passengers and that operationally there may be scope to integrate re-opening of the station into the launch of the completed Thameslink programme.

We will therefore undertake further planning work with Network Rail and the London Borough of Southwark to assess the proposal.

I would be very surprised if the Bakerloo Line Extension calls at Camberwell.

I would also suspect that being able to open a new Ca,berwell station, at the same time as Thameslink, would be very easy to justify on a costs basis.

Streathham Common Station

The map also labels Streatham Common station with a box saying potential new interchange hub.

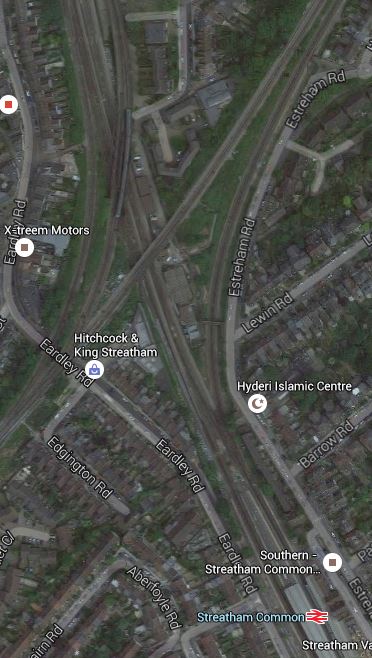

This Google Map shows Streatham Common station.

Streatham Common Station

Streatham Common Station

Wikipedia introduces Streatham Common station with these words.

The station is managed by Southern who also operate trains from the station. Direct trains from the station run to Victoria, London Bridge, East Croydon, Shepherds Bush, and Milton Keynes Central. Southern consider the station to be the 6th busiest station on their 158 station network as it receives 12,932 passenger journeys a day, totalling 4,655,520 per year. The Office of Rail and Road figures are lower at 3,827,296.

The station has four platforms, but only platforms 1 and 2 are in daily use; platforms 3 and 4 are normally for passing Express trains, but they are occasionally used during engineering work or major disruption. Step free access to both platforms and both station entrances is available.

Just to the North of the station, is the Sutton Loop Line of Thameslink and I suspect that Streatham Common is mentioned in TfL’s report, is that they have a cunning plan to link the various lines in the area together.

To try to get a better feel of the area, I took a train to Streatham Common station, walked to Streatham station and then took a train to Micham Junction, which travelled across Streatham Common station. I took these pictures.

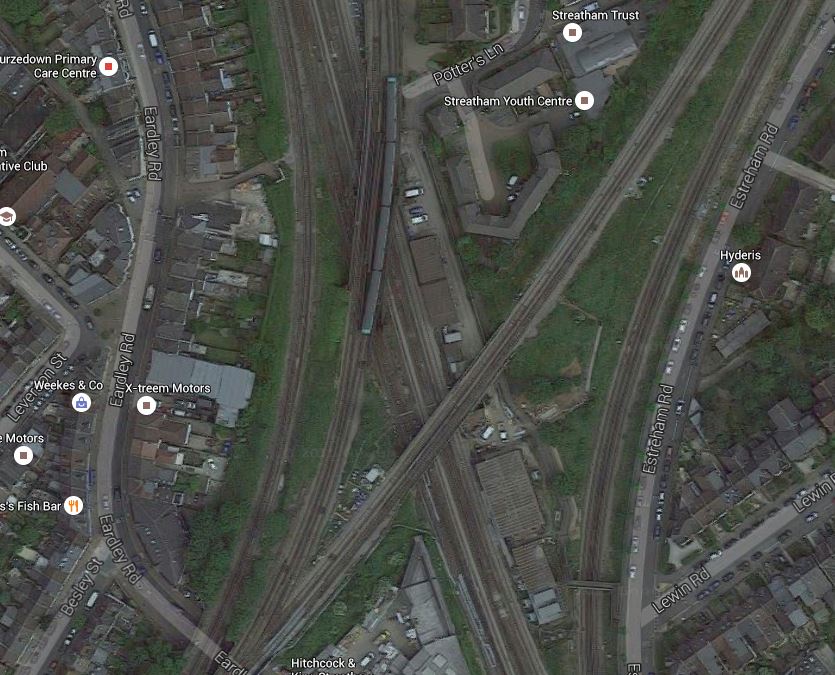

My walk showed me how complicated the lines are in the area and that is emplasised by this Google Map of the junction.

A Tangle Of Lines

A Tangle Of Lines

I do wonder if there are operational problems in Streatham, that perhaps necessitate a bit of a sort out.

It’s also not an easy walk between Streatham and Streatham Common stations because there is a massive Tesco Extra blocking the walking routes. It certainly follows Tesco’s tradition of trying to create some of the ugliest buildings in the UK.

My other thought, is that the space around the railway lines is quite generous and are Network Rail looking to create some more housing around the junction.

I think that any plans that Network Rail have for Streatham will be revealed in due course.

Conclusion

I think Network Rail, Transport for London and others have decided to bundle a lot of smaller projects under the umbrella of the Bakerloo Line Extension, with the intention of getting value-for-money, that delivers a lot of improvement in an ordered manner in a short timescale, all over South London.

It could be described as the following.

  • One large billion pound project to create the actual Bakerloo Line Extension.
  • One large project, possibly with a property developer, to sort out East Croydon station.
  • Three mid-sized projects to create the Brockley and Streatham Common interchanges and Camberwell station.
  • A lot of small projects to create quality stations all over South London.
  • Some new trains as required.

So there would be something for everybody. Even the man on the Clapham omnibus!

But who knows?
