The Anonymous Widower

Werrington Dive-Under – 8th November 2018

In Issue 865 of Rail Magazine, there is an article, which is entitled NR Primed To Start Work On £200m ECML Dive-Under.

This is said about construction of the dive-under.

Devegetation has already commenced in the area, while work compounds and access roads are due to be constructed before the end of the year (when the main construction sequence is expected to begin).

The dive-under is expected to enter service in 2021.

The article also says that the Cock Lane footbridge will be replaced with a longer truss bridge to span the widened alignment.

These pictures show the current Cock Lane footbridge.

Whilst I took the pictures there was a lot of noise from chain saws and other machinery, as the vegetation was cleared.

The Track Layout

Note how the tracks are divided into a set of two on the Western side and three on the Eastern.

The Western pair are the so-called Stamford lines, which go off to the West through Stamford station.

A diagram in Rail Magazine shows how they will be moved apart and twenty-five metres to the West. This will enable the two new tracks to be laid between them, which will then dive under the East Coast Main Line and connect to the Great Northern Great Eastern Joint Line towards Spalding, Sleaford and Doncaster.

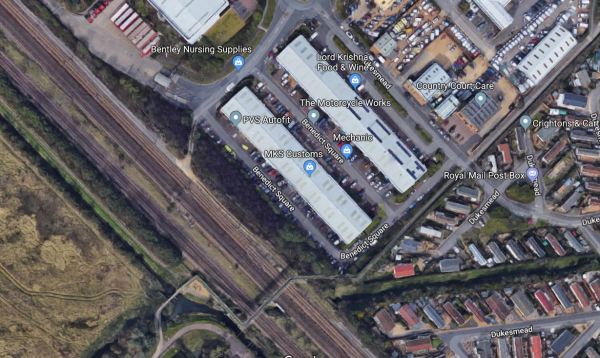

This Google Map shows the Cock Lane Bridge as it crosses the tracks.

The Cock Lane Bridge is at the bottom of the map.

Doing The Work

It looks a simple plan, that NR believes could be executed with a nine-day closure of the East Coast Main Line. This would be needed to tunnel under the three tracks of the main line.

But I suspect that Network Rail could have a series of cunning plans to keep a limited service going.

  • There will probably be a number of bi-mode Class 800 trains available.
  • Some of the sixteen InterCity 125 trains could be retained.

The diesels and bi-modes could be able to use the Great Northern Great Eastern Joint Line and other routes without electrification to sneak through.

They might also use an interim layout of lines at Werrington to keep the service going.

Extra Electrification

It appears to me that not all tracks are electrified.

The Northbound Stamford Line certainly has electrification, but it appears that the Southbound doesn’t.

Given that in the next decade, it is likely that battery/electric or electro-diesel trains or locomotives will use the route throughStamford station to Leicester and Nuneaton, would it be worthwhile to fully electrify the Stamford Lines.

This image captured from a Network Rail video, clearly shows the new Cock Lane footbridge and that the following lines are electrified.

  • The Northbound Stamford Line on the left.
  • The three tracks of the East Coast Main Line on the right.

The actual dive-under and the Southbound Stamford Line appear not to have electrification.

Retention Of Diesel Trains

But surely, if there are a few extra diesel trains around for a couple of years or at least until the end of 2019, would it help to sort out some of the other problems on the East Coast Main Line.



November 8, 2018 - Posted by | Travel | , , , ,
