Has The Possibility Been Created For A Pedestrian Tunnel Between Bank And Moorgate Stations?

This visualisation shows the Bank Station Upgrade at Bank station, which is now underway to sort out the station’s problems of capacity and poor step-free access.

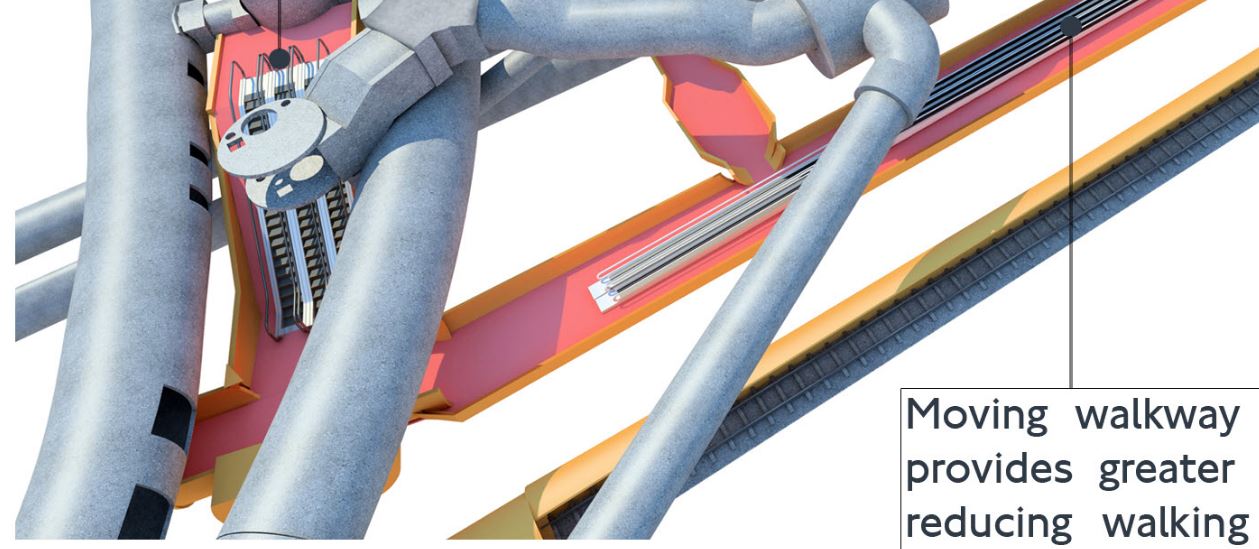

This is the bottom-left corner of the visualisation.

Notice that there are two fat tunnels running top to Bottom across the visualisation, which are the Central Line tunnels, with the Eastbound on the left and the Westbound on the right.

There are also four tunnels running left to right across the visualisation.

The top two, which are sticking out to the left of the Eastbound Central Line tunnel, are the current Northern Line running tunnels

  • The top one is the Northbound tunnel going to Moorgate station.
  • The other one is the current Southbound tunnel, which under the plans for Bank station will be closed to trains and used to improve passenger access to the Northbound platform. If you go to the Northern Line platforms, there are tell-tale blue hoardings, indicating where better access will be created.

These pictures show the current state of the current Southbound tunnel.

It looks like at least three sections of the wall between the two platforms will be removed.

The third tunnel, which is shown pink in the visualisations is the connecting tunnel between the Central Line and the new entrance to the station on Cannon Street.

Note the following.

  1. It has a travelator.
  2. it connects to a lobby, where there are triple escalators to the Central Line.
  3. It appears to come to a stop under the Eastbound Central Line platform.

What lies at the Northern end of this tunnel?

The fourth tunnel, which is the new Southbound running tunnel for the Northern Line, has been helpfully drawn with a rail track inside.

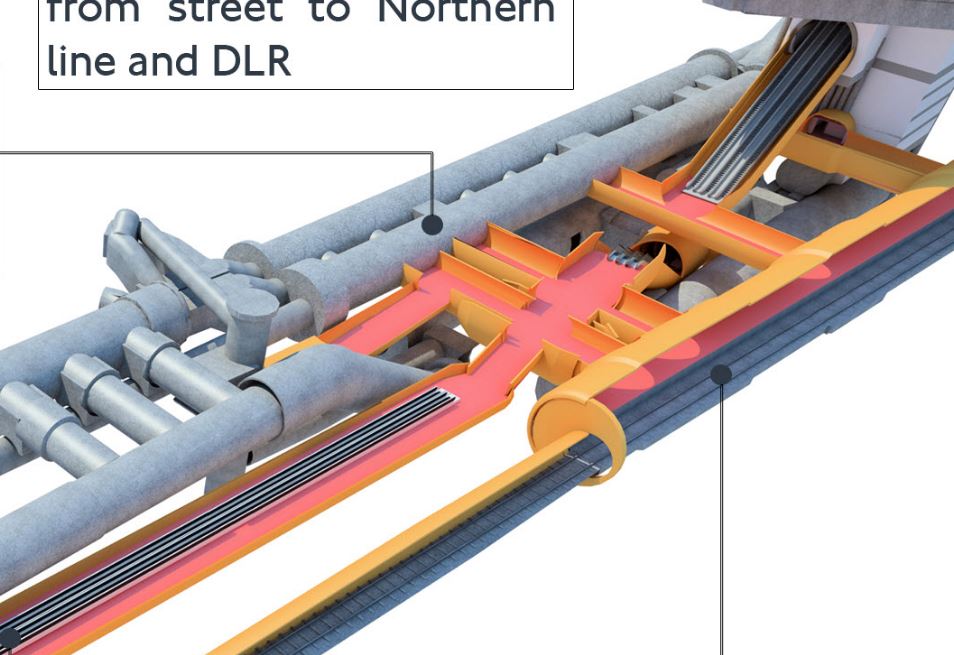

This is the top-right corner of the visualisation.

Note.

  1. There are three cross passages between the two running tunnels, just as there appears to be three blue hoardings in the existing Southbound running tunnel.
  2. The Northbound running tunnel now has a wide platform, which has been built inside the existing Southbound tunnel.
  3. The new Southbound running tunnel will be built with a wide platform.
  4. There are three escalators leading to the new Cannon Street entrance.
  5. There are three escalators leading down to the Docklands Light Railway (DLR) platforms

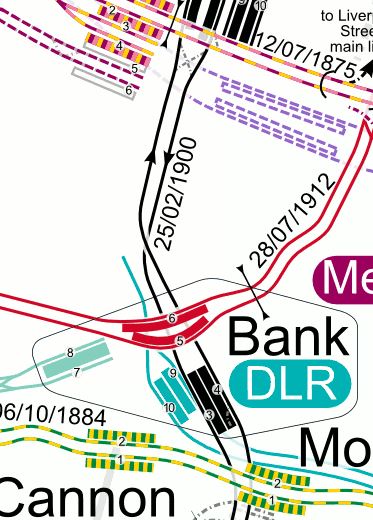

This map from carto.metro.free.fr, shows the layout of lines at Bank station and between Bank and Moorgate stations.

Note.

  1. The Central Line is shown in red.
  2. The Northern Line is shown in black.
  3. The DLR is shown in turquoise.
  4. The two Northern Line tracks cross to the North of Bank station.
  5. The lines at Moorgate station are shown at the top of the map.
  6. Crossrail is shown in violet.

The new Southbound tunnel will be created to the West of the DLR platforms.

This article on IanVisits is entitled Behind The Scenes At London Underground’s Bank Tube Station upgrade.

I suggest you read the article and I feel, you will get the impression the Bank Station Upgrade is a very difficult project, that is being achieved in an innovative manner by the contractors.

In one section, the article describes how they are actually building the new Southbound tunnel, through the piled foundations of existing buildings.

A Travelator Between Bank and Moorgate  Stations

I now feel I can answer the question in the title of this post.

The Route

If the route started at the Northern end of the long connection tunnel with the travelator at Bank station, a route could probably be found on the West side of the Northern Line to break-in to the basement of the Crossrail station at Moorgate station.

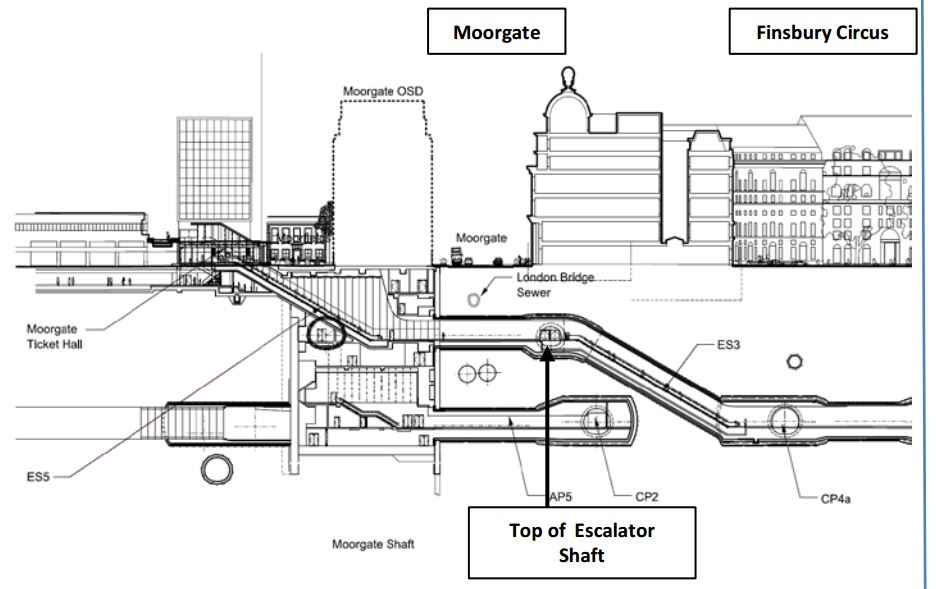

This image shows a cross-section through the Moorgate Crossrail station.

Note that under the escalators leading down from the Moorgate Ticket Hall to Crossrail, are a pair of circles.

  • These are the Northern Line running tunnels.
  • A travelator tunnel would be at this level but perhaps twenty or more metres to the West (left in the cross-section).

With modern design and construction techniques, I would expect that a connection could be made.

The Length

I estimate that the travelator would be between three and four hundred metres long.

As there are longer travelators either built or in planning in the world, I suspect, the length wouldn’t be a problem.

By comparison, these are example travelators in London.

  • Jubilee to Northern/Bakerloo Lines at Waterloo – 140 metres.
  • Sloping travelators to Waterloo and City Line at Bank – 76 metres
  • Proposed Central to Northern Lines at Bank – 94 metres

A travelator between Bank and Moorgate stations would probably be, the longest in London.

Building The Tunnel

If you read the IanVisits article, it details how the new Northern Line and travelator tunnels at Bank station were excavated.

I suspect similar techniques could be used to build the new tunnel.

The biggest problem would be removing the tunnel spoil and I suspect that if the tunnel were to be built, when a building on the route needed to be replaced, this would make construction a lot easier.

Why The Tunnel Should Be Built

The main argument for building the tunnel is that it would connect Bank station directly to Crossrail.

Why The Tunnel May Not Be Needed

There are various reasons, why the travelator may not be needed.

Pedestrianisation

The City of London is in favour of pedestrianisation and has already disclosed plans to make Bishopsgate, which is one of the most important North-South arteries through the Square Mile, much more pedestrian friendly.

I would expect more initiatives like this to follow.

So many travellers will use their feet on the surface, between Crossrail and Bank, when the two stations are completed.

Improved Northern Line Connections

The connections to the Northern Line will be improved at both Moorgate and Bank stations, when Crossrail and the Bank Station Upgrade are completed.

So those travellers needing or wishing to do a one-stop transfer, will find it easy.

Connectivity between Crossrail And The Central Line

Crossrail and the Central Line have good connectivity.

  • Stratford – A cross-platform interchange.
  • Liverpool Street – A step-free connection
  • Tottenham Court Road – A step-free connection
  • Bond Street – A step-free connection
  • Ealing Broadway – A step-free connection.

If travellers need Bank and they are coming from either direction on Crossrail, they can change at a convenient station.

Given that Bank station will have a large number of step-free entrances after the Bank Station Upgrade is completed, I suspect many Crossrail passengers will transfer to the Central Line to avoid the walk from Moorgate or Liverpool Street stations.

Conclusion

It may be feasible to build a trevelator between Bank and Moorgate stations, but developments already in hand, may give the project a very bad financial case.
