Sheffield Region Transport Plan 2019 – A New Tram-Train Route To A New Station At Waverley

Sheffield’s plans state that a medium to long term priority is to have a new station on the Sheffield-Lincoln Line.

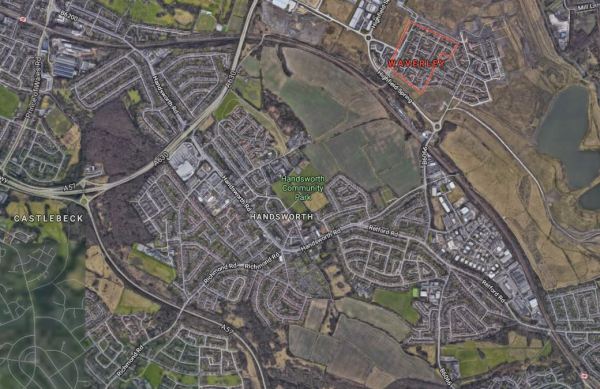

This Google Map shows the location of Waverley between Darnall and stations.



Note.

  1. Darnall station is in the North-West corner of the map.
  2. Woodhouse station is in the South-East corner of the map.
  3. Waverley is a new housing area and is highlighted in red towards the North-East corner of the map.

The plans also propose that the service will be run by tram-trains and they will also serve the Advanced Manufacturing Park (AMP)

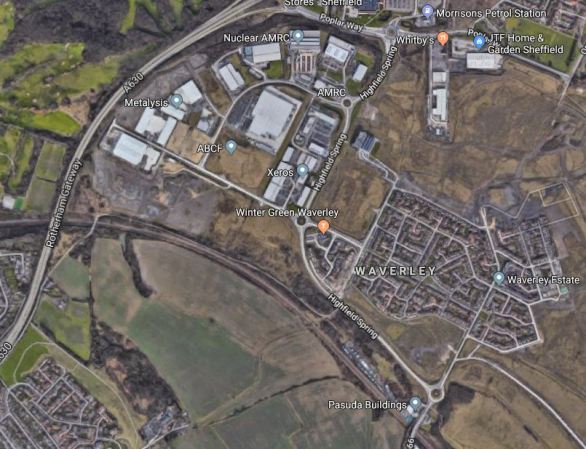

This Google Map shows AMP and Waverley in a larger scale.

Note.

  1. Waverley in the South-East corner of the map.
  2. The AMP in the North-West corner of the map.
  3. The Sheffield-Lincoln Line curving through to the South.

Most rail and tram systems are straight out-and-back layouts, but there are two very important loops  that serve a wider area under Liverpool City Centre and Heathrow Airport.

Could Waverley and the AMP be served by a surface loop from the Shyeffield-Lincoln Line?

  • The loop could be single- or double-track.
  • Stops would be in appropriate places.
  • The loop could be electrified as needed with 750 VDC to the Sheffield Supertram standard.

As Sheffield is less than three miles from Waverley, the battery-electric version of Class 399 tram-trains, as ordered for the South Wales Metro, should be able to run to and from Sheffield on battery power, if the loop was fully electrified, so could charge the tram-trains.

The Sheffield-Lincoln Line passes to the back of the Sheffield Supertram Depot, so I suspect, if required the tram-trains could sneak through the depot to join the main tram route through Sheffield City Centre.

But as the Sheffield Supertram expands, there must surely come a point, where a second route across the City is needed to handle increasing numbers of trams. Manchester found this a few years ago and have since built the Second City Crossing.

Sheffield already has a second route across the City and it is the rail line through Sheffield station, which will be electrified in the next few years, to allow High Speed Two trains to reach the City.

So I can see no reason, why tram-trains from Waverley and the AMP can’t terminate in Sheffield station or go across the City.

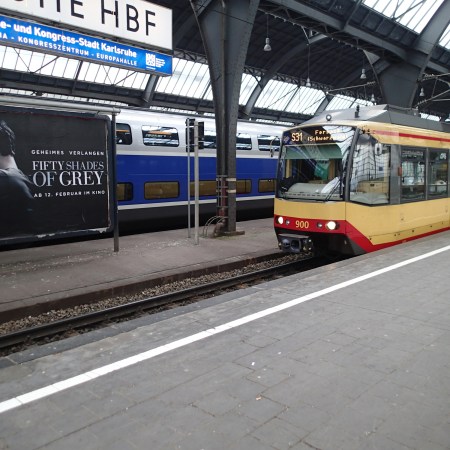

To show what the Germans get up to, here’s one of Karlruhe’s tram-trains in a platform in Karlsruhe HBf, with a double-deck TGV in an adjacent platform.

This is one of Karlsruhe’s older train trains, that are being replaced by tram-trains, which are cousins of those in Sheffield.

If the Waverley loop is built, it can be considered as a separate tram system, that connects to Sheffield station, by running as a battery-electric train.

Conclusion

Why shouldn’t Sheffield have an advanced tram-train system to serve the Advanced Manufacturing Park?
