Upgrading Ravensthorpe Station

Ravensthorpe station is due to be upgraded as part of Network Rail’s £2.9billion project to upgrade the Huddersfield Line between Huddersfield and Dewsbury stations, that I wrote about in Network Rail Reveals Detailed £2.9bn Upgrade Plans For TransPennine Route.

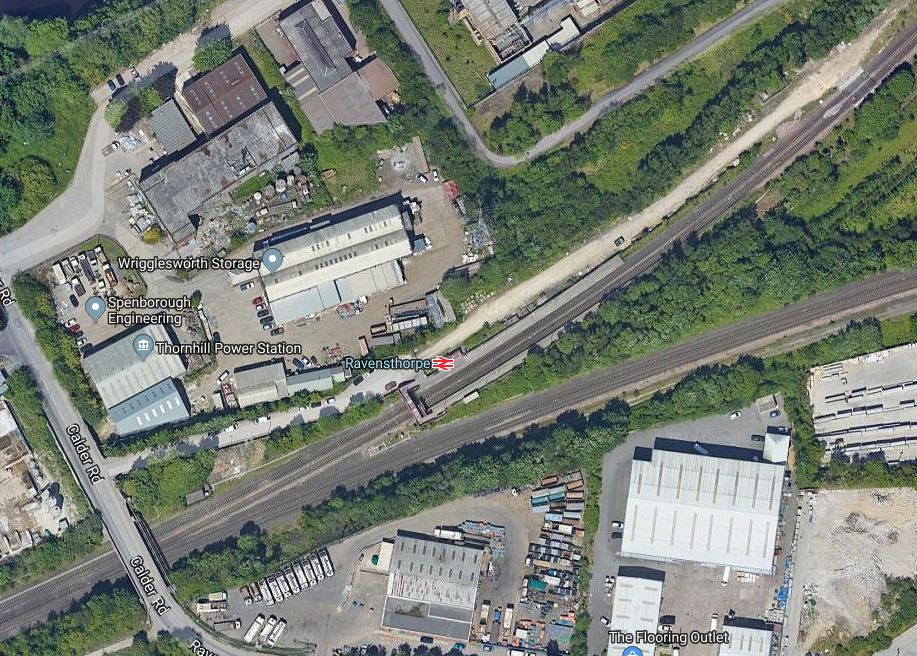

This Google Map shows the station and the surrounding land.

Note.

  1. The lines through the station go between Huddersfield in the East and Dewsbury in the North-East.
  2. The line going East goes to Wakefield.

These pictures show the station.

I did try to get a picture of the bridges over the River Calder, but I was unable to find the route and the weather was about to deteriorate.

The station is currently just two platforms on the lines between Huddersfield and Dewsbury, with a terrible overbridge, a poor shelter and a couple of seats.

The Wikipedia entry for Ravensthorpe station says this.

Ravensthorpe station is adjacent to Thornhill LNW (London North Western) Junction, where a line branches to Wakefield Kirkgate. There are plans to extend the station by building new platforms on this line, which was built by the former Manchester and Leeds Railway.

This document on the Digital Railway web site is entitled Transpennine Route Upgrade SDO1 ETCS – Analysis.

It is mainly about using digital signalling called ETCS on the Transpennine Route, but it does give these track layouts between Huddersfield and Dewsbury.

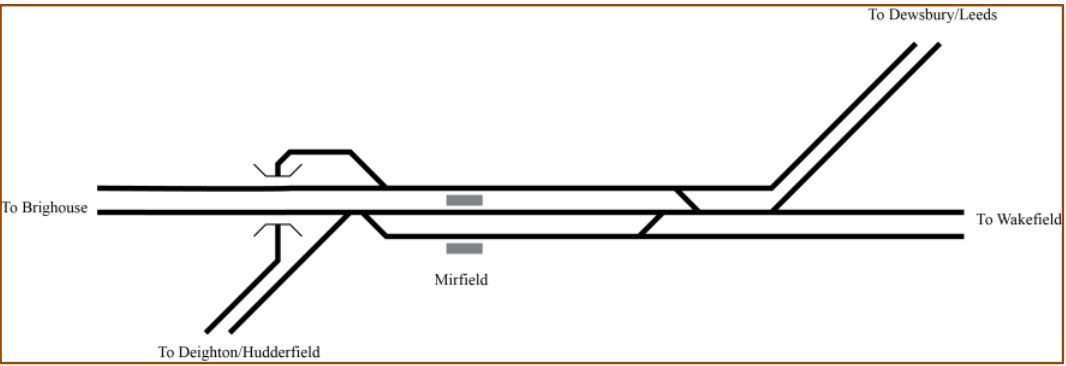

This is the current layout.

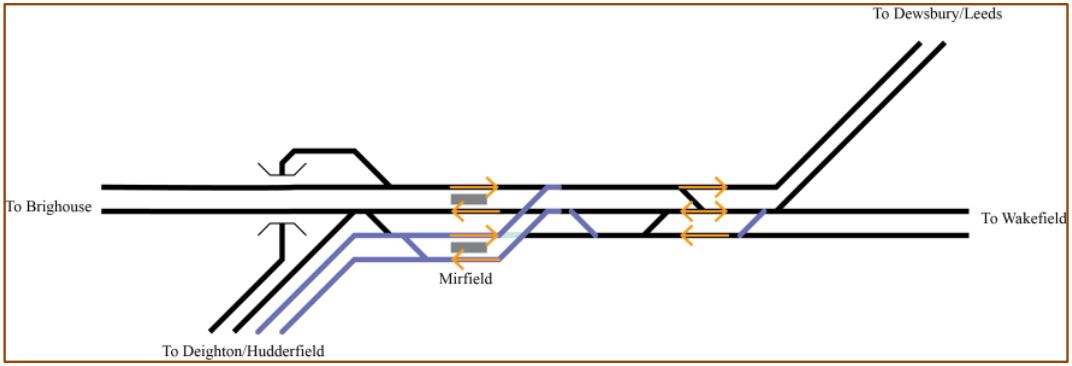

This is a reduced four-track layout.

In Proposed Track Layouts Between Huddersfield And Dewsbury, I came to the conclusion, that the reduced four-track layout or something better could handle the current trains through the area.

If the reduced four-track layout is used, the requirements for a new Ravensthorpe station can now be stated.

  • Two platforms on the tracks to and from Dewsbury.
  • Two platforms on the tracks to and from Wakefield.
  • Some better shelters than at present.
  • Step-free footbridges.

In Winner Announced In The Network Rail Footbridge Design Ideas Competition, I wrote how the competition was won by this bridge.

So could a factory-built bridge like this be installed at Ravensthorpe station?

  • The platforms from Dewsbury and to Wakefield, could probably be arranged as a walk-across interchange.
  • This would mean that the flexible nature of the bridge design would enable a single bridge with three lifts and three sets of stairs to be erected to join all the platforms together.
  • The bridge would have the correct clearance for the electrification.

I doubt it would be the most complicated of stations.
