Should High Speed Two Have A Station At Calvert?

The leak of the Oakervee Report into High Speed Two published in today’s Times, says that extra stations might be added to High Speed Two and in particular one could be built at Calvert in Buckinghamshire, where it would also be an interchange  with the East-West Rail Link between Oxford and Cambridge.

Calvert And The Current Railways

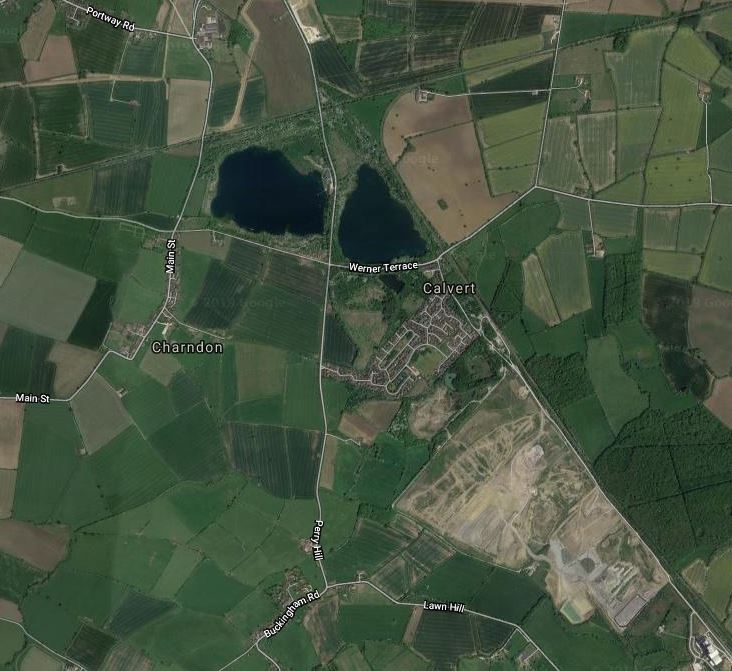

This Google Map shows the area around the village of Calvert.

Note.

  1. The two lakes in old clay pits to the North of the village; one for sailing and one for fishing.
  2. A massive landfill to the South.
  3. The route of the East-West Rail Lnk runs East-West to the North of the two lakes.

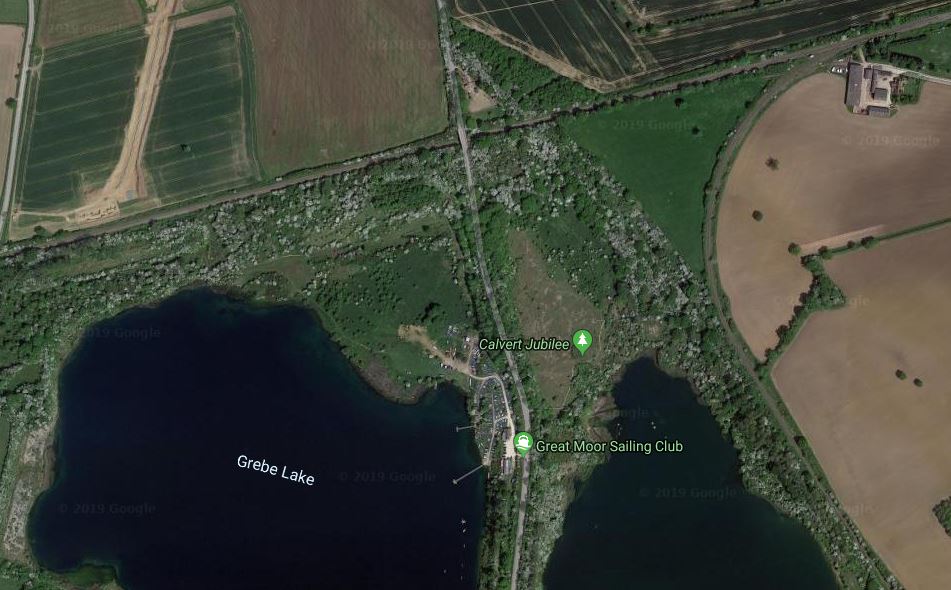

The enlarged Google Map shows the two lakes and the East-West Rail Link.

There is a distinct cross where the North-South Great Central Main Line crosses the former the East-West Varsity Line.

The Great Central Main Line from Aylesbury Vale Parkway station in the South, has a chord to the East and joins the disused track, that used to form part of the Varsity Line. This chord and line will be developed in the next few yeas to allow Chiltern Railways to open a service to Milton Keynes Central station.

Calvert And High Speed Two

This paragraph from the Wikipedia entry for Calvert, describes the possibilities in the area for High Speed Two.

The planned route of High Speed 2 (HS2) will run along the Great Central Railway north-south corridor in this area, past Calvert and the phase one Infrastructure Maintenance Depot will be located near Calvert. No passenger interchange between East West Rail and HS2 is proposed, since stopping high speed trains ‘too often’ reduces their high speed benefits, although in February 2017, the local MP called for the station to be built at the junction between East West Rail and the HS2 line, serving both lines.

Note how the track of the Grand Central Railway can be picked out on the second map.

It looks like the Oakervee Report is recommending that at least passive provision is made for a station in the area, that would connect to the East-West Rail Link.

Calvert And The Oxford To Cambridge Expressway

This paragraph from the Wikipedia entry for Calvert, describes the trunk roads in the area.

Calvert sits in the strip of land which the Government announced in 2018 as its ‘preferred route’ for the new Oxford-Cambridge Expressway road, which would link the A34, M40, and M1 trunk roads. It has been noted that the convergence of HS2, East-West Rail, and the Oxford-Cambridge Expressway at this location would offer opportunities for future provision of a key regional facility, such as an airport, or a New Town.

I doubt there will be a new airport, but other forms of development would be better than landfill.

Oakervee’s Recommendation For Calvert

It looks like the Oakervee Report is recommending that at least passive provision is made for a station in the area, that would connect to the East-West Rail Link.

Thoughts On A Possible Calvert Station

These are my thoughts on a possible Calvert station, that would be built to connect the East-West Rail Link and High Speed Two.

Changing Between The East-West Rail Link And High Speed Two At Calvert Station

This would be very easy to arrange in a well-designed station and would give a lot of stations a direct connection to High Speed Two.

  • Oxford, Swindon, Bristol, Newport, Cardiff and Swansea
  • Oxford, Swindon, Bristol, Exeter, Plymouth and Penzance
  • Reading, Basingstoke, Southampton and Bournemouth
  • Cambridge, Ipswich and Norwich
  • Milton Keynes and Northampton

Bi-mode trains would run direct to Calvert station, where passengers would change to and from High Speed Two.

Could Trains Run Direct Between The East-West Rail Link And High Speed Two At Calvert?

In the leak of the Oakervee Report, The Times also says that it could be advantageous if existing trains could use the HS2 track.

Suppose Transport for Wales wants to improve services between South Wales and the Northern destinations of High Speed Two.

As I read the leak, they could obtain their own Classic-compatible High Speed Two trains and perhaps run services to Birmingham, Manchester,  Leeds and other destinations.

The only extra infrastructure needed would be as follows.

  • Appropriate flyovers at Calvert.
  • Electrification between Calvert and Didcot.
  • Electrification between Cardiff and Swansea.

The electrification would be needed, as I suspect trains running on High Speed Two would be unlikely to be bi-modes.

In fact, if the connection is built as Phase 1 of High Speed Two, Swansea and Birmingham via Cardiff, Bristol, Swindon and Oxford, could be one of the initial High Speed services on High Speed Two.

I estimate that a Swansea and Birmingham service would take about two and a half hours.

When the East-West Rail Link is completed between Calvert and Cambridge, services will also be able to turn East to Cambridge, Ipswich and Norwich.

How the services are arranged will depend on where passengers want to go and in what numbers.

Will There Be Commuters From Calvert Station?

Consider.

  • Calvert station will not be surrounded by large amounts of housing, with the exception of Milton Keynes perhaps fifteen minutes away.
  • Services on the East-West Rail Link will probably call at Calvert station.
  • The route of the proposed Oxford to Cambridge Expressway could serve Calvert station.
  • I estimate that Euston and Calvert will have a journey time around twenty-five to thirty minutes.

Calvert might develop into a commuter station and not just to London and Birmingham.

A Calvert And Market Harborough Service Via Milton Keynes And Northampton

In Shapps Supports Beeching Axe Reversals, I talked about a proposal to reopen the Market Harborough-Northampton Line that was only finally closed in 1981.

I also included this map, which shows the link between Milton Keynes and link to Market Harborough.

So could we see a service linking High Speed Two at Calvert to the fast-expanding Milton Keynes Northampton and Market Harborough?

I feel that if there was a four trains per hour (tph) service between Calvert and Milton Keynes, this could mean a possible simplification of the services on the completed East-West Rail Line.

\services to Milton Keynes could be.

  • Two tph – Calvert and Market Harborough via Winsford, Bletchley, Milton Keynes, Wolverton and Northampton.
  • Two tph – Marylebone and Milton Keynes via Winsford and Bletchley.

East-West Rail Link services wouldn’t call at Milton Keynes Central, as this would mean a reverse.

Calvert Station Will Be A High Speed Station For The Local Area

If road access is good, the station will get used as a Park-and-Ride station for accessing High Speed Two for passengers living in the local area.

Useful Routes Via Calvert

Off the top of my head, these are a selection of routes, that could be run via Calvert station; either direct or with a change.

  • East Anglia (Cambridge, Colchester, Ipswich and Norwich) and The Midlands, Northern England and Scotland
  • South Wales (Cardiff, Newport and Swansea) and The Midlands, Northern England and Scotland
  • West and South West England (Bristol, Exeter, Penzance and Plymouth) and The Midlands, Northern England and Scotland
  • Southern England (Bournemouth, Portsmouth and Southampton) and The Midlands, Northern England and Scotland
  • Thames Valley (Oxford, Reading and Heathrow) and The Midlands, Northern England and Scotland

Journeys between areas like South Wales and East Anglia could be done with a change at Calvert.

Times To And From Calvert

These are my estimates of times to and from Calvert station.

  • Aylesbury Vale Parkway – 12 minutes
  • Baswingstoke – 68 minutes
  • Bedford – 49 minutes
  • Bicester Village – 14 minutes
  • Birmingham via HS2 – 19 minutes
  • Bletchley – 21 minutes
  • Bournemouth – 150 minutes
  • Bristol Temple Meads – 125 minutes
  • Bristol Parkway – 110 minutes
  • Cambridge – 91 minutes
  • Cardiff – 147 minutes
  • East Midlands via HS2 – 21 minutes
  • Euston via HS2  – 25-30 minutes
  • Exeter – 186 minutes
  • Glasgow via HS2 – 318 minutes
  • Leeds via HS2 – 60 minutes
  • Leicester – 74 minutes
  • Liverpool via HS2 – 66 minutes
  • Manchester via HS2 – 70 minutes
  • Manchester Airport via HS2 – 61 minutes
  • Market Harborough – 62 minutes
  • Marylebone via Chiltern – 77 minutes
  • Milton Keynes – 26 minutes
  • Newport – 133 minutes
  • Northampton – 42 minutes
  • Oxford – 29 minutes
  • Penzance – 360 minutes
  • Portsmouth – 146 minutes
  • Preston via HS2 – 54 minutes
  • Plymouth – 240 minutes
  • Reading – 52 minutes
  • Swansea – 203 minutes
  • Swindon – 85 minutes
  • Southampton – 103 minutes
  • Winchester – 83 minutes

I will improve and add to these figures.

As an example, I’ll take journeys from Leicester to the North West of England.

Currently, Manchester Piccadilly takes 140 minutes with one change, whereas my estimates say the HS2 route will be four minutes longer, with a change at Calvert.

Currently, Manchester Airport takes 165 minutes with two changes, whereas my estimates say the HS2 route will be thirty minutes shorter , with only a single change at Calvert.

Currently, Liverpool takes 170 minutes with one change at Birmingham New Street, whereas my estimates say the HS2 route will be thirty minutes shorter, with a change at Calvert.

Currently, the faster time to Preston is about 150-160 minutes with one change, whereas my estimates say the HS2 route will be about 130 minutes with a change at Calvert.

My estimates were only crude, but ithey do indicate.

  • Changing at Calvert often means the journey only needs a single change.
  • Some journeys are up to thirty minutes faster.

Other HS2 interchange stations, like Birmingham Interchange, Crewe, East Midlands Hub and Preston will probably function in a similar manner.

Conclusion

Trying to predict what would happen if a station were to be built at Calvert is not easy.

But on balance, I very much feel that it would improve the connectivity of High Speed Two.

A Calvert station would also improve the East-West Rail Link, with faster trains and better connectivity.

High Speed Two should be for all and not just services to and from London!
