An Architecture Firm Wants To Turn The London Underground’s Entire Circle Line Into A Three-Lane Travelator

The title of this post is the headline on an article in the Independent.

It is rather an old chestnut and I think it’s been suggested before and even tried out in at Montparnasse station in Paris in 2002.

One of the railway web sites pointed out that the Circle Line in London is also used by District, Hammersmith and City and Metropolitan Line trains, so it would be rather difficult to design.

But I do think we could do with a few more travelators, escalators and lifts in London.

And in some stations Crossrail and other projects will bring these sorts of improvements sooner rather than later.

The Massive Liverpool Street/Moorgate station for Crossrail

Crossrail will combine the two Underground stations of Liverpool Street and Moorgate.

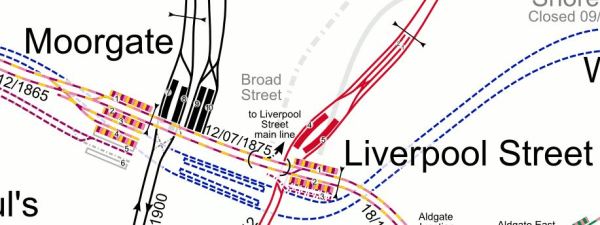

The map from carto.metro.free.fr shows the lines at the two stations.

Note how Crossrail, which is shown in a purpley blue, lies between the two stations, with the Northern Line at the West and the Central Line at the East.

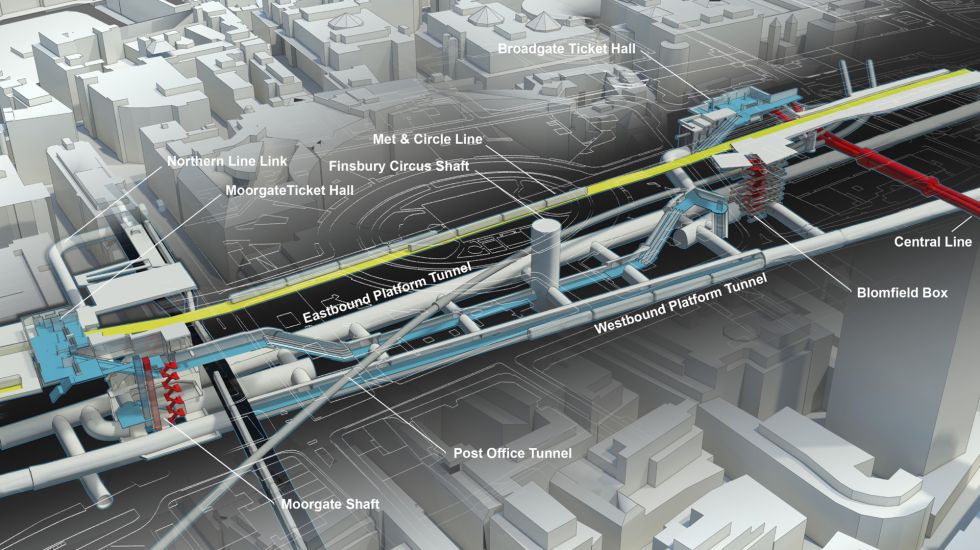

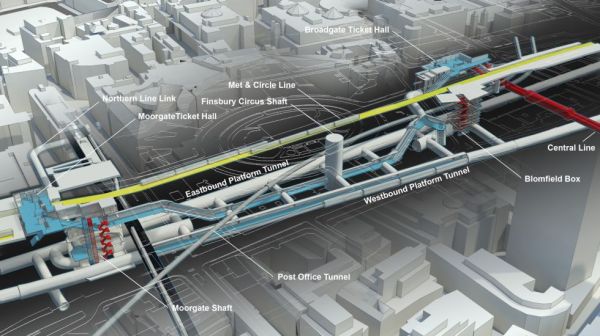

This image shows a visualisation of the station.

Note how escalators lead down at both ends and you can effectively walk between the two stations with assistance from escalators at both ends..

Passengers arriving on Crossrail will be able to get out of the Eastern end of the platforms and access the following lines.

  • Central Line
  • Circle Line
  • Hammersmith and City Line
  • Liverpool Street National Rail services.
  • Metropolitan Line

At the Western end of the platforms, there is access to the following lines.

  • Circle Line
  • Hammersmith and City Line
  • Metropolitan Line
  • Moorgate National Rail services.
  • Northern Line

Both entrances will be very much within walking distance to a lot of the Northern parts of the City of London.

And all routes inside the complex will be step-free with lots of escalators and lifts.

Regularly, I travel on trains into and out of Liverpool Street station and I often get to and from the station  by walking between the two stations, as I get a bus to and from Moorgate,

When it is raining heavily as it used to in the past, I will be able to use the Crossrail platforms and two long escalators.

When Crossrail is open through this massive station, thousands or even millions  of passengers will change their journeys because of the numerous new routes that will be available.

Paddington

Paddington station will be very much improved interchange.

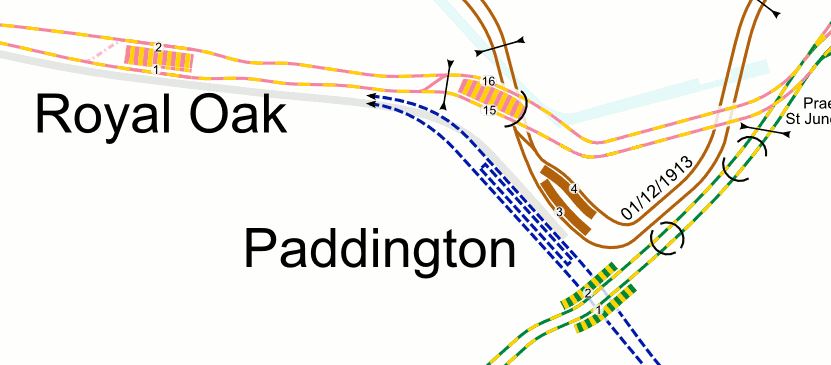

The map from carto.metro.free.fr shows the lines at the station.

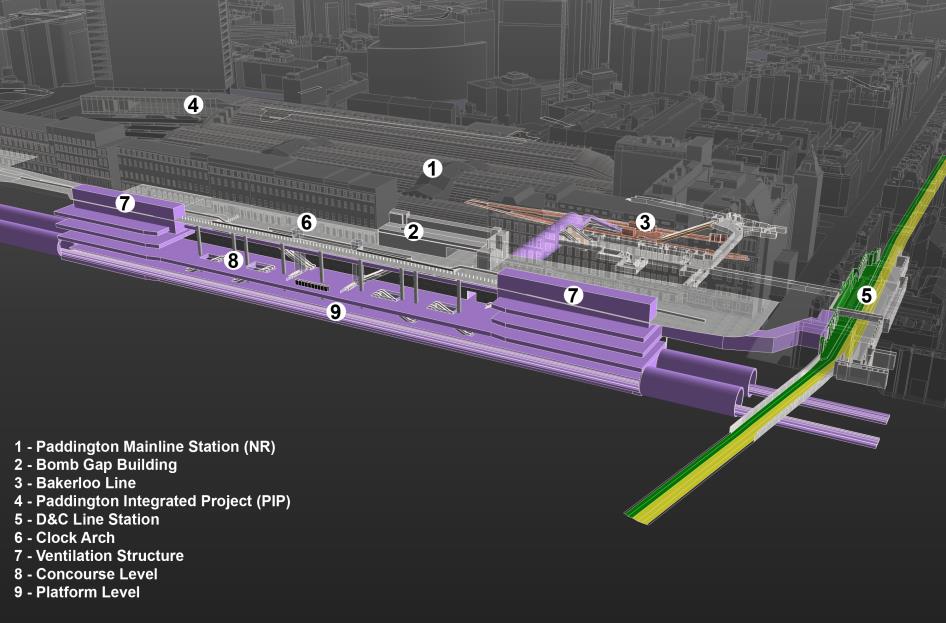

This image shows a visualisation of the station.

In the building of the Crossrail station, a tunnel with full step-free access is being dug under the concourse of the main line station to connect the Bakerloo Line to the Crossrail station. This article in Rail Technology Magazine which is entitled Contract awarded for £40m Bakerloo Line link, gives a lot more details on the tunnel and its building.

I do think that, the techniques used in the building of this tunnel will find applications in other places.

Tottenham Court Road

Tottenham Court Road station will become a double-ended station.

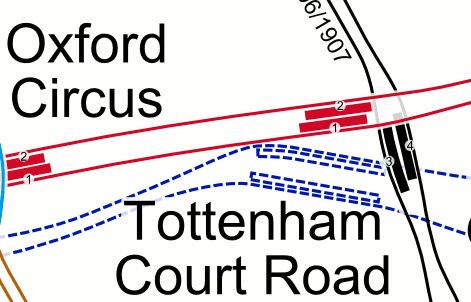

The map from carto.metro.free.fr shows the lines at the station.

This image shows a visualisation of the station.

Note Centre Point at the Eastern end of the complex.

The Eastern end of the platforms will have access to the Central and Northern Lines and numerous entrances in front of Centre Point. Much of this work is now substantially complete.

The Western end of the platforms will have access to  a new entrance on Oxford Street, just North of Soho Square.

As Oxford Street and Tottenham Court Road will have a lot more pedestrian access, travelling to the area will be transformed.

Bond Street

Bond Street station will become an enormous double-ended station.

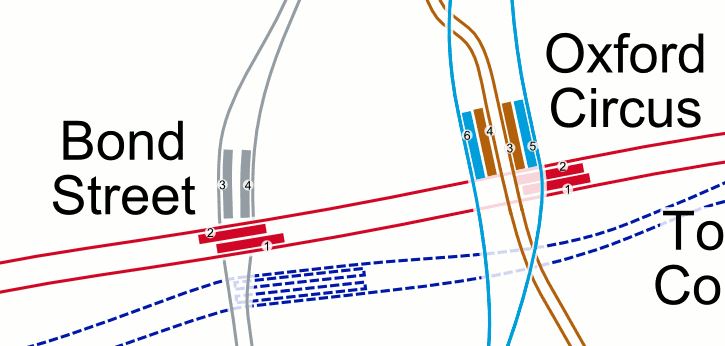

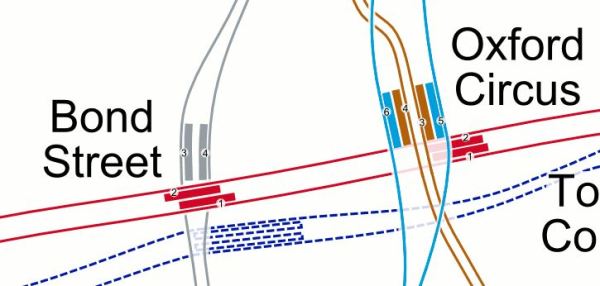

The map from carto.metro.free.fr shows the lines at the station and the nearby Oxford Circus station.

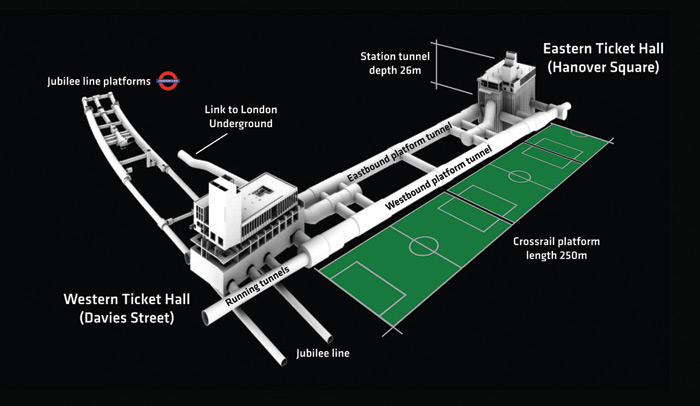

This image shows a visualisation of the station.

Note the football pitches, which give an idea of size.

Bond Street station will have an interchange at the Western end with the Central and Jubilee Lines, but it will mainly be a station with entrances all over the place.

I have a feeling that Bond Street will the station of choice for most shoppers going to and from the area in the future.

If you’re using Crossrail, just make sure that you get in the right end of the two hundred metre long trains.

Oxford Circus

No work is planned here at present, although I think the station will suffer collateral benefits from the following projects.

  • The new Eastern entrance to Bond Street station, which will be ideal for John Lewis.
  • The pedestrianisation in the area.
  • Works to improve the Bakerloo Line, prior to its extension to Lewisham.

Oxford Street station needs more passenger capacity and is scheduled to be rebuilt in the next ten years or so.

I wouldn’t be surprised to see that if a block anywhere close to Oxford Circus gets redeveloped, Transport for London will be investigating how to get much-needed lifts to the Bakerloo and Victoria Lines.

I have a feeling that we could see something special at Oxford Circus station.

I wouldn’t discount a travelator connection between Oxford Circus station and the Eastern entrance to Bond Street station.

Bank

After Crossrail, the biggest station project in London is Bank station.

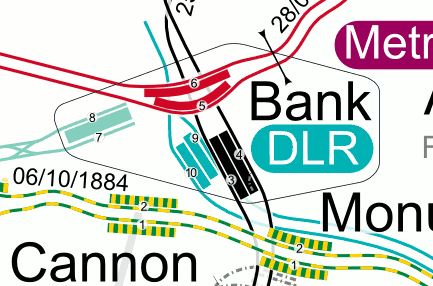

The map from carto.metro.free.fr shows the lines at the station.

This visualisation, shows what the new Bank station will look like.

Bank Tube Station Layout

The development is comprehensive.

  • Two new entrances at Walbrook and Cannon Street.
  • Full step-free access with lots of new lifts and escalators.
  • Two travelators running North-South through the station.
  • A new tunnel for the the Northern Line, with wider platforms.
  • Escalator connection between Central and Northern Lines.
  • Better connection to the Waterloo and City Line and the Docklands Light Railway.

Completion dates look like 2017 for the Walbrook entrance and 2021 for the completed Bank station.

In some ways Bank station can be considered a Crossrail station, that isn’t on Crossrail.

But it is on the route of one of Crossrail’s little helpers; the Central Line.

Travellers will do one of the following.

  • From the Eastern branch of Crossrail,, they will walk across the platform at Stratford station and get the Central Line for a few stops to Bank.
  • From the Western branch of Crossrail, they will change at Tottenham Court Road station and get the Central Line for a few stops to Bank.
  • From any of the three Crossrail branches, they could use the Central or Northern Lines from Liverpool Street/Moorgate for one stop.

I would walk!

I think that this development will have one of the largest effects of any non-Crossrail  transport-related project in London.

I also think that the expansion of Bank station sets a very good precedent.

Both the new Walbrook and Cannon Street entrances are being incorporated into new commercial developments in the area. I know land in the City of London is probably some of the most expensive in the World, but how many improved stations could incorporate housing, retail or commercial development, or perhaps even a hospital.

Victoria

Victoria station is undergoing a major upgrade.

The map from carto.metro.free.fr shows the lines at the station.

Progress has been made with a new entrance on Victoria Street and better connections between the three Underground Lines.

In some ways the biggest triumph at Victoria has been the ability to keep the station working fully, whilst the work is continuing.

A Philosophy For Better Underground Stations

 Common threads goes through all of the Underground stations I’ve detailed.
  • A large number of passengers.
  • More than one line.
  • Development above the station.
  • Innovative tunnelling.
  • Keeping the stations open if possible.

It would also appear that generally the construction companies do a good job and must be accumulating a large amount of knowledge and experience.

So where will they be using their skills next?

A Few Suggestions follow.

One Line Step-Free Stations

This group aren’t Underground stations, in the true sense of the word, but are a collection of Overground, Crossrail and National Rail stations in London that are being updated to full step-free access.

Included are.

Note that Crossrail will mean that twenty-four suburban stations will receive full step-free access.

Network Rail publishes this page on their web site, which is entitled Access For All – A-Z of station improvements.

It gives at least a clue to Network ail’s plans for particular stations.
