Changing Between The Circle/District Lines And Victoria Line At Victoria Tube Station

This is not a change, I do regularly, as I have direct access to the Circle/District Lines at Whitechapel station, but it must be a change that some passengers need to do.

For example.

  • Sloane Square to Kings Cross St. Pancras
  • Temple to Kings Cross St. Pancras
  • Monument to Pimlico

In these journeys a good interchange at Victoria could speed up the journey.

One thing that helps is the upwards of thirty trains per hour on the Victoria Line, where you only have to wait under three minutes for a train on that line.

I did this the District/Victoria change this morning and took these pictures.

The new passages and escalators certainly speed up the change.

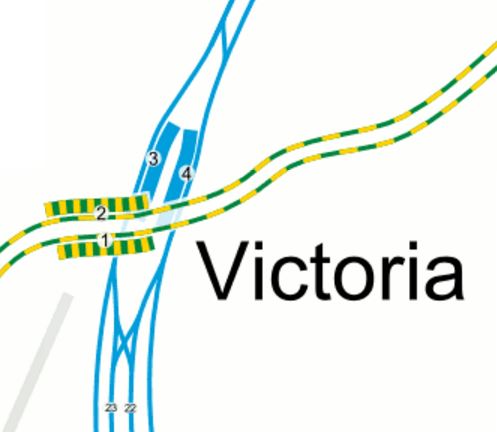

The position of the passages may be more obvious from this map from carto.metro.free.fr.

victorialines

Note that the escalators to the Cardinal Place entrance are the more Northerly of the three sets and I think it is reasonable, that they start between platforms 3 and 4 and rise to the surface in line with the platforms.

The divided passage connecting the two lines would appear to be underneath the Circle/District platforms and lines and after aligning Northwards it links up with the middle set of escalators between the two platforms of the Victoria Line.

In some ways it looks like the space underneath the Circle/District Lines has been dug in a similar manner to the traditional mining method of room and pillar. There certainly seems to be tunnels going everywhere, but I suspect the methods used were more sophisticated than the traditional mining ones. I suspect that there may even have been a fair bit of hand digging.

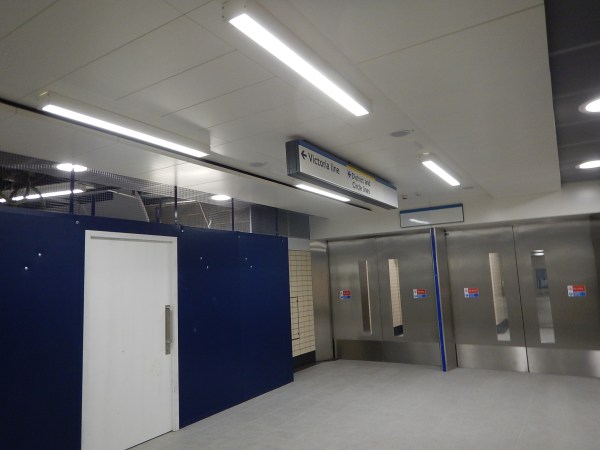

At the top of the escalators connecting the Cardinal Place entrance to the Victoria Line, there would appear to be another blocked off passageway leading off to the west.

Where Does This Passage Go?

Could behind the blue be future-proofing for another exit on the West side of Bressenden Place close to the Victoria Palace theatre?

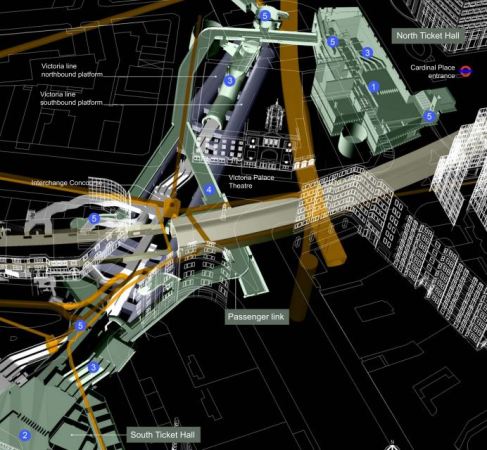

I have found this visualisation on the Internet in this PDF document on the TfL web site.

The Passenger Link Between North And South Ticket Halls At Victoria Tube Station

The Passenger Link Between North And South Ticket Halls At Victoria Tube Station

So it would appear to be a passenger link, allowing passengers to enter the station at the Cardinal Place entrance walk underground to the South Ticket Hall and from there into the main line station.

Passengers entering the station at the Cardinal Place entrance, in the top right of the visualisation,would take the following route.

  • Go down the escalators after the ticket gates.
  • Take the cross passage, that also leads to the second set of escalators for the Victoria Line.
  • Go straight on into the connecting passage.
  • The passage turns left and goes over the Victoria Line platforms and under the Circle/District Line platforms.
  • After crossing the platforms, the passage turns right to run parallel with the Victoria Line platforms.
  • A set of new escalators, then brings passengers to and from the South Ticket Hall.

It’s a bit round the houses, but I suspect it was the best that can be done in the grand scheme of things.

  • The Terminal Place entrance, has its own routes to all four Underground platforms.
  • The Cardinal Place entrance, has direct access to the Victoria Line platforms and indirect access to the Circle/District Line platforms.
  • There is a short route between the Circle/District and Victoria Lines.
  • There is a walking route in the dry between the Cardinal Place entrance and the main line station.

I wonder when the scheme opens will there be other features to improve routes and accessibility.
