TransPennine Electrification And Piccadilly Upgrade Now Also In Doubt

The title of this post is the same as this article in Rail Technology Magazine.

A Digression About The Next Generation Of Trains

After digging through the various pages on Hitachi’s web site, I wrote Do Class 800/801/802 Trains Use Batteries For Regenerative Braking?.

My conclusion was this.

I will be very surprised if Class 800/801/802 trains don’t have batteries.

Will the Class 385 trains for ScotRail have similar traction system?

But having thought about it more, I’m now convinced that by 2030, the average long distance train will have the following characteristics.

  • Ability to work from 25 KVAC overhead wires.
  • Ability if required to work from 750 VDC third rail.
  • Ability to raise and lower pantograph and switch beween modes at line speed.
  • Batteries to handle regenerative braking.
  • A generator unit to power the train.
  • A sophisticated control system to choose the appropriate power source and drive the train according to terrain, passenger load, weather and traffic.

The more I read about Hitachi’s Class 800, Class 801 and Class 802 trains, the more I’m convinced that the features I have listed, is their ultimate goal. I suspect too, that the suburban Class 385 train has the capability of meeting the same objectives.

I would be very surprised if Alstom, Bombardier, CAF, Siemens, Stadler and others are not thinking along the same lines, as this document from Hitachi entitled Development of Class 800/801 High-speed Rolling Stock for UK Intercity Express Programme has been freely available since 2014.

It contains this diagram of the traction system of a Class 800 train.

Note the generator unit and the battery charger.

I’ve ridden the new Class 345 trains for Crossrail, a few times and after a trip yesterday in the gold-standard train;a 1970s  British Rail Mark 3 coach, I can honestly say that the ride, noise and vibration in ombardier’s new train, is the best I’ve ridden.

So are Bombardier using a new traction system to achieve this smoothness? I suspect they are.

I also can’t find anything to say how a train will be removed from the tunnel under London, in the event of a complete power failure. No sane engineer would allow a rescue involving diesel or hydrogen in an emergency. However, batteries on the train with the capability of getting passengers to a safe disembarking point would be an obvious solution..

TransPennine Electrification

The major rail route across the Pennines between Leeds and Manchester is the Huddersfield Line.

The following stations are open on the route.

The stations marked with asterisks (*) have electrification or will do soon.

Note the following about the route.

  • Stalybridge to Leeds is under forty miles by road, so it could be even shorter by rail.
  • Huddersfield station is one of a select group of Grade I Listed railway stations..
  • Greater Manchester is developing a suburban electric network.
  • Greenfield is the last station in Greater Manchester towards Leeds.
  • Leeds is developing a suburban electric network.
  • Cottingley is the last station in Leeds towards Manchester.
  • Currently, trains from Manchester Piccadilly to Leeds can take a diferent route to Stalybridge, that is electrified as far as Guide Bridge station.
  • I counted four tunnels, including Standedge tunnel, and over twenty bridges between Stalybridge and Huddersfield.
  • Electrification of this section, would probably mean closure for at least a year.
  • Between Huddersfield and Leeds the electrification would be a lot easier with about fifteen bridges and  Morley tunnel.

My philosophy for this route would be as follows.

  1. Electrification would not go anywhere near Huddersfield, as the heritage lobby and their lawyers would have a field day.
  2. Standedge and Morley tunnels are over 2,000 metres long, double track and Standedge is level. If they needed refurbishment in the future, perhaps they could be electrified with an overhead rail, so that bi-modes could have a couple of miles of electricity.
  3. Electrification might be extended at the Manchester and Leeds ends of the line, so that the two cities could improve their local suburban electric networks.
  4. An alternative would be that the Leeds and Manchester suburban electric networks were provided with a few Class 769 trains or even some brand new four-car bi-modes.
  5. Services between Leeds and Manchester would be run by fast bi-modes.

TransPennine Express are already planning to run Class 802 trains between Liverpool and Newcastle via Manchester and Leeds. It looks to me, that whoever plans their train policy, saw this electrification crisis coming.

The money saved on the electrification would be spent on improving track and stations.

Currently the fastest journeys between Manchester and Leeds take just under fifty minutes.

What time could a Class 802 train achieve if the following were done.

  • Manchester to Stalybridge is fully electrified.
  • Some extra electrification was installed at Leeds.
  • The track is improved.

My money would be on thirty-five minutes.

Manchester Piccadilly Upgrade

I hate using the isolated island Platforms 13 and 14 at Manchester Piccadilly station.

They are just too crowded and the steps and escalators down to the platform aren’t well-designed.

The Frequency Of Trains Through Platforms 13/14

The two platforms can be considered equivalent to these busy two-platform stations.

All of these stations handle more trains than Plstforms 13./14 at Manchester Piccadilly.

Provided the signalling can handle it, it should be possible to schedule more trains through these two platforms.

One piece of information I viewed seemed to show that some services terminate in these two platforms. Surely, that is a way to reduce capacity.

Ordsall Chord And Class 769 Train Implications

The Ordsall Chord should change the pattern of trains, when it opens later this year.

The main implication will be that cross-city services can be developed.

The new Class 769 trains will help too, in that current diesel and electric services can be run using one type of train across the city.

A simple example would be Buxton to Blackburn.

These services release platform space in Manchester Piccadilly and other stations, which can be used for new services.

Access To Platforms 13/14

I’ve felt for some time, that if the access to the platform was better designed that a lot of the problems could be reduced.

I sometimes wonder, if when people see that their train is leaving from Platform 13 or 14, that they go there immediately and instead of waiting upstairs in the lounge, they descend to the platform.

When the Ordsall Chord is opened, because of the pattern of services passengers will sometimes change at one of the string of stations on the line.

Perhaps Oxford Road or Deansgate should be designated the preferred interchange station and fixed up with wider platforms, various kiosks and a waiting room to encourage passengers to change away from Piccadilly.

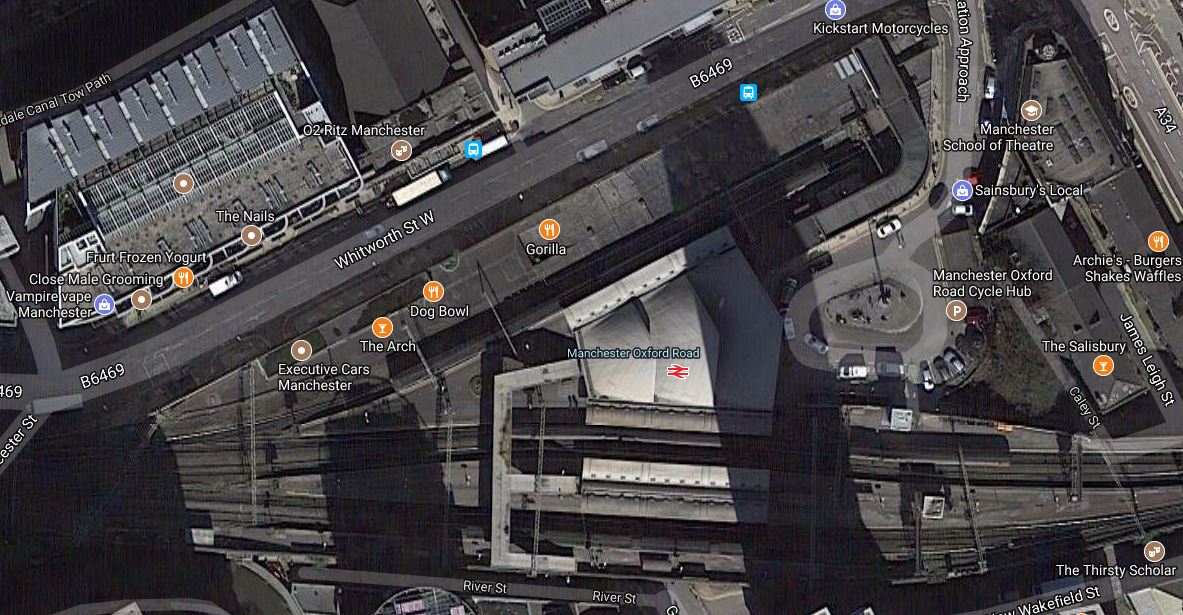

This Google Map shows Oxford Road station.

Oxford Road certainly seems to have space for passengers to use it as an exchange, when crossing the city.

But does Oxford Road have a stop on the Metrolink?

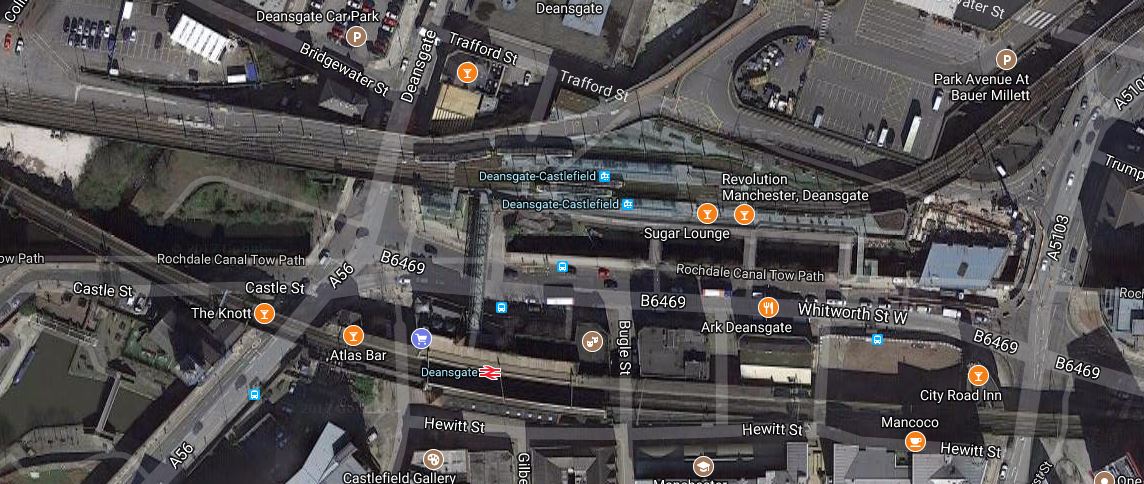

This Google Map shows Deansgate station.



Deansgate doesn’t seem to have the space of Oxford Road. But it does have a good connection to the Metrolink.

The Forgotten Salford Stations

The other stations that could help are the two forgotten Salford stations; Salford Crescent and Salford Central.

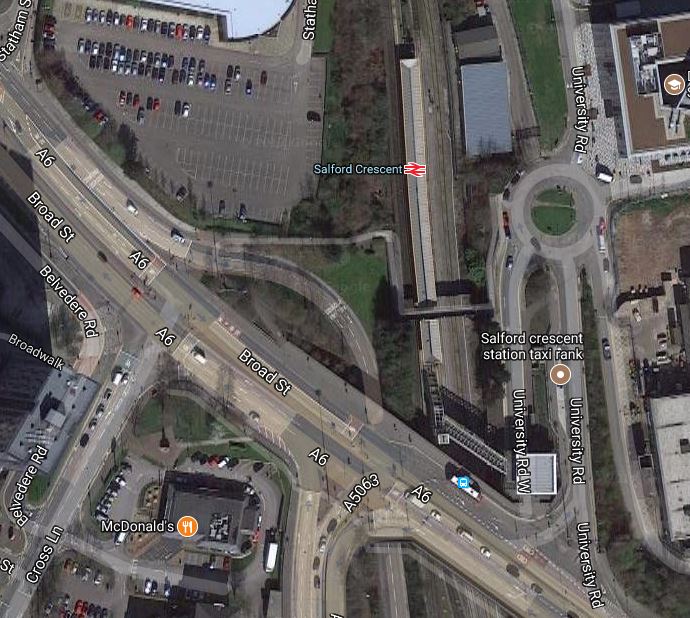

This Google Map shows Salford Crescent station.

I believe that this station is going to get more platforms. Could it become a sort of triage station, where passengers from the North of Greater Manchester changed for.

  • Trains for Manchester Victoria station.
  • Trains for Manchester Piccadilly station.
  • Metrolink to the city centre.

Surely, space could be found to run trams along Broad Street.

It would also look to be a station, where there is considerable scope to put housing or commercial developments above the station.

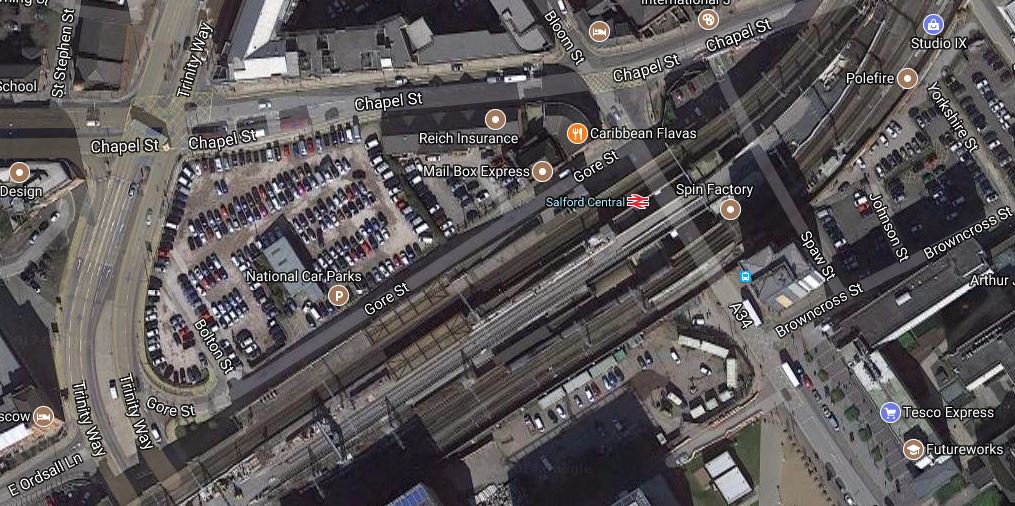

This Google Map shows Salford Central station.

With a bit of thinking Salford Central must have interchange possibilities.

But as with Salford Crescent, this station doesn’t have a Metrolink connection.

The Wikipedia entry for Salford Central has a section called Future Development. This is said.

A Network Rail report suggests building platforms on the line to Liverpool (via Newton-le-Willows), the lines of which run through the station but are not provided with platforms. This scheme has since been adopted by Transport for Greater Manchester and included in their Capital Works Programme for 2015–16 to 2020–21. This will see three additional platforms built, at a cost of £20.5 million and will allow Liverpool, Chester & Manchester Airport-bound trains (using the Ordsall Chord) to call here.

I’ll believe it when I see it.

Conclusion About Manchester Piccadilly Upgrade

I am inevitably drawn to the following conclusions about the upgrade to Manchester Piccadilly.

The Ordsall Chord and the new electric services offered by the bi-mode trains will create a duckers-and-divers network across Manchester City Centre.

The following should be done.

  • Access to Platforms 13/14 at Manchester Piccadilly should be greatly improved.
  • Deansgate, Oxford Road, Salford Central and Salford Crescent should be improved with extra platforms, same- and cross-platform interchange.
  • The Metrolink should be extended to both Salford stations.
  • Greater Manchester should adopt a ticketing system based on bank cards to encourage use of the transport network.

Perhaps Mancunians need to be taught to duck-and-dive.
