Platforms 10-14 At Paddington Station

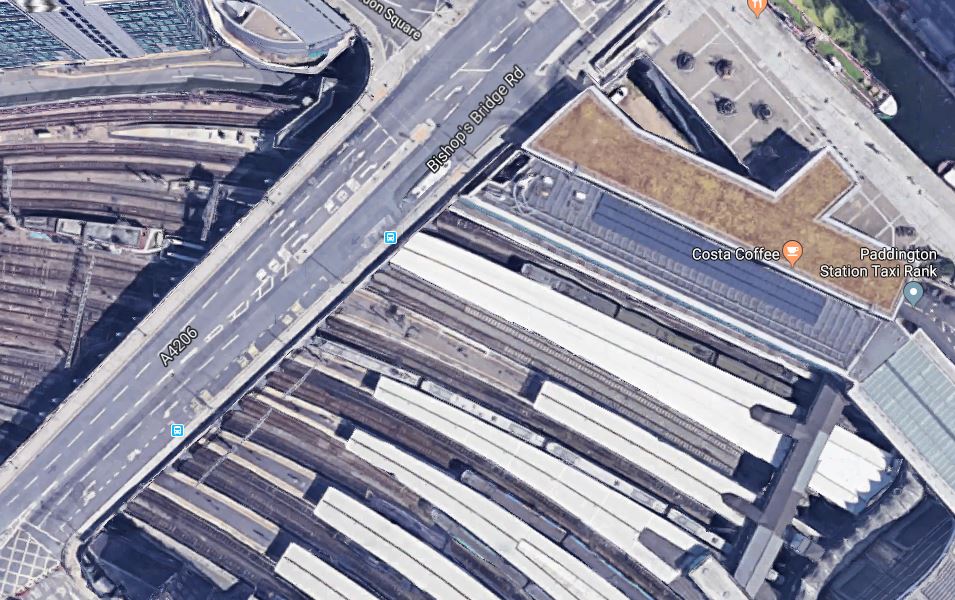

This Google Map shows the Western end of Paddington station.

Note.

  1. In the top right hand corner of the map you can see the canal boats parked alongside the station.
  2. The light brown flat roof, would appear to be the roof of the London Underground station, which has two platforms and is served by the Circle and Hammersmith & City Lines.
  3. The thin platform pointing out from under the road bridge at the is probably the extension of the two Underground platforms, which are numbered 15 and 16.
  4. The next platform end which is wider, is platforms 12 and 14.

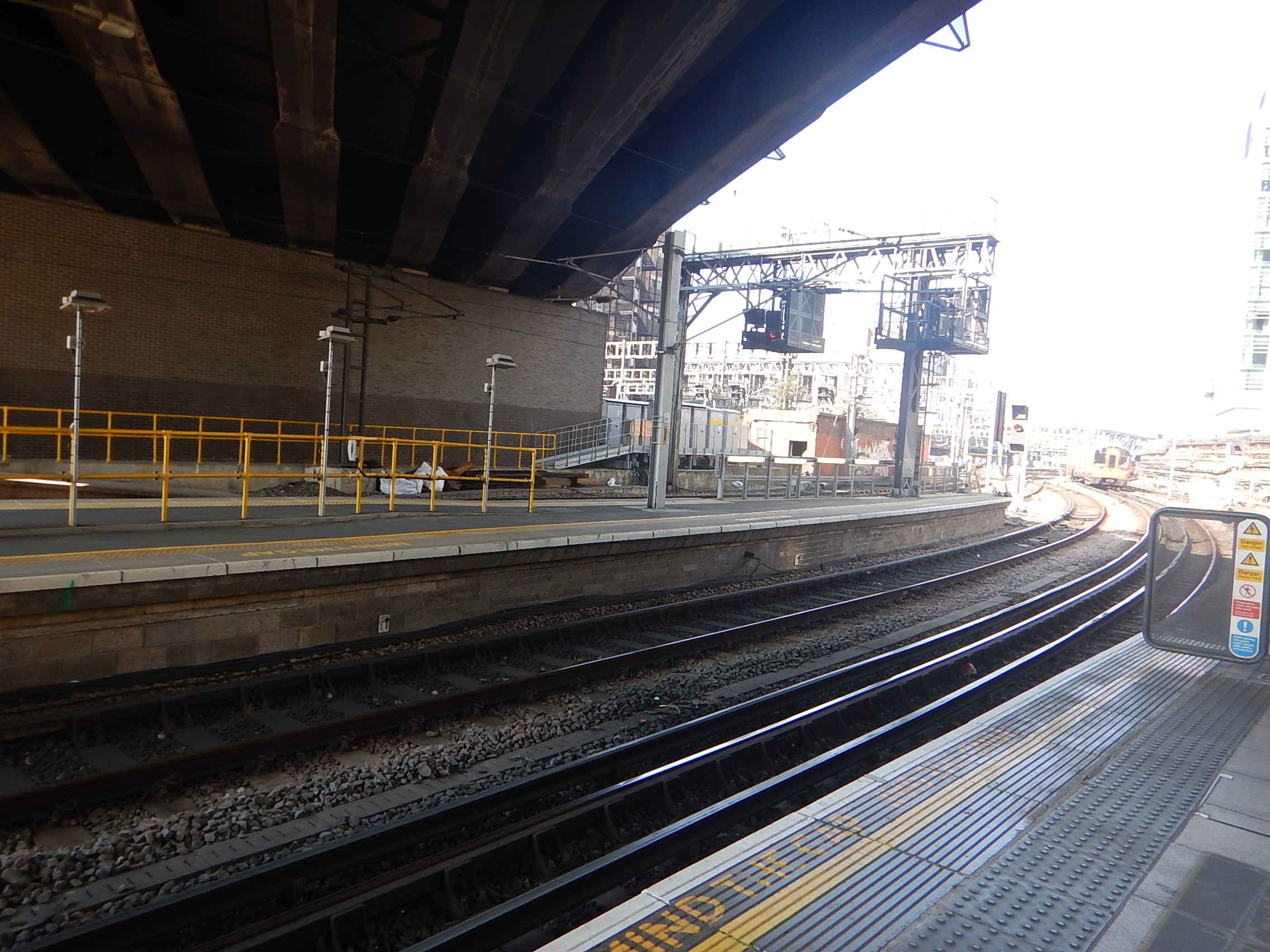

Now look at this picture taken by the end barrier on platform 15.

Note.

  1. The road bridge is over the top.
  2. Platform 14 is opposite, which is fitted with overhead electrification.
  3. The track for Platform 15, is the Westbound Underground line and has typical London Underground electrification.
  4. I think the signal gantry at the end of the platform can be seen on the Google Map.

The Google Map and my photo are two different views of the same area.

The Length of Platform 14

This article on Rail Engineer is entitled All Change At Paddington.

This is an extract, which is talking about Platform 14.

To extend the platform’s operational length to 164 metres, it had to be extended at both ends. On the London end, the buffer stop had already been moved by 11 metres, and that was all the room available. The country end had also been extended as much as possible.

164 metres is an interesting length.

The length of a four-car Class 387 train is just over eighty metres, so two working as a pair would fit Platform 14.

In Weight And Dimensions Of A Class 345 Train, I state that the length of a seven-car Class 345 train is 159.74 metres.

It looks like platform 14 can accept either of the electric trains that work the suburban services out of  Paddington.

The Length of Platform 12

Platform 12 is the other platform face of the island containing platform 14.

I took these pictures as I walked down the Underground platform.

I then left the Underground station and took these pictures on the island containing platforms 12 and 14.

Note that the train in Platform 12 is an eight-car Class 387 train, which is around 160 metres long.

The end of the train appeared to be about the same place as the end barriers on the Eastern end of the Underground platform.

As a S7 Stock train is 117.45 metres long, I estimate that the length of Platform 12 is almost 280 metres.

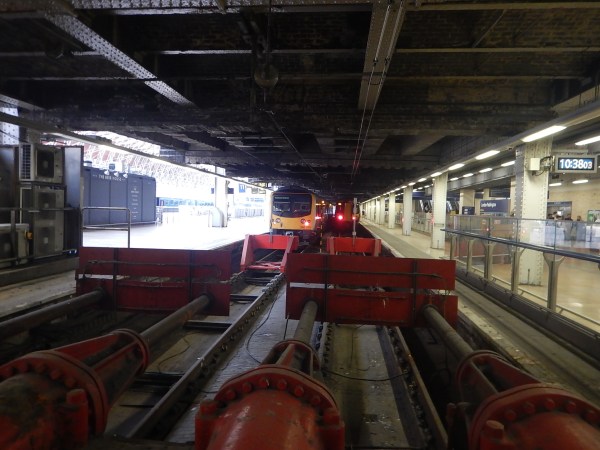

This picture was taken at the Eastern End of the platforms from behind the buffers.

As there is perhaps forty metres, between the buffer stop and the train, does that mean that Platform 12 and its neighbour; Plstform 11 are long enough to accommodate any of the following.

  • Up to four four-car Class 387 trains.
  • Two seven car Class 345 trains.
  • A Class 345 train at the maximum length of nine or ten cars.

Network Rail seem to have provided a lot of space for future services.

Conclusion

There is certainly enough space to run a Western Cossrail service to Reading. The space is available now, so it should be available in December 2019.

The only restriction would be that Platform 14 can only handle a seven-car Class 345 train.
