Platforms 10-14 At Paddington Station

This Google Map shows the Western end of Paddington station.

Note.

  1. In the top right hand corner of the map you can see the canal boats parked alongside the station.
  2. The light brown flat roof, would appear to be the roof of the London Underground station, which has two platforms and is served by the Circle and Hammersmith & City Lines.
  3. The thin platform pointing out from under the road bridge at the is probably the extension of the two Underground platforms, which are numbered 15 and 16.
  4. The next platform end which is wider, is platforms 12 and 14.

Now look at this picture taken by the end barrier on platform 15.

Note.

  1. The road bridge is over the top.
  2. Platform 14 is opposite, which is fitted with overhead electrification.
  3. The track for Platform 15, is the Westbound Underground line and has typical London Underground electrification.
  4. I think the signal gantry at the end of the platform can be seen on the Google Map.

The Google Map and my photo are two different views of the same area.

The Length of Platform 14

This article on Rail Engineer is entitled All Change At Paddington.

This is an extract, which is talking about Platform 14.

To extend the platform’s operational length to 164 metres, it had to be extended at both ends. On the London end, the buffer stop had already been moved by 11 metres, and that was all the room available. The country end had also been extended as much as possible.

164 metres is an interesting length.

The length of a four-car Class 387 train is just over eighty metres, so two working as a pair would fit Platform 14.

In Weight And Dimensions Of A Class 345 Train, I state that the length of a seven-car Class 345 train is 159.74 metres.

It looks like platform 14 can accept either of the electric trains that work the suburban services out of  Paddington.

The Length of Platform 12

Platform 12 is the other platform face of the island containing platform 14.

I took these pictures as I walked down the Underground platform.

I then left the Underground station and took these pictures on the island containing platforms 12 and 14.

Note that the train in Platform 12 is an eight-car Class 387 train, which is around 160 metres long.

The end of the train appeared to be about the same place as the end barriers on the Eastern end of the Underground platform.

As a S7 Stock train is 117.45 metres long, I estimate that the length of Platform 12 is almost 280 metres.

This picture was taken at the Eastern End of the platforms from behind the buffers.

As there is perhaps forty metres, between the buffer stop and the train, does that mean that Platform 12 and its neighbour; Plstform 11 are long enough to accommodate any of the following.

  • Up to four four-car Class 387 trains.
  • Two seven car Class 345 trains.
  • A Class 345 train at the maximum length of nine or ten cars.

Network Rail seem to have provided a lot of space for future services.

Conclusion

There is certainly enough space to run a Western Cossrail service to Reading. The space is available now, so it should be available in December 2019.

The only restriction would be that Platform 14 can only handle a seven-car Class 345 train.









April 21, 2019 Posted by | Transport | , , , , | Leave a comment

From Paddington To Victoria The Hard Way

On Friday, I tried to use the Bakerloo Line at Paddington station and it was in chaos because of related engineering work.

So today, instead of going between Paddington and Victoria by using the Bakerloo and Victoria Lines, I thought I’d use the Circle Line and go direct.

But it turned into a struggle.

  • A train arrived within a minute but didn’t say where it was going.
  • It turned out to be Olympia, so I changed at Earl’s Court for Victoria.
  • Close to my exit from the train at Victoria was a lift saying it was going to the Way Out.
  • But it didn’t and I had to climb back up to the platform where I started.
  • Another set of stairs took me to the sueface.

When I got to the surface, I saw an information office and asked if they could point me to a bus spider map, so I could find out if a bus would have been easier. They hadn’t a clue and probably only wanted to see me a tour.

But I found one in an obvious place.

And ascertained that a 36 bus would have been just the job.

The picture shows one going the other way, just outside the station.

It is a bit slower, but not if you have a heavy case or a child in a buggy.

April 21, 2019 Posted by | Transport | , , , | Leave a comment

Amusing Seats At Victoria

The seats at London Bridge station, that I wrote about in Matched Seats And Roof At London Bridge Station, have now been installed at Victoria station.

Would they have amused Queen Victoria?

This press release from Network Rail is entitled Network Rail Puts Passengers First With Installation Of New Modern Seating At London Stations, gives more details on the new seating.

  • Seating capacity at each station will be increased from 150 to 400.
  • The seats were made by Green Furniture Concepts from Malmo in Sweden.

Generally, passengers I’ve asked, seem pleased with the new seats.



April 21, 2019 Posted by | Transport | , , , , | Leave a comment

Access Issues At Crofton Park Station

I was alerted to the problems of access to trains at Crofton Park station, by a reader to this blog who commented here.

So as I was passing through, I decided to stop and take a few pictures.

The pictures are in order, as I walked around the station.

  • I walked to the Southern end of Platform 2.
  • I used the step-free access to exit the station.
  • I walked across the railway on the nearby road bridge on Ley Grove.
  • I entered the station using the step-free access at the Southern end of Platform 1

There wasn’t one step on the route.

These are my comments on various issues at the station.

The Simple Step-Free Access

The simple step-free access on the Southbound Platform 2 is shown in full.

Both platform access paths are similar and easy, although there is a slope up to Ley Grove and the bridge across the railway.

This Google Map shows the Platform 2 access.

The wide platform, the two contactless card readers and the seat by the entrance can clearly be seen.

It is a simple design that seems to be well-used by passengers. And not just those who need step-free access.

This type of entrance may work well in London, because contactless ticketing is commonplace. But would it work all stations, where ticket checking is non-existent or a ticket needs to be purchased before getting n the train?

Bad Signage

The locals will know about the entrances, but surely better signage is needed from the road across the bridge to these two entrances.

Steps To The Main Entrance

These are pretty typical of Victorian stations and are fairly long and steep.

I suspect passengers with access problems take care in planning their journeys

Platform To Train Access

The Southbound access is not too bad and is a typical step common all over London, but Northbound access is high with a chasm between the platform and the train.

The Google Map shows the reason.



Partly the reason is the curve of the railway line and the platforms, which rules out the standard solution of a Harrington Hump in the middle of platform, which is usually placed correctly by Thameslink to be by the wheelchair bays on the Class 700 train.

I think the map also shows that to straighten the line through the station would be a major undertaking and probably mean closing the station and the railway line for a couple of weeks.

But as a lady said to me, a friend of hers fell into the chasm.

Perhaps the only solution is to have a powered wheel-chair lift like a fork-lift truck, as the Germans do at some stations.

One on each platform and staff to man it would probably be more affordable than rebuilding the station.

There may also be an alternative solution for walk-through trains like the Class 700 train or London Overground’s Class 378 train.

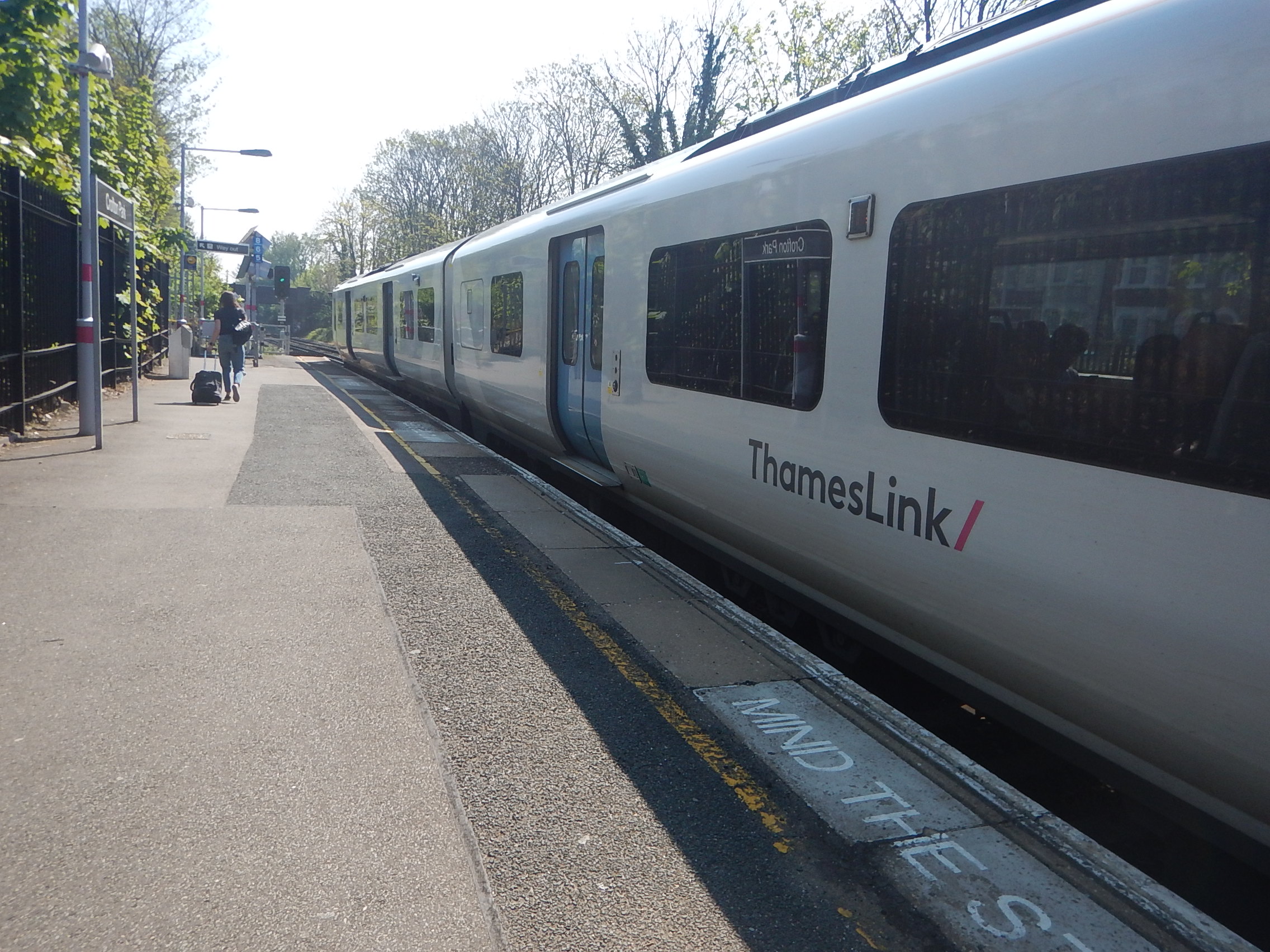

This picture shows the Southern end of Platform 2,, with a train alongside.

Note that the end of the platform is straighter.

Why not put the Harrington Hump, in this position?

  • It would be alongside the step-free access to the station.
  • It would not be a major construction.
  • It could perhaps be twenty metres long.
  • It helps that all trains stopping at Croftton Park station are eight-car trains.
  • Phone apps to instruct passengers what to do at particular stations are getting better and more comprehensive.

As the trains are walk-through, passengers can move forwards the front before arrival,  if they are getting out at Crofton Park station.

Conclusion

Crofton Park station’s simple method of step-free access icould be used at many stations.

But we also need a method to deal with the curved platform problem and the chasms, it creates.

April 21, 2019 Posted by | Transport | , | Leave a comment

Why Are Abellio Starting Norwich-in-Ninety With Class 755 Trains?

At the May timetable change Abellio Greater Anglia will be running four trains per day between London and Norwich in ninety minutes.

I have read that this is possible with the current Class 90 locomotive /Mark 3 coach train sets and that is a fall-back position.

I was also told by a former employee of Greater Anglia, that one night, he was a passenger between Norwich station and Illford depot in an empty Class 321 train, that achieved an incredible time.

So why take the risk with untried Class 755 trains on the first day of the new timetable?

  • Abellio must be very sure that the trains will perform, as they say in the brochure.
  • They also know all the publicity that running new trains will bring.

But could Abellio just want to check the public’s reaction to these trains with effectively a locomotive in the middle, before they decide on the 125 mph bi-mode trains for the Midland Main Line?

I don’t believe that building a 125 mph version of Class 755 train would be beyond the bounds of possibility.

The Weight Of A Class 755 Train

I haven’t been able to do my energy calculation for a Class 755 train, as I can’t find the weight of a Class 755 train on the Internet.

However, I can estimate the weight of a four-car Class 755/4 train from the Stadler data sheet for the train.

This gives the following.

  • Mean Acceleration Electric (0-40 mph) – 1.1 metres/second squared
  • Maximum traction – 200 kN
  • 202 seats and 27 tip-up seats

I think it is reasonable to assume that the acceleration rate is for a train with a typical load of passengers.

Using Omni’s Acceleration Calculator, this gives a time of 16.256 seconds to accelerate from 0-40 mph.

Then putting this time into Omni’s Newton’s Second Law Calculator, gives a train mass of 181.8 tonnes.

As passengers can weigh around twenty tonnes, if they weigh 90 Kg each, with baggage, bikes and buggies, I would estimate that an empty Class 755/4 train weighs around 160-170 tonnes.

By comparison.

I don’t think a figure of 160-170 tonnes is out of line, with a figure of 180 tonnes for a typical loaded train.

Remember too, that these trains are Stadler FLIRTs, where FLIRT is Fast Light Intercity and Regional Train.

Applying Omni’s Kinetic Energy Calculator, gives these figures for the kinetic energy of a train.

  • 90 mph – 40 kWh
  • 100 mph – 50 kWh
  • 125 mph – 78 kWh

As some electric FLIRTs can nun at 125 mph, I believe that a bi-mode FLIRT, based on the Class 755 train could be designed with these characteristics.

  • 125 mph on electric power
  • 125 mph on diesel power

Acceleration on diesel to 125 mph would probably be the biggest problem and it is likely that more power than for a Class 755 train will be needed.

Do Abellio Greater Anglia’s initial Norwich-in-Ninety trains give a clue in that they will be two four-car Class 755 trains working as an eight-car train?

  • It will be eight passenger cars and two power cars at the 25% and 75% positions in the formation.
  • Stadler have built the similar Stadler GTW with two power cars in a single train.

So I suspect that Stadler know the dynamics of these trains very well.

I wouldn’t be surprised if someone told me, that Stadler had offered a bi-mode Stadler FLIRT with two power cars, for the Midland Main Line.

  • The power car concept has been sold to operators with diesel, electric and battery power options.
  • Stadler are proposing to use battery power in the Class 93 locomotive to boost performance.
  • Many would believe, as I do, that hydrogen power could be added to a Stadler power car.

So are these runs at 100 mph with two four-car Class 755 trains, a final trial of the technology to prove that similar higher-powered trains could run at 125 mph on the Midland Main Line, before Abellio sign a contract?

April 21, 2019 Posted by | Transport | , , , , , | Leave a comment

Bedwyn, Didcot Parkway And Oxford Services After Crossrail Opens To Reading

When Crossrail opens to Reading as it is rumoured with happen in December 2019, what will happen to the Great Western Railway (GWR) services to Bedwyn, Dicot Parkway and Oxford?

The Current Services

These services currently run to these destinations from London Paddington station.

  • Bedwyn station has an hourly service, that goes non stop between London and Reading and then calls at all stations between Reading and Bedwyn.
  • Didcot Parkway station has a two trains per hour (tph) stopping service, that stops at most stations, including those between Reading and Didcot Parkway.
  • Oxford station has a two tph fast service.
  • Reading station has a two tph stopping service, that stops at most stations.
  • The Didcot Parkway and Reading services give London and Reading a four tph electric service.
  • Other trains stop at important stations and there are some shuttle trains serving Reading, Didcot Parkway and Oxford.

Recent developments have included

  • Oxford and Bedwyn services now generally seem to run from the main station.
  • The fast Oxford services now run by Class 802 trains.

GWR are also testing running Class 802 trains to Bedwyn.

Future Services To Bedwyn

The turnback facility at Bedwyn station has been upgraded, so that it can take a five-car Class 802 train.

When some sighting and safety issues are settled, it is likely that Class 802 trains will take over services to Bedwyn.

  • Five-car bi-mode Class 802 trains will be used.
  • Trains will not stop between London and Reading.
  • Trains will stop at all station between Reading and Bedwyn.
  • Trains will run on electric power between London and Newbury.
  • Trains will run on diesel power between Newbury and Bedwyn.

Will the current seventy minute time be reduced by the faster trains, running at higher speed between London and Reading?

Battery Trains To Bedwyn

In Hitachi Plans To Run ScotRail Class 385 EMUs Beyond The Wires, I wrote about how batteries could be added to Class 385 trains, so they could run services without electrification.

Consider.

  • Class 802 and Class 385 trains are both both members of Hitachi’s A-Train family, sharing many features and systems.
  • Newbury to Bedwyn and back is about thirty miles.
  • Batteries could be charged between London and Newbury.

I very much feel that if Hitachi apply battery technology to the Class 802 trains, that Bedwyn could be an ideal test destination.

Extension Of Bedwyn Services To Marlborough

In A Station For Marlborough, I wrote about a local plan to open a new station in the twon of Marlborough, which would be on a single track branch, that leaves the main line to the West of Bedwyn.

Class 802 trains with a battery capability, would be the ideal trains for this extension.

Future Services To Oxford

GWR have started running bi-mode Class 802 trains to Oxford at a frequency of two tph

  • Services stop at Slough and Reading.
  • I have seen nine-car trains on this route.
  • Trains run on electric power between London and Didcot Parkway
  • Trains run on diesel power between Dicot Parkway and Oxford.

The service is augmented with a diesel shuttle between Oxford and Didcot Parkway.

  • This service runs at a frequency of two tph
  • One train every two hours is extended to Banbury.
  • This service is the only way to get to the intermediate stations of Appleford, Culham and Radley.

I very much feel that services between London and Oxford can be improved.

Four tph To Oxford

If train companies feel that Reading is worth four tph on Crossrail between the city and London, surely Oxford needs a four tph GWR service to the capital.

  • Two would be fast trains stopping only at Reading and Slough.
  • Two would stop at Slough and all stations between Reading and Oxford.
  • Bi-mode Class 802 trains would be used.
  • Trains run on electric power between London and Didcot Parkway
  • Trains run on diesel power between Dicot Parkway and Oxford.

Note.

  1. All intermediate stations would have a direct two tph service to London, Reading and Oxford.
  2. Currently, many journeys involve a long wait or a change at Didcot Parkway.

In addition, no station between Reading and Didcot Parkway gets a worse service than they do now, with the Class 387 trains to Didcot Parkway.

Battery Trains To Oxford

If Hitachi develop them, why not?

A Reading And Oxford Shuttle

I very much believe that important commuter routes need a frequency of four tph, as this enables a Turn-Up-And-Go service and encourage passenger numbers. Especially on a route like Reading and Oxford, where there is a lot of new housing being built.

If two tph are run between London and Oxford, stopping at all staions between Reading and Oxford, perhaps the way to give this service would be to run a shuttle between Reading and Oxford using bi-mode Class 769 trains.

  • A two tph shuttle would give four tph at all intermediate stations.
  • Trains would run on electric power between Reading and Didcot Parkway.
  • Trains would run on diesel power between Didcot Parkway and Oxford.
  • Some or all trains could be extended to Banbury.
  • I estimate that four trains would,d be needed for two tph.

Oxford would only be getting the quality of railway system a city of its size and standing needs.

Conclusion

There is a lot of scope to improve the train services in the Thames Valley, whether or no Crossrail takes over the Reading services.





April 21, 2019 Posted by | Transport | , , , , , | Leave a comment
