Connecting The Bakerloo Line Extension At Lewisham To The Hayes Line

This map from carto.metro.free.fr shows the lines in the area of Lewisham station.

lewishamlines

Note.

  1. The multi-track line going North-West to South-East is the South Eastern Main Line .
  2. The double-track line going South-West to North-East is the Hayes Line.
  3. The double-track going East are the North Kent & Bexleyheath Lines
  4. I think it is quite likely that the overrun tunnels for the Bakerloo Line Extension will be under the Hayes Line.

The platforms are as follows.

  • Platform 1  is the Up platform on the Hayes Line.
  • Platform 2 is the Down platform on the Hayes Line.
  • Platform 3  is the Up platform on the North Kent & Bexleyheath Lines.
  • Platform 4 is the Down platform on the North Kent & Bexleyheath Lines.

They are numbered from bottom to top in the map.

Services running through the area include.

  • Slow London to Hayes via Platform 1
  • London to Orpington via Platform 1 and the Courthill Loop
  • Slow Hayes to London via Platform 2
  • Orpington to London via the Courthill Loop and Platform 2.
  • Dartford to London via Platform 3
  • Slade Green to London via Platform 3
  • London to Dartford via Platform 4
  • London to Slade Green via Platform 4
  • Fast London to Hayes via the Ladywell Loop
  • Fast Hayes to London via the Ladywell Loop

If the Hayes Line were to be directly connected to the Bakerloo Line Extension, some services would be difficult to run.

But suppose the tunnels were connected to the Hayes Line between Courthill Loop North Junction and Ladywell Junction, the following services would still be possible.

  • London to Orpington via Platform 1 and the Courthill Loop
  • Orpington to London via the Courthill Loop and Platform2.
  • Fast London to Hayes via the Ladywell Loop
  • Fast Hayes to London via the Ladywell Loop

The slow services between London and Hayes would use the Bakerloo Line Extension.

Services On The Hayes Line

Currently, there are two trains per hour (tph) to both Charing Cross and Cannon Street. Some fast services avoid Lewisham, but all services stop at London Bridge.

In the Wikipedia entry for Hayes station, this is said.

In 2004, the Strategic Rail Authority proposed withdrawing services to Charing Cross from the Hayes Line. Following a campaign led by local Councillors and the Hayes Village Association, the plans were withdrawn.

So the locals have form in getting what they want.

Intriguingly, Charing Cross station has two Underground stations; Embankment and Charing Cross, on the Bakerloo Line.

But it will surely lose some of the National Rail services, if Hayes station becomes part of the Underground.

Some must stay, as if all were discontinued, getting to the City could mean a roundabout route and I suspect another campaign would be started by the good burghers of Hayes.

In Thoughts On The Power System For The New Tube for London, I felt that changing to a conventional three-rail electrification could be possible on the deep-level Underground lines.

At Hayes station, it would enable both National Rail and Underground services to both serve the station.

The design of the new Tube for London could well sort out that problem!

Beckenham Junction

This map from carto.metro.free.fr shows Beckenham Junction station and its connection to the Hayes Line at New Beckenham station.

In some ways Beckenham Junction station would make a good terminus for the Bakerloo Line Extension.

  • Platform 1  could be converted to use by the Underground.
  • There is a four tph service between Victoria and Bromley South stations.
  • There is a two-platform station for Tramlink.

But would the flat New Beckenham Junction, where trains join the Hayes Line, have the capacity to handle all the trains and Tubes, going hither and thither?

At the very least use of Beckenham Junction as a terminal for the Bakerloo Line, would need a lot of innovative thinking.

In Could Beckenham Junction To Birkbeck Be Run Using Third-Rail Tram-Trains?, I proposed using tram-trains with a third-rail capability.

This would allow the Birkbeck to Beckenham Junction section of the route to become a conventional railway again and have a higher capacity.

This was my conclusion in the post.

By replacing the trams to Beckenham Junction station with tram-trains, capable of running on both 750 VDC types of electrification and with a limited battery capabilty, would simplify operation at Beckhenham Junction and enable Tramlink services to be extended to Bromley South station.

The collateral benefit, is that Bromley town centre could get a Tramlink connection.

Going East from Beckenham Junction station, the track is only double, but if the New Tubes for London were fast enough, they could gp on to Bromley South station.









October 7, 2018 Posted by | Transport | , , | 1 Comment

What Will Be The Operating Speed Of The New Tube for London?

Transport for London have said that the New Tube for London will definitely be deployed on the Piccadilly, Central and Bakerloo Lines.

These three lines have sections at one or both ends, where the lines run through the countryside and the stations are farther apart.

Only the 1992 Stock of the Central Line have their operating speed given in Wikipedia.. It is 62 mph, which is the same as the S Stock for the sub-surface lines.

The 2009 Stock of the Victoria Line, despite being similar to the S Stock have an operating speed of only 50 mph.

Because of the nature of the ends of the Piccadilly, Central and Bakerloo Lines, will 62 mph be the optimum operating speed for these trains.

I’ll look at the factors on these lines separately.

Piccadilly Line

The Piccadilly Line will be self-contained, after the sorting of the shared sections West Rayners Lane and between Ealing Broadway and Acton Town, that I discussed in Thoughts On The Power System For The New Tube for London.

I suspect the operating speed of the New Tubes for London on the Piccadilly Line, will be decided on what is best for that line.

Central Line

The Central Line is also self-contained and the best operating speed for the line will be chosen.

Bakerloo Line

The Bakerloo Line could be a problem, as currently Class 378 trains run on the same trcks. These have an operating speed of 75 mph.

These Class 378 trains will be replaced by Class 710 trains, which could have a faster performance.

Surely for optimum running, the trains should need similar performance.

The Benefit Of Automatic Train Control

On all the lines on which New Tubes for London will operate, there will be Automatic Train Control.

The operating speed will be set by the control system, whereas the maximum operating speed will be set by the trains design.

So I think we could see a maximum operating speed of 75 mph or even higher for the New Tube for London, so that it could run on faster lines and not slow the other faster trains.

More Speed Means More Powerful Trains And Improved Acceleration And braking

To go faster, you probably need more powerful trains, but the motors required would give better acceleration and braking, that would speed up services, by executing station stops in a shorter time.

Conclusion

I would expect from y Control Engineering training, that the New Tube for London could have a maximum operating speed in-line with the Class 710 train. So around 75-90 mph.

Could we even see an Underground train, that is capable of 100 mph?

It would only rarely, if ever, run at that speed on current plans, but it might enable Underground and National Rail services to share tracks in surprising places.

October 7, 2018 Posted by | Transport | , , , | 4 Comments

Will The Extended Bakerloo Line Be Twenty-Seven Trains Per Hour All The Way?

There are two major projects that will be implemented on the Bakerloo Line in the next decade or two.

I certainly feel, that the two projects will bring the Bakerloo Line into the twenty-first century

The Planned Train Frequency

Under Current And Future Infrastructure, the Wikipedia entry for the Bakerloo Line says this.

Transport for London proposes to upgrade the line eventually, but not until other deep-level lines have been dealt with. This will include new signalling and new trains, enabling a maximum frequency of 27 trains per hour. TfL currently expects these to be in place by 2033.

Twenty-seven trains per hour (tph) seems very much in line with other deep-level Underground Lines.

  • Central Line – 35 tph
  • Jubilee Line – 30 tph
  • Northern Line – 24 tph for each branch
  • Piccadilly Line – 33 tph after upgrade.
  • Victoria Line – 36 tph

Perhaps, it is a bit lower, but the engineers usually manage to squeeze more out of a line.

The Bakerloo Line Extension To Lewisham

The planning is underway to extend the Bakerloo Line to Lewisham station.

The Bakerloo Line Extension looks like it will be a four-station extension, with interchanges at Elephant & Castle, New Cross and Lewisham.

This map from Transport for London, shows the extension.

I think it will be highly likely, that the extension will be built using a similar design and techniques to that of the Northern Line Extension to Battersea.

  • It will be double-track.
  • There are unlikely to be any junctions.
  • The Lewisham station will have two platforms with overrun tunnels.
  • There appears to be no depot planned.

I have come to some conclusions about the design.

Planned Frequency

If the track layout of the extension and particularly at Lewisham follows the layouts of the Victoria Line termini, I can see no reason, why the proposed frequency of twenty-seven tph can’t be achieved.

I also suspect that provision will be made, so that the frequency can be increased.

A higher frequency would also be expected if the Bakerloo line, were to be further extended to two separate branches, as the map indicates.

Number Of Trains

I suspect that for the extension to work in an optimum manner new trains will be needed.

Project Timescale And Cost

The Northern Line Extension to Battersea appears to be taking about six years from sign-off to completion.

This extension is twice as long and has double the number of stations, but is probably not as grand.

I would put my money on a seven year project and a couple of billion.

As it is unlikely, that the required new trains will not be available until 2033, the project probably has a sign-off date of around 2025.

The project could be pulled forward.

  • The trains could be built after those for the Piccadilly Line.
  • An early decision could be made.

Saying go in 2022 would enable a finish in 2029.

The Northern Section Between Queens Park And Watford Junction

North of Queens Park station, the line is double-track all the way to Watford Junction station.

Queens Park Station

At Queens Park station itself, it’s a lot more complicated.

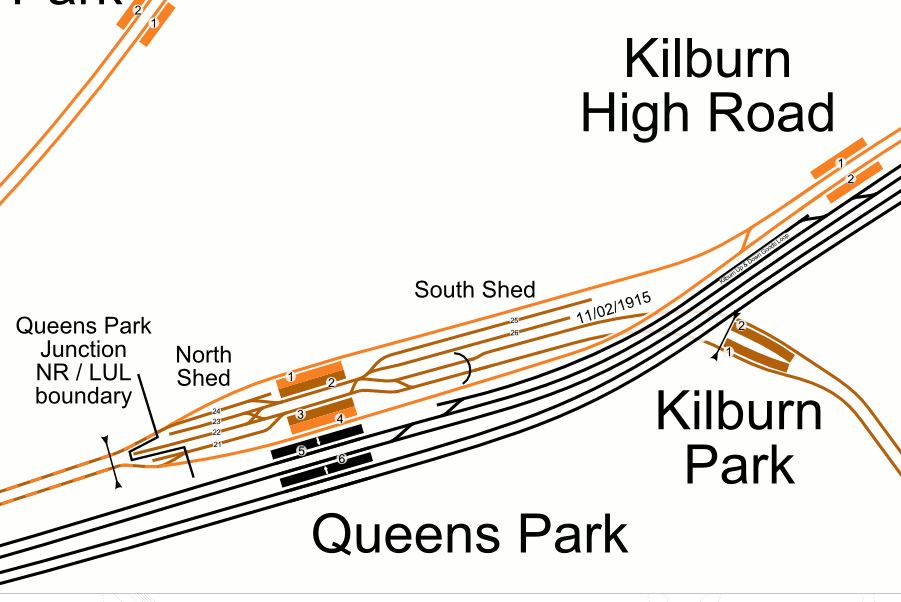

This map from carto.metro.free.fr shows the track layout at Queens Park station.

Note.

  1. The Watford DC Line of the Overground is shown in orange and runs through Kilburn High Road and Queens Park stations.
  2. The Bakerloo Line is shown in brown and runs through Kilburn Park and Queens Park stations.
  3. There are reversing sidings to the West of Queens Park station for the Bakerloo Line.

The following services go through or terminate at Queens Park station.

  • Three tph between Euston and Watford Junction on the London Overground.
  • Six tph between Harrow & Wealdstone and Elephant & Castle on the Bakerloo Line.
  • Three tph between Stonebridge Park and Elephant & Castle on the Bakerloo Line.
  • Eleven tph between Queens Park and Elephant & Castle on the Bakerloo Line.

It is also likely that the Overground service will go to four tph.

So this means that services will be as follows.

  • Four tph on the Watford DC Line run through Kilburn High Road station.
  • Twenty tph on the Bakerloo Line run through Kilburn Park station.
  • Nine tph on the Bakerloo Line run through Queens Park station.
  • Four tph on the Watford DC Line run through Queens Park station.
  • Eleven tph on the Bakerloo Line terminate at Queens Park station.

Thirteen tph will continue to various destinations towards Watford Junction.

What Is The Capacity North Of Queens Park Station?

So how many trains could the double-track line between Queens Park and Wartford Junction stations handle?

Consider.

  • All services on the line are london Overground or London Underground.
  • There are no junctions, where services divide and join.
  • There is a turnback facility at Harrow & Wealdstone station, that can handle six tph.
  • The Overground trains are being replaced with Class 710 trains, which must be able to be made compatible with digital signalling.
  • Watford Junction station has four platforms connected to the Watford DC Line.
  • Good design should be able to make the stations step-free for both Class 710 trains and New Tube for London.
  • The Watford DC Line service, always seems to terminate in platform 9 at Euston.
  • London Underground have run thirty-six tph on the Victoria Line for about a year now.

I suspect that if the trains are digitally signalled, with a degree of Automatic Train Control, that there could be as many as thirty-six tph between Queens Park and Watford Junction stations.

I also think it is significant that the New Tube for London, specifies that the Bakerloo Line will run at twenty-seven tph. Why not more, if the theoretical capacity North of Queens Park is thirty-six tph?

But a single platform at Euston can probably handle six tph, so add 27 and 6 and you get thirty-three tph, which is the proposed core frequency of the Piccadilly Line.

Will The Bakerloo Line Run All The Way To Watford Junction?

Suppose too, that all Bakerloo services ran all the way to Watford Junction, as has been proposed in the past.

  • This would simplify operation and especially at Queens Park, Stonebridge Park and Harrow & Wealdstone stations.
  • Digital signalling would easily handle the frequency.
  • The platform arrangement at Queens Park would be unchanged, with Euston services on the outside and Bakerloo services in the middle.

Watford Junction would have superb thirty-three tph service to two destinations in London.

Will The New Tube for London Run The Euston Service?

I will speculate, that the Watford DC Line service could be run by New Tubes for London..

  • One type of train would be easier to handle for staff and passengers.
  • All platform heights could be the same.
  • All services would be step-free between train and platform.
  • Digital signalling could easily handle thirty-three tph along the shared route.

In Thoughts On The Power System For The New Tube for London, I proposed that the New Tube for London could run on a conventional third-rail system.

This would further mean the following for the Bakerloo Line.

  • New Tubes for London could use the existing track to access Euston, without serious modification.
  • If the Bakerloo Line is extended to Hayes, Beckenham Junction or Bromley North stations, the existing tracks could continue to handle existing third-rail trains to provide other services.
  • Only one type of train would be needed to run all services on the Bakerloo Line to its various destinations.

Use of New Tubes for London on all routes may be possible to create a service on the Northern section of the Bakerloo Line with the following characteristics.

  • Twenty-seven tph between Watford Junction and Elephant & Castle stations.
  • Six tph between Watford Junction and Euston stations.
  • All stations would be step-free between platform and train.
  • All trains would be identical New Tubes for London.
  • All trains would run under Automatic Train Control, as does the Victoria Line.

All passengers on the existing Bakerloo and Watford DC Lines would see a better service.

The Bakerloo Line Extension to Lewisham

Note, that I have said nothing about the Bakerloo Extension to Lewisham.

In my view, that extension does what it says on the tin and creates a new twenty-seven tph service between Elephant & Castle and Lewisham stations, which brings new services to an area of South-East London, where they are much needed.

Effectively, the Bakerloo Line would become two twenty-seven tph lines, that happen to connect back-to-back at Elephant & Castle station to enable cross-London journeys.

Could Bakerloo Line Services Still Be Turned Back At Harrow & Wealdstone?

The following could be argued.

  • Watford Junction doesn’t need twenty-seven tph on the Bakerloo Line and six tph to Euston.
  • Watford needs a cross-Watford service like the in-limbo Croxley Rail Link.

So could a few trains be turned back using the existing facility at Harrow & Wealdston station to create paths to allow an appropriate service between say Watford Junction and Amersham stations?

More Frequent Services

If we look at the Victoria Line, where the frequency has increased over the last few years by the addition of various improvements, I would not be surprised to see the frequency of twenty-seven tph increased.

After all London Underground’s engineers have been squeezing Dear Old Vicky for half a century, so they must know more tricks, than Paul Daniels knew at the peak of his success.

Conclusion

Undoubtedly, the New Tube for London could run at twenty-seven tph all the way between Watford Junction to Lewisham stations.

Whether that frequency is needed all the way is another matter.



October 7, 2018 Posted by | Transport | , , , | Leave a comment
