Is There Going To Be Full Electrification Between Leeds And Huddersfield?

This article on Rail Technology Magazine is dated 23/08/19 and is entitled Network Rail Reveals Detailed £2.9bn Upgrade Plans For TransPennine Route and it prompted me to write this post of the same name.

The Rail Technology Magazine article talks about a comprehensive upgrade to the Huddersfield Line is planned that includes.

  • Improvement between Huddersfield and Westtown
  • Grade separation or a tunnel at Ravensthorpe
  • Rebuilding and electrification of eight miles of track.
  • Possible doubling the number of tracks from two to four.
  • Improved stations at Huddersfield, Deighton, Mirfield and Ravensthorpe.

I have now found this document on the Network Rail web site, which is entitled Huddersfield to Westtown (Dewsbury).

This statement is included under proposals.

Electrification of the railway from Huddersfield to Ravensthorpe – and right through to Leeds.

Because there is a dash in the words, has electrification to Leeds, been a recent addition?

It certainly doesn’t fit with the Rail Technology Magazine article.

It also doesn’t fit with this article on the BBC, which is dated 20/08/19 and is entitled Detailed TransPennine £2.9bn Rail Upgrade Plans Unveiled.

Electrification is mentioned in the second paragraph.

Network Rail has also announced it intends to electrify the line between Huddersfield and Dewsbury and double the number of tracks from two to four.

And in the sixth paragraph.

Network Rail said the proposed major overhaul and electrification work would be carried out on an 8-mile (13km) section of the route, with the “first round” of consultations starting with those living closest to the railway.

The two news sites seem to have used the same source.

The BBC also uses this map, that I have copied from the Network Rail document

Note the railway lines shown in red. Are these the ones to be electrified? As they go from Huddersfield to Westtown, I think the answer is probably in the affirmative.

I seems to me, that Rail Technology Magazine and the BBC are using a common source and could it be an earlier version of the Network Rail document.

But the map, I have shown, shows the electrification only going as far as Westtown, despite coming from a document, that states twice that the electrification is going as far as Leeds.

It is certainly sloppy documentation.

Track Layouts

This document on the Digital Railway web site is dated 16/08/18 and is entitled Transpennine Route Upgrade SDO1 ETCS – Analysis.

Significantly, it is written by the Digital Railway – Joint Development Group (JDG), which consists of representatives of Siemens, Hitachi, ARUP and Network Rail.

It is mainly about using digital signalling called ETCS on the Transpennine Route, but it does give these track layouts between Huddersfield and Dewsbury.

This is the current layout.

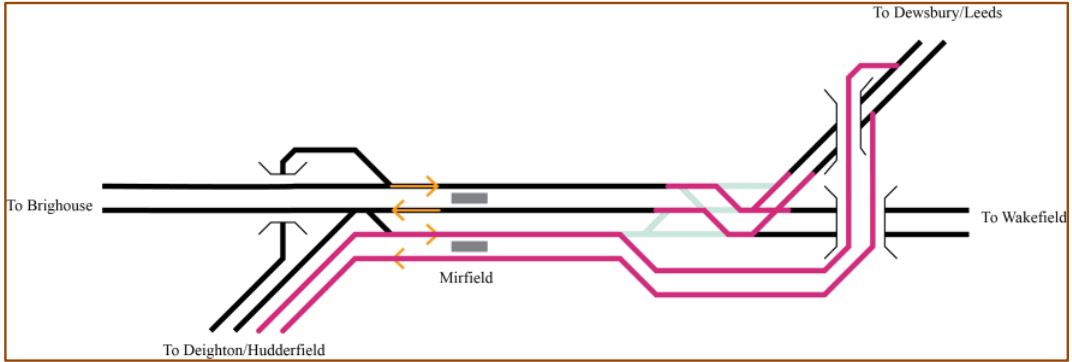

There is also this full four-track layout, which I assume was the original plan.

It is more complicated and involved the building of bridges in the area of Ravensthorpe station.

There is also a reduced four-track layout, which I assume was developed as the track analysis progressed.

It is not a massive upgrade from the current layout.

As I see it, if the reduced layout can handle the required number of services, it has major advantages over the full scheme.

  • There are no changes to track  layout between Ravensthorpe and Dewsbury stations.
  • Rebuilding Ravensthorpe station should be a smaller project.
  • The current and reduced layout have three tracks between Mirfield and Ravensthorpe stations.
  • There are no expensive new bridges to be built.

To make the scheme work there is a small amount of bi-directional running on the centre track, which is made possible by using digital signalling on the route.

Track Usage

By using bi-directional running on the centre track between Ravensthorpe and Mirfield stations, which is controlled by ETCS, the track layout is simplified, with three tracks instead of four.

  • Slow trains from Huddersfield to Dewsbury will dive under the Brighouse lines and call in/pass Platform 1 at Mirfield station before going straight on to Ravensthorpe and Dewsbury. This is as trains do now.
  • Slow trains from Dewsbury to Huddersfield will use the centre track from East to West and call in/pass Platform 2 at Mirfield station before turning South-West  on to Huddersfield. This is as trains do now.
  • Fast trains from Huddersfield to Dewsbury will call in/pass Platform 3 at Mirfield station and then cross over to the top track and go straight on to Ravensthorpe and Dewsbury.
  • Fast trains from Dewsbury to Huddersfield will use the centre track from East to West and call in/pass Platform 4 at Mirfield station before turning South-West  on to Huddersfield.
  • Trains from Brighouse  to Wakefield will call in/pass Platform 1 at Mirfield station and then cross to the centre track and go straight on to Wakefield. This is as trains do now.
  • Trains from Wakefield to Brighouse will use the centre track from East to West and call in/pass Platform 2 at Mirfield station and go straight on to Brighouse.

Note.

  1. Platforms at Mirfield station are numbered 1 to 4 from the North
  2. The slow lines between Mirfield and Huddersfield are shown in black.
  3. The fast lines between Mirfield and Huddersfield are shown in blue.
  4. Passengers can use Platforms 1/2 as a cross-platform interchange between slow Huddersfield-Leeds and Brighouse-Wakefield services.

I also think it likely, that the proposed layout will improve the timetable.

Does The Reduced Layout Produce A Cost Saving?

In one of the first jobs I did at ICI Plastics Division, I simulated a chemical process on an analogue computer. My mathematics showed they could use much smaller vessels, which meant the height of the plant could be reduced by a few  metres. I remember the engineer in charge of the project being very pleased, when he told me, that height costs money.

  • The reduced layout removes three bridges, which must mean a cost saving.
  • There is probably less track to lay

The negative is that digital signalling with ETCS must be installed through the area. This is going to be installed on the UK network, so it probably needs little more than shuffling the installation order.

On balance, when all things are considered, I suspect if the reduced layout can be used, there will be substantial cost savings on the project.

Problems At Morley Station

Morley station is two stations after Dewsbury station on the route towards Leeds.

Unusually for Wikipedia, the entry for Morley station has a large section entitled Current Problems.

This is the first two paragraphs.

The increase in demand, combined with growth elsewhere on the line, means that overcrowding in the morning peak, particularly for commuters heading towards Leeds, is becoming more of an issue.

Despite this commuter growth little has been done to bring this station into the 21st century. For example, only one platform is accessible for disabled passengers, there is insufficient parking, access routes to and from the station are often overgrown with weeds, and there are frequent drainage problems which all combine to make the station not as pleasant as other stations in West Yorkshire. In 2012 a “Friends of Morley station” group was formed, and is addressing some of these issues. Work to improve the car park and drainage commenced in February 2013.

To make matters worse, the station is 10-15 minutes walk from the centre of Morley with poor bus and taxi connections.

Would the following help the Friends of Morley Station?

  • Longer trains.
  • More frequent trains.
  • Faster trains to Leeds
  • Better bus services.

Electric trains would help solve the first three.

White Rose Station

There are plans to build a new White Rose station in the next couple of years at the White Rose Centre..

This would be between Morley and Cottingley stations.

This station will surely increase the passenger numbers on the Huddersfield Line.

Have Network Rail Designed The Electrification Between Dewsbury And Leeds?

This electrification has been off and on more times, than the lights in an average kitchen, so I suspect there is a workable plan dating from the last century amongst many others.

Would Extending Electrification To Leeds Provide The Power?

Electrification needs a good connection to the National Grid to provide the power needed to run the trains.

The short eight-mile electrification, as originally proposed could probably have been fed from one end; Huddersfield or Dewsbury.

Both locations would need new sub-stations, with Huddersfield possibly needed in the future to power the wires all the way to Manchester.

Leeds is already fully-electrified with electric expresses to Doncaster and London and several electric local services.

So is the easiest and most affordable way to power the eight-mile electrification between Huddersfield and Westtown to run an extension cable between Leeds and Dewsbury?

Network Rail had a similar problem on the Midland Main Line, which I wrote about in Welcome For Extension Of Midland Electrification.

National Grid had provided a power connection near Market Harborough for the Midland Main Line electrification, which was then cancelled North of Kettering North Junction, leaving the electrification to Corby without a power supply.

The problem is being solved, by extending the electrification to Market Harborough and connecting the wires to the power there.

I do wonder, that the most affordable way to power the Huddersfield and Westtown electrified line is to electrify all the way to Leeds and connect to the power there.

Conclusion

Improving services on the Huddersfield Line between Huddersfield and Leeds is going to be very necessary in the next few years, as passenger numbers will surely grow, due to new housing, increased commuting and the opening of White Rose station.

  • New or refurbished four-car electric trains would provide more capacity, increased frequencies and faster services,
  • Digital signalling with ETCS would allow more trains to run smoothly.

It appears to me, that to electrify all of the Huddersfield Line between Huddersfield and Leeds would be a good idea, if the money can be found.

Has that money been found by developing a more affordable track layout for the proposed TransPennine Upgrade between Huddersfield and Westtown?

But also using the power at Leeds and electrifying all the way between Huddersfield and Leeds, seems to be a bloody great tail, that is wagging the dog of electrification.

Further Electrification

Providing a fully-electrified route between Huddersfield and Leeds, would leave just two sections of the main TransPennine route without electrification.

I don’t know about the planning and difficulty of the first route, but from my helicopter the engineering shouldn’t be too difficult, with the exception of the elecxtrification of the Standedge Tunnels, although Wikipedia seems optimistic about the electrifying the main twin-bore tunnel.

During the 2000s, Network Rail proposed reinstating rail traffic through the 1848 and 1871 tunnels to increase capacity on the Leeds-Manchester trans-Pennine route, but after a re-appraisal after the decision to electrify the trans-Pennine line, it was reported in 2012 that reinstatement was unnecessary.

In addition, could it be, that Manchester with lots of electric trains can provide enough power at Stalybridge, where an updated power connection has been recently installed, to power electric trains between Manchester and Huddersfield?

, The second has been planned for years and has a string of advantages.

  • Speed up services between Leeds and Newcastle and Scotland.
  • Allow LNER to run electric trains between London and Scotland via Leeds.
  • Create an electrified route between Neville Hill Depot and York.
  • Create an electrified diversion through Leeds for the East Coast Main Line

This section should be electrified for operational reasons on the East Coast Main Line.

A Final Conclusion

Network Rail’s plans seem to have evolved under analysis to be as follows.

  • Limited four-tracking and updated track between Huddersfield and Westtown.
  • Digital signalling with ETCS between Huddersfield and Leeds.
  • Full electrification between Huddersfield and Leeds
  • Power for the electrification from Leeds.

Could it even cost less than the allocated £2.9billion?
