The Bank Station Upgrade And The Western Extension Of The DLR

This map from Transport for London (TfL), shows the possible Western extension of the Docklands Light Railway (DLR).

With all the problems of the funding of Crossrail 2, that I wrote about in Crossrail 2 Review Prompts Fresh Delays, could this extension of the DLR, be a good idea?

If you look at the Bank Station Upgrade in detail, the DLR gets a much needed boost in the upgrade.

The two DLR platforms underneath the Northern Line get a triple-escalator connection to the Northern Line level, from where they have the following.

  • Level access to the Northern Line.
  • Escalator access to the Cannon Street entrance.
  • Travelator/escalator access to the Central Line.
  • Access to the current escalators and lifts to the various entrances around Bank Junction.

There will also be lifts everywhere.

According to Services in the Wikipedia entry for the DLR, the following services turn at Bank station.

  • 22.5 trains per hour (tph) in the Peak.
  • 18 tph in the Off Peak.

So the turnback is handling a train around every three minutes.

I have no idea, what is the maximum frequency of the DLR, but as it is an automated system, with new trains to be delivered in the next few years, I suspect the frequency will be pushed higher in the future.

The Bank Station Upgrade has been designed to handle more passengers using the DLR, so there should be no problem about handling more passengers in the two platforms deep in Bank station.

The limiting factor would more likely be in the turnback.

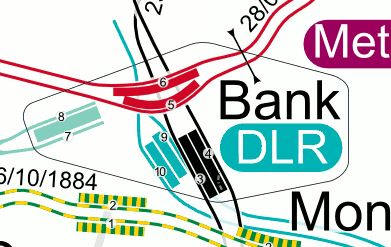

This map from carto.metro.free.fr, shows the DLR lines at Bank station.

Note the turnback for the DLR, under the Central Line platforms 5/6, running alongside the Northern Line.

  • Trains stop in the arrivals platform 10 at Bank station and unload all passengers.
  • They then move to the turnback and the automation then switches to the other end.
  • They then move to the departures platform 9 to pick up passengers.

It is an inefficient way to turn trains. A through station at Bank would have a much greater capacity.

If you look at the map of the proposed Western extension, it has two branches which join and split at City Thameslink station.

  • Charing Cross, Green Park and Victoria.
  • Holborn, Euston and St. Pancras

It should be noted that the two-platform terminal station at Lewisham currently handles upwards of 20 tph in the Peak.

This would mean that if both Western branches had a two-platform terminus, then there could be a theoretical total of forty tph through Bank station.

If Dear Old Vicky can manage thirty-six tph with ten year-old-trains and less automation, I wouldn’t be surprised to see the DLR manage the magic forty tph, with twenty tph on each branch.

Obviously, though there would be other considerations and capacity limits, but I can see a big increase in the numbers of passengers using the DLR.

I would expect that the improvement to the DLR access being added in the Bank Station Upgrade must have been designed to handle the highest number of DLR trains and passengers that anybody can practically envisage.

It should also be noted that the DLR station is below the Northern Line and the turnback siding, which is shown in the map of the lines, will be well out of the way of the new Northern Line and travelator tunnels.

The map of the Western DLR Western Extension,  also shows the extension going West away from the Northern Line tunnels. This would mean it would comfortably  pass underneath the new Southbound Northern Line tunnel.

It therefor looks to me, that the Bank Station Upgrade is very much preparing Bank station for the DLR Western Extension to be built.

So will the DLR Western Extension be constructed?

Why Is It Needed?

Various reasons Have been given.

Better Connection To The Docklands Light Railway for Commuters From The South

The DLR Western Extension will connect to commuter routes at the following stations.

  • Charing Cross
  • City Thameslink
  • Victoria

This should help commuters get to the City and the business areas of East London.

Another Direct Connection Between East London And West Central London

It will also help travellers get betweenEast London and West Cerntral London without changing or using the overcrowded Victoria Line.

A few points.

  1. c2c commuters would also be able to change at Limehouse station to trains going further than Bank station.
  2. It would help me get to places South of Crossrail and Victoria becomes much easier.
  3. Access to Thameslink from the East will be improved, if you’re not near a Crossrail station.
  4. New housing in the East will get the transport links it needs.

East London has a great need for the DLR Western Extension.

Increase The Number Of Trains Serving Bank Station

The Mayor wants to extend the DLR to Abbey Wood and Thamesmead in the South East.

This will mean that extra capacity is needed in the West to turn the trains.

The DLR Western Extension and the Bank Station Upgrade seems a pretty good way to obtain this much-needed capacity.

The People Mover Between High Speed One, High Speed Two, West Coast Main Line And The East Coast Main Line

Proposals exist for a high capacity people mover between High Speed One at St. Pancras and High Speed Two at Euston.

The DLR Western Extension will accept this challenge and do it superbly and could even have connections to the East Coast Main Line.

Take The Pressure Off The Northern Line

Consider.

  • The Northern Line connects Euston and Bank stations via Kings Cross St. Pancras.
  • The Northern Line is supposed to take ten minutes.
  • The route is overcrowded and it is impossible to get a seat, for most of the day.
  • When High Speed Two opens in 2026, more travellers will want to travel to and from the City.

The DLR Western Extension could give as many as twenty tph on the following route.

  • St. Pancras
  • Euston
  • Holborn
  • City Thameslink
  • Bank

With the new DLR trains and the full automation of the DLR, the route will certainly outperform the Northern Line and possibly a black cab, driven  by Lewis Hamilton.

Improve Capacity Between Victoria And The City

Just as the DLR Western Extension will improve the route between Euston and the City of London, the other branch will improve the route between Victoria and the City

I’ve taken a District Line train from .Whitechapel to Victoria station and there are better ways to enjoy yourself.

It’s The Poor People’s Crossrail 2

Crossrail 2 with its mega station at Euston/Kings Cross/St. Pancras will give North-East London much better access to National Rail services going North.

To get to any of these stations now, I have to take a bus to either Angel or Moorgate stations and then get a tube.

I used to be able to get a bus to Highbury & Islington station, but the Mayor from South London has halved the service, so I don’t bother to wait fifteen minutes for a bus and go via Angel.

If the DLR Western Extension were to be opened, I’d get an Overground train to Shadwell station and change to the required route.

Agility – The DLR Advantage

I must say something about the big advantage of the DLR.

The trains have the ability to twist, turn and climb gradients, that a conventional train would find impossible.

This means that the tracks can be threaded through places, where heavy rail just can’t go!

Tunnels

The DLR tunnels and platforms at Bank station are the deepest in London. This article in the Telegraph says this about the deepest station in Central London.

It is the DLR concourse at Bank, which is 41.4 metres below.

Crossrail’s depth by comparison is described in this page on the Crossrail web site like this.

A network of new rail tunnels have been built by eight giant tunnel boring machines, to carry Crossrail’s trains eastbound and westbound. Each tunnel is 21 kilometres/13 miles long, 6.2 metres in diameter and up to 40 metres below ground.

The DLR Western Extension tunnels would cross Crossrail close to Holborn station, so they would probably need to go below Crossrail at this point.

Designing the route of the tunnels is probably the easy part, as construction will be much harder and will take a lot of planning.

Consider, the places for construction sites, where a tunnel boring machine (TBM) could be inserted or the spoil could be taken out.

  • Bank, St. Pancras and Victoria stations are very crowded places, with most of the land already built on.
  • There are the Royal Parks and London’s leafy squares, on the route.
  • This article on IanVisits describes the railway sidings under Smithfield Meat Market, which could be somewhere to start digging. Could spoil be taken out at night by train on Thameslink?
  • As Holborn station is getting a second entrance, this could also be a key site in the construction of the tunnels.

The tunnellers might use the techniques employed in the Bank Station Upgrade, where the tunnel was dug without a TBM and spoil was taken out by truck. But the tunnels for the DLR Western Extension will be much larger.

Stations

It is worth looking at the stations on the route.

Charing Cross

Charing Cross station has been rebuilt in recent decades and still has the two former Jubilee Line platforms in working order, that might be able to be reused.

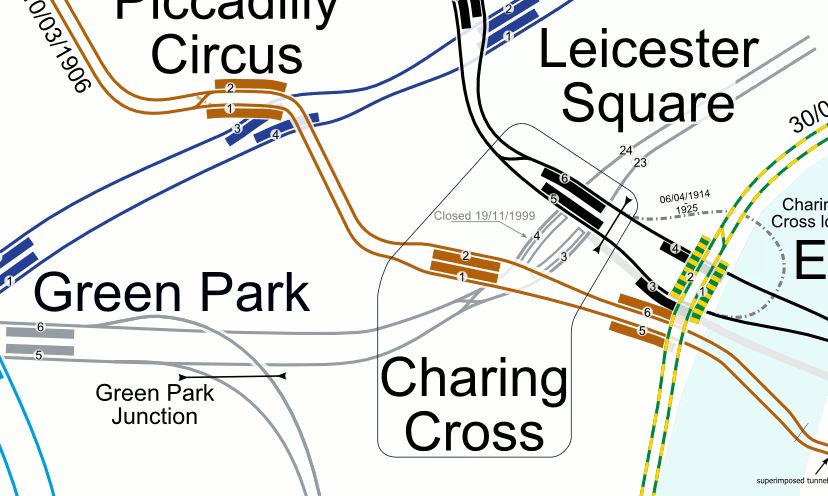

This map from carto.metro.free.fr shows the lines around Charing Cross station.

Note.

  1. The old Jubilee Line tunnels go through the platforms.
  2. They are long enough to hold two trains.
  3. The tunnels would have to be enlarged to fit the larger DLR trains.

As these platforms and tunnels were built to be extended on a route not unlike that of the DLR extension, I suspect TfL have ideas about how this station could be rebuilt to be part of the Western DLR extension.

City Thameslink

– City Thameslink station is a reasonably-modern, one-line double-ended step-free station.

The DLR Extension would cross the station at right-angles, deep below Thameslink.

Euston

Euston station is being rebuilt for HS2 and the Underground station will be extensively improved.

I would be very surprised, if the new station, has been designed without a feasible place for DLR platforms to be added.

Green Park

Green Park station has been updated several times and I suspect that TfL have ideas about how the station could be served by the extension.

Holborn

Holborn station is being extended with a new entrance. As with Euston, I suspect it has been designed with a feasible place for DLR platforms to be added.

This document on the TfL web site, gives more details of what is proposed at Holborn station.

I extracted this visualisation of the proposed station.

This map from carto.metro.free.fr shows the lines in the through and around the station.

.Note, Crossrail, which is shown by dotted lines passes to the North of the station.

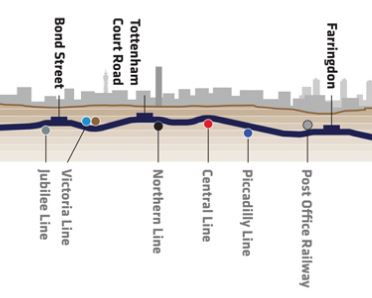

This diagram from Crossrail shows a depth profile of the tunnels between Farringdon and Bond Street stations.

Note.

  1. The blue dot indicating the Piccadilly Line.
  2. The red dot indicating the Central Line

These two lines are close to Holborn station.

I would feel that the DLR Western Extension could be accommodated in the lower level of the updated station. If required, it could use the DLR’s agility to use a route, no normal railway could.

St. Pancras

St. Pancras station is virtually a new station, so at least, the surveys and drawings are up-to-date. This might make designing two platforms below the current complex a bit easier.

Although, actually building them might be more difficult.

Victoria

The Underground station has been substantially remodelled and rebuilding of the National Rail station is in the pipeline.

Plans are also being drawn up, as to how this station will connect to Crossrail 2.

Hopefully, they’ve taken the DLR Extension into account.

Should There Be Any Other Stations?

The DLR Western Extension must be built, so that if required, the two new branches can be extended.

Extending From St. Pancras

One article, I’ve read, says that this branch should be extended to Camden Town.

In Maiden Lane And York Road Stations, I suggested that it should be extended to these two former stations. I said this.

But why stop at S. Pancras? The DLR could be extended under Kings Cross station, stopping where required to finish at York Road station.

  • Only the building would be used.
  • There would be no connection to the Piccadilly Line.
  • The Docklands Light Railway tunnels would be several metres down to travel under buildings and the stations.
  • An underground passage could be built to a reopened Maiden Lane station.

A worthwhile use would have been found for an iconic building and Kings Cross Central would have much better public transport connections.

Given that over the next few years, there will be a large increase in capacity on the North London Line through Maiden Lane station, this could be a very important extension.

Extending further in the future from York Road would be enabled. Next stop Finsbury Park?

Or would it be better to create a connection to the Piccadilly Line at the combined York Road/Maiden Lane station complex?

Extending From Victoria

Obviously, if the Victoria Branch could be extended to Waterloo, this would be an ideal solution.

I would look at the possibility of having a very easy interchange between the Victoria Line and the DLR at Victoria.

Cross-platform interchange would probably be difficult, but if the DLR platforms were under those of the Victoria Line, I would feel a fast step-free interchange could be designed.

This would effectively mean that the Victoria Line would be a virtual extension to the Victoria Branch of the DLR Western Extension.

A Connection To Crossrail

Surely, the DLR Western Extension should connect to Crossrail. Especially, as it connects to Thameslink!

Conclusion

Build the DLR Western Extension!

Why?

  • It will add capacity between Euston and the City.
  • It will add capacity between Victoria and the City
  • It will unlock capacity at Bank and allow more services to the East.

It is the poor people’s Crossrail 2

It won’t be built though!

  • East London isn’t a priority and it’s where the scum and great unwashed live.
  • It doesn’t do much for South and West London, where important people live.
  • The North of England will object, as it’s another London project!

But I’m hoping that it will be built, as it will transform the lives of many who live in the East and/or rely on the DLR.

In 2010, I wrote Cinderella Will Take You to the Ball!, where I was looking forward to the Olympics.

After the Olympics, I was told by a Senior Manager of the DLR, whilst riding on a DLR train, that the system had performed magnificently at the Games and carried more passengers than everybody expected it would!

There certainly weren’t any complaints.

But I did find this article on Rail Magazine, which is entitled The Secret Of Serco’s Success.

This is the first two paragraphs.

In January 2013 Serco was awarded an 18-month contract extension to operate the Docklands Light Railway, one of the most reliable train services in the UK.

This extension (to September 2014) to the original seven-year franchise rewarded a remarkable performance in 2012, a performance that was also a principal reason for National Rail Awards judges awarding Serco Docklands the City & Metro Operator of the Year accolade.

So they got a Gold Medal too!

This is said about their performance during the year.

Almost 12 million passengers were carried during the entire Games period, and during the busiest times, passenger numbers reached more than double the normal level. Numbers peaked at around 500,000 passengers in a single day, over 125,000 more than DLR’s previous record. And yet, despite all that extra pressure, 2012 was DLR’s most reliable year ever.

Sexy the DLR is not, but like the character I name her after, this light railway, works incredibly hard and to a high standard!

It is a true heavyweight amongst urban transport systems.

Perhaps we should abandon Crossrail 2 and just extend the Docklands Light Railway?





December 2, 2018 Posted by | Transport | , , , , , , , , | 1 Comment

Ludgate Circus And Blackfriars Station

This morning, I had an excellent full English breakfast with a large mug of tea in Leon at Ludgate Circus.

It is unusual for a fast-food restaurant, in that it has acres of space, alcohol, including gluten-free beer, for those who want it, five or six large tables that seat ten and an outdoor area for a sunny and warm day.

So at ten in the morning, I can always find a place to lay out my copy of The Times and read it at leisure.

Others seemed to be having breakfast meetings or encounters.

The Wikipedia entry for Ludgate Circus has a section on Stations, which says this.

Had the Fleet line of the London Underground been built, it would have had a station at Ludgate Circus. However, the Fleet line’s proposed route evolved into what is now the Jubilee line, which went south of the River Thames before reaching Ludgate Circus. In 1990 however, St. Paul’s Thameslink (later renamed City Thameslink) was opened on the site of the proposed Ludgate Circus station.

North-South Thameslink services through the double-ended City Thameslink station, with its numerous escalators and lifts, will reach twenty-four trains per hour (tph), from the current sixteen tph by the end of next year.

I could have taken Thameslink to Blackfriars station, but I walked and took these pictures on the way.

It is not a pleasant walk with all the traffic.

Next time, I’ll take Thameslink!

The reason, I went to Blackfriars, was to catch a Circle or District Line train to Tower Hill station.

Where is the Fleet Line, when you need it?

Phase one of the line ran to Charing Cross station, where it was extended to become the Jubilee Line, we have today.

The original plan for the Fleet Line as given by Wikipedia was.

Phase 2: would have extended the line along Fleet Street to stations at Aldwych, Ludgate Circus, Cannon Street and Fenchurch Street. Parliamentary approval for this phase was granted on 27 July 1971.

Phase 3: would have seen the line continue under the river to Surrey Docks (now Surrey Quays) station on the East London Line, taking over both of the ELL’s branches to New Cross Gate and New Cross stations, with an extension to Lewisham.

Parliamentary approval for this phase as far as New Cross was granted on 5 August 1971 and the final section to Lewisham was granted approval on 9 August 1972.

Phase 2 would have whisked me to Fenchurch Street station and Phase 3 sounds a lot like the current proposal for the Bakerloo Line Extension.

I very much feel that there is a need for a line across London on the route of the Fleet Line and Transport for London have a plan to extend the Docklands Light Railway, that I wrote about in A Connection Between City Thameslink Station And The Docklands Light Railway.

This map from Transport for London, shows the possible Western extension of the DLR.

With all the problems of the funding of Crossrail 2, that I wrote about in Crossrail 2 Review Prompts Fresh Delays, could this extension of the DLR, be a good idea?

It would certainly provide an East-West route at City Thameslink station.











November 6, 2018 Posted by | Transport | , , , , | Leave a comment

A Connection Between City Thameslink Station And The Docklands Light Railway

In the Wikipedia entry for the Docklands Light Railway, there is a section describing a proposed Euston/St. Pancras Extension.

This is said.

In 2011, strategy documents proposed a DLR extension to Euston and St Pancras. Transport for London have considered driving a line from City Thameslink via Holborn north to the rail termini. The main benefit of such an extension would be to broaden the available direct transport links to the Canary Wharf site. It would create a new artery in central London and help relieve the Northern and Circle lines and provide another metro line to serve the High Speed line into Euston.

This map from Transport for London, shows the possible Western extension of the DLR.

With all the problems of the funding of Crossrail 2, that I wrote about in Crossrail 2 Review Prompts Fresh Delays, could this extension of the DLR, be a good idea?

Consider,

  • Victoria, Euston and St. Pancras are prosposed Crossrail 2 stations.
  • It would link Canary Wharf and the City of London to Eurostar, Northern and Scottish services and High Speed 2.
  • It would give all of the Docklands Light Railway network access to Thameslink.
  • A pair of well-designed termini at Euston and St. Panras would probably increase frequency and capacity on the Bank branch of the system.
  • The DLR is getting new higher capacity trains.
  • Bank station is being upgraded with forty percent more passenger capacity.
  • Holborn station is being upgraded and hopefully will be future-proofed for this extension.
  • One big advantage at City Thameslink, is that Thameslink and the proposed DLR extension will cross at right-angles, thus probably making designing a good step-free interchange easier.
  • The Bank Branch of the DLR currently handles 15 tph, but could probably handle more, if they went on to two terminal stations at St Pancras and Victoria..
  • Waterloo and City Line can run at twenty-four tph.

Cinderella she may be, but then she always delivers, when there is a desperate need, just as she did magnificently at the 2012 Olympics.

The only problem with this extension of the DLR, is that compared to the rest of the system, the views will be terrible.

For myself and all the others living along the East London Line, with a step-free change at Shadwell, we would get excellent access to Euston, Saint Pancras and Victoria

But could the line still be called the Docklands Light Railway, as it spreads its tentacles further?



March 12, 2018 Posted by | Transport | , , , , , , , , | 13 Comments

Maiden Lane And York Road Stations

These two disused stations are in the area of Kings Cross Central to the North of Kings Cross and St. Pancras stations.

This map from carto.metro.free.fr shows the layout of the lines and stations.

Note.

  1. The lines into Kings Cross station shown in black.
  2. The North London Line shown in orange.
  3. The Piccadilly Line shown in blue.

It would appear that  York Road station has been designed to generous proportions.

Ian Visits

ThIs article on the Ian Visits web site, is entitled Reopening The Piccadilly line’s Disused York Road Tube Station.

Ian comes to the following conclusions.

A rebuilt Maiden Lane station on the Overground would be much cheaper to build, at around £8 million, and have much lower running costs. The site for the Overground station would be around 100 yards further to the north of York Road Station, roughly where a Camden Council maintains a bus garage.

Replacing that with the usual generic block of flats may generate the cash to fund a rebuilt Maiden Lane station.

However, York Road tube station is unlikely to ever reopen to the public again.

I very much agree.

However, there is a set of circumstances, where the building at York Road station may get reopened.

Look at this picture of York Road station.

The station building is a classic design by Leslie Green and just across the road from Central St. Martins, which is a constituent college of the University of the Arts London. So surely, if the college were to have, it’s own station, it should be to one of London’s iconic designs.

Ian gives a lot of reasons, why York Road would be an expensive station to add to the Piccadilly Line, despite the fact that it could have lifts like Caledonian Road descending to the platforms.

But suppose the Docklands Light Railway were to be extended from Bank station as has been proposed.

This map shows a possible route.

But why stop at S. Pancras.? It could be extended under Kings Cross station, stopping where required to finish at York Road station.

  • Only the building would be used.
  • There would be no connection to the Piccadilly Line.
  • The Docklands Light Railway tunnels would be several metres down to travel under buildings and the stations.
  • An underground passage could be built to a reopened Maiden Lane station.

A worthwhile use would have been found for an iconic building and Kings Cross Central would have much better public transport connections.

February 23, 2018 Posted by | Transport | , , , , | 2 Comments

Extending The Docklands Light Railway West From Bank Station

Two possible routes have been proposed foe extending the Docklands Light Railway to the West

Whether either is worth developing, I don’t know.

But consider.

  • The Thameslink Programme will improve access between London Bridge and Charing Cross stations, which could take pressure off the Jubilee Line.
  • The Thameslink Programme will improve Southeastern services into Cannon Street and Charing Cross stations.
  • Charing Cross station has a couple of spare platforms, that some would like to re-use.
  • Euston and St. Pancras stations have bad access to Canary Wharf and South East London.
  • The Bakerloo Line Extension has been given the green light.
  • Crossrail connects Canary Wharf to Bond Strreet, Heathrow, Liverpool Street and Paddington.

But the big issue, is what happens about Crossrail 2.

I feel that the more likely extension to the West is to go from Bank to Euston via City Thameslink and Holborn and/or Tottenham Court Road stations and finish by going on to St. Pancras.

It could link HS2 at Euston and European services at St. Pancras to the following.

  • Thameslink at City Thameslink station.
  • Crossrail at Tottenham Court Road station.
  • Bank and Canary Wharf stations.

It would also provide a decent link between the long distance services at Euston, Kings Cross and St. Pancras.

These factors would also influence the design of the DLR Extension.

  • The DLR has all the agility of a mountain coat to climb hills and turn sharply, so it might be possible to squeeze it through places impossible for a Crossrail or an Underground line.
  • 3D-design techniques are getting better every year.
  • Tunnel boring machines are getting more accurate.
  • Escalators are getting longer.

So could we see the extension going from Bank to City Thameslink as a traditional extension and then going in a long double-track loop via some or all of the following stations.

  • Holborn
  • Tottenham Court Road
  • Oxford Circus
  • Regents Park
  • Euston
  • St. Pancras
  • Covent Garden

It would all depend on where they could squeeze the tracks through.

  • Stations could be island platforms between the tracks.
  • Platform edge doors could be fitted.
  • Escalators and lifts could link the platforms to existing station.

There’s no reason why the line should be designed traditionally for the DLR.



February 17, 2017 Posted by | Transport | , , , , , | 1 Comment
