Exploring The Route Of The Midland Metro Extension To Victoria Square

The extensions at both ends of the Midland Metro in Birmingham and Wolverhampton City Centres will be a first for the UK, in that they will be catenary-free and the trams will run on battery power.

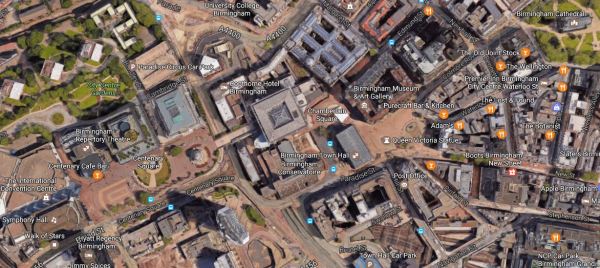

This Google Map shows the area, where the initial extension will go in Birmingham City Centre.

birminghammetroextension

Places of interest are.

  • The cathedral is in the North-East corner.
  • New Street station is in the South-East corner.
  • Victoria Square and the Town Hall are just to the East of the middle.
  • Centenary Square is towards the West side.

This description comes from this page on the Metro Alliance web site.

840m of twin track from Birmingham Grand Central at Stephenson Street, up Pinfold Street through Victoria Square, Paradise St, past Paradise Circus into Centenary Square at Broad St.There will be an intermediate stop outside the Town Hall in Victoria Square, and we will interface with the Navigation Street link.

One of the problems at the moment, is that the development of Paradise Birmingham, seems to sit in the middle of the route.

These pictures show the area of Victoria Square and the route up from New Street station.

Note.

  • The steep hill of Pinfold Street.
  • The route seemed to have been prepared ready for the track to be fitted into the road surface.
  • Utilities seemed to have been moved.
  • When I took the pictures, the Midland Metro had parked a tram at the limit of the current track at the bottom of Pinfold Street.

Climbing The Hill

You can’t accuse Birmingham of lacking ambition, as Pinfold Street is a proper hill.

But then!

  • It is the only steep hill on the route to Centenary Square.
  • The tram will start the ascent with full batteries.
  • There will be no problems coming down.
  • This extension is only 840 metres in length.
  • The MetroCentro in Seville has used similar technology on a 1.4 km. route since 2007.
  • CAF have technology that charges batteries fast.
  • Battery technology has moved on in the last ten years.

If in practice, it does prove a difficult climb, overhead wires could be put on sufficient of the lower part of the up-track on Pinfold Street.

These wires wouldn’t be visible from Victoria Square, so wouldn’t effect the architectural integrity pf the area.

Onward to Edgbaston

According to this article in Rail Technology Magazine, the further four kilometre extension to Egbaston, is also intended to be catenary-free.

As the trams could be charged at Edgbaston, I think this could be possible.

But I doubt CAF would propose the use of batteries, if they hadn’t already proven the range, which is not outrageous.

The Next Step

I looked at a lot of the route of the first section to Victoria Square today, and it would appear that the roadway has been prepared for fitting the track.

So could we see an accelerated development of the first part of the extension?

It would be a good test of the technology, with little risk to the Midland Metrolink!

If the trams can’t make the hill on baqtteries, it would need to be wired, but you could always blame Spanish engineering.

Conclusion

It is a very well-designed scheme.

I wonder, if we’ll see Edinburgh batteries on their CAF trams?
