Tram-Trains To Hale Station

In Manchester Metrolink Extensions In A Sentence, I quoted this sentence from the Manchester Evening News.

It includes tram extensions to Port Salford, Middleton and Stalybridge, plus ‘tram trains’ to Hale, Warrington, Gorton and Glossop.

How would tram-trains from Hale join the current Metrolink network?

Hale Station

Hale station, is located in a busy and important village, in the middle of Cheshire’s footballer suburb, if you believe the tabloids.

The station has some problems.

  • The station needs a refurbishment.
  • The station needs step-free access.
  • The level crossing needs removing.

But the biggest problem is that there is only an hourly service serving the station, that runs between Manchester Piccadilly and Chester stations. To make matters worse the train is only two cars. My train was a Pacer, as the pictures show.

Onward To Knutsford, Northwich, Middlewich and Sandbach

In Business Case Requested For Middlewich Reopening, I looked at the opening of Middlewich station on the Northwich to Sandbach Line, which is just a dozen miles to the West of Hale station.

I’m certain in other parts of the UK, like East London, Nottingham and East Lancashire, that the provision of a train service between Middlewich and Manchester would be heavily patronised.

Or is it that the people in Cheshire too posh to use trains?

The Wikipedia entry for Middlewich station, says this about the initial service, when the station opened. in 1868.

The basic train service for passengers was from Crewe via Sandbach to Middlewich and Northwich. Some trains reversed at Northwich and then continued to Hartford and Greenbank and then along a short stretch of the West Coast Main Line (WCML) to Acton Bridge.

If the Northwich and Sandbach Line is ever reopened, surely one possibility for a train service is between Crewe and Manchester via Sandbach, Middlewich, Northwich, Hale and Altrincham.

  • Such a service would allow passengers between Althincham and Sandbach to have a handy connection to Crewe with its famed connectivity.
  • It would be a very useful commuter service to and from Manchester.
  • If it had a frequency of two trains per hour (tph) it would give a substantial increase to train services between Northwich and Altrincham.
  • It could possibly ease the overcrowding on the Styal Line.

By 2030, it would even provide a link to High Speed Two at Crewe, in addition to the connection in Manchester.

The Class 399 Train-Train

The Class 399 tram-train is a cross between a tram and a train.

  • They are members of the Stadler Citylink family of tram-trains.
  • In the UK, they are already running successfully between the centre of Sheffield and Rotherham Parkgate Shopping Centre.
  • In Sheffield, they work as trams and drivers have told me, they are powerful trams, that cope with Sheffield’s hills extremely well.
  • The tram-trains have step-free access between tram-train and platform.
  • On the National Rail lines to Rotherham, they cruise happily at 100 kph, which is almost as fast as a Class 156 train.
  • They can run on both 25 KVAC and 750 VDC overhead electrification.
  • Trains for Wales have ordered thirty six similar tram-trains, that can run on battery power, where electrification has not been erected.

This is one of Sheffield’s Class 399 tram-trains at Rotherham Parkgate.

Note the step-free access.

They are a very versatile tram or train, depending on where they are running.

I would suspect the following will happen in the next few years.

  • Sheffield are planning to replace their ageing tram fleet and they will look seriously at more Class 399 tram-trains, as they perform well as trams and the region needs more tram-trains.
  • Manchester have stated that they are looking seriously at tram-trains and Class 399 tram-trains will surely be considered.
  • Other tram networks are looking at tram-trains and they won’t ignore the Class 399 tram-train.

I feel we can expect to see more of these tram-trains in the UK.

Manchester Metrolink Needs More Trams

Manchester Metrolink will need more trams in the next few years and I wouldn’t be surprised that the new ones had a tram-train capability.

Possible Tram-Train Routes To Hale

These are possible routes.

A Metrolink Extension From Altrincham

This is the simplest option, where tram-trains would replace some or all of the service on the Atrincham and Bury and Altrincham and Piccadilly Metrolink services.

The tram-trains would probably need to have a battery capability and this would easily handle the less than a mile between Altrincham and Hale stations, without any electrification.

A Northward Extension From Manchester Victoria Station

In Could A Class 399 Tram-Train With Batteries Go Between Manchester Victoria And Rochdale/Bury Bolton Street/Rawtenstall Stations?, I looked at the possibilities of a Northward extension of the Metrolink,  using tram-trains, that had been suggested by an article in the February 2019 Edition of Modern Railways.

I have included it here, as it would be a good destination for a cross-city tram-train service, that started at Hale.

A Southward Extension From Altrincham To Middlewich

If the Sandbach and Northwich Line were to be reopened to traffic with a station at Middlewich, this would be a possible Southern terminus for the route.

The distance would probably be too far for battery operation, so there would be a need to electrify the extension using either 25 KVAC main line or 750 VDC tramway electrification.

As the route has been used by Virgin’s Euston and Chester services as a diversion route, and the Crewe and Chester Line has a high priority for electrification, there is a chance that lines in the area will be electrified.

This could mean the tram-trains could easily run from Altrincham as far as Crewe, as the route could be fully electrified.

Tram-Train Between Manchester Piccadilly and Hale Via Stockport

On the route between Manchester Piccadilly and Hale station via Stockport, there are only two stations between Stockport and Hale station; Navigation Road and Altrincham.

Would it be feasible or worthwhile to convert this route into tram-train operation by perhaps adding 750 VDC overhead electrification?

  • There is typically one or two freight trains and one Chester and Manchester Piccadilly service in each direction in every hour, so two tram-trains per hour in each direction should be possible.
  • Stops could be added at convenient places.
  • Between Stockport and Manchester Piccadilly stations, the existing 25 KVAC electrification would be used.

It would not be the largest project.

The Refurbishment Of Hale Station

Hale station needs a refurbishment and a step-free bridge.

In Winner Announced In The Network Rail Footbridge Design Ideas Competition, I wrote how the competition was won by this bridge.

So could a factory-built bridge like this be installed at Hale station?

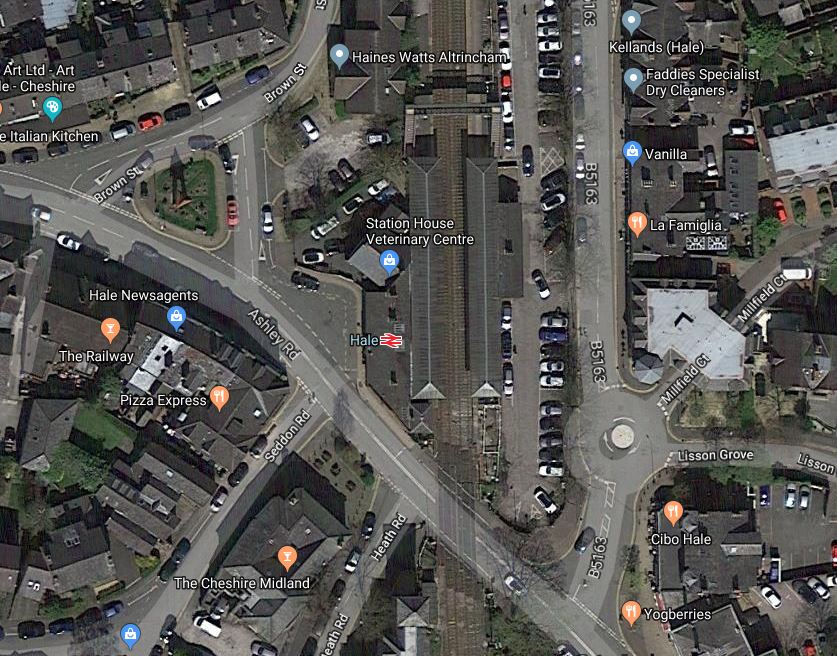

This Google Map shows Hale station.

I think a new bridge could be installed at the Northern end of the station, if it were to be decided that the current one couldn’t be fitted with lifts.

The Electrification And Bi-Mode Alternative

As I said earlier the Crewe and Chester Line could be electrified, which would enable electric trains to run between London and Chester.

However, since the award of the West Coast Partnership to First Trenitalia, I now think it is unlikely the Crewe and Chester Line will be electrified in the near future, as new bi-mode trains will be ordered for North Wales services.

But I don’t reject the notion, that Northern will run bi-mode Class 769 trains between Manchester Piccadilly and Chester.

These trains could use the electrification between Stockport and Manchester Piccadilly stations.

Conclusion

Tram-trains and much improved services to Hale are a distinct possibility.
