Equipmake Opens New Electric Bus Factory In Snetterton

The title of this post, is the same as that of this press release from Equipmake.

This is the introductory paragraph.

Expert electrification company, Equipmake, has opened a brand-new factory in Snetterton, Norfolk, which will design and manufacture its fully-integrated electric bus chassis for an increasingly international customer base.

This paragraph sums up their marketing philosophy for their bus chassis.

Equipmake’s innovative electric bus chassis allows any bus coachbuilder to become a full electric bus manufacturer almost overnight. Such is the demand from bus makers wishing to go zero emissions that Equipmake has forged partnerships with companies in Brazil, Argentina and India and grown its UK staff from 15 employees to 52 in a little over two years.

Equipmake certainly seem to be doing something right.

  • They make their own electric motors.
  • They claim to make the world’s most power dense electric motors.

Perhaps, it’s all down to good design?

This paragraph from the press release gives more details of the bus chassis.

Thanks to efficient management of its onboard heating and cooling system, the bus – a 12m single deck model capable of carrying 70 passengers – will have enough electric range for one day’s running without the need for charging. To charge the vehicle, the operator simply needs access to a standard three-phase supply, which will fully charge it in around five hours.

That seems impressive to me!



May 6, 2020 Posted by | Transport | , , , , | 2 Comments

The Proposed MSG Sphere At Stratford

I have been reading about the proposed MSG Sphere at Stratford in East London.

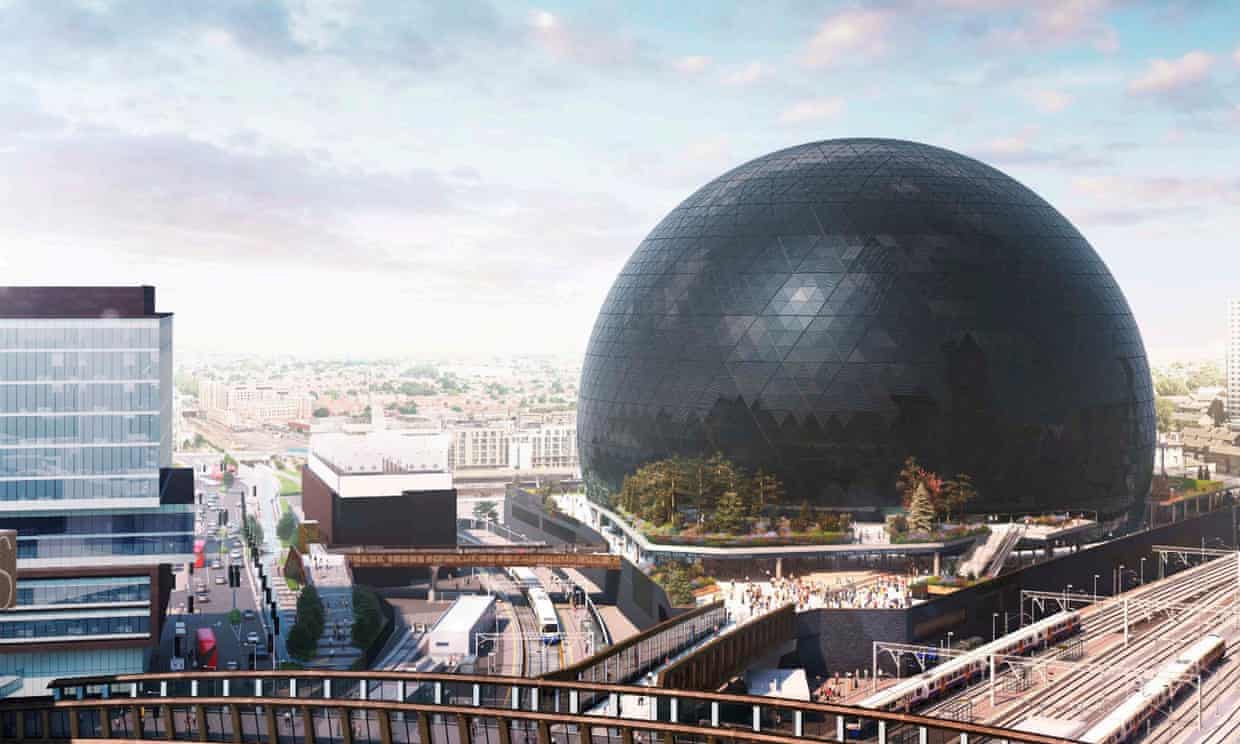

Note.

  1. The railway lines to the left of the sphere are platforms 11 and 12 of Stratford station on the West Anglia Main Line.
  2. The Great Eastern Main Line goes off to the right.

This article in the Guardian gives a good outline of the building and its promoters and backing.

But it won’t be plain sailing to get planning permission, as this paragraph explains.

Worries have already been voiced by local residents. A petition launched four months ago argues that the building will block sunlight, create light pollution and increase traffic in the area. Others have opposed MSG, whose executive chair, James Dolan, has donated funds to Donald Trump, and was on the board of the Weinstein Company from 2015-16. Beverley Whitrick, strategic director of the Music Venue Trust, has argued< that some audiences would feel uncomfortable in a venue from a Trump backer.

Protestors also believe the site should be used for housing, as Newham has over 25,000 households on the housing waiting list.

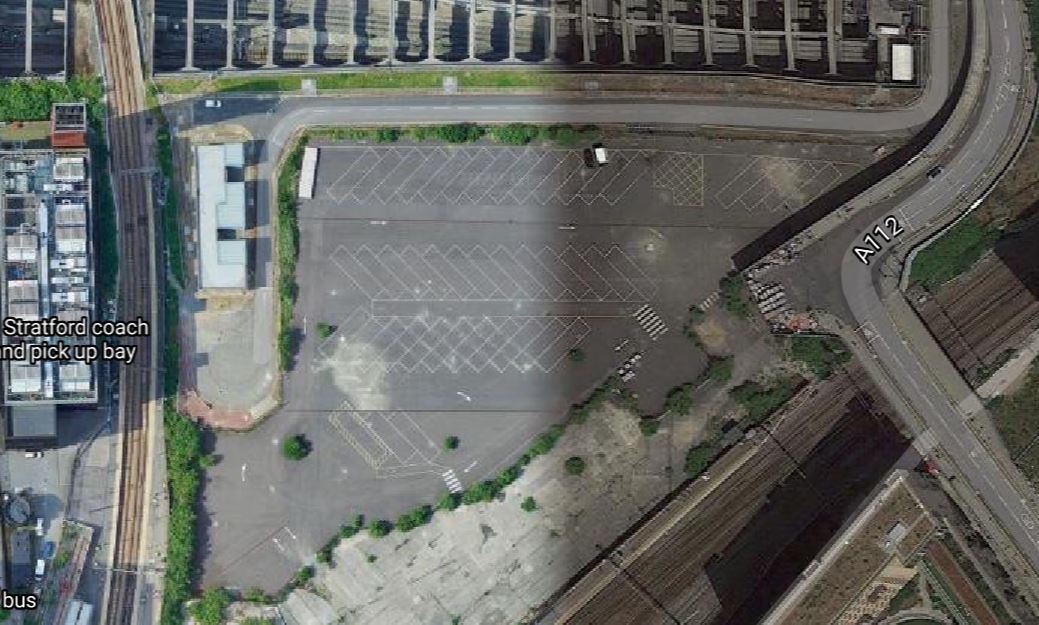

This Google Map shows the site.

Note.

  1. The site was used as a coach park during the 2912 Olympics.
  2. The Channel Tunnel Rail Link runs across the Northern edge of the site.
  3. The Great Eastern Main Line runs along the South-Eastern edge of the site.

As the sphere will be five hundred feet across, it must almost fill the site.

And then there’s this article in The Telegraph, which is entitled Crossrail Objects To Plan For London Mega-Venue.

This is the introductory paragraph.

Crossrail’s operator is seeking to block plans for a “second O2” in London, over concerns flashing lights from the proposed entertainment venue could cause crashes, with trains travelling at up to 80mph.

Crossrail have a serious point.

May 6, 2020 Posted by | Transport, World | , , , , | 1 Comment

Majority Of Ready-to-Build UK Battery Storage Projects Are Bigger Than 30MW

The title of this post is the same as that on this article on Energy Storage News.

This is the introductory paragraph.

There are 1.3GW of read-to-build battery storage projects in the UK, with the majority between 30MW and 49.9MW power output per project, according to new analysis from Solar Media Market Research.

There is certainly a lot of energy storage being developed in the UK.

But then Wind Power In The UK is set to rise substantially to at least 40GW, in the next few years.

May 6, 2020 Posted by | Energy, Energy Storage | | Leave a comment

Ian Publishes Details Of Future Developments At Euston And Euston Square Underground Stations

This post on the Ian Visits blog is entitled A New London Underground Entrance To Euston Station.



The Underground Lines In The Euston Station Area

This map from carto.metro.free.fr shows the Underground Lines in the Euston station area.

Note.

  1. The sub-surface lines run underneath the busy Euston Road.
  2. Platform 2 at Euston Square station has no lift or escalator.
  3. Platform 1 at Euston Square station has a lift, which also serves the subway.
  4. To connect between the sub-surface lines at Euston Square and the deep lines at Euston means a walk on the surface.
  5. Euston station only has two up and two down escalators and no lifts for the six deep-level platforms.
  6. To connect between the Bank and Charing Cross branches of the Northern Line is often along a very crowded passage.

This interchange has not been fit for purpose since the Victoria Line was built in the 1960s.

A Second Entrance To Euston Square Station

One of the key projects to unlock the interchange, is to create a subway from the current Euston station.

It will lead to a new entrance placed in the middle of Gordon Street.

The subway will have stairs, escalators and/or lifts to connect to the Eastern ends of the current Euston Square platforms.

Ian showed this diagram of the subway.

Note.

  1. It serves both platforms at Euston Square station.
  2. It looks to be reasonably wide and level.

These are some pictures I took on a walk round the area.

This is a possible future visualisation from Ian’s site.

The new Gordon Street entrance appears to be opposite the porticoed building, which is part of University College London.

  • The view is looking North, like the first three of my pictures.
  • Gordon Street appears to be at least part-pedestrianised.
  • Escalators are visible.

It looks to be a London version of Bilbao’s fosteritos.

Fosteritos are named after Norman Foster, as he or his practice designed the Bilbao Metro.

  • The escalators in Bilbao are longer than would be needed at Gordon Street.
  • I don’t think that fitting in a slimline lift would be difficult.

I like the fosterito concept and I feel a similar approach could be used to add step-free access to a lot of stations on the London Underground.

The Design Of The Updated Euston Underground Station

Ian showed this visualisation of the updated Euston Underground station.

At a first look, it appears to be a very similar concept to the entrance to the Underground in front of St. Pancras station.

Click on the image to show it large and you can pick out the following.

  • West is to the left and East is right.
  • Much of the construction appears to replace the original car park and taxi rank.
  • The upper level looks like where passengers enter and leave the station.
  • The subway to Euston Square station and the new Gordon Street entrance joins to the upper level towards the Eastern end.
  • There is grade access between the upper level and the High Speed Two concourse.
  • There are lots of escalators to travel between levels. The square orange columns could be lift towers.
  • The lower level is the Interchange/Ticket Hall level.
  • The lower level is not much higher than the Charing Cross branch of the Northern Line.
  • The design seems to make clever use of levels to make changing easier.
  • The access between the lower level and the Charing Cross branch of the Northern Line at the Western end of the station, appears to be comprehensive and step-free.
  • The access between the lower level and the Victoria Line and the Bank branch of the Northern Line, appears to use the current route, which will probably be upgraded to be fully step-free.

This second image shows the design from above the platforms of the convention section of Euston station.

Click on the image to show it large and you can pick out the following.

  • The complicated passages, escalators and lifts of the existing four platforms serving the Bank branch of the Northern Line and the Victoria Line.
  • The cross passage connecting these lines to the platforms of the Charing Cross branch of the Northern Line.
  • The two up and two down escalators leading to the existing ticket hall.
  • The Charing Cross branch of the Northern Line curving in and away from the station. See the earlier map of the Underground lines.
  • The eleven High Speed platforms on the West side of the station.
  • The thirteen Classic platforms on the East side of the station.
  • The new Northern entrance to the Underground between the two sets of platforms. How convenient!
  • There appears to be a wide passage between the Northern and Southern entrances, with connections to the lines branching off.
  • The subway to the new Gordon Street entrance is shown at the top of the image.

The design seems to have separated access to the two branches of the Northern line, by creating a new high-capacity route to the Charing Cross branch.

I also think, that the design allows the station to be built without disrupting passengers using the Underground and the current Euston station.

  • A large hole for the station can be excavated, without touching existing access.
  • It could then be fitted out section by section.
  • Once the new access to the Charing Cross branch of the Northern Line is complete, the current access to the Northern and Victoria Lines can be refurbished.

Arriving At Euston

Imagine you are a passenger arriving from the North, who knows the Underground line, you need to take, you would then enter the Underground station using the new Northern entrance.

  • For the Bank branch of the Northern Line or the Victoria Line, you would go through the existing ticket hall and down the escalators, much as you do now! Except that you’d enter the ticket hall on the other side from the East side of the passageway connecting the two entrances. New lifts appear to be shown.
  • For the Charing Cross branch of the Northern Line, you would take the passages, lifts and escalators on the West side of the passageway connecting the two entrances.
  • If you wanted the sub-surface lines, you would just keep going and take the new subway, which connects to the Eastern ends of the platforms at Euston Square station.

It will certainly do me fine, if I arrive at Euston, as I’ll walk through the subway and get in the front of any Eastbound train for Moorgate station, where being in the front is convenient for the exit and the nearby bus stop to my home.

This route will surely be one of the ways arriving passengers at Euston will get Crossrail to Abbey Wood, Canary Wharf and Shenfield stations. In Crossrail – Northern – Northern City Interchange At Moorgate Station, I show some visualisations of Moorgate station and the connectivity.

Conclusion

I certainly think, that the new Underground station is a good design.



May 6, 2020 Posted by | Transport | , , , , , , , | 6 Comments

Rail Solar Project Seen As Stepping Stone For Renewables

The title of this post is the same as that of this article on Engineering & Technology.

This is the introductory paragraph.

A British solar power company is working on technology that could enable railways all over the world to be powered by renewable energy, with South Wales seen as a likely testbed for the equipment.

Riding Sunbeams is developing its technology to see if it can be part of the electrification of the South Wales Metro.

Some relevant points from the article.

  • Their test installation at Aldershot, which is rated at 37 kW, is quite small.
  • The Aldershot system is already delivering power to trains.
  • The Welsh Government are aiming for the South Wales Metro to be powered by renewable energy, of which 50 % is generated in Wales.
  • There could be export possibilities for the technology.

Note that the article gives an interesting insight into the various equipment needed to power railway electrification.
