Gospel Oak Speed Increases

London has a rail capacity problem, for both freight and passenger trains.

This report from Network Rail is entitled The London Rail Freight Strategy (LRFS).

One of the secondary recommendations of the report is to increase speed through Gospel Oak.

The report explains it like this.

This proposal would see the current 20mph line speeds through Gospel Oak increased, through an upgrade to the junction immediately to the west of the station. Improving the flow of traffic through this critical flat junction, where the North London Line and Gospel Oak-Barking Line meet, would be of benefit for the wider operations and performance of these orbital routes. Freight trains in particular, which run non-stop through Gospel Oak, using all available routes, would see a notable uplift to how quickly they are able to pass through the area.

This would not only contribute to achieving the fast end-to-end cross-London paths that are a priority for freight but would also reduce the time trains would occupy the junction, increasing performance resilience at Gospel Oak, the impact of which would drive improvement right across the North London Line and Gospel Oak and Barking Line.

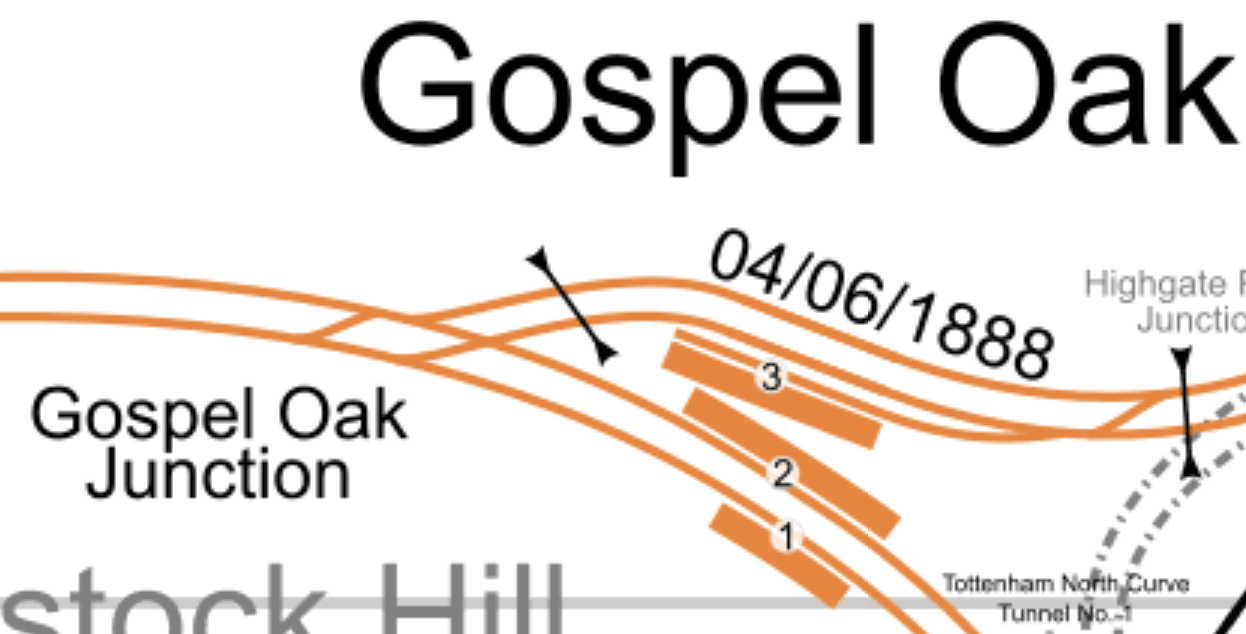

This map from cartometro shows the track layout at Gospel Oak.

Note.

  1. The double-track North London Line passing through Platforms 1 and 2 at Gospel Oak station.
  2. The double-track Gospel Oak and Barking Line passing to the North of the station.
  3. Platform 3 is a West-facing bay platform for services to Barking.
  4. There is no Westbound connection to Platform 3.
  5. All tracks in the map are hace 25 KVAC overhead electrification.

The two double-track railways merge west of the station at Gospel Oak junction.

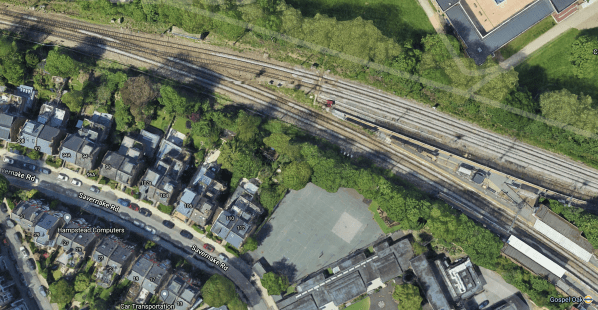

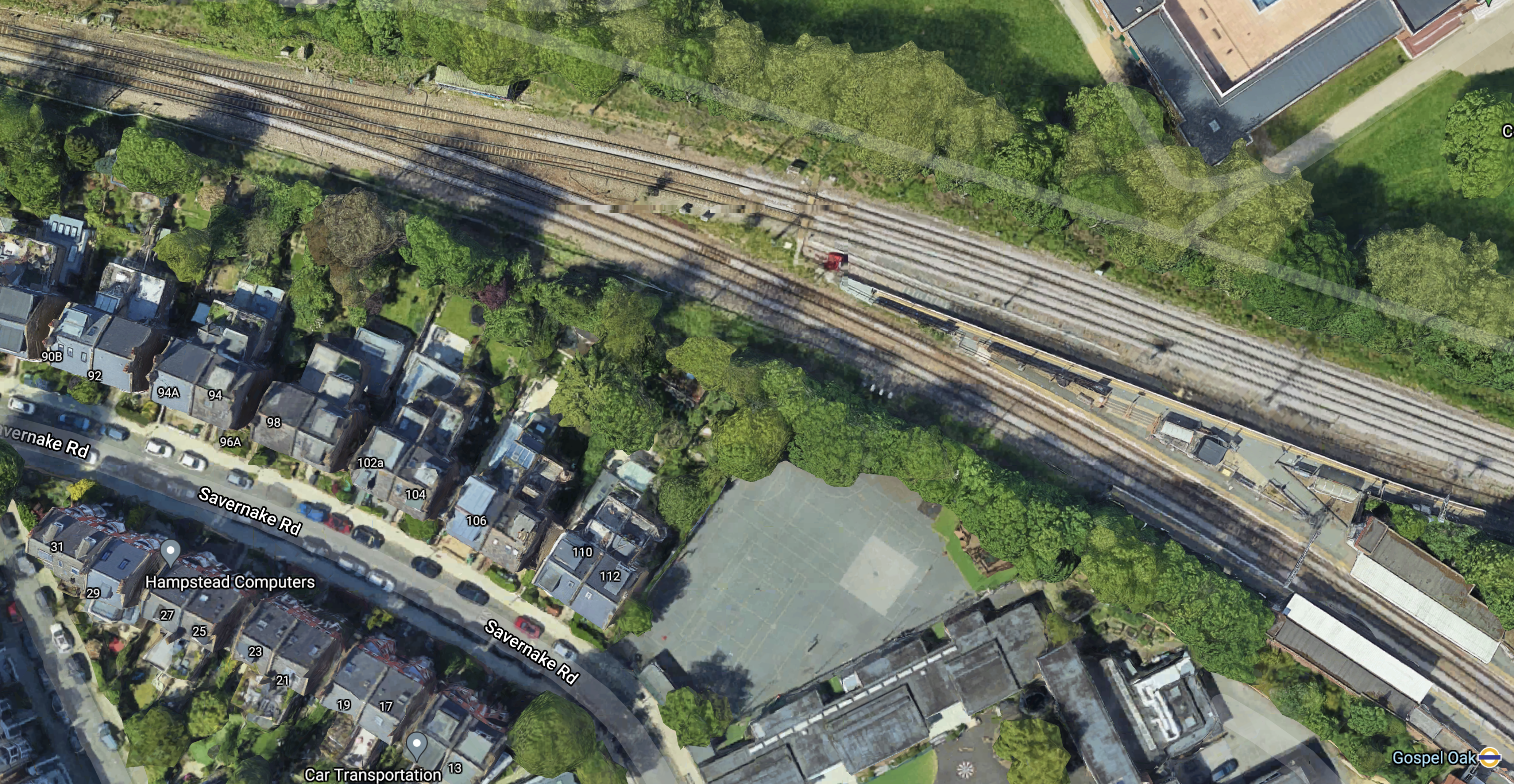

This Google map shows the same area.



Note.

  1. Gospel Oak junction is in the North-West corner of the map.
  2. Platform 1 and 2 of Gospel Oak station are in the South-East corner of the map.

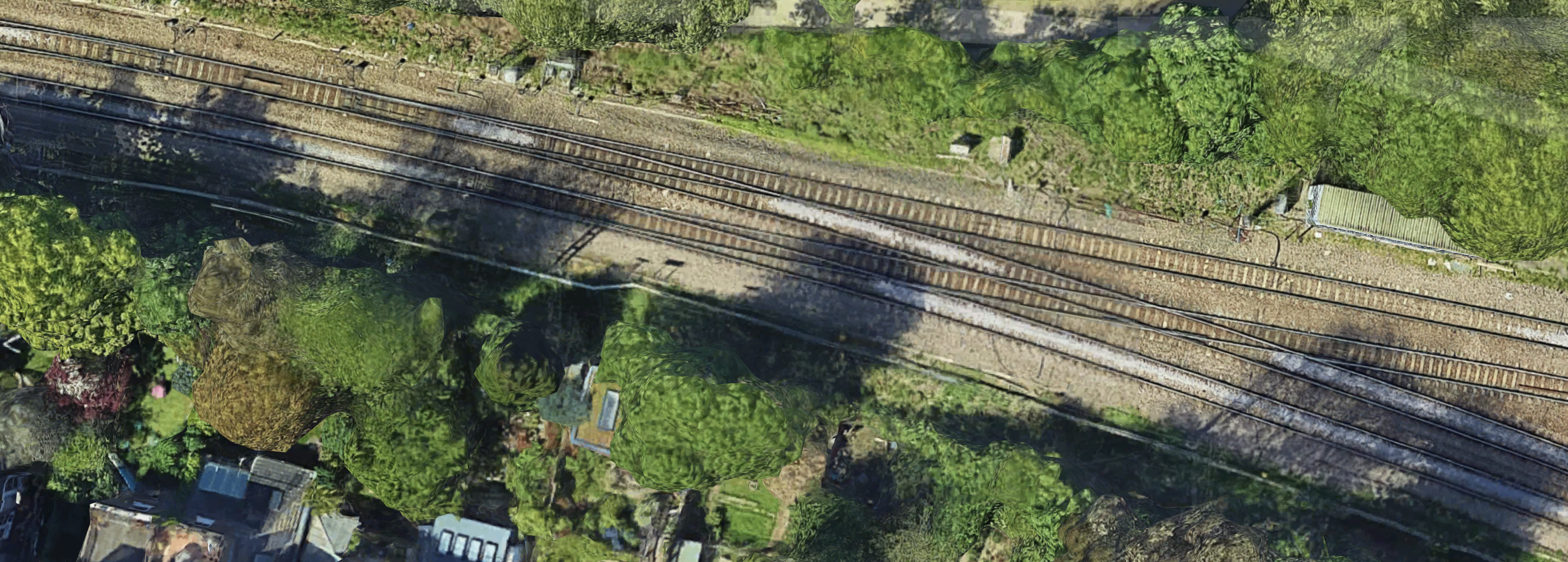

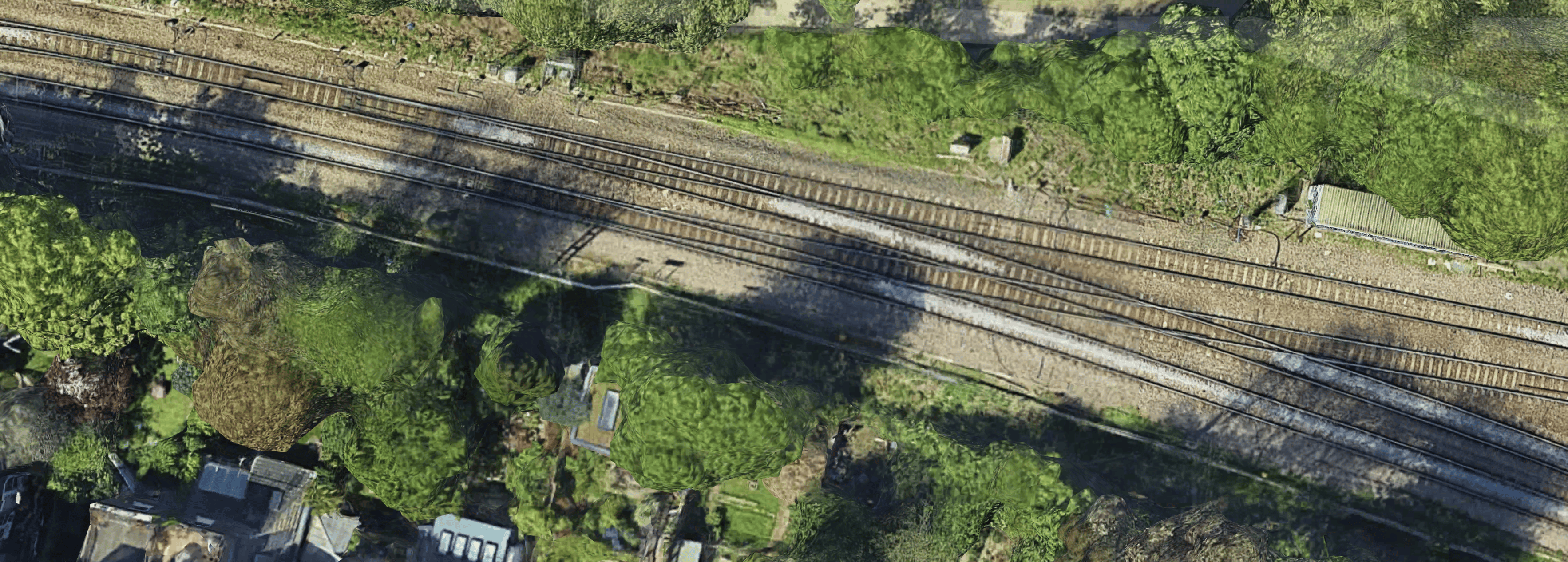

This Google map shows the junction to a larger scale.

There would appear to be space to the North of the junction for expansion.

It might even be possible to squeeze in another line, so that trains can go straight through at a faster speed.

Conclusion

This looks like another junction, that could be easy to improve on an engineering basis.

But whether the locals will accept it quietly could be another matter.
