The New Track Layout At Bank And Moorgate Stations

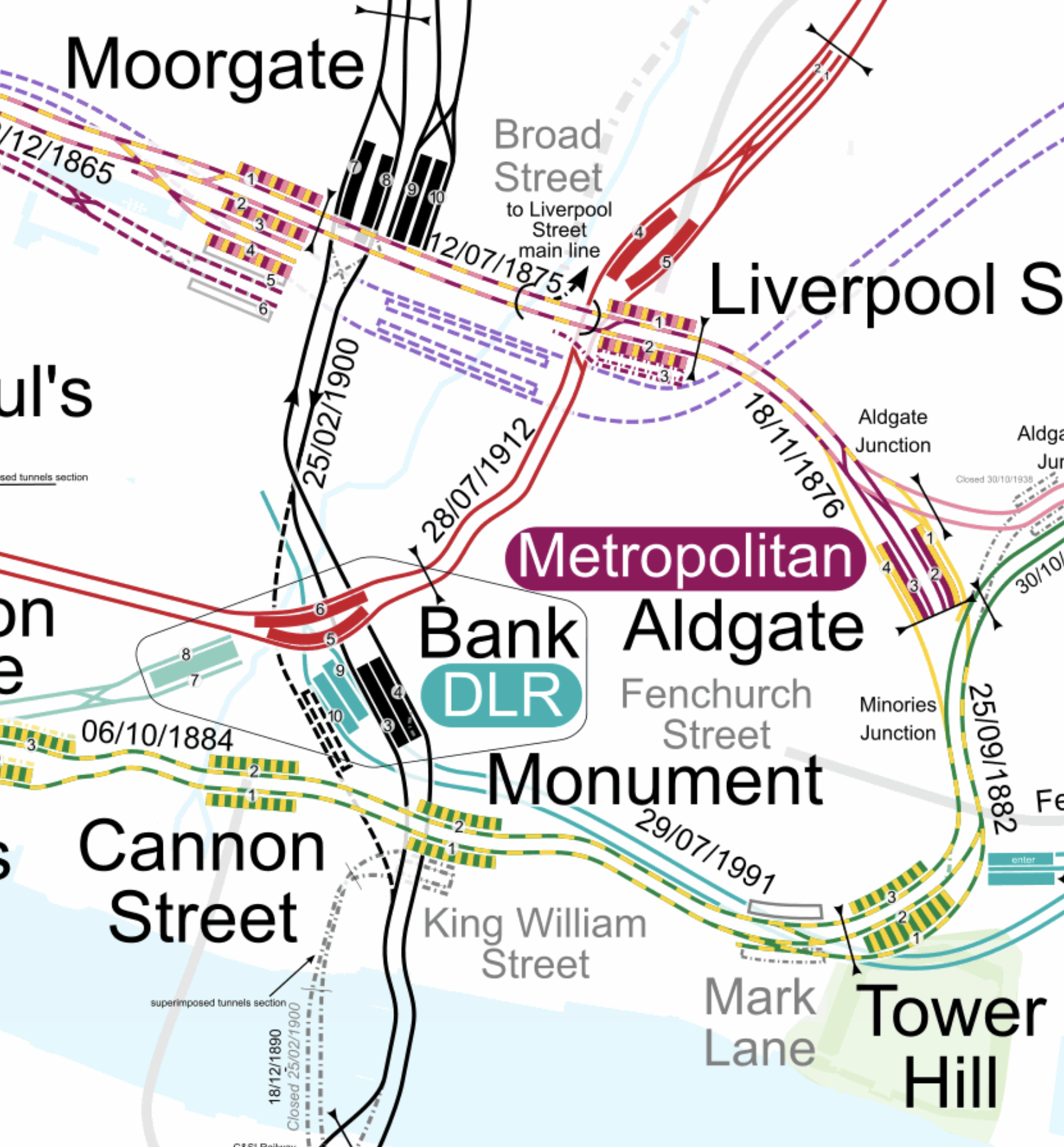

This map from cartometro.com shows the new track layout through Bank And Moorgate.

Note.

  1. Crossrail is shown in purple.
  2. The Central Line is shown in red.
  3. The Circle, Hammersmith and City and the Metropolitan lines are shown in yellow and mauve.
  4. The Circle, District lines are shown in yellow and green stripes.
  5. The Northern Line is shown in black.
  6. The Northern City Line, that terminates at Moorgate is also shown in black.

The routes of the Northern Line are now clear from the map.

The Northbound Route Of The Northern Line

The Northbound trains pass through the following platforms.

  1. The Easternmost platform, which is numbered 4 at Bank station.
  2. The Western Northern Line platform, which is numbered 7 at Moorgate station.

This route of the Northbound tunnel will be identical before and after the works.

The Original Southbound Route Of The Northern Line

Until January this year, the Southbound trains passed through the following platforms.

  1. The Eastern Northern Line platform, which is numbered 8 at Moorgate station.
  2. The original Western Northern Line platform, which was numbered 3 at Bank station.

Note how the Northbound and Southbound tracks cross between the two stations.

The New Southbound Route Of The Northern Line

The new Southbound route is shown dotted on the map.

  • The new Southbound platform is also shown dotted.
  • The Northbound and Southbound tracks still cross between the two stations.

The tracks don’t return to standard left-hand running until South of Borough station.

After the line fully-reopens, some time in May this year, the Southbound trains will pass through the following platforms.

  1. The Eastern Northern Line platform, which is numbered 8 at Moorgate station.
  2. The new Western Northern Line platform at Bank station.

Effectively, the Southbound tunnel has been moved to the West to create more space in Bank station.

Conclusion

The design of the new tunnel appears simple, but I don’t think it was that easy to construct.





April 28, 2022 Posted by | Transport/Travel | , , , , , , | Leave a comment

London Underground: Safety Checks Cause Metropolitan Line Disruption

The title of this post, is the same as that of this article on the BBC.

These are the first three paragraphs.

Urgent safety checks are being carried out on trains running on the Metropolitan line section of the Tube, Transport for London (TfL) has said.

TfL is warning of severe disruption as engineers check over the entire fleet of trains – which also run on the Circle and Hammersmith & City lines.

The trains were only introduced in 2010, but TfL said a fault had been identified on some of their wheels.

Obviously, safety is a priority and it will take some time to check all of the trains.

I have used these trains several times in the last few days and there are extended intervals between services.

Could Crossrail Come To The Rescue?

Consider.

  • Crossrail has interchanges with the Circle, District, Hammersmith & City and the Metropolitan Lines at Whitechapel, Liverpool Street, Moorgate, Farringdon, Paddington and Ealing Broadway.
  • Crossrail trains have been running between Paddington and Abbey Wood for a few months.
  • Crossrail has good connections to the Central and Jubilee Lines.

Perhaps, opening Crossrail at a lower frequency may take the pressure off the system?



April 28, 2022 Posted by | Transport/Travel | , , , , | Leave a comment

A Massive Task For Ukraine?

After the Russians are thrown out of Ukraine, it will be a massive task to rebuild Ukraine.

But one of Ukraine’s traditional industries can also be used to transform the world.

The Transformation Of Energy Production To Floating Offshore Wind

I believe that over the next few years, we will see an enormous transformation of zero-carbon energy to floating offshore wind.

  • The floating offshore wind industry is planning to use the next-generation of larger wind turbines of up to 20 MW.
  • These turbines are too large and intrusive to install onshore.
  • Floating wind turbines generally have a higher capacity factor of over 50 %, than onshore turbines.
  • Each wind turbine will be mounted on a substantial semi-submersible float, which is built out of large-diameter steel tubes
  • The wind turbines are of the same design, as those installed onshore.
  • There are several designs for the floats and they are usually based on designs that have worked in the oil and gas industry.

The world will need millions of floating turbines and an equivalent number of floats to fully decarbonise.

Could The Ukrainians Build The Floats?

Consider.

  • The Russians have destroyed Mariupol, whilst the Ukrainians have defended the city in the steelworks.
  • Mariupol used to have a large shipbuilding industry.
  • Ukraine is in the world’s top ten of iron ore producers.
  • There is a lot of scrap steel available in the Ukraine, that the Russians have left behind.
  • The Ukrainians probably have a lot of workers, who have the skills to build the floats.

I’m sure something could be arranged for the benefit of everybody.

April 28, 2022 Posted by | Energy | , , , , , , , , , | Leave a comment

Two More Floating Wind Projects In The Celtic Sea

In Two Celtic Sea Floating Wind Projects Could Be Delivered By 2028, I said this.

There now appears to be four floating wind farms under development in the Celtic Sea between the South-West corner of Wales and the Devon and Cornwall Peninsular.

  • Blue Gem Wind – Erebus – 100 MW Demonstration project  – 27 miles offshore
  • Blue Gem Wind – Valorus – 300 MW Early-Commercial project – 31 miles offshore
  • Falck Renewables and BlueFloat Energy – Petroc – 300 MW project – 37 miles offshore
  • Falck Renewables and BlueFloat Energy Llywelyn – 300 MW project – 40 miles offshore

But they do create a starter for a GW.

Last night, I found two other projects being developed in the Celtic Sea, under the collective name of the Llŷr Project.

The sponsoring company, which appears to be called Llŷr Wind has a web site, with a title of Harnessing Welsh Energy, which has this outline description underneath.

Situated off the Pembrokeshire coast, in southwest Wales, is a flagship project that could transform the world’s ability to generate renewable electricity from wind. The Llŷr projects are exploring the potential of two innovative floating offshore wind technologies.

The next statement is key.

Combined, the two 100MW projects will generate enough renewable electricity to power around 250,000 homes. If successful, we will be able to offer highly cost-effective, floating offshore wind farms to the rest of the world by 2030.

The Llŷr Project would appear to be a research project to find the best way to generate electricity using floating wind turbines in deep water.

  • It appears that the two wind farms will use different floats for the turbines.
  • The Llŷr projects are located in the approaches to the Bristol Channel in the Celtic Sea approximately 40 kilometres offshore at depths averaging 60-70 metres.
  • These offshore sites enjoy high average windspeeds which are, typically, in excess of 10 metres per second. That is over twenty miles per hour.
  • Each 100MW project will comprise 6 to 8 next-generation turbines which are too large to be deployed on land.
  • 6 x 20 MW turbines will be 120 MW.
  • 8 x 12 MW turbines will be 96 MW.
  • Each project will have an offshore substation.
  • There will be up to two connections for each substation.
  • Will the Llŷr Projects test manufacturers’ new turbine designs?
  • It is hoped that installation of the turbines will start in 2025/26, with power being delivered in 2026/7.
  • The project is being developed by Floventis Energy, which is a joint venture of SBM Offshore and Cierco.

It does look to me that SBM Offshore, who are a Dutch company, are using their extensive oil and gas experience to develop floating offshore wind.

This appears to be a very well-thought out research project in a location, where there is everything needed.

  • Lots of wind, which can be boosted by dragons if needed.
  • Deep water.
  • Ports for assembly of turbines onto floats.
  • Steelworks and fabrication.
  • Good electrical connections to the National Grid.
  • Excellent universities.
  • Good transport connections.
  • An experienced engineering workforce.

There is also the ultimate potential of 50 GW of floating offshore wind in the Celtic Sea.

Conclusion

The Llŷr Project could have a very positive input into the worldwide development of floating offshore wind.

I have read the web sites of Floventis, SBM Offshore and Cierco and these companies appear to be aiming to dominate the floating offshore wind industry.

Their strategy is stated on the Floventis web site.

Our strategy is simple. We plan to maximize the local benefits of our projects and minimize their impact. Our technologies are far more benign than conventional offshore wind and more suited for deployment in remote and sensitive environments.

Already driving demonstration projects in California and the UK, Floventis is building a portfolio of projects to take floating offshore wind, through a stepwise process – increasing project size, to full scale commercial development proposals by 2030.

We believe that the floating offshore wind industry is a model for a “just transition” to clean energy, at scale, which will reward communities, in the broadest sense, with skilled jobs and enhanced social equity.

I can certainly live with that! And I’m certain the world can too!



April 28, 2022 Posted by | Design, Energy | , , , | 1 Comment
