The New Fifth Platform At Stevenage Station – 11th October 2019

Stevenage station is getting a fifth platform for the termination of Great Northern services to and from Moorgate station.

  • This platform will be on the down side of the station.
  • A single platform should be able to turnback at least four trains per hour (tph) and possibly as many as six tph, that have used the Hertford Loop Line to come North.
  • Wikipedia says that this will increase the capacity and freqiency on the East Coast Main Line and the Hertford Loop Line.

These are a few pictures of the works.

This page on the Network Rail we site is entitled Stevenage Turnback and it gives more details.

  • improved resilience and reliability is claimed.
  • Two kilometres of new track and a set of points will be added.
  • The embankment on the West side of the track will be strengthened.
  • The signalling will be improved.
  • Two bridges will be modified.

Everything should be completed by Summer 2020, so that the four tph from Moorgate to Stevenage can be resumed.

These are my observations.

  • The work on the West side of the East Coast Main Line seems to be to a very high standard.
  • There seems to be enough space for a possible double-track or a passing loop between the new platform and the Hertford Loop Line in future.
  • The embankment on the West side of the track is being strengthened.
  • Will trains still be able to come from the Hertford Loop and continue North?

It certainly appears to me to be built to allow expansion in the future.

What Frequency Will The New Platform Be Able To Handle?

There are several platforms in the UK, where four tph are turned back.

It looks to me, that there is no reason, why this frequency couldn’t be handled in the new platform at Stevenage.

Especially, as there appears to be at least one crossover between Stevenage and Watton-at-Stone stations.

But could it handle more trains?

The Hertford Loop Line is scheduled to be updated with digital signalling. So in the future, this may be possible, if the need is there!

The Great Northern Metro

It should also be noted that in 2016, Govia Thameslink Railway published plans for a Great Northern Metro. They seemed to have dropped this idea, but I discussed the plan in The Great Northern Metro.

This is a brief summary of those proposals.

  • Fourteen tph in the High Peak.
  • In the Off Peak, there would be six tph to Hertford North, four tph to Welwyn Garden City and two tph to Stevenage.
  • Sunday services are four tph to both branches and two tph to Stevenage.

I do wonder what is the capacity of the Hertford Loop Line.

  • It has grade-separated junctions at both ends of the route.
  • It is double-track throughout.
  • It has 25 KVAC overhead electrification.
  • It has a 75 mph operating speed.
  • It has turnback platforms at Gordon Hill and Hertford North stations.
  • It is planned to equip the route with digital signalling.
  • It is planned to upgrade the power supply.
  • It probably handles a maximum of about eight tph, which can include a couple of freight trains.

I suspect that this route can be improved to handle more and longer trains., at a higher speed than now!

Could Thameslink Use The Hertford Loop Line?

Could some Thameslink services to Cambridge and Peterborough use the Hertford Loop Line, rather than the East Coast Main Line?

Consider.

  • The Hertford Loop Line will have an increased speed limit.
  • Digital signalling is to be introduced on the route.
  • Trains might only stop at Hertford North, Enfield Chase and Alexandra Palace.
  • Some current Thameslink services between London and Cambridge and Peterborough, run non-stop between Finsbury Park and Stevenage.

Diverting some services to the Hertford Loop Line would have the following advantages.

  • It would relrease capacity on the East Coast Main Line.
  • It would reduce the number of trains using the two-track section over the Digswell viaduct.
  • It could give Hertford a direct link to Cambridge and Peterborough.

The disadvantage would be that services would be a few minutes slower.

140 mph Running On The East Coast Main Line

Under Planned Or Proposed Developments the Wikipedia entry for the EastCoast Main Line says this.

Most of the length of the ECML is capable of 140 mph subject to certain infrastructure upgrades. Below is the foreword of the Greengauge 21 report:

“Upgrading the East Coast Main Line to 140 mph operation as a high priority alongside HS2 and to be delivered without delay. Newcastle London timings across a shorter route could closely match those achievable by HS2..

The section then goes on to describe a lot of improvements with the aim of running between London and Edinburgh in four hours.

The project has a code name of L2E4. There is more information at this page on the Network Rail web site.

South of Peterborough, there are infrastructure and rolling stock limitations, that will stop the Hitachi Class 800 trains running at 140 mph.

  • Extra tracks are needed between Huntington and Woodwalton.
  • There is a double-track section over the Digswell viaduct, through Welwyn North station and the Welwyn tunnels.
  • Thameslink’s Class 700 trains that run services to Cambridge and Peterborough are only capable of 100 mph.
  • Great Northern’s Class 387 trains, that run services to Cambridge and Kings Lynn are only capable of 110 mph.
  • Hull Trains and Grand Central run services with trains that are only capable of 125 mph.

I will deal with these in order.

Extra Tracks Between Huntingdon and Woodwalton

The Wikipedia entry for the East Coast Main Line says this about this project.

Re-quadrupling of the route between Huntingdon and Woodwalton (HW4T) which was rationalised in the 1980s during electrification (part of the ECML Connectivity programme). This also involves the closure and diversion of a level crossing at Abbots Ripton which was approved in November 2017.

This improvement, which will mean continuous quadruple tracks between Stevenage and Peterborough will mean.

  • A few minutes for all trains will be saved.
  • Slower stopping services between London and Peterborough, will be kept out of the way of the 140 mph expresses.

What sort of stink would there be, if a motorway closed in the 1980s was now being rebuilt, to provide what existed forty years ago?

But British Rail closed or simplified infrastructure, without properly looking at the consequences, mainly to please or under the direction of the Treasury.

Double-Track Over Digwell Viaduct And Through Welwyn North Station

This is one of the worst rail bottlenecks in the UK.

To make matters worse, a service between Kings Cross and Cambridge with a frequency of two tph stops at the station.

It means a fast train would have to do a pit stop at speeds nor far off those of a racing car.

I think we can say, that adding extra tracks through the area would be extremely difficult, if not impossible.

But consider the trains that pass Welwyn North every hour.

  • LNER – 5 trains
  • Thameslink – 3 trains
  • Cambridge and Ely expresses – 2 trains
  • Cambridge stopping trains – 2 trains.
  • Hull Trains – 7 trains per day.
  • Grand Central – 9 trains per day.

If it is assumed that the Hull Trains and Grand Central add up to one train per hour, it looks like about thirteen tph go through the double track section.

If another couple of trains are added for luck, this means that the double track section will be handling a train every four minutes.

The double-track section is less than five miles long, so a 140 mph train will run between the quadruple track sections at Welwyn Garden City and Knebworth stations  in jut over two minutes.

Currently, the trains that stop at Welwyn North station are timetabled to take nine minutes between stops at Welwyn Garden City and Knebworth stations.

Effectively, the stop at Welwyn North station blocks the double-track section for nine minutes..

This means that there are two twenty-one minute periods in an hour where the other trains can pass through.

So how can you maximise the use of these available periods?

  • The trains must arrive precisely at the right time – Digital signalling with automatic train control is probably the best way to ensure this.
  • All through trains must be running as near to 140 mph as possible.
  • Diverting of slower trains to alternative routes should be examined.
  • The stopping train should be able to execute a stop in the shortest possible time.

I believe that if the timetable is efficient, that as many as twenty tph could be handled.

Most would go through the double-track section at 140 mph!

I must add a point about safety.

Trains currently go through these platforms at Welwyn North station at a maximum speed of 125 mph.

Will more trains going through at a faster speed, necessitate the addition of a passenger protection system at the station?

Thameslink’s Class 700 Trains

I have heard East Midlands drivers moan about Class 700 trains on the Midland Main Line, as they are too slow at 100 mph to mix it with the 125 mph expresses.

It looks like the Treasury got the specification wrong again! Surprise! Surprise! Even a 110 mph capability, as is often specified for outer suburban trains would be better.

But these trains run non-stop between Finsbury Park and Stevenage stations, so at 100-110 mph, they will be a bit of a hindrance to the trains running at 140 mph. It would be like granny and grandpa in a Morris Minor in the fast lane of a motorway!

If there is the capacity, then perhaps the Thameslink trains should run on an upgraded Hertfprd Loop Line along with the 100 mph Class 717 trains.

Once they rejoined the East Coast Main Line, they would take to the upgraded slow lines to go Cambridge and Peterborough.

Great Northern’s Class 387 Trains

Cambridge is one of the UK’s world-class cities and it deserves a top quality service from London.

The current Class 387 trains are only 110 mph trains, so wouldn’t fit well with the herds of 140 mph trains running to and from London.

It would probably be best in the long term to replace these trains with 140 mph trains designed for the route.

After all if Oxford can have a commuter service to London using Class 802 trains, then surely these are good enough for Cambridge?

In Call For ETCS On King’s Lynn Route, I discuss the possibility of digital signalling on the London and Kings Lynn route via Cambridge, based on reports in Rail Magazine.

If the Cambridge Line from Hitchin were to be upgraded for faster running, then London and Cambridge times might be reduced significantly.

Hull Trains And Grand Central

Hull Trains and Grand Central will want to participate in the 140 mph action between London and Doncaster.

Hull Trains have already made their move and have leased a fleet of Class 802 trains, which will shortly enter service.

Another Open Access operator; East Coast Trains has already ordered five Hitachi 140 mph trains.

Will Grand Central replace their fleet of Class 180 trains?

They will either buy 140 mph trains, cease trading or give up!

The other operators won’t want slow trains on the fast lines.

How Many 140 mph Trains Will Be Able To Run Between London And Doncaster?

I finish this section with a question.

I answered this question and a few others in Thoughts On A 140 mph East Coast Main Line Between London And Doncaster.

This was my conclusion.

If something similar to what I have proposed is possible, it looks like as many as an extra seven tph can be accommodated between Kings Cross and the North.

That is certainly worth having.

Conclusion

The new platform at Stevenage station is a well-designed sub-project that enables  the Hertford Loop Line to be used to its full capability.

  • Up to four tph will be able to run between Moorgate and Stevenage stations.
  • The redesigned junction at Stevenage will allow services like Thameslink to use the Hertford Loop Line rather than run at 100 mph on the East Coast Main Line.

It is an important sub-project in turning the East Coast Main Line into a high speed line with a high proportion of 140 mph running.











October 11, 2019 Posted by | Transport | , , , , , , , | 1 Comment

At Least One Class 717 Train Has Arrived

I was passing Ferme Park Sidings in a Great Northern service between Kings Cross and Welwyn Garden City stations, when I took these pictures of what looked to be a Class 717 train.

Note that the front is white not yellow, as is shown in this article on on Railway Gazette International.

According to Wikipedia, twelve trains have been built and I couldn’t be sure if it was a single train in the siding or two trains parked close together.

The Railway Gazette International article says the trains will have these features.

  • Air-conditioning
  • 2+2 seating with wide aisles
  • Wide doors for rapid boarding and alighting
  • 262 seats per unit
  • One power socket per seat.
  • No toilets
  • No First Class
  • No seat back tables
  • Wi-fi, but with only limited coverage in the Moorgate tunnels.

Each six-car unit will have a capacity of 943 passengers.

July 15, 2018 Posted by | Transport | , , | Leave a comment

17 Tube Stations That Face Chronic Overcrowding If Crossrail 2 Is Stopped

The title of this post is the same as that of an article in today’s Standard.

This is the first two paragraphs.

Hundreds of thousands more Londoners will suffer chronic overcrowding on the Tube if Crossrail 2 does not go ahead, it was claimed today.

Transport for London released a list of 17 Underground stations that could buckle under the strain of too many commuters within a few years.

It then lists the stations.

  • Euston
  • King’s Cross St. Pancras
  • Liverpool Street
  • London Bridge
  • Victoria
  • Waterloo
  • Finsbury Park
  • Stockwell
  • Stratford
  • Oxford Circus
  • Highbury & Islington
  • Clapham Common
  • Clapham North
  • Clapham South
  • Holborn
  • Warren Street
  • Leicester Square

It then quotes Caroline Pidgeon, who obtained the list, as follows.

Overcrowding on the Underground is already a daily battle, with many passengers facing regular delays to simply get through barriers at stations.

Unless Crossrail 2 is built these delays will increasingly build up until drastic measures are necessary at 17 key Tube stations, not to mention Clapham Junction railway station.

“Planning ahead for Crossrail 2 is not an optional extra for London’s transport network but of vital importance to keep London moving.

She has certainly highlighted a serious problem.

Call For Crossrail 2

Two years ago to the day, I wrote a post called Call For Crossrail 2 in response to a letter in The Times, from a wide cross section of business leaders calling for a start to be made on the line.

In the post, I talked about improving various stations, just by building Crossrail 2, so in the following notes on the list of crowded stations, I will refer to this post several times in the following.

Euston

Euston tube station is a particular problem in that in the next decade or so, the following will or could happen.

Hopefully, the rebuilding for whichever comes first of  HS2 or Crossrail 2, will make provision for even the most fanciful of expansions.

One Transport for London engineer told me that one of the main reasons for building HS2 and terminating it at Euston, is to be able to sort out the dreadful Euston tube station.

Kings Cross St. Pancras

Kings Cross St. Pancras tube station had a pretty good makeover around the time of the 2012 London Olympics, but it does suffer congestion and travellers have to walk long distances.

The Wikipedia entry for Kings Cross St. Pancras tube station has a section for Crossrail 2. This is said.

Since 1991, a route for a potential Crossrail 2 has been safeguarded, including a connection at King’s Cross St Pancras and Euston, forming the station Euston King’s Cross St Pancras. The proposed scheme would offer a second rail link between King’s Cross and Victoria in addition to the Victoria line. The locations for any new stations on the route will depend on the loading gauge of the final scheme. In the 2007 safeguarded route, the next stations would be Tottenham Court Road and Angel.

There is also a proposal to reopen the closed York Road tube station. In the Wikipedia entry for York Road station under Proposed Reopening, this is said.

One of London’s largest redevelopment projects, King’s Cross Central, began construction in 2008 across the road from the station. Islington council and Transport for London commissioned a study in 2005 to consider the possible reopening of the station. At the same time, however, it was recognised that other transport priorities reduced the likelihood of such a project moving forward in the near future. The site would need extensive overhauls to bring the station up to modern day standards, at a cost estimated at £21 million in 2005. Local political groups have been keen to see the station reopened in order to reduce passenger congestion at King’s Cross St. Pancras and to encourage development in the surrounding community. The Islington Liberal Democrats advocated the reopening of the station in their 2006 local election manifesto, and at least one candidate for the Islington Conservative Party similarly campaigned for the station to be reopened. However, to date, the reopening proposal has not been taken forward.

I wonder if York Road tube station will ever be reopened.

Liverpool Street

The Liverpool Street station complex will be even bigger and busier after Crossrail opens.

The main difference will be that the current Shenfield Metro will now disappear into the ground at Stratford and go under Central London to Heathrow and Reading.

Crossrail 2 will effectively channel the Lea Valley services, that current go into Liverpool Street station under London to emerge in the Wimbledon area.

Effectively, Crossrail and Crossrail 2 major effect on Liverpool Street station are to free up capacity in both tracks and platforms, thuis allowing more longer distance services to use the station.

London Bridge

London Bridge station is being rebuilt and expanded, but little seems to be planned for London Bridge tube station to cope with more passengers.

In Call For Crossrail 2, I said this about Crossrail 2 and the Northern Line.

Crossrail 2 will have interchanges with the Northern Line at Angel, Kings Cross St. Pancras, Euston, Tottenham Court Road, Tooting Broadway and possibly Clapham Junction. So it looks like that Crossrail 2 will certainly make journeys easier for users of the Northern Line.

This should mean that travellers on the Northern Line will be able to avoid a congested London Bridge tube station.

Victoria

Victoria tube station is being extended and rebuilt, which should result in sufficient capacity for more than a few years.

In Call For Crossrail 2, I said this about Crossrail 2 and the Victoria Line.

Crossrail 2 will effectively by-pass the central part of the Victoria Line as the two lines connect at Tottenham Hale, Seven Sisters, Kings Cross, Euston and Victoria.

This should take some of the pressure from Victoria tube station.

Waterloo

Waterloo tube station is a very busy tube station, as it has to cope with all the passengers using Waterloo station.

Crossrail 2 will allow passengers to bypass Waterloo, when travelling to and from Central London.

However, three major improvements will be delivered this year.

  • The old Eurostar platforms are being brought back into use.
  • Extra capacity is being added to the Underground station.
  • I also think that when they have completed the improvements at the Bank end of the Waterloo and City Line.
  • Will improvements follow at the Waterloo end?

I think Waterloo shouldn’t be judged until the current round of work is completed.

Finsbury Park

Finsbury Park station is a station that suffered badly when the Victoria Line was tunnelled through in the 1960s.

Lifts are being installed, but extra services will be added.

  • Thameslink will call regularly at the station.
  • The services on the Northern City Line will become the Great Northern Metro with an increased frequency.

Crossrail 2 will provide relief for Finsbury Park, as it provides a by-pass for the Victoria Line.

But the station needs to have quite a bit of rebuilding.

Stockwell

Stockwell tube station is where the Victoria and Northern Lines meet South of Victoria.

This map from carto.metro.free.fr shows the lines at Stockwell station.

I’m not sure how Crossrail 2 helps here, but I suspect Transport for London hope that the new line will divert passengers away from Stockwell.

Stratford

Stratford station is another station that will be partially bypassed by Crossrail 2.

I do think that after Crossrail opens, that changes will be made at Stratford station to perhaps move some Liverpool Street services to Stansted and Cambridge.

This would bring more services to some not very busy platforms.

In West Anglia Route Improvement – The High Meads Loop, I described how it might all work.

This map from carto.metro.free.fr shows the lines in this area.

Trains from Cambridge and Stansted would arrive at Temple Mills East Junction and would go round the High Meads Loop dropping and picking up passengers in Platforms 11 and 12 bwfore returning North.

An extra platform could even be added to serve services in Stratford International station.

The tunnels under the platforms at Stratford station would probably need improvement, but who knows how Eastenders will duck and dive after Crossrail opens.

As an example, passengers from Shenfield to Canary Wharf will probably use the cross-platform change at Whitechapel station, rather than pick up the Jubilee Line or the DLR at Stratford.

Oxford Circus

Oxford Circus tube station has needed improvement for years.

Crossrail will give some relief, as there will be new additional entrances to Tottenham Court Road and Bond Street stations closer to Oxford Circus.

I did look at what might happen in What Will The Elizabeth Line Do For Oxford Street?.

I came to this conclusion about Crossrail 2 and Oxford Street.

Crossrail 2 has just one interchange in the Oxford Street area at Tottenham Court Road station.

I would be very surprised in that in the massive rebuilding of the current station for Crossrail, that provision hasn’t been made to connect to Crossrail 2.

There have been surface issues around the station concerned with Crossrail 2, but given good planning of the project, I feel that the building of Crossrail 2 would only effect the area in a similar way to the replacement of a major block on Oxford Street.

Crossrail 2 will have two major effects.

  • It will bring large numbers of visitors to the Oxford Street area.
  • Just as Crossrail and the Central Line will work as a high-capacity pair, it will work closely with the Victoria Line to relieve that line.

This leads me to the conclusion, that the wider Oxford Street area needs to be and will be pedestrianised.

In some ways preparation for the pedestrianisation has already started by reorganising the buses.

Oxford Circus tube station is also high on Transport for London’s improvement list.

This map from carto.metro,free.fr shows the lines through the station.

I suspect that if developers were interested in rebuilding any of the buildings on the South side of Oxford Street or perhaps even around the BBC to the North, that there could be arm-twisting and deal-making to sneak new entrances into Oxford Circus tube station.

Highbury & Islington

Highbury & Islington station, is one of my local ones and it is getting some much-needed improvement.

  • The Northern City Line will be getting frequent new Class 717 trains to create the Great Northern Metro.
  • Highbury Corner will be remodelled to improve pedestrian access to the station.
  • Bus and taxi access is being improved..

But nothing has been announced about improving the chronic access to the two deep-level lines at the station.

Speaking to staff at the station, they feel that a solution is possible, using the second entrance on the other side of the road.

In some ways the Great Northern Metro with its cross-platform interchange with the Victoria Line could be the saviour of this station, as it gives direct access to the City and to Crossrail at Moorgate station.

One of London’s forgotten lines could be riding to the rescue.

Clapham Common

Clapham Common tube station is one of my least favourite. This picture shows why.

It’s downright dangerous now, so when the Northern Line frequency is increased will the station cope?

Clapham North

Clapham North tube station is another dangerous island platform.

But at least the station has escalators.

In A Journey Round The Clapham Stations, a post I wrote in December 2015, I said this.

Having seen Clapham North and Clapham Common stations today, I do wonder if a diversion could be dug as at Angel, Bank and London Bridge, to create safe new stations. This new tunnel could surely be part of the works to add step-free access to one or both stations and connect the tunnels to Clapham High Street station.

What with the Northern Line Extension to Battersea, the rebuilding of Bank and Camden Town stations and all the resignalling of the past few years, the Northern Line could at last be fulfilling its potential.

This could go a long way to  sorting the problem of the Clapham stations.

Clapham South

Clapham South tube station is not as bad as the other two Clapham stations discussed earlier.

Crossrail 2 may reduce the level of overcrowding on the Northern Line trains through the three Clapham stations, as passengers could change at Balham or Tooting Broadway stations to and from the new high-capacity line.

However, nothing short of some serious building work will solve the island platform problems at Clapham Common and Clapham North stations.

Holborn

Holborn tube station is very busy, but is one that could benefit from Crossrail, due to that line’s relationship with the Cerntral Line.

Crossrail 2 will certainly benefit the station, as it will relieve the pressure on the Piccadilly Line.

But Transport for London have published plans to add a second entrance and full step-free access. This is a 3-Dview of the plans.

Note the second entrance will be in Procter Street.

The only problem is that it could be 2021 before a decision is made.

However as a Piccadilly Line station, Holborn will benefit from the New Tube For London, before the upgrade.

Warren Street

Warren Street tube station is another Central London station on the Victoria Line, that could benefit from Crossrail 2’s duplication of the Victoria Line.

Leicester Square

Leicester Square tube station is just one stop on the Northern Line from the major new interchange of Tottenham Court Road station, which will be served by both Crossrail and Crossrail 2.

The station has needed more capacity since I first used it in the 1950s.

It needs step-free access.

This map from carto.metro.free.fr shows the lines around Leicester Square station.

There is quite a tight knot of stations, of which only Tottenham Court Road has both escalators and lifts, although Goodge Street and Covent Garden have lifts only.

Leicester Square is an unusual station in that both the Northern and Piccadilly Lines are accessed by short passages and a short staircase from a fair-sized lobby at the bottom of a long set of escalators.

Clapham Junction

Clapham Junction station is the only non-Underground station in the seventeen stations named, where overcrowding could become chronic if Crossrail 2 is not built.

It is the busiest station by number of trains in Europe, so it must be difficult to keep on top of increasing numbers of passengers.

In the Wikipedia entry for the station under Future Proposals, this is said.

In 2007 the alignment of one of the two variants of Crossrail 2, that via the station rather than Putney and Wimbledon, was safeguarded. The Department for Transport and Transport for London continue to discuss proposal for a Clapham Junction Northern Line extension and its London Underground alignment has been legally reserved through Battersea Park, and would connect Clapham Junction to the London Underground for the first time.

Government and Network Rail funding for in the early 2010s of £50 million of improvements was granted. This comprised an upgrade to the main interchange: new entrances and more retail.

Surely something needs to be done, if Crossrail 2 is not built.

My proposals would include.

  • Developing the West London Line services.
  • Extending the Northern Line from Battersea Power Station station.
  • Improving the frequency of trains into Waterloo.
  • Make the station subway step-free.

There may be a need for more platforms, but the London Overground found this difficult.

This map from carto.metro.free.fr shows the platforms in the station.

Simple it isn’t!

Conclusions

It surprised me how many of these stations will need substantial building work to cure the overcrowding.

Note.

  1. Every Victoria Line station between Oxford Circus and Finsbury Park is on the list.
  2. Four Northern Line stations between Stockwell to Clapham South is on the list.
  3. I think this shows how the designers of the Northern and Victoria Lines didn’t expect the traffic the lines now handle.

But overall, I think it shows how when you design a station, you don’t cut corners.

I also think to blame all these problems on the uncertainty about Crossrail 2, is probably a bit strong.

Consider.

  • Liverpool Street will probably have enough capacity when Crossrail opens, especially as the station will incorporate Moorgate and be substantially step-free.
  • The new London Bridge effectively adds high-frequency rail lines to Blackfriars, Cannon Street, Charing Cross and St. Pancras and when Thameslink and Southeastern are fully developed, the station will cope.
  • Victoria shouldn’t be judged until the current upgrade is complete.
  • Waterloo shouldn’t be judged until the current upgrade is complete.
  • Finsbury Park shouldn’t be judged until the current upgrade is complete.
  • Stratford will probably have enough capacity when Crossrail  opens, especially as the station is substantially step-free.
  • Oxford Circus should see improvement when Crossrail opens, especially as there’ll be new step-free entrances to Tottenham Court Road and Bond Street, that will be closer to Oxford Circus, than the current stations.
  • Highbury & Islington should see marginal improvement, when the Northern City Line is updated.

However, nothing short of substantial construction will sort Euston, Clapham Common, Clapham North, Holborn, Leicester Square and Clapham Junction.









July 18, 2017 Posted by | Transport | , , , , , , , , , , , , , , | 1 Comment

Gibb Report – Moorgate Services Could Be Transferred To The London Overground

The Gibb Report, looks in detail at services out of Moorgate station on the Northern City Line in detail.

Note that current plans for this line include.

It could also be rebranded as the Great Northern Metro.

Chris Gibbs flags up various issues with this service. He says this about the infrastructure.

25 new Class 717 six-car trains are being built by Siemens as a dedicated fleet for this route, and will be maintained by GTR at their Hornsey Depot. The line between Drayton Park and Moorgate is a former underground line transferred to BR in 1976 and partly converted for main line trains.

It retains various Underground characteristics, such as third rail electrification with a fourth return rail, and tripcocks at all signals, and I believe Old Street and Moorgate stations are owned by London Underground as part of shared stations, and are in need of modernisation. The track and signalling is owned and operated by Network Rail.

I would add a personal observation. Highbury and Islington station is a station where the below-ground platforms are in desperate need of improvement and step-free access. Over the last year or so, with GTR’s labour troubles, the operation of the station at times, has not been smooth, much to the exasperation of London Underground/Overground staff.

Chris Gibbs also notes several issues with the employment of staff after 2018.

Other current Great Northern services run between Kings Lynn, Cambridge, Peterborough and Kings Cross, and these will be part of the Thameslink operation from 2018, with most services continuing to destinations south of London and a few running to Kings Cross. I understand Great Northern drivers will be “temporarily” split between Metro and Thameslink in 2017 to avoid them all having to learn the cross London routes and Class 700 trains, so there may then be a some division for TUPE purposes.

At present it is proposed not to initially train about 100 drivers on Class 700 trains, spread across several locations, and it is proposed to open new drivers depots, for example at Welwyn Garden City and Finsbury Park. These proposals have not yet been approved by DfT, and recruitment has not yet begun. However there is still risk that splitting the driver workforce, who currently enjoy variety of work, may be unpopular, and more work is required to evaluate this. All Great Northern Metro services are currently DOO.

It looks like a disaster waiting to happen to me.

He finishes his discussion on the Great Northern Metro like this.

I believe there is an option to transfer the Great Northern Metro operation to TfL and it’s London Overground concession in 2018. If TfL / the London Overground concessionaire were to take the lead in this transfer, and the implementation of the new trains and service, this could reduce risks associated with the Thameslink programme, led by GTR.

However to do this, a decision should be made immediately, and discussions commenced with
TfL, GTR and the London Overground concessionaire.

Personally, I think that this would be a very good idea.

In this area of London, we have three stations that need to be dramatically improved; Old Street, Essex Road and Highbury and Islingtont.

All are on the Northern City Line and they could start with a deep clean at Essex Road, which was probably cleaner when it opened in the same year my father was born.

But being serious, these three stations could be serious development opportunities.

  • Highbury and Islington is a major interchange that hasn’t been rebuilt properly since it was bombed in World War 2 and was changed on the cheap to squeeze the Victoria Line through underground.
  • Essex Road could also be redeveloped with a modern step-free station underneath.
  • Old Street is now surrounded by towers and the road layout is being simpified, so why not put a massive tower on the site and build a modern station underneath?

Having only one operator at the stations must surely ease redevelopment.

I think if the split between GTR and the Great Northern Metro was thought through properly, there could be advantages all round.

  • All services North of Welwyn Garden City on the East Coast Main Line and the Cambridge Line would be provided by GTR.
  • All Hertford Loop Line services would be provided by London Overground.
  • All Hertford Loop Line stations would be managed by London Overground.
  • All stations South of Welwyn Garden City on the East Coast Main Line would be managed by London Overground.
  • A turnback platform would be built at Stevenage.
  • Welwyn Garden City and Stevenage stations would be updated to allow easy interchange between GTR and Great Northern Metro services.
  • Alexandra Palace station is developed, so that cross platform interchange is possible between GTR and Great Northern Metro services.

It certainly looks like a properly integrated 100 mph suburban rail route can be built to Stevenage, with similar fleets of 100 mph Class 700 trains and Class 717 trains on Thameslink and the Great Northern Metro respectively.

The East Coast Main Line would work as now.

  • Great Northern Metro services between Moorgate and Welwyn Garden City
  • Outer suburban services between Kings Cross and Stevenage, Peterborough and Cambridge.
  • In 2018, Thamelink will link St. Pancras to Stevenage, Peteborough and Cambridge.

On the Hertford Loop Line, there would just be a Great Northern Metro service between Moorgate and Stevenage, via Hertford North.

There could be possible problems and questions.

  • Would residents of Hertfordshire, object to services being controlled by the London Mayor?
  • Who would pay for the required turn-back platform at Stevenage?
  • Could London Overground absorb the route without too many problems?
  • Would there be enough paths on the East Coast Main Line?
  • Where would the depot for the Class 717 trains be located?
  • How will Siemens respond to the change of operator for their Class 717 trains?

But there are some other factors in favour.

  • The Great Northern Metro service on the Hertford Loop Line would effectively be an independent double-track railway capable of handling as many six-car Class 717 trains as were desired. The current three trains per hour (tph) is probably way below the theoretical capacity, which is probably determined by the single platform at Stevenage.
  • London Overground successfully integrated the Lea Valley Lines into their operation.
  • London Overground and the Great Northern Metro both work under DOO.
  • Hopefully, Transport for London have the knowledge to integrate the Class 717 trains into the tunnels to Moorgate. But they have an excellent museum!
  • London Overground’s working practices would appear to be similar to those on the Great Northern Metro.
  • London Overground’s station manning policies are better for passengers and may even be better for staff, who always seem to be courteous and enjoying their work.

But surely the biggest thing in the transfer’s favour, is that it gives responsibility to new train introduction and updating of the Great Northern Metro to another operator, who has a proven record in this field, so that GTR can concentrate on launching Thameslink services.

Collateral Benefits Of Updating Great Northern Metro Services

After train replacement the Great Northern Metro will be run by modern 100 mph trains, as opposed to 75 mph scrapyard specials.

Currently, the Class 313 trains take the following times.

  • Moorgate and Hertford North – 45 minutes – 13 stops
  • Moorgate and Letchworth Garden City – 79 minutes – 16 stops.
  • Moorgate and Stevenage – 63 minutes – 15 stops.
  • Moorgate and Welwyn Garden City – 49 minutes – 16 stops

As modern trains can save a minute or two on each stop, there must be the possibilities of faster services, with the serious possibility of Letchworth Garden City within an hour from Moorgate, with the new 100 mph Class 717 trains.

Stevenage would certainly be well within the hour and I suspect that because of the extra speed an additional fourth train could be run to both Hertford North and Welwyn Garden City, with all Hertford North trains running on and terminating at Stevenage, once the turnback platform is built.

To run four tph each route would require just eight trains or sixteen trains in total.

If you split the order for twenty-five trains into two, that would mean twelve trains would be available for each route, which are enough trains to have the following service.

  • 6 tph – Moorgate to Welwyn Garden City
  • 6 tph – Moorgate to Stevenage via Hertford North

These are the sort of frequencies that train operating companies like to run in South London.

Alexandra Palace to Moorgate would have a massive twelve tph.

The current timetable handles this frequency in the Peak, so it could be possible all day, with very little work needed on the infrastructure. London Underground would probably laugh at 12 tph, when you consider the Northern and Victoria Lines handle three times as many trains to a two platform below ground terminal.

But is it really needed?

If you look at the timing of the fast Class 387 trains between Stevenage and Finsbury Park, they take around twenty minutes going fast down the East Coast Main Line, as against the Class 313 trains which take forty-four minutes using the Hertford Loop Line. On a rough estimate the new Class 717 trains might be able to do this trip in perhaps twenty-five minutes on an updated Hertford Loop Line.

A fast high-capacity service on this route that has been neglected, must be capable of development with perhaps a Park-and-Ride and a couple of new stations.

It may not be a bad idea to update the Hrtyford Loop Line with modern signalling and to allow faster running, as surely if the normal trains on the loop were modern 100 mph units, then extra paths could be found to act as diversion routes for the bottleneck of the double-track Digswell Viaduct.

It’s amazing how faster trains can unlock the potential of a rail route.

Conclusion

Chris Gibb has made an interesting proposal.

There are good reasons to transfer the Great Northern Metro to London Overground.

  • London Overground have the expertise to introduce the new trains.
  • Transport for London have the expertise to redevelop the stations on the route at the Southern end.
  • GTR will be able to concentrate on Thameslink
  • Moorgate, Old Street, Essex Road and Highbury and Islington stations become Transport for London-only stations.
  • London would gain a new Metro line between Moorgate and Alexandra Palace via Highbury and Islington and Finsbury Park, that extends into Hertfordshire and has a frequency of at least twelve tph.
  • Crossrail gets another North-South feeder line.
  • Highbury and Islington and Finsbury Park will become high quality interchanges.
  • The Hertford Loop Line can be developed independently of Thameslink and the East Coast Main Line to be a high-capacity North-South Metro from North London to Stevenage.
  • The Victoria Line gets a cross-platform connection to the Great Northern Metro for Crossrail at Highbury and Islington.

The only problem, is that it might remove some of the reasons for extending Crossrail 2 to New Southgate.

Overall it strikes me that GTR have been working totally without any vision or any idea about how their new trains will transform the Great Northern Metro.



July 8, 2017 Posted by | Transport | , , , , , , , , | 2 Comments

The Future Of The Watford DC Line

Primrose Hill Station

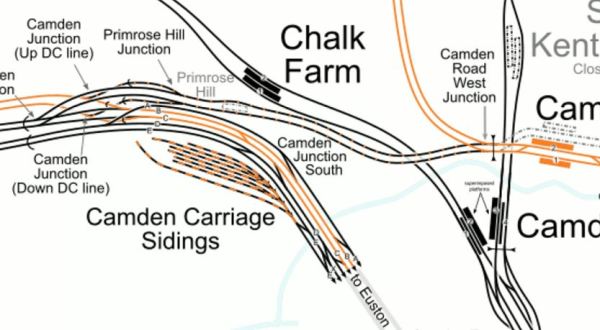

I was looking at the tracks through Camden on carto.metro.free.fr, as I wanted to see how the  former Primrose Hill station fitted into the knitting.

Lines Through Camden

Lines Through Camden

Note the two orange tracks of the Watford DC Line from Euston curving to the West around the carriage sidings.

The line through Primrose Hill station from Camden Road is a connection that allows freight trains to  go between the North London Line and the West Coast Main Line.

One of the plans for the area, is to reopen the station. This is said in the station’s Wikipedia entry under Plans.

It has been proposed to re-open Primrose Hill station by bringing the short stretch of line between South Hampstead and Camden Road stations back into the regular passenger service by incorporating it into the London Overground network.

South Hampstead station is just off the map to the West on the Watford DC Line.

No Infrastructure Required To Open Primrose Hill Station

Obviously, the station will have to be rebuilt, but look at this page from the Journey Planner for Sunday, the 2nd of October, when I enquired how you would get between Willesden Junction and Highbury and Islington stations.

Willesden To Highbury and Islington

Willesden To Highbury and Islington

As the Class 378 trains can’t fly, the route via South Hampstead station must be open and available to the trains.

This sequence of pictures shows a train entering Camden Road station after coming through the site of the former Primrose Hill station.

Benefits And Disadvantages Of The Route

The current setup seems to be rather a waste of resources, with two tracks into Euston for the Watford DC Line and the need for platforms with third-rail electrification to handle the short four- and five-car trains.

Euston station is a very busy station and it would probably be glad to lose the Overground services.

So it might be a good idea to divert the three trains per hour (tph) between Watford Junction and Euston, through Primrose Hill and onto perhaps Highbury and Islington or even Stratford stations.

Others might not think so, as all those passengers along the Watford DC Line, would lose their direct connection to Euston.

But in a few years time, the following projects should have been completed or will be in progress.

These projects will mean that the Watford DC Line could and will have to be reorganised. If only to make sure there was enough capacity for commuters in the Peak and electric freight trains.

In my view the service on the Watford DC Line to London,  should be as close to a high-capacity link running perhaps six to eight tph as is possible.

It is not as easy to achieve as many might think.

  • London Midland services stop at stations on the Watford DC Line.
  • The Bakerloo Line runs 6 tph on the line.
  • The train size limit on the Watford DC Line is probably about six cars and might be possible to raise to say eight or ten.
  • The train size limit along the North London Line is currently five-cars and all the Class 378 trains are this length.
  • Six-car trains on the North London Line is probably an upper limit, although I wouldn’t be surprised to see longer platforms in my lifetime.
  • There will be pressure to increase the number of freight trains on the North London Line.
  • A Northern terminal for the Bakerloo Line must be provided.
  • Third-rail electrification must be provided on all track shared with the Bakerloo Line.
  • If possible, the route should avoid Euston, so that the HS2 rebuilding can proceed at a faster pace.

But I suspect an innovative solution will be found to provide a high capacity link between the stations on the Watford DC Line and Central London.

Crossrail

Crossrail will have a massive influence on how passengers use London’s rail network.

Plans have been talked about for extending Crossrail to the West Coast Main Line. Wikipedia says this.

Network Rail’s July 2011 London & South East Route Utilisation Strategy (RUS) recommended diverting West Coast Main Line (WCML) services from stations between London and Milton Keynes Central away from Euston, to Crossrail via Old Oak Common, to free up capacity at Euston for High Speed 2.

The previous Government rejected it as having a bad economic case

But Crossrail with its massive trains carrying fifteen hundred people a time, will strongly influence stations and routes it connects to Central London.

  • At Abbey Wood, it is forcing an update to services on the Noirth Kent Line, which could bring 6-10 tph through the Medway Towns.
  • At Moorgate, it will bring passengers to an updated Great Northern Metro sending 8-10 tph to North London and South Herfordshire.
  • At Reading, it will bring passengers to updated Thames Valley and West Country services.
  • At Shenfield, improvements are in progress to link Crossrail to Essex and East Anglia.

Where Crossrail will lead is an unanswerable question.

North-West from Old Oak Common, there are several stations that could be possible Crossrail termini.

  • High Wycombe for Chiltern.
  • Milton Keynes with its link to the East West Rail Link
  • Tring, which was the original idea
  • Watford Junction has been suggested before.

In the end, passenger numbers will decide where the trains go.

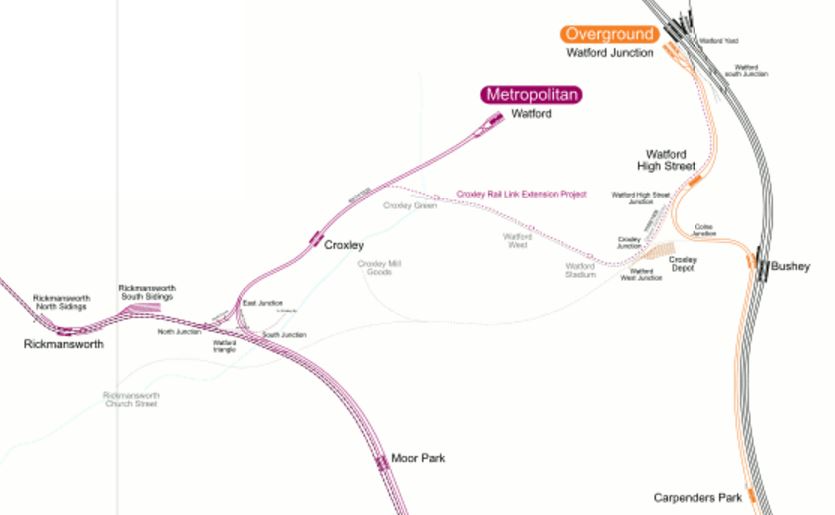

This map from carto.metro.free.fr shows the lines at Watford Junction station.

Rail Lines Around Watford

Rail Lines Around Watford

The North-South orange line is the Watford DC Line, which goes starts from Watford Junction station and goes through Watford High Street, Bushey and Carpenters Park stations.

Note the Croxley Rail Link going between Croxley and Watford Junction stations.

This short length of new line would also make possible direct services between Amersham and Watford Junction stations.

I’m not going to speculate on where trains on Crossrail and the Watford DC Line will go, but there are lots of possibilities.

I suspect that new housing developments will also be a driver of the routes of services.

The New Class 710 Trains

The Watford DC Line is going to see some some extra trains from the new fleet of Class 710 trains. If we see eight trains of the new dual-voltage fleet going to the GOBlin on a one-for-one replacement basis, that would mean a doubling of capacity on the line, that means that only six trains are left for the Watford DC Line.

But as the Watford DC line runs three tph currently in the Off Peak and the trip takes about fifty-five minutes, then perhaps those six four-car trains might be enough.

When I first read the specification for the Class 710 trains for the GOBlin, I was surprised to see that they were dual voltage. After all between Gospel Oak and Barking stations, there is precisely no third-rail lines.

But if you think about extending GOBlin services, the ability to run on third-rail lines would be needed on the following routes.

  • Willesden Junction to Clapham Junction
  • Willesden Junction to Richmond
  • Willesden Junction to Watford Junction
  • The Barking Riverside Extension to Abbey Wood.

Abbey Wood, Clapham Junction, Richmond and Watford Junction stations all have third-rail platforms.

I doubt all of these routes will be delivered, but at least by making the GOBlin trains with a dual-voltage capability, they are future-proofed for any possible services.

The Future Of The Bakerloo Line

The Bakerloo Line is a line, with spare capacity across Central London, according to many reports I’ve read.

Wikipedia has a section on the Future of the Bakerloo Line in its entry for the Watford DC Line.

This is said.

Various proposals have been made to alter services involving both extending or truncating Bakerloo Line services but there has been no basic change until 2015 other than to rolling stock and service patterns. As of 2015, plans and suggestions (from official bodies and others) connected to development of Crossrail and the Old Oak Common area have current potential consequences.

If the Bakerloo Line is extended into South London, this must have an effect.

Rumours are circulating as I write this, that this is being brought forward to 2029.

This article in New Civil Engineer is entitled £775M Paddington Cube gets green light. It says that the development by Paddington station, will be designed to enhance the area and will upgrade the Bakerloo Line station.

What will upgrades and extensions to the Bakerloo Line do to the Watford DC Line?

I suspect there’s both scope for rationalisation, increased capacity and faster services, along both lines, with the correct design.

There are other factors, that might create something special from an integrated Watford DC/Bakerloo Line.

  • The Milton Keynes to East Croydon service might be increased in frequency and it might share the route.
  • London Midland trains to Birmingham, Northampton and the Midlands could join the party.
  • Train control and signalling is improving fast and might allow all these dissimilar services to share safely and give passengers better routes.
  • Better train and station design could improve the terrible step-down and step-up access to Bakerloo Line trains at some stations.

The Watford DC/Bakerloo Line could end up as another important North South route.

  • 27 tph on the Bakerloo Line.
  • Same platform interchange with trains for Birmingham, Euston, Milton Keynes, Northampton and many other places.
  • Quality step-free interchange to Crossrail and main line services at Paddington.
  • Improved step-free access to main line services at Charing Cross, Marylebone and Waterloo stations.
  • An improved interchange with the Victoria and Central Lines at Oxford Circus station.
  • Interchange with Thameslink at Elephant and Castle station.
  • Interchange with the East London Line at New Cross Gate station.

If all this happens by 2029, it won’t be soon enough!

The Bay Platform 2 At Willesden Junction Station

In posts like this one, entitled More Platform Action At Willesden Junction, I showed work to create a new bay platform 2 at Willesden Junction station.

On Sunday, the 2nd Of October 2016, I took these pictures of the station in use.

What are Transport for London’s plans for this platform, other than stock transfers and Rail Replacement Trains?

As they were doing on that Sunday, they could run a Willesden Junction to Stratford service via a rebuilt Primrose Hill station.

Platform Height Issues

At some station to get in to and out of the Bakerloo  Line 1972 Stock trains, is quite a step and it would be difficult in a wheel-chair.

I have covered this in Platform Height Issues On The Watford DC Line and feel that dual-height platforms could be used.



Highbury And Islington Station

In some ways, Highbury and Islington station is the worst station in North London, as after war damage and then the addition of the Victoria, North London and East London Lines, it shows major evidence of Topsy at work.

With better connections between the deep-level Victoria Line and Great Northern Metro and the London Overground, it could be a very useful interchange. At the moment, there’s just too much walking in long underground passageways.

But as the Great Northern Metro will have new Class 717 trains giving a  10-12 tph link to Crossrail and the City at Moorgate, surely improvements at Highbury and Islington station would be worthwhile.

These services will be going through the station in a few years.

  • 6 tph between Highbury and Islington and Crystal Palace – East London Line
  • 4 tph between Highbury and Islington and West Croydon – East London Line
  • 3+ tph between Stratford and Richmond – North London Line
  • 3+ tph between Stratford and Clapham Junction – North London Line
  • 10+ tph between Moorgate and Hertfordshire – Great Northern Metro
  • 36 tph between Brixton and Walthamstow Central – Victoria Line

Admittedly, Crossrail will take some pressure off the station, by providing alternative routes via Moorgate and Stratford, but I can’t believe that Transport for London, aren’t looking to improve the interchange between the various lines.  Especially, as with a few tweaks, Dear Old Vicky could possibly deliver forty tph or a train every ninety seconds, as opposed to the current hundred. These could include.

  • A second entrance at Walthamstow Central station to provide step-free access and cope with the sheer numbers of passengers.
  • A loop at Brixton, with a possible new station at Herne Hill to turn the trains at the Southern end.
  • New trains with a higher performance.
  • Improvements at certain busy stations like Oxford Circus, Euston and Kings Cross St. Pancras.

Other improvements like air-conditioned trains would attract passengers to the line and make greater capacity necessary.

This article on the authorative London Reconnections, which is entitled A Look At The World Class Capacity Upgrades, concludes its thoughts on the Victoria Line with this.

With the Victoria line pushing towards what must be the theoretical limit for a line with that amount of rolling stock and – more importantly – two-platform termini, there are no plans to further improve the service. Indeed the challenge of procuring more trains and finding the depot space for them would probably discourage any such plans on its own. This does not mean that the line will be forgotten, as both Oxford Circus and Walthamstow Central are on TfL’s top ten hit list of stations in need of a major capacity upgrade. Simply that the days of pushing more trains through the same stations more quickly have passed. In the case of Walthamstow Central it is highly likely that the next step will be making the station double-ended, with an entrance near or in the shopping centre.

I have a feeling that forty trains per hour will come sooner rather than later.

Oxford Circus Station

In two sections of my ramblings, Oxford Circus station has had a small mention.

An improved Oxford Circus station could benefit both the Bakerloo and Victoria Lines.

As the station is high on TfL’s list of stations for improvement, I would expect to see something planned to start here before the mid 2020s.

  • Step-free access.
  • Better interchange between Victoria and Bakerloo Lines in different directions.
  • More space around the Central Line.
  • An underground pedestrian link to Crossrail at Bond Street station.
  • Extra entrance and exits to serve pedestrianised Oxford and Regent Streets.

I believe, that adding new passages, entrances, exits, lifts and escalators into the current complex can be organised in a similar way to how Bond Street station has been successfully upgraded over the last few years. Hopefully, Bank and Camden Town stations, will also be upgraded in the same way.

But Oxford Circus is the big one!



Conclusion

As I write this, the BBC is announcing that plans will be announced by Sadiq Khan today to bring the Bakerloo Line Upgrade forward to 2029.

I think that this will bring forward a lot of related work to improve the Watford DC Line and the related lines across North London.

The future is brown, with large splashes of orange!

October 26, 2016 Posted by | Transport, Uncategorized | , , , , , , , | 3 Comments

My Links To Thameslink

Thameslink is a railway, I don’t use much these days, as getting to stations is not that easy, since London Bridge was taken off the route, by the rebuilding.

St. Pancras is an absolute pain of a station to use, as the station was designed by a sadist with long tunnels from the deep-level Underground lines.

Farringdon is a better interchange going South, as it is step-free from the Westbound Metropolitan Line, which I take from Whitechapel after using the East London Line from Dalston Junction. But going North coming home from Farringdon is not easy.

City Thameslink is a bit of a walk from the 56 bus, which stops by my house.

Blackfriars is not the easiest station to get to from my area.

These are my thoughts about using Thameslink after about 2018, when the Great Northern Metro is open with its new Class 717 trains.

My Link To Thameslink Going North

Living where I do approximately midway between Highbury and Islington, Dalston Junction and Essex Road stations, getting to some major rail termini can be difficult and if I was taking a case with me, I would have to use a bus or taxi.

I tend to avoid Highbury and Islington station going out, as the station and its environs is in desperate need of a rebuild and to get say to the Victoria Line for Kings Cross is a long and difficult walk from the bus stop and through the maze of roads and tunnels to the platform.

But with Essex Road station having a frequent bus service from the stop nearest my house and a 10 tph connection to Finsbury Park, that will be my route to get to Thameslink going North to Cambridge or Peterborough.

I don’t think I’ll be alone, in using the Great Northern Metro to get access to Thameslink to go North.

My Link To Thameslink Going South

I have a choice of routes to go South on Thameslink.

  • I could take the same route as for going North, but the interchange at Finsbury Park is a dreaded down and upper.
  • I can take a 141 or 21 bus to London Bridge station. I regularly use this route coming home, but going South is dreadfully slow through Bank.
  • I can take a 38/56 bus to the Angel and get the Northern Line to London Bridge.
  • I can take a 56 bus to St. Bartholomews Hospital and walk downhill to Farringdon station.
  • I can take a train from Dalston Junction to Canada Water and then use the Jubilee Line.
  • Don’t suggest the Victoria Line to St. Pancras as the walk in the depressing tunnel at Kings Cross is to be avoided at all costs.
  • Don’t suggest a 30 bus to St. Pancras, as it requires a long walk through the busy Shopping Centre at St. Pancras because Thameslink doesn’t have a much needed Southern entrance.
  • I could always go via Essex Road and Finsbury Park.

I actually would like to take a train from Dalston Junction to say New Cross Gate for East Croydon and get Thameslink or the myriad Southbound services from there.

But the new proposed timetable for 2018, would seem to make that an more difficult dream, unless I wanted to wait for a long time on say Norwood Junction station.

Conclusion

Going North is easy, but as they don’t serve the \greater East London, GTR treat us with contempt and make it difficult for us to use Thameslink easily, if we’re going South.

September 22, 2016 Posted by | Transport | , , , , | 1 Comment

The Great Northern Metro

Govia Thameslink Railway have just announced their proposals to create a Great Northern Metro.

This was something I speculated about in A North London Metro.

GTR’s Proposals

This document on their web site gives these outline proposals.

  • 2018 timetable will provide new connections and increase capacity.
  • More frequent trains to provide a ‘true’ metro service.
  • New air-conditioned trains from 2018.

It looks like I got those right

These are other proposals.

14 Trains Per Hour To/From Moorgate in The High Peak

Currently, a maximum of 12 trains per hour (tph) can get in and out from Moorgate station in the High Peak.

Raising it by two to 14 tph surprised me, but it says that they have found a way with the new trains to save time possibly by using better technology to change the voltage quicker at Drayton Park.

Effectively, the headway between trains is being reduced from five minutes to four and a half minutes.

One big advantage for people like me, who live close to a Southern station on the line, as I do with Essex Road station, is that going North in the morning rush and South in the evening rush, will be easy.

Services To/From Moorgate in The Off Peak

This is a summary of the changes in the Off Peak.

On the other hand, it appears there will now be no direct trains between Moorgate and Letchworth Garden City.

My local station is Essex Road and I regularly use the line to go North and South between Moorgate and Alexandra Palace.

Instead of a measly six tph, I’ll now be getting 10 tph all day, with 8 tph on Sundays.

I thought it would be four tph to Hertford North and Welwyn Garden City, so they’re actually going to do better than I thought they would.

An Eastward Shift In Services

The two branches used to be treated fairly equally with 3 tph on each.

But now it appears that Hertford North gets preference.

But then the East Coast Main Line will be getting Thameslink services.

  • 6 tph stopping at Finsbury Park
  • 0 tph stopping at Alexandra Palace
  • 2 tph stopping at Potters Bar
  • 2 tph stopping at Welwyn Garden City
  • 6 tph stopping at Stevenage

Note that these are very much a summary.

Problem! – Will Thameslink Stop At Alexandra Palace?

,I do hope that Thameslink services not stopping at Alexandra Palace, when they stop at places like Oakleigh Park is a typo.

Consider.

  • Alexandra Palace is the last station before the Hertford Loop Line splits from the East Coast Main Line.
  • Alexandra Palace has an attraction that passengers might want to visit.
  • Alexandra Palace station may well be served by Crossrail 2.

But most importantly, Alexandra Palace could have a cross-platform and/or same-platform interchange between Great Northern Metro services on both routes and Thameslink.

So it would be a good interchange for eighty-year-old Aunt Mabel going from Enfield Chase to Gatwick Airport with her suitacse full of presents for her grandchildren.

My Link To Thameslink Going North

I laid this out in My Links to Thameslink and I suspect from 2018, I’ll take bus to Essex Road station and then take the Great Northern Metro to Finsbury Park.



I don’t think I’ll be alone, in using the Great Northern Metro to get access to Thameslink to go North.

My Link To Thameslink Going South

I laid this out in My Links to Thameslink and I suspect from 2018, I accept what GTR offer or take the Essex Road and Finsbury Park route.

  • Highbury And Islington Station

But what would help everybody within a couple of miles or so of Highbury and Islington station, is to upgrade the station to the Twentieth Century.

  • Provide a second entrance on the North side of Highbury Corner roundabout, where there is a disused station entrance.
  • Provide a better connection between the Northbound and Southbound deep-level platforms.
  • Provide full step-free access to the deep-level platforms.
  • Improve the lighting and ambience in the deep-level platforms.

Talking to someone who works in the station and is obviously familiar with the tunnels, he felt, as I do, that there are fairly simple solutions to sorting out the deep-level platforms.

I would do the following.

  • Open up the second entrance.
  • Create a subway under Holloway Road.
  • Improve the walking routes and access to buses outside the station.
  • Put lift access from the new entrance to a passage that would  cross all four deep-level lines.
  • Provide step-free access from the cross-passage to the four deep-level lines.
  • Replace the stairs connecting the two Southbound platforms

Unfortunately, I suspect that the new road bridge over the railway in front of the station has probably been built without leaving space for the subway.

The Link To Crossrail

In Liverpool Street Crossrail Station Disentangled, I showed that changing between Crossrail and the Northern City Line at Moorgate could be easy.

Now that the service into Moorgate will be 10 tph all day, with 8 tph on Sundays, the line will become an important link to Crossrail for a large area of North London.

Consider.

  • The Piccadlly Line has no connection with Crossrail, so changing at Finsbury Park for Moorgate might be the quickest way to get to the new line.
  • The Victoria Line has no connection with Crossrail, but there is cross-platform interchange at Highbury and Islington with the Great Northern Metro.
  • The North London Line connects to the Great Northern Metro at Highbury and Islington.

Taken together, the Piccadilly Line, Victoria Line and the Great Northern Metro, with help from more local transport methods like bikes and buses, will certainly improve the link to Crossrail for a large area of Enfield, Hackney, Haringey, Islington and Waltham Forest.

My only worry, is that as the Great Northern Metro gives such good access to Crossrail for such a wide area of London and South Hertfordshire, that the planned 10 tph into Moorgate all day, with 8 tph on Sundays, will be too low.

At least the improvements to the service are coming in around 2018, which would be before Crossrail opens in 2019.

Once Crossrail opens, I suspect, it will give me a better link to Thameslink, especially when I need to go South.

Conclusions

The service is a great improvement on the current one. But I predicted that!

The service is going to meet what I suspect,  GTR hope it will.

As an average punter on the Northern City route from Essex Road, I will get a lot more trains.

I shall certainly use Essex Road and Finsbury Park to get to Cambridge.

It’s a pity it doesn’t help to use Thameslink in the difficult direction to the South.

Related Posts

GTR’s 2018 Timetable Consultation

Liverpool Street Crossrail Station Disentangled

My Links To Thameslink

Thameslink To Rainham



September 19, 2016 Posted by | Transport | , , , , , , | 3 Comments
