H2 Green, Eversholt Rail To Jointly Develop Hydrogen Supply Solutions In The UK

The title of this post, is the same as that of this article on H2 View.

Their co-operation will be for the rail industry and based on green hydrogen, produced by electrolysis.

  • H2 Green is a Scottish company, that were recently taken over by Getech,
  • Eversholt Rail Group is a rolling stock leasing company, who are also backing hydrogen trains, that will be manufactured by Alstom.

This could be the kick up the backside, that hydrogen trains need in the UK.

July 6, 2021 Posted by | Hydrogen, Transport/Travel | , , , , , | Leave a comment

Moorgate Station’s Old Entrance Has Now Reopened

I went to Moorgate station today, as the old entrance has now reopened with lifts and stairs to the sub-surface lines.

Note.

  1. The stairs down to the tunnel connecting the Northern Line and Crossrail look a bit steep.
  2. The ceiling design in the entrance lobby.
  3. The escalators down to Crossrail at the Southern side of the entrance lobby.
  4. The gate line is very wide.

The oversite development, which is still being built, will surely tidy up the entrance.

In The New Lift To The Northern Line At Moorgate Station, I showed and described this visualisation.

Note.

  1. The Northern City Line is shown in purple.
  2. The double escalator going down to between the two terminal platforms of the Northern City Line.
  3. The Northern Line is shown in black and the two platforms are underneath the Northern City Line.
  4. The Northern Line tunnels cross over the top of the Crossrail running tunnels.

The dark green tunnel with the right angle bend at the top of the map, is the pedestrian tunnel that connects the Northern Line and Crossrail.

The tunnel will be accessed from the Northern line platforms by the lift or the stairs, shown in the first two pictures.

Alternatively, you will be able to take he rat-up-the-drainpipe route to the surface from the Northern Line, that I described in Up From The Depths At Moorgate Station. That route is escalators all the way and then the lift in the pictures to the main entrance lobby.

On August 1st 2021, I finally took the lift from the Westbound Hammersmith & City, Circle and Metropolitan platform to the new ticket hall and took these pictures.

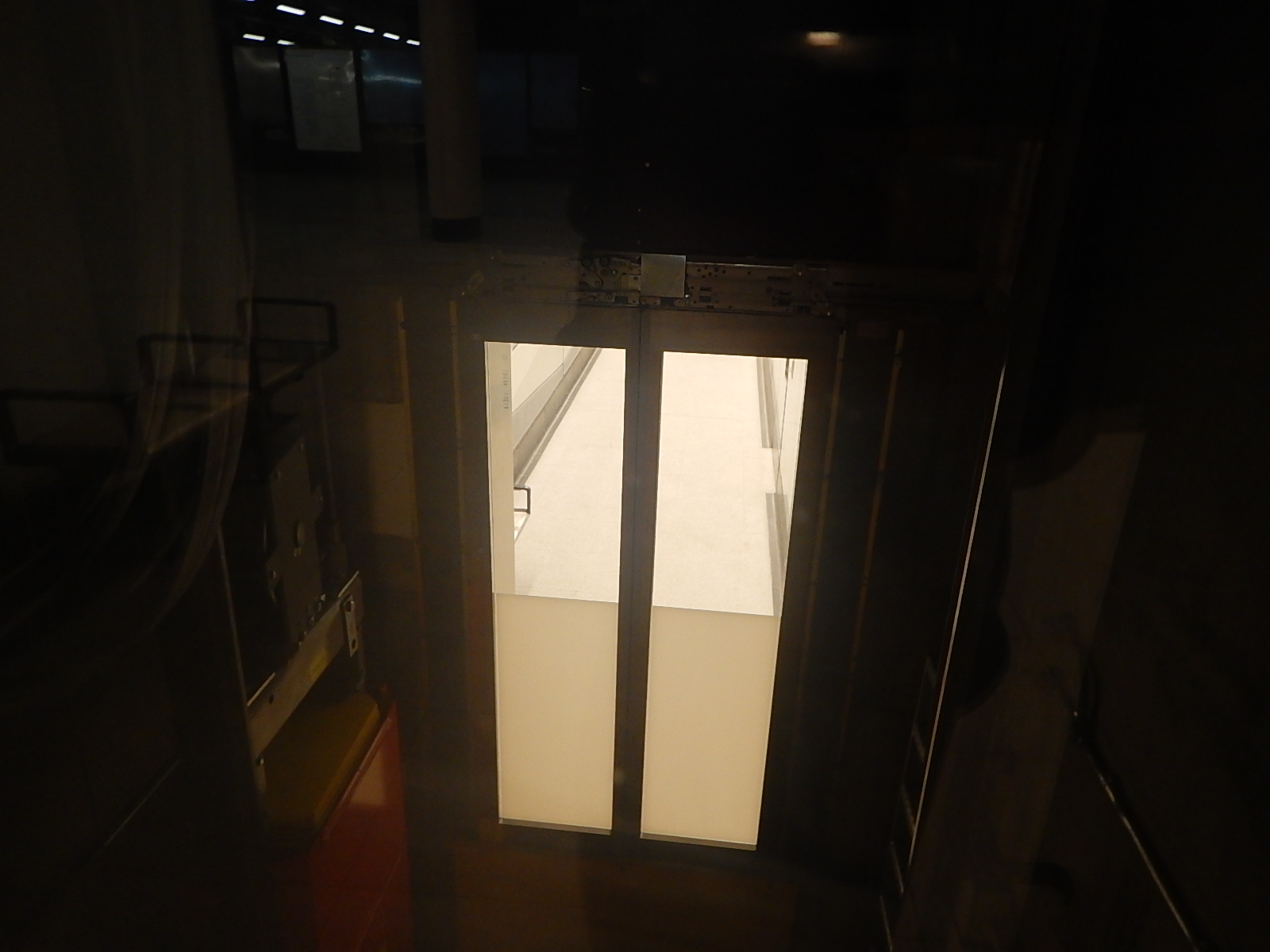

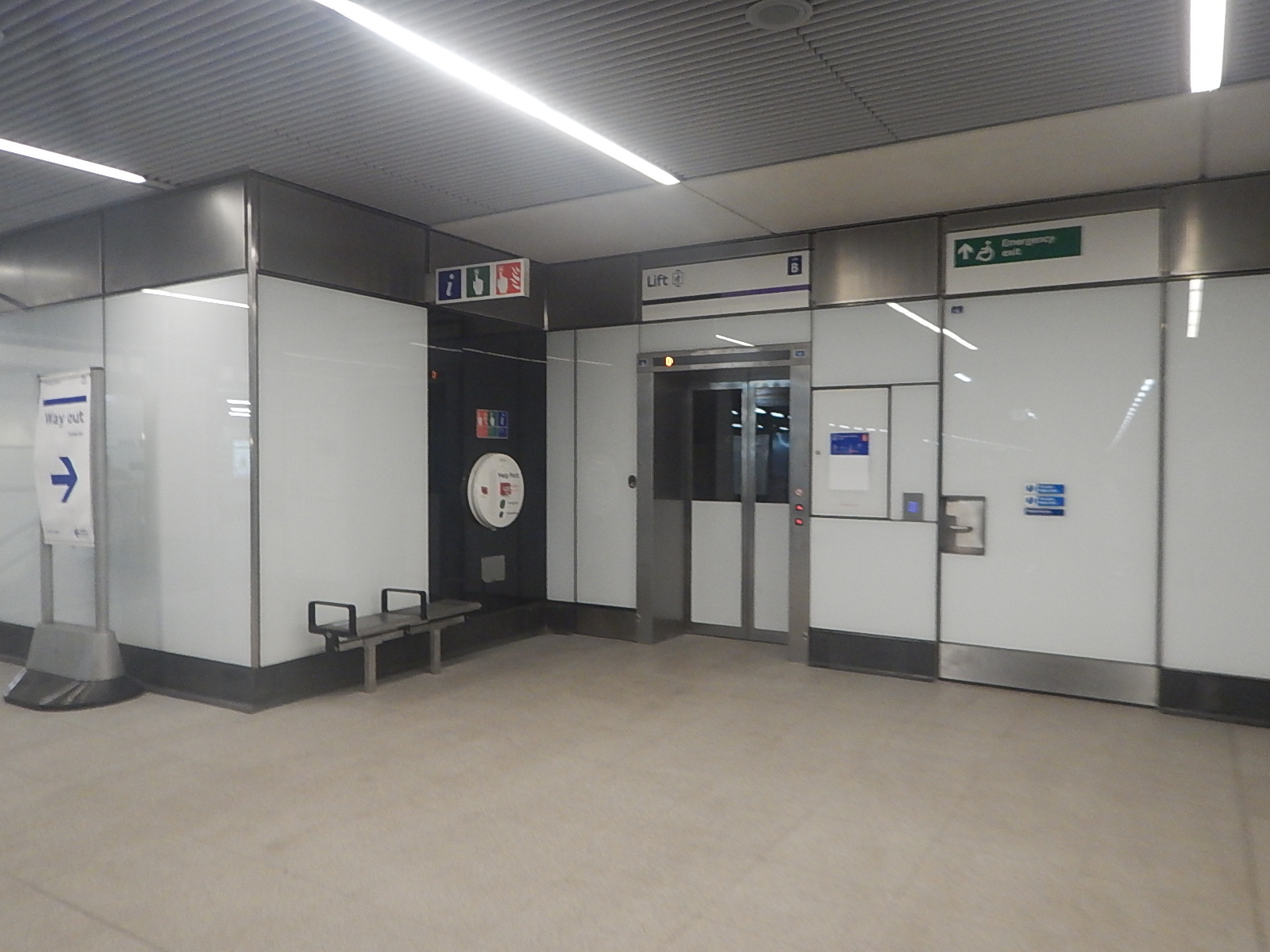

This is a general view of the lift.

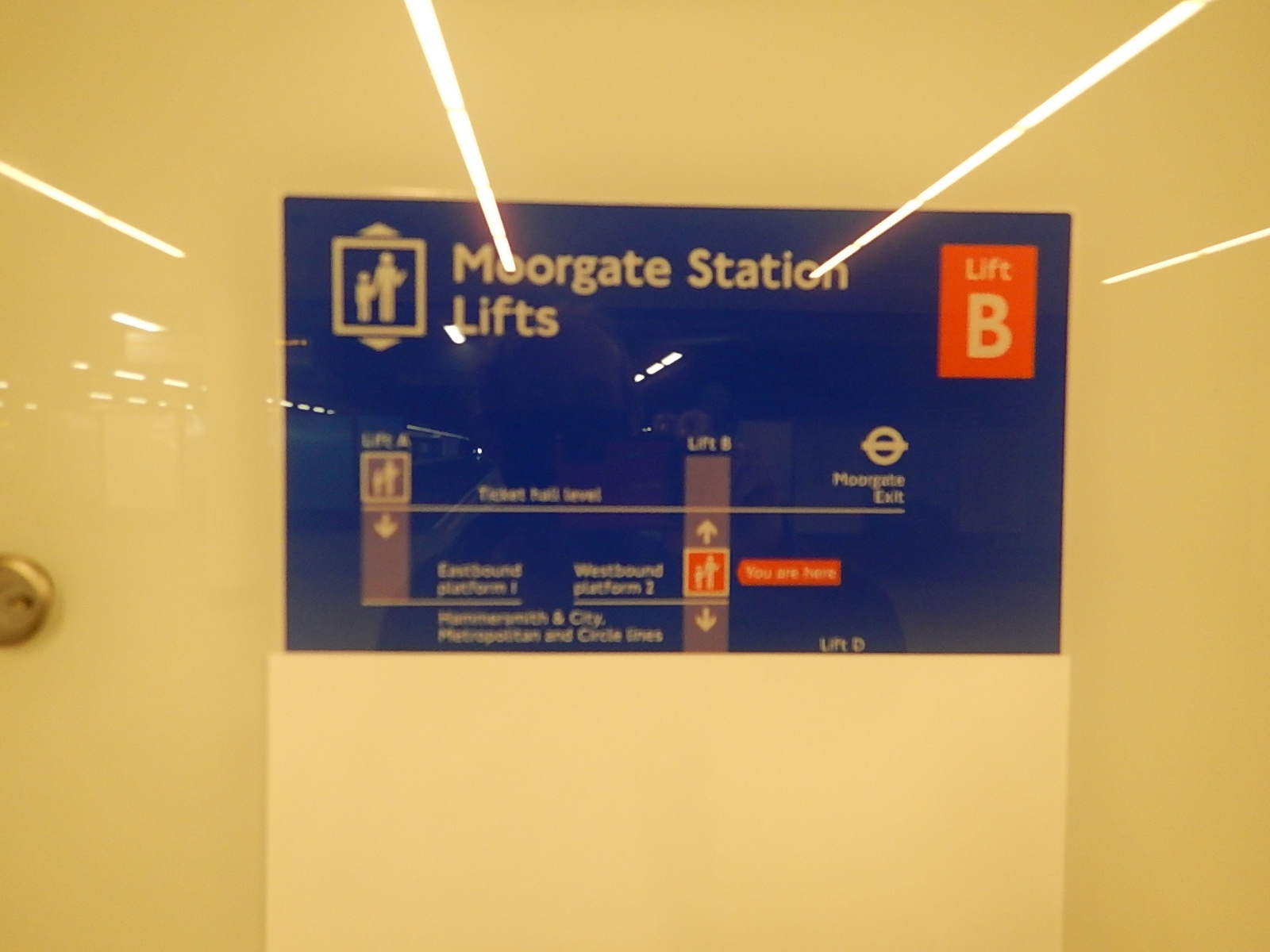

This is the information plate on the outside of the lift at the sub-surface platform level.

It shows two lifts from the Sub-service platforms to the new ticket hall.

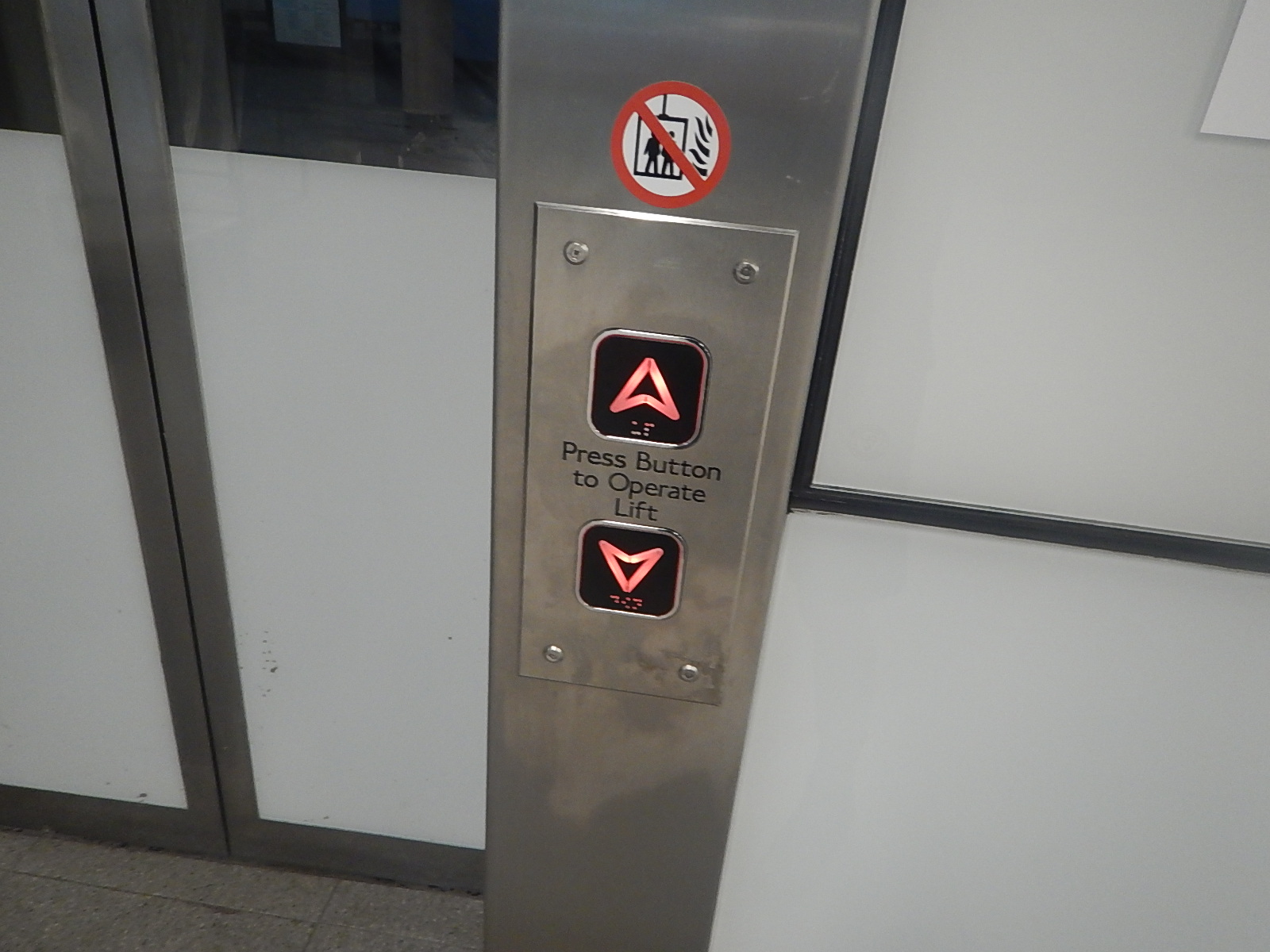

This picture shows the lift buttons on the outside of the lift at the sub-surface platform level.

It appears you can go up and down.

The down must mean that there is a level below the sub-surface platform level.

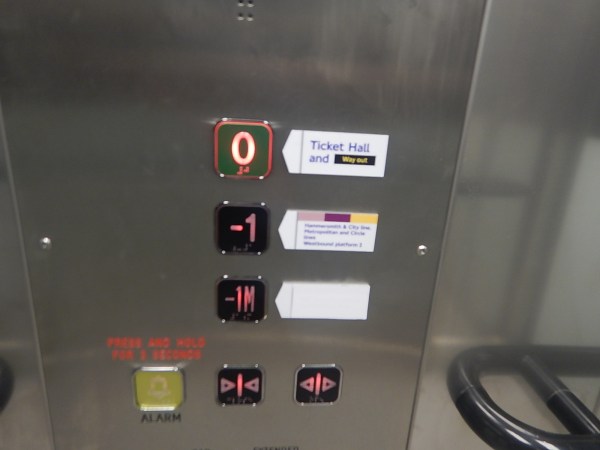

These are the buttons inside the lift.

It appears that there is a level below the platforms, which passengers can use.

Although it is not named on the plate, the lift must connect to the right-angled tunnel to the Northern and Northern City Lines.

  • It does appear that of the two lifts between the new ticket hall and the sub-surface platform level, only one accesses the connecting tunnel.
  • It might also mean that passengers in wheelchairs will need to use two lifts between the Northern Line and the Eastbound sub-surface platform.

I did see another tunnel from the lift on the Westbound sub-surface platform, stretching to the East.

Let’s hope I’m wrong or it will be sorted before opening.

Moorgate station appears to be getting extremely complicated.



July 6, 2021 Posted by | Transport/Travel | , , , , , | Leave a comment

Approaching Kings Cross – 5th July 2021

I took these pictures approaching Kings Cross.

Reports say most of the work of the remodelling is now complete. Although, it did look to me that in places more tracks could be laid.

The Length Of The Long Platforms At Kings Cross

This repeat of the last picture in the gallery shows the length of the nine long platforms.

Note.

  1. The train is in Platform 3.
  2. The train is an eight-car Class 700 train.
  3. Eight-car units are 162 metres long.
  4. Twelve-car units are 242.6 metres long.

Platform 3 is obviously long enough to take the following trains.

This Google Map shows the ends of the platforms at Kings Cross.

Note.

  1. The long platforms at the right are 2 and 3.
  2. Platform 2 and 3 are wide.
  3. Two LNER Azumas are in Platforms 5 and 6.

It looks to me that whilst all platforms can probably handle the standard British Rail length of 240 metres, those on the right may be able to handle longer trains. But what trains? These are my thoughts.

Longer LNER Azumas

This document on the Hitachi Rail web site is entitled Development of Class 800/801 High-speed Rolling Stock for UK Intercity Express Programme.

The document says that Class 80x trains have a sophisticated Train Control and Management System (TCMS).

The document says that this is one of the functions of the TCMS.

To simplify the rearrangement and management of train configurations, functions are provided for
identifying the train (Class 800/801), for automatically determining the cars in the trainset and its total length,
and for coupling and uncoupling up to 12 cars in normal and 24 cars in rescue or emergency mode.

I would assume that with the purchase of extra cars, that it might be possible to lengthen trains to up to twelve cars.

Lengths would be as follows.

  • Ten-car Class 80x train – 260 metres.
  • Eleven-car Class 80x train – 276 metres.
  • Twelve-car Class 80x train – 312 metres.

To add extra capacity on the routes to Leeds and Edinburgh services, there must be a balance between these factors.

  • The cost of extra cars.
  • The cost of platform lengthening.

There must of course be space for any platform lengthening.

It would seem to me, that common sense should allow twelve-car trains to be handled at King’s Cross, as this must be one of the best ways of adding capacity to East Coast Main Line services.

Caledonian Sleeper

The Caledonian Sleeper doesn’t normally run into King’s Cross, but during the rebuilding Euston for High Speed Two, it may be necessary to provide an alternative platform.

Unfortunately, the sixteen-car Caledonian sleeper trains are 352 metres long. So it would appear that Kings Cross would not be a temporary alternative.

But given the amount of money being invested in sleeper trains in Europe by the likes of Midnight Trains and NightJet, I can see that the Caledonian Sleeper might have another problem – success and the need for more capacity.

So I wouldn’t rule out an East Coast Main Line sleeper train between London Kings Cross and Edinburgh.

It might call at Stevenage, Newcastle and Berwick to widen its passenger base, just as the current sleeper calls at Watford, Carlisle and Carstairs.

The train could be extended to Aberdeen, to simplify services in Scotland.

Obviously, traffic and finance would decide, but I wouldn’t rule out the Caledonian Sleeper running to and from King’s Cross for a few years yet.

A Night Light Freight Terminal

In Is This The Shape Of Freight To Come?, I wrote about the new generation of fast electric freight trains, based on redundant electric multiple units.

  • If you look at Real Time Trains, you will find that few trains use King’s Cross station between two and five in the morning.
  • Platforms can take a twelve-car version of these electric freight trains.
  • The new platforms are wide and level.
  • Local delivery could use electric vehicles and bikes.

I think King’s Cross has possibilities for handling goods like food, parcels and shop supplies.

The Short Platforms At Kings Cross

When I was a child, King’s Cross had four short suburban platforms, where N2 steam tank engines hauled suburban services in and out of the station.

The suburban platforms have now been reduced to two platforms, that fit in with the current uses of the station.

  • The two platforms are numbered 9 and 10.
  • They can handle an eight-car Class 700 train, which is 162 metres long.
  • They can handle a five-car Class 800 train, which is 130 metres long.
  • Some five-car services run by the new Hitachi trains use these platforms.

These pictures show the platforms.

Note.

  1. The platforms are wide.
  2. The picture of the Azuma in Platform 9 was taken before the centre track was removed recently.
  3. Today, one LNER Azuma departed from Platform 9 to go to Lincoln, but both platforms were busy with Great Northern services to Cambridge, Ely and Kings Lynn.

I do wonder if the platforms could be used for light freight, during the night.

Conclusion

King’s Cross is not just one of the UK’s finest railway stations, which is recognised by its Grade I Listed status, but it is now moving towards an efficient, high-capacity station that works around the clock!





July 6, 2021 Posted by | Design, Transport/Travel | , , , , , , , | Leave a comment

Watford Junction Station’s Barrier Seats

I quite like these seats at Watford Junction station.

They would appear to give a nice perch to sit, whilst waiting for the train and also act as a crush barrier for the glass shelter behind.

They also give me something to hold, when a train goes through.

The train shown in the picture was a Tesco train between Tilbury and Daventry.

It went through the station at probably over 60 mph.

It had the usual smelly and polluting Class 66 on the front.

It took four hours 45 minutes for the journey, which included the Gospel Oak and Barking Line through London.

I did note earlier that the train seemed to be using modern wagons.

Are these wagons faster than those you generally see on UK railways?

Surely too, this is the type of train, that could be hauled by an electric locomotive with a Last-Mile capability, like a Class 88 Locomotive.

I would have thought, that Tesco could benefit, by using electric haulage, especially if the locomotive was appropriately liveried.



July 6, 2021 Posted by | Design, Transport/Travel | , , , | 2 Comments
