Cost Of Turning Off UK Wind Farms Reached Record High In 2021

The title of this post, is the same as that of this press release from Drax.

This is the first paragraph.

The cost of turning off wind farms in the UK has reached record levels, according to a new report.

The press release makes these points.

  • Investing in more long duration electricity storage, such as expanding Drax’s Cruachan pumped storage hydro plant in Scotland, would mean more excess renewable power could be stored and made available when required, cutting costs and carbon emissions.
  • The cost of turning off UK wind farms to manage the electricity system rose from almost £300m during 2020 to over £500m in 2021, contributing to higher energy bills and carbon emissions, according to a new report.
  • Costs increased substantially because the system relied on expensive gas power to manage periods when wind power was curtailed, as not enough electricity storage was available to prevent the excess renewable power from wind farms going to waste.

Drax give these reasons for the problems.

This happened as a result of constraints in the transmission system and a lack of long-duration storage capacity, which is needed to manage periods when renewable power generation outstrips demand.

The problem is going to get worse as we increase the amount of wind power in the UK.

Penny Small, Drax’s Group Generation Director sums everything up.

This report underlines the need for a new regulatory framework to encourage private investment in long-duration storage technologies.

The UK is a world-leader in offshore wind, but for the country’s green energy ambitions to be realised we need the right energy storage infrastructure to support this vital technology, make the system secure and reduce costs.

Drax’s plan to expand Cruachan will strengthen UK energy security, by enabling more homegrown renewable electricity to power British homes and businesses, reducing system costs and cutting carbon emissions.

A good framework has been created for wind farms and many more are being proposed and developed.

Frameworks are needed for both transmission systems and long-duration energy storage capacity.

June 21, 2022 Posted by | Energy, Energy Storage | , , , , | 1 Comment

Volvo Trucks Showcases New Zero-Emissions Truck

The title of this post, is the same as that of this press release from Volvo Trucks.

This is the first paragraph.

Imagine a truck that only emits water vapor, produces its own electricity onboard and has a range of up to 1 000 km. It’s possible with fuel cells powered by hydrogen, and Volvo Trucks has started to test vehicles using this new technology.

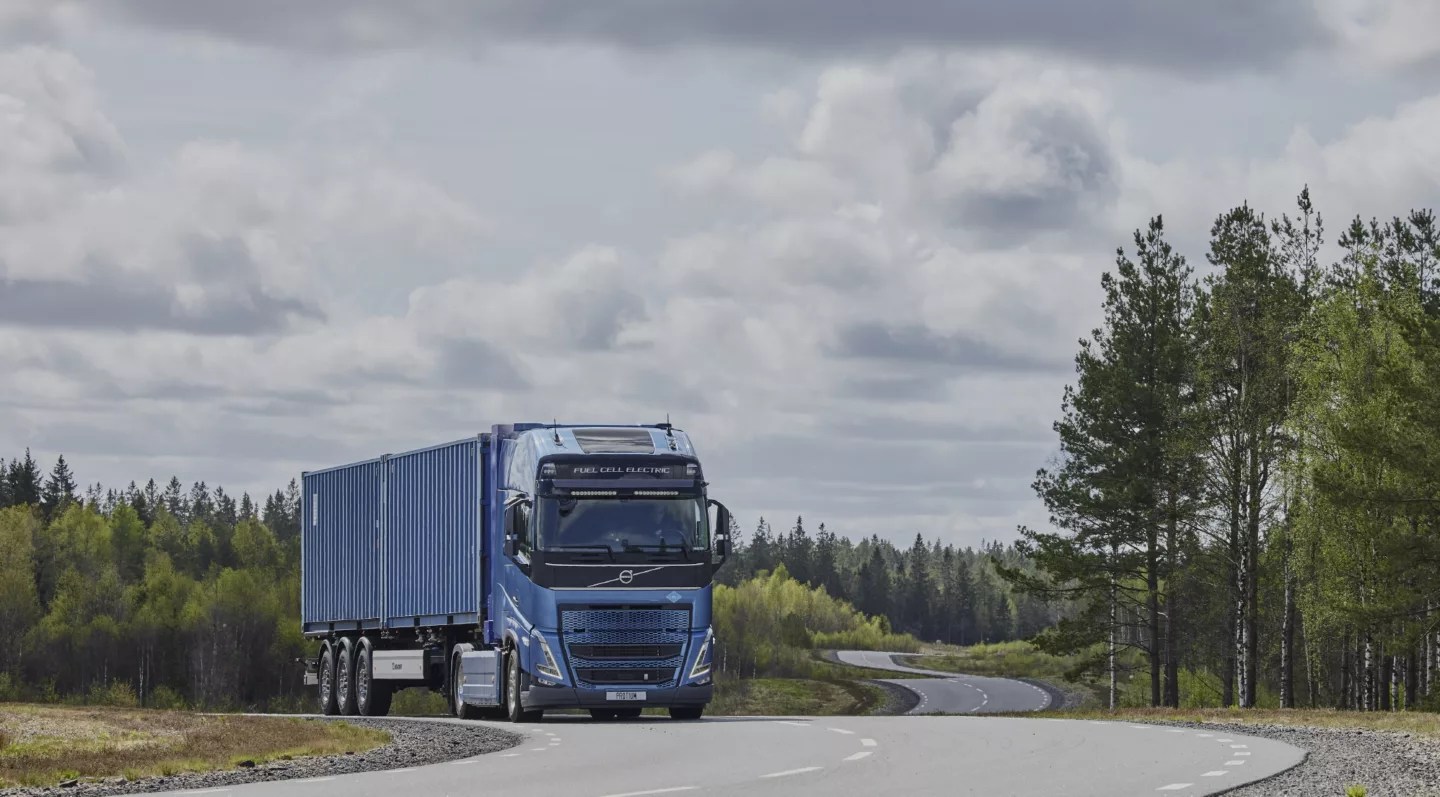

This picture shows one of the trucks.

It certainly looks like a normal truck.

From the press release, it looks like Volvo Trucks are taking a conservative approach to designing, developing and launching the truck.

  • Early examples will go through an extensive test program.
  • It uses two fuel cells can generate up to 300 kW.
  • Range is quoted at up to 1000 km.
  • Fully refuelling takes 15 minutes.
  • Gross weight is up to 65 tonnes.
  • It looks to be a straight replacement for a current diesel truck.

Full launch is mentioned as towards the end of the decade, after there are enough hydrogen filling stations.

Conclusion

I may not have driven a large truck like this, but I’ve certainly funded a large number and talked with many experienced operators.

It looks to me that this could be the truck for an operator or company, who wants to offer zero-carbon transport for commercial, environmental, public relations or tax reasons.



June 21, 2022 Posted by | Hydrogen, Transport/Travel | , , , | Leave a comment

Drax To Pilot More Pioneering New Carbon Capture Technology

The title of this post, is the same as that of this press release from Drax.

This is the first paragraph.

Renewable energy pioneer Drax has partnered with the University of Nottingham and Promethean Particles to trial a pioneering new bioenergy with carbon capture and storage (BECCS) process at its North Yorkshire power station.

Normally, carbon capture from the flue gas of a power station uses a liquid solvent, which dissolves the carbon dioxide.

However, the process that Drax are trialling, uses porous compounds called metal–organic frameworks (MOFs) to absorb the carbon dioxide.

This page on the Promethean Particles web site described how their carbon-capture works.

Traditional solvent-based carbon capture systems require a significant amount of energy to regenerate the carbon-capturing material. In power generation applications, estimates put this energy penalty at up to 35% of the power station’s output. Metal-organic frameworks (MOFs) capture carbon mainly through physical, not chemical means. This “trapping” process requires lower energy inputs to regenerate the MOFs and can therefore help achieve more energy-efficient carbon capture. By using MOF-based carbon capture, more of the power generated can go where it was intended, lowering the price of energy for consumers and CAPEX for the power generators.

Note.

  1. It is a physical rather than a chemical process.
  2. It is more energy efficient than traditional carbon-capture.

This Drax graphic from the press release, shows how this process can be incorporated into a power plant..

Note.

  1. The trial will last for two months and will be hosted within Drax’s BECCS incubation hub at its North Yorkshire Power Station.
  2. Metal Organic Frameworks are a unique class of solid sorbents offering lower operational costs and reducing potential environmental impacts.

Work to build BECCS at Drax could get underway as soon as 2024, with the creation of thousands of jobs.

Fifty years ago, I spent several months at ICI looking at the mathematics of different numbers and sizes of vessels of in a proposed chemical plant, to optimise the cost of the plant.

  • I suspect a similar analysis could be applied to this process.
  • It would surely be very suitable for Drax, whose main power station has four units fuelled by biomass and another fuelled by natural gas.
  • Are two columns containing MOF, the optimum number?
  • The calculation could involve a lot of permutations and combinations, which I’ve used to advantage for over fifty years.

I will follow this trial with interest.

Conclusion

This is another application of advanced physics and chemistry.

If Promethean Particles ever decide to go the crowdfunding route, I would look seriously at a small investment.
