Tram-Trains At Manchester Victoria Station

In Could A Class 399 Tram-Train With Batteries Go Between Manchester Victoria And Rochdale/Bury Bolton Street/Rawtenstall Stations?, I speculated on how tram-trains from Rochdale, Bury Bolton Street and Rawtenstall stations might join the Manchester Metro Link at Manchester Victoria station.

I showed this Google Map of the lines at Manchester Victoria.

On my weekend trip to the North, I took these pictures yesterday from the Metrolink platforms at Manchester Victoria.

I can’t believe that it would be the most difficult track design project to allow tram-trains to swap between the rail and tram networks at this point.

The bigger problem, is probably to decide, where the tram-trains would go on the other side of Manchester.

On the other hand, they could use electrified rail lines to Bolton or Wigan North Western.

  • The performance and capacity of a Class 399 tram-train is very comparable to a Pacer.
  • Wigan North Western station has three South-facing bay platforms.

Manchester’s Metrolink designers are going to have a lot of fun.

February 24, 2019 Posted by | Transport | , , , , | 2 Comments

Could A Class 399 Tram-Train With Batteries Go Between Manchester Victoria And Rochdale/Bury Bolton Street/Rawtenstall Stations?

In Rossendale Reopening Prospect, I looked at a proposal to run a new service between Manchester Victoria and Bury Bolton Street stations.

Could this route be run by a Class 399 tram-train with a battery capability?

These tram-trains would be very similar to the Stadler Citylink Metro Vehicles, that have been specified for the South Wales Metro.

  • Wikipedia gives the weight of the vehicle as 66 tonnes.
  • Manchester Victoria has an altitude of 44 metres
  • Bury has an altitude of 100 metres.
  • Rochdale has an altitude of 137 metres.
  • Rawtenstall has an altitude of 174 metres.
  • I will assume 200 passengers at 90 Kg. each, which gives a weight of 12 tonnes.

Using Omni’s Potential Energy Calculator gives the following.

  • Manchester Victoria to Bury Bolton Street has an increase in potential energy of 12 kWh.
  • Manchester Victoria to Rochdale has an increase in potential energy of 20 kWh.
  • Manchester Victoria to Rawtenstall has an increase in potential energy of 28 kWh.

When you consider that a Class 230 train has 400 kWh of batteries in a two-car train, I don’t think that there will be any problem fitting batteries big enough to take a Class 399 tram-train from Manchester Victoria to Bury Bolton Street, Rochdale or Rawstenstall stations under battery power with a full load of passengers.

  • The batteries would be charged in Manchester Victoria station.
  • Returning to Manchester Victoria station would use a small amount of battery power, with some assistance from Newton’s friend; gravity.
  • The batteries would get a certain amount of charge from the regenerative braking of the tram-trains.

This Google Map shows the Eastern approaches into Manchester Victoria station.

Note.

  1. The four through platforms numbered 3 to 6.
  2. The two bay platforms numbered 1 and 2.
  3. The four platform faces and three tracks of the Metrolink.

Having seen several tram-train systems all over Europe, I believe it would be possible to connect tram-trains running on batteries on the Calder Valley Line to the Manchester Metrolink at Manchester Victoria station.

  • Going from Manchester to Bury Bolton Street, Rochdale or Rawtenstall, the tram-train would stop in the Manchester Victoria tram-stop, drop the pantograph and then continue on its way under battery power.
  • Returning from the North, the tram-train would stop in the Manchester Victoria tram-stop, raise the pantograph and then continue on its way using power from the overhead wires.
  • Batteries would be charged whilst running through Manchester.

There couldn’t be too many tram-train systems that would be easier to build than this?

It is interesting to note that Hebden Bridge station is just twenty-three miles from Manchester Victoria station and has an altitude of 190 metres.

So would it be possible for a Class 399 tram-train to reach Hebden Bridge station on battery power? I very much think it would be!

Class 399 Tram-Trains And Class 156 Trains

Class 156 trains are one of the better workhorses of the railways in the North and despite their age, they scrub up well.

If their performance is compared to that of a Class 399 tram-train, they are not that different.

  • Noise and vibration of the electric tram-train is obviously much lower.
  • The modern interior of the tram-train is geared to the needs of passengers.
  • Passenger capacity of the two vehicles is also about the same.
  • In Karlsruhe, tram-trains travel for up to 100 miles from the centre of the city.

Both Karlsruhe and Sheffield use three-car tram-trains, but Valencia uses much longer ones, so on heavily-used routes larger tram-trains could be used.

I doubt there would be many complaints, if a Class 156 service were to be replaced with one run by Class 399 tram-trains.

Electrification Of The Calder Valley Line

Electrifying the Calder Valley Line with 25 KVAC overhead wires as far as Rochdale station, would certainly make running to Hebden Bridge station possible.

  • That electrification  would also mean that electric trains could be turned-back at Rochdale station, just as diesel trains are now!
  • I have flown my helicopter along the route and it looks like of the seven or eight bridges on the route, mostly appear to be modern structures for new roads or motorways.
  • As 25 KVAC overhead electrification is currently being erected between Manchester Victoria and Stalybridge, a spur to Rochdale would be very much a simple addition.

It could be a very useful short length of electrification.

Tram-Trains In Manchester

This article on Rail Technology Magazine was puiblished yesterday and is entitled Plans For Tram-Trains In Manchester Unveiled As Grayling And Burnham Mull Expansion Of Metrolink.

Conclusion

Could we see tram-trains running from Bury Bolton Street, Hebden Bridge, Rawtenstall and Rochdale into Manchester Victoria and then taking to the existing tram network?

If you’ve ever been to Karlsruhe, as I have to see the Class 399 tram-trains German cousins, you wouldn’t rule out anything.

That would include tram-train services to Blackburn, Buxton, Chester, Glossop, Hebden Bridge, Sheffield, Southport and Wigan.







January 25, 2019 Posted by | Transport | , , , , , , , , , , | 6 Comments

Rossendale Reopening Prospect

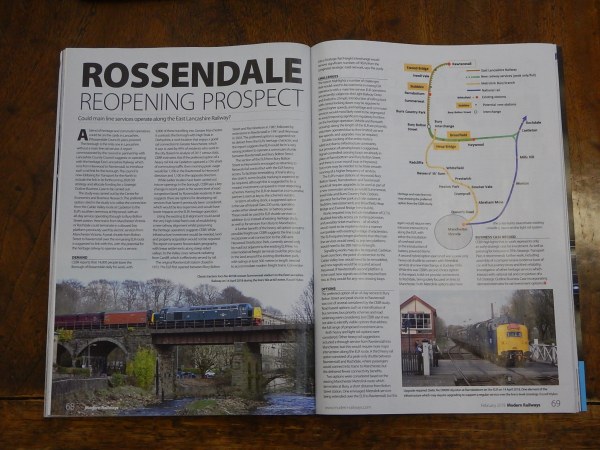

The title of this post is the same as that of an article in the February 2019 Edition of Modern Railways.

This is the opening two paragraphs.

A blend of heritage and commuter operations could be on the cards in Lancashire, if Rossendale Council’s plans proceed.

The borough is the only one in Lancashire without a main line rail service. A report commissioned by the council in partnership with Lancashire County Council suggests co-operating with the heritage East Lancashire Railway, which runs from Heywood to Rawstenstall, to introduce such a rail link for the borough.

Yesterday, I had a comment read out on the BBC, as I discussed in Wake Up To Money – New Stations.

Wake Up To Money yesterday was broadcast from Darwen, which is only a valley away from Rossendale.

One of the complaints on the program was about crowded roads and bad transport links to Manchester and Manchester Airport.

It looks to me, that the proposed Rossendale services will fulfil a similar need.

The main objective appears to be to create good links to Manchester and Manchester Airport, with a secondary objective of creating a link across the Pennines to Leeds with a change at Rochdale.

The article gives more details of the proposal.

Track

The plan envisages reinstating the route between Rawtenstall and Castleton Junction on the Calder Valley Line.

The section between Rawtenstall and Heywood stations, via Bury Bolton Street station is the heritage line of the East Lancashire Railway (ELR). It is best described as predominately single-track with passing loops.

The article says this about improving the track.

The section of the ELR from Bury Bolton Street to Heywood is envisaged as returning to Network Rail control but with the ELR having access. To facilitate timetabling of trains along the stretch, some double-tracking is expected to be required, although this is suggested to be a modest investment compared to most reopening schemes. Having the ELR on board as a co-operative partner is seen as key to the scheme’s success.

Having flown my virtual helicopter along the line, it looks to me, that it could become another scenic route out of Manchester.

Castleton Junction

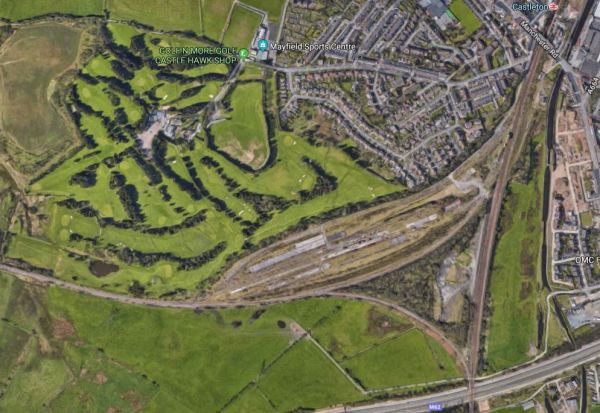

This Google Map shows Castleton Junction, where the East Lancashire Line meets the Calder Valley Line.

Note.

  1. The Calder Valley Line runs North-South.
  2. The ELR goes off to the West.
  3. Castleton station is in the North-East corner of the map.

What was or is the large site to the North-West of the junction?

The Junction will need to be upgraded and resignalled.

Electrification

It would be very unlikely, that the route will be electrified.

Although, I suppose there is a chance, that the Calder Valley Line might be electrified, to create an electrified route between Leeds and Manchester Victoria.

If this were to happen, then there would be electrification between Manchester Victoria and Rochdale.

Castleton Junction, where the new route would join the Calder Valley Line would be electrified.

This would make it easier and more likely for battery-electric trains to work the new route.

Possible Routes

Three routes are suggesting in the article.

  1. Manchester Victoria and Bury Bolton Street
  2. Bury Bolton Street and Rochdale
  3. Bury Bolton Street and Rawtenstall – Peak-Hour shuttle.

It is suggested that the third route would be run by the ELR.

Rolling Stock

The article says this about rolling stock.

In terms of rolling stock, a suggested option is the use of Vivarail Class 230 units, operating under either diesel-electric or battery power. These could be used for ELR shuttle services in addition to or instead of existing heritage stock, as well as for services from Bury to Manchester.

The Class 230 trains are an obvious choice, but I think that other trains could also be suitable.

These are my thoughts.

Class 230 Trains

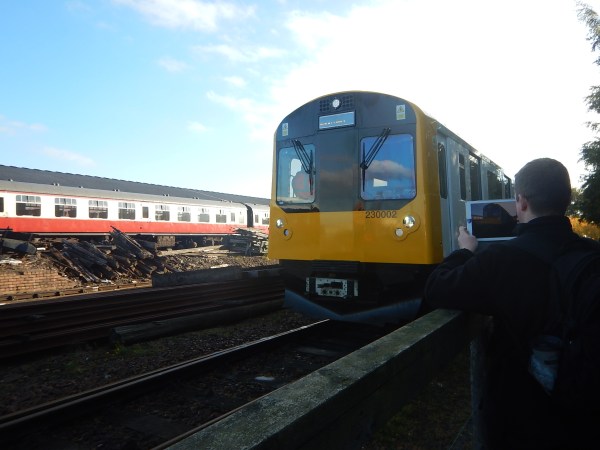

I described a ride in a Class 230 train in Battery Class 230 Train Demonstration At Bo’ness And Kinneil Railway.

The Class 230 train would have these characteristics.

  • The three-car train has a useful capacity of around 300 passengers.
  • The range on battery power should enable a service between Bury Bolton Road and Manchester Victoria stations.
  • The batteries can be charged in under ten minutes.
  • The operating speed is 60 mph.
  • The trains have been designed to be easy to service and this can be done on a remote basis.
  • The trains are of an age, to fit in well on a heritage railway.

The trains also have the advantage of large windows for looking at the scenery.

The trains would need to be charged at the end of the route and I suspect that Vivarail’s fast charging system would handle this in the terminal stations.

Class 769 Trains

Class 769 trains are electro-diesel trains, that use their diesel engines, where there is no 25 KVAC overhead electrification.

They are four-car trains with a passenger capacity of over 300 passengers.

They would have a very big advantage for the train operator.

Services across Manchester are often paired to give travellers the chance to do cross-city journeys without changing trains.

Using Class 769 trains would enable more services to be paired up.

Class 399 Tram-Trains

Class 399 tram-trains are under trial in Sheffield and they will also be used on the South Wales Metro.

The terrain in Rossendale involves a hundred metre or so climb from Bury Bolton Street to Rawtenstall. Rochdale is perhaps fifty metres higher than Bury Bolton Street.

Consider a Class 399 tram/train, working between Bury Bolton Street and Rawtenstall stsations.

  • Wikipedia gives the weight of the vehicle as 66 tonnes.
  • The altitude difference is 120 metres.
  • I will assume 200 passengers at 90 Kg. each, which gives a weight of 12 tonnes.

This means that the train has a increase of potential energy of 25 kWh at Rawtenstall station. This would be easily stored in an appropriately-sized traction battery.

It would appear that tram-trains should be able to climb to Rawtenstall, provided they could get to Bury with a full battery.

I look at this in detail in Could A Class 399 Tram-Train With Batteries Go Between Manchester Victoria And Rochdale/Bury Bolton Street/Rawtenstall Stations?

Alstom Breeze Trains

Alston Breeze trains could be a possibility, if hydrogen trains are compatible with steam trains.

The trains would also be able to work across Manchester, as the Class 769 trains will be able to.

Diesel Multiple Units

Northern have lots of better quality diesel multiple units including Class 156 and Class 170 trains. The company also has around sixty new Class 195 diesel multiple units on order.

These could obviously handle the route, but would it be better to use battery or more capable bi-mode trains on the route?

Diesel Use In Manchester

I suspect too, that train companies, their staff, passengers and all Mancunians would like to see Central Manchester’s railways become a diesel-free zone.

Train Timings

I obviously don’t have accurate figures, but I have a feeling that most of these trains could do a round trip in an hour between Manchester Victoria and Bury Bolton Street stations. The Class 230 trains would probably have time for a fast charge at each end of the route.

My Choice Of Train

It will be Class 230 or Class 769 trains.

Both trains could work the services to Bury Bolton Street station from Manchester Victoria and Rochdale stations.

The Class 769 has two advantages.

  • It is the larger train.
  • It could use its electric capability to cross Manchester.

Both trains wouldn’t look out of place running a shuttle between Bury Bolton Street and Rawtenstall stations, as they are rebuilt trains from a previous era.

Stations

A few points about the existing stations.

Bury Bolton Street Station

Bury Bolton Street station has four platforms and will be the interchange between the new services and those of the ELR.

The station has a bay platform that faces South East.

With modern signalling, I would expect that it could handle four trains per hour (tph).

Perhaps, these could be two tph from both Manchester Victoria and Rochdale stations.

Heywood Station

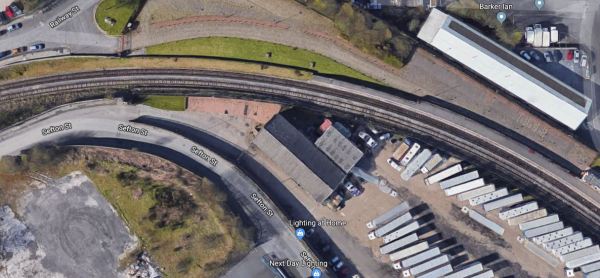

This Google Map shows Heywood station.

At present it has a long single curved platform.

I suspect to accommodate the new services, which could be four tph in both directions, the station would need a second platform.

Ramsbottom Station

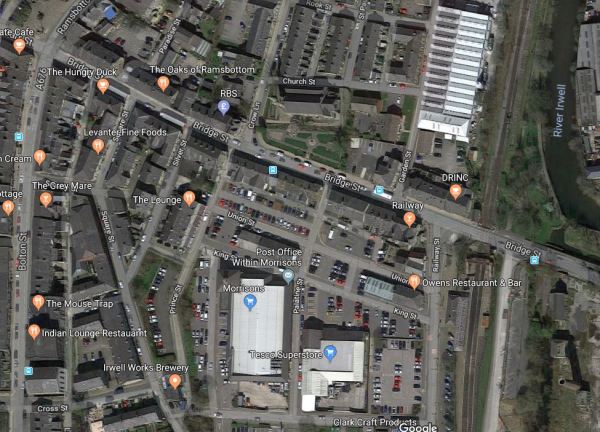

This Google Map shows Ramsbottom station.

It is a two platform station, which appears to be close to the Town Centre and a Tesco Superstore and a Morrison’s.

Rawtenstall Station

This Google Map shows Rawtenstall station.

Note, the train in the single platform with a run round loop for a locomotive.

The article says it would be possible to create a second platform at the station.

It would appear that if Class 230 trains were to be used for the proposed.Peak Hour service to Rawtenstall station, then there would be space for installing a fast charger.

Rochdale Station

Rochdale station will be a terminus for services from Bury Bolton Street station.

This paragraph in the Wikipedia entry for Rochdale station describes the new bay platform at the station and how it is used.

In 2015, construction on a fourth railway platform began. The 135m-long bay platform was completed in 2016 and is intended to relieve congestion at Manchester Victoria, where terminating trains would occupy the through platforms; numerous services now will continue on to Rochdale as opposed to terminating at Victoria. It is located at the south end of the main island platform, with the southbound through line having been re-aligned slightly further east to accommodate the new terminating line.

This section of the Calder Valley Line appears to be very busy with a train every four minutes.

I wonder, if by diverting some services to Bury Bolton Street station, this helps ease traffic on the Calder Valley Line.

Could trains do the following triangular route?

  • Manchester Victoria
  • Heywood
  • Bury Bolton Street
  • Heywood
  • Rochdale
  • Manchester Victoria

Train timetablers with much more knowledge than myself, will have fun getting a workable timetable.

New Stations

About half-a-dozen new stations will need to be built.

Most will probably be fairly simple affairs and those North of Bury Bolton Street station could probably by just a single platform.

There is one possibly proposed station, that could be more complicated.

Buckley Wells station could be built where the Bury Line of the Manchester Metrolink and the East Lancashire Line cross by the A56.

Park-and-Ride stations are also suggested in the article at Broadfield, Ewood Bridge, Heap Bridge and Stubbins.

Freight

The article also raises the possibility of running freight trains between the Calder Valley Line and Heywood.

This is said.

,The line could incorporate a rail connection to the 200-acre Heywood Distribution Park, currently served only by road, but adjacent to the existing ELR line. An intermodal rail freight terminal could be provided in the land around the existing distribution park, with sidings at least 500 metres in length needed to accommodate modern freight trains. Conversion into a Strategic Freight Interchange would remove significant numbers of HGVs from the congested strategic road network.

Would the implementation of this plan for freight be popular with the residents of Rossendale?

Conclusion

The proposal is a comprehensive one, which could benefit several groups.

  • The residents of Rossendale.
  • Vsitors to the area
  • Commuters to Manchester
  • Travellers across the Pennines
  • Travellers to Manchester Airport
  • Freight companies.

The proposal needs further investigation to see whether there is a strong business case for implementation.

I also think, that this sort of project model, where a heritage line is integrated with the National Rail network, can be repeated elsewhere in the country.

We have some very well-managed heritage railways in the UK, some of which could be extended to the National Rail network to provide much needed passenger and freight services to new and existing developments and difficult to access towns.

The rules need to be developed, so that these projects can be developed.

January 25, 2019 Posted by | Transport | , , , , , | 4 Comments
