Routes For Bombardier’s 125 Mph Bi-Mode Aventra
This article in Rail Magazine, is entitled Bombardier Bi-Mode Aventra To Feature Battery Power.
A few points from the article.
- Development has already started.
- Battery power could be used for Last-Mile applications.
- The bi-mode would have a maximum speed of 125 mph under both electric and diesel power.
- The trains will be built at Derby.
- Bombardier’s spokesman said that the ambience will be better, than other bi-modes.
- Export of trains is a possibility.
Bombardier’s spokesman also said, that they have offered the train to three new franchises. East Midlands, West Coast Partnership and CrossCountry.
These are my thoughts on these franchises.
Bi-Mode And Pure Electric
I’m pretty certain that if you want to create a 125 mph bi-mode train, you start with a 125 mph electric train, if you want a high degree of commonality between the two trains.
Hitachi have a whole family of Class 800 trains, each of which has a different specification for the diesel power. Even the pure-electric Class 801 trains, has one diesel engine for emergencies.
An electric train with batteries could be very efficient, if the batteries were used to handle regenerative braking and boost the trains, where more power is required.
East Midlands
It is no surprise that Bombardier are talking to the groups, that are bidding to become the new franchise holder for the East Nidlands, when it is awarded in April 2019.
They wouldn’t want to see another company’s product roaring past the factory.
The proposed bi-mode Aventra will probably have been designed very much with the Midland Main Line in mind.
- The Midland Main Line will be electrified from St. Pancras to Kettering and Corby.
- Will the fast lines be electrified to Glendon Junction, where the Corby Branch joins the Midland Main Line?
- The route between St. Pancras and Glendon Junction is being upgraded to four tracks, with as much 125 mph running as possible.
- The non-stop nature of Midland Main Line services South of Kettering could be significant.
- North of Kettering, there is currently no electrification.
- The development of Toton station for HS2 is being accelerated and there could be an island of electrification here, by the mid-2020s.
- If HS2 shares the Midland Main Line corridor between Toton and Sheffield, this section could be electrified by the late-2020s.
Over the next decade, there will be more electrification and a greater proportion of the route, where 125 mph running will be possible.
There has been a bit of controversy, that the number of stops the franchise will make at Bedford and Luton is being reduced after May this year.
The reason given is that it will enable faster services to Derby, Nottingham and Sheffield.
North To Derby, Nottingham and Sheffield
Consider a bi-mode train with batteries going North.
- Between St. Pancras and Kettering, it will be at 125 mph for as long as possible.
- The train will also ensure that at Kettering, it has the batteries brim full, sfter charging from the electrification.
- After a stop at Kettering station, if the electrification reached to Glendon Junction, the acceleration would all be electrically-powered.
- Whether it stopped at Kettering or not, the train would pass Glendon Junction at line speed with full batteries.
It’s almost as if the electrification is being used as a catapult to speed the train North.
South From Derby, Nottingham and Sheffield
Being as electrically efficient coming South would be a lot more difficult.
- I suspect that train batteries will be charged at Derby, Nottingham and Sheffield, so they start their journey South with full batteries.
- Using a full battery and assistance from the onboard generator, trains would be accelerated away from the terminii.
- The trains computer would select automatically, whether to use battery or onboard generator power and would harvest all the power from regenerative braking.
- At each stop on the journey, energy would be lost, as regenerative braking systems do not are only between seventy and ninety percent efficient.
- Once at Glendon Junction, the train would raise the pantograph and switch to getting power from the overhead wires.
It’s all about a well-programmed computer on the train, which knows the route, the timetable and battery state so it can switch power sources appropriately.
Electrification
On the other hand, electrification around Toton could make everything easier and more efficient.
With electrification, every little helps.
- Modern trains can raise and lower pantographs, quickly and automatically.
- Faster journeys.
- Lower carbon emissions.
- Less noise and vibration from diesel generators.
Everyone’s a winner.
Oakham To Kettering
The Oakham-Kettering Line to Corby station is being electrified, double-tracked and I suspect speed limits will be raised.
Speed limits are also being raised and track improvements are being done, South of Glendon Junction.
Currently, services take seventy minutes. With the 125 mph Aventras on the route, they will not need to use the onboard generator, but surely the journey time could be reduced to under an hour, which would attract passengers and need less trains to run a two trains per hour (tph) service.
The Oakham Problem
Oakham station is in the middle of the town, as this Google Map shows.
The Department for transport would like to see more services to the town and the next station of Melton Mowbray.
But the line through the station is busy with freight trains and there is a level crossing in the middle of the town.
125 mph bi-mode trains, won’t help with the problem of Oakham.
Joining And Splitting Of Trains
There is also the possibility of joining and splitting trains.
Hitachi’s Class 800 trains can do this and I’m sure bi-mode Aventras will be able to do this automatically.
There is only four platforms available for trains on the Midland Main Line at St. Pancras and regularly two trains occupy one platform.
The ability to run a pair of bi-mode trains, that joined and split could be a great asset.
Liverpool To Norwich
This long route is an important one for those, who live near its stations. It is usually served by one or two Class 158 trains, which are often very crowded.
The route is partially electrified.
- Liverpool to Hunts Cross
- Manchester Oxford Road to Stockport
- Grantham to Peterborough
- Around Ely
- Around Norwich
So there should be plenty of places to raise the pantograph and charge the batteries.
It is a typical long-distance route for the UK and I’m sure it would benefit from 125 mph bi-mode Aventras.
West Coast Partnership
Bids for the West Coast Partnership, which will run services on the West Coast Main Line and HS2, will be submitted by July 2018. The winning bidder will be announced in May 2019 and take over services two months later.
A modern 125 mph bi-mode would be an ideal replacement for the current twenty Class 221 trains, that work on the West Coast Main Line.
These Class 221 trains are.
- Diesel powered.
- Five-cars long.
- Built in 2001-2002 by Bombardier.
- 125 mph capable.
- Some services are run by splitting and joining trains.
But most importantly, most services are run substantially under wires.
New 125 mph bi-mode trains would certainly improve services.
- Several of the current services operated by Class 221 trains, would become electric ones.
- How much faster would they be able to run a service between London Euston and Holyhead?
- They would also be able to run new services to places like Barrow. Blackburn and Huddersfield.
- Five cars could be a convenient train size for the operator.
But above all, they would offer a better passenger experience, with less noise and vibration from the diesel engines.
The longest section of running using onboard power of a bi-mode Aventra will be along the North Wales Coast Line to Holyhead.
- The line has an 90 mph operating speed.
- The line is 85 miles long.
- The gradients won’t be too challenging, as the line runs along the coast.
- Services stop up to half-a-dozen times on the route.
- From London to Crewe is electrified.
- The section between Crewe and Chester may be electrified.
It looks to be an ideal route for a 125 mph bi-mode Aventra.
As the route appears to not be as challenging as the Midland Main Line, could this route, be the ideal test route for a hydrogen fuel-cell powered Aventra.
West Coast Partnership may well have plans to use 125 mph bi-mode trains as feeder services for HS2’s hubs at Birmingham and Crewe.
I could certainly see West Coast Partnership ordering a mixed fleet of 125 mph Aventras, some of which would be bi-modes and some pure electric.
CrossCountry
CrossCountry has a diverse portfolio of routes, which have every characteristic possible.
- Some are lines with a 125 mph operating speed.
- Some are electrified with 25 KVAC overhead wires.
- Some are electrified with 750 VDC third-rail.
- Some are not electrified.
A bi-mode train with these characteristics would fit well.
- 125 mph capability on both electric and diesel power.
- Battery power for short branch lines.
- Modern passenger facilities.
- Five-cars.
- Ability to work in pairs.
They could actually go for a homogeneous fleet, if they felt so inclined.
That would be a substantial fleet of upwards of fifty five-car trains.
The new CrossCountry franchise will be awarded in August 2019 and start in December 2019.
Other Routes
If the 125 bi-mode Aventra with batteries is built, there could be other routes.
Borders Railway
Why would you run a 125 mph bi-mode Aventra on the 90 mph Borders Railway?
- The Borders Railway will be extended to Carlisle, which will mean, that both ends will be electrified for a few miles.
- This will mean that bi-mode trains with batteries could charge their batteries at both ends of the line.
- If traffic increases, extra cars can be added.
- The trains would be able to use the West Coast Main Line to link the Lake District to Edinburgh.
- They could be given a tourism-friendly interior, to go with the large windows common to all Aventras.
The trains would help to develop tourism in the South of Scotland and the North of England.
East West Rail
The East West Rail between Oxford and Cambridge is going to built without electrification.
- But that doesn’t mean that it should be built with an operating speed in the region of 90 mph!
- The legendary InterCity 125s have been running on lines without electrification at 125 mph since the late 1970s, so it isn’t an unknown practice.
So if the line were to be built for high speed across some of the flattest parts of England, why not unleash the 125 mph bi-mode Aventras?
They could serve Ipswich, Norwich and Yarmouth in the East using their onboard generators.
They could serve Bournemouth, Bristol, Reading and Southampton, if the trains had a dual-voltage capability.
They could use electrification at Bedford, Bletchley, Cambridge and Reading to charge the batteries.
Settle-Carlisle Line
Surely, if the 125 mph bi-mode Aventras are suitable for the Borders Railway, then it should be able to work the Settle-Carlisle Line.
- Both ends of the line are electrified, so batteries could be charged.
- The line needs more and better services.
But the main reason, is that there will be a high-class scenic route between Edinburgh and Leeds.
I estimate that a London to Edinburgh service via Leeds, Settle, Carlisle and the Borders Railway would take six and a half hours, using a 125 mph bi-mode Aventra.
Some tourists love that sort of trip.
Waterloo To Exeter
The West of England Line has the following characteristics.
- It runs between Basingstoke and Exeter.
- It is a hundred and twenty miles long.
- It has a 90 mph operating speed.
- The line is not electrified.
- It is connected to the electrified South Western Main Line to Waterloo.
- The route is electrified between Waterloo and Basingstoke.
- Direct trains take three hours twenty-three minutes between Waterloo and Exeter, with fourteen stops between Basingstoke and Exeter.
- The trains used on the route are twenty-five year-old Class 159 trains.
Would a 125 mph bi-mode Aventra improve the passenger service between Waterloo and Exeter?
- The Aventras are built for fast dwell times at stations, so there could be time saving with all those stops.
- The Aventras could use the third-rail electrification between Waterloo and Basingstoke.
- There may be places, where the operating speed can be increased and the faster Aventras would take advantage.
- The trains could have a passenger-friendly interior and features designed for the route.
The real benefits for South Western Railway and their passengers would come, if the trains could do Waterloo to Exeter in three hours.
Routes For A Pure-Electric Version
There are several routes in the UK, where the following apply.
- Some long-distance trains are run by 125 mph trains.
- The route is fully- or substantially-electrified.
- A proportion of the route allows 125 mph running.
- Sections of the route is only double-track.
Routes satisfying the criteria include.
- The West Coast Main Line
- The East Coast Main Line
- The Great Western Main Line
- The Midland Main Line
On these routes, I believe it would be advantageous, if all passenger trains were capable of operating at 125 mph.
This is cause if all trains were running at 125 mph, they could be more closely spaced, thus increasing capacity.
Digital signalling would probably be needed.
There are several train services,, that use the electrified 125 mph sections of these routes.
Birmingham/Liverpool/Manchester To Edinburgh/Glasgow
TransPennine Express, are replacing their current Siemens 110 mph Class 350 trains on this service, with new CAF 125 mph Class 397 trains.
Euston To The West Midlands, Liverpool And Preston
West Midland Trains are replacing some of their current Siemens 110 mph Class 350 trains with new Aventras.
Information is scarce at the moment, but could some of these new Aventras be 125 mph units for working on the West Coast Main Line?
Leeds/York To Edinbugh
TransPennine Express run trains on this route.
St. Panvras To Corby
The Corby Branch is being upgraded.
- Double-track
- 125 mph running
- Electrification
The section of the Midland Main Line between St. Pancras and Glendon Junction is also being upgraded to allow as much 125 mph running as possible.
If 125 mph bi-mode trains are to be used from St. Pancras to Derby, Nottingham and Sheffield, then surely, it would be logical to use a pure-electric version of the train between St. Pancras and Corby?
Various documents and web pages say, that the St. Pancras to Corby services are going to be worked by 110 mph Class 387 trains. Surely, faster 125 mph trains, which had been designed for the route would be better for passengers and the train operating company.
From my experience of scheduling, the section of the Midland Main Line between St. Pancras and Bedford, must be a nightmare to timetable successfully.
- There are two train operating companies using the route, who go a hundred miles in different directions.
- The Class 700 trains used by Thameslink are only 100 mph trains, so probably can’t use the fast lines too often, as if they do, they’ll delay the expresses..
- Regular passengers object to any change in stopping patterns or journey times.
- Passengers liked to get on express services at Bedford, but they now don’t stop.
- Passengers don’t like the Class 700 trains.
- Luton Airport wants more services.
My experience, says that something radical must be done.
Consider.
- Plans are for two tph between St. Pancras and Corby.
- How many passengers would complain if they ended up in the St. Pancras Thameslink platforms, rather than the high-level ones? They’re both equally badly connected to the Underground, buses and taxis.
- There will be four tph between Bedford and London all day on Thameslink, with an extra four tph in the Peak.
- Some or all of these services will call at both Luton and Gatwick Airports.
- Looking at the two semi-fast services. which both run at tw trph, they seem to stop virtually everywhere.
I think it would be possible for the two tph St. Pancras to Corby services to become express services between Corby, Gatwick Airport and Brighton.
- The services would only stop at Kettering, Bedford, Luton, Luton Airport Parkway, St. Albans, West Hampstead Thameslink, St. Pancras Thameslink, Farringdon, City Thameslink, Blackfriars, London Bridge and East Croydon.
- The services would use the 125 mph fast lines North of St. Pancras, as much as possible.
- Corby services would always call at St. Pancras Thameslink.
- The trains would be designed for both Airport services and long-distance commuting.
- The trains would be maximum length.
Obviously, this is my rough idea, but something like it might satisfy the stakeholders, more than what is proposed.
I think there are also other services, which are fully electrified, which could be upgraded, so that they would be suitable for or need 125 mph electric trains.
Kings Cross To King’s Lynn
I wrote about this route in Call For ETCS On King’s Lynn Route.
Portsmouth Direct Line
Under Topography Of The Line in the Wikipedia enter for the Portsmouth Direct Line, this is said.
The central part of the route, from Guildford to Havant, runs through relatively thinly populated country. The line was designed on the “undulating principle”; that is, successive relatively steep gradients were accepted to reduce construction cost. In the days of steam operation this made the route difficult for enginemen.
But with.
- A second man in the cab, in the shape of the train’s computer, juggling the power.
- Regenerative braking to the batteries saving energy for reuse when needed.
- Bags of grunt from the traction motors.
The pure electric version of the 125 mph Aventra might just have the beating of the topography.
South Western Railway plan to introduce an older train from Litchurch Lane in Derby on this route, in the shape of the last of the Mark 3s, the Class 442 train or the Wessex Electrics, which were built in the 1980s.
It will be interesting to see how a 125 mph pure electric Aventra compares to something made in the same works, thirty years earlier.
Waterloo To Southampton, Bournemouth and Weymouth
The South Western Main Line goes to Southampton Central, Bournemouth and Weymouth.
- It is a 100 mph line
- It is fully-electrified.
Would a 125 mph pure-electric Aventra be able to put the hammer down?
I’m sure Network Rail can improve the line to a maximum safe line-speed.
Conclusion
If Bombardier build a 125 mph bi-mode Aventra with batteries, there is a large market. Especially, if there is a sibling, which is pure electric.
Bombardier Bi-Mode Aventra To Feature Battery Power
The title of this post is the same as this article in Rail Magazine.
A few points from the article.
- Development has already started.
- Battery power could be used for Last-Mile applications.
- The bi-mode would have a maximum speed of 125 mph under both electric and diesel power.
- The trains will be built at Derby.
- Bombardier’s spokesman said that the ambience will be better, than other bi-modes.
- Export of trains is a possibility.
Bombardier’s spokesman also said, that they have offered the train to three new franchises. East Midlands, West Coast Partnership and CrossCountry.
In some ways, I am not surprised about what is said in this article.
Another article on Christian Wolmar’s web site, is entitled Bombardier’s Survival Was The Right Kind Of Politics.
This is said.
Bombardier is not resting on its laurels. Interestingly, the company has been watching the problems over electrification and the fact that more of Hitachi’s new trains will now be bi-mode because the wires have not been put up in time. McKeon has a team looking at whether Bombardier will go into the bi-mode market: ‘The Hitachi bi-mode trains can only go 110 mph when using diesel. Based on Aventra designs, we could build one that went 125 mph. This would help Network Rail as it would not have to electrify everywhere.’ He cites East Midlands, CrossCountry and Wales as potential users of this technology.
The article was published in February 2017 and mentions, 125 mph on diesel and two of the companies in the recent article.
The Design Of The Trains
My thoughts are as follows.
The Starting Point
I’m pretty certain that if you wanmt to create a 125 mph bi-mode train, you start with a 125 mph electric train, if you want a high degree of commonality between the two trains.
Bombardier haven’t yet built any of their Aventras for West Midland Trains, but as they will use the West Coast Main Line extensively, will they be 125 mph trains and not 110 mph trains, as is said in Wikipedia?
Aventras And Battery Power
I will believe until Bombardier say I’m wrong, that Crossrail’s Class 345 trains, which are Aventras, use batteries for the following purposes.
- To handle regenerative braking.
- To limp the train out of the tunnel or to the next station or safe exit point, if there should be a catastrophic power failure.
- To lessen the amount of electricity fed to the trains in the tunnels.
- To allow features like remote wake-up, which need a train to have some form of power at all times.
- To move trains in sidings and depots without having live electrification.
- To run passenger features, when the power fails.
Effectively, the Class 345 trains have electricity as a main power source and batteries for energy storage and a secondary or emergency power source.
I talked to one of their staff, who was training drivers on Crossrail’s Aventras. The conversation went something like this.
- Me: “What happens, when the Russians hack the power supply?”
- Driver-Trainer: “We switch the train to emergency power!”
- Me: “You mean batteries?”
- Driver-Trainer: (Pause, then something like) “Might be!”
Can anybody think of another way to have emergency power on the train?
Electric Traction, Regenerative Braking and Batteries
Bi-mode trains and Alstom’s hydrogen-powered Coradia iLint are electrically powered at all times.
This means that under electric, diesel or hydrogen power, the traction motors can generate electricity to brake the train.
On an electric train, this electricity is returned through the overhead wire or third rail to power other nearby trains. This electricity could also be stored in an onboard battery, just as it is in a hybrid or battery-electric vehicle.
Driving A Bi-Mode Train With Batteries
The bi-mode Aventra could have electricity from one of four power sources.
- 25 KVAC overhead electrification.
- 750 VDC third-rail electrification.
- An onboard electricity generator powered by diesel fuel or hydrogen.
- Batteries
So will the driver need to keep switching power sources?
I am a Control Engineer by training and optimising the best power to use is a typical problem for someone with my training and experience.
The train’s computer would take all the information about the route, timetable, signal settings, battery charge level, train loading, weather and other factors and drive the train automatically, with the driver monitoring everything thoroughly.
Aircraft have been flown in a similar fashion for decades.
I look in detail, at the mathematics of a bi-mode Aventra with batteries in Mathematics Of A Bi-Mode Aventra With Batteries.
I came to the following conclusions.
I am rapidly coming to the conclusion, that a 125 mph bi-mode train is a practical proposition.
- It would need a controllable hydrogen or diesel power-pack, that could deliver up to 200 kW
- Only one power-pack would be needed for a five-car train.
- For a five-car train a battery capacity of 300 kWh would probably be sufficent.
From my past professional experience, I know that a computer model can be built, that would show the best onboard generator and battery sizes, and possibly a better operating strategy, for both individual routes and train operating companies.
Obviously, Bombardier have better data and more sophisticated calculations than I do.
Note, that everything I proposed, is well within the scope of modern engineering, so other companies like CAF and Stadler, who are actively involved in rail application of battery technology, could join the party.

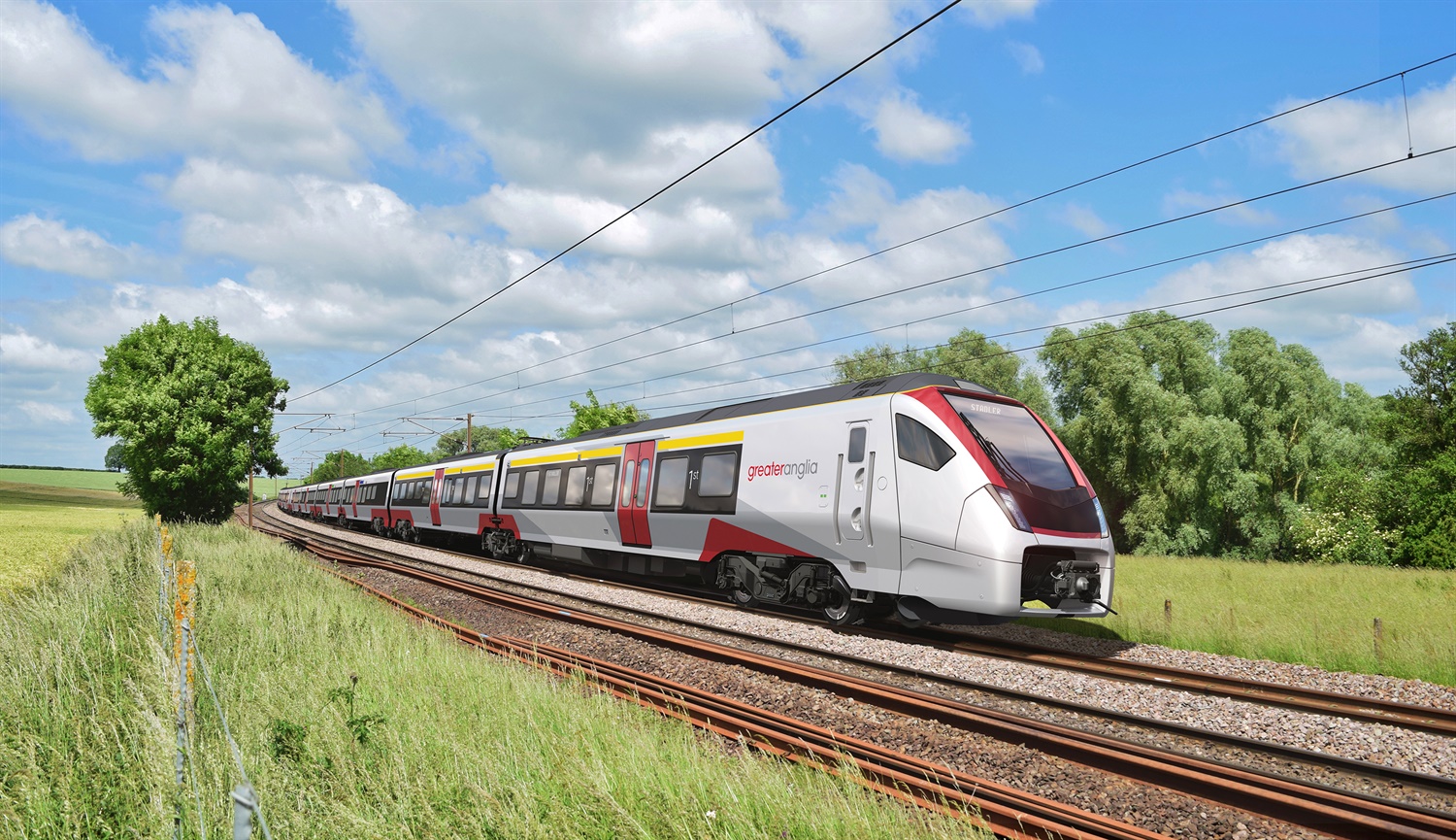

This picture is a visualisation of a Stadler Class 755 train, which they are building for Greater Anglia.
Note the smaller third car, which contains the diesel engine of this hybrid train. Is there room for batteries as well?
I can’t find any information on the web about the power train of the Class 755 train, but this article in the Railway Gazette, describes another Stadler bi-mode Flirt, that Stadler are building for Italy.
This is said.
The units will be rated at 2 600 kW with a maximum speed of 160 km/h when operating from 3 kV DC electrification, and 700 kW with a maximum speed of 140 km/h when powered by the two Stage IIIB compliant Deutz TCD 16.0 V8 diesel engines.
There is provision to add up to two more cars if required to meet an increase in ridership. Two more engines could be added, or the diesel module removed if only electric operation is needed.
Note.
- The Deutz diesel engines are rated at 520 kW.
- As 700 kW is the power of the train, I suspect each engine generator creates 350 kW of power.
- 160 km/h would be ideal for the Great Eastern Main Line
- 140 km/h would be more than adequate for roaming around East Anglia
I suspect that if batteries were used on this train, that the engines would be smaller.
We will see in May 2019, when the trains enter service.
Diesel Or Hydrogen Generator
Electricity generation using a diesel generator and electricity generator from a hydrogen fuel cell, each have their own advantages.
- Diesel fuel has a higher energy density than hydrogen
- Diesel engines create a lot of noise and vibration and emit carbon dioxide, noxious gases and particulates.
- Hydrogen fuel cells can be silent and only emit water and steam.
- Ballard who are a Canadian company and a leading manufacturer of hydrogen fuel-cells, manufacture one for use in rail applications which has an output of 100 kW, that weighs 385 Kg.
- MTU make the diesel engine for a Class 800 train, which has an output of over 600 kW, that weighs 5000 Kg.
- Hydrogen storage is probably heavier and more complicated than diesel storage.
- Both generators can be fitted into convenient rectangular power packs.
I would envisage that in the future, hydrogen electricity generators will get more efficient, lighter in weight and smaller in size for a given power output.
I don’t think it is unreasonable to believe, that within a reasonable number of years, hydrogen generators and their hydrogen storage tank, will be comparable in weight and size to current diesel generators and fuel tanks.
Accelerating A Bi-Mode Train With Batteries
The major use of electricity on a 125 mph train, will be in accelerating the train up to line speed. The energy needed will be.
- Proportional to the mass of the train. This is why your car accelerates better, when it’s just you in the car and you don’t have your overweight mother-in-law in the back.
- Proportional to the square of the velocity.
I have calculated that a five-car bi-mode Aventra, carrying 430 passengers and travelling at 125 mph, will have a kinetic energy of 91.9 kWh.
Obviously, using electricity from electrification is the best way to accelerate a train.
- Electricity from electrification is probably cheaper and more convenient, than that from an onboard electricity generator.
- If diesel is not used to power the train, there is no noise and vibration from an onboard diesel generator.
- A route with a lot of running on onboard fuel, means more fuel has to be carried.
Using electricity stored in batteries on the train, is also a good way to accelerate a train, but the batteries must have enough charge.
The onboard electricity generator will be used, when there is no electrification and the power stored in the batteries is approaching a low level.
|When Bombardier’s spokesman says, that the ambience will be good, control of the train’s power sources has a lot to do with it.
Could he have been hinting at hydrogen, as hydrogen fuel cells do not have high noise and vibration levels?
Cruising A Bi-Mode Train With Batteries
Newton’s First Law states.
Every body continues in its state of rest or uniform motion in a straight line, unless impressed forces act on it.
If you have a train on a railway track moving at a constant speed, the following forces are acting to slow the train.
- Aerodynamic forces, particularly on the front of the train.
- Rolling friction of the steel wheel on a steel rail.
- Bends and gradients in the track.
- Speed limits and signals.
So the driver and his control system will have to feed in power to maintain the vrequired spreed.
I have sat on the platform at Stratford, whilst an Aventra has gone past at speed. I wrote about it in Class 345 Trains Really Are Quiet!
This was my conclusion.
Bombardier have applied world class aviation aerodynamics to these trains. Particularly in the areas of body shape, door design, car-to-car interfaces, bogies and pantographs.
Remember too, that low noise means less wasted energy and greater energy efficiency.
In addition steel wheel on steel rails is a very efficient way of moving heavy weights. Bombardier have a reputation for good running gear.
Once a train has reached its cruising speed, appropriate amounts of power will be fed to the train to maintain speed.
But compared to the power needed to accelerate the train, they could be quite small.
For small amounts of power away from electrification, the control system will use battery power if it is available and can be used.
The onboard electricity generator would only be switched in, when larger amounts of power are needed or the battery power is low.
Slowing A Bi-Mode Train With Batteries
The regenerative braking will always be used, with the energy being stored in the batteries, if there is free capacity.
Imagine the following.
- A bi-mode making a stop at Leicester station on the Midland Main Line.
- It is doing 100 mph before the stop on the main line.
- It will be doing 100 mph after the stop on the main line.
The energy of the train after Leicester will be roughly the same as before, unless the mass of the train has changed, by perhaps a large number of passengers leaving or joining the train.
Let’s assume that the energy at 100 mph in the train is X kWh
- When the train brakes for Leicester this energy will be transferred to the train’s batteries, if there is capacity.
- On accelerating the train, it will need to acquire X kWh. It couldn’t get all of this from the batteries, as for various reasons the overall efficiency of this sort of system is about seventy to ninety percent.
- The onboard electricity generator will have to supply a proportion of the energy to get the train back up to 100 mph.
But in a diesel train it will have to supply all the energy to get back to 100 mph.
Where Would I Put The Batteries?
Aventras seem to have a lot of powered-bogies, so to keep cable runs short to minimise losses and maximise the efficiency of the regenerative braking, I would put a battery in each car of the train.
This would also distribute the weight evenly.
Where Would I Put The Electricity Generators?
Diesel engines always seem to be noisy, when they are installed under the floor of a train. I’ve travelled a lot in Bombardier’s Turbostars and although they are better than the previous generation, they are still not perfect.
I’ve also travelled in the cab of a Class 43 locomotive, with a 2,250 hp diesel engine close behind me. It was very well insulated and not very noisy.
As I said earlier, the most intensive use of the onboard generators will come in accelerating a train to operating speed, where no electrification or battery power is available. There is only so much you can do with insulation!
Stadler, who are building the Class 755 train for Greater Anglia, have opted to put a short diesel generator car in the middle of the train.
This was an earlier train, where Stadler used the technique.
There are reports in Wikipedia, that the ride wasn’t good, but I’m sure Stadler has cracked it for their new 100 mph bi-mode trains.
Creating a bi-mode by adding an extra motor car into the middle of an electric train could be a serious way to go.
- The dynamics are probably better understood now
- A powerful diesel engine could be fitted.
- Batteries could be added.
- Insulating passengers and staff from the noise and vibration would surely be easier.
- There could be a passage through the car, to allow passengers and staff to circulate.
In an ideal world, a four-car electric train could be changed into a five-car bi-mode train, by adding the motor car and updating the train software.
In Mathematics Of A Bi-Mode Aventra With Batteries, I came to the conclusion, that if the batteries are used in conjunction with the power-pack, that a single power-pack of about 200 kW could be sufficient to power the train. This would be smaller and lighter in weight, which would probably mean it could be tucked away under the floor and well-insulated to keep noise and vibration from passengers and staff.
In this article in Global Rail News from 2011, which is entitled Bombardier’s AVENTRA – A new era in train performance, gives some details of the Aventra’s electrical systems. This is said.
AVENTRA can run on both 25kV AC and 750V DC power – the high-efficiency transformers being another area where a heavier component was chosen because, in the long term, it’s cheaper to run. Pairs of cars will run off a common power bus with a converter on one car powering both. The other car can be fitted with power storage devices such as super-capacitors or Lithium-ion batteries if required.
This was published six years ago, so I suspect Bombardier have refined the concept.
So could it be that Bombardier have designed a secondary power car, that can be fitted with a battery and a diesel engine of appropriate size?
- Using a diesel engine with batteries means that a smaller engine can be used.
- The diesel engine could also be replaced with a 200 kW hydrogen fuel cell.
I won’t speculate, but Bombardier have a very serious idea. And it’s all down to the mathematics.
What Would Be The Length Of A 125 Mph Bi-Mode Aventra?
Long distance Aventras, like those for Greater Anglia and West Midlands Trains, seem to be five and ten car trains.
This would fit well with the offerngs from other companies, so I suspect five- and ten-cars will be the standard lengths.
Could There Be A Bi-Mode Aventra for Commuter Routes?
The London Overground has ordered a fleet of four-car Class 710 trains.
The Gospel Oak to Barking Line is being extended to a new Barking Riverside station.
In an article in the October 2017 Edition of Modern Railways, which is entitled Celling England By The Pound, Ian Walmsley says this in relation to trains running on the Uckfield Branch, which probably has a terrain not much different to the lines to London.
A modern EMU needs between 3 and 5 kWh per vehicle mile for this sort of service.
The new extension is about a mile, so this would need 20 kWh each way.
This could easily be done with a battery, but supposing a small diesel engine was also fitted under the floor. Would anybody notice the same 138 kW Cummins ISBe diesel engine that is used in a New Routemaster hybrid bus?
I doubt it.
It is a revealing to calculate the kinetic energy of a fully-loaded Class 710 train. I estimate that it under 50 kWh, if it was travelling at 90 mph, which would rarely be achieved on the Gospel Oak to Barking Line.
Could Bombardier Be Serious About Exporting Bi-Mode Aventras?
In my opinion, the Aventra is a good train an it seems to sell well in its electric form to train operating companies in the UK.
But would it sell well in overseas markets like the United States and Canada, India and Australia?
They obviously know better than I do, so we should take their statements at face value.
The Prospective Customers
The Rail Magazine article mentions three prospective customers.
I deal with them and other possiblilities in Routes For Bombardier’s 125 Mph Bi-Mode Aventra.
This was my conclusion.
If Bombardier build a 125 mph bi-mode Aventra with batteries, there is a large market.
It looks like the company has done a lot of research.
Conclusion
Bombardier are designing a serious train.
HSTs For 2020
The title of this post is the same as that of an article in the September 2017 Edition of Modern Railways.
It describes how Wabtec in Doncaster will be updating the InterCity 125 train, so that meet the latest Persons with Reduced Mobility (PRM) regulations, which come into force in 2020.
The fitting of power doors and retention toilets will see the following trains in service for a number of years after 2020.
- CrossCountry – 5 x 2+8 sets.
- GWR 11 x 2+4 sets.
- Scotrail – 17 x 2+5 sets
- Scotrail – 9 x 2 +4 sets
This totals up to eighty-four Class 43 power cars and two hundred and five Mark 3 coaches.
Work On The Power Cars
With the exception of some interlocks, there appears to be little work being done on the power cars, which is probably because of the good care, that the trains have had over the years.
Although, they’ll obviously be serviced and painted.
Work On The Coaches
This is summed up as follows.
- Sliding power doors for passengers will be fitted.
- A test rig will simulate fifteen years of use.
- Controlled emission toilets are being fitted.
- If a coach has two toilets , only one can be retained due to space limitations, caused by the pockets for the sliding doors.
- Most of the coaches are receiving new universal access toilets.
- From a picture caption in the article, it appears that less work on the interiors will be done on the CrossCountry coaches.
Production details are also given.
- The first GWR and CrossCountry sets will be released in early November.
- Two production lines will be setup.
- The CrossCountry sets are targeted for completion by May 2018.
- The Scotrail sets are targeted for completion by May 2019.
- The final ten GWR sets will be rebuilt last.
Initially coaches will be modified to a 40-day turnround, which should be halved for the Scotrail sets.
Conclusions
Wabtec seem to be doing a comprehensive and quality job in updating the Msrk 3 coaches.
Consider.
- Wabtec are setting up two production lines for the modifications.
- At twenty days to modify a train, that means in a year, they can refurbish 36 coaches or probably four trains.
- Greater Anglia have fifteen rakes of recently-refurbished Mark 3 coaches, one of which has been sold to be used with 60163 Tornado.
- East Midlands Trains have twelve InterCity 125 sets.
- Virgin Trains East Coast have sixteen InterCity 125 sets,
I wonder if any of these extra sets will be converted at Wabtec?
Where would they be used?
Chiltern Railways
Chiltern will probably need some more coaches for their services to Birmingham, Oxford and in the future; Milton Keynes.
If partial electrification should happen on their routes, Chiltern could replace the current Class 68 locomotives for a bi-mode like a Class 88 locomotive.
The New East Midlands Franchise
The new East Midlands franchise could go for a fleet of InterCity 125s for Derby, Leicester, Nottingham and Sheffield services given than electrification won’t happen.in the near future.
It should be noted that HS2 will reach the new East Midlands Hub station around 2032/2033, so this will become a date, when London to East Midlands services will change forever.
CrossCountry
CrossCountry has a capacity problem and might find more InterCity 125s a very well-proven solution, that is liked by passengers.
Long Distance Services
Some long-distance routes like Norwich to Liverpool and Cardff to Manchester might be ideal for shortened InterCity 125s.
New Services
It is well-known that passengers very much like travelling on InterCity 125s and after my trip from Edinburgh to Inverness in the cab, I am convinced that drivers and probably other staff too, have a lot of affection for these superb trains from a very different era.
It is these thoughts and feelings, that led Scotrail to go down the route of introducing shortened InterCity 125s on their major inter-city routes North of Edinburgh and Glasgow.
So could we see Scotrail’s example used in other places in the UK?
Chris Stokes in the September 2017 Edition of Modern Railways, finishes his column, after talking about scenic railways in the rest of the world, with this paragraph.
There are limited examples in Britain, such as the ‘Jacobite’ steam service between Fort William and Mallaig and the expensive and exclusive ‘Royal Scotsman’ service. But elsewhere on the Kyle line, the Cambrian Coast or Settle-Carlisle, all you get is a Class 158, with, if you’re lucky seats aligned with the windows. We could do so much better.
A shortened InterCity 125, perhaps with a regional buffet car would certainly be a lot better.
Scotrail could perhaps start the process by running a Glasgow to Leeds service via the Glasgow South Western Line and the the Settle to Carlisle Line.
Bi-Mode Trains And CrossCountry
The CrossCountry franchise runs trains all over the UK.
I wonder how bi-mode trains will effect their services.
These are just a few thoughts.
InterCity 125 Trains
CrossCountry have enough Class 43 locomotives and Mark 3 carriages to make-up five 2+8 InterCity 125 sets.
These trains will not meet the regulations in a couple of years, so will they be replaced or refurbished.
It is probably not an easy decision for the following reasons.
- Passengers and I suspect drivers too, love them.
- They are probably ideal for longer routes like Devon and Cornwall to Scotland
- Scotrail and Great Western Railway will be updating several trains each.
- They are forty years old.
- There may be pressure to retire the trains because of environmental problems.
- If they even wanted to acquire a few extra sets, the type retirement by other operators might help.
Left to the Marketing Department, there would only be one decision.
Class 800 Trains
Class 800 trains or more likely Class 802 trains, specified for their routes may offer advantages to CrossCountry on some of their routes.
Consider these features of Class 802 trains.
- Available in any number of cars between four and twelve.
- Designed around a flexible interior.
- Dual voltage is probably available.
- Wi-fi and power sockets.
- Hitachi have designed the trains for lower track-access charges.
Costs and the marketing advantage of new electric trains will probably decide.
Devon and Cornwall to Scotland
Consider.
- Plymouth to Edinburgh and Glasgow is an hourly service that takes just under nine hours to Edinburgh with no changes.
- One train per day goes from Plymouth to Aberdeen in eleven hours.
- A lot of the route is not electrified, but it is North of York.
- Would a Class 802 train have enough fuel capacity?
I suspect current arrangements will continue.
Southampton Central And Bournemouth To Manchester And Newcastle
Consider.
- North of Leeds, the route is electrified using 25 KVAC overhead
- South of Basingstoke, the route is electrified using 750 VDC third-rail.
- Any bi-mode train would need to be dual-voltage.
- Range should be less of a problem
A dual-voltage bi-mode Class 802 train might be ideal.
Other Routes
Most other routes only have a small proportion of running on electrified track.
Conclusion
I think it unlikely, that CrossCountry will go for a total replacement of their fleet with bi-mode trains.
But I suspect, they’re keeping a watching brief on developments in electrification and trains.
The Anonymous Widower
