UK’s Tevva Uses Submarine Tech To Power Electric Trucks

The title of this post, is the same as that of this article on The Times of Israel.

The article is from April 2017 and starts with this paragraph.

Startup founded by Asher Bennett, brother of Israel’s education minister, aims to provide digital, emission-free vehicles.

This paragraph gives details of the man behind the company and their first sales.

Meanwhile, one UK company — Tevva Motors — has already got its first orders for repowering the trucks of delivery giants UPS, DHL and Switzerland’s Kuehne+Nagel with its components, including the batteries and motor, according to Tevva’s 48-year-old Israeli founder Asher Bennett. Bennett is the older brother of former entrepreneur turned right-wing politician Naftali Bennett, who is Israel’s education minister.

Since the article was written, Naftali Bennett has become Israel’s Prime Minister.

This paragraph explains how the trucks work.

The trucks Tevva repowers as well as those the company is planning to build from scratch next year at its new facility in Chelmsford are fully digital. “Every piece of information on our trucks is on the cloud,” Bennett said. The software and algorithms developed by the company automatically calculate the most efficient use of the battery and instruct the range extender when to kick in, without any input from the driver.

We’re already starting to see trains using similar techniques.

But as a time-expired Control Engineer, I would go a similar route.

It is a fascinating article, that deserves a full read.

September 28, 2021 Posted by | Hydrogen, Transport/Travel | , , , , , | 1 Comment

Tevva Presents 7.5 Tonne Truck With Range Extender

The title of this post, is the same as that of this article on Electrive.

This is the first paragraph.

The English company Tevva has presented a 7.5-tonne truck that is supposed to have a range of up to 250 kilometres in electric drive mode and a range of up to 500 kilometres with the FC range extender activated. Production of the Tevva truck is scheduled to start in July 2022.

I like the concept, as it appears to give a reasonable range.

  • The design team behind the truck have a good pedigree.
  • The trucks are of a size to handle a useful load.
  • Larger trucks will be produced later.
  • The trucks will be built in a factory in the London Freeport.

I think we’ll see a lot more larger battery-electric vehicles with hydrogen range extenders.

September 28, 2021 Posted by | Hydrogen, Transport/Travel | , , , | Leave a comment

Bank Station Upgrade – 28th September 2021

I walked past the works to upgrade Bank station this morning and took these pictures.

The first two pictures were taken on King William Street and the others were taken as I walked up Cannon Street to Cannon Street station.

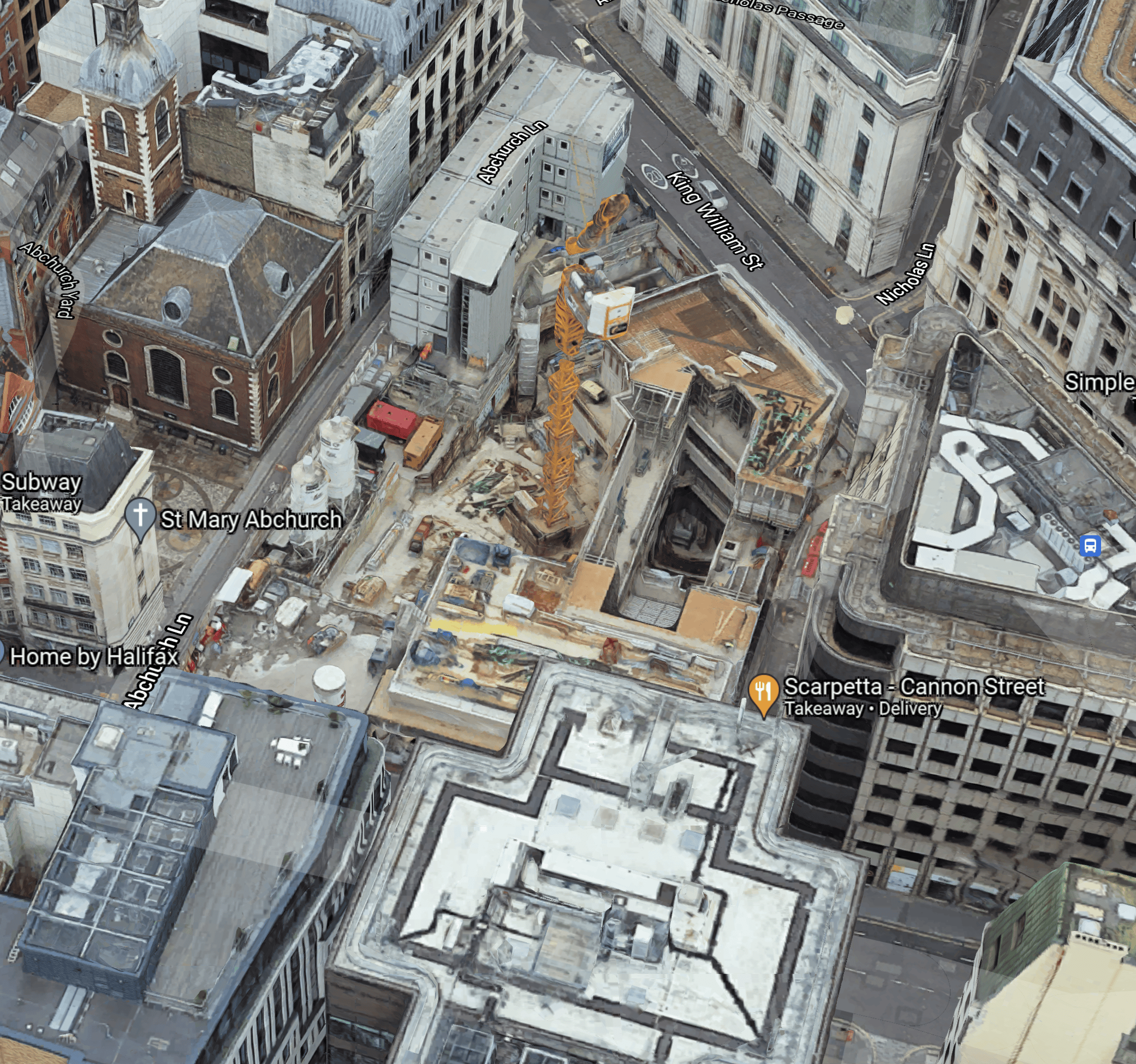

This 3D Google Map shows the new section of the station from the South.

The construction site is surrounded by two roads and a lane.

  • Cannon Street runs East-West in front of the construction site.
  • King William Street  is on the Eastern side of the construction site.
  • Abchurch Lane runs Northward between the church of St. Mary Abchurch and the construction site.

There will be a lot more construction on top of the station.

This TfL image shows how it will look in 2022.

September 28, 2021 Posted by | Transport/Travel | , , , | Leave a comment

A Class 707 Train In Southeastern Livery

The Class 707 trains started running for Southeastern today and I photographed this example at Cannon Street station.

The trains have been branded as City Beam. I’m not sure I like it.

September 28, 2021 Posted by | Transport/Travel | , , | Leave a comment

Breakthrough Energy Storage And R&D Company SuperDielectrics Expands At Chesterford Research Park

The title of this post, is the same as that of this article on Cambridge Network.

This is the first paragraph.

Chesterford Research Park is delighted to announce the expansion of an existing occupier, SuperDielectrics, into new laboratory and write up space within the Emmanuel Building.

But it does flag up progress by one of Cambridge’s new companies; SuperDielectrics.

Superdielectrics’ mission is to develop high energy density, low cost, low environmental impact electrical energy storage devices that will help create a clean and sustainable global energy and transportation system. Superdielectric’s storage devices (supercapacitors) are not only safe, rapidly rechargeable and have a long life, they contain no rare materials or conflict metals and have the added benefit of reducing pollution and waste with no end-of-life recycling issues.

I believe they are a company to watch, as supercapacitors can take over some applications of lithium-ion batteries.

September 28, 2021 Posted by | Energy Storage | , , , | 1 Comment

Cheesecake Energy Secures £1M Seed Investment

The title of this post, is the same as that of this Press Release from Cheesecake Energy.

This is the first paragraph.

Cheesecake Energy Ltd (CEL), a Nottingham, UK-based energy storage startup today announced it has raised £1M in Seed funding to fuel the development of its manufacturing capabilities and support product development of its eTanker storage system. The round was led by Imperial College Innovation Fund alongside prominent investors including Perivoli Innovations, former Jaguar Chairman, Sir John Egan and other angel investors.

And the third and fourth paragraphs describe the technology.

The company’s unique technology, dubbed eTanker, takes established compressed air energy storage concepts and revolutionises them by storing two-thirds of the electricity in the form of heat which can be stored at far lower cost. To store the energy, electric motors are used to drive compressors, which deliver high pressure air & heat into storage units. When the electricity is required, the high-pressure air and heat is passed back through the same compressor (but now working as a turbine), which turns a generator to produce electricity. The company believes its system will cut the cost of storing energy by 30-40% and offers a solution that can be used in several sectors including electric vehicle (EV) charging, heavy industry and renewable energy generation.

The startup has filed 10 patents for stationary, medium-long-duration, long-lifetime energy storage technology. It is based on innovative design work by CEL, a spin-out from over a decade of research at University of Nottingham. Employing circular economy principles, truck engines are converted into zero-emission electrical power-conversion machines for putting energy into and out of storage. Its technology brings together the low cost of thermal storage, the turnaround efficiencies of compressed air energy storage, together with the long life and robustness of a mechanical system, making a game-changing technology in a modular containerised package.

It all sounds feasible to me and if I’d have been asked, I’d have chipped in some of my pension.

The system in some ways can almost be considered a hybrid system that merges some of the principles of Highview Power’s CRYOBattery and Siemens Gamesa’s ETES system of heating large quantity of rock. Although, Cheesecake’s main storage medium is comptressed air, as opposed to the liquid air of the CRYOBattery.

One market they are targeting is the charging of fleets of electric vehicles like buses and from tales I have heard about operators of large numbers of electric buses, this could be a valuable market.

I also noted that the Press Release mentions a National Grid report, that says we will need 23 GW of energy storage by 2030. Assuming we will need to store enough electricity to provide 23 GW for five hours, that will be 115 GWh of energy storage.

At present, pumped storage is the only proven way of storing tens of GWh of energy. In 1984, after ten years of construction, Dinorwig power station (Electric Mountain) opened to provide 9.1 GWh of storage with an output of 1.8 GW.

So ideally we will need another thirteen Electric Mountains. But we don’t have the geography for conventional pumped storage! And as Electric Mountain showed, pumped storage systems are like Rome and can’t be built in a day.

Energy storage funds, like Gresham House and Gore Street are adding a large number of lithium-ion batteries to the grid, but they will only be scratching the surface of the massive amount of storage needed.

Note that at the end of 2020, Gresham House Energy Storage Fund had a fleet of 380 MWh of batteries under management, which was an increase of 200 MWh on 2019. At this rate of growth, this one fund will add 2GWh of storage by 2030. But I estimate we need 115 GWh based on National Grid’s figures.

So I can see a small number of GWh provided by the likes of Gresham House, Gore Street and other City funds going the same route.

But what these energy storage funds have proved, is that you have reliable energy storage technology, you can attract serious investment for those with millions in the piggy-bank.

I believe the outlook for energy storage will change, when a technology or engineering company proves they have a battery with a capacity of upwards of 250 MWh, with an output of 50 MW, that works reliably twenty-four hours per day and seven days per week.

I believe that if these systems are as reliable as lithium-ion, I can see no reason why City and savvy private investors money will not fund these new technology batteries, as the returns will be better than putting the money in a deposit account, with even the most reputable of banks.

At the present time, I would rate Highview Power’s CRYOBattery and Siemens Gamesa’s ETES system as the only two battery systems anywhere near to a reliable investment, that is as safe as lithium-ion batteries.

  • Both score high on being environmentally-friendly.
  • Both rely on techniques, proven over many years.
  • Both don’t need massive sites.
  • Both systems can probably be maintained and serviced in nearly all places in the world.
  • Highview Power have sold nearly a dozen systems.
  • Highview Power are building a 50 MW/250 MWh plant in Manchester.
  • Siemens Gamesa are one of the leaders in renewable energy.
  • Siemens Gamesa have what I estimate is a 130 MWh pilot plant working in Hamburg, which I wrote about in Siemens Gamesa Begins Operation Of Its Innovative Electrothermal Energy Storage System.

Other companies are also targeting this market between lithium-ion and pumped storage. Cheesecake Energy is one of them.

I believe they could be one of the winners, as they have designed a system, that stores both compressed air and the heat generated in compressing it. Simple but efficient.

I estimate that of the 115 GWh of energy storage we need before 2030, that up to 5 GWh could be provided by lithium-ion, based on the growth of installations over the last few years.

So we will need another 110 GWh of storage.

Based on  50 MW/250 MWh systems, that means we will need around 440 storage batteries of this size.

This picture from a Google Map shows Siemens Gamesa’s pilot plant in Hamburg.

I estimate that this plant is around 130 MWh of storage and occupies a site of about a football pitch, which is one hectare.

I know farmers in Suffolk, who own more land to grow wheat, than would be needed to accommodate all the batteries required.

Conclusion

I believe that National Grid will get their 23 GW of energy storage.





September 28, 2021 Posted by | Energy Storage | , , , , , , , , | 1 Comment
