Could The High Speed Two Link Between Lichfield And Crewe Still Be Built?

The original plan for High Speed Two included two routes between Lichfield and Crewe.

This map clipped from the High Speed Two web site, shows the two routes.

Note.

  1. High Speed Two Phase 2a is shown in blue.
  2. High Speed Two Phase 2b is shown in orange.
  3. Crewe is in the North-West corner of the map, at the Southern end of the orange section.
  4. The junction at Lichfield is in the South-East corner of the map.
  5. The lighter blue route to the East, between the Lichfield junction and Crewe is the proposed new tracks of High Speed Two.
  6. The darker blue route to the West, between the Lichfield junction and Crewe is the existing route of the Trent Valley Line and the West Coast Main Line.
  7. The Trent Valley Line joins the West Coast Main Line at Stafford.

This second map clipped from the High Speed Two web site, shows the junction North of Lichfield, where High Speed Two connects to the Trent Valley Line through Stafford.

Note.

  1. High Speed Two runs North-South across the map.
  2. After the Junction by Fradley South, High Speed Two to Crewe and the North, is the branch to the East.
  3. The other branch connects to the Trent Valley Line at Handsacre junction.
  4. Trent Valley Line can be picked out North of Lichfield, where it passes through Lichfield Trent Valley station.

The Trent Valley Line is no Victorian double-track slow-speed bottleneck.

  • The route between Rugby and Crewe is generally three or four tracks, with only one short stretch of double track, through Shugborough tunnel.
  • The speed limit is generally 110 mph, with 90 mph at Shugborough.
  • I wouldn’t be surprised to see Avanti West Coast’s Class 390 and Class 807 trains could be running at up to 140 mph on the route, if digital signalling were to be installed.
  • This speed would probably be attained by High Speed Two trains.

London Euston and Stafford would only have under twenty miles of slower line and that could be 140 mph, so High Speed Two  times on the route could be very fast.

Trains Between London And Stafford Before And After High Speed Two To Lichfield

Currently, Avanti West Coast trains take around one hour and seventeen minutes between London and Stafford.

The Wikipedia entry for High Speed Two gives these times between London and Stafford.

  • Fastest time before High Speed Two – one hour and seventeen minutes.
  • Time after Phase 2a of High Speed Two opens – fifty-five minutes.

Note.

  1. That is a time saving of twenty-two minutes.
  2. High Speed Two Trains will use the link between the junction at Lichfield and the Trent Valley Line.
  3. High Speed Two will also add eighteen trains per hour (tph) to the capacity between London and Lichfield.

This would seem to mean that any trains  going to or through Stafford will be twenty-two minutes faster, if they use High Speed Two between London and Lichfield.

Trains Between London And Crewe Before And After High Speed Two To Crewe

Currently, Avanti West Coast trains take around one hour and thirty minutes between London and Crewe.

The Wikipedia entry for High Speed Two gives these times between London and Crewe.

  • Fastest time before High Speed Two – one hour and thirty minutes.
  • Time after Phase 2a of High Speed Two opens – fifty-six minutes.

Note.

  1. That is a time saving of thirty-four minutes.
  2. High Speed Two Trains will use the direct line between Lichfield and Crewe.
  3. High Speed Two will also add eighteen tph to the capacity between London and Crewe.

This would seem to mean that any trains  going to or through Crewe will be thirty-four minutes faster, if they use High Speed Two between London and Crewe.

High Speed Two Between Lichfield And Crewe Only Saves An Extra Twelve Minutes

It appears that extending High Speed Two to Crewe only saves an extra twelve minutes.

But it will also have these benefits.

High Speed Two Full-Size trains will be able to run to Crewe.

High Speed Two will also add eighteen tph to the capacity between London and Crewe.

Savings From Scrapping High Speed Two Between Lichfield And Crewe

In addition to the savings of the scrapping of the line, I suspect that any modifications to Crewe station will be much simpler.

I wonder how much will be saved by not building High Speed Two to Crewe.

Could The High Speed Two Link Between Lichfield And Crewe Still Be Built?

This is the question I asked in the title.

We know the benefits of building High Speed Two and as time progresses we’ll know the costs and the disruption the building will cause with an increasing accuracy.

I also believe that even High Speed Two Lite will be a rip-roaring success, and other places will want their own High Speed Two service, which will need an increase in capacity North of Lichfield.

So there will come a point, when there is an overwhelming case to build the High Speed Two Link Between Lichfield and Crewe.

Because of that we must make sure, that any sales of land or properties, doesn’t compromise building the High Speed Two Link Between Lichfield and Crewe.

Conclusion

There will come a point, when the amount of traffic, will mean that it is worth building the High Speed Two Link Between Lichfield and Crewe.

My other conclusion is important and the route of the originally proposed High Speed Two Link Between Lichfield and Crewe, must not be compromised.

October 6, 2023 Posted by | Transport/Travel | , , , , , , , , , | 1 Comment

Could Manchester Airport Be Accessed From The West By A Tunnel Under The M56?

This OpenRailwayMap shows the railways of East London between Dalston Junction and Stratford International stations.

Note.

  1. Dalston Kingsland station is marked with an arrow in the West of the map.
  2. Stratford International station is marked by the blue lettering in the East of the map.
  3. The orange line between them is the North London Line.
  4. There are also two pink lines, which indicate High Speed One, which is dug several metres below the North London Line.

It can’t be much different to dig a high speed railway underneath a motorway. Has anybody done this?

This OpenRailwayMap shows the railways leading to Manchester Airport.

Note.

  1. Junctions 5 and 6 of the M56 motorway are on the Western edge of the Airport.
  2. The red tracks are the Styal Line.
  3. The mauve tracks are the Metrolink.
  4. It should be noted that railway lines pass under Heathrow Airport’s runways.

Point 4 makes me sure, that Manchester Airport can have a station connected to the West by a railway under the M56.

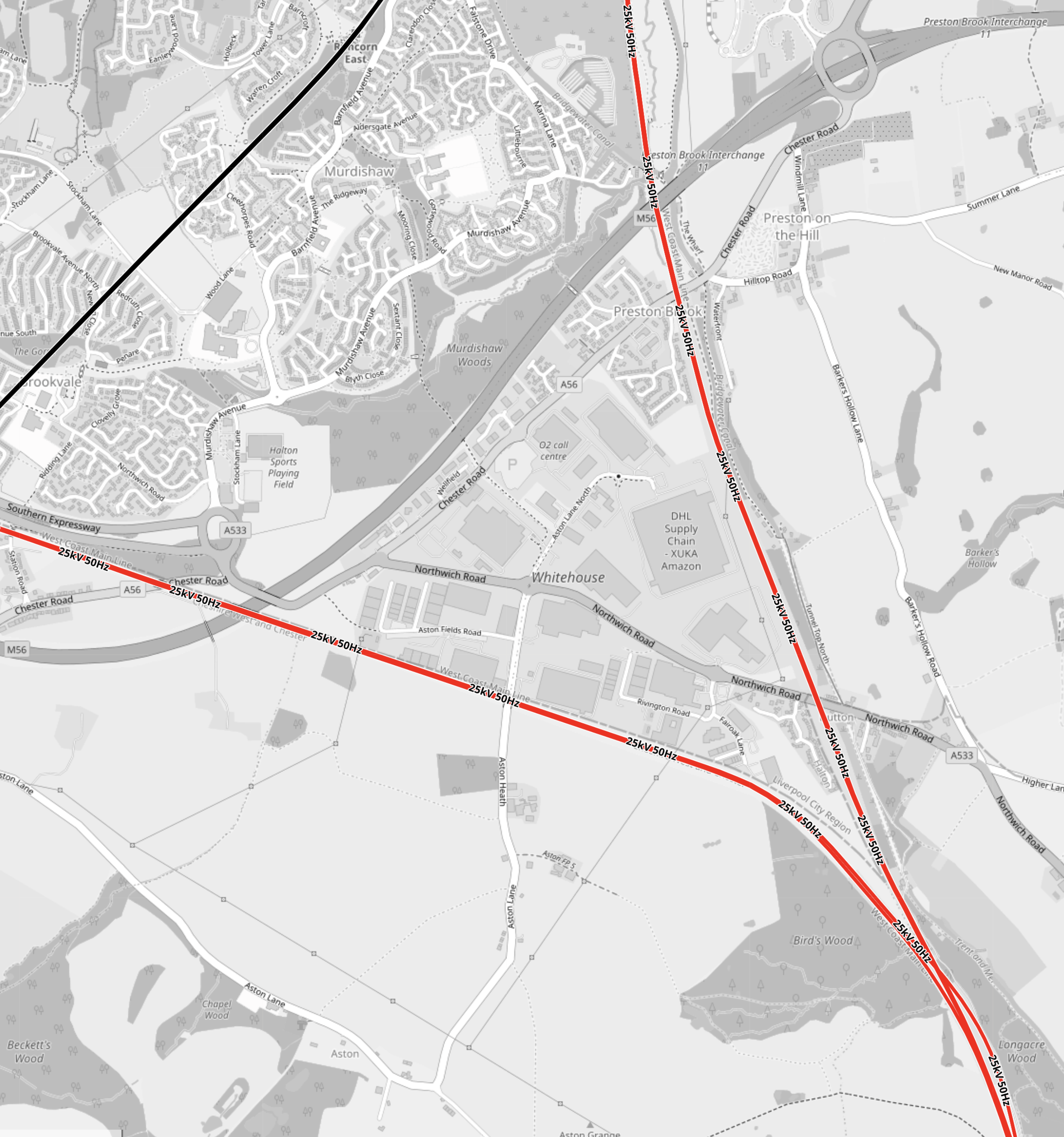

This OpenRailwayMap shows the railways around Weaver Junction on the West Coast Main Line, where the trains branch off to Liverpool.

Note.

  1. The West Coast Main Line goes down the Eastern side of the map.
  2. Warrington Bank Quay is the next station to the North.
  3. The Liverpool Branch goes off to the West.
  4. The M56 tuns diagonally across the map from the North-East corner crossing both both branches of the West Coast Main Line.

This Google Map shows where the M56 crosses over the West Coast Main Line to Warrington Bank Quay.

Note.

  1. The M56 motorway is obvious.
  2. The Eastbound motorway goes to Manchester Airport and Manchester.
  3. The junction is numbered 11.
  4. The railway runs down the Western side of the map.

I believe that it would be possible to connect a railway running East under the motorway to the West Coast Main Line.

This Google Map shows where the M56 crosses over the Liverpool branch of the West Coast Main Line.

Note.

  1. There is no motorway junction here.
  2. The North-East bound motorway goes to Manchester Airport and Manchester.
  3. The railway runs slightly diagonally across the bottom of the map.
  4. The Westbound railway goes to Runcorn and Liverpool.
  5. The Eastbound railway goes to Weaver Junction, Crewe and the South.

There would only need to be a connection between Liverpool and the railway under the motorway going to and from Manchester Airport.

I have some further thoughts and questions.

This Is Just My First Thought

I am happier about the connection to the Liverpool branch than the Northern connection.

But then I feel there are several routes at both junctions, some of which will take a wider route.

How Long Will The Tunnels Be?

Between Junctions 11 and 6 on the M56 is 16 miles.

At What Speed Would The Trains Run?

I suspect that once on the straight section between Junctions 11 and 6, speeds of up to 90 or 100 mph should be possible, but speeds would probably be lower at the junctions to the West Coast Main Line.

How Would It Connect To Manchester Piccadilly?

The tunnel would continue the other side of the Airport and it’s a further 9.4 miles to under Manchester Piccadilly.

In The Rival Plans For Piccadilly Station, That Architects Say Will ‘Save Millions’, I wrote about Weston Williamson’s plan for Manchester Piccadilly station.

This was their visualisation.

Note.

  1. In the visualisation, you are observing the station from the East.
  2. The existing railway lines into Piccadilly station are shown in red.
  3. Stockport and Manchester Airport are to the left, which is to the South.
  4. Note the dreaded Castlefield Corridor in red going off into the distance to Oxford Road and Deansgate stations.
  5. The new high speed lines are shown in blue.
  6. To the left they go to Manchester Airport and then on to London, Birmingham and the South, Warrington and Liverpool and Wigan, Preston, Blackpool, Barrow-in-Furness, the North and Scotland.
  7. To the right, they go to Huddersfield, Bradford, Leeds, Hull and the North East, and Sheffield, Doncaster and the East.
  8. Between it looks like  a low-level High Speed station with at least four tracks and six platforms.
  9. The high speed lines could be oriented so they ran East-West, rather than North-South in this visualisation.
  10. The Manchester Metrolink is shown in yellow.

The potential for over-site development is immense. If the Station Square Tower was residential, the penthouses would be some of the most desirable places to live in the North.

Onward From Manchester Piccadilly

I would hope that a connection could be made to the Huddersfield Line to the East of Manchester Piccadilly station, so that trains could use the TransPennine Upgrade all the way to Leeds.





October 6, 2023 Posted by | Transport/Travel | , , , , , , , , , , , , , , , | 2 Comments

Hydrogen Rail Project Collaboration Launched By Angel Trains And University of St Andrews

The title of this post, is the same as that of this article on Rail Technology Magazine.

This is the sub-heading.

Angel Trains, the UK’s largest rolling stock company, has partnered with the University of St Andrews to support an innovative hydrogen train project.

On Friday 29th September, an event was held to mark the donation of a hydrogen electrolyser to the university by Angel Trains. The electrolyser will form an integral part of the university’s ongoing, cutting-edge green hydrogen research.

This is the first paragraph.

The donation follows Angel Trains’ support for the delivery of Scotland’s first zero-emission hydrogen-powered train. The project entailed the conversion of a three-car Class 314 train to a hydrogen fuel cell electric powertrain. The electrolyser was key to enabling the trial to successfully demonstrate how a green-energy fuel cycle would work.

Hopefully, this initiative will lead to better use of hydrogen on the railways of the UK.

October 6, 2023 Posted by | Hydrogen, Transport/Travel | , , , | 1 Comment

Is Six Platforms Enough At Euston For High Speed Two?

In this article in The Times, which is entitled What Is The New HS2 Route? The UK’s High-Speed Rail Network Mapped, this is said.

Sunak said a new six-platform station at Euston would save £6.5 billion compared with HS2’s vision of an 11-platform scheme.

But would it be possible to operate a full service with just six platforms?

This graphic shows High Speed Two services, as proposed by HS2 after Phase 2b opens.

Note.

  1. Services shown in blue are run by High Speed Two Full Size trains.
  2. Services shown in yellow are run by High Speed Two Classic-Compatible  trains.
  3. Each service will run once an hour.
  4. There are seventeen services that terminate at Euston in every hour.
  5. Eight are High Speed Two Full Size trains, which are 400 metres long.
  6. Four are single High Speed Two Classic-Compatible  trains, which are 200 metres long.
  7. Five are pairs of High Speed Two Classic-Compatible  trains, which are 400 metres long.

I have a few thoughts.

The Capacity of High Speed Two

High Speed Two has been designed to have a capacity of eighteen trains per hour (tph).

That means it should be able to handle the seventeen tph to and from Euston.

Six Platforms Would Mean That Each Platform Would Handle Three tph

That is just simple arithmetic.

But could each platform handle three tph?

There are several places in the UK, where a single platform handles three or even four tph.

But these are generally smaller stations handling smaller trains.

I believe that with passenger entry to the platforms from both ends, as there is at King’s Cross, London Bridge and Manchester Piccadilly, that twenty minutes between trains should be possible.

What Happens If It Goes Wrong?

Occasionally trains fail, platforms get blocked or something more serious happens, which in the case of the HS2 Euston station would reduce the number of platforms available to five.

One of these actions could be taken.

Some Trains Can Terminate At Old Oak Common Station

Old Oak Common station is proposed to have six high speed platforms, so four platforms could be used to terminate trains in cases of trouble.

Two Services Run Using Single High Speed Two Classic-Compatible  Trains Could Share A Platform

This would work as the platforms are designed to accept a pair of these trains.

Platforms 17 And 18 At The Current Euston Station Could Be Used In An Emergency?

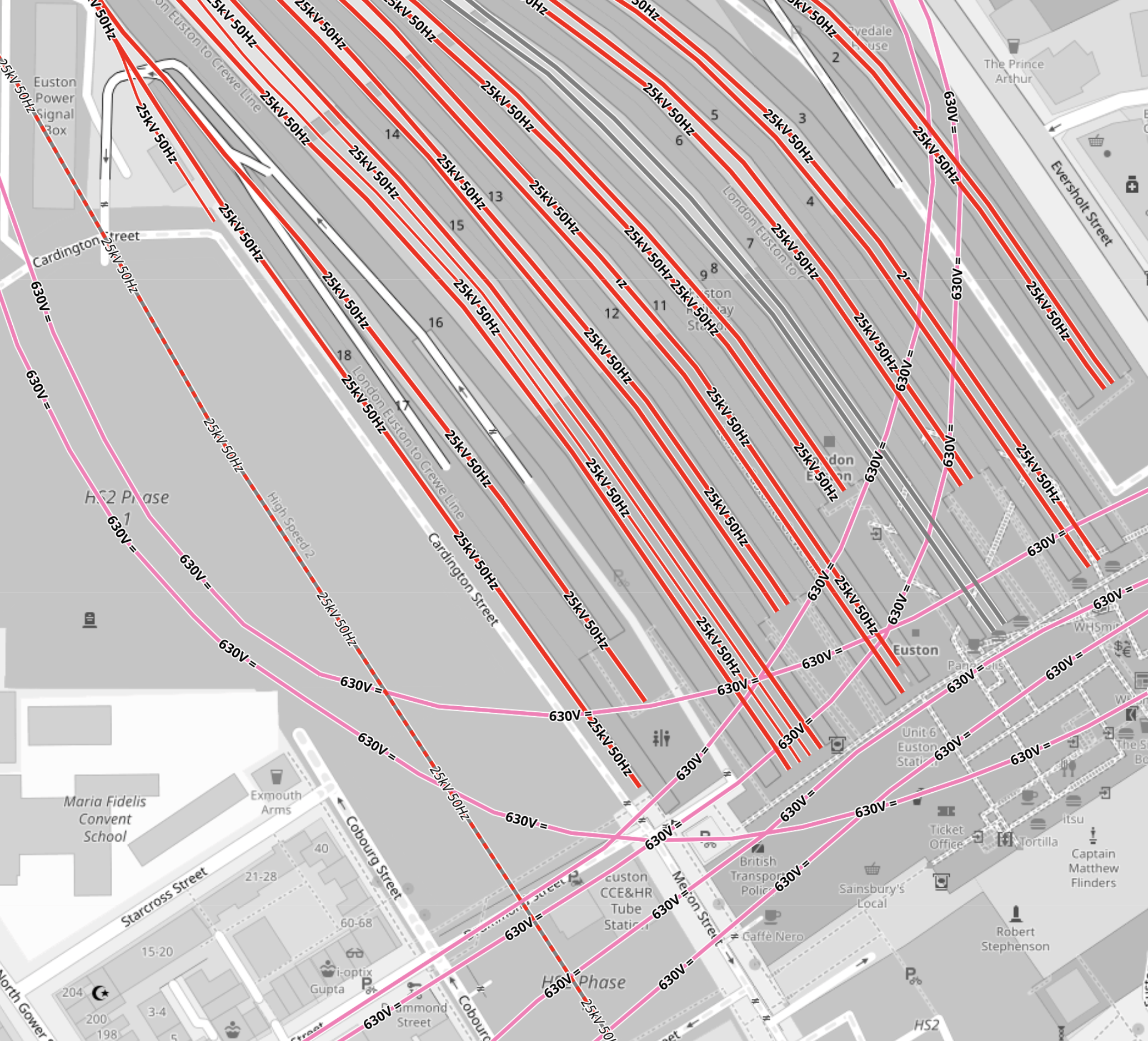

This map from OpenRailwayMap shows the tracks and platforms at Euston station.
