Hitachi Rail And Angel Trains To Create Intercity Battery Hybrid Train On TransPennine Express

The title of this post, is the same as that of this Press Release from Hitachi Rail.

The press release starts with these three points.

  • Hitachi Rail, Angel Trains and TransPeninne Express (TPE) agree to trial retrofitting battery on intercity train
  • Trial, starting next year, can cut fuel usage by at least 20% and reduce emissions on Transpennine network from 2022 onwards
  • Tri-mode service can cut noise pollution in urban areas and improve air quality.

Hitachi also point to this infographic.

This very much looks to be a step forward from the Intercity Tri-Mode Battery Train that was announced in December 2020 in this press release from Hitachi which is entitled Hitachi And Eversholt Rail To Develop GWR Intercity Battery Hybrid Train – Offering Fuel Savings Of More Than 20%.

The Intercity Tri-Mode Battery Train is described in this Hitachi infographic.

The specifications are very similar, except for the following.

  • The battery range is given as five kilometres.
  • Fuel savings are up to 30% instead of at least 20%.
  • A performance increase of 30 % is claimed.
  • The upgrade appears to be able to be fitted to Hitachi intercity trains, as opposed to a straight replacement of one engine by batteries.

It looks to me, that Hitachi have been working hard to improve their design.

I think this paragraph of the press release is key.

The trial will see a diesel engine replaced by batteries to help power a five-carriage train, along with the two remaining engines. The power provided by the batteries will help to reduce the amount of fuel required to operate the train.

Hitachi don’t say, but I suspect the trains and their batteries have a lot of energy saving features.

  • Regenerative braking is already used to power some services like lighting and air-conditioning on the trains.
  • But I suspect regenerative braking will also be used to recharge the batteries.
  • A sophisticated computer system will drive the train in the most optimal manner.
  • Hopefully, diesel will only be used as a last resort.

Features like these and others will enable the trains to jump gaps in the electrification. As more and more tricks are added and batteries hold more charge, the gaps the trains will be able to cross will get larger.

Five kilometres might not sound much, but I think it could be surprisingly useful.

I will use an example from the Midland Main Line to illustrate how the trains and discontinuous electrification might work.

In Discontinuous Electrification Through Leicester Station, I described the problems at Leicester station and how discontinuous electrification could solve the problem.

The following is a modified extract from that post.

This Google Map shows the bridge and the Southern end of the station.

It looks to me, that Leicester station and the road, would have to be closed to traffic for some time, if the bridge were to be rebuilt, to allow the erection of electrification through the area. Leicester and all train passengers would love that!

A solution could be discontinuous electrification.

  • The electrification from the South, would finish on the South side of bridge.
  • The electrification from the North, would finish at a convenient point in Leicester station or just to the North.
  • Electric trains would cover the gap of up to five kilometres on battery power.

Note.

Pantographs could be raised and lowered, where the wires exist.

Trains would probably use a stopping profile in Leicester station, that ensured they stopped with full batteries.

This would mean they had enough electricity to get back up to speed and reconnect to the electrification on the other side of the station.

To get an idea at how long five kilometres is in the Centre of Leicester, this Google Map shows the Leicester station.

Note that the platforms are around three hundred metres long.

In other words the electrification can be kept well away from the station and its troublesome bridge.

How much money would be saved and disruption avoided?

Application To The TransPennine Express Routes

These are the various routes, where Class 802 trains could be used.

Liverpool Lime Street And Edinburgh, Newcastle, Scarborough Or York

Sections are as follows.

  • Liverpool Lime Street and Manchester Victoria – 31.7 miles – Electrified
  • Manchester Victoria and Stalybridge – 8 miles – Electrified probably by 2024
  • Stalybridge and Huddersfield – 18 miles – Diesel
  • Huddersfield and Dewsbury – 8 miles – Electrified probably by 2024
  • Dewsbury and Leeds – 9.2 miles – Diesel
  • Leeds and York – 25.6 miles – Electrified probably by 2024
  • York and Newcastle – 80.2 miles – Electrified

Note.

  1. All services take a common route between Liverpool Lime Street and York.
  2. A surprising amount is electrified.
  3. A further 42 miles are being electrified.
  4. The 3 km Morley Tunnel between Dewsbury and Leeds might not be electrified.
  5. The 5 km  Standedge Tunnel between Huddersfield and Stalybridge might not be electrified.

It looks to me that the 5 km battery range will avoid electrification of two long Victorian tunnels.

Manchester Airport And Newcastle Or Redcar Central

Sections are as follows.

  • Manchester Airport and Manchester Victoria – 13.2 miles – Electrified
  • Manchester Victoria and Stalybridge – 8 miles – Electrified probably by 2024
  • Stalybridge and Huddersfield – 18 miles – Diesel
  • Huddersfield and Dewsbury – 8 miles – Electrified probably by 2024
  • Dewsbury and Leeds – 9.2 miles – Diesel
  • Leeds and York – 25.6 miles – Electrified probably by 2024
  • York and Newcastle – 80.2 miles – Electrified
  • Northallerton and Redcar Central – 29 miles – Diesel

The route goes through the Morley and Standedge tunnels.

Manchester Piccadilly And Hull

Sections are as follows.

  • Manchester Piccadilly and Stalybridge – 7.5 miles – Electrified probably by 2024
  • Stalybridge and Huddersfield – 18 miles – Diesel
  • Huddersfield and Dewsbury – 8 miles – Electrified probably by 2024
  • Dewsbury and Leeds – 9.2 miles – Diesel
  • Leeds and Selby – 21 miles – Diesel
  • Selby and Hull – 31miles – Diesel

The route goes through the Morley and Standedge tunnels.

Manchester Piccadilly And Huddersfield

The route goes through the Standedge tunnel.

Huddersfield And Leeds

The route goes through the Morley tunnel.

Manchester Airport And Cleethorpes

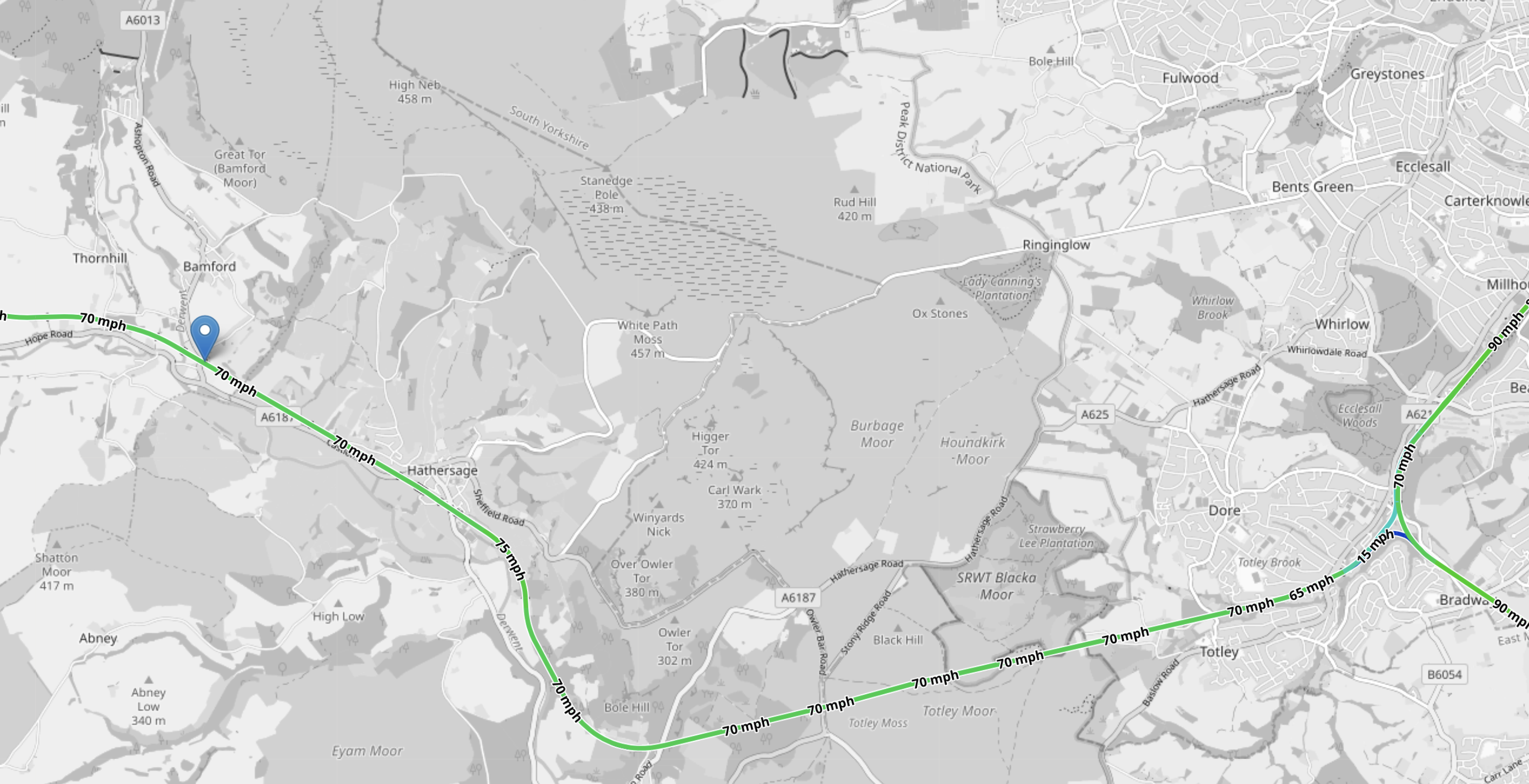

The Hope Valley Line which is part of this route has three tunnels.

Perhaps they will use a bit of diesel to get through Totley.

The Future

This paragraph sums up what Hitachi and Angel Trains could see as a possible future direction.

Once complete, the trial provides a pathway for Hitachi Rail, the train builder and maintainer, and Angel Trains, the train’s owner to develop plans to retrofit batteries to the wider fleet.

These plans will probably go in the directions like decarbonisation, more efficient operation and better standards for passengers.

Conclusion

This looks like a solution that has been helped by real ale in an appropriate hostelry.

  • The battery range has been chosen so Network Rail don’t necessarily have to electrify the tunnels.
  • Full electrification can be used either side of the tunnels.
  • Will any stations not be electrified. After all if the trains are using battery power in stations do they need electrification?
  • It might be useful to have some more bi-mode freight locomotives, that could traverse the tunnels on diesel or batteries.

Hitachi and Network Rail certainly seem to be cooking up a solution.







November 10, 2021 Posted by | Transport/Travel | , , , , , , , , , | 9 Comments

Electrification Between Clay Cross North Junction And Sheffield Station

Long term readers of this blog, will have noticed that I make regular references to this proposed electrification, that is part of High Speed Two’s proposals to connect Sheffield to the new high speed railway.

So I thought I would bring all my thoughts together in this post.

Connecting Sheffield To High Speed Two

Sheffield is to be accessed from a branch off the Main High Speed Two route to Leeds.

This map clipped from High Speed Two’s interactive map, shows the route of the Sheffield Branch, from where it branches North West from the main Eastern Leg of High Speed Two.

Note.

  1. Orange indicates new High Speed Two track.
  2. Blue indicates track that High Speed Two will share with other services.
  3. The orange route goes North to Leeds, along the M1
  4. The blue route goes North to Chesterfield and Sheffield, after skirting to the East of Clay Cross.
  5. The orange route goes South to East Midlands Hub station.

This second map, shows where the Erewash Valley Line joins the Sheffield Branch near the village of Stonebroom.

Note.

  1. Red is an embankment.
  2. Yellow is a cutting.
  3. The Sheffield Branch goes North-West to Clay Cross, Chesterfield and Sheffield
  4. The Sheffield Branch goes South-East to East Midlands Hub station.
  5. The Sheffield Branch goes through Doe Hill Country Park.
  6. The Sheffield Branch runs alongside the existing Erewash Valley Line, which goes South to Langley Mill, Ilkeston and the Derby-Nottingham area.

The Sheffield Branch and the Erewash Valley Line appear to share a route, which continues round Clay Cross and is shown in this third map.

Note

  1. Doe Hill Country Park is in the South-East corner of the map.
  2. The dark line running North-South is the A61.
  3. Running to the West of the A61 is the Midland Main Line, which currently joins the Erewash Valley Line at Clay Cross North junction.

High Speed Two and the Midland Main Line will share a route and/or tracks from Clay Cross North junction to Sheffield.

This fourth map, shows where the combined route joins the Hope Valley Line to Manchester to the South West of Sheffield.

Note.

  1. Sheffield is to the North East.
  2. Chesterfield is to the South East,
  3. Totley junction is a large triangular junction, that connects to the Hope Valley Line.

These are some timings for various sections of the route.

  • Clay Cross North Junction and Chesterfield (current) – 4 minutes
  • Clay Cross North Junction and Sheffield (current) – 17 minutes
  • Chesterfield and Sheffield (current) – 13 minutes
  • Chesterfield and Sheffield (High Speed Two) – 13 minutes
  • East Midlands Hub and Chesterfield (High Speed Two) – 16 minutes
  • East Midlands Hub and Sheffield (High Speed Two) – 27 minutes

As Class Cross North Junction and Sheffield are 15.5 miles, this means the section is run at an average speed of 53 mph.

Can I draw any conclusions from the maps and timings?

  • There would appear to be similar current and High Speed Two timings between Chesterfield and Sheffield.
  • The various junctions appear to be built for speed.

The Midland Main Line will be electrified between Clay Cross North Junction and Sheffield, so that High Speed Two trains can use the route.

What will be the characteristics of the tracks between Clay Cross North Junction and Sheffield?

  • Will it be just two tracks as it mainly is now or will it be a multi-track railway to separate the freight trains from the high speed trains?
  • Will it have a high enough maximum speed, so that East Midland Railway’s new Class 810 trains can go at their maximum speed of 140 mph?
  • Will it be capable of handling a frequency of 18 tph, which is the maximum frequency of High Speed Two?

Surely, it will be built to a full High Speed Two standard to future-proof the line.

Current Passenger Services Between Clay Cross North Junction And Sheffield Station

These trains use all or part of the route between Cross North Junction And Sheffield stations.

  • CrossCountry – Plymouth and Edinburgh via Derby, Chesterfield, Sheffield and Leeds – 1 tph
  • East Midlands Railway – London St. Pancras and Sheffield via Derby and Chesterfield – 2 tph
  • East Midlands Railway – Liverpool Lime Street and Norwich via Stockport, The Hope Valley Line, Sheffield and Chesterfield – 1 tph
  • Northern Trains – Manchester Piccadilly and Sheffield via the Hope Valley Line – 1 tph
  • Northern Trains – Leeds and Nottingham via Meadowhall, Sheffield and Chesterfield – 1 tph
  • TransPennine Express – Manchester Airport and Cleethorpes via Stockport, the Hope Valley Line and Sheffield – 1 tph

Note.

  1. tph is trains per hour.
  2. High Speed Two is currently planning to run two tph to Sheffield, which will run between Cross North junction and Sheffield stations.
  3. The services on the Hope Valley Line run on electrified tracks at the Manchester end.

These services can be aggregated to show the number of trains on each section of track.

  • Hope Valley Line between Manchester and Totley junction – 3 tph
  • Totley junction and Sheffield station – 7 tph
  • Totley junction and Clay Cross North junction via Chesterfield – 4 tph

Adding in the High Speed Two services gives these numbers.

  • Hope Valley Line between Manchester and Totley junction – 3 tph
  • Totley junction and Sheffield station – 9 tph
  • Totley junction and Clay Cross North junction via Chesterfield – 6 tph

This report on the Transport for the North web site, is entitled At A Glance – Northern Powerhouse Rail. It states that Transport for the North’s aspirations for Manchester and Sheffield are four tph with a journey time of forty minutes.

Adding in the extra train gives these numbers.

  • Hope Valley Line between Manchester and Totley junction – 4 tph
  • Totley junction and Sheffield station – 10 tph
  • Totley junction and Clay Cross North junction via Chesterfield – 6 tph

This level of services can be accommodated on a twin-track railway designed to the right high speed standards.

Freight Services Between Clay Cross North Junction And Sheffield Station

The route is used by freight trains, with up to two tph on each of the three routes from Totley junction.

And these are likely to increase.

Tracks Between Clay Cross North Junction And Sheffield Station

I am absolutely certain, that two tracks between Clay Cross North junction And Sheffield station will not be enough, even if they are built to High Speed Two standards to allow at least 140 mph running under digital signalling.

Battery Electric Trains

The only battery-electric train with a partly-revealed specification is Hitachi’s Regional Battery Train, which is described in this Hitachi infographic.

Note.

  1. The train is a 100 mph unit.
  2. Ninety kilometres is fifty-six miles.

I would expect that battery-electric trains from other manufacturers like Alstom, CAF and Siemens would have similar performance on battery power.

In Thoughts On CAF’s Battery-Electric Class 331 Trains, I concluded CAF’s approach could give the following ranges.

  • Three-car battery-electric train with one battery pack – 46.7 miles
  • Four-car battery-electric train with one battery pack – 35 miles
  • Four-car battery-electric train with two battery packs – 70 miles

I was impressed.

These are my thoughts on battery-electric trains on the routes from an electrified Sheffield.

Adwick

Sheffield  and Adwick is 22.7 miles without electrification

I am sure that battery-electric trains can handle this route.

If the battery range is sufficient, there may not need to be charging at Adwick.

Bridlington

Sheffield and Bridlington is 90.5 miles without electrification, except for a short section through Doncaster, where trains could top up batteries.

I am sure that battery-electric trains can handle this route.

But there would need to be a charging system at Hull, where the trains reverse.

An alternative would be to electrify Hull and Brough, which is just 10.4 miles and takes about twelve minutes.

Derby Via The Midland Main Line

Clay Cross North junction and Derby is 20.9 miles without electrification.

I am sure that battery-electric trains can handle this route.

Gainsborough Central

Sheffield  and Gainsborough Central is 33.6 miles without electrification

I am sure that battery-electric trains can handle this route.

But there will need to be a charging system at Gainsborough Central.

Huddersfield Via The Penistone Line

This is a distance of 36.4 miles with electrification at both ends, after the electrification between Huddersfield and Westtown is completed.

I am sure that battery-electric trains can handle this route.

Hull

Sheffield and Hull is 59.4 miles without electrification, except for a short section through Doncaster, where trains could top up batteries.

I am sure that battery-electric trains can handle this route.

But there will probably need to be a charging system at Hull.

An alternative would be to electrify Hull and Brough, which is just 10.4 miles and takes about twelve minutes.

Leeds Via The Hallam Or Wakefield Lines

This is a distance of 40-45 miles with electrification at both ends.

I am sure that battery-electric trains can handle this route.

Lincoln

Sheffield and Lincoln Central is 48.5 miles without electrification

I am sure that battery-electric trains can handle this route.

But there will probably need to be a charging system at Lincoln Central.

Manchester Via The Hope Valley Line

This is a distance of forty-two miles with electrification at both ends.

I am sure that battery-electric trains can handle this route.

Nottingham

Clay Cross North junction and Nottingham is 25.1 miles without electrification

I am sure that battery-electric trains can handle this route.

But there may need to be a charging system at Nottingham.

York

This is a distance of 46.4 miles with electrification at both ends.

I am sure that battery-electric trains can handle this route.

Is London St. Pancras And Sheffield Within Range Of Battery-Electric Trains?

In the previous section, I showed that it would be possible to easily reach Derby, as Clay Cross North junction and Derby is 20.9 miles without electrification.

  • Current plans include electrifying the Midland Main Line as far North as Market Harborough.
  • Market Harborough is 82.8 miles from London St. Pancras
  • Derby is 128.3 miles from London St. Pancras

So what would be the best way to cover the 45.5 miles in the middle?

One of the best ways would surely be to electrify between Derby and East Midlands Parkway stations.

  • Derby and East Midlands Parkway stations are just 10.2 miles apart.
  • Current services take around twelve-fourteen minutes to travel between the two stations, so it would be more than enough time to charge a battery-electric train.
  • Power for the electrification should not be a problem, as Radcliffe-on-Soar power station is by East Midlands Parkway station. Although the coal-fired power station will soon be closed, it must have a high class connection to the electricity grid.
  • The East Midlands Hub station of High Speed Two will be built at Toton between Derby and Nottingham and will have connections to the Midland Main Line.
  • An electrified spur could connect to Nottingham station.

I have flown my virtual helicopter along the route and found the following.

  • Three overbridges that are not modern and built for large containers and electrification.
  • Two level crossings.
  • One short tunnel.
  • Two intermediate stations.
  • Perhaps half-a-dozen modern footbridges designed to clear electrification.

I’ve certainly seen routes that would be much more challenging to electrify.

I wonder if gauge clearance has already been performed on this key section of the Midland Main Line.

If this section were to be electrified, the sections of the Midland Main Line between London St. Pancras and Sheffield would be as follows.

  • London St. Pancras and Market Harborough – Electrified – 82.8 miles
  • Market Harborough and East Midlands Parkway – Not Electrified – 35.3 miles
  • East Midlands Parkway and Derby – Electrified – 10.2 miles
  • Derby and Clay Cross North junction – Not Electrified – 20.9 miles
  • Clay Cross North junction and Sheffield – Electrified – 15.5 miles

Note.

  1. The World Heritage Site of the Derwent Valley Mills is not electrified, which could ease the planning.
  2. Leicester station with its low bridge, which could be difficult to electrify, has not been electrified.
  3. Under thirty miles of electrification will allow battery-electric trains to run between London St. Pancras and Sheffield, provided they had a range on batteries of around forty miles.

Probably, the best way to electrify between East Midlands Parkway and Derby might be to develop a joint project with High Speed Two, that combines all the power and other early works for East Midlands Hub station, with the electrification between the two stations.

Will The Class 810 Trains Be Converted To Battery-Electric Operation?

Hitachi’s Class 8xx trains tend to be different, when it comes to power. These figures relate to five-car trains.

  • Class 800 train – 3 x 560 kW diesel engines
  • Class 801 train – 1 x 560 kW diesel engine
  • Class 802 train – 3 x 700 kW diesel engines
  • Class 803 train – All electric – No diesel and an emergency battery
  • Class 805 train – 3 x 700 kW diesel engines (?)
  • Class 807 train – All electric – No diesel or emergency battery
  • Class 810 train – 4 x 700 kW diesel engines (?)

Note.

  1. These figures relate to five-car trains.
  2. Class 807 train are seven-car trains.
  3. Where there is a question mark (?), the power has not been disclosed.
  4. Hitachi use two sizes of diesel engine; 560 kW and 700 kW.

It was generally thought with the Class 810 train to be used on the Midland Main Line, will be fitted with four engines to be able to run at 125 mph on diesel.

But are they 560 kW or 700 kW engines?

  • A Class 802 train has an operating speed of 110 mph on diesel, with 2100 kW of installed power.
  • To increase speed, the power will probably be related to something like the square of the speed.

So crudely the power required for 125 mph would be 2100*125*125/110/110, which works out at 2712 kW.

Could this explain why four engines are fitted? And why they are 700 kW versions?

Interestingly, I suspect, Hitachi’s five-car trains have two more or less identical driver cars, except for the passenger interiors, for the efficiency of manufacturing and servicing.

So does that mean, that a fifth engine could be fitted if required?

There probably wouldn’t be a need for five diesel engines, but as I also believe that the Hyperdrive Innovation battery packs for these trains are plug-compatible with the diesel engines, does that mean that Hitachi’s trains can be fitted with five batteries?

Suppose you wanted to run a Class 810 train at 125 mph to clear an electrification gap of forty miles would mean the following.

  • It would take 0.32 hours or 19.2 minutes to cross the gap.
  • In that time 2800 kW of diesel engines would generate 896 kWh.
  • So to do the same on batteries would need a total battery capacity of 896 kWh.
  • If all diesel engines were replaced, each battery would need to be 224 kWh

A battery of this size is not impractical and probably weighs less than the at least four tonnes of the diesel engine it replaces.

Conclusions

Electrification between Clay Cross North Junction and Sheffield station is an important project that enables the following.

  • A high proportion of diesel services to and from Sheffield to be converted to battery-electric power.
  • With electrification between Derby and East Midlands Parkway, it enables 125 mph battery-electric trains to run between London St. Pancras and Sheffield.
  • It prepares Sheffield for High Speed Two.

It should be carried out as soon as possible.





















September 5, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , , , | 2 Comments

Improving The Cross Country Route

The Cross Country Route is one of the UK’s forgotten railway lines.

  • It runs between York and Bristol Temple Meads.
  • Intermediate stations include Leeds, Wakefield Westgate, Rotherham Central, Meadowhall, Sheffield, Chesterfield, Derby, Burton-on-Trent, Tamworth, Birmingham New Street, University, Bromsgrove, Worcestershire Parkway, Cheltenham Spa and Bristol Parkway.
  • At the Northern end trains can swap to the electrified East Coast Main Line and can extend services to Edinburgh and Aberdeen.
  • At the Southern end trains can swap to the Great Western Main Line and extend services to Taunton, Exeter, Plymouth and Penzance.
  • Trains can also swap to the South Wales Main Line in the Bristol area, to serve Cardiff and South Wales.
  • Operating speeds are generally around 100 mph, but there are sections of 125 mph running.
  • Some sections of the route have 25 KVAC overhead electrification.

I very much believe that it is a route that is ripe for improvement.

These are my thoughts.

Extra And Rebuilt Stations

Recently, Worcestershire Parkway station has been opened on the route.

Bromsgrove station was rebuilt and reopened in 2016.

Derby station was remodelled in 2018.

In addition, there are aspirations for other mew stations and station improvements on the route.

I can see more station improvements and additions on the Cross Country Route.

New Trains

Most services are run by CrossCountry, who only use diesel trains.

Their core services are as follows.

Plymouth And Edinburgh uses the route between York and Bristol Temple Meads. The service runs under wires North of Leeds and at Bristol Parkway and at Birmingham New Street.

Southampton Central And Newcastle uses the route between York and Birmingham New Street. The service runs under wires North of Leeds and at Reading and at Birmingham New Street.

Bournemouth and Manchester Piccadilly uses the route at Birmingham New Street. The service runs under wires North of Birmingham New Street.

Bristol Temple Meads and Manchester Piccadilly uses the route between Bristol Temple Meads and Birmingham New Street. The service runs under wires at Bristol Parkway and North of Birmingham New Street.

Cardiff Central and Nottingham uses the route between Gloucester and Derby. The service runs under the wires West of Bristol Parkway and at Birmingham New Street.

Birmingham New Street and Nottingham uses the route between Birmingham New Street and Derby. The service runs under the wires at Birmingham New Street.

Birmingham New Street and Stansted Airport does not use the route. The service runs under the wires at Birmingham New Street and around Cambridge and Peterborough.

Birmingham New Street and Leicester does not use the route. The service runs under the wires at Birmingham New Street.

Note.

  1. Several services run under wires for sufficient time to charge a battery-electric train.
  2. Several services turn in stations for sufficient time to charge a battery-electric train.
  3. At least six or possibly seven of the services run for at least fifty miles on tracks that can handle 125 mph running. Some of this track will be upgraded to 140 mph with digital signalling.

This Hitachi infographic shows the Hitachi Intercity Tri-Mode Battery Train.

I believe that Hitachi could produce a version of this train, that would partially meet CrossCountry’s need for a new fleet to reduce their carbon footprint.

For the purpose of this analysis, I will assume this about the trains.

  • Battery power will always be used in stations.
  • The trains have a battery range of around forty miles at 100 mph.
  • Running at 125 mph will need 25 KVAC overhead electrification.

This table shows the current electrification status of the Cross Country Route.

  • York and South Kirby junction- 45.4 miles – Electrified
  • South Kirby junction and Birmingham New Street – 96.6 miles – Not Electrified
  • Birmingham New Street and Bromsgrove – 16 miles – Electrified
  • Bromsgrove and Bristol Parkway – 69.8 miles – Not Electrified
  • Bristol Parkway and Bristol Temple Meads – 4.8 miles- Not Electrified

The trains would appear to still need to use diesel on some parts of the route.

Or Hitachi ABB Power Grids could install short lengths of 25 KVAC overhead electrification to top up the trains’ batteries in appropriate places.

I believe CrossCountry could decarbonise this route using battery-electric trains and discontinuous electrification.

This would surely refresh the line and attract passengers, but would the trains speed up the service?

  • Birmingham New Street and Leeds is 116.4 miles and currently takes just under two hours at an average speed of 59.3 mph in a Class 221 train.
  • Several sections of line between Birmingham New Street and Leeds can sustain 125 mph running.
  • London Liverpool Street and Norwich is 114.5 miles and has regularly been achieved by British Rail-era electric trains in ninety minutes on a 100 mph line, which is an average speed of 76 mph.
  • Averaging 76 mph between Birmingham New Street and Leeds would give a time of 92 minutes.

For these and other reasons, I am fairly sure that a battery-electric train capable of running at 125 mph with fast acceleration could run between Birmingham New Street and Leeds in under ninety minutes, with the addition of some discontinuous electrification.

  • There is currently one tph between Birmingham New Street and Leeds, which also serves Sheffield.
  • There is also one tph between Birmingham New Street and Sheffield by a different route.
  • There is two tph between Birmingham New Street and Nottingham.
  • My calculations indicate that the Nottingham and Sheffield services would take under an hour to and from Birmingham New Street, with the Leeds service taking thirty minutes longer.

In normal circumstances no diesel would be used.

Track Improvements And Discontinuous Electrification

This table shows the current electrification status of the Cross Country Route.

  • York and South Kirby junction- 45.4 miles – Electrified
  • South Kirby junction and Birmingham New Street – 96.6 miles – Not Electrified
  • Birmingham New Street and Bromsgrove – 16 miles – Electrified
  • Bromsgrove and Bristol Parkway – 69.8 miles – Not Electrified
  • Bristol Parkway and Bristol Temple Meads – 4.8 miles – Not Electrified

Solutions will have to be found to decarbonise a lot of the route.

I have flown my virtual helicopter from Tamworth to Sheffield and this part of the route seems to the sort of route that could be upgraded to a full 125 mph line, as it is fairly straight and some sections already allow trains to travel at this speed.

As the 15.5 miles between Clay Cross North Junction and Sheffield will be updated and electrified for High Speed Two’s spur into Sheffield sometime in the future, I would feel that as updating this section benefits High Speed Two, the Midland Main Line, the Cross Country Route and the Hope Valley Line, that this section should be rebuilt as necessary and electrified, as soon as is practically possible.

I believe that Clay Cross North Junction and Sheffield is one of the most important routes in the country to be electrified, if not the most important.

This table shows the electrification status of the Cross Country Route after electrification of Clay Cross North Junction and Sheffield.

  • York and South Kirby junction- 45.4 miles – Electrified
  • South Kirby junction and Sheffield – 18.8 miles – Not Electrified
  • Sheffield and Clay Cross North junction – 15.5 miles – Electrified
  • Clay Cross North junction and Birmingham New Street – 62.1 miles – Not Electrified
  • Birmingham New Street and Bromsgrove – 16 miles – Electrified
  • Bromsgrove and Bristol Parkway – 69.8 miles – Not Electrified
  • Bristol Parkway and Bristol Temple Meads – 4.8 miles – Not Electrified

It looks that by electrifying the 15.5 miles between Sheffield and Clay Cross North junction, the gap of 18.8 miles between South Kirby junction and Sheffield could be easily bridged by a battery-electric train.

The section between Clay Cross North junction and Birmingham New Street can be split into three.

  • Clay Cross North junction and Derby – 20.9 miles
  • Derby and Tamworth – 23.9 miles
  • Tamworth and Birmingham New Street – 17.3 miles

If Hitachi ABB Power Grids installed discontinuous electrification at Derby and Tamworth, this should bridge the gap to the electrification at Birmingham.

As some of this section can sustain 125 mph running, it may be better to fully electrify part of the route.

This table shows the electrification status of the route would become

  • York and South Kirby junction- 45.4 miles – Electrified
  • South Kirby junction and Sheffield – 18.8 miles – Not Electrified
  • Sheffield and Clay Cross North junction – 15.5 miles – Electrified
  • Clay Cross North junction and Derby – 20.9 miles – Not Electrified
  • Derby and Tamworth – 23.9 miles – Not Electrified
  • Tamworth and Birmingham New Street – 17.3 miles – Not Electrified
  • Birmingham New Street and Bromsgrove – 16 miles – Electrified
  • Bromsgrove and Bristol Parkway – 69.8 miles – Not Electrified
  • Bristol Parkway and Bristol Temple Meads – 4.8 miles – Not Electrified

I have also flown my virtual helicopter from Bromsgrove to Westerleigh junction, where the Cross Country Route joins the electrified Great Western Main Line, about 4.5 miles East of Bristol Parkway station.

It looks to me that this Southern short section of electrified line would be able to charge a battery-electric train so that it could reach Bristol Temple Meads station.

But the sixty-plus miles of route without electrification between Bromsgrove and Westerleigh junction would be too far to travel without some electrification.

This could either be full electrification or discontinuous using the methods proposed by Hitachi ABB Power Grids.

It certainly looks to me, that Hitachi’s technology or similar, that I talked about in Solving The Electrification Conundrum could be used to run battery-electric trains between York and Bristol Temple Meads on the Cross Country Route.

Digital Signalling

I would assume this will be installed on the route, to give more precise control of trains on the more complicated sections of the route.

East Coast Main Line Improvements

There are several improvements to the North of York, that will reduce journey times on all services using the East Coast Main Line.

These could contribute time saving of up to ten minutes, according to High Speed Two’s Journey Planner and current timetables.

Comparison With The Proposed Eastern Leg Of High Speed Two

With all the talk about possible cancellation of the Eastern Leg of High Speed Two could an improved Cross Country Route be used in the interim?

I will look at a few timings from Birmingham.

Birmingham And Leeds

A fully-developed High Speed Two is claiming forty-nine minutes, as against the one hour and fifty-eight minutes today.

I have stated that ninety minutes is an attainable time on a 116.4 mile journey, where a good proportion of 125 mph running will be possible, sustained by electrification.

But with full electrification, more 125 mph running and even some 140 mph running under the control of digital signalling, I suspect that ninety minutes is only an upper limit to the journey time between Birmingham and Leeds.

High Speed Two are saying they will run two tph between Birmingham and Leeds, which is twice the current frequency.

I could see that an improved frequency on the Cross Country Route could be very convenient, if it increased the frequency between the two cities to four tph.

Is it going to annoy passengers, that services will leave from two different stations in Birmingham and if you go to the wrong one, you’ll have to wait thirty minutes for the next train?

Birmingham And Middlesbrough

Times between Birmingham and Middlesbrough will be determined by adding a Leeds and Middlesbrough time to the Birmingham and Leeds times.

The best time between Leeds and Middlesbrough today is one hour and 23 minutes, which I suspect will lose a few minutes due to East Coast Main Line improvements North of York.

This gives using High Speed Two to Leeds a time of two hours and eight minutes, as against two hours and forty-nine minutes using an improved Cross Country Route.

Birmingham And Newcastle

A fully-developed High Speed Two is claiming one hour and  fifty-seven minutes, as against the three hours and twenty-six minutes today.

Based on the current and possible times between Birmingham at Leeds using CrossCountry, I feel times to stations North of Leeds will be reduced by at least twenty-eight minutes, putting the Birmingham and Newcastle time a few minutes under three hours.

Birmingham And Nottingham

A fully-developed High Speed Two is claiming twenty minutes to East Midlands Hub, which when adding in the tram to Nottingham City Centre will be thirty-five minutes..

,Current services are one hour and ten minutes today.

On an improved Cross Country Route, with with battery-electric trains and some 125 mph running, I can see this time shrink to under an hour, even with the reverse at Derby.

Midlands Connect are also proposing a high speed service between Birmingham Curzon Street and Nottingham station, which will take thirty-three minutes.

High Speed Two are saying they will run three tph between Birmingham and East Midlands Hub, which compares with two tph using the Cross Country Route.

Birmingham And Sheffield

A fully-developed High Speed Two is claiming fifty-seven minutes, as against the one hour and fifteen minutes today.

I have stated that an hour is an attainable time on this route, with battery-electric trains and some 125 mph running.

A time of an hour would be very competitive with the Eastern Leg of High Speed Two.

High Speed Two are saying they will run two tph between Birmingham and Sheffield with a change at East Midlands Hub, which compares with two tph using the Cross Country Route.

Conclusion

A fully developed East Coast Main Line will give High Speed Two a good run for its money on services between London and Yorkshire, North East England and Scotland. I indicated my thoughts and conclusions in What Is Possible On The East Coast Main Line?.

I also believe that an improved Cross Country Route could give the Eastern Leg of High Speed Two a very good run for its money.

Perhaps, we should safeguard the route of Eastern Leg of High Speed Two for building later to increase capacity when it is needed, but in the interim we should upgrade the following routes.

  • Cross Country Route
  • East Coast Main Line
  • Midland Main Line
  • Northern Powerhouse Rail
  • West Coast Main Line

These routes should have at least these minimum standards.

  • All passenger trains electric or battery-electric.
  • All freight locomotives electric, battery-electric or hydrogen-electric.
  • Where possible all lines should allow 125 mph running.
  • Universal in-cab digital signalling
  • There should be sections of 140 mph running, where possible.

We will need the Eastern Leg of High Speed Two in the future, but we don’t need it in the next few years.











August 26, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , | 4 Comments

Northern Powerhouse Rail – Connecting Sheffield To HS2 And On To Leeds

In this article on Transport for the North, which is entitled Northern Powerhouse Rail Progress As Recommendations Made To Government, one of the recommendations proposed for Northern Powerhouse Rail is connecting Sheffield to High Speed Two and on to Leeds.

Northern Powerhouse Rail’s Objective For The Sheffield and Leeds Route

Wikipedia, other sources and my calculations say this about the trains between Leeds and Sheffield.

  • The distance between the two stations is 39 miles
  • The current service takes around 40 minutes and has a frequency of one train per hour (tph)
  • This gives an average speed of 58.5 mph for the fastest journey.
  • The proposed service with Northern Powerhouse Rail will take 28 minutes and have a frequency of four tph.
  • This gives an average speed of 84 mph for the journey.

This last figure of 84 mph, indicates to me that a fast route will be needed.

But given experience of 100 mph lines in other parts of the UK, 100 mph trains and infrastructure could make this demanding objective of twenty-eight minutes between Sheffield and Leeds a reality

Connecting Sheffield To High Speed Two

Sheffield is to be accessed from a branch off the Main High Speed Two route to Leeds.

This map clipped from High Speed Two’s interactive map, shows the route of the Sheffield Branch, from where it branches North West from the main Eastern Leg of High Speed Two.

Note.

  1. Orange indicates new High Speed Two track.
  2. Blue indicates track that High Speed Two will share with other services.
  3. The orange route goes North to Leeds, along the M1
  4. The blue route goes North to Chesterfield and Sheffield, after skirting to the East of Clay Cross.
  5. The orange route goes South to East Midlands Hub station.

This second map, shows where the Erewash Valley Line joins the Sheffield Branch near the village of Stonebroom.

Note.

  1. Red is an embankment.
  2. Yellow is a cutting.
  3. The Sheffield Branch goes North-West to Clay Cross, Chesterfield and Sheffield
  4. The Sheffield Branch goes South-East to East Midlands Hub station.
  5. The Sheffield Branch goes through Doe Hill Country Park.
  6. The Sheffield Branch runs alongside the existing Erewash Valley Line, which goes South to Langley Mill, Ilkeston and the Derby-Nottingham area.

The Sheffield Branch and the Erewash Valley Line appear to share a route, which continues round Clay Cross and is shown in this third map.

Note

  1. Doe Hill Country Park is in the South-East corner of the map.
  2. The dark line running North-South is the A61.
  3. Running to the West of the A61 is the Midland Main Line, which currently joins the Erewash Valley Line at Clay Cross North junction.

High Speed Two and the Midland Main Line will share a route and/or tracks from Clay Cross North junction to Sheffield.

This fourth map, shows where the combined route joins the Hope Valley Line to Manchester to the South West of Sheffield.

Note.

  1. Sheffield is to the North East.
  2. Chesterfield is to the South East,
  3. Totley junction is a large triangular junction, that connects to the Hope Valley Line.

These are some timings for various sections of the route.

  • Clay Cross North Junction and Chesterfield (current) – 4 minutes
  • Clay Cross North Junction and Sheffield (current) – 17 minutes
  • Chesterfield and Sheffield (current) – 13 minutes
  • Chesterfield and Sheffield (High Speed Two) – 13 minutes
  • East Midlands Hub and Chesterfield (High Speed Two) – 16 minutes
  • East Midlands Hub and Sheffield (High Speed Two) – 27 minutes

As Class Cross North Junction and Sheffield are 15.5 miles, this means the section is run at an average speed of 53 mph.

Can I draw any conclusions from the maps and timings?

  • There would appear to be similar current and High Speed Two timings between Chesterfield and Sheffield.
  • The various junctions appear to be built for speed.

The Midland Main Line will be electrified from Clay Cross North Junction to Sheffield, so that High Speed Two trains can use the route.

What will be the characteristics of the tracks between Clay Cross North Junction and Sheffield?

  • Will it be just two tracks as it mainly is now or will it be a multi-track railway to separate the freight trains from the high speed trains?
  • Will it have a high enough maximum speed, so that East Midland Railway’s new Class 810 trains can go at their maximum speed of 140 mph?
  • Will it be capable of handling a frequency of 18 tph, which is the maximum frequency of High Speed Two?

Surely, it will be built to a full High Speed Two standard to future-proof the line.

Before finishing this section, I will answer a few questions.

Would It Be Possible For Class 810 Trains Fitted With Batteries To Run Between London St. Pancras And Sheffield?

East Midlands Railway’s new Class 810 trains could be fitted with batteries to become Regional Battery Trains with the specification, given in this Hitachi infographic.

Note.

  1. This would give the trains a range of 90 kilometres or 56 miles on batteries, if a number of diesel engines were exchanged for batteries.
  2. The trains would only be a few mph slower on batteries, than the current Hitachi trains on diesel.
  3. The Class 810 trains have four diesel engines. Is this to enable 125 mph running on diesel?

By perhaps replacing two diesel engines with batteries and using the remaining two diesel engines as range extenders or some other combination, I feel that Hitachi might be able to obtain a longer self-powered range for the train.

Consider.

  • Between Sheffield and Clay Cross North Junction will be fully-electrified and at 15.5 miles, it will be long enough to fully-charge the batteries on the train.
  • Between London St. Pancras and Market Harborough will be fully-electrified and at 83 miles, it will be long enough to fully-charge the batteries on the train.
  • The section between Market Harborough and Clay Cross North Junction is not electrified and is 66 miles.

I feel that Hitachi and their partner; Hyperdrive Innovation can design a battery electric Class 810 train, that can travel between London St. Pancras and Sheffield, without using a drop of diesel.

A great advantage of this approach, is that, as more electrification is added to the Midland Main Line, as it surely will be, the trains will be able to use the wires to reduce journey times.

I believe there are two sections on the Midland Main Line. where traditional electrification is less likely.

  • The bridge at the Southern end of Leicester station is low and would need to be rebuilt causing immense disruption to both road and rail in the city.
  • Between Derby and Alfreton is the World Heritage Site of the Derwent Valley Mills. Will electrification be fought by the heritage lobby?

Both sections may eventually be electrified at some far off date in the future.

Why Is There A Spur Of Electrification At Totley Junction?

This map clipped from High Speed Two’s interactive map, shows the Southern Leg of Totley Junction, where the Hope Valley Line joins the Midland Main Line.

Note that a short length of electrification is shown, between the Midland Main Line and a tunnel on the Southern leg.

This Google Map shows the same area.

Note, that the line disappears into a tunnel.

  1. In Northern Powerhouse Rail -Significant Upgrades And Journey Time Improvements To The Hope Valley Route Between Manchester And Sheffield, I indicated, that running battery electric trains between Manchester and Sheffield would be a possibility and could be a way of meeting Northern Powerhouse Rail’s objectives for the route.
  2. A short length of electrification might help battery electric trains turn out to go South.
  3. I don’t think any passenger trains ever go that way now, but I have seen articles and heard complaints from passengers, that want a better service between Derby and/or Nottingham and Manchester.
  4. It might also help with the decarbonisation of freight trains to and from the quarries.

I also suspect, that if building High Speed Two in Manchester temporarily reduced the capacity of Manchester Piccadilly station, trains could use the Hope Valley Line to get to the city, as they have done previously, with Project Rio.

Accessing The Infrastructure Depot At Staveley

This map clipped from High Speed Two’s interactive map, shows the location of the infrastructure depot at Staveley.

Note.

  1. Chesterfield is shown by the large blue dot.
  2. High Speed Two’s Sheffield Branch runs North from Chesterfield station.
  3. High Speed Two’s Eastern Leg runs down the Eastern side of the map.
  4. Two spurs from East and West go towards each other and would meet to the North of the town of Staveley.

The infrastructure depot will be located where they meet.

The route from the Sheffield Branch uses the Barrow Hill Line, which might be reopened as another passenger route between Chesterfield and Sheffield.

I wrote about this idea in Reinstatement Of The Barrow Hill Line Between Sheffield And Chesterfield.

If the line is being upgraded and electrified as far as Barrow Hill for the Infrastructure Depot, would it be worthwhile to create a new electrified route into Sheffield?

I also wrote in Could East Midlands Railway’s Liverpool And Norwich Service Avoid A Reverse At Sheffield By Using the Barrow Hill Line?, that the Barrow Hill Line might be an alternative route for the Liverpool and Norwich service.

When the railway routes in the area of the Infrastructure Depot are developed, I wouldn’t be surprised to see some routes changed.

Between Sheffield And Meadowhall Stations

One of the original designs for High Speed Two had it calling at Meadowhall station.

This map clipped from High Speed Two’s interactive map, clearly shows High Speed Two running across Sheffield.

Note.

  1. Sheffield station is the big Blue dot in the South-West corner of the map.
  2. The M1 runs across the North-East corner of the map.
  3. The railway between Sheffield and Meadowhall stations already exists.
  4. Sheffield and Meadowhall stations are 3.5 miles apart and trains take seven minutes.

Is there any reason, why High Speed Two trains shouldn’t serve both Sheffield and Meadowhall stations, by just taking the existing line across the city?

Taking The Wakefield Line Towards Leeds

In extending to Meadowhall, High Speed Two’s route seems to be taking the current Wakefield Line.

This map clipped from High Speed Two’s interactive map, clearly shows High Speed Two passing through Sheffield and Rotherham and then going towards Leeds.

Note.

  1. Orange indicates new High Speed Two track.
  2. Blue indicates track that High Speed Two shares with other lines.
  3. The Wakefield Line is shown in blue and has stations at Meadowhall, Swinton, Bolton-upon-Dearne, Goldthorpe and Thurscoe.
  4. The main High Speed Two leg to Leeds is shown in orange.

It looks to me, that High Speed Two are aiming to provide a route, so that trains going to Sheffield can extend the journey to Leeds.

As Leeds will have three tph to and from London, why is this service being extended to Leeds?

I will explore a few reasons why in the next few sub-sections.

It’s Convenient For Running Trains

Consider.

  • High Speed Two are saying London and Sheffield will be one hour and twenty-seven minutes.
  • Northern Powerhouse Rail have an objective of Leeds and Sheffield in twenty-eight minutes.
  • One hour and fifty-five minutes could be a convenient time for a London and Leeds service, as it could be a four hour round trip.

But High Speed Two are saying London and Leeds will be one hour and twenty-one minutes.

It looks to me, that it is a convenient way to serve Meadowhall, Rotherham, Bolton-upon-Dearne, Goldthorpe and Thurscoe stations

High Speed Two Through Rotherham

This map clipped from High Speed Two’s interactive map, clearly shows High Speed Two passing through Rotherham to the North of the Parkgate Shopping Park.

Note.

  1. High Speed Two is the bright blue line running North-East from the Western edge of the map.
  2. The grey blocks are the stores in the Shopping Park.
  3. The Rotherham Parkgate tram-train stop is marked.

This Google Map shows a similar area.

To the East of the Parkgate Shopping Park, is a large brownfield site, as this Google Map shows.

Could Rotherham have a station on the line North of this site?

  • The rail line running SW-NE across this map is drawn in blue on High Speed Two’s interactive map.
  • Rotherham Masborough station used to be in this area.

If High Speed Two is supposed to be a railway for all the people, or at least as many as possible, surely there should be a station in the town.

High Speed Two Through Bolton-upon-Dearne

In July 2019, I wrote a post called Sheffield Region Transport Plan 2019 – A New Station At Barnsley Dearne Valley.

So have High Speed Two taken on this feature of the Sheffield Region Transport Plan 2019, to add another station to their list of destinations?

Approach To Leeds

This map clipped from High Speed Two’s interactive map, clearly shows route High Speed Two will take to approach Leeds from the South East.

Note.

  1. Leeds station is the blue dot in the North West corner of the map.
  2. High Speed Two is shown in orange and continues North to York, where it joins the East Coast Main Line.
  3. Wakefield is in the middle at the bottom of the map and is on the Wakefield Line and the current route for LNER’s expresses from London.

It looks to me, that Leeds and Sheffield will eventually end up with two faster routes between the two cities.

  • An upgraded Wakefield Line
  • A route based on the Southern section of the Wakefield Line and the Eastern leg of High Speed Two route to Leeds.

If High Speed Two’s trains are to be able to get across Sheffield and call at Sheffield, Meadowhall, Rotherham and Barnsley Dearne Valley stations, then these conditions must be met.

  • The trains must be High Speed Two’s Classic-Compatible trains or a train to a similar specification.
  • Some platform lengthening might be needed to allow the two hundred metre long trains to call.
  • The Wakefield Line must be electrified between Sheffield and just North of Goldthorpe station, where it will be able to join the link to the Eastern leg of High Speed Two.

It would probably be sensible to electrify the Wakefield Line all the way to Fitzwilliam station, from where the line is electrified all the way to Leeds.

This would enable the following.

  • Electric trains to run between Sheffield and Leeds via Wakefield Westgate station.
  • Would Northern Powerhouse Rail’s objective of a twenty-eight minute journey be achieved?
  • East Midlands Railway could run their Class 810 trains between London St. Pancras and Leeds under electric power.
  • High Speed Two could serve Leeds before the Northern infrastructure of the Eastern leg of High Speed Two is complete.
  • High Speed Two could offer services to Wakefield, Barnsley and Rotherham via Sheffield.

I can see reasons for early upgrading of the Wakefield Line.

Conclusion

It appears that High Speed Two are planning an electrified route through Sheffield between Clay Cross North Junction on the Midland Main Line and Goldthorpe station on the Wakefield Line.

Once complete it would enable the following.

  • Rotherham and Barnsley to have direct electric services to and from the capital.
  • When East Midlands Railway introduce their new Class 810 trains, the electrification North of Clay Cross North Junction would mean faster services and less running on diesel power.
  • I believe these Class 810 trains could run between London and Sheffield, if their four diesel engines are replaced with batteries, which would power the trains between Clay Cross North Junction and Market Harborough.
  • The electrification at Sheffield would allow battery electric trains to work between Manchester and Sheffield as I outlined in Northern Powerhouse Rail -Significant Upgrades And Journey Time Improvements To The Hope Valley Route Between Manchester And Sheffield.

I think it is a good plan.

Project Management Recommendations

It is my view that the following projects should be started as soon as possible.

  • Electrification between Clay Cross North Junction and Sheffield station.
  • Electrification of the Wakefield Line between Sheffield and Fitzwilliam stations.
  • Provision of new stations at Rotherham and Barnsley Dearne Valley on the Wakefield Line.

These projects could deliver worthwhile improvements in services in a couple of years, rather than the tens of years for High Speed Two.









November 24, 2020 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , , , , , | 3 Comments

Northern Powerhouse Rail – Significant Upgrades And Journey Time Improvements To The Hope Valley Route Between Manchester And Sheffield

In this article on Transport for the North, which is entitled Northern Powerhouse Rail Progress As Recommendations Made To Government, one of the recommendations proposed for Northern Powerhouse Rail is significant upgrades and journey time improvements to the Hope Valley Line between Manchester and Sheffield.

I shall look at a few of the possibilities for the route.

Northern Powerhouse Rail’s Objective For The Route

Wikipedia, other sources and my calculations say this about the trains between Manchester and Sheffield.

  • The distance between the two stations is 42.6 miles
  • The current service takes 49 to 57 minutes and has a frequency of two trains per hour (tph)
  • This gives an average speed of 52.2 mph for the fastest journey.
  • The proposed service with Northern Powerhouse Rail will take 40 minutes and have a frequency of four tph.
  • This gives an average speed of 63.9 mph for the journey.

This last figure of 63.9 mph, indicates to me that a 100 mph train will be able to meet Northern Powerhouse Rail’s objective.

Current Trains On The Hope Valley Line

In July this year, I went along the Hope Valley Line between Manchester Piccadilly and Dore and Totley stations, which I wrote about in Along The Hope Valley Line – 13th July 2020.

My train was a pair of refurbished Class 150 trains.

These trains can handled the current timetable but they have an operating speed of only 75 mph.

Looking at Real Time Trains for last week, it now appears that Northern are using new three-car Class 195 trains.

These are much better.

  • They are 100 mph trains with much better acceleration.
  • The train was still running the timetable for the slower trains.

With thirteen stops, I suspect that these new trains could be under fifty minutes between Manchester and Sheffield.

Will The Hope Valley Line Be Electrified?

Consider.

  • Currently, the Hope Valley Line is electrified between Manchester Piccadilly and Hazel Grove stations.
  • In the future, the line is likely to be electrified between Sheffield and Dore & Totley stations, in conjunction with rebuilding the Midland Main Line, to the North of Clay Cross North junction for High Speed Two.
  • After the electrification at the Eastern end, just over thirty miles will be without electrification.
  • The Hope Valley Line has an operating speed of 90 mph.

This Hitachi infographic shows the specification of the Hitachi Regional Battery train.

As these are a 100 mph train with a range of 90 km or 56 miles on battery power, these trains could work Manchester and Sheffield in the required time of forty minutes. provided they could be charged at the Sheffield end of the route.

TransPennine’s Class 802 trains can be fitted with batteries to become Regional Battery Trains, so it would appear that TransPennine’s services on this route could go zero-carbon.

In addition Northern, who are the other passenger operator on the route are working with CAF on battery electric trains, as I wrote about in Northern’s Battery Plans,

I don’t believe there are pressing reasons to electrify the Hope Valley Line to allow passenger trains to meet Northern Powerhouse Rail’s objective.

Will Operating Speed On The Hope Valley Line Be Increased?

Under Plans in the Wikipedia entry for the Hope Valley Line, this is said.

Network Rail, in partnership with South Yorkshire ITA, will redouble the track between Dore Station Junction and Dore West Junction, at an estimated cost of £15 million. This costing is based on four additional vehicles in traffic to deliver the option, however, this will depend on vehicle allocation through the DfT rolling stock plan. This work will be programmed, subject to funding, in conjunction with signalling renewals in the Dore/Totley Tunnel area.

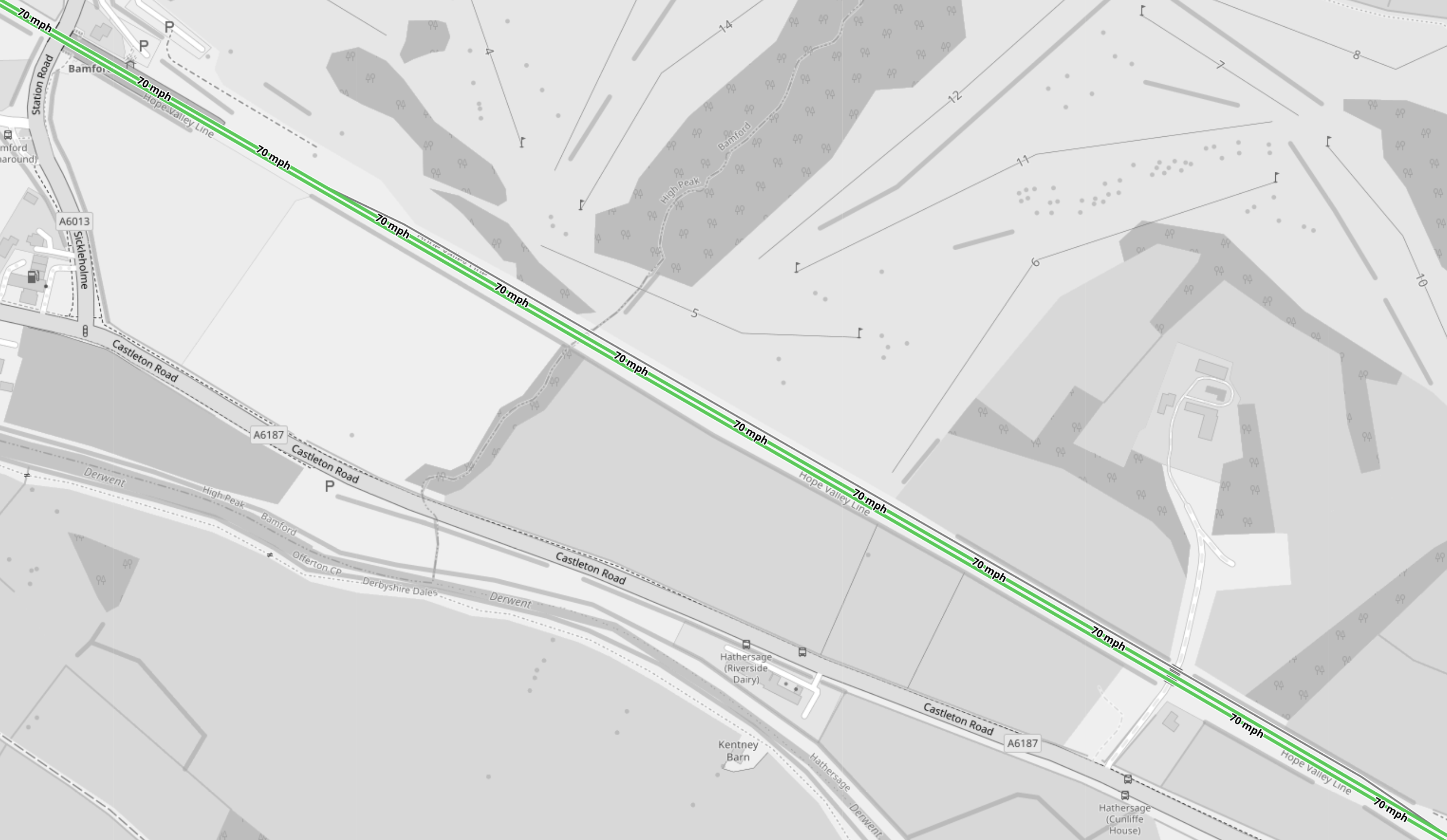

Other proposals include a 3,600 feet (1,100 m) loop in the Bamford area, in order to fit in an all-day (07:00–19:00) hourly Manchester–Sheffield via New Mills Central stopping service, by extending an existing Manchester–New Mills Central service. Planning permission for this was granted in February 2018, but delays mean that this will now not be completed until 2023.

These changes to allow three fast trains, a stopping train and freight trains each hour were also supported in a Transport for the North investment report in 2019, together with “further interventions” for the Northern Powerhouse Rail programme.

It would also probably be a good idea, to increase the operating speed of the line to 100 mph where possible.

Effect On Passenger Services

100 mph trains on a track with an operating speed of 100 mph, could show some impressive timings.

On the Great Eastern Main Line, which is a very busy 100 mph double-track railway, 100 mph trains, achieve a 77 mph average for 90 minutes over the 115 miles, between London Liverpool Street and Norwich with a single stop.

A one-stop Manchester and Sheffield service at this speed would take just 33.2 minutes.

The stopping trains would be more of a challenge to get under forty minutes, but at least if they were battery electric trains, they’d have the better acceleration and deceleration of the electric trains.

  • Fifty minutes would be a realistic time.
  • Ten minutes turnround time at each end, would be ideal for charging the batteries and give an efficient two hour round trip.

Efficient timetabling could create a very comprehensive service for the Hope Valley Line.

Freight Trains On The Hope Valley Line

Under Freight in the Wikipedia entry for the Hope Valley Line, this is said.

Over a million tons of cement a year is taken away by rail from Earle’s Sidings at Hope.

That is a very large number of freight trains, all of which are currently hauled by diesel locomotives.

  • Looking at Real Time Trains, there are nearly always two freight trains in every hour of the day.
  • If you look at the routes, they go to a myriad number of destinations.
  • Following the routes between Dore Junction and the quarries to the South of the Hope Valley Line, there are several tunnels.
  • There are numerous quarries in a cluster, all served by their own rail lines.

Electrifying the delivery of the cement and limestone from the quarries would be a large and very expensive operation.

This Google Map shows Earle’s Sidings at Hope.

Perhaps a half-way house solution would be to use diesel to haul trains between the quarries and Earle’s sidings, where the locomotive is changed for an electric one?

  • But that would then mean that all routes from between the Peak District quarries and their destinations would need to be fully-electrified.
  • It should be noted that that the problem of zero-carbon trains, also exists at port and rail freight interchanges, where safe operation with 25 KVAC overhead wires everywhere can be a nightmare.
  • Rail freight companies are unlikely to change their old diesel locomotives for new expensive electric locomotives, until all possible routes are fully electrified.
  • It is also a big problem, all over the world.

Perhaps, what is needed is a self-powered zero-carbon locomotive with sufficient power to haul the heaviest trains?

I believe such a locomotive is possible and in The Mathematics Of A Hydrogen-Powered Freight Locomotive, I explored the feasibility of such a locomotive, which was based on a Stadler Class 68 locomotive.

The zero-carbon locomotive, that is eventually developed, may be very different to my proposal, but the commercial opportunities for such a locomotive are so large, that I’m sure the world’s best locomotive designers are working on developing powerful locomotives for all applications.

Conclusion

Northern Powerhouse Rail’s ambition for Manchester and Sheffield via the Hope Valley Line is simply stated as four tph in forty minutes. But this may be something like.

  • Three fast tph in forty minutes.
  • One stopping tph in perhaps fifty minutes.
  • One freight tph in each direction to and from the quarries that lie to the South of the line.

I didn’t realise how close that the line is to that objective, once the following is done.

  • Introduce 100 mph passenger trains on the route.
  • Improve the track as has been planned for some years.

Note that all the passenger trains, that now run the route; Class 185, 195 and 802 trains, are all 100 mph trains, although they are diesel-powered.

With a length of just under 43 miles, the route is also ideal for battery electric trains to work the passenger services, be the trains be from Hitachi, CAF or another manufacturer, after High Speed Two electrifies the Midland Main Line to the North of Clay Cross North Junction, in preparation for high speed services between London and Sheffield.

I would recommend, that one of High Speed Two’s first Northern projects, should be to upgrade the Midland Main Line between Clay Cross North junction and Sheffield station to the standard that will be required for High Speed Two.

I would also recommend, that the Government sponsor the development of a hydrogen electric locomotive with this specification.

  • Ability to use 25 KVAC overhead or 750 VDC electrification
  • 110 mph operating speed on electrification.
  • Ability to use hydrogen.
  • 100 mph operating speed on hydrogen.
  • 200 mile range on hydrogen.

A locomotive with this specification would go a long way to decarbonise rail freight in the UK and would have a big worldwide market.

Project Management Recommendations

This project divides neatly into three.

  • Perform the upgrades at Dore Junction and add the loop in the Bamford area, as detailed in Wikipedia, which will increase the capacity of the Hope Valley Line.
  • Electrify the Midland Main Line between Clay Cross North junction and Sheffield, as will be needed for High Speed Two. This electrification will allow battery electric trains to run between Manchester and Sheffield and between Sheffield and London.
  • Procurement of the trains. CAF and Hitachi are currently finalising suitable designs for this type of operation.

It would also be helpful, if the freight trains could be hauled by zero-carbon hydrogen electric locomotives, to create a much-improved zero-carbon route between Manchester and Sheffield.











November 23, 2020 Posted by | Hydrogen, Transport/Travel | , , , , , , , , , , , , , , , , | 5 Comments

Dore And Totley Station – 13th July 2020

These pictures show Dore and Totley station.

These are my thoughts on the station and the tracks through it.

The Midland Main Line And High Speed Two

The two tracks, that are furthest away from the station platform are the Midland Main Line between Sheffield and Chesterfield, Derby and the South.

  • These tracks will be taken over by High Speed Two.
  • They will be electrified with 25 KVAC overhead electrification between Clay Cross North junction and Sheffield station.
  • The trains on the Midland Main Line will continue to use the electrified tracks.
  • East Midlands Railway have ordered bi-mode Class 810 trains, which will each be 120 metres long or 240 metres long, when running as a pair.
  • CrossCountry’s Class 220 trains are 187 metres long running as a pair.
  • I estimate that the faster trains were doing around 100 mph, as they passed Dore and Totley station. I shall measure it properly next time, I go to Sheffield on a train.

Note.

  1. High Speed Two’s trains will probably be going through at the same speed as East Midlands Railway’s Class 810 trains.
  2. High Speed Two will be running their 200 metre long classic-compatible trains to and from Sheffield, so except that there will be two more trains in every hour, there will be little difference.
  3. Both the High Speed Two and the East Midlands Railway trains will be running on electric power between Sheffield and Chesterfield stations.
  4. It is likely that other services will use electric power on the Midland Main Line.
  5. There will be no platforms on the High Speed tracks at Dore and Totley station.

I would suspect that there will be little disruption to train services through the area, whilst the electrification is installed, judging by the disruption caused during electrification between Bedford and Corby.

Dore Junction

Dore Junction is a triangular junction, that connects the Hope Valley Line and the Midland Main Line to the South of Dore and Totley station.

This Google Map shows Dore Junction.

Note.

  1. Dore and Junction station is at the North of the Map.
  2. Dore West Junction is in the South West corner of the map and leads to the Hope Valley Line.
  3. Dore South Junction is in the South East corner of the map and leads to Chesterfield on the Midland Main Line.

This second Google Map shows Dore South Junction.

Could this junction be improved to increase capacity and efficiency?

  • The Southern track of the triangular junction is only single track.
  • It is a major route for stone trains between Derbyshire and London and the South.

If Network Rail have any ideas for Dore Junction, then surely, when the works in the area are being carried out, is the time for them to be performed.

Platform Length At Dore And Totley Station

I took these two pictures when I arrived at Dore and Totley station.

As the train was formed of two two-car Class 150 trains and the train fits the platform, it would appear that the platform is about eighty metres long.

An Extra Platform At Dore And Totley Station

There may be no plans to put platforms on the Midland Main Line, but plans exist for an extra track through the station, that will connect to the Hope Valley Line.

This Google Map shows Dore and Totley station and the Midland Main Line.



The second platform wouldn’t be the widest platform,. but I’m sure a second track and a safe platform could be squeezed in.

I wonder if more space is needed, the Midland Main Line could be realigned to give more space and better performance.

A Turnback At Dore And Totley Station

In Beeching Reversal – Sheaf Valley Stations, I said this about a possible turnback at Dore and Totley station.

This Google Map shows Dore & Totley station and the area to the South.

Note.

    1. There would appear to be a lot of space between the Midland Main Line and the single track, that leads between Dore & Totley station and the Hope Valley Line.
      Flying my helicopter, as low as I dare, it looks like the area is either a rubbish dump or very low grade businesses.
      Crossrail has designed turnbacks at Abbey Wood and Paddington stations, that will handle twelve tph.
      I believe that it would be possible to design a turnback at Dore & Totley station, that would handle eight trains per hour, if not twelve tph.

It might even be possible to squeeze in some overnight stabling.

Whilst I was at Dore and Totley station, I met a couple, who were perhaps a few years older than me, who had grown up in the area.

He could remember local steam services between Sheffield and Dore and Totley stations, where there had been a turntable to the South of the station to reverse the locomotive.

Conclusion

After what I saw on my visit to Dore and Totley station, I would suspect that the station can be updated to the standard required to allow four tph between Manchester Piccadilly and Sheffield stations.

It could also be a station that will attract passengers.



July 14, 2020 Posted by | Transport/Travel | , , , , , , , | 1 Comment

Along The Hope Valley Line – 13th July 2020

These pictures show my return trip between Manchester Piccadilly and Dore & Totley stations.

There are an assorted set of stations.

  • Some stations appear to have new platforms.
  • Marple station has a impressive step-free bridge.
  • Some stations may be Listed or should be.
  • There are walking routes from some stations.
  • Some stations need improvements to the access.

I also have some thoughts on the service.

The Class 150 Trains

The Class 150 trains have these characteristics.

  • Installed Power – 426 kW
  • Weight – 35.8 tonnes
  • Operating Speed – 75 mph.

This compares with these for a Class 195 train.

  • Installed Power – 780 kW
  • Weight – 40 tonnes
  • Operating Speed – 100 mph.
  • Acceleration – 0.83 m/sec/sec

Unfortunately, I can’t find the acceleration for a Class 150 train, but I suspect that it’s not as good as the Class 195 train.

  • I was in a Class 150 train, for both journeys.
  • IThe train was on time both ways.
  • The engine under my carriage wasn’t working that hard.
  • The train was trundling around at around 60 mph.
  • The operating speed of the line is 90 mph.

So I suspect, that a well-driven Class 195 train will shave a few minutes from the journey time.

Transport For The North’s Plan For Manchester And Sheffield

Transportbfor the North objective for Manchester Piccadilly and Sheffield stations can be summed up as follows.

Four tph in forty minutes.

As current trains take over anhour, it could be a tough ask!

The Timetable

The timetable isn’t very passenger-friendly with no easy-to-remember clock-face timetable.

This must be sorted.

Hopefully, it will increase the number of passengers riding on the route.

Battery Electric Trains

Consider.

  • Sheffield station will be electrified for High Speed Two.
  • It is likely that the route between Dore & Totley and Sheffield station will be electrified.
  • There is electrification at the Manchester end of the route.
  • The distance without electrification in the middle is probably about thirty-six miles.
  • Fifty-sixty miles seems a typical range quoted for a battery electric train by train manufacturers.

As electric trains generally accelerate faster than their diesel equivalent, these could run the route reliably and save time on the journey.

Conclusion

I’m coming round to the opinion, that Transport for the North’s objectives for the route can be met without electrification.

July 14, 2020 Posted by | Transport/Travel | , , , , , , , , , | 2 Comments

Fresh Calls For ‘Missing Link’ Buxton To Matlock Railway Line To Be Reopened

The title of this post is the same as that of an article in the Buxton Advertiser.

I wrote in full about this route in Connecting The Powerhouses, after an article was published in the June 2017 Edition of Modern Railways.

This was my conclusion.

It’s very difficult to find a reason not to reopen the Peak Main Line.

I think in the last two years the case for reopening the Peak Main Line between Buxton and Matlock may have become even stronger.

MEMRAP

A group called the Manchester and East Midlands Rail Action Partnership or MEMRAP has been setup to promote the case for reopening.

A web site has been created.

New Lower-Carbon And Quieter Passenger Trains

Rolling stock has improved and trains like tri-mode Class 755 trains and possible battery electric trains, should be able to handle the route in a more environmentally-friendly way.

Transport Of Building Materials

This is a paragraph from the Buxton Advertiser article.

Funding for the project, according to Mr Greenwood, would come from working in partnership with local quarries which are supplying materials for the new Heathrow Airport runway and are involved with the HS2 project.

Network Rail has already have spent a lot of money to improve freight access to the quarries, as I reported in £14m Peak District Rail Freight Extension Unveiled. So the demand for building materials must be there and going via Matlock would remove some heavy freight trains from the Hope Valley Line.

Heavy freight trains might not be welcomed by all stakeholders.

Possible High Speed Two Cutbacks

As I wrote in Rumours Grow Over Future Of HS2, The Eastern leg of High Speed Two might be axed.

This may or may not change the case for reopening the Peak Main Line.

There Will Be Opposition

This is two paragraphs from the Buxton Advertiser article.

Peak Rail has long campaigned to re-open the line for heritage trains to run between Buxton and Matlock. However, director Paul Tomlinson said he was not in favour of the new plans.

He said: “I’m all in favour raising the profile of the line to get it re-opened but we can’t support this new idea.

Others will also object.

Conclusion

There will be various opposing pressures on both sides of reopening the Peak MNain Line.

In favour will be.

  • The quarries.
  • Cities like Derby and Nottingham and passengers wanting better links to and from Manchester and its Airport.
  • Transport for the North, as opening could increase capacity on the Hope Valley Line between Manchester and Sheffield.

Local interests will want to maintain the status quo.

October 18, 2019 Posted by | Transport/Travel | , , , , , , , | Leave a comment

Sheffield Region Transport Plan 2019 – Hope Valley Line Improvements

The improvements to the Hope Valley Line are listed under Plans in the Wikipedia entry for the line.

This is said.

Network Rail, in partnership with South Yorkshire ITA, will redouble the track between Dore Station Junction and Dore West Junction, at an estimated cost of £15 million. This costing is based on four additional vehicles in traffic to deliver the option, however, this will depend on vehicle allocation through the DfT rolling stock plan. This work will be programmed, subject to funding, in conjunction with signalling renewals in the Dore/Totley Tunnel area.

Other proposals include a loop in the Bamford area, in order to fit in an all-day (07:00–19:00) hourly Manchester–Sheffield via New Mills Central stopping service, by extending an existing Manchester–New Mills Central service. Planning permission for this was granted in February 2018.

These changes to allow three fast trains, a stopping train and freight trains each hour were also supported in a Transport for the North investment report in 2019, together with “further interventions” for the Northern Powerhouse Rail programme.

So what does that all mean?

All of the stations mentioned like Dore & Totley, Bamford are at the Sheffield end of the Hope Valley Line, where it joins the Midland Main Line.

This map, which was clipped from Wikipedia, shows the lines and the stations.

Note.

  1. The Midland Main Line runs South to North and West is upwards
  2. Dore West Junction is close to the Eastern end of Totley Tunnel.
  3. The Hope Valley Line is double track from Dore West Junction to the West.
  4. The Midland Main Line is double-track.
  5. Dore & Totley station is on a single-track chord, between Dore West Junction and Dore Station Junction.
  6. Another single-track chord connects Dore West Junction and Dore South Junction on the Midland Main Line.

I’ll now cover each part of the work in seperate sections.

Dore Junction And Dpre & Totley Station

This Google Map shows the area of Dore & Totley station and the triangular junction.

Note.

  1. Dore & Totley station is at the North of the map.
  2. The Midland Main Line goes down the Eastern side of the triangular junction.
  3. The Hope Valley Line goes West from Dore West Junction.
  4. The Midland Main Line goes South from Dore South Junction.

Network Rail’s plan would appear to do the following.

  • Create a double-track between Dore Station Junction and Dore West Junction, through the Dore & Totley station.
  • Add a second platform and a footbridge with lifts to the station.

Instead of a single-track line handling traffic in both directions, there will be a double-track railway with a track in each direction.

Capacity will have been increased.

In some ways Network Rail are only returning the station to how it existed in the past, so it shouldn’t be the most difficult of projects. But many of this type of project have surprises, so I’ll see it when the new station opens.

The Bamford Loop

On this page on the Friends of Dore & Totley Station web site, this is said about the Bamford Loop.

A Bamford Loop which is a place to halt frieight trains to allow passenger trains to overtake. This is east of Bamford station.

It is around a thousand metres long.

Flying my helicopter between Bamford and Heathersage stations, the track appears almost straight and adding a loop shouldn’t be that difficult.

The only problem is that there is a level crossing for a footpath at Heathersage West.

This will be replaced by a footbridge.

Benefits

The page on the Friends of Dore & Totley Station gives the main benefits of the scheme are to :-

  • Increase the number of fast trains from 2 to 3 per hour
  • Increase the stopping trains from 1 every 2 hours to 1 per hour
  • To provide for 3 freight trains every two hours as at present.
  • Allow trains of up to 6 cars to use the route
  • Accommodate longer freight trains
  • Improve reliability on the route

These seem to be fairly worthwhile benefits from a relatively simple scheme



July 22, 2019 Posted by | Transport/Travel | , , , , | 2 Comments

Lord Adonis On Crossrail Of The North

There has been a lot of talk recently about HS3, Northern Powerhouse Rail or Crossrail Of The North.

On Radio 5 Live, this morning, Lord Adonis said a lot of sensible things about the high speed line from Liverpool to Hull via Manchester and Leeds.

His plea was for a plan for a start and he suggested that an objective would be to halve the journey time from Manchester to Leeds and have a train every few minutes.

He suggested it could be probably built using a mixture of new track alignments and existing railways.

I agree with what he said, but the problem is that every Tom, Dick and Harriet has their own ideas of what they want.

How Would I Design Crossrail Of The North?

I can at least look at this without favouring any one of the North’s great urban area.

Urban Areas Of The North

I will list those with populations of over 200,000,, from this list in Wikipedia.

  • Manchester – 2,553,379
  • West Yorkshire – 1,777,934
  • Liverpool – 864,122
  • Tyneside – 774,891
  • Nottingham – 729,977
  • Sheffield – 685,368
  • Teeside – 376,633
  • Stoke-on-Trent – 372,775
  • Sunderland – 335,415
  • Birkenhead – 325,264
  • Hull – 314,018
  • Preston – 313,322
  • Blackpool – 239,409
  • Barnsley – 223,281

Urban areas with populations between 100,000 and 200,000 include Wigan, Mansfield, Warrington, Doncaster, York, Burnley, Blackburn, Grimsby, Accrington, Burton, Lincoln and Chesterfield.

Some of the connections between pairs of these areas are truly dreadful despite being only fifty or so files apart.

Northern Connect

I would think it reasonable that all these centres of population have good, preferably direct,  connections between them.

Northern obviously think this way as they are creating a concept called Northern Connect, using new Class 195 trains to connect many of these areas with a quality service.

The North TransPennine Routes

TransPennine operate these North Pennine  routes.

  • 1 train per hour (tph) – Liverpool Lime Street to Newcastle
  • 1 tph – Manchester Airport to Middlesbrough
  • 1 tph – Manchester Airport to York
  • 1 tph – Liverpool Lime Street – Scarborough
  • 1 tph – Manchester Piccadilly to Hull

Note that the opening of the Ordsal Chord iin a few months, might change the routing of some of these services.

All of these services use the Huddersfield Line between Manchester and Leeds, stopping at both Huddersfield and Leeds stations.

Manchester Victoria To Leeds

As Lord Adonis said, the important section is between Manchester Victoria and Leeds stations.

I’ll start with a comparison of a series of rail journeys, all of which are about the same length.

  1. The fastest trains between Manchester Victoria and Leeds take forty-nine minutes, with a stop at Huddersfield, and are just 1 tph
  2. Norwich to Ipswich in a couple of years, will take 30 minutes at a frequency of 3 tph.
  3. Glasgow to Edinburgh currently takes about fifty minutes, at a frequency of 4 tph.
  4. Cardiff to Swansea currently takes 52-54 minutes, at a frequency of 2 tph.

It does seem that the North has a point if  two of East Anglia’s larger cities get a better service than Leeds and Manchester.

The Huddersfield Line And The Great Eastern Main Line Compared

It is also enlightening to compare the Manchester to Leeds Line via Huddersfield to Ipswich To Norwich section of the Great Eastern Main Line.

It should be noted that I’m comparing these two lines, as both have lived on scraps from Central Government for decades. I also know the Great Eastern Main Line well!

  • Both lines are double-track.
  • Norwich-Ipswich is flat.
  • The Huddersfield Line is rather hilly
  • Norwich-Ipswich has only two stations and only the occasional slower service.
  • The Huddersfield Line has numerous stations and local services.
  • Norwich-Ipswich is electrified to a robust standard.
  • On the Huddersfield Line, only Manchester to Stalybridge is scheduled for electrification.
  • Norwich-Ipswich has a 100 mph speed limit, that could possibly be raised in places.
  • I can’t find the speed limit on the Huddersfield Line, but suspect it could be less than 100 mph.

It is truthful to say that the Huddersfield Line is a much more challenging route than the Norwich to Ipswich.

The Effect Of Electrification On The Great Eastern Main Line

It might appear that the electrification of the Great Eastern Main Line makes for the difference in times.

But it should also be remembered that Ipswich to Norwich wasn’t electrified until the mid 1980s and if I remember correctly before that date, the fastest expresses were timed at two hours from Norwich to London with just two stops. The fastest services now are ten minutes under two hours with four stops.

With the introduction of the new Class 745 trains, timings of ninety minutes have been promised to the Department for Transport.

Timings did not drop significantly with the electrification in the mid-1980s, Services just became more reliable with more stops, as electric trains can accelerate better.

The decrease in timings over the next few years will be down to the following.

  • Removal of bottlenecks like Trowse Bridge.
  • Increase in speed limits.
  • Trains with a shorter dwell time at stations.
  • Trains with better acceleration and braking.
  • Improved track and signalling.
  • All passenger trains on the line will have the same performance.

I will be very interested to see what timings, the Class 745 trains eventually achieve!

Electrifying Between Leeds And Manchester Victoria Stations

It looks like the electrification between Manchester Victoria and Stalybridge stations will be complete by the end of this year.

The central section of the route is problematical with the Grade 1 Listed Huddersfield station and large numbers of bridges.

In TransPennine Electrification And Piccadilly Upgrade Now Also In Doubt, I came to these conclusions about electrifying the route.

  1. Electrification would not go anywhere near Huddersfield, as the heritage lobby and their lawyers would have a field day.

  2. Standedge and Morley tunnels are over 2,000 metres long, double track and Standedge is level. If they needed refurbishment in the future, perhaps they could be electrified with an overhead rail, so that bi-modes could have a couple of miles of electricity.

  3. Electrification might be extended at the Manchester and Leeds ends of the line, so that the two cities could improve their local suburban electric networks.

  4. An alternative would be that the Leeds and Manchester suburban electric networks were provided with a few Class 769 trains or even some brand new four-car bi-modes.

  5. Services between Leeds and Manchester would be run by fast bi-modes.

Is there a more difficult stretch of possible electrification in the UK?

The Ultimate Bi-Mode Train

Currently four bi-mode trains are planned for introduction into the UK.

Note.

  • Two hundred and eleven bi-mode trains have been ordered.
  • Nineteen Class 802 trains have been ordered for TransPennine routes.

In Do Class 800/801/802 Trains Use Batteries For Regenerative Braking?, I look at the prospect of using energy storage in Hitachi’s bi-mode trains.

The Class 802 train is probably something like the ultimate bi-mode train.

  • 125 mph using electrification.
  • 100 mph under diesel power
  • Regenerative braking at all times using energy storage.
  • Automatic pantograph raising and lowering.
  • Sophisticated in-cab signalling.

Obviously, interior fitment would be up to the operator.

Class 195 Trains

Northern is acquiring 25 x two-car and 30 x three-car Class 195 trains.

These are 100 mph trains, so it must be a good idea to make sure all Northern services that use the same routes as TransPennine services are run by these faster trains.

Short/Medium Term – A Classic Manchester Victoria To Leeds Route

TransPennine Express are already planning to run Class 802 trains between Liverpool and Newcastle via Manchester and Leeds. It looks to me, that whoever plans their train policy, saw the electrification crisis coming.

I wonder what times they can achieve between Leeds and Manchester Victoria, if the following were to be done.

  • Stalybridge to Manchester Victoria electrification is complete.
  • Track and signalling is the best it can be.
  • The route has a 100 mph operating speed.
  • All trains on the route are 100 mph capable.
  • Northern replaces their scrapyard specials with Class 195 trains.

The reason for the same operating speed of 100 mph, enables trains to follow each other in a stream. It could be 90 mph, if that was easier for the route.

Station dwell times can also be reduced.

Due to overcrowding, the TransPennine dwell times, must currently be some of the worst in the UK.

This is typical at Huddersfield.

Not even the Japanese with their pushers could get this to work.

But a modern train like the Class 802 train with wide lobbies and adequate capacity should cope.

So what time could be possible, if everything goes as planned?

If Norwich to Ipswich which is about the same distance as Leeds to Manchester, can be achieved in thirty minutes, I believe it is possible that the Northern route could be achieved in the same time or perhaps thirty-five minutes.

Thirty-five minutes should be adequate for a few years, if say there was a train every ten minutes!

Long Term – A Genuine High Speed Manchester Victoria To Leeds Route

I’ve flown my virtual helicopter between Manchester and Leeds and it is not flat agricultural land like seventy percent of the route of HS2.

I believe that creating a genuine high speed route, with say a 140 mph top speed across the Pennines will be a major engineering challenge that will make Crossrail in London look easy.

It may even be more economic to develop 140 mph hydrogen-powered tilting trains, that can run on the classic route at 125 mph.

Only one thing matters to passengers; a fast reliable and very comfortable and affordable  train service across the country.

Manchester Victoria To Manchester Airport

When the Ordsall Chord opens any Leeds to Manchester Victoria service can continue to Deansgate, Oxford Road, Manchester Piccadilly and Manchester Airport stations.

Manchester Victoria To Liverpool

Currently, services between Liverpool Lime Street and Manchester Victoria stations take a few minutes over half-an-hour.

I would suspect that thirty minutes is achievable, if the following is done.

  • The four-tracking at Huyton is completed.
  • Track and signalling is the best it can be.
  • The route has a 100 mph operating speed.
  • All trains on the route are 100 mph capable.
  • Northern replaces their scrapyard specials with Class 195 trains.

I suspect all of this is in progress.

Note, this is very similar work, to that needed between Manchester and Leeds.

Leeds To Hull

Currently, services between Leeds and Hull stations take a few minutes under an hour.

A few thoughts on the route.

  • The Selby Line from  Leeds to Hull is double-track and not electrified.
  • From my virtual helicopter, it appears to be straight in very flat country, so it is no wonder Hull Trains offered to electrify the line.
  • If the Selby swing bridge were to be sorted, it could become a 100 mph line with trains to match.
  • Northern replaces their scrapyard specials with Class 195 trains.
  • Modern in-cab signalling.

I suspect quite a few minutes could be taken off this route which is about fifty miles.

I suspect this line will eventually be electrified, as it could give sound time savings and it looks relatively easy.

York To Scarborough

Currently, services between York and Scarborough stations take forty-nine minutes, with one tph.

  • Similar improvements to the double-track unelectrified line as for the Leeds to Hull route, could be made.
  • But if the line has a problem , it is that it has 89 level crossings, although Network Rail intends to close them all before 2025.

I wonder, if the time can be reduced between York and Scarborough, such that two tph can be timetabled.

I doubt York to Scarborough will be electrified.

Northallerton To Middlesbrough

This short line is quite heavily used and is a valuable diversion route, so I suspect nothing urgent needs to be done.

Like Leeds to Hull, I suspect this line will eventually be electrified.

Conclusions

I have come to the following conclusions.

  • Manchester Victoria to Leeds is achievable in half-an-hour with the new trains on order and no major infrastructure, other than that already planned.
  • Any line where TransPennine Express services run needs to have the highest possible operating speed and no slow trains.
  • Northern need to get their Class 195 trains into service as soon as possible.

Improvements are much-needed in the North, which could include.

  • A short/medium term plan to deliver the best possible service with the new trains ordered by Northern and TransPennine Express.
  • A long term plan to deliver a genuine 140 mph service across the North of England.
  • A plan to improve the Calder Valley and Hope Valley Lines across the Pennines.
  • A plan to improve some of the poor connections across the North.
  • A strategy to make the best use of connections with HS2.

A detailed plan is needed that lays down what should be done in the next ten to twenty years.

The plan is also needed as soon as possible.











August 23, 2017 Posted by | Transport/Travel | , , , , , , , | 7 Comments

« Previous Entries
