A Passing Loop At Ponders End

I can’t write Ponders End without smiling, as my mother was born in that district of Enfield and used to refer to herself in light-hearted moments as a Ponders Plonker.

The West Anglia Main Line, through Ponders End station is a busy line and Enfield Council want to have four trains per hour (tph) serving their new development at Meridian Water.

This page on the CPMS Group web site is entitled The Changing Face Of Rail Investment and it describes the solution to the capacity problem at Ponders End/Meridian Water stations.

This is the introductory paragraph.

Peter George, Meridian Water Programme Director, London Borough of Enfield, and Damien Gent, Managing Director, CPMS Infrastructure, talk about the ground-breaking work undertaken by the London Borough of Enfield to deliver the rail infrastructure needed to increase passenger capacity at the newly built Meridian Water rail station and regenerate brownfield land to make space for up to 13,000 new homes and create over 6,000 new jobs in North-East London.

The Meridian Water project has been split into three phases.

  • Phase 1 of the project was the construction of the new Meridian Water rail station.
  • Phase 2 was building the rail infrastructure which would support the increased rail traffic.
  • Phase 3 was the regeneration of the area, the procurement of new homes and creation of new jobs.

Only Phase 1 has so far been completed with Meridian Water station opening in June 2019.

This paragraph describes the complexity and solution to Phase 2.

The complexity of Phase 2 of the project was very high. The West Anglia mainline is one of the most congested routes into London. Consequently, the team had to find a way to reconcile increased capacity and trains stopping at Meridian Water station with ensuring high speed trains could still pass through the station seamlessly. This was a very challenging task. The solution which received the most support and proved the most viable was to install a new passing loop, approximately 1700 metres of new track at Ponders end, and to create a bi-directional section on the mainline heading towards London, as well as to implement broad changes to the signalling, telecoms and Overhead Line power systems to align with the new track position. This infrastructure solution provides the capacity within the rail network to then consider the timetable changes required to increase the frequency of services calling at Meridian Water.

It does seem that the web page is getting a bit ahead of reality.

But there is also this article on the Enfield Dispatch, which is entitled Boost For Rail Services At Meridian Water.

This is said.

Plans to boost rail services at Enfield Council’s £6billion Meridian Water regeneration scheme have taken a step forward.

The council has agreed a construction deal to create a passing loop at Ponders End Station, which will allow four trains per hour to serve Meridian Water Station, which was opened in June 2019.

The loop will enable fast trains on the West Anglia Main Line to overtake stopping services at Ponders End Station, allowing more trains to stop at Meridian Water, which is presently only served by two trains per hour towards Stratford.

To secure funding the works need to be completed by the end of March 2024.

A Visit To Ponders End Station

I went to Ponders End station this morning.

This Google Map shows the station.

Note.

  1. The Brimsdown Ditch on the East side of the station.
  2. The footbridge spanning both the railway and the road.
  3. The footbridge has ramps for step-free access.
  4. I suspect that the platforms will take a 240 metre train.

These pictures show the station

Note.

  1. The station serves the Lee Valley Regional Park and the Lea Valley Athletics Centre, so it probably needs lifts in an ideal world.
  2. The bridge seems to be built high enough for a track or even two to pass underneath.
  3. There seems to be plenty of space between the railway tracks and the A1055 road.

I wonder if a very simple solution is going to be built.

Consider that the distance between the two stations either side of Ponders End station is 3.2 miles or 5150 metres. So if the loop is placed symmetrically around Ponders End station to the East of the station, that would mean that the loop started and finished around 1700 metres from Brimsdown and Meridian Water stations. The Brimsdown Ditch could be put in a culvert, if more space were needed.

A Southbound express after passing through Brimsdown station would then take the loop between the platform and the road at Ponders End station and then cross over to the main line after the station.

I could envisage the Southbound express path through the three stations, being as straight as possible for several hundred metres through Ponders End station, with very gentle curves to connect to the current Southbound track at each end.

To access the Southbound platform at Ponders End, there would be two crossovers from the loop to the track through the station at each end of the station. As the train would be stopping or accelerating away, when it crossed between the passing loop and the station track, it could be done at a much slower speed.

There will be no problem for Southbound represses overtaking a stopping train sitting in Ponders End station. The loop would be very simple and I suspect Network Rail have enough expertise to design it for perhaps 100 mph. The sharpest changes of direction would only be performed by the stopping train at a much slower speed.

But surely, a Northbound train will need to overtake a stopping one.

Could this be done at Meridian Water station by stopping the Northbound stopping train in Platform 3 at the station and allowing the Northbound expresses to overtake through Platform 4?

It would need a couple of crossovers either side of Meridian Water station and bi-directional running through Platform 3 at the station.

Conclusion

How many small rail schemes like this, that unlock housing and job opportunities could be accelerated by better design, management, planning and cooperation between stakeholders.

March 12, 2022 Posted by | Transport/Travel | , , , , , , , , | 7 Comments

Could London Overground Services To Stratford Be Extended To Meridian Water?

My arrival In Platform 11 at Stratford station has got me thinking!

And others too! Judging by the comments I’ve received.

Yesterday, I took a train from Dalston Kingsland station to Stratford station.

  • The train was the 0934 from Clapham Junction, which was timed to arrive in Stratford at 1038.
  • It arrived in Platform 11 at 1036.

In A London Overground Class 378 Train In Platform 11 At Stratford Station, I show pictures of the train in Platform 11 at Stratford station.

I suspected this was just a one-off occurrence, caused by a malfunction in a train or the signalling, which prevented my train from using the normal Platforms 1 or 2, that services to Stratford would use.

Although, looking at Real Time Trains, the 0938 train this morning, terminated in Platform 11. As it did on Monday and Tuesday this week.

  • This train was the only train from Clapham Junction station not to use Platform 2.
  • Checking days last week, it appears that this train always terminated in Platform 2.

So why did the service terminate in Platform 11?

Driver training is one possibility, so they can use the Platform 11, if there is a malfunction that stops them using Platform 2.

But is there a clue in the first picture, I took, when I arrived in Stratford?

The train in Platform 12 is the 1046 to Meridian Water, which arrived from Bishops Stortford at 1040.

Could it mean that there is to be a reorganisation of platforms at Stratford?

  • Platform 12 will be exclusively used by Greater Anglia for their West Anglia Main Line services.
  • Platform 11 will be used by London Overground.

In Using Platform 12 At Stratford Station, I described ending up on Platform 12, so I know it is possible, but when it happened information was bad for passengers, who didn’t know here they needed to go to continue on their way.

But why would London Overground need the extra platform?

These are my thoughts.

Do London Overground Need An Extra Platform At Stratford?

Currently London Overground services to Stratford are as follows.

  • Four tph – Stratford and Richmond
  • Four tph – Stratford and Clapham Junction

Note.

  1. tph is trains per hour.
  2. Both Class 378 and Class 710 trains can work the routes to Stratford.
  3. Eight tph can easily be handled by two platforms.

To handle more trains may need a third platform at Stratford for the London Overground.

Extra Trains Between Stratford And Canonbury

This report from Network Rail is entitled The London Rail Freight Strategy (LRFS).

It says this about creating a third platform at Camden Road station.

This proposal would reinstate a third track and platform on the northern side of Camden Road station, utilising part of the former 4-track formation through the station.

The additional capacity provided would facilitate much greater flexibility in pathing options for trains on this busy central section of the NLL, opening up new options for future service provision and bolstering performance resilience.

Reinstatement of a third platform would enable platform 2 to be used as a central turnback, with platform 3 becoming the eastbound line for through London Overground services and the majority of freight.

Transport for London modelling suggests that the eastern end of the NLL, from Canonbury to Stratford, will see some of the strongest long-term demand growth on the Overground network.

A turnback platform will allow this to be addressed with peak capacity boosting services between Stratford and Camden Road and there would also be the option to operate these through the off-peak, which could offer a means of providing additional passenger capacity where it is most needed.

The availability of an additional platform would also aid performance recovery during perturbation on
the orbital routes.

Note.

  1. The strongest passenger growth on the North London Line (NLL), will be between Canonbury and Stratford.
  2. Extra services are proposed between Stratford and Camden Road stations.
  3. If you travelled between Highbury & Islington and Stratford before the pandemic, the trains only had space for a few extra very small people in the Peak.

I use this section of the North London Line regularly and suspect the route needs at least twelve tph.

Twelve tph into Stratford would probably mean that the London Overground would need a third platform at Stratford.

More Trains Serving Meridian Water

In the Wikipedia entry for Meridian Water station, this is said.

In August 2019, it was announced that funding had been approved for construction of a fourth platform and a new section of track between Tottenham Hale and Meridian Water to enable up to 8 trains per hour to serve the station at peak times.

This must be the earliest upgrade in history, after a new station has opened.

I got the impression, when the station was announced that it would have four tph to Stratford. Currently, there are just two tph.

Two tph between Stratford and Bishops Stortford also pass through without stopping.

If these called at Meridian Water in the Peak, then there would still be four tph to find.

An easy way to create four tph between Stratford and Meridian Water would be to extend four London Overground services from Stratford.

  • Services would call at Lea Bridge, Tottenham Hale and Northumberland Park stations.
  • Trains would pass through Platform 11 at Stratford.
  • Platform 11 at Stratford would be bi-directional.
  • The service could be run all day, at a frequency of four tph.
  • As these trains have their own track, they won’t delay the Cambridge and Stansted trains on the West Anglia Main Line.
  • A cross-London service between Meridian Water and Clapham Junction or Richmond, would be possible.

Note.

  1. London Overground would be responsible for the bulk of the Meridian Water service.
  2. London Overground’s four- or five-car trains would probably have sufficient capacity for the service.
  3. The main new infrastructure needed would be the fourth platform and a new section of track at Meridian Water station.
  4. Some improvements as specified in the London Rail Freight Strategy will be useful, as they will increase capacity on the North and West London Lines.
  5. My only worry would be, that can modern signalling handle four tph in both directions through Platform 11 at Stratford station.

What Will Be The Track Layout And Method of Operation?

The current track layout is simple.

A bi-directional third track has been laid between Lea Bridge junction, just to the North of Lea Bridge station and Meridian Water station.

  • It is to the East of the double-track West Anglia Main Line.
  • There are bi-directional platforms at Tottenham Hale and Northumberland Park stations.
  • There is a single terminating Platform 2 at Meridian Water station.

A train going between Stratford and Meridian Water stations does the following.

  • Leaves from Platform 11 or 12 at Stratford station.
  • Calls in Platform 2 at Lea Bridge station.
  • Switches at Lea Bridge junction to the bi-directional third-track.
  • Calls in Platform 2 at Tottenham Hale station.
  • Calls in Platform 2 at Northumberland Park station.
  • Terminates in Platform 2 at Meridian Water station.

A train going between Meridian Water and Stratford stations does the following.

  • Leaves from Platform 2 at Meridian Water station
  • Calls in Platform 2 at Northumberland Park station.
  • Calls in Platform 2 at Tottenham Hale station.
  • Switches at Lea Bridge junction to the Up line of the West Anglia Main Line.
  • Calls in Platform 1 at Lea Bridge station.
  • Terminates in Platform  11 or 12 at Stratford station.

The track layout can probably handle a maximum of two tph.

I suspect the upgrade will build on this layout to allow a frequency of at least four tph.

The following works will be done.

  • A fourth track to the East of the bi-directional third track will be built.
  • The fourth track will run between Tottenham Hale and Meridian Water stations.
  • I suspect the fourth track will split from the third track at a junction to the North of Tottenham Hale station. Could this be called Tottenham Hale North Junction? I will use that name, to make things simple!
  • A new Platform 1 will be built in Meridian Water station.
  • Trains going North between Tottenham Hale and Meridian Water will use the current bi-directional third track and will be able to terminate in either Platform 1 or 2 at Meridian Water station.
  • Trains going South between Meridian Water and Tottenham Hale will use the new fourth track and will be able to start from either Platform 1 or 2 at Meridian Water station.
  • I suspect, Northumberland Park station will need a new Platform 1 for Southbound trains. But the station was designed with that in mind.

A train going between Stratford and Meridian Water stations will do the following.

  • Leave from Platform 11 or 12 at Stratford station.
  • Call in Platform 2 at Lea Bridge station.
  • Switch at Lea Bridge junction to the bi-directional third-track.
  • Call in Platform 2 at Tottenham Hale station.
  • Call in Platform 2 at Northumberland Park station.
  • Terminate in Platform 1 or 2 at Meridian Water station.

A train going between Meridian Water and Stratford stations will do the following.

  • Leave from Platform 1 or 2 at Meridian Water station.
  • Use the new fourth track to come South.
  • Call in Platform 1 at Northumberland Park station.
  • Continue on the bi-directional third-track at Tottenham Hale North Junction.
  • Call in Platform 2 at Tottenham Hale station.
  • Switch at Lea Bridge junction to the Up line of the West Anglia Main Line.
  • Call in Platform 1 at Lea Bridge station.
  • Terminate in Platform  11 or 12 at Stratford station.

The track layout is effectively two double-track sections linked by a bi-directional single track between Lea Bridge Junction and Tottenham Hale North Junction.

  • On the double-track sections of the route trains can pass each other, as they are on different tracks.
  • Lea Bridge and Tottenham Hale stations are 1.9 miles apart.
  • Trains take three or four minutes between Lea Bridge and Tottenham Hale stations. Including the stop at Tottenham Hale on the single track section.

If trains could alternate through the single-track section, this would give a capacity  of well over four tph in both directions.

  • A train going North would wait in Platform 2 at Lea Bridge station until the previous Southbound train had cleared Lea Bridge junction, before proceeding North.
  • A train going South would wait at Tottenham Hale North Junction until the previous Northbound  had safely passed, before proceeded South.

I suspect that the trains need full digital signalling with a degree of Automatic Train Control.

But I suspect we could see six tph in both directions.

  • This would fit nicely, with London Overground’s ambition of six tph on all routes.
  • It could be increased to eight tph in the Peak, by arranging for an appropriate number of Greater Anglia services to and from Liverpool Street at Meridian Water.

I feel that a service that meets all objectives will be possible.

Proposals From The London Rail Freight Strategy That Might Help

These proposals from the London Rail Freight Strategy might help.

It does look to me, that the London Rail Freight Strategy was designed with one eye on improving the passenger train service between North-East and South-West London.

Taking The Pressure Off The Victoria Line

Consider.

  • If you’re going between Walthamstow and the West End or the major stations of Euston, Kings Cross, St. Pancras and Victoria, you will use the Victoria Line.
  • If you live in the new housing, being built at Meridian Water, currently you will be likely to hop to Tottenham Hale station and take the Victoria Line.

Consequently, Northern end of the line can get busy! And not just in the Peak!

But a four tph service between Meridian Water and Stratford, will encourage passengers to go to Stratford to take advantage of the Central and Jubilee Lines and Crossrail.

Hence there will be less passengers, who need to use the Victoria Line.

A Better Interchange Between Camden Road And Camden Town Stations

The essential upgrade of Camden Town station has been put on indefinite hold due to TfL’s financial position.

This is a big mistake.

  • Camden Town station gets dangerously full!
  • It would allow the splitting of the Northern Line into two independent lines, which would increase capacity of the current system.
  • Camden Town station is not step-free but Camden Road station has lifts.

Hopefully, it would result, in a better route between the two stations, rather than the polluted route on a narrow pavement.

I very much believe that the rebuilding of Camden Town station is the most important project to improve London’s Underground and Overground network.

But it won’t get built with the current Mayor, as he’s a South Londoner.

Could A Meridian Water and Clapham Junction Service Be An  Affordable Crossrail 2?

Consider.

  • Crossrail 2 will link Clapham Junction and Meridian Water via Central London and Dalston.
  • A Meridian Water and Clapham Junction service would link the two stations via Shepherd’s Bush, Old Oak Common, West Hampstead, Camden Road, Dalston and Stratford.

Each route has their connectivity advantages.

  • Both have good connections to Crossrail, Thameslink and the Bakerloo, Central and Jubilee Lines.
  • The London Overground route has good connections to the Victoria Line and High Speed Two at Old Oak Common.
  • Crossrail 2 serves important stations in Central London.

A Meridian Water and Clapham Junction service could be a valuable addition to London’s rail infrastructure without too much new expensive infrastructure.

Conclusion

An extension of some London Overground services from Stratford to Meridian Water would be worthwhile.

Implementation of this is made easier by the recommendations of the London Rail Freight Strategy.







I

June 25, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , , , | 5 Comments

Shuttling Between Stratford And Meridian Water Stations

The shuttle between Stratford and Meridian Water stations started today with a frequency of two trains per hour (tph).

As a driver said to me, it’s more of a Z, than a shuttle, as it has this pattern.

  • Bishops Stortford to Stratford. – 56 or 53 minute +turnaound of six minutes
  • Stratford to Meridian Water – 15 minutes + turnround of seven minutes
  • Meridian Water to Stratford – 15 minutes + turnround of seven minutes
  • Stratford to Bishops Stortford – 53 or 55 minutes + turnround of 19-24 minutes

As I said in Meridian Water Station Is To Be Upgraded, the diagram takes three and a half hours and it would need seven trains.

Note.

  1. Most of the trains today, seemed to have been formed of two four-car Class 317 trains, although there was at least one train working as a four-car train.
  2. I made two visits to the route today and it seemed to be performing reliably.
  3. One train was cancelled due to a shortage of crew.

These are some pictures, I took throughout the day.

A few thoughts on what I saw and deduced.

The Timetable Works

The timetable seems to have worked well today and the driver who described the timetable as a Z, didn’t say it was crazy or ridiculous.

Passengers didn’t seem to be running around like headless chickens, so they were probably getting the hang of it.

Greater Anglia and Network Rail should be very pleased.

The Stations Have Long Platforms

The stations on the route; Stratford, Lea Bridge, Tottenham Hale, Northumberland Park and Meridian Water, all seem to have long platforms, which can certainly accommodate eight-car trains, which are 160 metres long.

Tottenham Hale’s platforms can handle twelve-car trains and are 240 metres long.

Do Greater Anglia’s Trains Fit the Platforms?

Greater Anglia’s new Class 720 trains come in two lengths.

  • Five-car trains are 122 metres long.
  • Ten-car trains are 243 metres long.

Only the five-car trains will fit the platforms at Lea Bridge, Northumberland Park and Meridian Water and the ten-car trains will only fit Stratford and Tottenham Hale.

It certainly looks to me, that only five-car trains will be able work the Z-shaped service between Stratford, Meridian Water and Bishops Stortford stations.

But this is not a problem.

In Greater Anglia Are Replacing Eight-Car Class 317 Trains With Five-Car Class 320 Trains , I explained how the new five-car train has almost the same capacity as the old eight-car train.

There Are Now Three tph Between Stratford and Northumberland Park

This is probably only an interim timetable, but it still has tripled the frequency of trains between Stratford and Northumberland Park.

This means that the base frequency for events at Tottenham Hotspur’s new stadium has tripled.

So those going to events at the stadium, will have increased train  capacity from Stratford, Lea Bridge and Tottenham Hale.

As only one train of the two tph between Stratford and Bishops Stortford stops at Northumberland Park, it would be easy to up the frequency to four tph, by getting the second service to stop.

This Timetable Can Easily Be Increased To Four tph Between Stratford And Meridian Water

Currently, the two tph between Stratford and Bishops Stortford, stop as follows.

  • 1 tph – Lea Bridge, Tottenham Hale, Waltham Cross, Cheshunt, Broxbourne, Harlow Town and Sawbridgeworth
  • 1 tph – Lea Bridge, Tottenham Hale, Northumberland Park, Enfield Lock, Cheshunt, Broxbourne, Roydon, Harlow Town, Harlow Mill and Sawbridgeworth

The four tph between Stratford and Meridian Water, that was promised in the STAR project, could be arranged by stopping both trains at Lea Bridge, Tottenham Hale, Northumberland Park and Meridian Water in both directions.

The only extra stops at Northumberland Park and Meridian Water would be as follows.

  • Southbound in Platform 3
  • Northbound in Platform 4

These are the same platforms current services use at Tottenham Hale.

The Proposed Fourth Track Between Meridian Water And Tottenham Hale

How does the now-implemented Z-shaped service fit with the proposed fourth track, I discussed in Meridian Water Station Is To Be Upgraded.

The upgrade is described in the Wiukipedia entry for Meridian Water station, where this is said.

In August 2019, it was announced that funding had been approved for construction of a fourth platform and a new section of track between Tottenham Hale and Meridian Water to enable up to 8 trains per hour to serve the station at peak times.

This must be the earliest upgrade in history, after a new station has opened.

In the related report, I came to the conclusion, that the fourth track would.

  • Leave the Southbound West Anglia Main Line, just to the North of Meridian Water station.
  • Go through the new Platform 1 at the station.
  • Continue through Northumberland Park station.
  • Join the new third track, between Northumberland Park and Tottenham Hale.

This would allow Stratford and Liverpool Street trains to take separate routes to their respective terminals.

In the Meridian Water Station To Be Upgraded post, I said this.

Eight trains per hour (tph) in both directions calling at the station could be as follows.

  • Platform 1 – Two tph from Bishops Stortford to Stratford
  • Platform 2 – Two tph Meridian Water to Stratford
  • Platform 3 – Two tph from Hertford East to Liverpool Street
  • Platform 3 – One tph from Cambridge to Liverpool Street
  • Platform 3 – One tph from Cambridge North to Liverpool Street
  • Platform 4 – Two tph from Stratford to Bishops Stortford
  • Platform 4 – Two tph from Liverpool Street to Hertford East
  • Platform 4 – One tph from Liverpool Street to Cambridge
  • Platform 4 – One tph from Liverpool Street to Cambridge North

Four tph go to and from each of Stratford and Liverpool Street.

At Tottenham Hale, platforms would be as follows.

  • Platform 2 – Southbound Services to Stratford and two tph to Meridian Water.
  • Platform 3 – Southbound Services to Liverpool Street
  • Platform 4 – Northbound services going further than Meridian Water.

I am assuming that the missing Platform 1 and the fourth track through Tottenham Hale station will not be built in the short term, as doing this, would blow the available budget.

Conclusion

The shuttle is working and it will get better, with the addition of a fourth track between Meridian Water and Tottenham Hale.



September 10, 2019 Posted by | Transport/Travel | , , , , , , , , | 1 Comment

Meridian Water Station Is To Be Upgraded

In the Wiukipedia entry for Meridian Water station, this is said.

In August 2019, it was announced that funding had been approved for construction of a fourth platform and a new section of track between Tottenham Hale and Meridian Water to enable up to 8 trains per hour to serve the station at peak times.

This must be the earliest upgrade in history, after a new station has opened.

I have searched the Internet and can’t find anything more about the loose statement, I quoted above.

Space has been left for the fourth platform, which will be numbered 1, on the East side of the station, as this picture taken from the island platform 2/3 shows.

Will platform 1 be a terninal platform or will it be a through platform.

A through platform connected to a loop around the island platform would allow Southbound trains to split to the North of the station.

  • Trains for Liverpool Street would call in Platform 3 and continue as now to Liverpool Street.
  • Stopping trains for Stratford would call in Platform 1 and take the proposed extra track to Tottenham Hale.
  • Express trains for Stratford could call in Platform 3 and continue as now to Stratford.
  • Platform 2 would still be a bay platform to handle shuttle trains from Stratford.

Eight trains per hour (tph) in both directions calling at the station could be as follows.

  • Platform 1 – Two tph from Bishops Stortford to Stratford
  • Platform 2 – Two tph Meridian Water to Stratford
  • Platform 3 – Two tph from Hertford East to Liverpool Street
  • Platform 3 – One tph from Cambridge to Liverpool Street
  • Platform 3 – One tph from Cambridge North to Liverpool Street
  • Platform 4 – Two tph from Stratford to Bishops Stortford
  • Platform 4 – Two tph from Liverpool Street to Hertford East
  • Platform 4 – One tph from Liverpool Street to Cambridge
  • Platform 4 – One tph from Liverpool Street to Cambridge North

Four tph go to and from each of Stratford and Liverpool Street.

The Extra Track

As I said earlier, the extra track could be a loop through the station with the following layout.

  • Start to the North of Meridian Water station, around the area of the former Angel Road station.
  • Go through Platform 1 at Meridian Water station.
  • Continue South to the East of the other three tracks.
  • Go through Northumberland Park station, where provision has been made to add a new Platform 1.
  • Continue South.
  • It would probably then join with the new Northbound track and go into Platform 2 at Tottenham Hale station.
  • Continue South on the recently-built third track to Lea Bridge and Stratford stations.

The operation of the route looks complicated with the number of tracks as follows.

  • Between Stratford and Lea Bridge Junction via Lea Bridge station – Two tracks
  • Between Lea Bridge Junction and Tottenham Hale station – One track – Bi-directional
  • Between Tottenham Hale and Meridian Water via Northumberland Park station – Two tracks

This would enable a four tph service between Stratford and Meridian Water stations.

Would It Not Be Better To Extend The Fourth Track To Lea Bridge Junction?

Possibly!

But by only having a single extra bi-directional track South of Tottenham Hale, they can achieve the required service without replacing the Ferry Lane Bridge and possibly with a simpler track layout at Lea Bridge Junction.

How Would And Stratford and Stansted Airport Services Fit In?

What I think the eight tph service could be, means that on the third track between Tottenham Hale and Lea Bridge stations, there are four Southbound and two Northbound trains in every hour. This can probably be handled by bi-directional running on the single track section.

But other arrangements would probably have to be made to squeeze some more services into the section between Tottenham Hale and Lea Bridge stations.

Perhaps digital signalling would allow Stansted trains to use the main route and only stopping trains would use the new third track. This could probably mean that Stratford had the following services along the West Anglia Main Line.

  • 2tph – Shuttle to Meridian Water
  • 2 tph – Semi-fast to Bishops Stortford
  • 2 tph – Stansted Express

Would some or all of the train use the High Meads Loop to turn round, as some Stansted services to Stratford have done in the past?

Will A Stratford And Stansted Service Be An Extension Of The Norwich and Stansted Service?

This would be possible and Greater Anglia have enough Class 755 trains to run it.

  • It would add a fourth service in each hour between London and Norwich.
  • It would add a direct service between Cambridge and Stratford.
  • If run at a frequency of 2 tph it would greatly improve connectivity up the West Anglia Main Line to Cambridge and Stansted Airport

Passenger numbers will decide what happens.

Train timings are interesting.

With the current Class 170 trains, I suspect that they could run between Norwich and Stansted in just under two hours, to make a round trip in four hours possible but tight. So can the bi-mode Class 755 trains using electricity South of Ely easily achieve the very convenient four hour round trip?

  • The bay platform at Cambridge would be released for other services.
  • Just four trains would be needed for an hourly service.

Between Stansted and Stratford a limited stop Express would be comfortably under the hour, especially if the High Meads Loop were to be used.

  • Stansted and Stratford would need four trains to run a two tph service,which would probably be Class 720 trains.
  • Norwich and Stratford via Stansted would need six trains for an hourly service and twelve for two tph.

The numbers of extra trains required for a joined-up two tph service between Norwich and Stratford, probably make it unlikely.

I think the service will be as follow.

  • Hourly Norwich and Stansted using Class 755 trains.
  • 2tph Stansted and Stratford using Class 720 trains.

But if the Norwich and Stansted via Cambridge service is as successful, as I think it will be, the passenger numbers might prompt Greater Anglia to add a second train on every hour.

The only problem would be if the new services generated a lot of journeys between Cambridge and Stratford and Greater Anglia felt there should be at least an hourly service.

Will Stansted Services Stop At Meridian Water?

Why not!

  • It is going to be a community of ten thousand houses.
  • Businesses in the are will increase and could be attracted by an Airport service.
  • Modern trains have a very short dwell time.

It will depend on the passenger numbers.

The Shuttle Starts

The station should be receiving the first shuttle trains on Monday the 9th of September,, as I said in The Shuttle Train Between Stratford And Meridian Water Stations Has Appeared In The Timetable.

Looking at the timetable fo Monday from around 14:00, Strastford services through Tottenham Hale station appear to be.

  • 13:56 in Platform 3 – Bishops Stortford (13:15) to Stratford (14:10) – Doesn’t use the third track.
  • 14:13 in Platform 4 – Stratford (14:00) to Bishops Stortford (14:56) – Doesn’t use the third track.
  • 14:13 in Platform 2 – Meridian Water (14:08) to Stratford (14:23) – On the third track between 14:08 and 14:16
  • 14:25 in Platform 2 – Stratford (14:16) to Meridian Water (14:31) – On the third track between 14:22 and 14:31
  • 14:43 in Platform 3 – Bishops Stortford (13:47) to Stratford (14:40) – Doesn’t use the third track.
  • 14:43 in Platform 4 – Stratford (14:30) to Bishops Stortford (15:23) – Doesn’t use the third track.
  • 14:43 in Platform 2 – Meridian Water (14:38) to Stratford (14:53) -On the third track between 14:38 and 14:46
  • 14:55 in Platform 2 – Stratford (14:46) to Meridian Water (15:01) – On the third track between 14:52 and 15:01
  • 14:56 in Platform 3 – Bishops Stortford (14:15) to Stratford (15:10) – Doesn’t use the third track.
  • 15:13 in Platform 4 – Stratford (15:00) to Bishops Stortford (15:56) – Doesn’t use the third track.

Note.

  1. The first time in each entry, is the time at Tottenham Hale.
  2. All Stratford services from Tottenham Hale leave from the island platform 2/3.

It would appear that the two tph to Bishops Stortford and 2tph to Meridian Water are intertwined.

I can follow the first train through the services in the table.

  • The first train leaves Bishops Stortford at 13:15 and arrives at Stratford at 14:10
  • It leaves for Meridian Water at 14:16, where it arrives at 14:31
  • It returns to Stratford at 14:38, where it arrives at 14:53.
  • The train finally leaves for Bishops Stortford at 15:30, where it arrives at 16:23

The 14:10 arrival at Stratford left Bishops Stortford at 13:15 and that the 15:30 arrives back at Bishops Stortford at 16:23, where it forms the 16:47 back to Stratford.

The round trip is three and a half hours and it would need seven trains.

What Trains Will Be Used For The Shuttle?

The current services between Stratford and Bishops Stortford are pairs of Class 317 trains, forming an eight-car train.

These will work well for the time being, but what happens when the new Class 720 trains arrive.

These are five- and ten-car trains and will they be a suitable length to run the Stratford/Bishops Sortford/Meridian Water services?

Five-car may be too short and ten-car may be too long!

The only four-car trains in the area are the Class 710 trains of the London Overground.

Conclusion

There are a lot of questions to answer.

I shall add to this post, when I see what is happening next week.

September 5, 2019 Posted by | Transport/Travel | , , , , | 6 Comments

The Shuttle Train Between Stratford And Meridian Water Stations Has Appeared In The Timetable

In the Wikipedia entry for Meridian Water station, this is said about the initial service.

A seven day a week, half-hour service from 6am to 11pm is timetabled to start on 9 September 2019  to Stratford calling at Northumberland Park, Tottenham Hale and Lea Bridge which will start and terminate at Meridian Water from Platform two.

If you type this date and time into the on-line National Rail timetable, you get these trains.

  • 06:22
  • 07:08 and )7:38
  • 08:08 and )8:38

The trains then seem to follow the eight minutes past the half hour pattern until 23:08

Each journey has the same characteristics.

  • They leave from Platform 2 at Meridian Water
  • They arrive in Platform 11 at Stratford fifteen minutes later at XX:23 and XX:53
  • Times at Northumberland Park are XX:10 and XX:40.
  • Times at Tottenham Hale are XX:13 and XX:43
  • Times at Lea Bridge are XX:16 and XX:46

Return journeys have the following characteristics

  • They leave from Platform 11 at Stratford at XX:17 and XX:47
  • They arrive in Platform 2 at Meridian Water fifteen minutes later at XX:32 and XX:02
  • Times at Lea Bridge are XX:23 and XX:53
  • Times at Tottenham Hale are XX:26 and 56
  • Times at Northumberland Park are XX:29 and XX:59

The timetable to provide the two trains per hour (tph) service looks to have been put together in a very simple way.

  • Two trains are used.
  • Train One works the XX:08 from Meridian Water and the XX:47 train from Stratford
  • Train Two works the XX:38 from Meridian Water and the XX:17 train from Stratford
  • Trains have six minutes to turn round at Meridian Water.
  • Trains have twenty-four minutes to turn round at Stratford.
  • Only one train is North of Lea Bridge at any one time and they are on the new third track.
  • The two trains will pass between Stratford and Lea Bridge stations, where they will be on separate tracks.

There is one complication; the two tph service between Stratford and Bishops Stortford is still running and the timetable, says it will be using Platform 11 at Stratford.

  • But as the Meridian Water shuttle train will wait for twenty-four minutes at Stratford, could the Bishops Stortford train share the same platform?
  • Or will the signallers use Platform 12 as an overflow, when they need?

There must be a sound, safe and reliable plan, otherwise they wouldn’t run the trains.

Enfield Council has been promised four tph between Meridian Water and Stratford stations.

Sharing Platform 11 between the Meridian Water shuttle and the Bishops Stortford service might just fulfil Enfield’s needs.

  • If the Southbound Bishops Stortford to Stratford service stopped at Meridian Water, if would stop in Platform 3, which shares an island with Platform 2, which will be used by the shuttle.
  • The Southbound Bishops Stortford to Stratford service would probably stop at Meridian Water at XX:22 and XX:52, which would be conveniently between the shuttle services.
  • Northbound Stratford to Bishops Stortford services would leave conveniently at XX:00 and XX:30 from the samr platform as the shuttle.

But I feel that this is very much an interim service until Greater Anglia have worked out what is possible with real trains and passengers and their new Class 720 trains have been delivered.

August 18, 2019 Posted by | Transport/Travel | , , , | 3 Comments

Tottenham Hale Station Is Beginning To Make Sense

These are pictures, I took of Tottenham Hale station, this morning.

A few of my observations.

The Cladding Is Going On

The cladding is going on the building above the Victoria Line ticket hall.

It appears to be fireproof glass on a concrete and steel frame.

A Wide Island Platform

Platforms 2 and 3 form a wide island platform.

  • Only Platform 3 appears to be in use for London-bound services to both Liverpool Street and Stratford.
  • Both faces appear long enough for a 240 metre long Stansted Express train.
  • There is a step-free bridge at the half-way point of the platform.
  • The original bridge with its escalator is still in place.

It is a design with good potential for handling more services.

  • Platform 3 could handle all services to Liverpool Street station.
  • Platform 2 could handle all services to Stratford station.

Travellers would just walk across the island platform.

The Step-Free Bridge Appears Almost Complete

The bridge appears to be almost complete.

  • The bridge has lifts and stairs with double handrails on both sides.
  • The lift and stairs on the London-bound side are in the middle of the island platform 2 & 3.
  • There is an escalator for London-bound travellers to access the bridge, to give an easy route to the Victoria Line.

There appears to be just a bit of testing before full commissioning.

The Old Bridge Is Still In Place

It still has its up escalator from Platform 2 & 3 and there have been statements that this bridge will be modified to create a link between the Underground station and the developments on the other side of the tracks.

Most Of The Bus And Taxi Interchange Is Complete

With buses and black taxis, the interchange seems finished.

  • Much of North and East London can get a bus to and from the station.
  • Today, I got a 76 bus to Dalston for a two hundred metre walk.
  • But with a heavy case, I’d get a black cab,

Transport planners usual only plan for travellers to and from the City centre.

The Future

The Stratford And Meridian Water Shuttle

This is rumoured to start in September and will probably be the following.

  • Two trains per hour (tph) between Stratford and Meridian Water stations.
  • Stops will be at Lea Bridge, Tottenham Hale and Northumberland Park stations.
  • Trains could be any length up to probably 240 metres, as all platforms are long.
  • Current trains take sixteen minutes between Stratford and Meridian Water stations.

In addition services between Stratford and Hertford East and Bishops Stortford stations would stop at Meridian Water, to give the station a four tph service to and from Stratford.

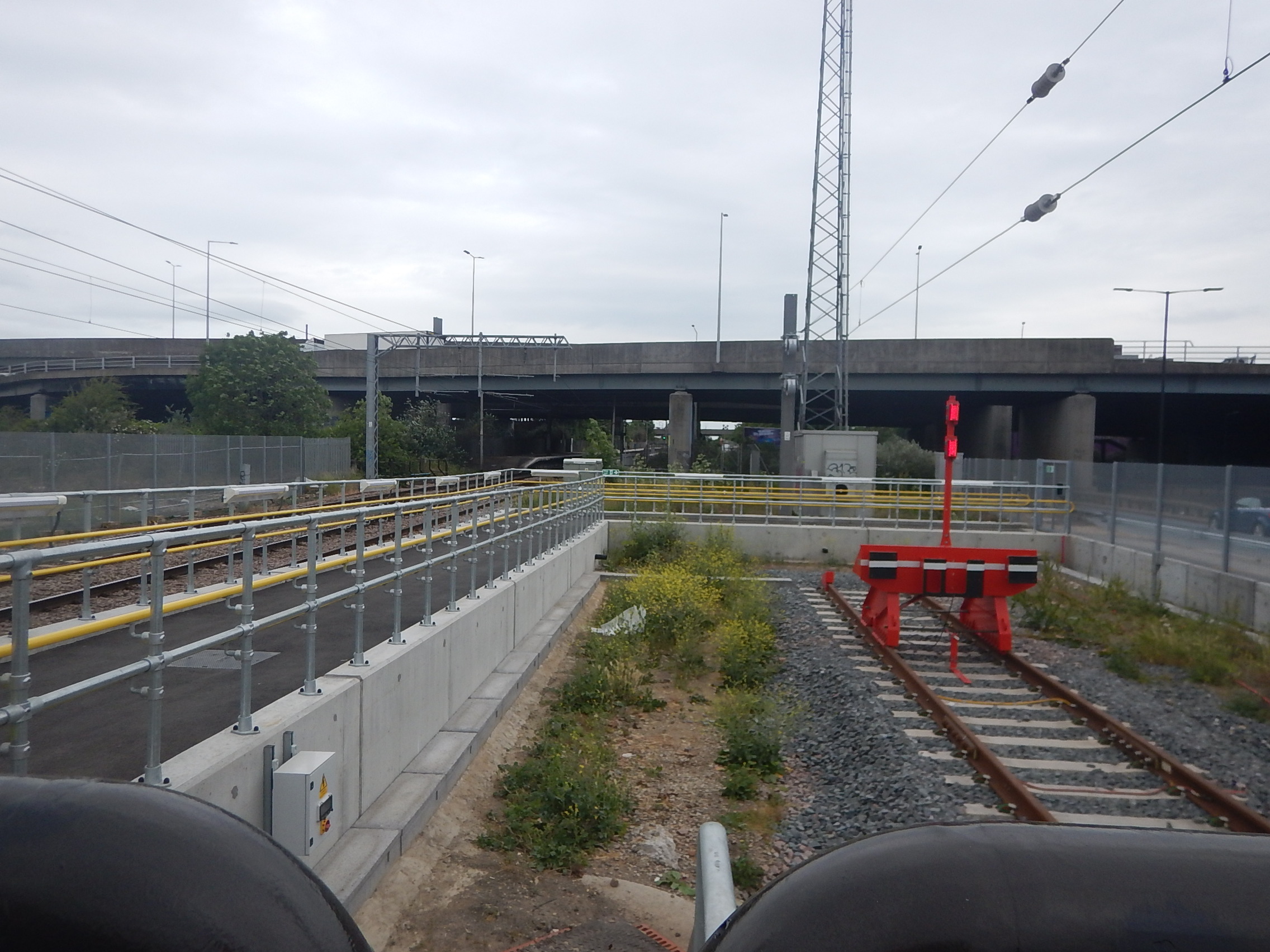

The new Meridian Water station has been built with a dedicated bay platform for the shuttle service.

The bay Platform 2 is on the right and the through Platform 3 is on the left in this picture taken looking North at Meridian Water station.

Two tph to Stratford would leave from each side of this platform.

The new track between Meridian Water and Lea Bridge stations has been built without a passing loop, so the two tph shuttle must probably be run by a single train.

The shuttle would.

  • Have exclusive use of the new track between Lea Bridge and Meridian Water stations.
  • Have shared use of the existing track between Lea  Bridge and Stratford stations.
  • Call at Platform 2 at Tottenhale and Northumberlan Park station in both directions.

A two tph shuttle would consist of the following.

  • Four journeys between Stratford and Meridian Water stations.
  • Twenty-four intermediate station stops.
  • Two turnrounds each at Meridian Water and Stratford stations.
  • Current turnrounds at Stratford have in excess of twenty minutes to unload and load passengers and for the driver to change ends.
  • Greater Anglia will be running the shuttle in September with nearly nearly forty-year-old British Rail-built Class 317 trains.

As there is not enough time to fit the trains with wings and jet engines, what the hell will be happening?

Go to Stratford station and there is an out-of-date sign at the end of Platform 1 and 2, where the Overground trains terminate.

It directs passengers to Platform 12 for Stansted Airport.

It dates from the time, when Stansted Express trains used to go to Stratford station.

They didn’t turnround in Platform 12, but used the High Meads Loop underneath the Eastfield Shopping Centre to reverse direction.

  • The train stopped in Platform 12 long enough for passenger to leave and join the train.
  • The driver stayed in the same cab and carried on driving.

I suspect that a Class 317 train could go from Platform 1 at Lea Bridge station, round the High Meads Loop and back to Platform 2 at Lea Bridge station, in these split times.

  • Lea Bridge to Stratford – 6 minutes.
  • Stop in Platform 12 at Stratford – 1 minute
  • Straford to Lea Bridge – 6 minutes.

I believe all these times can be achieved by well-driven Class 317 trains, which gives a timing of thirteen minutes.

Currently, Lea Bridge to Meridian Water takes nine minutes in the elderly Class 317 trains, sharing the track with other trains.

But the shuttle trains will have a clear track, once they are on the new track North of Lea Bridge station.

I believe they could do this in perhaps seven minutes.

Applying, the sort of maths a bright nine-year-old should be able to master.

60 – 2*13 – 4*7 = 6

So could you turn a train round at Meridian Water station in three minutes?

  • London Overground regularly do this at Dalston Junction station.
  • Stepping-up might be needed, where a second driver immediately gets into the rear cab and takes over the train.

But it all leads me to the conclusion, that a single Class 317 train can run a two tph shuttle between Meridian Water and Stratford stations.

The following conditions would apply.

  • The trains must use the High Meads Loop.
  • There would be a fast stop in Stratford, taking less than a minute.
  • Stratford to Lea Bridge times should be six minutes or less.
  • Meridian Water to Lea Bridge times should be seven minutes or less.
  • Stepping-up might need to be employed at Meridian Water.
  • Trains could be up to 240 metres long.
  • The trains would have to be well-driven.

There is also the fall-back position, that the new Class 720 trains to be delivered later in the year will have increased performance.

Development Of The High Meads Loop

The High Meads Loop is an almost unique piece of railway infrastructure on the UK rail network.

  • The simpler Wirral Line Loop under Liverpool turns upwards of twelve tph back for the Wirral Line.
  • The Wirral Line also has four stations on the loop.
  • I believe the High Meads Loop could easily handle a similar frequency to the Wirral Line Loop.
  • The High Meads Loop is also double-track.

I believe, that currently, the High Meads Loop is only planned to only handle the following services.

  • Two tph – Meridian Water Shuttle
  • Two tph – West Anglia Main Line services.

There is a lot more capacity to handle services from the West Anglia Main Line or its branches.

Liverpool Street And Meridian Water Services

When the Field Day Festival took place a couple of weeks ago, Greater Anglia stopped several services, including some Stansted Express services at Meridian Water station to bring festival-goers back to Central London.

Currently, the following Liverpool Street services pass through Meridian Water station.

  • Two tph – Liverpool Street and Hertford East
  • Two tph – Liverpool Street and Cambridge
  • Four tph – Stansted Express

As Greater Anglia’s new fleet of trains, will all be optimised for fast stops, I wouldn’t be surprised to see some Greater Anglia services to and from Liverpool Street station doing the following.

  • Northbound services would stop in Platform 4 at Tottenham Hale, Northumberland Park and Meridian Water stations.
  • Southbound services would stop in Platform 3 at Tottenham Hale, Northumberland Park and Meridian Water stations.

If Northumberland Park and Median Water stations deserve four tph to and from Stratford, surely they deserve the same frequency to and from Liverpool Street. Could both Cambridge and Hertford East services stop at Northumberland Park and Meridian Water station?

  • Both Northumberland Park and Meridian Water stations could get direct services to and from Liverpool Street station.
  • The island platforms at all three stations  could give some useful cross-platform interchanges.

Stations North of Tottenham Hale would get these frequencies to and from the station and the Victoria Line.

  • Eight tph – Northumberland Park
  • Eight tph – Meridian Water
  • Two tph – Ponders End
  • Two tph – Brimsdown
  • Four tph – Enfield Lock
  • Three tph – Waltham Cross
  • Six tph – Cheshunt
  • Six tph – Broxbourne

Note.

  1. With a few extra stops by Stratford services, all stations between Tottenham Hale and Broxbourne could get at least a very customer-friendly four tph.
  2. If your station didn’t have a Stratford service, there would be a cross- or same-platform interchange going at Tottenham Hale station.
  3. Using Stratford and Crossrail may be preferable on some journeys than Tottenham Hale sand the Victoria Line.
  4. In this hot weather give me an air-conditioned Aventra over a furnace on the Victoria Line any time.

A Lea Valley Metro could be emerging.

Stansted Express And Meridian Water

Consider.

  • Various arguments and statistics could be used to decide whether Stansted Express trains stopped at Meridian Water station.
  • I suspect too, that if Spurs continue to play in Europe, that a strong case can be made for stopping Stansted Expresses at Northumberland Park station.
  • But the performance of the trains on the West Anglia Main Line will enable Greater Anglia to do what’s best for passengers and profits.

As Greater Anglia did a couple of weeks ago with the Field Day Festival, they can even be selective.

Stansted Express And Stratford

The Stansted Express is currently a four tph service between Liverpool Street and Stansted Airport.

Consider.

  • In the past, Stansted Expresses ran to and from Stratford.
  • As they did in the past, they could terminate in the High Meads Loop at Stratford.
  • Big International events are held at Stratford.
  • The Central Line links Stratford and Liverpool Street.
  • Crossrail will link Stratford and Liverpool Street at a frequency of twelve tph.
  • Stratford and Tottenham Hale will soon be linked at a frequency of four tph.
  • Extra trains could be needed to run Stansted Expresses to and from Stratford.

I think that running a Stansted |Express to and from Stratford that will remain under review and could be implemented at some date in the future.

In Future Stansted Airport Train Services, I outline how trains might serve Stansted Airport from Norwich and Stratford stations.

Any trains between Stratford and Stanstead Airport, would probably terminate in the High Meads Loop, as they did in the past.

Should High Meads Loop Services Use Platform 11 Or Platform 12?

When Stansted Express services used the High Meads Loop a few years ago, they used to use Platform 12, as the sign still shows.

It could obviously handle the planned four tph, but suppose the High Meads Loop was handling twelve or sixteen tph, as a high-frequency route to Crossrail would Platform 11 be a better option?

Certainly, if the High Meads Loop was handling a lot of services including Stansted Express, Cambridge and local services, there would need to be a lot of thought about how to organise passengers.

There would need to be a fast pedestrian route between Platform 11 or 12 and the two Crossrail/Central Line platforms.

Extra Services That Could Use The High Meads Loop

As I said earlier, I think that if a Stratford and Stansted Airport service is revived, it will use the High Meads Loop.

My preference would be to run a Stratford and Norwich service, that would call at Stansted Airport.

  • It would serve greatly increase capacity all along the West Anglia Main Line, through Cambridge.
  • It could give intermediate stations a direct service to Stansted Airport.
  • Two tph would be a sensible frequency.
  • Calls could include Tottenham Hale, Broxbourne, Harlow, Bishops Stortford, Whittlesford Parkway, Cambridge, Cambridge North, Ely and all stations to Norwich.

A two tph service would need twelve Class 755 trains.

The High Meads Loop would also be available to turn extra local services.

One possibility is to reinstate the Hall Farm Curve and run services between Chingford and Stratford.

The level crossing at Highams Park station is a problem, but in Improving The Chingford Branch Line, I outlined how it could be possible to run four tph between Chingford and Stratford stations, using clever timetabling, digital signalling and good driver aids.

Another possibility is to terminate some London Overground services from Cheshunt and Enfield Town at Stratford, instead of Liverpool Street.

Services could be .

  • Two tph between Enfield Town and Liverpool Street
  • Two tph between Cheshunt and Liverpool Street
  • Two tph between Enfield Town and Stratford.
  • Two tph between Cheshunt and Stratford.

This would mean.

  • London Overground’s preferred frequency of four tph to Enfield Town and Cheshunt.
  • All stations between Edmonton Green and Seven Sisters, including White Hart Lane, would get an eight tph service to London and Crossrail.
  • Four tph in both directions would call at South Tottenham station to give a same platform interchange with the Gospel Oak to Barking Line..

Most of the infrastructure is already in place, although improvements might be needed to the Seven Sisters Chord, that links Seven Sisters station to the Gospel Oak to Barking Line.

Summing up, I believe we could see the following services using the High Meads Loop.

  • Two tph to and from Meridian Water
  • Two tph to and from Bishops Stortford via Meridian Water
  • Two tph to and from Norwich via Stansted
  • Four tph to and from Chingford via the Hall Farm Curve.
  • Two tph to and from Enfield Town via South Tottenham and Seven Sisters
  • Two tph to and from Cheshunt via South Tottenham and Seven Sisters

That is an easy-to-handle fourteen tph.

This map from carto.metro.free.fr, shows the lines connecting the North London Line and the High Meads Loop to platforms 1m 2, 11 and 12 at Stratford station.

Given that freight trains pass through the area to get between the North London Line and the Great Eastern Main Line, there may need to be some track reorganisation to make full use of the High Meads Loop.

Digital signalling would also help, as it would all over the London Overground network.

I think it would not be unreasonable to expect that in some point in the future twenty tph could be running around the High Meads Loop.

A new rail terminus for London would have been created with the ability to handle more trains than either Cannon Street, Fenchurch Street or Marylebone. stations.

Could we see all West Anglia Main Line services terminate in the High Meads Loop?

Probably not, as the platform wouldn’t be able to cope with all the passengers.

Crossrail 2

If Crossrail 2 is ever built, it will terminate at Broxbourne on the West Anglia Main Line.

It will need four-tracking of the West Anglia Main Line between  Tottenham Hale and Broxbourne stations, which will create massive disruption for passengers and residents.

Conclusion

There is a lot of development, that is possible on the West Anglia Main Line to make it into a world-class commuter route and a main line route with good services to Stansted Airport, Cambridge and Norwich.

Cambridge is a big growth point in the UK economy and dveloping the West Anglia Main Line will only improve the economy of the area.





















June 24, 2019 Posted by | Transport/Travel | , , , , , , , , , , , | 3 Comments

I Finally Catch A Train From Meridian Water Station

Around lunchtime today, I finally caught a train from Meridian Water station.

Trains have been running, but unfortunately, the departure and arrivals page on my phone, doesn’t seem to be working if you type in Meridian Water station. Also if you want to get the stops of a train that stops at the station, you get the message.

Sorry, Something Went Wrong!

Looks like finger trouble to me!

Even now as I write this, if I try and find the trains departures at Meridian Water station on my phone, the system crashes. But on my computer, if I look for trains between Meridian Water and Tottenham Hale stations, I find that there ten trains between 23:00 and 00:10.

So it looks like those who leave the Field Day before midnight should be able to get home.

Surely, the two systems should give the same answers.

At around five this evening, with my phone still saying sorry, I went back to Meridian Water station.

  • I first tried to get a train from Tottenham Hale, but none seemed to be running.
  • It was very busy with passengers for Stansted and commuters going home.
  • So in the end I took a train to Stratford and stayed in it until it returned.
  • Everybody was able to get a seat.

Eventually, I got to Meridian Water station with the festival goers.

Note,

  1. The train was showing Angel Road station instead of Meridian Water station.
  2. the numbers of festival goers were not as many as I thought they would be!
  3. The traffic was still as heavy.

But at least it wasn’t raining.

Conclusion

The station is working, the trains are working, but the information could have been setup better!



June 7, 2019 Posted by | Transport/Travel | , , | Leave a comment

Meridian Water Station Has Opened

Meridian Water station opened yesterday, so I went there this morning to have a look.

It was surprisingly deserted, although the lifts and displays were working.

There was no-one around, so I just walked through the station building, down the stairs to Platform 2/3 and along to the country end of the platform.

These are my observations.

Platform 1

There is no platform or track in the position, where a Platform 1 will be on the side of the station nearest to Tesco and IKEA.

It could be turned into a through line, a through line with a platform or another bay platform as required in the future.

Platform 2

Platform 2 is currently arranged as a bay platform with buffer stops.

Platform 3

Platform 3 shares an island platform with Platform 2 and is a through platform on the West Anglia Main Line for trains towards London.

Trains will stop as required by the timetable.

Use Of Platforms 2 And 3

Use of Platforms 2/3 could be as follows.

  • The two trains per hour (tph) shuttle to Stratford station, will use Platform 2.
  • Trains from Platform 2 will use the new third track to Lea Bridge Junction.
  • Two tph  stop at Platform 3 on their way to London.
  • Trains that stop in Platform Platform 3 will use the West Anglia Main Line to Lea Bridge Junction.
  • After the two tracks merge at Lea Bridge Junction, they will continue as a single line until Stratford.

This adds up to the promised four tph.

It should also be noted that trains take 15-18 minutes to go between Meridian Water and Stratford stations and about ten minutes to go between Meridian Water and Lea Bridge stations.

Platform 4

Platform 4 is a through platform for trains leaving London.

Trains will stop as required by the timetable.

Platform Lengths

The platforms are long and could easily accommodate an eight-car train.

How Will The Shuttle Trains Run On The New Third Track?

To go between Lea Bridge and Meridian Water stations takes ten minutes, so with perhaps five minutes to turn the train round, will mean a twenty-five minute round trip from Lea Bridge station.

This would allow the promised two tph for the shuttle trains, North of Lea Bridge station.

How Will The Shuttle Trains Turnback At Stratford?

Currently, the two tph going between Stratford and Bishops Stortford or Hertford East stations use Platform 11 or 12 at Stratford station.

Trains also take eight minutes to go between Lea Bridge and Stratford stations, so adding five minutes to turn round, will mean a twenty-one minute Round trip from Lea Bridge station.

In other words, the promised four tph is impossible in a single platform.

But running two tph into both platforms 11 and 12 would allow the promised four tph.

However, although 11 and 12 are adjacent numbers, they are not adjacent platforms at Stratford and are connected by a subway.

Using two platforms would not be a passenger-friendly idea.

Does this mean that the High Meads Loop will be brought into use to turn the trains. This has been used in the past to turn Stansted Express trains, when they had a service to Stratford.

The signs still exist, as this picture shows.

So could local trains use Platform 11 and in the future Stansted Expresses might use Platform 12? Or might a succession of trains, just use a single platform?

I have always believed that to get the required capacity, the High Meads Loop needs to be used.

It appears though, that Greater Anglia will not be running four tph to Meridian Water station until September.

Will Trains To And From Liverpool Street Station Call At Meridian Water Station?

I don’t see why not!

  • It would make it easy for passengers going between Liverpool Street and Meridian Water stations.
  • Especially, as Greater Anglia’s new Class 720 trains, should be able to execute a stop much quicker.

Two tph to each London terminal would give Meridian Water four tph.

Future Proofing

Provision has been made for an extra Platform 1, but have other things been done.

I feel, one possibility would be for Southbound trains to split into two routes, just North of Meridian Water station.

  • Trains for Liverpool Street, would continue to use Platform 3, as it appears they do now or will do.
  • Trains for Stratford, would use Platform 1

All Southbound trains to Stratford would use the new third track exclusively.

The picture shows the end of Platform 2 and what lies behind.

Once Angel station has been demolished, will the track be modified, so that trains can go to Stratford, through Platform 1?

Field Day Festival Friday 7th June And Saturday 8th June 2019.

The Field Day Festival will be held this weekend and they are recommending using Meridian Water station.

The National Rail timetable is showing late services to Liverpool Street, are  stopping at Meridian Water station to bring festival goers back to Central London.

Where Are The Trains?

I watch Nation Rail departures page and I haven’t found any trains actually running.

Perhaps, something is not going to plan.

Conclusion

It looks like we have a station that is ready and waiting, but that the trains aren’t running according to plan.

Let’s hope it’s all right by Friday for the Field Festival!



June 4, 2019 Posted by | Transport/Travel | , | Leave a comment

Tottenham Hale Station – 20th May 2019

I took these pictures today at Tottenham Hale station.

The new station is still a shortish time away.

The bridge and Meridian Water station should have opened today.

But as you can see, they didn’t!





May 20, 2019 Posted by | Transport/Travel | , , , | Leave a comment

IKEA’s New Station Opens On The 20th May 2019

Meridian Water station is now in the National Rail on-line timetable.

It appears the first train to Meridian Water leaves Stratford at 06:03 on Monday, May 20th 2019. It will be going to Hertford East station.

I wonder how this will affect visitors at the nearby IKEA.

May 10, 2019 Posted by | Transport/Travel | , , | Leave a comment

« Previous Entries
