Northern line Extension’s Opening Date Announced

The title of this post, is the same as that of this article on Ian Visits.

Services will start on Monday, September 20th.

This sentence from Ian describes the service levels.

There will be an initial peak time service of six trains per hour on the extension, increasing to 12 trains per hour by mid-2022. There will be five trains per hour during off-peak times, doubling to 10 trains per hour next year.

I shall certainly try it when it opens, but I doubt I’ll be a regular user, as the Charing Cross Branch of the Northern Line can be difficult to access from Dalston. My best way is probably to use a 73 bus to Goodge Street station.

How Do I Use The Northern Line to Go Between The new Battersea Power Station Station and Bank or Moorgate Stations?

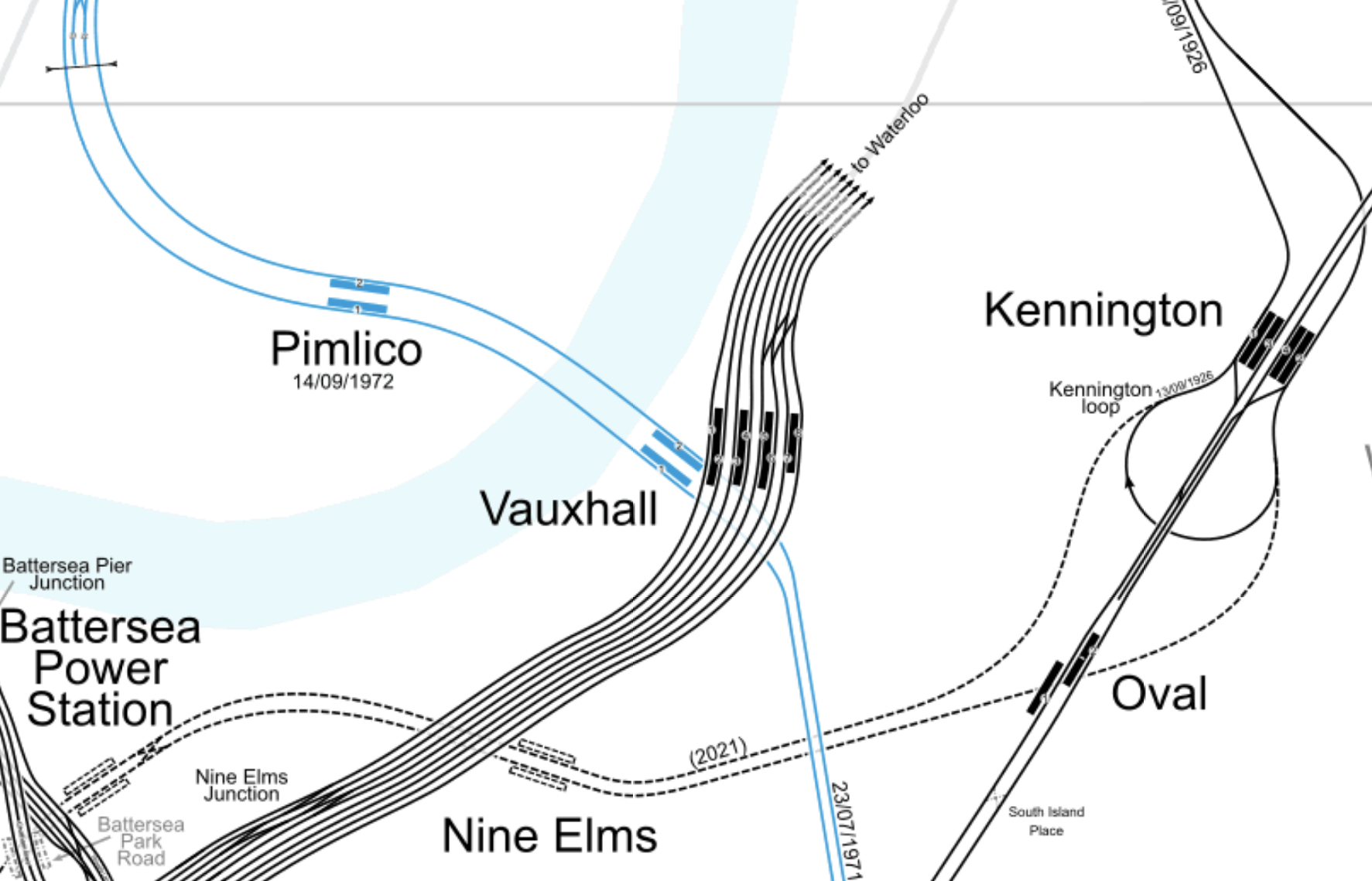

This map from cartometro.com shows, the track layout of the extension.

Note.

  1. The extension to Battersea links to the loop that turns trains that have come South through London on the Charing Cross Branch of the Northern Line, which runs North-Westerly from Kennington station.
  2. The Bank Branch of the Northern Line is the pair of tracks that runs North-Easterly from Kennington station.
  3. The Victorian builders of the Northern Line didn’t dig the tunnels and add the track, so that the loop could turn trains coming South through London on the Bank Branch of the Northern Line.

So passengers will have to change, with these possible routes.

  • For London Bridge, Bank, Moorgate and Old Street change at Kennington for the Bank Branch of the Northern Line.
  • For Piccadilly Circus, Oxford Circus and Paddington change at Waterloo for the Bakerloo Line.
  • For Canary Wharf, London Bridge, Westminster, Green Park, Bond Street, Baker Street and Paddington change at Waterloo for the Jubilee Line.
  • For Tower Hill, Monument, Westminster, Victoria and South Kensington change at Embankment for the Circle or District Lines.
  • For Holborn and Kings Cross St. Pancras and Harrods change at Leicester Square for the Piccadilly Line.
  • For Liverpool Street, Bank, St. Paul’s, Holborn, Bond Street and Marble Arch change at Tottenham Court Road for the Central Line.
  • For Canary Wharf, Liverpool Street, Moorgate, , Bond Street, Paddington and Heathrow change at Tottenham Court Road for Crossrail.

Note.

  1. These are a selection of the possible routes available.
  2. I have included some of the possible routes to London’s important transport, tourism and business hubs.
  3. I suspect many will change at Tottenham Court Road station for the City, as the station has been completely rebuilt for Crossrail with full step-free access.

Residents and visitors to the large amounts of new residential properties around Battersea Power Station and Nine Elms stations, will probably find their best routes fairly quickly, but there are a large number of routes to try to most important hubs.

Will Battersea Become An Area, Where Visitors To London Stay?

Consider.

  • The Northern Line Extension has connections to to Central London’s important transport, tourism and business hubs.
  • The Thames Clippers give access to the Thames.
  • There appears to be several good hotels open in the area.
  • For Gatwick Airport, it’s Gatwick Express and a taxi from Victoria station, at around a tenner.
  • For Heathrow Airport, it’s an easy journey from Heathrow on Crossrail with a change at Tottenham Court Road.
  • For City Airport, it’s a direct journey on a Thames Clipper from Royal Wharf to Battersea Power Station pier.
  • For Eurostar, it’s probably a £25 taxi from St. Pancras, but if you know the Underground there are several one-change routes via Euston, Kennington, Leicester Square and Warren Street.

I feel that if they get the hotels and the hospitality right, that the area could become an important one for visitors to London.

September 4, 2021 Posted by | Business, Transport/Travel | , , , , | 2 Comments
