‘Cut-Off For 58 Years’ Town To Get Railway Station
The title of this post, is the same as that of this article on the BBC.
This is the sub-heading.
Plans to build Greater Manchester’s first new railway station for a quarter of a century have been approved for a town cut off from the rail network since 1967.
These two introductory paragraphs give more details.
The £32m station in Golborne, near Wigan, was proposed by Transport for Greater Manchester (TfGM) after a residents’ campaign.
Since trains stopped calling at Golborne 58 years ago, the town has been left without any direct transport links to and from Manchester.

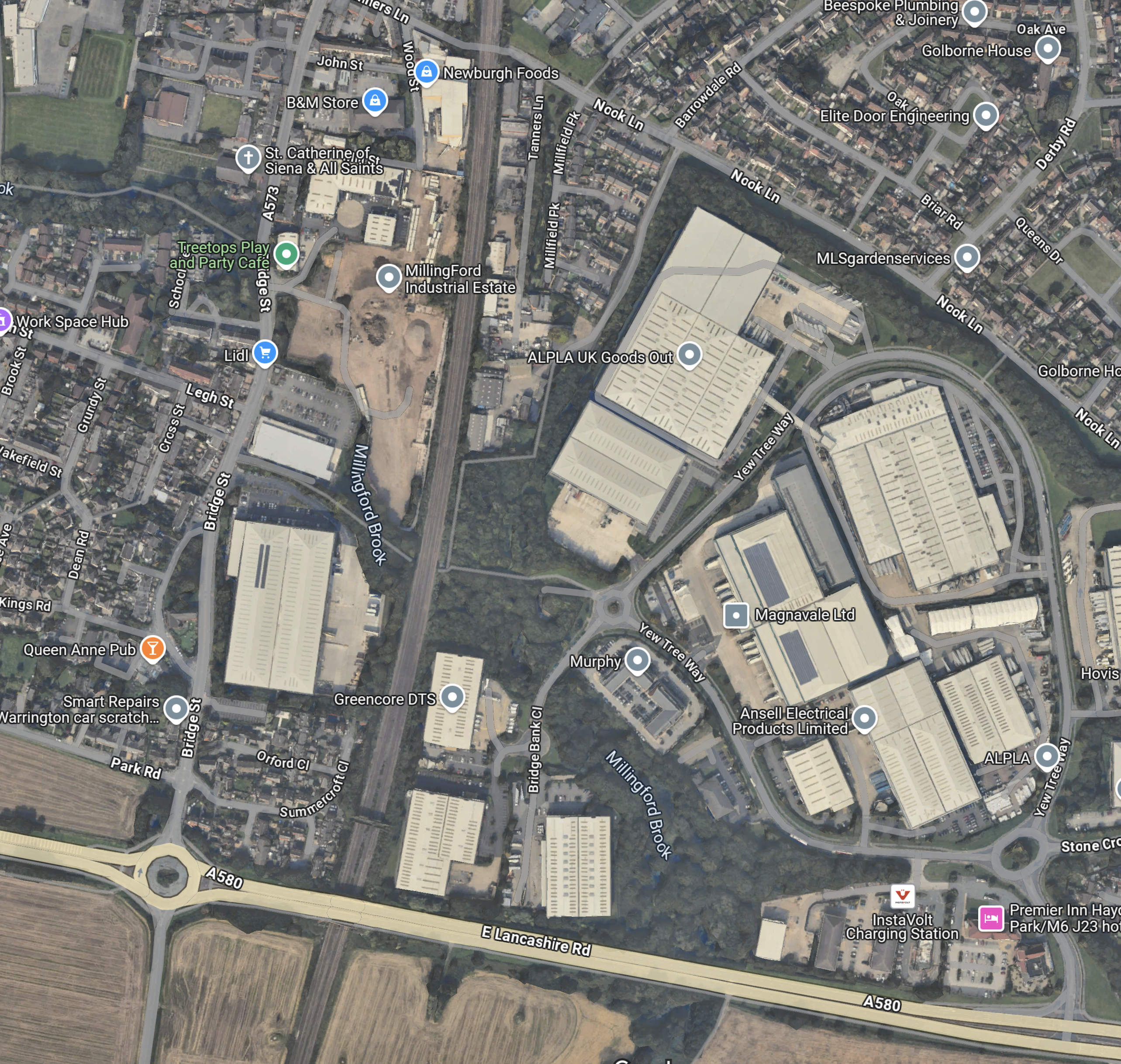

This Google Map shows the location of Golborne.
Note.
- The A 580, which is one of main Liverpool and Manchester roads going across the bottom of the map.
- If you drive West along the A 580 from here, you connect to the M6 at Junction 23 ; Haydock Island.
- Continuing West takes you to Liverpool.
- Going East along the A 580 takes you to the M60 and Manchester.
- Running North-South up the map is the West Coast Main Line and currently, it appears to be four electrified tracks all the way to Wigan North Western station.
- Nook Lane crosses the West Coast Main Line at the top of the map.

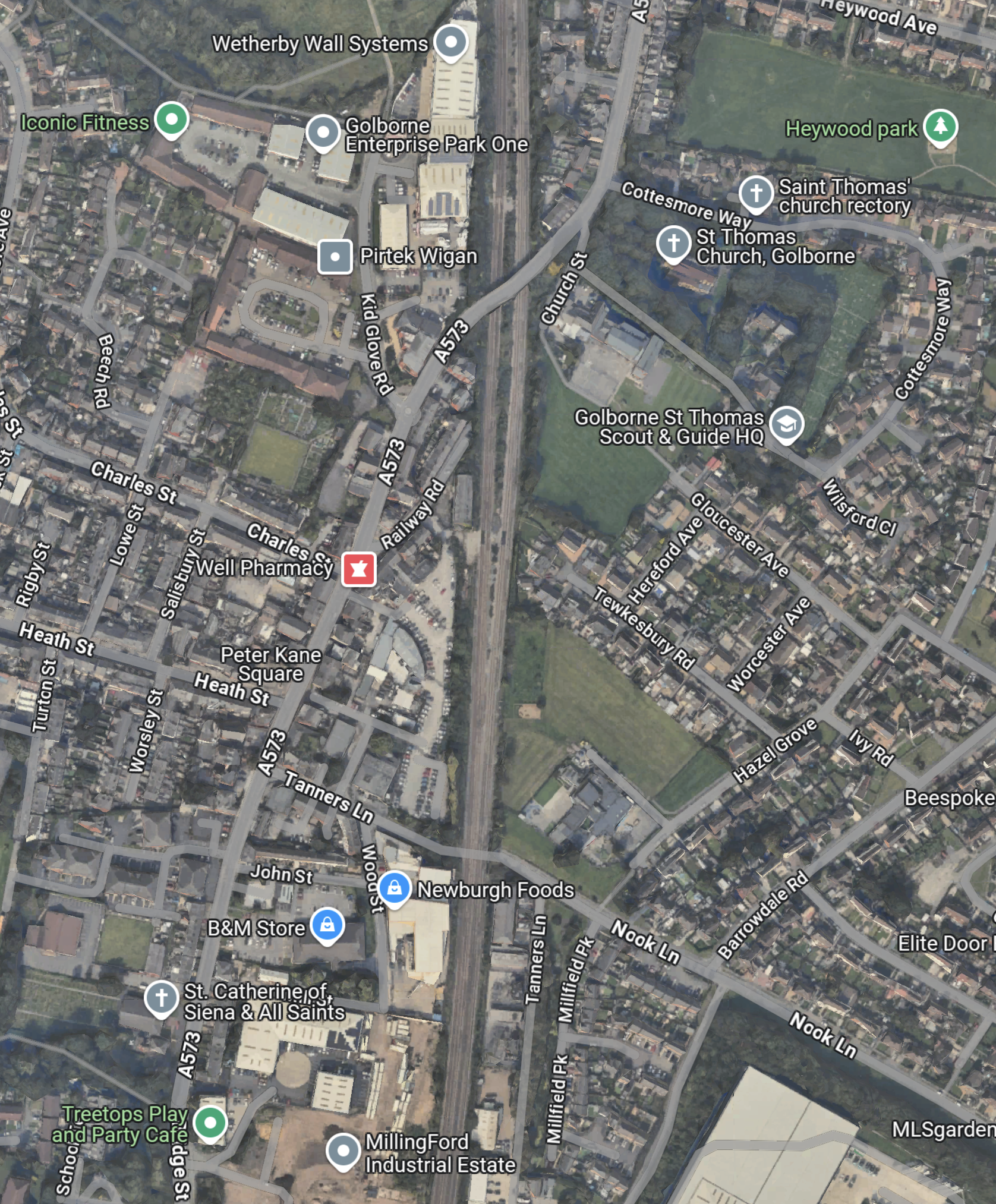

This second Google Map shows the West Coast Main Line through Golborne.
Note.
- The four tracks of the West Coast Main Line run North-South up the centre of the map.
- Nook Lane can be clearly seen.
My best guess is that the station will be built to the South of where the A 573 crosses the West Coast Main Line.
- A picture in the BBC article shows four platforms, with three lifts to give full step-free access.
- It looks like there is a brownfield site to the South of this location, where parking could be provided.
The new Golborne station could be a bit more than a simple station serving a small town.
I have a few thoughts.
How Many High Speed Two trains Will Go Through Golborne Station?
This graphic shows High Speed Two services, as proposed by HS2 after Phase 2b opens.
Note.
- Services shown in blue are run by High Speed Two Full Size trains.
- Services shown in yellow are run by High Speed Two Classic-Compatible trains.
- Each service will run once an hour.
- The nine services to the right of the vertical black line have been scrapped.
- There are elevenservices that terminate at Euston in every hour.
- Eight are High Speed Two Full Size trains, which are 400 metres long.
- Two are single High Speed Two Classic-Compatible trains, which are 200 metres long.
- Three are pairs of High Speed Two Classic-Compatible trains, which are 400 metres long.
How Many High Speed Two trains Will Go Through Golborne Station?
This will be the same as the number of trains going through Wigan North Western station.
These are.
- London Euston and Lancaster – 200 m.
- London Euston and Glasgow/Edinburgh – 400 m.
- London Euston and Glasgow/Edinburgh – 400 m.
- Birmingham and Glasgow/Edinburgh – 200 m.
Note.
- That is only four trains per hour (tph).
- As High Speed Two will be digitally signalled, I suspect that four fast tph and four slow tph could be accommodated between Wigan North Western and Golborne.
- The problem could be eased by running 125 mph or even 140 mph trains on local services on the West Coast Main Line.
- But the major problem will be North of Wigan North Western station, where there are only two tracks.
I also wonder, if increasing the number of high speed paths to five, would mean that no 400 m. trains would need to run North of Crewe, so there would be less need for platforms to be lengthened.
Is Wigan North Western Station Ready For High Speed Two?
I answered this question in 2019 in Is Wigan North Western Station Ready For High Speed Two? and felt, it was getting close.
I shall visit this summer and see if it is getting closer to being ready.
Mayors Head To Parliament With Plan For Northern Arc To Deliver Green Growth
The title of this post, is the same as that of this news item from Liverpool City Region.
These four bullet points act as sub-headings.
- Steve Rotheram and Andy Burnham take case for backing Northern Arc to Treasury – as new data shows North can drive green growth and unlock £90bn for UK economy
- Liverpool City Region and Greater Manchester Mayors will meet with ministers and MPs today, and Andy Burnham will give evidence at Business and Trade Select Committee on the UK’s industrial strategy
- Economic analysis shows that investing in transport infrastructure and a pipeline of projects across the North would benefit the whole UK economy, improving living standards and closing the North-South productivity gap
- Mayors will also address Innovation Zero World Congress in London, showing how city-regions can create high quality jobs by pioneering low-carbon innovation
These two paragraphs add a bit more detail.
The right investment would create a growth corridor, stretching from the Mersey to the Pennines and connecting into West and South Yorkshire, underpinned by transport networks that would include a new railway linking Liverpool and Manchester.
The Northern Arc area spans regions with close economic ties to Lancashire, North Wales, Hull and the North East. With international connections through the Port of Liverpool and Manchester Airport, it’s well positioned for global trade.
If I have a problem with the mayors’ thoughts, the plan outlined in the news item is rather Liverpool/Manchester-based with Hull being the only city outside that area getting a mention. Do Blackburn, Blackpool, Bradford, Burnley, Doncaster, Huddersfield, Leeds, Preston, Rotherham, Scunthorpe, Stockport, Wigan and York exist?
For instance you would expert a report from Liverpool and Manchester’s Mayors to call for a new railway between their two cities. And of course they do!
The current TransPennine Lines has two main routes across the Pennines between East and West.
If ever there was a rail route, designed by Topsy, it is the North TransPennine Route.
- There are six separate services, if you ignore Newcastle and Edinburgh Waverley, which is a shuttle to fill a gap in rail services.
- In the West trains terminate at Huddersfield, Liverpool Lime Street, Manchester Airport, Manchester Piccadilly and Manchester Victoria
- In the East trains terminate at Edinburgh Waverley, Hull, Leeds, Newcastle, Redcar Central, Scarborough and York.
- Terminals like Huddersfield, Hull, Liverpool Lime Street, Newcastle and York are some of the best terminal stations in the UK, but others are very second rate.
I suspect, this North TransPennine Route structure brought about the demise of TransPennine Express.
The South TransPennine Route on the other hand, although it was built by several different railway companies, they were all intent on the same thing. An East-West route across the Pennines through Doncaster, Manchester and Sheffield.
- The Western terminal is Liverpool Lime Street, which in my view is the finest grand terminus in the UK, in terms of architecture, onward connections and operation. It is also the oldest still-operating grand terminus mainline station in the world, in that it dates from 1836.
- The Eastern terminal is Cleethorpes, which is an efficient four-platform recently-refurbished station, that is within a hundred metres of some of the best gluten-free fish and chips, I’ve ever tasted on the pier.
- Intermediate stations include Liverpool South Parkway, Warrington Central, Birchwood, Irlam, Urmston, Manchester Oxford Road, Manchester Piccadilly, Stockport, Sheffield, Meadowhall, Doncaster, Scunthorpe, Barnetby, Habrough and Grimsby Town.
- Liverpool South Parkway has a bus connection to Liverpool Airport
- Liverpool Lime Street, Manchester Oxford Road, Manchester Piccadilly, Stockport, Sheffield and Doncaster are stations with comprehensive onward connections.
- The route is electrified between Liverpool Lime Street and Manchester Piccadilly and at Doncaster.Liverpool Lime Street and Cleethorpes is 148.2 miles
- Hazel Grove and Doncaster is without electrification and is 52.3 miles long.
- Cleethorpes and Doncaster is without electrification and is 52.1 miles long.
- I believe that Hitachi, Siemens and Stadler could supply battery-electric trains, that would be able to work the route, with the addition of a short length of overhead wires at Cleethorpes, so that trains could return to Doncaster.
- Trains go straight through all the intermediate stations, so there are no time-wasting reverses.
- Journey time is just over three and a half hours.
I believe that a mouse-quiet battery-electric train would pack in the punters, if only for the novelty.
But.
A battery-electric train would probably knock perhaps thirty minutes off the journey.
The timetable would be an hourly train at all stations.
The service would pass the mother’s birthday test, in that you could easily visit any station from any other and buy your mother lunch before returning on a convenient train.
There are connections to and from London at Liverpool Lime Street, Manchester Piccadilly, Stockport, Sheffield and Doncaster.
It could be a very useful East-West train service.
Does Northern See Wigan As A Class 769 Train Hub?
The Wikipedia entry for Northern, shows under their entry for eight Class 769 trains, that the routes they will cover include.
- Liverpool to Wigan
- Manchester to Wigan North Western via Bolton.
Wigan is a proud and friendly town and I wrote about it in Wigan On The Up.
The West Coast Main Line through Wigan North Western station is electrified and Northern run half-hourly electric services to Liverpool using Class 319 trains.
But the other station; Wigan Wallgate is not wired and is definitely Pacer territory.
Liverpool to Wigan
As Liverpool Lime Street to Wigan North Western is fully electrified, I would be very surprised if Northern would run a bi-mode Class 769 train on this route, except as a stand-in for a failed Class 319 train.
Routes to places North of Wigan North Western, like Blackpool, Lancaster and Preston will be fully-electrified, so these routes can be served by the Class 319 trains.
Northern could be thinking of running a service between Liverpool Lime Street and Blackburn/Burnley for which a Class 769 train would be ideal.
But I think more likely, is that they are thinking of using Class 769 trains on the Kirkby Branch Line, which currently links Kirkby and Wigan Wallgate stations.
Consider.
- There is talk of running this branch as a shuttle.
- Wigan Wallgate station already has a suitable bay platform for a shuttle.
- The route is double-track except between Kirkby and Rainford stations.
- Kirkby to Wigan Wallgate takes a convenient twenty-four minutes.
- Merseyrail have a long term ambition to built a new Headbolt Lane station, as an interchange between their Northern Line and services to Wigan and Manchester.
- Merseyrail want to serve Skelmersdale.
Could this route be the reason for the reported Battery EMUs For Merseyrail?
- The Class 769 trains are used between Kirkby and Wigan Wallgate stations as a shuttle.
- Two trains would be able to provide a two trains per hour (tph) service, without any new infrastructure.
- Merseyrail ascertain that their new Stadler trains can travel between Kirkby and Wigan Wallgate and back on battery power.
- Merseyrail determine if a fast charging station is needed in the bay platform at Wigan Wallgate for their Stadler trains.
If the Class 769 trains show the passenger traffic is there and the Stadler trains can handle the route on batteries, could we see some or all of the Merseyrail Northern Line services extended to Wigan Wallgate?
Because the Stadler trains will be fast modern trains designed to execute stops quickly, I suspect that even on the single track section of line between Kirkby and Rainford stations, they could run at the frequency of four tph, that is currently run all day between Kirkby and Liverpool Central stations.
- This would mean that the the current four tph to Kirkby would become four tph to Wigan Wallgate.
- The service would be run by brand-new Stadler trains.
- The track at Kirkby would have to be relaid to allow trains to run straight through.
- The signalling would probably need updating.
- Means to charge the trains at Wigan Wallgate might need to be provided.
- A new single-platform station could be built at Headbolt Lane.
- The four stations between Kirkby and Wigan Wallgate would get four tph in both directions.
It would give The Train To Wigan Pier a whole new meaning.
Once they had done their good works in proving the route, the Class 769 trains would be posted elsewhere to do more missionary work.
Manchester to Wigan North Western via Bolton
This is the other route mentioned in Wikipedia.
Consider.
- Bolton to Manchester will be electrified, by the end of the year.
- The route passes through Ince, Hindley, Westhoughton and Lostock.
Class 769 trains travelling this route, would open a second electrified route between Manchester and Preston via Wigan.
Manchester to Southport
Why was this route not mentioned?
- Manchester to Southport is a route run mainly by Pacers to a frequency of two tph.
- Some trains go via Bolton and some via Atherton.
- The route via Bolton will be partly electrified by the end of the year.
- The route via Atherton is not electrified.
I suspect that under current plans of just eight Class 769 trains, there aren’t enough to use them on this busy route.
Ideally, this route should be run with two tph going on each of the routes to Manchester from Wigan Wallgate.
The Future
Northern have ordered both diesel and electric Civity multiple units from CAF.
In Auckland Mulls Battery-Electric Train Order, I looked at how CAF had proposed battery-electric Civity trains for Auckland.
I’m sure CAF wouldn’t mind varying the order.
From Liverpool To Huddersfield
These pictures document a trip I took between Liverpool and Huddersfield.
Some thoughts on the trip.
The Class 319 Interior
The first batch of Northern’s Class 319 trains are very much pack-it-in specials for running commuter services around the Blackpool, Liverpool, Manchester Airport triangle.
They are good for a thirty-year-old train, but they could be better.
In Porterbrook’s Class 319 Flex brochure, they show a proposed interior based on a Class 319/4 with the following.
- A mix of 2×2 and 2×3 seating.
- 12 First Class seats
- 255 Standard Class seats
- A full-accessible toilet.
- Two luggage racks per car.
It would certainly be a much better passenger experience.
Works At Edge Hill
Buckingham Group obviously have a big project on to the East of Edge Hill station.

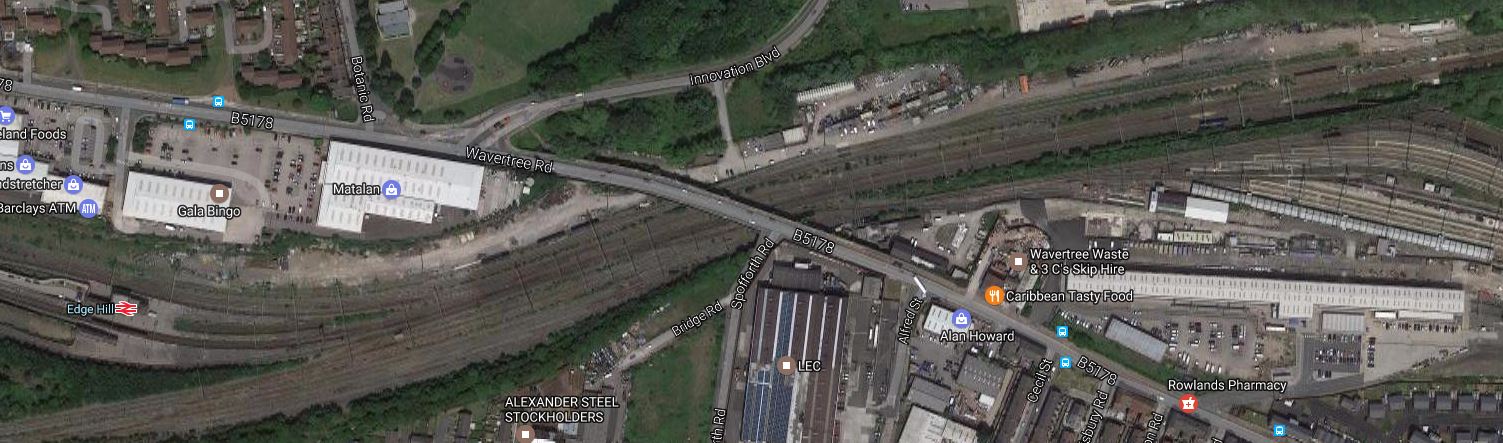

This Google Map shows the lines through and to the East of Edge Hill.
Note how to the South of the Retail Park and/or warehouses, work seems to be going on. Are extra tracks being created?
There is also a white scar at Wavertree Technology Park station, so if this was two fast lines, then fast services between Liverpool and Manchester and Wigan could storm in and out.
The Atherton Line
The Atherton Line is part of the Manchester-Southport Line and runs between Wigan Wallgate and Salford Crescent stations.
Wikipedia says this about Improvements to the Atherton Line.
There is ongoing feasibility into the conversion of parts of this line (Wigan–Atherton–Manchester) to operate as a Manchester Metrolink service with a higher frequency metro service for the Greater Manchester Boroughs of Wigan and Salford into the city centre. In November 2013, the Greater Manchester Combined Authority approved a recommended strategy for reconfiguring existing commuter services into tram-train operation, identifying the Atherton line as providing an opportunity for extending potential tram-train services from the south-east (Marple, Glossop) across the city centre and outwards to the north west.[2] Southport and Kirkby services on this line would be diverted to operate via Bolton. Additionally, Network Rail has identified electrification of Wigan to Southport, together with the Ormskirk–Preston line and the Burscough Curves as a possible source of new services.
I also think that the route from Salford Crescent to Southport via Atherton and Wigan could be ideal for electrifying in stages using Class 319 Flex trains to bridge any gaps.
The tools seem to be there, now is the time to think about how the work will be done.
Salford Crescent
Salford Crescent station could look very different in the future, as modern station design might be seen to favour two island platforms, one face of each dealing with Manchester Victoria station and the other Manchester Piccadilly station.
- Passengers going in to Manchester, needing trains to the other terminus, would just wait on the platform and catch the next train.
- Passengers coming from Manchester, who needed a different distination would change at Salford Crescent to their desired train.
- Comprehensive information would be provided.
The platforms would be built with lots of space, waiting rooms and coffee kiosks and would be well-staffed.
Manchester Victoria Station
Manchester Victoria station is starting look dirty again.
It must be all those elderly diesel trains.
Huddersfield Line
The Huddersfield Line took me to Stalybridge station and then later on to Huddersfield station.
There was no sign of any electrification work.
Stalybridge Station
As a coeliac, I found Stalybridge station one of the most gluten-free-unfriendly stations I have ever found.
In future, if I’m going that way, I’ll make sure that I stock up in Manchester or Leeds first.
TransPennine Express
The train was crowded and getting on at Stalybridge for the short trip to Huddersfield was delayed, as the conductor couldn’t get near to the doors to open them. Whereas the driver could have had a clear view.
It’s about time the NUR stopped this Driver Only Operation farce, which nearly all passengers think is sillier than the Teletubbies.
I hope the idiot, who landed TransPennine routes with the inadequate number of Class 185 trains, now has a job where he can do no harm, like in charge of the railways on the Scilly Isles.
Huddersfield
I don’t know Huddersfield and the only thing I’ve ever bought in the town is a ticket to the football.
You arrive in the Grade I Listed Huddersfield station and walk out into the magnificent St. George’s Square, which should be a welcoming gateway to the town.
Compare it to Kings Cross Square, where there is generally something going on and on a Friday is bustling with food stalls.
I walked to the shops and did find Marks and Spencer in a prominent place, but why wasn’t the route for pedestrians only, as it was crammed with traffic and parked cars.
Huddersfield needs to think how they organise their town centre, as except for the square ut’s about as weloming to visitors as Turkey is to the Dutch.

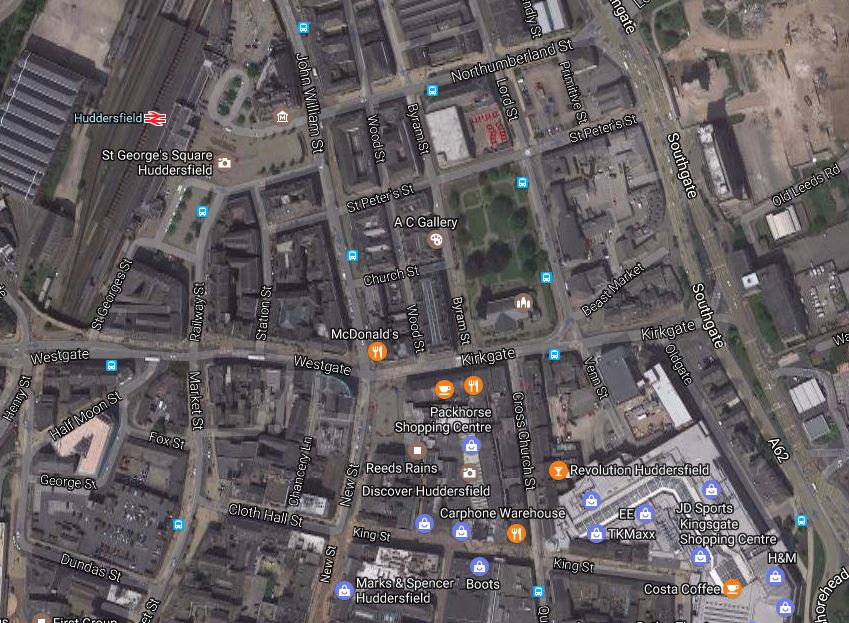

This Google Map shows the area.
I feel that Huddersfield needs what most European towns of this size would have and that is a tram, that goes through the centre.
You would walk out of the station and in the square would be a tram stop. Trams would go South along a pedestrianised John William Street and New Street. Obviously the route would be designed to go through the town to the main hospital, the University and if possible the the Council Offices, the Courts and the football/rugby stadium.
Incidentally, if you search for Huddersfield Hospital, you don’t find the NHS hospital, but a private one. All major hospitals should have a name like Ipswich, Reading or Crawley Hospital. It should also be galleria for sports venues to constantly change their names.
Huddersfield might wonder, why it doesn’t get the visitors, it thinks it should. It’s because it isn’t visitor friendly.
If I was a businessman wanting to set up a depot, warehouse or whatever in a large town in the North of England, Huddersfield would put me off because of its non-existent and chaotic transport system, built around everybody having a car with a sat-nav.
Match Twenty-Eight – Ipswich 0 – Wigan 0
This match was always going to be a disappointment, as the travel was so chancy.
It did show though, how important Daryl Murphy is to the team, as we rarely do well if he’s not in the team.
I think that as he’s a very good talker, his effect on the team may be more than just what he does with his feet and head.
Match Eight – Wigan 1 – Ipswich 2
This match was expected to be played on Saturday the twentieth, as my ticket showed.
A Ticket With The Wrong Date
But Sky decided to show the match and a few weeks ago, it was moved to Monday the twenty-second. It was actually better for me as it meant I could go to Millwall to see them play league leader; Forest, with a friend.
So as it was Monday night and there were no trains back to London from Wigan after the match, I decided to go to see a friend in Liverpool University and stay the night in the Second City. Partly, this was because there was no acceptable hotel in the centre of Wigan. I would have thought, that given the Orwellian connection, that a decent hotel at Wigan Pier might be a goer. Even a Premier Inn at Wigan Pier would have a certain ring to it.
One point to note for all those living in London, is that I purchased my Liverpool Wigan return ticket on Sunday from the machine at Dalston Junction station.
My Liverpool Wigan Tickets
It cost me £5.20 with my Senior Railcard, which is the same price as that on-line from the Northern Rail website. But it is so much less hassle, as you get the tickets at the time you purchase. It’s fascinating to see how old-fashioned ticketing machines are fighting back against the Internet. Although of course, these new ticket machines on the London Overground, are effectively on-line terminals using the Internet to make a purchase.
I’d incidentally bought my First Class ticket to Liverpool from Euston on Virgin for £25.10 a couple of weeks ago. The guy opposite me paid £41 buying the night before. I know I have a Railcard, which cuts my price from £37.65. But my companion only paid a few pounds more booking the night before.
As we got tea, soft drinks and a snack, it just shows what good value some of these First Class tickets are.
I arrived at the match at Wigan about seven after taking a taxi from Wigan North Western. The welcome was its usual friendly one at the stadium and the bag check was an intelligent one. Inside, supporters of both sides weren’t that numerous.
A Sparse Crowd At The Match
But then the match was on Sky. This was Ipswich’s third time this season, so let’s hope it boosts the crowd at Portman Road.
I left the match a few minutes early, so I could be sure of getting a taxi back to the station. In the end a call to a taxi on 01942-242424 brought one immediately, so I had quite a few minutes to wait for my train to Liverpool. But as it was the last one at 22:03, I just had to catch it. Hopefully, when the electrification is complete, one of the benefits will be later trains connecting Liverpool, Manchester, Blackpool, Preston and the stations in between.
Perhaps too, Wigan Athletic could think of improving the transport to and from the ground. The taxis weren’t expensive, but finding one can be a problem, as the first driver told me. He incidentally gave me the number of a rival company to get back to the station.
I suspect that there is a walking route from a bus stop near the ground. It should be indicated at the station. And where is the Wigan version of London’s bus spider map at the station?
As it was the match was a fair result, as I agreed with a fellow Ipswich fan on the train back to Liverpool. He only has limited vision and was escorted to the match by his guide dog; Trigger., who I’d met in 2010 at Crewe. Apparently, Trigger gets a very good welcome at the DW Stadium.
Wigan Do It Again!
Last year I asked if there was a God, when Wigan beat Manchester City in the FA Cup Final.
Has she just told everybody, she’s a Wigan supporter, as they’ve done it again?
I suppose Manchester City will have to buy a few more players, as this lot don’t realise that money is everything!
Wigan Parish Church From The DW Stadium
I took this picture at half time of Wigan Parish Church from the DW Stadium.
Wigan Parish Church From The DW Stadium
It’s one of those times, that I wished I’d had a proper camera and a long lens with me.
The Crazy World Of Arthur Brown
I’ve never actually seen the band, but I haven’t heard of them for years. So I was surprised to see this poster at the side of the road in Wigan.
The Crazy World Of Arthur Brown
But like most bands of the 1960s, the The Crazy World Of Arthur Brown seems to keep going.
Wigan On The Up
I went to Wigan to see Ipswich play. These are pictures, I took show the area around the North Western station and the station itself.
Incidentally, the toilets were some of the best and cleanest, that I’d ever found on any railway station. They were free too!
I’m sure if all stations were as clean and tidy as Wigan North Western, then more people would travel by train.
The sun was even shining.
Incidentally, Wikipedia says this about Wigan North Western station.
In 2009 North Western station was identified as one of the ten worst category B interchange stations for mystery shopper assessment of fabric and environment, and was set to receive a share of £50m funding for improvements.
It looks like the money has been well spent, as the description didn’t fit the station I visited.
The Anonymous Widower
