Do Tourists To The UK Get Bad Advice On How To Use The Trains?

I travelled out to Oxford with a Chinese family from Hong Kong.

  • They were going to Oxford and home via Bicester Village.
  • They had actually flown into Edinburgh and after spwnding a few days in the City, they had taken the train to London, where they were spending another few days.
  • They were going to spend a day in Paris using Eurostar.

I think they had booked most of the tickets in Hong Kong before they left.

Knowing, what I know about ticketing, I would have organised things a bit differently.

Family And Friends Railcard

Purchase of a Family and Friends Railcard can give discounts for a one-off fee of £30.

To find out ticket orices with the Family and Friends Railcard web site.

Splitting A Journey

Most tickets other than Advance tickets allow the ticket holder to break a journey and then carry on later.

Because I am a coeliac and need gluten-free food, if I’m travelling a long distance, I may break the journey in say Birmingham, Glasgow, Leeds or Manchester, where I know I can get a quality gluten-free meal.

Tourists might want to break a journey between Edinburgh and London at York or Durham. This is possible on an Off Peak or Anytime ticket.

Tickets To Or From Stations Or Terminals

This ticket is a First Class Off Peak ticket between Manchester Stations and London Terminals, using Any Permitted Route.

I actually used it between Manchester Piccadilly and London Euston stations, but I could have used the ticket to go via Birmingham and then take Chiltern Railways from Birmingham to London Marylebone.

I think the general rule is if your ticket is marked Any Permitted Route and you keep going in the same direction, most routes are possible.

I always ask first, as some companies have different rules.

Visiting Bicester Village, Oxford And Windsor In One Day

The Hong Kong family I met were visiting Oxford and Bicester Village.

The best way to do this is to make sure you have a Day Return ticket  between London Terminals and Oxford, which is marked Any Permissible Route.

This will enable you to do the following three journeys.

  • London Paddington to Oxford.
  • Oxford to Bicester Village
  • Bicester Village to London Marylebone.

With a Railcard, this ticket will cost £18.10.

If you want to visit Windsor, this can be done on the outward journey, by splitting the trip at Slough. There is a branch line to Windsor at Slough worked by a shuttle train, which costs £1.90 for a return trip with a Railcard.

Ranger And Rover Tickets

Check these tickets out, if you’re staying in a town or city for a few days, as they may be a cheaper option.

The various Rovers and Rangers are detailed on this web page.

London

The Oyster card in London is dying.

  • But don’t worry, as the same prices are available by using a contactless bank card.
  • Contctless bank cards have the same daily and weekly cap as Oyster.
  • Contactless bank cards also work on the Underground, Overground, buses, Docklands Light Railway and the Emirates Air Line.
  • You can now use contactless bank cards at London City, Gatwick, Heathrow and Luton Airports.
  • If you want to use Gatwick and Heathrow Express services, these can be accessed using contactless ticketing too!

It appears there are very few complaints.

If you want to read a detailed analysis of London ticketing, read this page on the Finding The Universe web site.

Summing-Up

I shall be adding to this page, as it is only a rough general guide.

Use the Contact form to send any suggestions or questions.







July 18, 2019 Posted by | Transport | , , , , , , | 2 Comments

An Automated Shuttle Train On The Slough-Windsor & Eton Line

The Slough-Windsor & Eton Line has the following features.

  • It is 2.5 miles long.
  • It is single-track.
  • It is not electrified
  • Trains on the route are two- or three-car diesel trains.
  • There is a single platform station at either end with no intermediate stations.
  • The service frequency is three tph.
  • Trains take six minutes to go between the two terminals.

The service on this line, can get exceedingly full and needs greater capacity.

To run the ideal four tph, trains would need do a round trip between Slough and Windsor & Eton Central in fifteen minutes.

If we assume that the two end stops take a total of three minutes, then that leaves just twelve minutes to cover the five miles of the round trip.

This is an average speed of 25 mph.

As with the Greenford Branch, I think that an appropriate train would be able to run an automated shuttle, with a frequency of four tph.

The train (or tram-train) would have the following features.

  • It would be battery-powered
  • It would have an operating speed of perhaps fifty mph.
  • It would have fast acceleration and deceleration.
  • It would have three- or four-cars.

The only infrastructure works that would be needed, would be to provide a fast charging station at Slough station.

February 19, 2019 Posted by | Transport | , , , , | 1 Comment

Slough To Windsor And Eton Central Station – 26th April 2018

I took these pictures as I travelled from Slough to Windsor and Eton Central station.

Note.

  1. Platform 1 at Slough has not been electrified, although the gantries are there.
  2. Some modern bridges probably stop full double-tracking of the route.
  3. There may be space for a passing loop on the line.
  4. The services is three trains per hour (tph) and the trip between the two stations takes just six minutes.

On balance if it were needed, I suspect that a track layout, signalling regime and operating method can be created that would allow a frequency of four tph.

A train would have fifteen minutes to do each round trip.



This would be tight, but I’m sure that there are operational methods, that could be used with a slightly faster Class 769 train to run the service.

April 26, 2018 Posted by | Transport | , , | Leave a comment

Exploring The Great Western Branches – 29th November 2016

On this morning, I explored the three branches of the Great Western Main Line, that are closest to London, to look at the progress of electrifying their connecting stations on the main line.

I then repeated the trip to add in two more branches.

I was also looking to see how services could be run with say four-car Class 387 trains, that had been fitted with on-board energy storage, as I wrote about in Rumours Of Battery-Powered Trains.

All the branches are described in order from London.

Electrification At West Ealing Station And On The Greenford Branch

These pictures show the electrification at West Ealing station, where the Greenford Branch Line connects to the main line.

This map from carto.metro.free.fr shows the area in the photographs, at the Southern end of the Greenford Branch Line.

The Southern End Of The Greenford Branch

The Southern End Of The Greenford Branch

Notes and queries.

  • The pictures of the lines were taken from a footbridge over the line, behind the Access Self Storage.
  • The lines in the map show an older layout.
  • The track in the bay platform 5 has access to both tracks on the Greenford Branch, which means that two trains could work the line to provide a four trains per hour (tph) service.
  • The Up Slow line has access to both tracks on the Greenford Branch and to the new West Ealing sidings.
  • The island for Platforms 4 and 5 appears to be more or less complete.
  • Platform 3 needs to be lengthened.
  • There are signs of foundations for the footbridge, past the end of the current Platform 3 and in the construction works beyond Platform 5.
  • Will the Bay Platform 5 be double-sided? There’s no foundations for a bridge on the Platform 4/5 island.
  • Will Platforms 1 and 2 be reconstructed or removed?

I suspect that the station is ready for a  four tph diesel shuttle to Greenford, but the Bay Platform 5 can’t be wired until the bridge is in place.

Could Electric Trains With On-Board Energy Storage Work The Greenford Branch?

A few facts and thoughts.

  • The service is not possible at present, as there are no wires in the Bay Platform 5 at West Ealing station, where the trains would need to charge their storage between trips.
  • Trains would probably wait between three and five minutes at West Ealing station, which would be more than enough to top up the batteries.
  • The bay platform at Greenford station and platforms at the other stations will probably need lengthening, but there would probably be little other infrastructure work.
  • Incidentally, there is a tunnel on the branch, where blocks of housing have been built over the line, so electrification of the line could be difficult, unless provision was made, when the housing was built.
  • Without doubt, the track layout at West Ealing has been designed, so that two trains could provide a four tph service.
  • Two four-car trains could probably be parked in the bay platform. This could give operational flexibility.

Passenger routes between main line and Greenford Branch services would be as follows.

  • With Eastbound services on the main line, the change would a very easy walk of a few metres across the island platform.
  • With Westbound services on the main line, use of the bridge would be needed. But it looks like the footbridge has been positioned at the optimal position for both services and passengers joining or leaving the railway at West Ealing station.

As there will be frequencies of at least 8 tph on the main line and 4 tph on the branch, waiting will be a maximum of fifteen minutes.

The West Ealing Sidings

The pictures show the Orange Army swarming all over the new West Ealing Sidings, which will provide stabling for the new Class 387 trains.

I also took these pictures of the sidings as I returned to London.

Incidentally, as I passed through Old Oak Common on the way back to London, there were upwards of six of the new trains squatting in Hitachi’s new depot for the Class 800 trains.

If in the future, there is a variant of these trains with on-board energy storage, these sidings are certainly conveniently placed for the Greenford Branch.

Traffic On The Brentford Branch Line

These pictures were taken from Southall station of a train going onto the Brentford Branch Line.

I’d never seen any traffic here before and I only included the pictures, as Hounslow Council have aspirations for a passenger service on this line, that I wrote about in Could The Golden Mile In Houslow Get A Station?

If it was decided to open the Brentford Branch Line to passenger trains, then Class 387 trains with on-board energy storage would be a possibility to provide services.

A Heathrow Connect Class 360 Train in Platform 5 At Hayes and Harlington Station

I didn’t expect to see this.

A Heathrow Connect Class 360 Train in Platform 5 At Hayes and Harlington Station

A Heathrow Connect Class 360 Train in Platform 5 At Hayes and Harlington Station

But there were signalling issues, so they appeared to be  using the Class 360 train as a shuttle to Heathrow.

Electrification At Slough Station And On The Windsor Branch

These pictures show the electrification at Slough station, where the Windsor Branch Line or more correct, the Slough to Windsor and Eton Line connects to the main line.

Note.

  • There are overhead gantries over Platform 1 at Slough station, which is the bay platform for the Windsor Branch Line.
  • There is a line of overhead line gantries on the outside of the curve, as the Windsor Branch Line leaves Slough.
  • The gantries on the branch are lighter than those on the main line.
  • The Class 166 train in the picture had three-cars, so the platform could probably be lengthened for a four-car Class 387 train.

As there appears to be no work anywhere else on the branch, I have to assume, that the electrification doesn’t go very far along the Windsor Branch Line.

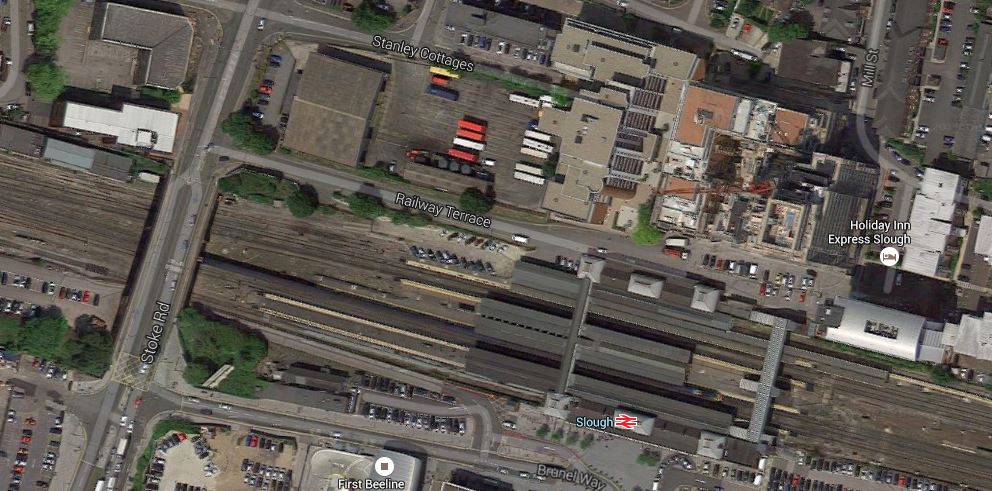

This Google Map shows the lines at the start of the Windsor Branch Line.

slough1

There are two main tracks at the start of the Windsor Branch.

The track closest to the blue building, is the actual branch.

  • It is a single track that goes between Windsor and Eton Central station and the Bay Platform 1 at Slough station.
  • Trains take six minutes for the journey.
  • The current frequency is three tph.
  • The bay platform 1 and a short length of the branch could be electrified.

The track furthest from the blue building is a long spur off the Down Main, that allows trains to be moved to and from the Windsor Branch Line.

  • It appears to be long enough for train to be parked on the spur.
  • It appears that the spur is being electrified for about a couple of hundred metres.
  • The spur could be extended or reconfigured to become a passing loop.

There also appears that there is a crossing that allows trains to move to and from the bay platform 1.

Could Electric Trains With On-Board Energy Storage Work The Windsor Branch?

Operation of the Windsor Branch would be as follow with a train fitted with on-board energy storages.

  • Trains enter the branch by going to the end of the spur and reversing into the bay platform 1.
  • Trains charge their on-board energy storage in Platform 1.
  • Trains run to and from Windsor using on-board energy, charging after each trip.
  • Trains leave the branch by going to the end of the spur and reversing onto the Down Main.

I have a feeling that if needed, that with small modifications, four tph might be possible, using two trains.

One of the possibilities unlocked by four tph could be to use the train to get passengers to the town from a Park-and-Ride site, beside Junction

Windsor And Eton Central Station

I took these pictures of Windsor and Eton Central station.

It certainly has several quality food outlets.

Electrification At Maidenhead Station And On The Marlow Branch

These pictures show the electrification at Maidenhead station, where the Marlow Branch Line connects to the main line.

Note.

  • Platform 5 is almost fully-electrified and the wires curve away onto the Marlow Branch.
  • Platform 4 and its connection to the Marlow Branch appears to be fully electrified.
  • There is a reversing siding to the West of the station in there somewhere.
  • There is an unfinished gap in the electrification of all lines to the East of Maidenhead station.

I wouldn’t think it would be long before all the electrification work is finished at Maidenhead station.

Could Electric Trains With On-Board Energy Storage Work The Marlow Branch?

So how will the various services to and from Maidenhead and on the Marlow Branch be handled, if Class 387 trains with on-board storage were available?

  • Between London and Maidenhead services would be worked using overhead power.
  • Between Maidenhead and Bourne End, services would be worked using on-board energy storage, that would be charged in Platform 5 at Maidenhead  or on the main line to and from London.
  • Between Bourne End and Marlow, the trains couldn’t run as they are too long and a two-car Class 166 would work the service and connect at Bourne End.

From the layout of the overhead wiring, I suspect that which of Platforms 4 or 5 is used at Maidenhead is flexible and which is actually used by a particular service would depend on many factors.

Electrification At Twyford Station And On The Henley Branch

These pictures show the lack of electrification work at Twyford station, where the Henley Branch Line connects to the main line.

The two slow platforms 3 and 4 at Twyford station, which will be used by Crossrail and Platform 5 which is used by the Henley Branch trains, show no signs of electrification, although work has been done on the fast platforms 1 and 2.

In the December 2016 Edition of Modern Railways, there is an article by Roger Ford entitled Electrical Clearances: The Plot Thickens.

As the stations either side of Twyford, which are Maidenhead and Reading, are both almost fully wired, there must be a serious reason why there isn’t any work started on Platforms 3, 4 and 5 at Twyford. Could it be that without either rebuilding the bridge or lowering the track and rebuilding the platforms, the new regulations can’t be met?

However, there could be a possible solution.

These trains will be using the station in a few years.

  • Class 800 trains, which are bi-mode.
  • Class 345 trains, which I believe could be fitted with on-board energy storage for other reasons, like tunnel emergencies.
  • Class 387 trains, which I believe could be fitted with on-board energy storage.

So could we see Platforms 3 and 4 at Twyfrord station without wires?

I’ve no idea!

But it does seem strange that no electrification work has been started at Twyford station, except on the fast lines, through Platforms 1 and 2.

Could Electric Trains With On-Board Energy Storage Work The Henley Branch?

So how will the various services on the Henley Branch be handled, if Class 387 trains with on-board storage were available?

Consider.

  • The branch is only a short one with a total length of 4.5 miles.
  • There are one tph on the branch, with extras to Paddington in the Peak.
  • Trains turn round in about four minutes.
  • From 2018, Twyford station will be served by 2 tph from Crossrail and 4 tph from GWR in each direction.
  • Platforms at all stations seem long enough for at least four-car trains.
  • There used to be a passing loop at Shiplake station.
  • Trains going to and from Paddington could charge their energy storage on the main line.

Two trains working a reconfigured branch could possibly create a 4 tph service.

Creating a four tph service on the Henley Branch, is the sort of problem, that engineers solve in the traditional way. – In a suitable hostelry!

I think that spending the money on a passing loop, some means of charging the trains and possibly a rebuilt Shiplake station, will be much better value, than electrifying the branch and the Crossrail platforms at Twyford station.

Electrification At Reading

In the December 2016 Edition of Modern Railways, there is an article entitled Loco-Hauled EMUs On GWR.

The article starts by saying.

GWR’s new Class 387 trains will be loco-hauled to and from their depot at Reading, until electrification between Maidenhead and Reading is completed.

Could this all be because, Network Rail don’t have a plan to electrify Twyford?

At least the depot seems electrified.

I didn’t see a Class 387 in their depot, but there were at least half-a-dozen parked at Hitachi’s depot at North Pole.

Electrification From Didcot To Oxford

The Cherwell Valley Line between Didcot and Oxford can be described as follows.

  • It is a double-track hemmed in on both sides.
  • The two stations at Radley and Culham are on narrow strips of land and could be difficult to electrify.
  • There is a tail of electrification gantries from Didcot Parkway onto the branch, which is typical of some other branches like Windsor and Marlow.
  • There were electrification piles in several places, either in the ground or just lying around.
  • The track could have be reconfigured to incorporate a new South-facing bay Platform at Oxford station.

These are some pictures.

One of Chiltern’s Class 168 trains was also hanging around, training drivers.

Could Electric Trains With On-Board Energy Storage Work Didcot To Oxford?

Didcot to Oxford is about 10.5 miles, so I suspect range is not a problem, especially if the new Southern Bay Platform is built, which would mean trains would not have to cross the lines wasting energy North of the station.

What would drive this, is not technology, but if Chiltern are running a service at their usual standard from Oxford to Marylebone, it could be take passengers from the GWR.

New Class 387 trains with on board energy storage could be a good weapon with which to fight back!

But then so would Class 800 trains!

Oxford Station

I took these pictures at Oxford station on the 1st of December.

Note GWR’s 13:01 arrival from Banbury into the new bay Platform 2.

Was I watching the first scheduled train into the new platform?

There certainly wasn’t any dignitaries!

National Rail’s Arrival and Departure details on the Internet certainly showed that Banbury services were using the new Platform 2 later in the day.

Conclusions

From my explorations I have come to the following conclusions.

  • There is a large gap in the electrification works at Twyford station.
  • It looks to my untrained eye, that the Greenford, Windsor and Marlow branches are being wired, so the branches could be served by electric trains with on-board energy storage.
  • The Orange Army is furiously at work creating new sidings at West Ealing for the Class 387 trains.
  • It is possible for trains to use the new bay Platform 2 at Oxford station.

It will be interesting to take a Chiltern service to Oxford, when the service opens on the 11th of December.

It certainly was a good day to take photographs.



November 29, 2016 Posted by | Transport | , , , , , , , | Leave a comment

Changing Trains At Slough

Yesterday I changed trains at Slough station and took these pictures.

Two pictures were taken a few weeks ago and are added to make the gallery more complete.

The new pictures were taken from Platform 2, which when the electrification is complete and Crossrail has opened, will be the platform serving fast trains to the West.

This Google Map shows the layout of the station.

Slough Station

Slough Station

If you look at the left (West) end of the station, you’ll see the extended platform that in addition being Platform 2, also serves the bay platform 1 for Windsor Branch Line services. I took the pictures from this platform.

Platforms 3 and 4 form a long island platform in the middle of the station, with Platform 5 on the far side.

When Crossrail opens, platforms 4 and 5 will be for that service and platforms 2 ans 3 will serve the main lines.

I am puzzling about how the wires will be passed through the station.

Note the following from my pictures and the Google Map.

  • The station is Grade II Listed, with lots of period details.
  • A lot of the canopies over the platform are good Victorian examples.
  • The station has two footbridges; a restored old one and a new modern one.
  • The modern one has probably been built to double as a gantry for the overhead wires, but has the old one been strengthened.
  • There is a solitary electrification mast on the island platform and this is paired with one on the far side of Platform 1.
  • There is evidence that double foundations are being built for a very large gantry at the far western end of the platforms.

I think that over the next couple of months or so, a lot of clues to Network Rail’s electrification design, will become visible at Slough.



March 26, 2016 Posted by | Transport | , , , , | Leave a comment

Things Seem To Be Moving On Crossrail’s Western Section

Returning from Windsor, I took the route via Slough and took these pictures.

Note.

I shall have to go back in the next few days and check on progress.

But it does seem that things are moving along apace.

February 26, 2016 Posted by | Transport | , , , | Leave a comment

Before Crossrail – Slough

Not A Station That Needs Friendly Bombs – Rating 7/10

Slough station is actually Grade 2 Listed, although today I didn’t have time to venture outside.

This is the Google Map of the station.

Slough Station - Downloaded 6th July 2015

Slough Station – Downloaded 6th July 2015

Crossrail has big plans for Slough station and say this.

In recent years the southern forecourt to the Grade II listed station has been improved. In contrast, the northern forecourt is somewhat neglected and is poorly utilised as a public space and arrival point to the town. Most of the space is given over to car parking and the forecourt surfaces are of poor quality with little footway space.

The traffic at Slough would also appear to be very similar to that at Shenfield, in that some long-distance services stop to pick-up and set down passengers.

So I do wonder that after Crossrail opens, the pattern of services between Paddington and the West will change and the station becomes a more important interchange.







October 13, 2014 Posted by | Transport | , , , | 2 Comments
