Soham Station’s Inaugural Year A Soaring Success

The title of this post, is the same as that of this article on Rail Technology Magazine.

This is the first paragraph.

Soham station has seen healthy and consistent passenger usage over its first year since opening to the public, seeing almost 50,000 journeys starting or finishing there, according to Greater Anglia’s figures.

I took these pictures, when the station opened.

I think Soham station is a good design of a single-platform station.

  • It’s a short walk from car park or drop-off point to the platform.
  • There is adequate car parking.
  • There is a shelter.

The station has also been built, so that it can be expanded.

These are my thoughts.

A Service To Cambridge

Soham station probably needs a train service to Newmarket and Cambridge, as it already has a two-hourly service to Bury St. Edmund’s, Ely and Ipswich and Peterborough.

Wikipedia says this.

There are no current plans for direct services to Cambridge, but the CPCA has expressed support for the idea in a future phase of the project. Mayor James Palmer said “the delivery of Soham station gives us a much stronger case to go to Government and Network Rail and lobby for the reinstating of the Snailwell loop which will provide a direct service between Ely, Soham, Newmarket and Cambridge”

This map from OpenRailwayMap shows the Snailwell Loop.

Note.

  1. The triangular junction in the middle of the map,
  2. The line from the junction leading East goes to Bury St. Edmunds and Ipswich.
  3. The line from the junction leading North goes to Soham, Ely and Peterborough.
  4. The line from the junction leading South goes to Newmarket and Cambridge.
  5. The Western side of the junction was removed by British Rail.

It would appear that by reinstating the Western side of the junction, a service between Ely and Cambridge via Soham and Newmarket could be run.

There are proposals for new stations in this area and given the need for comprehensive commuter services into Cambridge this Ely and Cambridge service could develop considerably.

The simplest service pattern would be

  • Peterborough via Ely, Manea, March and Whittlesea.
  • Ely non-stop.
  • Ipswich via Bury St. Edmunds and Stowmarket.
  • Cambridge via Newmarket and Dullingham.

All trains would be one train per two hours (tp2h).

Snailwell Junction And Cambridge

There could be problems between Snailwell junction and Cambridge, as the line is mainly single-track and it would need to handle the following trains.

Ipswich and Cambridge – 1 train per hour (tph)

Ely and Cambridge – 1 tp2h

Sundry freight trains.

In Roaming Around East Anglia – Newmarket Station, I wrote this about the plans of the East West Rail Consortium in the area.

In this document on the East-West Rail Consortium web site, this is said.

Note that doubling of Warren Hill Tunnel at Newmarket and
redoubling between Coldham Lane Junction and Chippenham Junction is included
in the infrastructure requirements. It is assumed that most freight would operate
via Newmarket, with a new north chord at Coldham Lane Junction, rather than
pursuing further doubling of the route via Soham.

So would it be possible to create a double-track railway through Newmarket station?

In the related post, I came to this conclusion.

Newmarket can benefit from East West Rail, but the two parties must agree objectives that don’t cause problems for the other.

But I do think, that Newmarket will not welcome the building of a double-track railway through the town.

The Proposed A14 Parkway Station

December 9, 2022 Posted by | Transport/Travel | , , , , , , , , | Leave a comment

Could An Oxford And Cambridge Service Be Run Via The Lizzie Line?

This article on the BBC is entitled East-West Rail: Part Of £5bn Scheme ‘Appears To Be Unachievable’.

These are the first four paragraphs.

A £5bn rail project “appears to be unachievable” in parts, a government report said.

The East-West Rail scheme will create a link from Oxford to Cambridge, with services being introduced in stages.

Stage two, between Oxford and Bedford, and stage three, between Bedford and Cambridge, have “major issues”, the Infrastructure and Projects Authority said.

A spokesman for East-West Rail said the delivery programme was “under review”.

As someone, who used to live near Cambridge, I have seen the transport routes improve in East Anglia, but not the area’s connections to the rest of the country.

The article describes Stage 2 and 3 of the East West Railway like this.

Stage two involves predominantly upgrading existing infrastructure, between Bletchley and Bedford, to allow services between Oxford and Bedford.

Stage three involves building a new line, between Bedford and Cambridge, to extend the railway and facilitate services from Oxford to Cambridge.

So if the Government feel that the major issues and opposition should lead to cancellation of the scheme to the East of Bedford or even Bletchley, what are the problems and alternatives?

Freight

The Port of Felixstowe is the UK’s busiest container port and it handles 48% of Britain’s containerised trade.

Having lived as a teenager in Felixstowe and in Suffolk for probably half my life, there is only one certainty about the port in my mind. It will get bigger and will generate more rail and road traffic in East Anglia.

  • The roads have improved greatly, since the 1960s, when I used to cycle between Ipswich and Felixstowe, along a two-lane single carriageway road.
  • The renamed A14 has replaced the A45 and now connects the port to the M1 and the M6.
  • Tens of long freight trains every day now connect Felixstowe with the rest of the country.
  • The East West Railway will be a very useful link between Felixstowe and South Wales and the West of England.
  • Global warming will mean the decarbonisation of heavy freight, with more traffic on an electrified railway.

Felixstowe’s connections to the North and Midlands may have improved greatly, but they will need to be improved a lot more.

The Port of Southampton is the UK’s second busiest container port.

  • Most freight trains from Southampton go North via Basingstoke, Reading and Oxford.
  • A plan some years ago was for an Electric Spine, that would have connected the Port of Southampton to the Northern cities.
  • The Electric Spine would have envisaged electrification of the East West Railway to the West of Bedford and electrified connections with the West Coast Main Line and the Midland Main Line.
  • The Midland Main Line is now planned to be fully electrified, under the the Integrated Rail Plan for the North and Midlands.

Southampton, like Felixstowe will be in need of improved transport connections.

In an ideal world, an electrified East West Railway, would improve freight connections between the UK’s two busiest container ports and major cities in the UK.

Problems With Freight

Could this be the major problem East of Bletchley, where the residents living along the route, don’t want to see large numbers of freight trains running close by?

In this document on the East-West Rail Consortium web site, this is said.

Note that doubling of Warren Hill Tunnel at Newmarket and
redoubling between Coldham Lane Junction and Chippenham Junction is included
in the infrastructure requirements. It is assumed that most freight would operate
via Newmarket, with a new north chord at Coldham Lane Junction, rather than
pursuing further doubling of the route via Soham.

Will the residents of Newmarket object to a double-track freight railway through the town? Freight trains and horses are not a good mix.

I do wonder, if freight trains hauled by noisy and unfriendly diesel locomotives are one of the reasons a full Oxford and Cambridge railway is losing its appeal and becoming a vote loser for the Government.

Cambridge Has An Accommodation And Commuting Problem

There is a shortage of accommodation in Cambridge for offices, laboratories, workshop and above all workers.

So it looks to the surrounding towns and cities to provide help.

London and Ely have good links, but the city needs better links to Bedford, Bury St. Edmunds, Haverhill, Ipswich, Norwich, Kings Lynn, Peterborough, Soham, Stansted Airport, Stevenage, Sudbury and Thetford.

Cambridge may be the place in the South East with the largest numbers of commuters from London.

Cambridge Needs A Decent Rail Network

In my view Cambridge needs at least the following services in trains per hour (tph)

  • Colchester via Haverhill, Sudbury and Marks Tey – 2 tph
  • Ipswich via Newmarket, A14 Parkway, Bury St. Edmunds, Stowmarket and Needham Market – 2 tph
  • King’s Lynn via Cambridge North, Ely and Downham Market – 2 tph
  • Oxford via Bedford, Milton Keynes/Bletchley and Bicester – 2 tph
  • London King’s Cross via Cambridge South – 2 tph
  • Norwich via Cambridge North, Ely, Thetford, Attleborough  and Wymondham – 2 tph
  • Peterborough via Cambridge North, Ely and March – 2 tph
  • Stansted Airport via Cambridge South and Audley End – 2 tph
  • Stevenage via Royston and Hitchin – 2 tph
  • Wisbech via Cambridge North, Ely and March – 2 tph

Note.

  1. Some services already exist.
  2. Some of these services duplicate each other to give 4 tph or even 6 tph on certain routes.
  3. Some services could be back-to-back through Cambridge.
  4. A 14 Parkway station is a new station proposed by the East West Railway. I wrote about it in detail in Soham Station – 14th December 2021.
  5. Haverhill would be served by a rebuilt Stour Valley Railway.
  6. Wisbech would be served by restoring the railway to March.

To complete the network there would be a two tph service between Peterborough and Ipswich, which would go via March, Ely, Soham, A 14 Parkway, Bury St. Edmunds, Stowmarket and Needham Market.

Oxford Could Probably Argue that It Needs A Decent Rail Network Like Cambridge

Oxford would argue this and they have a point.

The East West Railway Is The Odd Line Out

Looking at the rail networks at Cambridge and Oxford, it appears, that with the exception of Cotswold services at Oxford and a few CrossCountry services, it appears that the East West Railway is a bit of an odd line out, as everything else is a local service.

The Effects Of Not Building The Bedford And Cambridge Section Of The East-West Railway

What will it mean, if the Bedford and Cambridge Section of The East-West Railway is not built?

  • Cambourne will not get the promised station.
  • Bedford and Cambridge journeys will be by bus, train via London or private car.
  • Commuting into Cambridge from the West will be difficult.
  • Milton Keynes and Cambridge journeys will be by bus, train via London or private car.
  • Oxford and Cambridge journeys will be by bus, train via London or private car.
  • Train journeys between Cambridge and much of the rest of the UK, will need to go via London.

It would appear that by not building the third section of the East West Railway, a lot of potential passengers will be denied a rail service.

Could Services Be Run Using Existing Infrastructure Through London?

The Elizabeth Line will eventually be able to handle a lot more services than it does at present.

Would Extending The Elizabeth Line To Oxford Be A Good Start?

Consider.

  • Oxford has two services to London; Chiltern to Marylebone and Great Western Railway (GWR) to Paddington.
  • The GWR service to Paddington stops only at Reading and Slough, has a frequency of two tph and takes under an hour.
  • The fastest journey between Oxford and Liverpool Street using a fast GWR train and the Elizabeth Line takes one hour and 20 minutes.
  • Only 10.6 miles of the route between Oxford and Paddington is without electrification.
  • There is also a two tph stopping shuttle train between Oxford and Didcot Parkway stations and a two tph stopping train between Paddington and Didcot Parkway.

I feel that combining the two Didcot Parkway services and moving them to the Elizabeth Line would be an experiment worth trying.

This would give 2 tph direct to the following stations.

  • Bond Street for the West End
  • Canary Wharf for finance.
  • Farringdon for Cambridge, Gatwick and Brighton.
  • Hayes & Harlington for Heathrow.
  • Liverpool Street for the City of London, Cambridge and Stansted
  • Reading for Wales and the West.

Note.

  1. No-one would have a worse service than currently, but many passengers would avoid a change on their journey.
  2. Services could terminate at either Abbey Wood or Shenfield stations.
  3. Services could be an extension of the two tph to Reading or additional services.
  4. Between Didcot Parkway and Oxford is shown on OpenRailwayMap, as proposed for electrification.
  5. There may need to be some new platforms at Didcot Parkway station.
  6. I estimate that between Oxford and Liverpool Street would take one hour and fifty minutes.

It certainly looks, that it would be possible to replace the current GWR service between Oxford and Paddington, with an all-electric Elizabeth Line service.

The direct stopping service between Oxford and Liverpool Street would be thirty minutes slower, than the current fastest train.

The current fastest train between Liverpool Street and Cambridge takes 71 minutes, so with a change at Liverpool Street Oxford and Cambridge  would probably be just over three hours.

Google Maps estimate a driving time of two hours between the two University Cities.

Could The Elizabeth Line Be Extended To Cambridge?

There is no train connection between the Elizabeth Line and the West Anglia Main Line at Liverpool Street station, although the walk for passengers is not that long.

In Extending The Elizabeth Line – Connecting West Anglia Main Line Services To The Central Tunnel, I describe how it could be possible to connect the West Anglia Main Line to the Elizabeth Line at Stratford station.

This connection would allow services from Cambridge, Harlow and Stansted to anywhere on the Elizabeth Line to the West of Stratford.

Oxford and Cambridge and Heathrow and Stansted would be distinct possibilities.

Could A High Speed Limited Stop Service Run Between Oxford And Cambridge?

In Extending The Elizabeth Line – High Speed Trains On The Elizabeth Line, I proposed running faster long-distance trains through the Central Tunnel of the Elizabeth Line.

  • They would have to be dimensionally identical to the Class 345 trains to fit the platform edge doors.
  • They would have a long-distance interiors.
  • In the Central Tunnel, they would behave like 345 trains. with Paddington to Stratford taking 19 minutes.
  • But on main lines like the Great Western Main Line, they could rattle along at 125 mph.

If the trains could keep up with Class 802 train performance between Oxford and Paddington and enter the Central Tunnel quickly, these times could be possible.

  • Oxford and Paddington – 55 minutes
  • Paddington and Stratford – 19 minutes
  • Stratford and Tottenham Hale – 14 minutes
  • Tottenham Hale and Cambridge – 65 minutes

Just over two-and-a-half hours, without a change of train, sounds fine to me.

What About The Trains From Great Malvern?

The fast services between Paddington and Oxford, run twice an hour, with the service formed of one hourly Paddington and Oxford service and another hourly Paddington and Great Malvern service.

  • If Oxford gets electrified soon, this will mean that the Oxford and Paddington service would be all-electric.
  • But the Great Malvern service would need to be able to handle 65.5 miles of line without electrification each way.
  • The speed limits between Oxford and Great Malvern vary between 70 and 100 mph.

I’m certain that Stadler could design and build a train, with the following characteristics.

  • Class 345 dimensions.
  • 125 mph performance.
  • Ninety miles range on battery power.

The trains would be charged between Paddington and Oxford and by a charger at Great Malvern.

Conclusion

Would an Oxford and Cambridge service through Central London be an alternative to the East-West Railway?

Perhaps not an alternative, but an addition?











August 3, 2022 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , | 3 Comments

Soham Station – 14th December 2021

I visited the new Soham station today.

I took four trains in total.

  • The 11:12 from King’s Cross, which arrived at  Ely at 12:23
  • The 12:31 from Ely, which arrived at  Soham at 12:39
  • The 12:51 from Soham, which arrived at  Ely at 12:59
  • The 13:18 from Ely, which arrived at King’s Cross at 14:33

The outward journey took  87 minutes, with the return taking 102 minutes.

I took these pictures at Soham station.

Note.

  1. The train is a three-car Class 755 train.
  2. There is only a single platform.
  3. There are dropped kerbs everywhere on the walking routes.
  4. There is plenty of car parking.
  5. There are disabled car parking spaces.
  6. There is a circular turning area in front of the station, which forms a high-capacity Kiss-and-Ride, with space for a couple of buses.
  7. The track towards Ely is single-track
  8. The track towards Bury St. Edmunds and Ipswich is double-track.
  9. The bridge is ready for a second platform, should it be needed and/or installed.
  10. The station is unmanned.

These are some further thoughts.

Is Soham The Ultimate Step-Free Station?

Consider

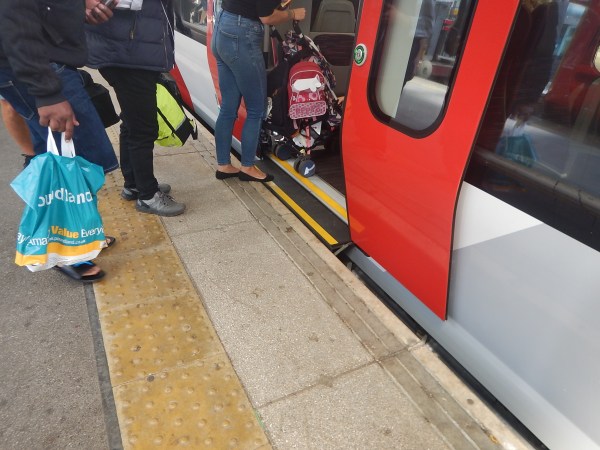

  • Greater Anglia’s Class 755 trains are level with the platform, as they have gap fillers.
  • Walking from the car parking to the train is step-free.
  • There are lots of dropped kerbs and tactile pavements.

I suspect it is one of the few stations in the UK, where if you arrive on foot or by car or bus, that there is no step to the train.

This document on Network Rail says this about the footbridge.

A stepped footbridge across the railway to connect to an existing public right of way, designed for future installation of lifts if a second platform is constructed.

It looks like Network Rail have all eventualities covered.

The Station Has Adequate Parking

This picture from the gallery shows the parking to the South of the station.

The Network Rail document says that the car park can accommodate 50 vehicles and has four spaces for blue badge holders.

But looking at this picture, there could be space for more parking.

The Station Is Well-Connected To The Road System

This Google Map shows the town of Soham.

Note.

  1. Soham has a by-pass around the Eastern side of the town.
  2. The railway passes to the West side of the town.
  3. The station is marked by the small blue dot to the left of the word Soham in the middle.
  4. The old road goes through the centre of the town.
  5. Soham is a town of nearly eleven thousand people.
  6. I suspect the town is fairly flat and many will walk or cycle to the station.

Hopefully, the station will attract a lot of passengers.

Does The Station Need A Second Platform?

Network Rail have shown with the Borders Railway and the Avocet Line, that two trains per hour (tph) can be run reliably on a line with sections of single-track and some stations with only one platform.

One of the problems with a second platform at Soham, would be that lifts would be needed for many to cross the track.

It is not the cost that is the problem, but lifts do not have a hundred percent reliability.

Would installing lifts mean providing staff at the station?

I think, that unless the station attracts a lot of passengers, the second platform will never be built.

Would A Second Track Be Provided At Soham Station?

This is a different question, with possibly a different answer.

A large number of freight trains pass through Soham station each day and to increase their number Network Rail have proposed double-tracking the route between Soham and Ely.

As Soham and Ely are just over five miles apart, I wonder if Network Rail are thinking of putting a freight loop through Soham station, that continues to Ely.

These pictures show a long freight train waiting in the freight loop at Ely station before proceeding to Peterborough and the West.

I think that this loop is bi-directional.

Could the new freight loop be built, so that the following happens?

  • The freight loop starts to the South of Soham station.
  • The freight loop connects to the freight loop at Ely station.
  • All passenger trains use the current single-track.
  • All freight trains use the freight loop.
  • Both tracks would be bi-directional.
  • Freight trains don’t pass through the current platform at Soham station.

It stood be noted that passenger  and freight trains take less than ten minutes between Ely and Soham stations.

As both freight and passenger trains would have their own tracks, I suspect that a total of at least four passenger tph and four freight tph would be able to pass between Soham and Ely.

The A14 Parkway Station

I wrote this section originally in Soham Station Aims For December 2021 Opening, but it still applies.

The A14 Parkway station is a proposal from the East West Railway.

  • It would be just to the East of Chippenham junction and would be served by both Greater Anglia’s services between Ipswich and Cambridge and Ipswich and Peterborough.
  • It would also be close to the major road junction, where the A11 and the A14 meet.
  • It would be a Park-and-Ride station.

I believe it could be a major factor in cutting road mileage in East Anglia, as drivers going to Cambridge from Ipswich, Norwich, a large area of North-East East Anglia and North Essex could find that using the A14 Parkway station an easier and faster route. But the A14 Parkway would need a frequent service to the soon-to-be-three main Cambridge stations.

A Soham and Cambridge service could reverse at the A14 Parkway station or by careful timetabling, passengers would be able to change trains in a minute or two.

A Cambridge And Soham Service

I do wonder, if Cambridge could benefit from a triangular metro.

The three points of the triangle would be A14 Parkway, Cambridge South and Ely stations.

The three legs would have the following stations.

  • A14 Parkway and Cambridge South – Newmarket, Dullingham, Six Mile Bottom *, Fulbourne *, Cherry Hinton * and Cambridge
  • Cambridge South and Ely – Cambridge, Cambridge North and Waterbeach
  • Ely and A14 Parkway – Soham and Fordham *

Note.

  1. Stations marked with an asterisk (*) are possible new stations.
  2. The basic frequency would be one tph.
  3. Trains would reverse at A14 Parkway, Cambridge South and Ely stations.

The triangular nature of the service may mean that to avoid the driver constantly changing ends, that automation and video technology may allow driving from either end of the train.

These existing services would fit in with the triangular service.

  • Norwich and Stansted Airport via Cambridge South, Cambridge, Cambridge North, Waterbeach and Ely.
  • Ipswich and Peterborough via A14 Parkway, Soham and Ely
  • Ipswich and Cambridge via A14 Parkway, Newmarket and Dullingham
  • Wisbech and Cambridge via Cambridge North, Waterbeach and Ely.
  • King’s Cross and King’s Lynn via Cambridge South, Cambridge, Cambridge North, Waterbeach and Ely.
  • Birmingham and Stansted Airport via Cambridge South, Cambridge, Cambridge North, Waterbeach and Ely.

Note.

  1. All services would probably be one tph.
  2. Some services currently terminating at Cambridge, may be extended to Cambridge South.
  3. There will be other services from East West Railway.

The frequencies on the various legs would be as follows.

  • A14 Parkway and Cambridge South – 2 tph plus one tph from East West Railway
  • Cambridge South and Ely – 5 tph plus one tph from East West Railway
  • Ely and A14 Parkway – 2 tph

The route between A14 Parkway and Cambridge would need to be improved, but this is planned by East West Railway.

Would It Be Possible To Commute From Soham To London?

My timings of around ninety minutes are probably well within the endurance of the average commuter.

Conclusion

Soham station is not your run-of-the-mill rural station.



December 14, 2021 Posted by | Transport/Travel | , , , , , , , , , , | 3 Comments

Soham Station Aims For December 2021 Opening

This article on Rail Technology Magazine is entitled Soham Set To Benefit From New Station After 56 years Without.

Work only started on Soham station earlier this year, so this paragraph is a bit of a surprise.

The completion of the work means that from December, Greater Anglia’s Ipswich to Peterborough service will finally be able to stop at Soham once more, better connecting the population.

The work referred to is changes to the signalling to allow services to call at the new Soham station.

It certainly appears that the station is being built at a canter!

I have some thoughts on the station.

Station Location

This Google Map shows the town of Soham.

Note.

  1. The railway between Ely and Ipswich running North-South at the Western edge of the map.
  2. Station Road connecting the town centre to the railway.
  3. Looking at the map to a large scale, it certainly appears that construction has started, as dark green portacabins and red and white barriers ae visible.

This Network Rail visualisation shows the proposed station.

Note.

  1. The visualisation is looking to the East.
  2. Ely and Peterborough are to the left.
  3. Bury St. Edmunds and Ipswich are to the right.
  4. The footbridge is wide enough to cross a double-track, although the route is currently only single-track at this point.
  5. There is just a single platform on the town side of the track.

It appears to be a simple design, that possibly could speed the construction.

Station Design

This Network Rail visualisation is a closer view of the proposed station.

Note.

  1. The turning circle and the carpark on the town (Eastern) side of the station can be clearly seen.
  2. The single platform will be 100 metres long and will be able to accommodate a four-car Class 755 train, which is 80.7 metres long.
  3. It appears that there is a concrete wall at the back of the platform. Is this to protect passengers from the sometimes-biting winds of the Fens or the swirling air currents generated by passing freight trains.

The station and footbridge are future proofed for a possible second platform and lifts.

Services

Currently, Greater Anglia runs a train between Ipswich and Peterborough every two hours, although this was promised to be doubled in frequency at some time in the future.

Times to various stations are as follows.

  • Ipswich – 48 minutes
  • Bury St. Edmunds – 19 minutes
  • Ely – 9 minutes
  • Peterborough – 50 minutes

These times are from Real Time Trains, which already acknowledges the station.

Note that to get to the important city of Cambridge passengers will need to change at either Bury St. Edmunds or Ely.

In the future there are two ways that the connection between Soham and Cambridge can be improved.

Reinstatement Of The Warren Hill Junction and Snailwell Junction Chord

This Google Map shows the layout, where the Ely and Ipswich Line and the Cambridge Branch Line join to the North of Newmarket in a triangular junction.

Note.

  1. The A14 runs across the top of the map.
  2. The Ely and Ipswich Line runs in a curve to the South of the A14 and the British Racing School.
  3. The former Snailwell junction was to the South of the British Racing School and was the Northern point of the triangular junction.
  4. Chippenham junction is the Eastern point of the triangular junction and is where the Ely and Cambridge lines join.
  5. The former Warren Hill junction was at the South close to the stables of Godolphin and John Gosden and was the Southern point of the triangular junction. From Warren Hill junction the railway runs through the Warren Hill tunnel to Newmarket station and ultimately to Cambridge.

If the chord were to be reinstated between Snailwell and Warren Hill junctions, it would be possible to run an hourly service between Soham and Cambridge via Dullingham and Newmarket.

The A14 Parkway Station

The A14 Parkway station is a proposal from the East West Railway.

  • It would be just to the East of Chippenham junction and would be served by both Greater Anglia’s services between Ipswich and Cambridge and Ipswich and Peterborough.
  • It would also be close to the major road junction, where the A11 and the A14 meet.
  • It would be a Park-and-Ride station.

I believe it could be a major factor in cutting road mileage in East Anglia, as drivers going to Cambridge from Ipswich, Norwich, a large area of North-East East Anglia and North Essex could find that using the A14 Parkway station an easier and faster route. But the A14 Parkway would need a frequent service to the soon-to-be-three main Cambridge stations.

A Soham and Cambridge service could reverse at the A14 Parkway station or by careful timetabling, passengers would be able to change trains in a minute or two.

Two Trains Per Hour Between Newmarket and Cambridge

An hourly service between Soham and Cambridge would add an invaluable second hourly service between Newmarket and Cambridge.

It would also fit in with the regular proposals to reopen stations at Six Mile Bottom, Fulbourn and Cherry Hinton.



August 31, 2021 Posted by | Transport/Travel | , , , , , , | 1 Comment

East West Rail Takes New Steps Further East

The title of this post is the same as that of this article on Rail News.

This is the introductory paragraph.

A business case for improving train services between Cambridge, Ipswich and Norwich is to be developed by consultants on behalf of the East West Rail Consortium, as an addition to the plans for reopening the former Varsity Line between Oxford, Bedford and Cambridge.

I have covered this before in East West Rail Makes ‘Powerful Case’ For Direct Services From Ipswich And Norwich To Oxford, where I reference this report on the East-West Rail web site, which is entitled Eastern Section Prospectus and gives full details of their proposals.

I particularly like these smaller projects.

  • An A14 Parkway station.
  • A frequent tram-train between Ipswich and Felixstowe.
  • Some extra electrification
  • Increase of speed limits to 100 mph
  • Haughley Junction improvements.

I suspect the consultants will come up with a few more useful projects.

August 6, 2020 Posted by | Transport/Travel | , , , , , | 2 Comments

Could Suffolk Have It’s Own Version Of London’s Freedom Pass?

London has a travel pass for certain groups of passengers, like the elderly and the disabled called a Freedom Pass.

This is the introduction forthe Freedom Pass from Wikipedia.

Freedom Pass is a concessionary travel scheme, which began in 1973, to provide free travel to residents of Greater London, England, who are aged 60 and over (eligibility age increasing by phases to 66 by 2020) or who have a disability. The scheme is funded by local authorities and coordinated by London Councils. Originally the pass was a paper ticket, but since 2004 it has been encoded on to a contactless smartcard compatible with Oyster card readers.

I have a Freedom Pass, as I am seventy-two and it really gives me freedom, as my eyesight isn’t good enough for me to drive.

Other parts of the UK like Manchester and Newcastle have similar schemes that allow a degree of free travel on local trains, trams and light rail systems.

But generally English counties like Suffolk don’t have such a scheme.

East Anglia’s Rail Revolution

All of Greater Anglia’s trains are being replaced with new Stadler Class 745 and Class 755 trains.

In InterCity Quality For Rural Routes, I said this.

Greater Anglia are purchasing a fleet of 38 trains with a total of 138 carriages to replace 27 trains with a total of 58 carriages.

  • This is a forty percent increase in the number of trains.
  • This is nearly two and a half times as many carriages.
  • The average number of carriages per train is raised from 2.1 to 3.6.

That is a massive increase in train capacity.

I don’t believe that Greater Anglia will park these trains in a siding, but use them to increase frequencies.

Greater Anglia are having signalling problems introducing the new trains, but we have already seen the following in Suffolk.

Four-car Class 755 trains running from Ipswich to Cambridge, Felixstowe and Lowestoft.

As the frequency is still the same and train length has increased from one, two and three cars, this is almost a doubling of capacity.

The UK’s Contactless Ticketing Revolution

London started wide-scale contactless tickerting and in places, it is applied to rural routes like Iver and Reading on TfL Rail’s new Western branch, where frequencies are more Suffolk, than Central London.

I believe in the next few years, the average passenger going between say Newmarket and Ipswich in Suffolk, will touch-in at Newmarket with their credit card and touch-out at Ipswich, just as passengers do now, millions of times all over London, every day of the year.

London’s Freedom Pass looks to the readers in London, as just a different credit card, so it is able to allow passengers through.

I believe that once Suffolk goes contactless with ticketing, then it will be possible to overlay a Suffolk Free Travel Pass on the system.

What Lines Would Be Allowed To Be Used By Passengers With A Suffolk Free Travel Pass?

These are routes that are wholly or partly in Suffolk.

Ipswich And Cambridge

The Ipswich and Cambridge Line currently has one train per hour (tph) and is wholly in Suffolk, except for a short section at the Cambridge end of the route.

Would a Suffolk Travel Pass allow travel to Cambridge?

I suspect that both Cambridgeshire and Suffolk would have reasons for a compromise , as both counties could benefit from visiting Travel Pass holders.

I would include Ipswich and Cambridge in a Suffolk Free Travel Pass.

Ipswich And Diss

The section of the Great Eastern Main Line, between Ipswich and Diss, currently has two tph and is wholly in Suffolk, except for a short stretch at Diss, which is just over the border in Norfolk.

I would include Ipswich and Diss in a Suffolk Free Travel Pass.

Ipswich And Felixstowe

The Felixstowe Branch Line currently has one tph and is wholly in Suffolk.

But this route is planned to be upgraded as I wrote in Could There Be A Tram-Train Between Ipswich And Felixstowe?.

  • Tram-trains would start at Ipswich station and run to \felixstowe.
  • Tram-trains could start on the forecourt of Ipswich station and could run through the streets of Ipswich, via Portman Road, the Town Centre, Christchurch Park, Ipswich Hospital, the proposed new housing at Westerfield and Ransome’s Retail Park before joining the Felixstowe  Branch, in the area, where it crosses the A14.
  • It could even do more street running in Felixstowe to connect to the Town Centre and the Sea Front.
  • Frequency would be four tph.

Removing the passenger service from the rail lines between Derby Road and Ipswich stations, would allow more freight trains to run through the area.

I would include Ipswich and Felixstowe in a Suffolk Free Travel Pass.

Ipswich and Lowestoft

The East Suffolk Line currently has one tph and is wholly in Suffolk.

I believe that this line could be developed by adding a second hourly service to Aldeburgh.

I would include Ipswich and Lowestoft in a Suffolk Free Travel Pass.

Colchester And Peterborough

The current service runs between Ipswich and Peterborough, and is a service of one train per two hours.

Greater Anglia plan to do the folloeing.

  • Increase the frequency to one tph.
  • Extend the route to run between Colchester and Peterborough.
  • It will terminate in a bay platform at Colchester.

The route will be mainly in Suffolk, with thends in Cambridgeshire and Essex.

  • Passengers for the North and Scotland will change at Peterborough.
  • Passengers for London will change at Colchester, Ipswich, Cambridge and Peterborough.
  • Passengers for Stansted Airport, Hertfordshire and West Essex will change at Cambridge.
  • Passengers for Sudbury will change at Colchester.

This route will become a very important connecting service.

Because of this connectivity, I would include Colchester and Peterborough in a Suffolk Free Travel Pass.

Colchester Town And Sudbury

The Gainsborough Line currently has one tph and is an isolated line that is half in Suffolk and half in Essex.

I would include Colchester Town and Sudbury in a Suffolk Free Travel Pass.

How Would It Be Funded?

Wikipedia says this sabot the funding of London’s Freedom Pass.

The cost of providing the travel concession is negotiated between London Councils and the local transport operator Transport for London. It is funded through a mixture of national grant and council tax.

Although a similar process could be used for a county like Suffolk, other elements are present, that have effects on use and revenue.

Only One Train Operator

There is only one train operator involved; Greater Anglia.

This must make planning and operation easier.

Greater Anglia Should Benefit From Passengers Travelling Further

Will passengers use their passes to get to Ipswich and Peterborough to travel further?

If they do, then Greater vAnglia won’t be bothering.

Greater Anglia may be able to fill the twelve-car Clsass 745 trains in the Peaks, but filling them in the Off Peak will be more difficult.

Would a Suffolk Free Travel Pass attract passengers to the trains?

Modal Change

This is a big imponderable in any calculation.

If you live near a station, would you be more likely to use the train to go to work, shopping or a meal in Ipswich, Bury St. Edmunds or Cambridge, if the train was free?

Only partly, but if the car parking was expensive or always full, that would be a deterrent.

People plan travel against a large range of parameters and cost is one of them.

Would a Suffolk Free Travel Pass take pressure off the roads.

Trips To The Coast

There are only two rail-connected coastal towns in Suffolk; Felixstowe and Lowestoft.

Travel on a sunny day between Ipswich and Felixstowe and the train can be packed with passengers going for a stroll along the sea front.

With more capacity, this usev will increase and especially amongst those who would be eligible for a Suffolk Free Travel Pass.

Carbon Emissions

People are starting to take notice of carbon emissions.

But they’re not buying electric cars, as they worry about the range.

So taking the train is a sop to the pressure of their conscience or that of their children.

Stansted Airport

There are two tph between Cambridge and Stansted Airport.

Travelling from say East Suffolk to the sun, could start with a train to the nearest airport using a train at Cambridge.

East-West Suffolk Travel

Suffolk is not the largest county in England, but East West travel by road can take longer than the train.

Greater Anglia are planning two East-West services at a frequency of one tph.

  • Colchester and Peterborough via Ipswich, Needham Market, Stowmarket, Bury St. Edmunds and Ely.
  • Ipswich and Cambridge viaNeedham Market, Stowmarket, Bury St. Edmunds and Newmarket.

Note that Ipswich and Bury St. Edmunds stations will have a frequency of two tph.

The East-West Railway, currently being built between Oxford and Cambridge is proposing more improvements for Suffolk.

  • A new hourly Manningtree and Oxford service, via Ipswich, Needham Market, Stowmarket, Bury St. Edmunds, Newmarket and Cambridge.
  •  A new A14 Parkway station, where the Cambridge and Peterborough routes divide to the North of Newmarket.
  • Tram-trains at a frequency of four tph between Ipswich and Felixstowe.

Note that Ipswich and A14 Parkway stations willl have a frequency of three tph.

I also think that operationally, there could be another improvement.

Ipswich station has a limited number of platforms and expanding it will be difficult.

But I believe that operations could be eased, if the Ipswich and Cambridge and Ipswich and Lowestoft services were to be combined into a single cross-Suffolk Cambridge and Lowestoft service, with a reverse at Ipswich.

These routes between Cambridge and Suffolk will spread the Cambridge effect across the county and in return Suffolk will provide the housing and other resources that Cambridge needs.

People Will Be Working Longer

We are going through an employment revolution for those past retirement age for various reasons.

  • Economic necessity.
  • Some people l;Ike and/or need the camaraderie of working.
  • Some people have much-needed skills.
  • Some business owners and self-employed prefer working to retirement.
  • Flexible and part-time working is expanding.

A Suffolk Free Travel Pass would be used by a lot of those who are still working and paying Income Tax.

Healthcare

I have no figures, but I suspect in London, Freedom Pass holders are bigger users of the NHS and hospitals.

Healthcare in East Anglia is changing, with increasing dependence on the three largest hospitals at Cambridge, Ipswich and Norwich.

This means that going to hospital for a check-up often means a fifty mile drive and a long hassle over the limited parking.

Published plans mean that Cambridge and Ipswich hospitals will be rail-connected at each end of Suffolk.

Would it be easier to use the train from many parts of Suffolk?

It should also be noted, that those with health problems, that need regular hospital visits in London, are issued with a Freedom Pass for travel, as it’s cheaper than sending a car.

Any county bringing in a free travel scheme would surely use it to help those needing to go to hospital regularly.

Greater Anglia’s new trains are all step-free, as this picture shows.

I believe that good rail-connected hospitals can improve the efficiency of the NHS.

Summing Up Funding

All of these developments across Suffolk will see a large increase in Suffolk’s economic activity and the consequent tax take from Council Tax and Business Rates.

I believe that Suffolk could probably afford to fund their share of a Suffolk Free Travel Pass.

Given the reduction in carbon emissions, that would probably occur, surely Government would contribute a share.

As Greater Anglia would surely benefit from onward journeys to and from London, they can probably afford to do a good deal for free travel in Suffolk. After all, they’ve already built in the capacity to their business model.

Restrictions On Use

There may need to be restrictions on use, like some routes apply in London.

For instance, using trains to and from London to perhaps travel between Ipswich and Stowmarket, may be restricted in the Peak.

It will all depend on Greater Anglia’s capacity.

Would It Work For A Group Of Counties?

I don’t see why not!

Perhaps instead of Cambridgeshire, orfolk and Suffolk, all having their own Free Travel Passes, would an East Anglian one work better?

Conclusion

If London can have a Freedom Pass, then why not Suffolk? Or other English and Welsh counties for that matter?

I have rambled through several ideas and possibilities.

But I believe that Suffolk with the powerhouse of Cambridge in the |West can see an improvement in economic activity, can go a long way to funding a Suffolk Free Travel Pass.

This in turn could generate further economic activity and the tax revenue that would be generated to pay for the scheme.

Suffolk though is lucky in that it aslready has the rail network and Greater Anglia have purchased enough trains. Only a hanful of extra stations and some branch line reopenings would be needed.

I shall return regularly to this post.









December 19, 2019 Posted by | Transport/Travel | , , , , , , , | 2 Comments

Are Train Services Around Norfolk And Suffolk Unbalanced?

Consider the following services in trains per hour (tph) after Greater Anglia’s proposed changes in their franchise.

  • Cambridge and Bury St. Edmunds- 1 tph
  • Cambridge and Ipswich – 1 tph
  • Cambridge and Norwich – 1 tph
  • Cambridge and Peterborough – 1 tph
  • Cambridge and Stansted Airport – 2 tph
  • Ipswich and Bury St. Edmund’s – 2 tph
  • Ipswich and Colchester – 4 tph
  • Ipswich and Lowestoft – 1 tph
  • Ipswich and Norwich – 3 tph
  • Ipswich and Peterborough – 1 tph
  • Lowestoft and Great Yarmouth – 0 tph
  • Norwich and Great Yarmouth – 2 tph
  • Norwich and Lowestoft – 1 tph
  • Norwich and Peterborough – 1 tph

Note.

  1. Most services are a measly 1 tph. Especially, if you’ve walked or cycled to a bleak station and just missed a train.
  2. Norwich and Ipswich get 3 tph, whereas Norwich and Cambridge and Ipswich and Cambridge get just 1 tph.
  3. East West Rail will add an extra 1 train per two hours on the Norwich and Cambridge and Ipswich and Cambridge routes, but improvements are needed now.

I would recommend.

  • Two tph between Cambridge and Ipswich, Norwich and Peterborough.
  • A direct Norwich service to Kings Cross, via Ely and Cambridge.
  • Building Cambridge South station tomorrow!
  • Terminate the Ipswich and Cambridge service at Cambridge South.
  • All passing services would stop at Cambridge South.
  • Add a second Ipswich and Cambridge service that terminated at Stansted Airport.
  • Run a high-frequency local shuttle between Ely and Cambridge South stations.
  • Improve the frequency on as many of the other routes as possible.

The could also be some new stations.

East-West Eail Link

This report on the East-West Rail web site is entitled Eastern Section Prospectus and gives full details of their proposals for the train services along the East-West Rail Link, to the East of Cambridge.

These are the main proposals as regards passengers.

  • A new A14 Parkway station will be built to the North of Newmarket, where the railways and the A14 and A11 cross.
  • Passenger services between Ipswich and Felixstowe will be replaced by a four tph tram-train running on the Felixstowe Branch Line and through the streets of Ipswich. Read all about it in Could There Be A Tram-Train Between Ipswich And Felixstowe?.
  • The current hourly Ipswich and Cambridge service will be replaced or more likely augmented by an hourly Manningtree and Oxford via A14 Parkway, Cambridge and the East-West Rail Link.
  • Combined with the Colchester and Peterborough service, there will be two tph between Ipswich and A14 Parkway via Needham Market, Stowmarket and Bury St. Edmunds.
  • The current hourly Norwich and Standsted via Cambridsge service will be replaced or more likely augmented by a Reading and Great Yarmouth service via Cambridge and Norwich.

The two new East-West Rail Link services, which could be run by a train similar in design and performance to one of the new Hitachi expresses would act as both local and long distance trains to and from Cambridge and the West.

A Cambridge Crossrail?

Cambridge dominates the whole of the East of England and has a voracious appetite for more people to work in the high-tech businesses.

  • Travel to Cambridge by train in the morning from London and there are large numbers of commuters going North.
  • A large quantity of housing is being built at places like Bury St. Edmuds, Cambourne, Haverhill, Huntingdon, Lakenheath, Newmarket, Peterborough, Royston, Soham, Thetford and Wisbech.

Some places, where large developments are happening, have poor or no rail access to the City.

I believe the solution is a  high-frequency local shuttle across the City.

  • The core stations would be Ely, Waterbeach, Cambridge North, Cambridge and Cambridge South.
  • The core frequency would be up to twelve tph  between Cambridge South and Ely.
  • Cambridge South station would turnback most Cambridge Crossrail services in the South.
  • There could be additional Southern terminals at Haverhill, Royston and Stansted Airport
  • Ely station would turnback most Cambridge Crossrail services. in the North.
  • There could be additional Northern terminals at A14 Parkway, Bury St. Edmunds, Thetford and Wisbech.

Most of the infrastructure is already in place, but the following would be needed.

  • Improvement of Ely station.
  • Building of a junction, so that trains and passengers could go between Cambridge North and Bury St. Edminds stations without a change of train nor a reverse.
  • Reinstate the Wisbech Branch with a new station in the town.
  • Build the new Cambridge South station.
  • Connect Haverhill to the West Anglia Main Line with a simple single-track branch.

The core section would use the same platforms as other trains on the route, to make interchange between services easier and stations more affordable.

A14 Parkway Station

Rereading this article, I believe that this station should be built as soon as possible.

Conclusion

Services in Cambridgeshire, Notfolk and Suffolk can be improved greatly and they need to be to allow, the UK’s premier Powerhouse to grow.

November 27, 2019 Posted by | Transport/Travel | , , , | Leave a comment

Haughley Junction Improvements

This article in the East Anglian Daily Times is entitled New Tracks. New Platforms At Ipswich Station. And Faster Trains. Will East Anglia’s Rail Bosses Be Able To Deliver?.

This is said about Haughley Junction.

Mr Bradley said improving Haughley junction, making it a full double-track junction, would mainly benefit cross-country services but it would reduce a potential main-line bottleneck.

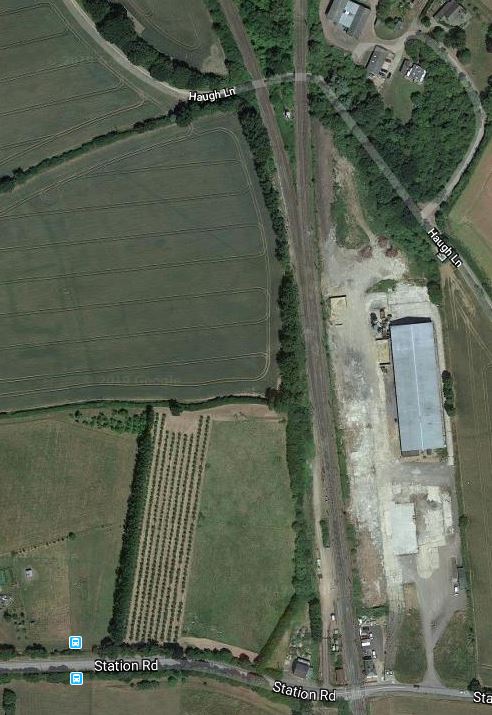

This Google Map shows the junction.

Haughley Junction is towards the top of the map.

  • The track going vaguely to the North-West goes towards Bury St. Edmunds, Newmarket and Cambridge.
  • The track going North goes to Diss and Norwich.
  • Ipswich is to the South.

Work is eased by having a large space on the Eastern side of the junction, but where the railway crosses Station Road, there is a level crossing, which is to be removed.

It looks to me, that this is one of those projects, that can grow to be very complicated.

Consider.

  • Will a flyover be built or will it be a flat junction?
  • Will the main Ipswich-Norwich line be moved to the East.
  • How will engineers deal with the level crossing closure?
  • Will any electrification be added towards Cambridge?

With regards to the last question, it should be noted that Cambridge and Haughley Junction are forty-two miles apart.

Greater Anglia’s Class 755 trains can replace each diesel engine with a battery pack. This will be done on the South Wales Metro.

In .Battery Power Lined Up For ‘755s’, I investigate what Stadler have said about Class 755 trains running on batteries.

  • Ranges of up to forty miles are quoted.
  • Batteries could be fitted to Greater Anglia’s bi-mode Flirts at an overhaul.

I would expect that the electrification would be extended towards Cambridge by as much as is needed to make sure that battery operation between Ipswich and Cambridge is possible.

I have just flown my helicopter along the line, as far as Chippenham Junction.

  • The line splits at Chippenham Junction, with one branch going through Newmarket to Cambridge and the other to Ely.
  • Chippenham Junction is seventeen miles from Cambridge.
  • The route betwen Chippenham Junction and Haughley Junction appears to have been cleared for el;ectrification.
  • Electrification through Newmarket would be expensive, as there is a tunnel, a section of single track and possibly a station rebuild.
  • Chippenham Junction and Haughley Junction are about twenty-five miles apart.
  • Chippenham Junction and Ely are about fourteen miles apart.

If I was in charge of this project, I would certainly investigate the possibility of electrification between Haughley and Chippenham Junctions

  • Class 755 trains with batteries would be able to run between Chippenham Junction and Cambridge or Ely on battery power.
  • The East West Rail Consortium is proposing a Park-And Ride station, which could be called A14 Parkway.
  • How much money would train operators save, if this section was el;ectrified?
  • Power for the electrification would be picked up at Haughley Junction.

Would it allow tri-mode Class 93 locomotives to be able to go between Felixstowe and Ely only using a relatively small amount of diesel compared to a Class 66 locomotive?

I also think that electrifying between Chippenham and Haughley Junctions is low risk electrification.

  • The route has been gauge-cleared.
  • Thee new Class 755 trains can run without it.
  • On the other hand they will run more efficiently when it has been installed.
  • It would enable Class 93 locomotives to run on electricity.

Too many electrification projects need new trains. These are already in service.

Conclusion

There is more to this project than meets the eye.



October 20, 2019 Posted by | Transport/Travel | , , , , , | 1 Comment

The East-West Rail Link Plans For Services Between Reading And East Anglia

This report on the East-West Rail web site is entitled Eastern Section Prospectus and gives full details of their proposals for the train services along the East-West Rail Link.

This post is particularly about services to Reading and the report says this about services between Reading and East Anglia.

Proposed Core Train Services

This is a sentence.

It has been assumed that, by this stage, a half hourly service will operate on the Central and Western sections between Oxford – Cambridge.

The report then goes on to add.

25 minutes are added to the Oxford journey time to represent the option of one service being extended to / from Reading with a Reading – Oxford non-stop.

So that looks like there will be a core hourly service between Reading and Cambridge, which will take 98 minutes.

The report then goes on to detail how various towns and cities in East Anglia will be connected to Reading.

Bury St. Edmunds

2h16 hourly with cross-platform changes at Cambridge and new A14 Parkway station.

Great Yarmouth

3h14 hourly direct

Ipswich

2h43 hourly with cross-platform changes at Cambridge and new A14 Parkway station.

Lowestoft

3h30 hourly with change at Norwich and cross platform change at Reedham.

Norwich

2h40 hourly direct

Trains For The Route

It looks like there will be two direct hourly train services.

  • Reading and Great Yarmouth via Cambridge and Norwich, which will take three hours and fourteen minutes.
  • Oxford and Ipswich via Cambridge and Bury St. Edmunds, which will take two hours and nineteen minutes.

The long term service pattern, envisages extending the Oxford and Ipswich service to Manningtree, which would add twenty-five minutes.

These are long services and given the overcrowding that happens on the current service between Norwich and Liverpool, I would think that the trains should be as follows.

  • At least four or five cars.
  • An on-board buffet.
  • At least 100 mph operation.

I also think the trains should be bi-mode trains, able to use 25 KVAC overhead electrification or onboard power.

How Many Trains?

It looks like the Reading and Great Yarmouth service would be a seven-hour round trip, which would need seven trains.

The future Oxford and Manningtree service would be a six-hour round trip, which would need six trains.

So add in an allowance for maintenance and a spare, I suspect the fleet should be sixteen trains.



July 15, 2019 Posted by | Transport/Travel | , , , , , , | Leave a comment

Roaming Around East Anglia – Newmarket Station

I went to Newmarket station for two reasons; to assess if the East West Rail Consortium’s plans for Newmarket were feasible and also to see a friend, who trains racehorses in the town, to tell him about the plans.

I should say, that I haven’t been to Newmarket for perhaps six years and it struck me that the town was much more crowded with traffic, with a lot of full car-parks. Around the station, there were lots of cars parked. How many were owned  by commuters going to Cambridge.

The Plans Of The East West Rail Consortium For Newmarket

In this document on the East-West Rail Consortium web site, this is said.

Note that doubling of Warren Hill Tunnel at Newmarket and
redoubling between Coldham Lane Junction and Chippenham Junction is included
in the infrastructure requirements. It is assumed that most freight would operate
via Newmarket, with a new north chord at Coldham Lane Junction, rather than
pursuing further doubling of the route via Soham.

So would it be possible to create a double-track railway through Newmarket station?

These are pictures that I took of the station.

It does appear that there is space for another track on the other side of the current track to the platform.

Newmarket station has some positive attributes.

  • It is in the centre of the town.
  • There is enough shelter and storage for cycles.
  • The platform will be long enough for Greater Anglia’s new four-car Class 755 trains.
  • There is a wide, spacious platform.

But these are outweighed by these drawbacks.

  • The vehicle access is terrible.
  • There is no Kiss-and-Ride facility.
  • Car parking is in the surrounding streets and as it’s free, the local roads will get choked, especially when Greater Anglia’s larger trains are introduced later this year.
  • The East West Rail Link will introduce a two trains per hour (tph) through the station.
  • Will the platform at Newmarket be long enough for the East West Consortium trains, which will be running between Ipswich and Oxford? Probably not!
  • There is no coffee kiosk, shop or toilets.

But above all it is not a destination station., that gives a good impression for visitors and tourists, who could make up a proportion of travellers.

The East West Rail Consortium are planning a parkway station on the A14 to the North of Newmarket and this will surely solve the problem of traffic and parking, that blocks the local streets,

But I believe that Newmarket needs a station, that will attract visitors.

My pictures, show the previous station building still standing next door to the current station.

  • This could be converted into a first-class station with excellent passenger facilities.
  • There could be a large taxi rank.
  • There could be passenger drop-off and pick-up facilities.
  • There is space for a bus connection to the race-course on race-days.
  • Limited car-parking of a short-term nature.
  • A two-hundred metre  long platform could be built to accommodate the longest-possible trains.

This Google Map, shows the combined site of the current and previous stations.

Both stations are effectively side-by-side, with the current station to the East.

The large area behind the stations is parking for horse-boxes during the numerous sales at Tattersalls. For much of the year, it is virtually empty.

I’m pretty sure, that with some management, the area could serve both its current purpose and as a forecourt to a landmark station,, that would enhance the town and the racing industry.

I don’t think that a second platform would be needed for the following reasons.

  • Adding the step-free access to the seond platform would cost a seven figure sum.
  • Commuters into Cambridge would be encounraged to use the proposed A14 Parkway station.
  • Probably only on race days, would there be large enough numbers of passengers to need to accommodate two trains in the station at the same time..

However space could be left, if a second platform were to be needed in the future.

Conclusion And Recommendations

The current Newmarket station is totally inadequate for the current service of one three-car train per hour in both directions.

Greater Anglia’s new Class 755 trains could be a car longer and will certainly attract more passengers to use Newmarket station, as new trains always do!

I feel that in the next couple of years, possible additional trains, more passengers and lack of car parking will create problems at Newmarket station.

I would recommend the following actions.

A14 Parkway Station

Work should start as soon as is practical for the A14 Parkway station, proposed by the East West Rail Consortium.

This station would have the following Greater Anglia services.

  • Peterborough and Colchester – 1 tph
  • Ipswich and Cambridge – 1 tph

These two services would give the following frequencies to these places.

  • Bury St. Edmunds – 2 tph direct
  • Colchester – 1 tph direct and 2 tph with a change at Ipswich
  • Diss – 1 tph with a change at Stowmarket
  • Ipswich – 2 tph direct
  • London – 1 tph with a change at Cambridge and 1 tph with a change at Ely
  • Newmarket – 1 tph direct
  • Norwich – 1 tph with a change at Cambridge, 1 tph with a change at Ely and 2 tph with a change at Stowmarket
  • Peterborough – 1 tph direct and 1 tph with a change at Cambridge
  • Stansted Airport – 2 tph with a change at Cambridge
  • Stowmarket – 2 tph direct

A14 Parkway station sitting at the junction of two of the busiest roads in East Anglia; the A11 and A14, and two important rail routes,would be one of the most important stations in the East.

The station could only be named after Ancient Britain’s most famous queen, who by repute once lived in the area.

Upgrade Newmarket Station

Hopefrully, the A14 Parkway station would ease the problems at Newmarket station and this would enable work to progress on the design of an upgraded Newmarket station, that would serve the town, the racing industry and the towns tourist attractions.

Improved Train Services To/From Cambridge

Once the East West Rail Link opens between Cambridge and Oxford, the current service between Ipswich and Cambridge, could eventually be replaced with a service between Manningtree and Oxford or possibly Reading, that calls at Ipswich, Stowmarket, Bury St. |Edmunds, A14
Parkway, Newmarket, Cambridge, Cambridge South, Bedford, Bletchley, Milton Keynes, Bicester, Oxford and several smaller intermediate stations.

The three Cambridge stations of Cambridge, Cambridge North and Cambridge South will also increasingly be connected to the surrounding stations like A 14 Parkway, Bury St. Edmunds, Cambourne, Ely, Kings Lynn, March, Newmarket and Peterborough. Services will be at a frequency of at least two tph, with some as high as four tph.

In addition, there could be new services to Haverhill and Wisbech.

Newmarket will get a share of these services and I wouldn’t be surprised to see these frequencies from Newmarket station to the three Cambridge stations.

  • Cambridge – 4 tph direct
  • Cambridge North – 2 tph direct and 2 tph with a change at Cambridge
  • Cambridge South – 2 tph direct and 2 tph with a change at Cambridge

Cambridge is becoming one of the most important cities in Europe and Newmarket can benefit by holding on to big sister’s skirts.

West Suffolk And London Services

If you look at the sizeable towns in Suffolk, the following ones that are rail connected, do not have a direct train service to London.

  • Beccles
  • Bury St. Edmunds
  • Felixstowe
  • Halesworth
  • Lowestoft
  • Newmarket
  • Sudbury
  • Woodbridge

Greater Anglia’s new Class 755 trains, will be running three trains per day, between Liverpool Street and Lowestoft, which will reduce this list to just.

  • Bury St. Edmunds
  • Felixstowe
  • Newmarket
  • Sudbury

If Felixstowe is discounted as it is on a  branch line busy with freight trains and Sudbury because it is on a single track branch line, we are left with just.

  • Bury St. Edmunds
  • Newmarket

Add in the proposed A14 Parkway station and is it feasible to run a service between London Liverpool Street and Bury St. Edmunds via Cambridge, Newmarket and A14 Parkway.

I calculate that a round trip would be possible in around four hours, thus making three trains per day possible.

I suspect, there would be capacity problems on the Southern section of the West Anglia Main Line, but if this were to be four-0tracked as is proposed, this would ease that problem.

So a service between West Suffolk and London, is probably one for the future.

A Final Conclusion

Newmarket can benefit from East West Rail, but the two parties must agree objectives that don’t cause problems for the other.







March 3, 2019 Posted by | Sport, Transport/Travel | , , , , , , | 5 Comments

« Previous Entries
