Five New Derbyshire Stations Could Be Built Under Rail Plans
The title of this post, is the same as that of this article on the BBC.
These paragraphs outline the schemes.
Up to five new railway stations could be built in Derbyshire as two projects to reopen existing lines to passengers have progressed in a government scheme.
The Barrow Hill line from Chesterfield to Sheffield could be opened to passengers as part of the government’s £500m Restoring Your Railway programme.
It would see stations built at Whittington, Barrow Hill, Eckington/Renishaw and Killamarsh.
It will now go through to the next stage of the scheme.
In addition, Derbyshire County Council said proposals to reopen the Ivanhoe line from Burton-upon-Trent to Leicester were being progressed as part of the project, which would see a new station built at Castle Gresley.
Business cases will now been drawn up to see if the cases will proceed.
Barrow Hill Line
I wrote about the Barrow Hill Line in Reinstatement Of The Barrow Hill Line Between Sheffield And Chesterfield.
Ivanhoe Line
I wrote about the Ivanhoe Line in Reinstatement Of The Ivanhoe Line.
There also is a Wikipedia entry for Gresley station, where this is said.
In the 1990s BR planned to restore passenger services between Leicester and Burton as the second phase of its Ivanhoe Line project. However, after the privatisation of British Rail in 1995 this phase of the project was discontinued. In 2009 the Association of Train Operating Companies published a £49 million proposal to restore passenger services to the line that would include reopening a station at Gresley to serve the town of Swadlincote.

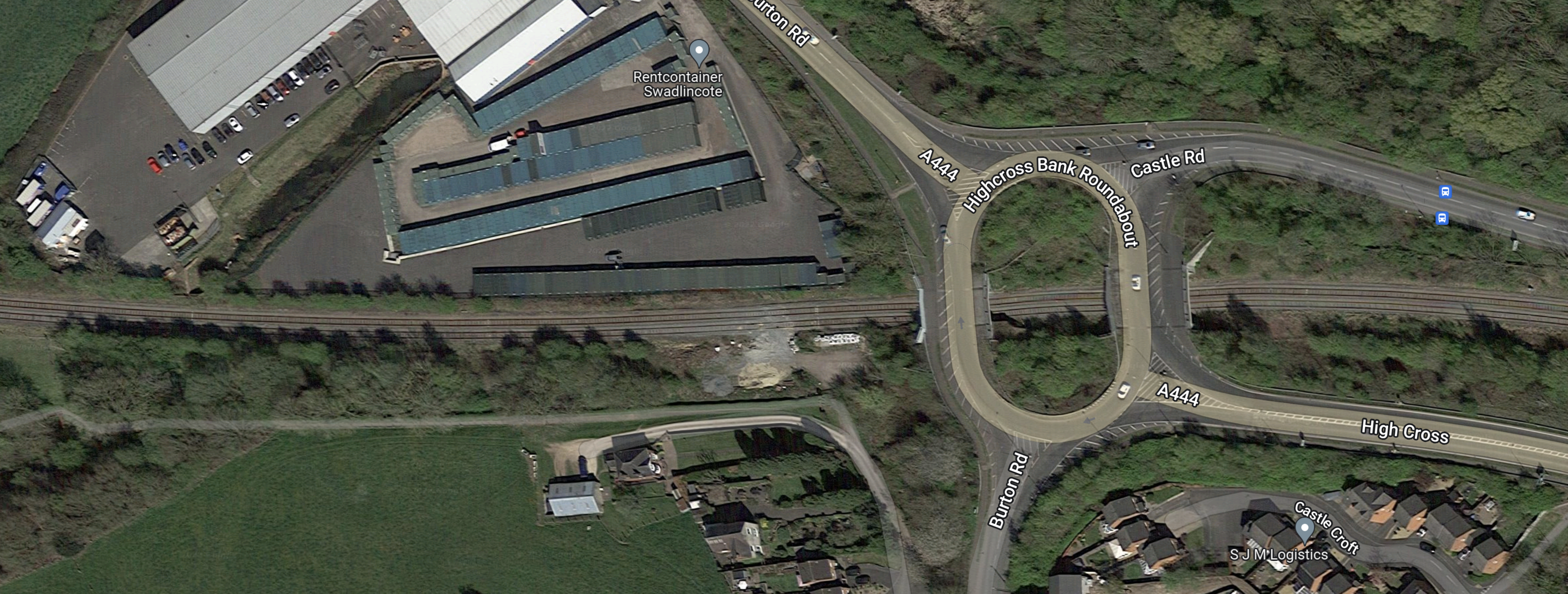

This map shows the possible position of the station.
I suspect it would be to the West of the roundabout.
Reopening The Don Valley Section Of The Former Woodhead Line Between Stocksbridge and Sheffield Victoria To Passenger Services
On October 27th this Beeching Reversal Project was given £50,000 to build a case for reopening.
Stocksbridge is introduced like this in Wikipedia.
Stocksbridge is a town and civil parish, in the City of Sheffield, in South Yorkshire, England. Historically part of the West Riding of Yorkshire, it lies just to the east of the Peak District. The town is located in the steep-sided valley of the Little Don River, below the Underbank Reservoir. It blends into the areas of Deepcar, Bolsterstone and the eastern end of Ewden valley around Ewden village, which are also within the civil parish. The population of the civil parish as of the 2011 census was 13,455.
This Google Map shows the area.
Note there are a large number of steel related industries all connected by an extensive railway system.
This Google Map shows part of the area to a more detailed scale.
I suspect that a station could be built somewhere to the South of the works.
I have followed the Stocksbridge Railway out to the East and it takes a loop to the South to Deepcar Tram and Railway station, as is shown on this Google Map.
Note.
The Eastern end of the Stockbridge site is in the North-West of the map.
Deepcar station is shown by a blue dot in the South-East corner of the map.
This Google Map shows Deepcar station in greater detail.
Note.
- The Stocksbridge Railway curving to the West is clearly visible.
- The other railway going North is the former Woodhead Line to Manchester.
This map clipped from Wikipedia shows the Lines through Deepcar station.
This shows the route between Stocksbridge and the former Sheffield Victoria station.
I have also found this article on the Sheffield Star, which is entitled Passenger Trains Could Return On Sheffield To Stocksbridge Don Valley Railway Line After major Funding Boost.
This is a paragraph.
The plans also involve reopening Sheffield Victoria station, which could serve a new Barrow Hill line to Chesterfield, stopping at Darnall, the Advanced Manufacturing Park, Woodhouse and other new stations, similar funding for which was granted last year.
This would seem to be a sensible plan.
These are my thoughts.
Sheffield Victoria Station
This Google Map shows the site of the Stocksbridge Line going through the centre of Sheffield.
The line starts in the North-West corner of the map and goes diagonally across.
The site of Sheffield Victoria station is at the Eastern edge of the map and is shown enlarged in this Google Map.
The street and hotel names are a giveaway.
There would appear to be space for a simple station with one or two platforms on the single-track through the area.
My preference would be for a single bi-directional platform, as has been used successfully at Galashiels station.
With well-placed passing loops, stations like these can handle two trains per hour (tph) and they can be step-free for all users.
Onward To Chesterfield
The plans as laid out in the paragraph in the Sheffield Star would appear to be feasible.
Darnall and Woodhouse are existing stations.
It would serve the proposed new station at Waverley, that I wrote about in Sheffield Region Transport Plan 2019 – A New Tram-Train Route To A New Station At Waverley.
Chesterfield station will be rebuilt for High Speed Two, so extra platforms could surely be added.
I wrote about plans for the Barrow Hill Line in Reinstatement Of The Barrow Hill Line Between Sheffield And Chesterfield.
It certainly looks to me, that taken together the Barrow Hill and Stocksbridge schemes could be a valuable new railway for Sheffield.
Rolling Stock
I have ridden all over Karlsruhe in Germany on their tram-trains, which are a German variant of Sheffield’s Class 399 tram-trains and I can see no reason, why the combined route couldn’t be designed and built for these trains.
- They are very good on hills.
- They can work on both 750 VDC and 25 KVAC overhead wires.
- The closely-related Class 398 tram-trains in Cardiff will have batteries.
- They are already working successfully in Sheffield.
- There must be design advantages for stations.
- Travellers in Sheffield are used to the tram-trains.
- There is maintenance and operational experience in Sheffield.
It is also my belief, that Class 399 tram-trains would make excellent replacements for Sheffield’s current trams. I wrote about this in Sheffield Region Transport Plan 2019 – Renewal Of Supertram Network.
Electrification
Looking at the Stocksbridge and Barrow Hill Lines together, I believe there is a strong case for electrification of both routes with 25 KVAC overhead wires.
This would enable the following.
- Class 399 tram-trains to work the combined route.
- East Midlands Railway’s Class 810 trains to access Sheffield station via the Barrow Hill Line on electricity.
- Electrified freight trains could use the route.
It could also be an easy route to electrify and be a good start to the electrification of Sheffield, which will happen in the future.
Electrification Between Sheffield And Clay Cross North Junction For High Speed Two
This electrification is needed for High Speed Two’s connection to Sheffield. It will also entail a lot of disruption for trains between Derby and Sheffield.
For these reasons, I believe that opening up the Barrow Hill route early between Sheffield and Chesterfield could be an excellent blockade buster.
Conclusion
There’s more to reopening the Stocksbridge Line, than as a local service in Sheffield.
Green Light For Revived West Midlands Passenger Service
The title of this post, is the same as that of this article on Rail News.
This is the introductory paragraph.
Passenger trains are set to return to the line between Walsall and Wolverhampton, having been withdrawn 12 years ago. Since then, the line has been used for freight.
These points are made about the proposed service.
- Network Rail have agreed the timetable.
- It will be an hourly service between Walsall and Wolverhampton.
- Trains will call at Darlaston and Willenhall, where plans are in place for new stations, as I wrote in Reopening Of Darlaston And Willenhall Train Stations Moves Closer.
- There will also be a second hourly service between Birmingham New Street and Wolverhampton via Tame Bridge, Darlaston and Willenhall.
- Both routes appear to be electrified.
The West Midlands Mayor; Andy Street is quoted as saying he’s pleased with the scheme.
And well might he be!
This to me is a classic reopening scheme.
- There is a fully-electrified freight route, that runs between Walsall and Wolverhampton.
- There used to be three intermediate stations; Darlaston James Bridge, Willenhall Bilston Lane and Portobello.
- The first two intermediate stations closed in 1965 and the last in 1973.
- Network Rail have said, it will be possible to run the extra trains needed.
- The direct Walsall and Wolverhampton service will complete an hourly or better triangular service between Birmingham, Walsall and Wolverhampton.
- This triangular route is also fully-electrified.
- If extra rolling stock is needed, there are quite a few suitable electric multiple units, that are sitting in sidings or will be replaced by new trains in the next couple of years.
Except for the building of the new intermediate stations, nothing would appear to be high cost.
The project must have a high benefit cost ratio.
A Possible Extension From From Walsall To Aldridge
In the Wikipedia entry for Walsall station, this is said.
There are also plans to reopen a terminus single platform at Aldridge for trains to Birmingham New Street via Walsall but not to Sutton Coldfield and Water Orton.
This service would be on part of the freight-only Sutton Park Line between Walsall and Water Orton stations and is regularly used by freight trains avoiding Birmingham New Street station.

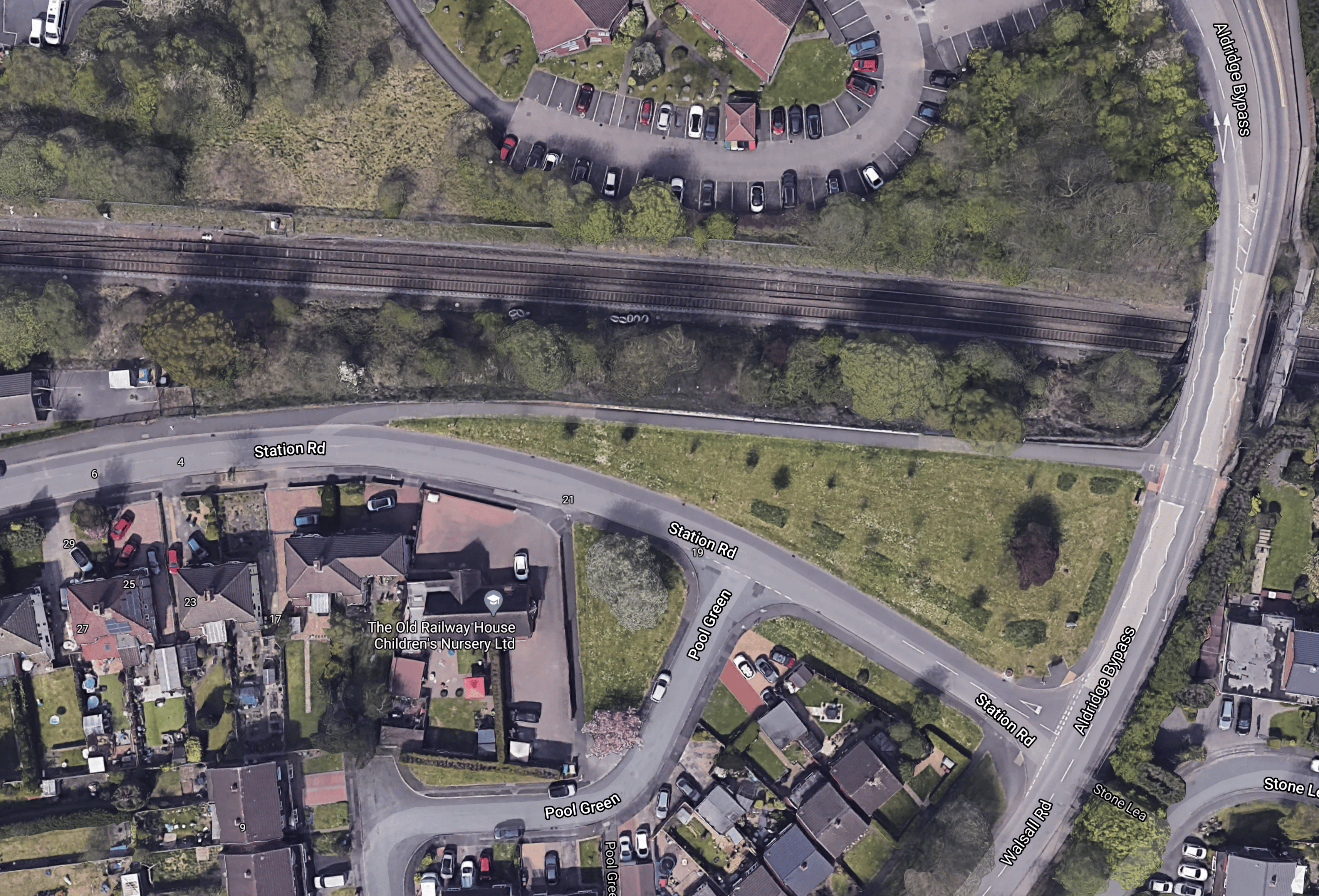

This Google Map shows the Sutton Park Line through Aldridge.
Note.
- The Sutton Park Line is double track and not electrified.
- The road running South of the railway is called Station Road, which is a bit of a giveaway.
- There is a xrossover visible in the image,
There would appear to be space for a reopened station. between the railway and Station Road.
- It could have a single platform.
- There could be adequate car parking.
- There would be no need for an expensive bridge.
- The station could be designed to be converted into a two-platform station if a full service were to be run on the Sutton Park Line at a future date.
As the station would be no more than about five miles from Walsall station and its electrification, the extended service from Walsall could be run by a battery-electric train.
Conclusion
I predict, that if this route is reopened and it is a success, other parts of the UK will want to open more freight lines to passenger traffic.
These similar projects have already been widely mentioned.
- The Leamside Line between Ferryhill and Newcastle stations. See Boris Johnson Backs Station Opening Which Could See Metro Link To County Durham.
- The Ivanhoe Line between Burton-on-Trent and Leicester stations. See Reinstatement Of The Ivanhoe Line.
- Newcastle And Ashington. See Northumberland Unveils £3.5m Rail Project To Bring Back Passenger Services.
- The Camp Hill Line In Birmingham. See First Passenger Train In 80 Years Runs On Camp Hill Line.
- The Barrow Hill Line Between Sheffield and Chesterfield. See Reinstatement Of The Barrow Hill Line Between Sheffield And Chesterfield.
- The Fawley Line Between Totton And Fawley. See Reintroduction Of Passenger Rail Services On The Waterside Line.
Most of these reopening, would just need refurbishment and some new stations.
Reinstatement Of The Barrow Hill Line Between Sheffield And Chesterfield
This is one of the successful bids in the First Round of the Restoring Your Railway Fund.
The Route

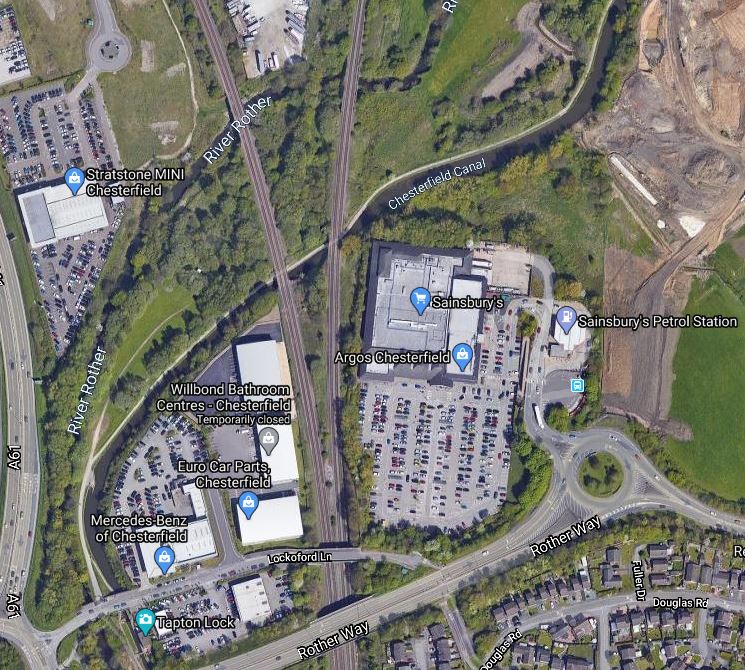

This Google Map shows where the Barrow Hill Line starts at Tapton Junction near Chesterfield station.
Note.
- Chesterfield station is less than a mile to the South.
- The left railway going North is the Midland Main Line to Sheffield
- The right railway going North is the Barrow Hill Line.
The Barrow Hill Line turns slightly to the East and this Google Map shows it passing through Barrow Hill, which gives the route its name.
Note.
The historic Barrow Hill Roundhouse and some rail-related businesses to the North of the line.
There used to be a station here called Barrow Hill! What a surprise!
The Wikipedia entry for Barrow Hill station has a section called Modern Traffic, where this is said.
At 22 June 2013 the line is part of the Midland Main Line. It is used predominantly for freight, with a handful of passenger trains going the “long way round” from Chesterfield to Sheffield via the Old Road and Darnall largely to retain staff route knowledge in case of diversions.
The Wikipedia entry for the station also has a section called Possible Future, which is worth a read, as it lists other mothballed rail lines in the area, that could be developed.
Follow the Barrow Hill Line to the North-East and it goes through a mix of agricultural land, industrial dereliction, modern factories and nature reserves before it splits near Beighton.

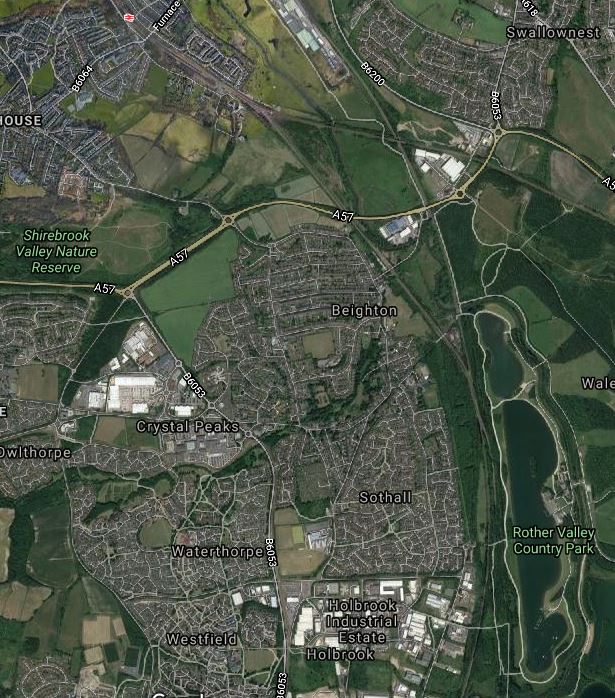

This Google Map shows the area.
Note.
- The rail lines splitting by the Rother Valley Country Park at Beighton Junction.
- Barrow Hill is to the South.
- There used to be a station at Beighton.
- Woodhouse station is in the North West corner of the map.
- Woodhouse station is on the Sheffield-Lincoln Line, which can be seen crossing the area.
- Trains taking the left fork at Beighton Junction can go to Sheffield via Woodhouse and Darnall stations.
- Trains taking the right fork go under the Sheffield-Lincoln line and have connections to a large number of destinations for both freight and passengers.
It looks to me, that it is proposed to convert this long-way round route, into a second route between Sheffield and Chesterfield.
- Stations exist at Woodhouse and Darnall.
- Stations used to exist at Barrow Hill, Eckington & Renishaw, Killamarsh West and Beighton.
- The route would surely be very useful, when the Midland Main Line route between Sheffield and Chesterfield is updated for High Speed Two.
- The route might also be very useful for East Midlands Railway to develop services to Rotherham and other places to the East of Sheffield.
- I’ve found a train that takes this route between Chesterfield and Sheffield and with no stops it took twenty-five minutes.
- Typically, the direct route takes about eleven minutes.
I can see several possibilities for local, regional and national services using the Barrow Hill Line.
I have a few questions.
Would The Barrow Hill Line Be Electrified?
It has been stated that High Speed Two and the Midland Main Line will share an electrified corridor from Clay Cross North Junction to Sheffield via Chesterfield.
- So as both stations will be electrified, it would not be any problem to rustle up a good electricity supply to power an electrified Barrow Hill Route.
- Electrification might narrow the fourteen minute difference between the routes.
- Electrification would allow East Midlands Railway‘s new Class 810 trains to have a second electrified route into Sheffield.
- Is there a case for a service between London and the South of England and the South and East of Sheffield?
I think electrification of the Barrow Hill Line is more than a possibility.
Would Gauge-Clearance For Electrification Be Difficult?
As the route is already cleared for freight trains with the largest containers, it won’t be as difficult as some routes.
Could Tram-Trains Be Used Between Sheffield And Chesterfield On The Barrow Hill Line?
In Sheffield Region Transport Plan 2019 – A New Tram-Train Route To A New Station At Waverley, I talked about a plan by the Sheffield Region for a new tram-train route between Sheffield station and a new housing district of Waverley on the Sheffield-Lincoln Line.
- Waverley is between Darnall and Woodhouse stations.
- The new Advanced Manufacturing Park would also be served.
- Tram-trains could venture further down the Sheffield-Lincoln Line, if that was so desired.
If tram-trains were used on the Barrow Hill Line, between Sheffield and Chesterfield, both routes would share the track between Sheffield and Darnall stations.
Note that tram-trains would be able to share tracks with all electric trains used around Sheffield, including freight trains and the Class 810 trains.
Note that the stations for tram-trains can be much simpler and even share platforms with full-size trains.
The pictures show Class 399 tram-trains at Rotherham Parkgate and Rotherham Central stations.
- I feel with innovative design, the whole route between Sheffield and Chesterfield could be run using tram-trains.
- The route could be electrified with 25 KVAC overhead wires.
- Instead of taking the Sheffield fork at Beighton Junction, the tram-trains could also take the right fork and link Chesterfield with Barnsley, Doncaster, Rotherham and Swinton.
- These tram-trains also come with batteries, if that is needed.
Barnsley, Chesterfield, Rotherham and Sheffield could be getting a lot of better connectivity and the Barrow Hill Line is key.
Conclusion
This looks to be a very sensible project.
- It could be run with either trains or tram-trams.
- It should be electrified, so it could be zero-carbon.
- Tram-trains could be used to make stations simpler.
- It could give an alternative route for electric trains to Sheffield station.
- The track is already there and regularly used.
But surely the biggest reason to built it, is that it appears to open up a lot of South and South-East Sheffield and North-East Chesterfield for development.
