Reopening The Don Valley Section Of The Former Woodhead Line Between Stocksbridge and Sheffield Victoria To Passenger Services

On October 27th this Beeching Reversal Project was given £50,000 to build a case for reopening.

Stocksbridge is introduced like this in Wikipedia.

Stocksbridge is a town and civil parish, in the City of Sheffield, in South Yorkshire, England. Historically part of the West Riding of Yorkshire, it lies just to the east of the Peak District. The town is located in the steep-sided valley of the Little Don River, below the Underbank Reservoir. It blends into the areas of Deepcar, Bolsterstone and the eastern end of Ewden valley around Ewden village, which are also within the civil parish. The population of the civil parish as of the 2011 census was 13,455.

This Google Map shows the area.

Note there are a large number of steel related industries all connected by an extensive railway system.

This Google Map shows part of the area to a more detailed scale.

I suspect that a station could be built somewhere to the South of the works.

I have followed the Stocksbridge Railway out to the East and it takes a loop to the South to Deepcar Tram and Railway station, as is shown on this Google Map.

Note.

The Eastern end of the Stockbridge site is in the North-West of the map.

Deepcar  station is shown by a blue dot in the South-East corner of the map.

This Google Map shows Deepcar station in greater detail.

Note.

  1. The Stocksbridge Railway curving to the West is clearly visible.
  2. The other railway going North is the former Woodhead Line to Manchester.

This map clipped from Wikipedia shows the Lines through Deepcar station.

This shows the route between Stocksbridge and the former Sheffield Victoria station.

I have also found this article on the Sheffield Star, which is entitled Passenger Trains Could Return On Sheffield To Stocksbridge Don Valley Railway Line After major Funding Boost.

This is a paragraph.

The plans also involve reopening Sheffield Victoria station, which could serve a new Barrow Hill line to Chesterfield, stopping at Darnall, the Advanced Manufacturing Park, Woodhouse and other new stations, similar funding for which was granted last year.

This would seem to be a sensible plan.

These are my thoughts.

Sheffield Victoria Station

This Google Map shows the site of the Stocksbridge Line going through the centre of Sheffield.

The line starts in the North-West corner of the map and goes diagonally across.

The site of Sheffield Victoria station is at the Eastern edge of the map and is shown enlarged in this Google Map.

The street and hotel names are a giveaway.

There would appear to be space for a simple station with one or two platforms on the single-track through the area.

My preference would be for a single bi-directional platform, as has been used successfully at Galashiels station.



With well-placed passing loops, stations like these can handle two trains per hour (tph) and they can be step-free for all users.

Onward To Chesterfield

The plans as laid out in the paragraph in the Sheffield Star would appear to be feasible.

Darnall and Woodhouse are existing stations.

It would serve the proposed new station at Waverley, that I wrote about in Sheffield Region Transport Plan 2019 – A New Tram-Train Route To A New Station At Waverley.

Chesterfield station will be rebuilt for High Speed Two, so extra platforms could surely be added.

I wrote about plans for the Barrow Hill Line in Reinstatement Of The Barrow Hill Line Between Sheffield And Chesterfield.

It certainly looks to me, that taken together the Barrow Hill and Stocksbridge schemes could be a valuable new railway for Sheffield.

Rolling Stock

I have ridden all over Karlsruhe in Germany on their tram-trains, which are a German variant of Sheffield’s Class 399 tram-trains and I can see no reason, why the combined route couldn’t be designed and built for these trains.

  • They are very good on hills.
  • They can work on both 750 VDC and 25 KVAC overhead wires.
  • The closely-related Class 398 tram-trains in Cardiff will have batteries.
  • They are already working successfully in Sheffield.
  • There must be design advantages for stations.
  • Travellers in Sheffield are used to the tram-trains.
  • There is maintenance and operational experience in Sheffield.

It is also my belief, that Class 399 tram-trains would make excellent replacements for Sheffield’s current trams. I wrote about this in Sheffield Region Transport Plan 2019 – Renewal Of Supertram Network.

Electrification

Looking at the Stocksbridge and Barrow Hill Lines together, I believe there is a strong case for electrification of both routes with 25 KVAC overhead wires.

This would enable the following.

  • Class 399 tram-trains to work the combined route.
  • East Midlands Railway’s Class 810 trains to access Sheffield station via the Barrow Hill Line on electricity.
  • Electrified freight trains could use the route.

It could also be an easy route to electrify and be a good start to the electrification of Sheffield, which will happen in the future.

Electrification Between Sheffield And Clay Cross North Junction For High Speed Two

This electrification is needed for High Speed Two’s connection to Sheffield. It will also entail a lot of disruption for trains between Derby and Sheffield.

For these reasons, I believe that opening up the Barrow Hill route early between Sheffield and Chesterfield could be an excellent blockade buster.

Conclusion

There’s more to reopening the Stocksbridge Line, than as a local service in Sheffield.



November 3, 2021 Posted by | Transport/Travel | , , , , , , , , , , | 5 Comments

Electrification Between Clay Cross North Junction And Sheffield Station

Long term readers of this blog, will have noticed that I make regular references to this proposed electrification, that is part of High Speed Two’s proposals to connect Sheffield to the new high speed railway.

So I thought I would bring all my thoughts together in this post.

Connecting Sheffield To High Speed Two

Sheffield is to be accessed from a branch off the Main High Speed Two route to Leeds.

This map clipped from High Speed Two’s interactive map, shows the route of the Sheffield Branch, from where it branches North West from the main Eastern Leg of High Speed Two.

Note.

  1. Orange indicates new High Speed Two track.
  2. Blue indicates track that High Speed Two will share with other services.
  3. The orange route goes North to Leeds, along the M1
  4. The blue route goes North to Chesterfield and Sheffield, after skirting to the East of Clay Cross.
  5. The orange route goes South to East Midlands Hub station.

This second map, shows where the Erewash Valley Line joins the Sheffield Branch near the village of Stonebroom.

Note.

  1. Red is an embankment.
  2. Yellow is a cutting.
  3. The Sheffield Branch goes North-West to Clay Cross, Chesterfield and Sheffield
  4. The Sheffield Branch goes South-East to East Midlands Hub station.
  5. The Sheffield Branch goes through Doe Hill Country Park.
  6. The Sheffield Branch runs alongside the existing Erewash Valley Line, which goes South to Langley Mill, Ilkeston and the Derby-Nottingham area.

The Sheffield Branch and the Erewash Valley Line appear to share a route, which continues round Clay Cross and is shown in this third map.

Note

  1. Doe Hill Country Park is in the South-East corner of the map.
  2. The dark line running North-South is the A61.
  3. Running to the West of the A61 is the Midland Main Line, which currently joins the Erewash Valley Line at Clay Cross North junction.

High Speed Two and the Midland Main Line will share a route and/or tracks from Clay Cross North junction to Sheffield.

This fourth map, shows where the combined route joins the Hope Valley Line to Manchester to the South West of Sheffield.

Note.

  1. Sheffield is to the North East.
  2. Chesterfield is to the South East,
  3. Totley junction is a large triangular junction, that connects to the Hope Valley Line.

These are some timings for various sections of the route.

  • Clay Cross North Junction and Chesterfield (current) – 4 minutes
  • Clay Cross North Junction and Sheffield (current) – 17 minutes
  • Chesterfield and Sheffield (current) – 13 minutes
  • Chesterfield and Sheffield (High Speed Two) – 13 minutes
  • East Midlands Hub and Chesterfield (High Speed Two) – 16 minutes
  • East Midlands Hub and Sheffield (High Speed Two) – 27 minutes

As Class Cross North Junction and Sheffield are 15.5 miles, this means the section is run at an average speed of 53 mph.

Can I draw any conclusions from the maps and timings?

  • There would appear to be similar current and High Speed Two timings between Chesterfield and Sheffield.
  • The various junctions appear to be built for speed.

The Midland Main Line will be electrified between Clay Cross North Junction and Sheffield, so that High Speed Two trains can use the route.

What will be the characteristics of the tracks between Clay Cross North Junction and Sheffield?

  • Will it be just two tracks as it mainly is now or will it be a multi-track railway to separate the freight trains from the high speed trains?
  • Will it have a high enough maximum speed, so that East Midland Railway’s new Class 810 trains can go at their maximum speed of 140 mph?
  • Will it be capable of handling a frequency of 18 tph, which is the maximum frequency of High Speed Two?

Surely, it will be built to a full High Speed Two standard to future-proof the line.

Current Passenger Services Between Clay Cross North Junction And Sheffield Station

These trains use all or part of the route between Cross North Junction And Sheffield stations.

  • CrossCountry – Plymouth and Edinburgh via Derby, Chesterfield, Sheffield and Leeds – 1 tph
  • East Midlands Railway – London St. Pancras and Sheffield via Derby and Chesterfield – 2 tph
  • East Midlands Railway – Liverpool Lime Street and Norwich via Stockport, The Hope Valley Line, Sheffield and Chesterfield – 1 tph
  • Northern Trains – Manchester Piccadilly and Sheffield via the Hope Valley Line – 1 tph
  • Northern Trains – Leeds and Nottingham via Meadowhall, Sheffield and Chesterfield – 1 tph
  • TransPennine Express – Manchester Airport and Cleethorpes via Stockport, the Hope Valley Line and Sheffield – 1 tph

Note.

  1. tph is trains per hour.
  2. High Speed Two is currently planning to run two tph to Sheffield, which will run between Cross North junction and Sheffield stations.
  3. The services on the Hope Valley Line run on electrified tracks at the Manchester end.

These services can be aggregated to show the number of trains on each section of track.

  • Hope Valley Line between Manchester and Totley junction – 3 tph
  • Totley junction and Sheffield station – 7 tph
  • Totley junction and Clay Cross North junction via Chesterfield – 4 tph

Adding in the High Speed Two services gives these numbers.

  • Hope Valley Line between Manchester and Totley junction – 3 tph
  • Totley junction and Sheffield station – 9 tph
  • Totley junction and Clay Cross North junction via Chesterfield – 6 tph

This report on the Transport for the North web site, is entitled At A Glance – Northern Powerhouse Rail. It states that Transport for the North’s aspirations for Manchester and Sheffield are four tph with a journey time of forty minutes.

Adding in the extra train gives these numbers.

  • Hope Valley Line between Manchester and Totley junction – 4 tph
  • Totley junction and Sheffield station – 10 tph
  • Totley junction and Clay Cross North junction via Chesterfield – 6 tph

This level of services can be accommodated on a twin-track railway designed to the right high speed standards.

Freight Services Between Clay Cross North Junction And Sheffield Station

The route is used by freight trains, with up to two tph on each of the three routes from Totley junction.

And these are likely to increase.

Tracks Between Clay Cross North Junction And Sheffield Station

I am absolutely certain, that two tracks between Clay Cross North junction And Sheffield station will not be enough, even if they are built to High Speed Two standards to allow at least 140 mph running under digital signalling.

Battery Electric Trains

The only battery-electric train with a partly-revealed specification is Hitachi’s Regional Battery Train, which is described in this Hitachi infographic.

Note.

  1. The train is a 100 mph unit.
  2. Ninety kilometres is fifty-six miles.

I would expect that battery-electric trains from other manufacturers like Alstom, CAF and Siemens would have similar performance on battery power.

In Thoughts On CAF’s Battery-Electric Class 331 Trains, I concluded CAF’s approach could give the following ranges.

  • Three-car battery-electric train with one battery pack – 46.7 miles
  • Four-car battery-electric train with one battery pack – 35 miles
  • Four-car battery-electric train with two battery packs – 70 miles

I was impressed.

These are my thoughts on battery-electric trains on the routes from an electrified Sheffield.

Adwick

Sheffield  and Adwick is 22.7 miles without electrification

I am sure that battery-electric trains can handle this route.

If the battery range is sufficient, there may not need to be charging at Adwick.

Bridlington

Sheffield and Bridlington is 90.5 miles without electrification, except for a short section through Doncaster, where trains could top up batteries.

I am sure that battery-electric trains can handle this route.

But there would need to be a charging system at Hull, where the trains reverse.

An alternative would be to electrify Hull and Brough, which is just 10.4 miles and takes about twelve minutes.

Derby Via The Midland Main Line

Clay Cross North junction and Derby is 20.9 miles without electrification.

I am sure that battery-electric trains can handle this route.

Gainsborough Central

Sheffield  and Gainsborough Central is 33.6 miles without electrification

I am sure that battery-electric trains can handle this route.

But there will need to be a charging system at Gainsborough Central.

Huddersfield Via The Penistone Line

This is a distance of 36.4 miles with electrification at both ends, after the electrification between Huddersfield and Westtown is completed.

I am sure that battery-electric trains can handle this route.

Hull

Sheffield and Hull is 59.4 miles without electrification, except for a short section through Doncaster, where trains could top up batteries.

I am sure that battery-electric trains can handle this route.

But there will probably need to be a charging system at Hull.

An alternative would be to electrify Hull and Brough, which is just 10.4 miles and takes about twelve minutes.

Leeds Via The Hallam Or Wakefield Lines

This is a distance of 40-45 miles with electrification at both ends.

I am sure that battery-electric trains can handle this route.

Lincoln

Sheffield and Lincoln Central is 48.5 miles without electrification

I am sure that battery-electric trains can handle this route.

But there will probably need to be a charging system at Lincoln Central.

Manchester Via The Hope Valley Line

This is a distance of forty-two miles with electrification at both ends.

I am sure that battery-electric trains can handle this route.

Nottingham

Clay Cross North junction and Nottingham is 25.1 miles without electrification

I am sure that battery-electric trains can handle this route.

But there may need to be a charging system at Nottingham.

York

This is a distance of 46.4 miles with electrification at both ends.

I am sure that battery-electric trains can handle this route.

Is London St. Pancras And Sheffield Within Range Of Battery-Electric Trains?

In the previous section, I showed that it would be possible to easily reach Derby, as Clay Cross North junction and Derby is 20.9 miles without electrification.

  • Current plans include electrifying the Midland Main Line as far North as Market Harborough.
  • Market Harborough is 82.8 miles from London St. Pancras
  • Derby is 128.3 miles from London St. Pancras

So what would be the best way to cover the 45.5 miles in the middle?

One of the best ways would surely be to electrify between Derby and East Midlands Parkway stations.

  • Derby and East Midlands Parkway stations are just 10.2 miles apart.
  • Current services take around twelve-fourteen minutes to travel between the two stations, so it would be more than enough time to charge a battery-electric train.
  • Power for the electrification should not be a problem, as Radcliffe-on-Soar power station is by East Midlands Parkway station. Although the coal-fired power station will soon be closed, it must have a high class connection to the electricity grid.
  • The East Midlands Hub station of High Speed Two will be built at Toton between Derby and Nottingham and will have connections to the Midland Main Line.
  • An electrified spur could connect to Nottingham station.

I have flown my virtual helicopter along the route and found the following.

  • Three overbridges that are not modern and built for large containers and electrification.
  • Two level crossings.
  • One short tunnel.
  • Two intermediate stations.
  • Perhaps half-a-dozen modern footbridges designed to clear electrification.

I’ve certainly seen routes that would be much more challenging to electrify.

I wonder if gauge clearance has already been performed on this key section of the Midland Main Line.

If this section were to be electrified, the sections of the Midland Main Line between London St. Pancras and Sheffield would be as follows.

  • London St. Pancras and Market Harborough – Electrified – 82.8 miles
  • Market Harborough and East Midlands Parkway – Not Electrified – 35.3 miles
  • East Midlands Parkway and Derby – Electrified – 10.2 miles
  • Derby and Clay Cross North junction – Not Electrified – 20.9 miles
  • Clay Cross North junction and Sheffield – Electrified – 15.5 miles

Note.

  1. The World Heritage Site of the Derwent Valley Mills is not electrified, which could ease the planning.
  2. Leicester station with its low bridge, which could be difficult to electrify, has not been electrified.
  3. Under thirty miles of electrification will allow battery-electric trains to run between London St. Pancras and Sheffield, provided they had a range on batteries of around forty miles.

Probably, the best way to electrify between East Midlands Parkway and Derby might be to develop a joint project with High Speed Two, that combines all the power and other early works for East Midlands Hub station, with the electrification between the two stations.

Will The Class 810 Trains Be Converted To Battery-Electric Operation?

Hitachi’s Class 8xx trains tend to be different, when it comes to power. These figures relate to five-car trains.

  • Class 800 train – 3 x 560 kW diesel engines
  • Class 801 train – 1 x 560 kW diesel engine
  • Class 802 train – 3 x 700 kW diesel engines
  • Class 803 train – All electric – No diesel and an emergency battery
  • Class 805 train – 3 x 700 kW diesel engines (?)
  • Class 807 train – All electric – No diesel or emergency battery
  • Class 810 train – 4 x 700 kW diesel engines (?)

Note.

  1. These figures relate to five-car trains.
  2. Class 807 train are seven-car trains.
  3. Where there is a question mark (?), the power has not been disclosed.
  4. Hitachi use two sizes of diesel engine; 560 kW and 700 kW.

It was generally thought with the Class 810 train to be used on the Midland Main Line, will be fitted with four engines to be able to run at 125 mph on diesel.

But are they 560 kW or 700 kW engines?

  • A Class 802 train has an operating speed of 110 mph on diesel, with 2100 kW of installed power.
  • To increase speed, the power will probably be related to something like the square of the speed.

So crudely the power required for 125 mph would be 2100*125*125/110/110, which works out at 2712 kW.

Could this explain why four engines are fitted? And why they are 700 kW versions?

Interestingly, I suspect, Hitachi’s five-car trains have two more or less identical driver cars, except for the passenger interiors, for the efficiency of manufacturing and servicing.

So does that mean, that a fifth engine could be fitted if required?

There probably wouldn’t be a need for five diesel engines, but as I also believe that the Hyperdrive Innovation battery packs for these trains are plug-compatible with the diesel engines, does that mean that Hitachi’s trains can be fitted with five batteries?

Suppose you wanted to run a Class 810 train at 125 mph to clear an electrification gap of forty miles would mean the following.

  • It would take 0.32 hours or 19.2 minutes to cross the gap.
  • In that time 2800 kW of diesel engines would generate 896 kWh.
  • So to do the same on batteries would need a total battery capacity of 896 kWh.
  • If all diesel engines were replaced, each battery would need to be 224 kWh

A battery of this size is not impractical and probably weighs less than the at least four tonnes of the diesel engine it replaces.

Conclusions

Electrification between Clay Cross North Junction and Sheffield station is an important project that enables the following.

  • A high proportion of diesel services to and from Sheffield to be converted to battery-electric power.
  • With electrification between Derby and East Midlands Parkway, it enables 125 mph battery-electric trains to run between London St. Pancras and Sheffield.
  • It prepares Sheffield for High Speed Two.

It should be carried out as soon as possible.





















September 5, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , , , | 2 Comments

Improving The Cross Country Route

The Cross Country Route is one of the UK’s forgotten railway lines.

  • It runs between York and Bristol Temple Meads.
  • Intermediate stations include Leeds, Wakefield Westgate, Rotherham Central, Meadowhall, Sheffield, Chesterfield, Derby, Burton-on-Trent, Tamworth, Birmingham New Street, University, Bromsgrove, Worcestershire Parkway, Cheltenham Spa and Bristol Parkway.
  • At the Northern end trains can swap to the electrified East Coast Main Line and can extend services to Edinburgh and Aberdeen.
  • At the Southern end trains can swap to the Great Western Main Line and extend services to Taunton, Exeter, Plymouth and Penzance.
  • Trains can also swap to the South Wales Main Line in the Bristol area, to serve Cardiff and South Wales.
  • Operating speeds are generally around 100 mph, but there are sections of 125 mph running.
  • Some sections of the route have 25 KVAC overhead electrification.

I very much believe that it is a route that is ripe for improvement.

These are my thoughts.

Extra And Rebuilt Stations

Recently, Worcestershire Parkway station has been opened on the route.

Bromsgrove station was rebuilt and reopened in 2016.

Derby station was remodelled in 2018.

In addition, there are aspirations for other mew stations and station improvements on the route.

I can see more station improvements and additions on the Cross Country Route.

New Trains

Most services are run by CrossCountry, who only use diesel trains.

Their core services are as follows.

Plymouth And Edinburgh uses the route between York and Bristol Temple Meads. The service runs under wires North of Leeds and at Bristol Parkway and at Birmingham New Street.

Southampton Central And Newcastle uses the route between York and Birmingham New Street. The service runs under wires North of Leeds and at Reading and at Birmingham New Street.

Bournemouth and Manchester Piccadilly uses the route at Birmingham New Street. The service runs under wires North of Birmingham New Street.

Bristol Temple Meads and Manchester Piccadilly uses the route between Bristol Temple Meads and Birmingham New Street. The service runs under wires at Bristol Parkway and North of Birmingham New Street.

Cardiff Central and Nottingham uses the route between Gloucester and Derby. The service runs under the wires West of Bristol Parkway and at Birmingham New Street.

Birmingham New Street and Nottingham uses the route between Birmingham New Street and Derby. The service runs under the wires at Birmingham New Street.

Birmingham New Street and Stansted Airport does not use the route. The service runs under the wires at Birmingham New Street and around Cambridge and Peterborough.

Birmingham New Street and Leicester does not use the route. The service runs under the wires at Birmingham New Street.

Note.

  1. Several services run under wires for sufficient time to charge a battery-electric train.
  2. Several services turn in stations for sufficient time to charge a battery-electric train.
  3. At least six or possibly seven of the services run for at least fifty miles on tracks that can handle 125 mph running. Some of this track will be upgraded to 140 mph with digital signalling.

This Hitachi infographic shows the Hitachi Intercity Tri-Mode Battery Train.

I believe that Hitachi could produce a version of this train, that would partially meet CrossCountry’s need for a new fleet to reduce their carbon footprint.

For the purpose of this analysis, I will assume this about the trains.

  • Battery power will always be used in stations.
  • The trains have a battery range of around forty miles at 100 mph.
  • Running at 125 mph will need 25 KVAC overhead electrification.

This table shows the current electrification status of the Cross Country Route.

  • York and South Kirby junction- 45.4 miles – Electrified
  • South Kirby junction and Birmingham New Street – 96.6 miles – Not Electrified
  • Birmingham New Street and Bromsgrove – 16 miles – Electrified
  • Bromsgrove and Bristol Parkway – 69.8 miles – Not Electrified
  • Bristol Parkway and Bristol Temple Meads – 4.8 miles- Not Electrified

The trains would appear to still need to use diesel on some parts of the route.

Or Hitachi ABB Power Grids could install short lengths of 25 KVAC overhead electrification to top up the trains’ batteries in appropriate places.

I believe CrossCountry could decarbonise this route using battery-electric trains and discontinuous electrification.

This would surely refresh the line and attract passengers, but would the trains speed up the service?

  • Birmingham New Street and Leeds is 116.4 miles and currently takes just under two hours at an average speed of 59.3 mph in a Class 221 train.
  • Several sections of line between Birmingham New Street and Leeds can sustain 125 mph running.
  • London Liverpool Street and Norwich is 114.5 miles and has regularly been achieved by British Rail-era electric trains in ninety minutes on a 100 mph line, which is an average speed of 76 mph.
  • Averaging 76 mph between Birmingham New Street and Leeds would give a time of 92 minutes.

For these and other reasons, I am fairly sure that a battery-electric train capable of running at 125 mph with fast acceleration could run between Birmingham New Street and Leeds in under ninety minutes, with the addition of some discontinuous electrification.

  • There is currently one tph between Birmingham New Street and Leeds, which also serves Sheffield.
  • There is also one tph between Birmingham New Street and Sheffield by a different route.
  • There is two tph between Birmingham New Street and Nottingham.
  • My calculations indicate that the Nottingham and Sheffield services would take under an hour to and from Birmingham New Street, with the Leeds service taking thirty minutes longer.

In normal circumstances no diesel would be used.

Track Improvements And Discontinuous Electrification

This table shows the current electrification status of the Cross Country Route.

  • York and South Kirby junction- 45.4 miles – Electrified
  • South Kirby junction and Birmingham New Street – 96.6 miles – Not Electrified
  • Birmingham New Street and Bromsgrove – 16 miles – Electrified
  • Bromsgrove and Bristol Parkway – 69.8 miles – Not Electrified
  • Bristol Parkway and Bristol Temple Meads – 4.8 miles – Not Electrified

Solutions will have to be found to decarbonise a lot of the route.

I have flown my virtual helicopter from Tamworth to Sheffield and this part of the route seems to the sort of route that could be upgraded to a full 125 mph line, as it is fairly straight and some sections already allow trains to travel at this speed.

As the 15.5 miles between Clay Cross North Junction and Sheffield will be updated and electrified for High Speed Two’s spur into Sheffield sometime in the future, I would feel that as updating this section benefits High Speed Two, the Midland Main Line, the Cross Country Route and the Hope Valley Line, that this section should be rebuilt as necessary and electrified, as soon as is practically possible.

I believe that Clay Cross North Junction and Sheffield is one of the most important routes in the country to be electrified, if not the most important.

This table shows the electrification status of the Cross Country Route after electrification of Clay Cross North Junction and Sheffield.

  • York and South Kirby junction- 45.4 miles – Electrified
  • South Kirby junction and Sheffield – 18.8 miles – Not Electrified
  • Sheffield and Clay Cross North junction – 15.5 miles – Electrified
  • Clay Cross North junction and Birmingham New Street – 62.1 miles – Not Electrified
  • Birmingham New Street and Bromsgrove – 16 miles – Electrified
  • Bromsgrove and Bristol Parkway – 69.8 miles – Not Electrified
  • Bristol Parkway and Bristol Temple Meads – 4.8 miles – Not Electrified

It looks that by electrifying the 15.5 miles between Sheffield and Clay Cross North junction, the gap of 18.8 miles between South Kirby junction and Sheffield could be easily bridged by a battery-electric train.

The section between Clay Cross North junction and Birmingham New Street can be split into three.

  • Clay Cross North junction and Derby – 20.9 miles
  • Derby and Tamworth – 23.9 miles
  • Tamworth and Birmingham New Street – 17.3 miles

If Hitachi ABB Power Grids installed discontinuous electrification at Derby and Tamworth, this should bridge the gap to the electrification at Birmingham.

As some of this section can sustain 125 mph running, it may be better to fully electrify part of the route.

This table shows the electrification status of the route would become

  • York and South Kirby junction- 45.4 miles – Electrified
  • South Kirby junction and Sheffield – 18.8 miles – Not Electrified
  • Sheffield and Clay Cross North junction – 15.5 miles – Electrified
  • Clay Cross North junction and Derby – 20.9 miles – Not Electrified
  • Derby and Tamworth – 23.9 miles – Not Electrified
  • Tamworth and Birmingham New Street – 17.3 miles – Not Electrified
  • Birmingham New Street and Bromsgrove – 16 miles – Electrified
  • Bromsgrove and Bristol Parkway – 69.8 miles – Not Electrified
  • Bristol Parkway and Bristol Temple Meads – 4.8 miles – Not Electrified

I have also flown my virtual helicopter from Bromsgrove to Westerleigh junction, where the Cross Country Route joins the electrified Great Western Main Line, about 4.5 miles East of Bristol Parkway station.

It looks to me that this Southern short section of electrified line would be able to charge a battery-electric train so that it could reach Bristol Temple Meads station.

But the sixty-plus miles of route without electrification between Bromsgrove and Westerleigh junction would be too far to travel without some electrification.

This could either be full electrification or discontinuous using the methods proposed by Hitachi ABB Power Grids.

It certainly looks to me, that Hitachi’s technology or similar, that I talked about in Solving The Electrification Conundrum could be used to run battery-electric trains between York and Bristol Temple Meads on the Cross Country Route.

Digital Signalling

I would assume this will be installed on the route, to give more precise control of trains on the more complicated sections of the route.

East Coast Main Line Improvements

There are several improvements to the North of York, that will reduce journey times on all services using the East Coast Main Line.

These could contribute time saving of up to ten minutes, according to High Speed Two’s Journey Planner and current timetables.

Comparison With The Proposed Eastern Leg Of High Speed Two

With all the talk about possible cancellation of the Eastern Leg of High Speed Two could an improved Cross Country Route be used in the interim?

I will look at a few timings from Birmingham.

Birmingham And Leeds

A fully-developed High Speed Two is claiming forty-nine minutes, as against the one hour and fifty-eight minutes today.

I have stated that ninety minutes is an attainable time on a 116.4 mile journey, where a good proportion of 125 mph running will be possible, sustained by electrification.

But with full electrification, more 125 mph running and even some 140 mph running under the control of digital signalling, I suspect that ninety minutes is only an upper limit to the journey time between Birmingham and Leeds.

High Speed Two are saying they will run two tph between Birmingham and Leeds, which is twice the current frequency.

I could see that an improved frequency on the Cross Country Route could be very convenient, if it increased the frequency between the two cities to four tph.

Is it going to annoy passengers, that services will leave from two different stations in Birmingham and if you go to the wrong one, you’ll have to wait thirty minutes for the next train?

Birmingham And Middlesbrough

Times between Birmingham and Middlesbrough will be determined by adding a Leeds and Middlesbrough time to the Birmingham and Leeds times.

The best time between Leeds and Middlesbrough today is one hour and 23 minutes, which I suspect will lose a few minutes due to East Coast Main Line improvements North of York.

This gives using High Speed Two to Leeds a time of two hours and eight minutes, as against two hours and forty-nine minutes using an improved Cross Country Route.

Birmingham And Newcastle

A fully-developed High Speed Two is claiming one hour and  fifty-seven minutes, as against the three hours and twenty-six minutes today.

Based on the current and possible times between Birmingham at Leeds using CrossCountry, I feel times to stations North of Leeds will be reduced by at least twenty-eight minutes, putting the Birmingham and Newcastle time a few minutes under three hours.

Birmingham And Nottingham

A fully-developed High Speed Two is claiming twenty minutes to East Midlands Hub, which when adding in the tram to Nottingham City Centre will be thirty-five minutes..

,Current services are one hour and ten minutes today.

On an improved Cross Country Route, with with battery-electric trains and some 125 mph running, I can see this time shrink to under an hour, even with the reverse at Derby.

Midlands Connect are also proposing a high speed service between Birmingham Curzon Street and Nottingham station, which will take thirty-three minutes.

High Speed Two are saying they will run three tph between Birmingham and East Midlands Hub, which compares with two tph using the Cross Country Route.

Birmingham And Sheffield

A fully-developed High Speed Two is claiming fifty-seven minutes, as against the one hour and fifteen minutes today.

I have stated that an hour is an attainable time on this route, with battery-electric trains and some 125 mph running.

A time of an hour would be very competitive with the Eastern Leg of High Speed Two.

High Speed Two are saying they will run two tph between Birmingham and Sheffield with a change at East Midlands Hub, which compares with two tph using the Cross Country Route.

Conclusion

A fully developed East Coast Main Line will give High Speed Two a good run for its money on services between London and Yorkshire, North East England and Scotland. I indicated my thoughts and conclusions in What Is Possible On The East Coast Main Line?.

I also believe that an improved Cross Country Route could give the Eastern Leg of High Speed Two a very good run for its money.

Perhaps, we should safeguard the route of Eastern Leg of High Speed Two for building later to increase capacity when it is needed, but in the interim we should upgrade the following routes.

  • Cross Country Route
  • East Coast Main Line
  • Midland Main Line
  • Northern Powerhouse Rail
  • West Coast Main Line

These routes should have at least these minimum standards.

  • All passenger trains electric or battery-electric.
  • All freight locomotives electric, battery-electric or hydrogen-electric.
  • Where possible all lines should allow 125 mph running.
  • Universal in-cab digital signalling
  • There should be sections of 140 mph running, where possible.

We will need the Eastern Leg of High Speed Two in the future, but we don’t need it in the next few years.











August 26, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , | 4 Comments

Department Of Transport Claims London and Sheffield Times Could Be Cut By Thirty Minutes

In this article on the BBC, which is entitled Government Announce £401m Boost For Rail Services, this is said.

The funding announcement coincided with the completion of the first phase of the £1.5bn Midland Main Line Upgrade, which has supported the launch of East Midlands Railway’s (EMR) first electric services on the route between Corby in Northamptonshire and London St Pancras.

The project will see journey times between Sheffield and London cut by up to 30 minutes, the DfT said.

So how feasible is the claim of a thirty minute cut in London and Sheffield timings?

On Monday, the 07:30 train from London to Sheffield, covered the 164.7 miles in two hours and twelve minutes at an average speed of 74.9 mph.

If that train had done the trip in one hour and forty-two minutes, that would have been an average speed of 96.9 mph.

By the time, the new Class 810 trains arrive in a couple of years, they will be able to use the new electrification to Market Harborough, when on Monday the 82.8 miles without a stop, was covered in an hour, at an average speed of 82.8 mph.

These new trains are 125 mph electric trains under the wires and they will have two separate fast lines on which to run.

Example time savings at various average speeds to Market Harborough are as follows.

  • 100 mph – 10 minutes saving.
  • 110 mph – 14.8 minutes saving.
  • 125 mph – 20.3 minutes saving
  • 130 mph – 21.8 minutes saving
  • 140 mph – 24.6 minutes saving

Note.

  1. The faster the average, the greater the time saving.
  2. Faster than 125 mph would only be possible with full in-cab digital signalling, which is currently being installed on the East Coast Main Line.
  3. I have been to Leicester in an InterCity 125, which was running at 125 mph most of the way.

But it does look like the new Class 810 trains will be able to save around twenty minutes to Sheffield, by making full use of the electrification between London and Market Harborough.

They would need to save just ten minutes between Market Harborough and Sheffield.

The Monday Train covered the 81.9 miles between Market Harborough and Sheffield in one hour and twelve minutes, which is an average speed of 68.3 mph.

To obtain the saving of ten minutes, it would need to do the journey in one hour and two minutes, which would be an average speed of 79.3 mph.

Given that the new Class 810 trains are designed to cruise at 125 mph on diesel, I don’t think this is an impossible objective.

What Will Be The Ultimate Time Between London and Sheffield On The Midland Main Line?

I believe that the following two sections of the Midland Main Line can be easily electrified.

  • Between Leicester and Derby without the problem of the bridge at the South end of Leicester station, which would be so disruptive.
  • Clay Cross North Junction and Sheffield which will be electrified for High Speed Two. I doubt Derby and Clay Cross Junction will be electrified as it’s a World Heritage Site.

On my Monday train, the following are times North of Leicester.

  • Leicester and Derby is 29.3 miles, which is covered in 32 minutes at an average speed of 55 mph, which includes five stops. Raise this to 110 mph and the journey time is just 16 minutes or a saving of 16 minutes.
  • Derby and Clay Cross North Junction is 21.8 miles, which is covered in 13 minutes at an average speed of 100 mph. By averaging 120 mph, there would be a saving of 2.1 minutes.
  • Cross North Junction and Sheffield is 15.5 miles, which is covered in 16 minutes at an average speed of 58.2 mph.

Note.

  1. Savings would come between Leicester and Derby because of 125 mph linespeed and faster stops because of electrification.
  2. I believe that Hitachi battery-electric trains could sustain 125 mph on battery alone between Derby and Clay Cross North Junction, if they entered the section without electrification at full speed with full batteries. Now that is what I call a battery-electric train!
  3. There must be a minute or two to be saved on an electrified section into Sheffield with the stop at Chesterfield.

Add up all the savings and I feel that an hour and a half is possible between London and Sheffield.

And what time is High Speed Two claiming? One hour and twenty-seven minutes!

Could A Battery-Electric Train Cruise At 125 mph?

This may seem a silly idea, but then trains don’t care where they get their electricity from.

On the 21.8 miles between Derby and Clay Cross North, a sizeable proportion of energy will be used to accelerate the train up to the linespeed for the electrified section.

When the train enters the section without electrification, it will have two sources of energy.

  • The electricity in the full batteries.
  • The kinetic energy in the train at the required speed.

As the train runs through the section air and rolling resistance will tend to slow the train and electricity from the battery will be used to maintain speed.

In How Much Power Is Needed To Run A Train At 125 mph?. I estimated that for a Class 801 train to maintain 125 mph needs 3.42 kWh per vehicle mile.

A simple sum of 21.8 * 5 * 3.42 gives an energy need of 372.8 kWh to run between Derby and Clay Cross North Junction.

I’m sure than Hitachi can fit a 400 kWh battery in a five-car Class 810 train.

Would a slightly larger battery and in-cab signalling allow battery-electric trains to run at 140 mph? If the track allowed it, I don’t see why not!

Conclusion

I believe the Department of Transport’s statement of saving thirty minutes between London and Sheffield is feasible.

But so is a time of an hour-and-a half, which will give High Speed Two a run for its money!



May 26, 2021 Posted by | Transport/Travel | , , , , , , , , | 14 Comments

Northern Powerhouse Rail – Connecting Sheffield To HS2 And On To Leeds

In this article on Transport for the North, which is entitled Northern Powerhouse Rail Progress As Recommendations Made To Government, one of the recommendations proposed for Northern Powerhouse Rail is connecting Sheffield to High Speed Two and on to Leeds.

Northern Powerhouse Rail’s Objective For The Sheffield and Leeds Route

Wikipedia, other sources and my calculations say this about the trains between Leeds and Sheffield.

  • The distance between the two stations is 39 miles
  • The current service takes around 40 minutes and has a frequency of one train per hour (tph)
  • This gives an average speed of 58.5 mph for the fastest journey.
  • The proposed service with Northern Powerhouse Rail will take 28 minutes and have a frequency of four tph.
  • This gives an average speed of 84 mph for the journey.

This last figure of 84 mph, indicates to me that a fast route will be needed.

But given experience of 100 mph lines in other parts of the UK, 100 mph trains and infrastructure could make this demanding objective of twenty-eight minutes between Sheffield and Leeds a reality

Connecting Sheffield To High Speed Two

Sheffield is to be accessed from a branch off the Main High Speed Two route to Leeds.

This map clipped from High Speed Two’s interactive map, shows the route of the Sheffield Branch, from where it branches North West from the main Eastern Leg of High Speed Two.

Note.

  1. Orange indicates new High Speed Two track.
  2. Blue indicates track that High Speed Two will share with other services.
  3. The orange route goes North to Leeds, along the M1
  4. The blue route goes North to Chesterfield and Sheffield, after skirting to the East of Clay Cross.
  5. The orange route goes South to East Midlands Hub station.

This second map, shows where the Erewash Valley Line joins the Sheffield Branch near the village of Stonebroom.

Note.

  1. Red is an embankment.
  2. Yellow is a cutting.
  3. The Sheffield Branch goes North-West to Clay Cross, Chesterfield and Sheffield
  4. The Sheffield Branch goes South-East to East Midlands Hub station.
  5. The Sheffield Branch goes through Doe Hill Country Park.
  6. The Sheffield Branch runs alongside the existing Erewash Valley Line, which goes South to Langley Mill, Ilkeston and the Derby-Nottingham area.

The Sheffield Branch and the Erewash Valley Line appear to share a route, which continues round Clay Cross and is shown in this third map.

Note

  1. Doe Hill Country Park is in the South-East corner of the map.
  2. The dark line running North-South is the A61.
  3. Running to the West of the A61 is the Midland Main Line, which currently joins the Erewash Valley Line at Clay Cross North junction.

High Speed Two and the Midland Main Line will share a route and/or tracks from Clay Cross North junction to Sheffield.

This fourth map, shows where the combined route joins the Hope Valley Line to Manchester to the South West of Sheffield.

Note.

  1. Sheffield is to the North East.
  2. Chesterfield is to the South East,
  3. Totley junction is a large triangular junction, that connects to the Hope Valley Line.

These are some timings for various sections of the route.

  • Clay Cross North Junction and Chesterfield (current) – 4 minutes
  • Clay Cross North Junction and Sheffield (current) – 17 minutes
  • Chesterfield and Sheffield (current) – 13 minutes
  • Chesterfield and Sheffield (High Speed Two) – 13 minutes
  • East Midlands Hub and Chesterfield (High Speed Two) – 16 minutes
  • East Midlands Hub and Sheffield (High Speed Two) – 27 minutes

As Class Cross North Junction and Sheffield are 15.5 miles, this means the section is run at an average speed of 53 mph.

Can I draw any conclusions from the maps and timings?

  • There would appear to be similar current and High Speed Two timings between Chesterfield and Sheffield.
  • The various junctions appear to be built for speed.

The Midland Main Line will be electrified from Clay Cross North Junction to Sheffield, so that High Speed Two trains can use the route.

What will be the characteristics of the tracks between Clay Cross North Junction and Sheffield?

  • Will it be just two tracks as it mainly is now or will it be a multi-track railway to separate the freight trains from the high speed trains?
  • Will it have a high enough maximum speed, so that East Midland Railway’s new Class 810 trains can go at their maximum speed of 140 mph?
  • Will it be capable of handling a frequency of 18 tph, which is the maximum frequency of High Speed Two?

Surely, it will be built to a full High Speed Two standard to future-proof the line.

Before finishing this section, I will answer a few questions.

Would It Be Possible For Class 810 Trains Fitted With Batteries To Run Between London St. Pancras And Sheffield?

East Midlands Railway’s new Class 810 trains could be fitted with batteries to become Regional Battery Trains with the specification, given in this Hitachi infographic.

Note.

  1. This would give the trains a range of 90 kilometres or 56 miles on batteries, if a number of diesel engines were exchanged for batteries.
  2. The trains would only be a few mph slower on batteries, than the current Hitachi trains on diesel.
  3. The Class 810 trains have four diesel engines. Is this to enable 125 mph running on diesel?

By perhaps replacing two diesel engines with batteries and using the remaining two diesel engines as range extenders or some other combination, I feel that Hitachi might be able to obtain a longer self-powered range for the train.

Consider.

  • Between Sheffield and Clay Cross North Junction will be fully-electrified and at 15.5 miles, it will be long enough to fully-charge the batteries on the train.
  • Between London St. Pancras and Market Harborough will be fully-electrified and at 83 miles, it will be long enough to fully-charge the batteries on the train.
  • The section between Market Harborough and Clay Cross North Junction is not electrified and is 66 miles.

I feel that Hitachi and their partner; Hyperdrive Innovation can design a battery electric Class 810 train, that can travel between London St. Pancras and Sheffield, without using a drop of diesel.

A great advantage of this approach, is that, as more electrification is added to the Midland Main Line, as it surely will be, the trains will be able to use the wires to reduce journey times.

I believe there are two sections on the Midland Main Line. where traditional electrification is less likely.

  • The bridge at the Southern end of Leicester station is low and would need to be rebuilt causing immense disruption to both road and rail in the city.
  • Between Derby and Alfreton is the World Heritage Site of the Derwent Valley Mills. Will electrification be fought by the heritage lobby?

Both sections may eventually be electrified at some far off date in the future.

Why Is There A Spur Of Electrification At Totley Junction?

This map clipped from High Speed Two’s interactive map, shows the Southern Leg of Totley Junction, where the Hope Valley Line joins the Midland Main Line.

Note that a short length of electrification is shown, between the Midland Main Line and a tunnel on the Southern leg.

This Google Map shows the same area.

Note, that the line disappears into a tunnel.

  1. In Northern Powerhouse Rail -Significant Upgrades And Journey Time Improvements To The Hope Valley Route Between Manchester And Sheffield, I indicated, that running battery electric trains between Manchester and Sheffield would be a possibility and could be a way of meeting Northern Powerhouse Rail’s objectives for the route.
  2. A short length of electrification might help battery electric trains turn out to go South.
  3. I don’t think any passenger trains ever go that way now, but I have seen articles and heard complaints from passengers, that want a better service between Derby and/or Nottingham and Manchester.
  4. It might also help with the decarbonisation of freight trains to and from the quarries.

I also suspect, that if building High Speed Two in Manchester temporarily reduced the capacity of Manchester Piccadilly station, trains could use the Hope Valley Line to get to the city, as they have done previously, with Project Rio.

Accessing The Infrastructure Depot At Staveley

This map clipped from High Speed Two’s interactive map, shows the location of the infrastructure depot at Staveley.

Note.

  1. Chesterfield is shown by the large blue dot.
  2. High Speed Two’s Sheffield Branch runs North from Chesterfield station.
  3. High Speed Two’s Eastern Leg runs down the Eastern side of the map.
  4. Two spurs from East and West go towards each other and would meet to the North of the town of Staveley.

The infrastructure depot will be located where they meet.

The route from the Sheffield Branch uses the Barrow Hill Line, which might be reopened as another passenger route between Chesterfield and Sheffield.

I wrote about this idea in Reinstatement Of The Barrow Hill Line Between Sheffield And Chesterfield.

If the line is being upgraded and electrified as far as Barrow Hill for the Infrastructure Depot, would it be worthwhile to create a new electrified route into Sheffield?

I also wrote in Could East Midlands Railway’s Liverpool And Norwich Service Avoid A Reverse At Sheffield By Using the Barrow Hill Line?, that the Barrow Hill Line might be an alternative route for the Liverpool and Norwich service.

When the railway routes in the area of the Infrastructure Depot are developed, I wouldn’t be surprised to see some routes changed.

Between Sheffield And Meadowhall Stations

One of the original designs for High Speed Two had it calling at Meadowhall station.

This map clipped from High Speed Two’s interactive map, clearly shows High Speed Two running across Sheffield.

Note.

  1. Sheffield station is the big Blue dot in the South-West corner of the map.
  2. The M1 runs across the North-East corner of the map.
  3. The railway between Sheffield and Meadowhall stations already exists.
  4. Sheffield and Meadowhall stations are 3.5 miles apart and trains take seven minutes.

Is there any reason, why High Speed Two trains shouldn’t serve both Sheffield and Meadowhall stations, by just taking the existing line across the city?

Taking The Wakefield Line Towards Leeds

In extending to Meadowhall, High Speed Two’s route seems to be taking the current Wakefield Line.

This map clipped from High Speed Two’s interactive map, clearly shows High Speed Two passing through Sheffield and Rotherham and then going towards Leeds.

Note.

  1. Orange indicates new High Speed Two track.
  2. Blue indicates track that High Speed Two shares with other lines.
  3. The Wakefield Line is shown in blue and has stations at Meadowhall, Swinton, Bolton-upon-Dearne, Goldthorpe and Thurscoe.
  4. The main High Speed Two leg to Leeds is shown in orange.

It looks to me, that High Speed Two are aiming to provide a route, so that trains going to Sheffield can extend the journey to Leeds.

As Leeds will have three tph to and from London, why is this service being extended to Leeds?

I will explore a few reasons why in the next few sub-sections.

It’s Convenient For Running Trains

Consider.

  • High Speed Two are saying London and Sheffield will be one hour and twenty-seven minutes.
  • Northern Powerhouse Rail have an objective of Leeds and Sheffield in twenty-eight minutes.
  • One hour and fifty-five minutes could be a convenient time for a London and Leeds service, as it could be a four hour round trip.

But High Speed Two are saying London and Leeds will be one hour and twenty-one minutes.

It looks to me, that it is a convenient way to serve Meadowhall, Rotherham, Bolton-upon-Dearne, Goldthorpe and Thurscoe stations

High Speed Two Through Rotherham

This map clipped from High Speed Two’s interactive map, clearly shows High Speed Two passing through Rotherham to the North of the Parkgate Shopping Park.

Note.

  1. High Speed Two is the bright blue line running North-East from the Western edge of the map.
  2. The grey blocks are the stores in the Shopping Park.
  3. The Rotherham Parkgate tram-train stop is marked.

This Google Map shows a similar area.

To the East of the Parkgate Shopping Park, is a large brownfield site, as this Google Map shows.

Could Rotherham have a station on the line North of this site?

  • The rail line running SW-NE across this map is drawn in blue on High Speed Two’s interactive map.
  • Rotherham Masborough station used to be in this area.

If High Speed Two is supposed to be a railway for all the people, or at least as many as possible, surely there should be a station in the town.

High Speed Two Through Bolton-upon-Dearne

In July 2019, I wrote a post called Sheffield Region Transport Plan 2019 – A New Station At Barnsley Dearne Valley.

So have High Speed Two taken on this feature of the Sheffield Region Transport Plan 2019, to add another station to their list of destinations?

Approach To Leeds

This map clipped from High Speed Two’s interactive map, clearly shows route High Speed Two will take to approach Leeds from the South East.

Note.

  1. Leeds station is the blue dot in the North West corner of the map.
  2. High Speed Two is shown in orange and continues North to York, where it joins the East Coast Main Line.
  3. Wakefield is in the middle at the bottom of the map and is on the Wakefield Line and the current route for LNER’s expresses from London.

It looks to me, that Leeds and Sheffield will eventually end up with two faster routes between the two cities.

  • An upgraded Wakefield Line
  • A route based on the Southern section of the Wakefield Line and the Eastern leg of High Speed Two route to Leeds.

If High Speed Two’s trains are to be able to get across Sheffield and call at Sheffield, Meadowhall, Rotherham and Barnsley Dearne Valley stations, then these conditions must be met.

  • The trains must be High Speed Two’s Classic-Compatible trains or a train to a similar specification.
  • Some platform lengthening might be needed to allow the two hundred metre long trains to call.
  • The Wakefield Line must be electrified between Sheffield and just North of Goldthorpe station, where it will be able to join the link to the Eastern leg of High Speed Two.

It would probably be sensible to electrify the Wakefield Line all the way to Fitzwilliam station, from where the line is electrified all the way to Leeds.

This would enable the following.

  • Electric trains to run between Sheffield and Leeds via Wakefield Westgate station.
  • Would Northern Powerhouse Rail’s objective of a twenty-eight minute journey be achieved?
  • East Midlands Railway could run their Class 810 trains between London St. Pancras and Leeds under electric power.
  • High Speed Two could serve Leeds before the Northern infrastructure of the Eastern leg of High Speed Two is complete.
  • High Speed Two could offer services to Wakefield, Barnsley and Rotherham via Sheffield.

I can see reasons for early upgrading of the Wakefield Line.

Conclusion

It appears that High Speed Two are planning an electrified route through Sheffield between Clay Cross North Junction on the Midland Main Line and Goldthorpe station on the Wakefield Line.

Once complete it would enable the following.

  • Rotherham and Barnsley to have direct electric services to and from the capital.
  • When East Midlands Railway introduce their new Class 810 trains, the electrification North of Clay Cross North Junction would mean faster services and less running on diesel power.
  • I believe these Class 810 trains could run between London and Sheffield, if their four diesel engines are replaced with batteries, which would power the trains between Clay Cross North Junction and Market Harborough.
  • The electrification at Sheffield would allow battery electric trains to work between Manchester and Sheffield as I outlined in Northern Powerhouse Rail -Significant Upgrades And Journey Time Improvements To The Hope Valley Route Between Manchester And Sheffield.

I think it is a good plan.

Project Management Recommendations

It is my view that the following projects should be started as soon as possible.

  • Electrification between Clay Cross North Junction and Sheffield station.
  • Electrification of the Wakefield Line between Sheffield and Fitzwilliam stations.
  • Provision of new stations at Rotherham and Barnsley Dearne Valley on the Wakefield Line.

These projects could deliver worthwhile improvements in services in a couple of years, rather than the tens of years for High Speed Two.









November 24, 2020 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , , , , , | 3 Comments

Northern Powerhouse Rail – Significant Upgrades And Journey Time Improvements To The Hope Valley Route Between Manchester And Sheffield

In this article on Transport for the North, which is entitled Northern Powerhouse Rail Progress As Recommendations Made To Government, one of the recommendations proposed for Northern Powerhouse Rail is significant upgrades and journey time improvements to the Hope Valley Line between Manchester and Sheffield.

I shall look at a few of the possibilities for the route.

Northern Powerhouse Rail’s Objective For The Route

Wikipedia, other sources and my calculations say this about the trains between Manchester and Sheffield.

  • The distance between the two stations is 42.6 miles
  • The current service takes 49 to 57 minutes and has a frequency of two trains per hour (tph)
  • This gives an average speed of 52.2 mph for the fastest journey.
  • The proposed service with Northern Powerhouse Rail will take 40 minutes and have a frequency of four tph.
  • This gives an average speed of 63.9 mph for the journey.

This last figure of 63.9 mph, indicates to me that a 100 mph train will be able to meet Northern Powerhouse Rail’s objective.

Current Trains On The Hope Valley Line

In July this year, I went along the Hope Valley Line between Manchester Piccadilly and Dore and Totley stations, which I wrote about in Along The Hope Valley Line – 13th July 2020.

My train was a pair of refurbished Class 150 trains.

These trains can handled the current timetable but they have an operating speed of only 75 mph.

Looking at Real Time Trains for last week, it now appears that Northern are using new three-car Class 195 trains.

These are much better.

  • They are 100 mph trains with much better acceleration.
  • The train was still running the timetable for the slower trains.

With thirteen stops, I suspect that these new trains could be under fifty minutes between Manchester and Sheffield.

Will The Hope Valley Line Be Electrified?

Consider.

  • Currently, the Hope Valley Line is electrified between Manchester Piccadilly and Hazel Grove stations.
  • In the future, the line is likely to be electrified between Sheffield and Dore & Totley stations, in conjunction with rebuilding the Midland Main Line, to the North of Clay Cross North junction for High Speed Two.
  • After the electrification at the Eastern end, just over thirty miles will be without electrification.
  • The Hope Valley Line has an operating speed of 90 mph.

This Hitachi infographic shows the specification of the Hitachi Regional Battery train.

As these are a 100 mph train with a range of 90 km or 56 miles on battery power, these trains could work Manchester and Sheffield in the required time of forty minutes. provided they could be charged at the Sheffield end of the route.

TransPennine’s Class 802 trains can be fitted with batteries to become Regional Battery Trains, so it would appear that TransPennine’s services on this route could go zero-carbon.

In addition Northern, who are the other passenger operator on the route are working with CAF on battery electric trains, as I wrote about in Northern’s Battery Plans,

I don’t believe there are pressing reasons to electrify the Hope Valley Line to allow passenger trains to meet Northern Powerhouse Rail’s objective.

Will Operating Speed On The Hope Valley Line Be Increased?

Under Plans in the Wikipedia entry for the Hope Valley Line, this is said.

Network Rail, in partnership with South Yorkshire ITA, will redouble the track between Dore Station Junction and Dore West Junction, at an estimated cost of £15 million. This costing is based on four additional vehicles in traffic to deliver the option, however, this will depend on vehicle allocation through the DfT rolling stock plan. This work will be programmed, subject to funding, in conjunction with signalling renewals in the Dore/Totley Tunnel area.

Other proposals include a 3,600 feet (1,100 m) loop in the Bamford area, in order to fit in an all-day (07:00–19:00) hourly Manchester–Sheffield via New Mills Central stopping service, by extending an existing Manchester–New Mills Central service. Planning permission for this was granted in February 2018, but delays mean that this will now not be completed until 2023.

These changes to allow three fast trains, a stopping train and freight trains each hour were also supported in a Transport for the North investment report in 2019, together with “further interventions” for the Northern Powerhouse Rail programme.

It would also probably be a good idea, to increase the operating speed of the line to 100 mph where possible.

Effect On Passenger Services

100 mph trains on a track with an operating speed of 100 mph, could show some impressive timings.

On the Great Eastern Main Line, which is a very busy 100 mph double-track railway, 100 mph trains, achieve a 77 mph average for 90 minutes over the 115 miles, between London Liverpool Street and Norwich with a single stop.

A one-stop Manchester and Sheffield service at this speed would take just 33.2 minutes.

The stopping trains would be more of a challenge to get under forty minutes, but at least if they were battery electric trains, they’d have the better acceleration and deceleration of the electric trains.

  • Fifty minutes would be a realistic time.
  • Ten minutes turnround time at each end, would be ideal for charging the batteries and give an efficient two hour round trip.

Efficient timetabling could create a very comprehensive service for the Hope Valley Line.

Freight Trains On The Hope Valley Line

Under Freight in the Wikipedia entry for the Hope Valley Line, this is said.

Over a million tons of cement a year is taken away by rail from Earle’s Sidings at Hope.

That is a very large number of freight trains, all of which are currently hauled by diesel locomotives.

  • Looking at Real Time Trains, there are nearly always two freight trains in every hour of the day.
  • If you look at the routes, they go to a myriad number of destinations.
  • Following the routes between Dore Junction and the quarries to the South of the Hope Valley Line, there are several tunnels.
  • There are numerous quarries in a cluster, all served by their own rail lines.

Electrifying the delivery of the cement and limestone from the quarries would be a large and very expensive operation.

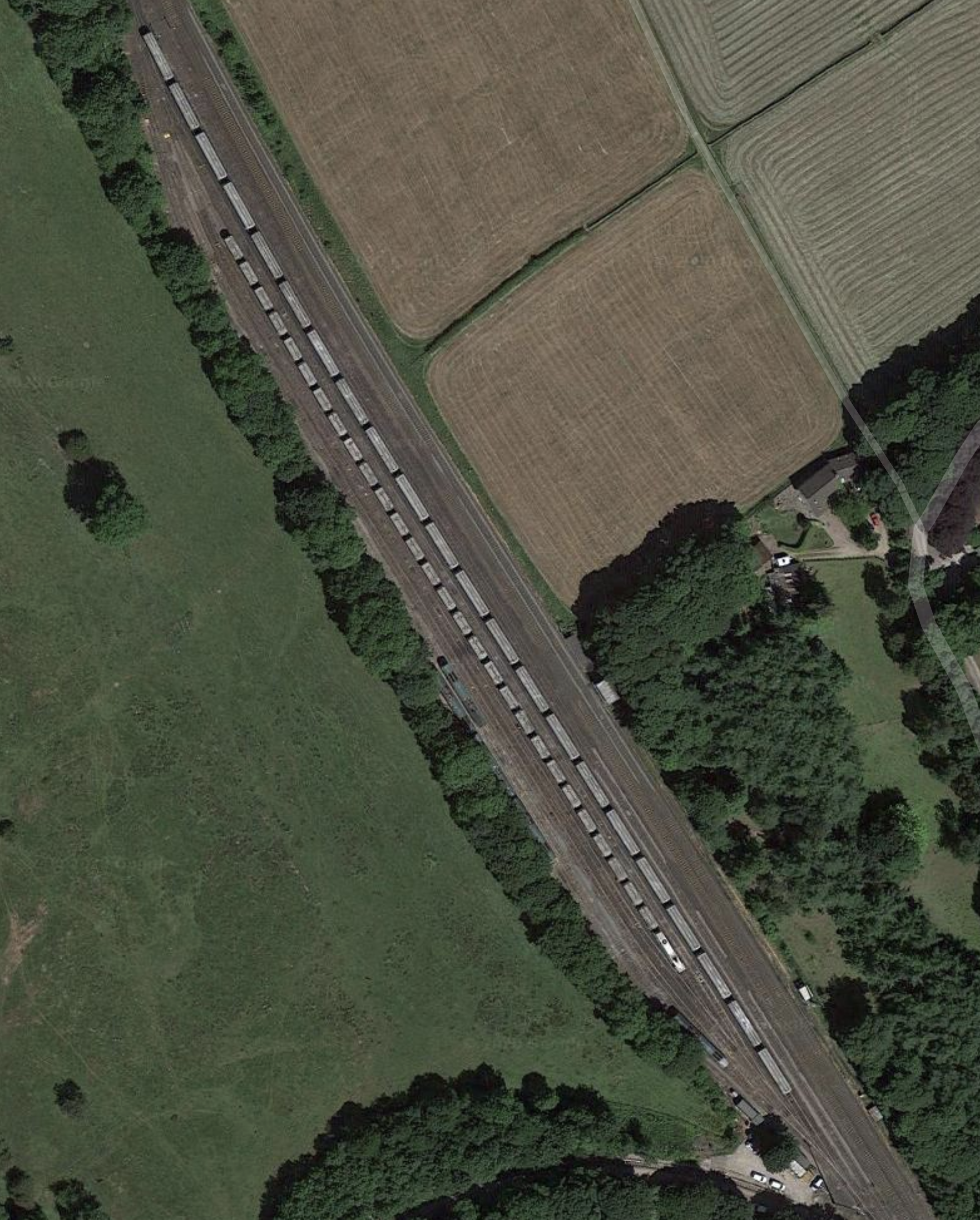

This Google Map shows Earle’s Sidings at Hope.

Perhaps a half-way house solution would be to use diesel to haul trains between the quarries and Earle’s sidings, where the locomotive is changed for an electric one?

  • But that would then mean that all routes from between the Peak District quarries and their destinations would need to be fully-electrified.
  • It should be noted that that the problem of zero-carbon trains, also exists at port and rail freight interchanges, where safe operation with 25 KVAC overhead wires everywhere can be a nightmare.
  • Rail freight companies are unlikely to change their old diesel locomotives for new expensive electric locomotives, until all possible routes are fully electrified.
  • It is also a big problem, all over the world.

Perhaps, what is needed is a self-powered zero-carbon locomotive with sufficient power to haul the heaviest trains?

I believe such a locomotive is possible and in The Mathematics Of A Hydrogen-Powered Freight Locomotive, I explored the feasibility of such a locomotive, which was based on a Stadler Class 68 locomotive.

The zero-carbon locomotive, that is eventually developed, may be very different to my proposal, but the commercial opportunities for such a locomotive are so large, that I’m sure the world’s best locomotive designers are working on developing powerful locomotives for all applications.

Conclusion

Northern Powerhouse Rail’s ambition for Manchester and Sheffield via the Hope Valley Line is simply stated as four tph in forty minutes. But this may be something like.

  • Three fast tph in forty minutes.
  • One stopping tph in perhaps fifty minutes.
  • One freight tph in each direction to and from the quarries that lie to the South of the line.

I didn’t realise how close that the line is to that objective, once the following is done.

  • Introduce 100 mph passenger trains on the route.
  • Improve the track as has been planned for some years.

Note that all the passenger trains, that now run the route; Class 185, 195 and 802 trains, are all 100 mph trains, although they are diesel-powered.

With a length of just under 43 miles, the route is also ideal for battery electric trains to work the passenger services, be the trains be from Hitachi, CAF or another manufacturer, after High Speed Two electrifies the Midland Main Line to the North of Clay Cross North Junction, in preparation for high speed services between London and Sheffield.

I would recommend, that one of High Speed Two’s first Northern projects, should be to upgrade the Midland Main Line between Clay Cross North junction and Sheffield station to the standard that will be required for High Speed Two.

I would also recommend, that the Government sponsor the development of a hydrogen electric locomotive with this specification.

  • Ability to use 25 KVAC overhead or 750 VDC electrification
  • 110 mph operating speed on electrification.
  • Ability to use hydrogen.
  • 100 mph operating speed on hydrogen.
  • 200 mile range on hydrogen.

A locomotive with this specification would go a long way to decarbonise rail freight in the UK and would have a big worldwide market.

Project Management Recommendations

This project divides neatly into three.

  • Perform the upgrades at Dore Junction and add the loop in the Bamford area, as detailed in Wikipedia, which will increase the capacity of the Hope Valley Line.
  • Electrify the Midland Main Line between Clay Cross North junction and Sheffield, as will be needed for High Speed Two. This electrification will allow battery electric trains to run between Manchester and Sheffield and between Sheffield and London.
  • Procurement of the trains. CAF and Hitachi are currently finalising suitable designs for this type of operation.

It would also be helpful, if the freight trains could be hauled by zero-carbon hydrogen electric locomotives, to create a much-improved zero-carbon route between Manchester and Sheffield.











November 23, 2020 Posted by | Hydrogen, Transport/Travel | , , , , , , , , , , , , , , , , | 5 Comments

How Many Trains Are Needed To Run A Full Service On High Speed Two?

The latest High Speed Two schedule was published in the June 2020 Edition of Modern Railways.

The Two Train Classes

Two separate train classes have been proposed for High Speed Two.

Full-Size – Wider and taller trains built to a European loading gauge, which would be confined to the high-speed network (including HS1 and HS2) and other lines cleared to their loading gauge.

Classic-Compatible – Conventional trains, capable of high speed but built to a British loading gauge, permitting them to leave the high speed track to join conventional routes such as the West Coast Main Line, Midland Main Line and East Coast Main Line.

The Wikipedia entry for High Speed Two has a section entitled Rolling Stock, where this is said about the design.

Both types of train would have a maximum speed of at least 360 km/h (225 mph) and a length of 200 metres (660 ft); two units could be joined together for a 400-metre (1,300 ft) train. It has been reported that these longer trains would have approximately 1,100 seats.

These are some of my thoughts.

Seating Density

I would assume that this means that a single 200 metre train, will have a capacity of approximately 550 seats or a density of 2.75 seats per metre. How does that compare with other trains?

  • 9-car Class 801 train – 234 metres – 611 seats – 2.61 seats/metre
  • 7-car Class 807 train – 182 metres – 453 seats – 2.49 seats/metre
  • 9-car Class 390 train  – 217.5 metres – 469 seats – 2.16 seats/metre
  • 11-car Class 390 train  – 265.3 metres – 589 seats – 2.22 seats/metre
  • 12-car Class 745/1 train – 236.6 metres – 767 seats – 3.24 seats/metre
  • 16-car Class 374 train – 390 metres – 902 seats – 2.31 seats/metre

Note.

  1. What I find strange with these figures, is that I feel most crowded and cramped in a Class 390 train. Could this be because the Pendelino trains are eighteen years old and train interior design has moved on?
  2. But I always prefer to travel in a Hitachi Class 80x train or a Stadler Class 745 train.

I very much feel that a seating density of 2.75 seats per metre, designed using some of the best modern practice, could create a train, where travelling is a very pleasant experience.

Step-Free Access

I have travelled in high speed trains all over Europe and have yet to travel in one with step-free access.

Surely, if Stadler can give their trains step-free access everybody can.

The pictures shows step-free access on Stadler Class 745 and Class 755 trains.

If I turned up pushing a friend in a wheelchair, would I be able to push them in easily? Or better still will they be able to wheel themselves in?

A Greater Anglia driver tp;d me recently, that now they never have to wait anymore for wheelchairs to be loaded.

So surely, it is in the train operator’s interest to have step-free access, if it means less train delays.

Double-Deck Trains

In my view double-deck trains only have one only good feature and that is the ability to see everything, if you have a well-designed window seat.

I may be seventy-three, but I am reasonably fit and only ever travel on trains with airline-sized hand baggage. So I don’t find any problem travelling upstairs on a double-deck bus or train!

But it could have been, so very different, if my stroke had been a bit worse and left me blind or in a wheelchair for life.

I have seen incidents on the Continent, which have been caused by double-deck trains.

  • A lady of about eighteen in trying to get down with a heavy case dropped it. Luckily it only caused the guy she was travelling with, to roll unhurt down the stairs.
  • Luggage is often a problem on Continental trains because of the step-up into the train and access is worse on double deck trains.
  • I also remember on a train at Leipzig, when several passengers helped me lift a guy and his wheelchair out of the lower deck of a double-deck train, which was lower than the platform, as they often are with double-deck trains.

I am not totally against double-deck trains, but they must be designed properly.

Consider.

  • High Speed Two’s Full-Size trains will only use London Euston, Old Oak Common, Birmingham Interchange, Birmingham Curzon Street, Manchester Airport, Manchester Piccadilly, East Midlands Hub and Leeds stations.
  • All stations used by Full-Size trains will be brand-new or substantially rebuilt stations.
  • Someone sitting in a wheelchair surely has the same right to a view from the top-deck of a double-deck train as anybody else.
  • Jumbo jets seemed to do very well without a full-length top-deck.
  • The A 380 Superjumbo has been designed so that entry and exit on both decks is possible.

I feel if High Speed Two want to run double-deck trains, an elegant solution can surely be found.

A Crude Estimate On The Number Of Trains

This is my crude estimate to find out how many trains, High Speed Two will need.

Western Leg

These are the services for the Western Leg between London , Birmingham, Liverpool, Manchester, Edinburgh and Glasgow.

  • Train 1 – London Euston and Birmingham Curzon Street – 400 metre Full-Size – 45 minutes – 2 hour Round Trip – 4 trains
  • Train 2 – London Euston and Birmingham Curzon Street – 400 metre Full-Size – 45 minutes – 2 hour Round Trip – 4 trains
  • Train 3 – London Euston and Birmingham Curzon Street – 400 metre Full-Size – 45 minutes – 2 hour Round Trip – 4 trains
  • Train 4 – London Euston and Lancaster – Classic Compatible – 2 hours 3 minutes – 5 hour Round Trip – 5 trains
  • Train 4 – London Euston and Liverpool – Classic Compatible – 1 hours 34 minutes – 4 hour Round Trip – 4 trains
  • Train 5 – London Euston and Liverpool – Classic Compatible – 1 hours 34 minutes – 4 hour Round Trip – 4 trains
  • Train 6 – London Euston and Macclesfield – Classic Compatible – 1 hours 30 minutes – 4 hour Round Trip – 4 trains
  • Train 7 – London Euston and Manchester – 400 metre Full-Size – 1 hour and 11 minutes – 3 hour Round Trip – 6 trains
  • Train 8 – London Euston and Manchester – 400 metre Full-Size – 1 hour and 11 minutes – 3 hour Round Trip – 6 trains
  • Train 9 – London Euston and Manchester – 400 metre Full-Size – 1 hour and 11 minutes – 3 hour Round Trip – 6 trains
  • Train 10 – London Euston and Edinburgh – Classic Compatible – 3 hours 48 minutes – 8 hour Round Trip – 8 trains
  • Train 10 – London Euston and Glasgow – Classic Compatible – 3 hours 40 minutes – 8 hour Round Trip – 8 trains
  • Train 11 – London Euston and Edinburgh – Classic Compatible – 3 hours 48 minutes – 8 hour Round Trip – 8 trains
  • Train 11 – London Euston and Glasgow – Classic Compatible – 3 hours 40 minutes – 8 hour Round Trip – 8 trains
  • Train 12 – Birmingham Curzon Street and Edinburgh or Glasgow – Classic Compatible – 3 hours 20 minutes – 7 hour Round Trip – 7 trains
  • Train 13 – Birmingham Curzon Street and Manchester – 200 metre Full-Size – 41 minutes – 2 hour Round Trip – 2 trains
  • Train 14 – Birmingham Curzon Street and Manchester – 200 metre Full-Size – 41 minutes – 2 hour Round Trip – 2 trains

Note.

  1. I have assumed 400 metre Full-Size trains will be a pair of 200 metre trains.
  2. Trains 4, 10 and 11 are pairs of 200 metre long Classic-Compatible trains, that  split and join at Crewe. Carlisle and Carlisle respectively.
  3. Trains 5 and 6 are single 200 metre long Classic-Compatible trains.
  4. The full schedule will need 34 Full-Size trains and 56 Classic-Compatible trains

According to Wikipedia, the first order will be for 54 Classic-Compatible trains, so I would assume, that more trains will be ordered.

Eastern Leg

These are the services for the Eastern Leg between London , Birmingham, East Midlands Hub, Leeds, Sheffield, York and Newcastle.

  • Train 15 – Birmingham Curzon Street and Leeds – 200 metre Full-Size – 49 minutes – 2 hour Round Trip – 2 trains
  • Train 16 – Birmingham Curzon Street and Leeds – 200 metre Full-Size – 49 minutes – 2 hour Round Trip – 2 trains
  • Train 17 – Birmingham Curzon Street and Newcastle – Classic Compatible – 1 hour 57 minutes – 5 hour Round Trip – 5 trains
  • Train 18 – London Euston and Sheffield – Classic Compatible – 1 hour 27 minutes – 4 hour Round Trip – 4 trains
  • Train 18 – London Euston and Leeds – Classic Compatible – 1 hour 21 minutes – 3 hour Round Trip – 3 trains
  • Train 19 – London Euston and Leeds – 400 metre Full-Size – 1 hour and 21 minutes – 3 hour Round Trip – 6 trains
  • Train 20 – London Euston and Leeds – 400 metre Full-Size – 1 hour and 21 minutes – 3 hour Round Trip – 6 trains
  • Train 21 – London Euston and Sheffield – Classic Compatible – 1 hour 27 minutes – 4 hour Round Trip – 4 trains
  • Train 21 – London Euston and York – Classic Compatible – 1 hour 24 minutes – 3 hour Round Trip – 3 trains
  • Train 22 – London Euston and Newcastle – Classic Compatible – 2 hour 17 minutes – 5 hour Round Trip – 5 trains
  • Train 23 – London Euston and Newcastle – Classic Compatible – 2 hour 17 minutes – 5 hour Round Trip – 5 trains

Note.

  1. I have assumed 400 metre Full-Size trains will be a pair of 200 metre trains.
  2. Trains 15 and 16 work as a pair,
  3. Trains 18 and 21 are pairs of 200 metre long Classic-Compatible trains, that split and join at East Midlands Hub.
  4. Trains 22 and 23 are single 200 metre long Classic-Compatible trains
  5. The full schedule will need 16 Full-Size trains and 29 Classic-Compatible trains.

Adding the two legs together and I estimate that 50 Full-Size trains and 85 Classic-Compatible trains, will be needed to run a full schedule.

Trains Per Hour On Each Section

It is possible to make a table of how many trains run on each section of the High Speed Two network in trains per hour (tph)

  • London Euston (stops) – 1-11, 18-23 – 17 tph
  • London Euston and Old Oak Common – 1-11, 18-23 – 17 tph
  • Old Oak Common (stops) – 1-11, 18-23 – 17 tph
  • Old Oak Common and Birmingham Interchange – 1-11, 18-23 – 17 tph
  • Birmingham Interchange (stops) – 2, 3, 7, 11, 20 – 5 tph
  • Birmingham Curzon Street (stops) – 1-3, 12-14, 15-17 – 9 tph
  • Birmingham and Crewe – 4,5, 7-9, 10-14 – 10 tph
  • Crewe (stops) – 4,5 – 2 tph
  • Crewe and Liverpool – 4,5 – 2 tph
  • Crewe and Lancaster – 4, 10-12 – 4 tph
  • Crewe and Manchester – 7-9, 13, 14 – 5 tph
  • Crewe and Wigan via Warrington – 4 – 1 tph
  • Crewe and Wigan via High Speed Two (new route) – 10-12 – 3 tph
  • Lancaster (stops) 4 – 1 tph
  • Lancaster and Carlisle  – 10-12 – 3 tph
  • Carlisle and Edinburgh – 10-12 – 2.5 tph
  • Carlisle and Glasgow – 10-12 – 2.5 tph
  • Birmingham and Stoke – 6 – 1 tph
  • Stoke (stops) – 6 – 1 tph
  • Stoke and Macclesfield – 6 – 1 tph
  • Macclesfield (stops) – 6 – 1 tph
  • Birmingham and East Midlands Hub – 15-17, 18-20, 21-23 – 9 tph
  • East Midlands Hub (stops) – 15-17, 18-20, 21 – 7 tph
  • East Midlands Hub and Sheffield – 18, 21 – 2 tph
  • Sheffield (stops) – 18, 21 – 2 tph
  • Midlands Hub and Leeds – 15, 16, 18-20 – 5 tph
  • Leeds (stops) – 15, 16, 18-20 – 5 tph
  • East Midlands Hub and York – 17, 21-23 – 4 tph
  • York (stops) – 17, 21-23 – 4 tph
  • York and Newcastle – 17, 22, 23 – 3 tph
  • Newcastle (stops) – 17, 22, 23 – 3 tph

These are a few thoughts.

Capacity Of The Southern Leg

The busiest section is between London Euston and Birmingham Interchange, which handles 17 tph.

As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives a path for recovery, according to the article.

Trains Serving Euston

The following train types serve London Euston station.

  • Full-Size – 8 tph
  • 400 metre Classic-Compatible – 5 tph
  • 200 metre Classic-Compatible – 4 tph

In the current service proposal, , Trains  5,6, 22 and 23 are just single 200 metre Classic Compatible trains.

This is inefficient and another four tph could be run into Euston station, by the use of appropriate splitting and joining.

  • Train 5 could run an identical manner to Train 4 to give extra services to Lancaster, Preston, Wigan North Western and Warrington Bank Quay.
  • Train 6 to Macclesfield is a problem and perhaps should call at Birmingham Interchange, where it could split and join to serve somewhere else like Wolverhampton and Shrewsbury.
  • Trains 22 and 23 could split and join at East Midlands Hub and serve other places in the East of England like Cleethorpes, Hull, Lincoln, Middlesbrough and Scarborough.

Paths are expensive entities to provide and every path into Euston should support a 400 metre train or a pair of 200 metre trains.

Platform Use At Euston

This page on the High Speed Two web site, gives details of Euston High Speed Two station.

HS2 will deliver eleven new 400m long platforms, a new concourse and improved connections to Euston and Euston Square Underground stations. Our design teams are also looking at the opportunity to create a new northerly entrance facing Camden Town as well as new east-west links across the whole station site.

So how will the eleven platforms be used?

Destinations served from London are planned to be as follows.

  • Birmingham Curzon Street – Full-Size – 3 tph
  • Edinburgh/Glasgow – Classic-Compatible – 2 tph
  • Lancaster – Classic-Compatible – 1 tph
  • Leeds – Full-Size – 2 tph – Classic-Compatible – 1 tph

Liverpool – Classic-Compatible – 2 tph

  • Macclesfield – Classic-Compatible – 1 tph
  • Manchester Piccadilly – Full-Size – 3 tph
  • Newcastle – Classic-Compatible – 2 tph
  • Sheffield – Classic-Compatible – 2 tph
  • York – Classic-Compatible – 1 tph

That is ten destinations and there will be eleven platforms.

I like it! Lack of resources is often the reason systems don’t work well and there are certainly enough platforms.

Could platforms be allocated something like this?

  • Birmingham Curzon Street – Full-Size
  • Edinburgh/Glasgow – Classic-Compatible
  • Leeds – Full-Size
  • Liverpool – Classic-Compatible – Also serves Lancaster
  • Macclesfield – Classic-Compatible
  • Manchester Piccadilly – Full-Size
  • Newcastle – Classic-Compatible
  • Sheffield – Classic-Compatible – Also serves Leeds and York

Note.

  1. No  platform handles more than three tph.
  2. There are three spare platforms.
  3. Each platform would only be normally used by one train type.
  4. Only Birmingham Interchange, East Midlands Hub, Leeds, Preston and York are not always served from the same platform.

Platform arrangements could be very passenger- and operator-friendly.

Platform Use At Birmingham Curzon Street

Birmingham Curzon Street station has been designed to have seven platforms.

Destinations served from Birmingham Curzon Street station are planned to be as follows.

  • Edinburgh/Glasgow – Classic-Compatible – 1 tph
  • Leeds – Full-Size – 2 tph
  • London Euston – Full-Size – 3 tph
  • Manchester Piccadilly – Full-Size – 2 tph
  • Newcastle – Classic-Compatible – 1 tph
  • Nottingham – Classic-Compatible – 1 tph

Note.

  1. The Nottingham service has been proposed by Midlands Engine Rail, but will be running High Speed Two Classic Compatible trains.
  2. That is six destinations and there will be seven platforms.

I like it! For the same reason as London Euston.

Could platforms be allocated something like this?

  • Edinburgh/Glasgow – Classic-Compatible
  • Leeds – Full-Size
  • London Euston – Full-Size
  • Manchester Piccadilly – Full-Size
  • Newcastle/Nottingham – Classic-Compatible

Note.

  1. No  platform handles more than three tph.
  2. There are two spare platforms.
  3. Each platform would only be normally used by one train type.
  4. Only East Midlands Hub is not always served from the same platform.

Platform arrangements could be very passenger- and operator-friendly.

Back-to-Back Services via Birmingham Curzon Street

The current plan for High Speed Two envisages the following services between the main terminals served by Full-Size trains.

  • London Euston and Birmingham Curzon Street – 3 tph – 45 minutes
  • London Euston and Leeds – 2 tph – 81 minutes
  • London Euston and Manchester Piccadilly – 3 tph – 71 minutes
  • Birmingham Curzon Street and Leeds – 2 tph – 40 minutes
  • Birmingham Curzon Street and Manchester Piccadilly – 2 tph – 41 minutes

Suppose a traveller wanted to go between East Midlands Hub and Manchester Airport stations.

Wouldn’t it be convenient if the Leeds to Birmingham Curzon Street train, stopped in Birmingham Curzon Street alongside the train to Manchester Airport and Piccadilly, so passengers could just walk across?

Or the two services could be run Back-to-Back with a reverse in Birmingham Curzon Street station?

Note.

  1. The current fastest times between Nottingham and Manchester Airport stations are around two-and-a-half hours, with two changes.
  2. With High Speed Two, it looks like the time could be under the hour, even allowing up to eight minutes for the change at Birmingham Curzon Street.

The design of the track and stations for High Speed Two, has some interesting features that will be exploited by the train operator, to provide better services.

Capacity Of The Western Leg Between Birmingham And Crewe

The section is between Birmingham and Crewe, will be running 10 tph.

As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives plenty of room for more trains.

But where will they come from?

High Speed One copes well with a few interlopers in the shape of Southeastern’s Class 395 trains, which run at 140 mph, between the Eurostars.

High Speed Two is faster, but what is to stop an operator running their own Classic-Compatible trains on the following routes.

  • Birmingham Curzon Street and Liverpool via Crewe, Runcorn and Liverpool South Parkway.
  • Birmingham Curzon Street and Holyhead via Crewe, Chester and an electrified North Wales Coast Line.
  • Birmingham Curzon Street and Blackpool via Crewe, Warrington Bank Quay, Wigan North Western and Preston.
  • Birmingham Curzon Street and Blackburn and Burnley via Crewe, Warrington Bank Quay, Wigan North Western and Preston.

Note.

  1. If these trains were say 130 metres long, they could call at all stations, without any platform lengthening.
  2. I’m sure that the clever engineers at Hitachi and Hyperdrive Innovation could come up with battery electric Classic-Compatible train, that could run at 225 mph on High Speed Two and had a battery range to reach Holyhead, with a small amount of electrification.
  3. A pair of trains, could work the last two services with a Split/Join at Preston.

The advantages of terminating these service in Birmingham Curzon Street would be as follows.

  • A lot more places get a fast connection to the High Speed Two network.
  • Passengers can reach London with an easy change at Birmingham Curzon Street station.
  • They can also walk easily between the three Birmingham stations.

But the big advantage is the trains don’t use valuable paths on High Speed Two between Birmingham Curzon Street and London Euston.

Crewe Station

In the current Avanti West Coast timetable, the following trains pass through Crewe.

  • London Euston and Blackpool – 4 trains per day (tpd)
  • London Euston and Chester – 1 tph
  • London Euston and Edinburgh/Glasgow – 2 tph
  • London Euston and Liverpool – 1 tph
  • London Euston and Manchester Piccadilly – 1 tph

Most trains stop at Crewe.

In the proposed High Speed Two timetable, the following trains will pass through Crewe.

  • London Euston and Edinburgh/Glasgow – 2 tph
  • London Euston and Lancaster/Liverpool – 2 tph
  • London Euston and Manchester – 3 tph
  • Birmingham Curzon Street and Edinburgh/Glasgow  -1 tph
  • Birmingham Curzon Street and Manchester – 2 tph

Note.

  1. Only the Lancaster and Liverpool trains stop at Crewe station.
  2. North of Crewe there will be a three-way split of High Speed Two routes to Liverpool, Wigan and the North and Manchester Airport and Piccadilly.
  3. High Speed Two will loop to the East and then join the West Coast Main Line to the South of Wigan.
  4. High Speed Two trains will use the West Coast Main Line to the North of Wigan North Western station.

This map of High Speed Two in North West England was captured from the interactive map on the High Speed Two web site.





Note.

  1. The current West Coast Main Line (WCML) and Phase 2a of High Speed Two are shown in blue.
  2. Phase 2b of High Speed Two is shown in orange.
  3. The main North-South route, which is shown in blue, is the WCML passing through Crewe, Warrington Bank Quay and Wigan North Western as it goes North.
  4. The Western Branch, which is shown in blue, is the Liverpool Branch of the WCML, which serves Runcorn and Liverpool.
  5. High Speed Two, which is shown in orange, takes a faster route between Crewe and Wigan North Western.
  6. The Eastern Branch, which is shown in orange, is the Manchester Branch of High Speed Two, which serves Manchester Airport and Manchester Piccadilly.
  7. The route in the East, which is shown in blue, is the Macclesfield Branch of High Speed Two, which serves Stafford, Stoke-on-Trent and Macclesfield.

The route of Northern Powerhouse Rail between Manchester Airport and Liverpool has still to be finalised.

Liverpool Branch

Consider.

  • The Liverpool Branch will take  two tph between London Euston and Liverpool.
  • In the future it could take up to 6 tph on Northern Powerhouse Rail between Liverpool and Manchester Piccadilly via Manchester Airport.

I believe that Liverpool Lime Street station, after the recent updating can handle all these trains.

Manchester Branch

This document on the Government web site is entitled HS2 Phase 2b Western Leg Design Refinement Consultation.

It indicates two important recently-made changes to the design of the Manchester Branch of High Speed Two.

  • Manchester Airport station will have four High Speed platforms instead of two.
  • Manchester Piccadilly station will have six High Speed platforms instead of four.

These changes will help the use of these stations by Northern Powerhouse Rail..

Consider.

  • The Manchester Branch will be new high speed track, which will probably be built in a tunnel serving Manchester Airport and Manchester Piccadilly stations.
  • The Manchester Branch will terminate in new platforms.
  • The Manchester Branch will take  five tph between Birmingham Curzon Street or London Euston and Manchester Airport and Manchester Piccadilly.
  • In the future it could take up to six tph on Northern Powerhouse Rail between Liverpool and Manchester Piccadilly via Manchester Airport.
  • London Euston and Old Oak Common will be new stations on a tunnelled approach to London and will handle 18 tph.

If London Euston and Old Oak Common can handle 18 tph, I can’t see why Manchester Airport and Piccadilly stations can’t handle somewhere near a similar number of trains.

At the moment eleven tph have been allocated to the Manchester Branch.

I believe that if infrastructure for Northern Powerhouse Rail was designed so that as well as connecting to Manchester and Liverpool, it connected Manchester and the West Coast Main Line running North to Preston, Carlisle and Scotland, services to the following destinations would be possible.

  • Barrow
  • Blackburn
  • Blackpool
  • Edinburgh
  • Glasgow
  • Windermere

Note.

  1. Edinburgh and Glasgow would probably be a service that would alternate the destination, as it is proposed for High Speed Two’s Birmingham and Scotland service.
  2. There would probably be a need for a North Wales and Manchester service via Chester.
  3. All trains would be Classic-Compatible.

If the Manchester Branch were to be built to handle 18 tph, there would be more than enough capacity.

Crewe, Wigan And Manchester

My summing up earlier gave the number of trains between Crewe, Wigan and Manchester as follows.

  • Crewe and Manchester – 5 tph
  • Crewe and Wigan via Warrington  – 1 tph
  • Crewe and Wigan via High Speed Two (new route) – 3 tph

This map of High Speed Two where the Manchester Branch leaves the new High Speed Two route between Crewe and Wigan was captured from the interactive map on the High Speed Two web site.

Note.

  1. The Manchester Branch runs to the South of the M56,
  2. The large blue dot indicates Manchester Airport station.
  3. Wigan is to the North.
  4. Crewe is to the South.
  5. Manchester Piccadilly is to the North East.

I believe this junction will be turned into a full triangular junction, to connect Wigan directly to Manchester Airport and Manchester Piccadilly.

  • Barrow, Blackburn, Blackpool, Preston and Windermere could all have high speed connections to Manchester Airport and Manchester Piccadilly. Trains could be shorter Classic-Compatible trains.
  • A Manchester and Scotland service would take the same route.

Another pair of tracks could leave the junction to the West to create a direct route between Manchester Airport and Liverpool for Northern Powerhouse Rail, by sneaking along the  M56.

Suppose extra services were as follows.

  • Manchester and Barrow – 1 tph
  • Manchester and Blackburn – 1 tph
  • Manchester and Blackpool – 1 tph
  • Manchester and Liverpool – 6 tph
  • Manchester and Scotland – 1 tph
  • Manchester and Windermere – 1 tph

The frequencies from the junction would be as follows.

  • To and from Crewe – High Speed Two (Manchester) – 5 tph – High Speed Two (North) – 3 tph = 8 tph
  • To and from Liverpool – Northern Powerhouse Rail – 6 tph = 6 tph
  • To and from Manchester – High Speed Two – 5 tph – Northern Powerhouse Rail – 6 tph – Local – 4 tph – Scotland – 1 tph = 16 tph
  • To and from Wigan – High Speed Two – 3 tph – Local – 4 tph – Scotland – 1 tph = 8 tph.

Only the Manchester Branch would be working hard.

The Liverpool Connection

I indicated that another pair of tracks would need to extend the Manchester Branch towards Liverpool in the West for Northern Powerhouse Rail.

  • Would these tracks have a station at Warrington?
  • Would there be a connection to allow services between Liverpool and the North and Scotland?

It might even be possible to design a Liverpool connection, that avoided using the current Liverpool Branch and increased the capacity and efficiency of all trains to Liverpool.

Capacity Of The Western Leg Between Wigan And Scotland

The sections between  Crewe and Carlisle, will be running at the following frequencies.

  • Wigan and Lancaster – 4 tph
  • Lancaster and Carlisle  – 3 tph
  • Carlisle and Edinburgh  – 2.5 tph
  • Carlisle and Glasgow – 2.5 tph

Note.

  1. The unusual Scottish frequencies are caused by splitting and joining at Carlisle and alternate services to Edinburgh and Glasgow.
  2. Any local high speed services and a Scotland service from Manchester, will increase the frequencies.

Over this section the services will be running on an improved West Coast Main Line.

But in some cases the trains will be replacing current services, so the increase in total frequencies will be less than it first appears.

Avanti West Coast currently run the following Scottish services.

  • One tph – London Euston and Glasgow via the most direct route.
  • One tph – London Euston and alternately Edinburgh and Glasgow via Birmingham.

This means that effectively Glasgow has 1.5 tph and Edinburgh 0.5 tph from London Euston.

The capacity of the current eleven-car Class 390 trains is 145 First and 444 Standard Class seats, which compares closely with the 500-600 seats given in Wikipedia for High Speed Two trains. So the capacity of the two trains is not that different.

But High Speed Two will be running 2.5 tph Between London Euston and both Edinburgh and Glasgow.

I would expect, that Class 390 services to Scotland will be discontinued and replaced by High Speed Two services.

Capacity Of The Eastern Leg Between Birmingham And East Midlands Hub

The section is between Birmingham and East Midlands Hub, will be running 9 tph

As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives plenty of room for more trains.

But where will they come from?

Midlands Engine Rail is proposing a service between Birmingham Curzon Street and Nottingham.

  • It will have a frequency of one tph.
  • It will be run by High Speed Two Classic-Compatible trains.
  • The journey will take 33 minutes.
  • It will run on High Speed Two infrastructure between Birmingham Curzon Street and East Midlands Hub.

If High Speed Two has been designed with this service in mind, I doubt it will be a difficult service to setup.

  • There might be enough capacity on High Speed Two  for two tph on the route,
  • It could possibly be extended to Lincoln.

It will also depend on the service timing being consistent with an efficient use of trains and platforms.

  • Thirty-three minutes is not a good timing, as it means twenty-seven minutes wait in a platform to get a round trip time, that suits clock-face time-tabling.
  • The current Lincoln and Nottingham service takes 56 minutes for 34 miles.
  • LNER’s London Kings Cross and Lincoln service travels the 16 miles between Lincoln and Newark in 25 minutes.
  • I estimate that after track improvements,  with a single stop at Newark Castle station, that Nottingham and Lincoln could be achieved in several minutes under fifty minutes.
  • This would enable a sub-ninety minute journey time between Birmingham Curzon Street and Lincoln, with enough time to properly turn the trains at both ends of the route.
  • The three hour round trip would mean that an hourly service would need three trains.

This is probably just one of several efficient time-tabling possibilities.

Are there any other similar services?

The obvious one is surely Cambridge and Birmingham

  • It would run via Peterborough, Grantham, Nottingham and East Midlands Hub.
  • It would connect the three big science, engineering and medical centres in the Midlands and the East.
  • It could be run by High Speed Two Classic-Compatible trains.

It might even be a replacement for CrossCountry’s Stansted Airport and Birmingham service.

Capacity Of The Eastern Leg Between East Midlands Hub And Sheffield

The section between East Midlands Hub and Sheffield, will be running 2 tph

As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives plenty of room for more trains.

But where will they come from?

This map of High Speed Two where the Sheffield Branch leaves the new High Speed Two route between East Midlands Hub and Leeds was captured from the interactive map on the High Speed Two web site.

Note.

  1. The main route of High Speed Two between East Midlands Hub, is shown in orange and follows the route of the M1 Motorway, towards the East of the map.
  2. The Sheffield Branch is new track to Clay Cross North Junction, where is takes over the Midland Main Line to Sheffield, which is shown in blue.
  3. The line going South in the middle of the map is the Erewash Valley Line, which goes through Langley Mill and Ilkeston stations.

I suspect Clay Cross to Sheffield will be an electrified high speed line, with a maximum speed of at least 140 mph.

Could the Erewash Valley Line have been used as an alternative route to Sheffield?

This map of High Speed Two captured from their interactive map, shows the connection of High Speed Two and the Erewash Valley Line to East Midlands Hub.

Note.

  1. East Midlands Hub is shown by the big blue dot.
  2. High Speed Two is shown in orange.
  3. The route to Leeds vaguely follows the M1 Motorway.
  4. The Erewash Valley Line goes North to the East of Ilkeston.

Would have been quicker and easier to electrify the Erewash Valley Line, as the High Speed Two route to Chesterfield and Sheffield?

  • Network Rail updated the route a few years ago.
  • It does not have the problems of electrification, through a World Heritage Site, as does the route through Derby.
  • It could surely handle two tph, even if they were High Speed Two Classic Compatible trains.
  • Sheffield will be just under ninety minutes from London by High Speed Two, as opposed to two hours now.

I suspect that it all comes down to saving a few minutes to Sheffield and the civic pride of having a High Speed Two connection.

So it looks like we’ll have the following capacity between East Midlands Hub and Sheffield.

  • Between East Midlands Hub and Clay Cross North Junction, there will be the High Speed Two capacity of 18 tph.
  • Between Clay Cross and Sheffield, there will probably be an upgraded capacity of perhaps 8-10 tph.

It seems a lot of capacity for just two tph.

Consider.

  • High Speed Two is planning to run three tph between Birmingham Curzon Street and East Midlands Hub
  • Midlands Rail Engine is planning to run one tph between Birmingham Curzon Street and East Midlands Hub
  • Four tph is considered a Turn-Up-And-Go service, and could exist between Birmingham Curzon Street and East Midlands Hub.
  • Sheffield and Leeds, both probably need a Turn-Up-And-Go service, to and from East Midlands Hub.
  • Semi-fast services between Sheffield and East Midlands Hub, calling at Chesterfield, Alfreton, Langley Mill and Ilkeston would be possible, by using the Erewash Valley Line.
  • The Maid Marian Line will join the Robin Hood Line in adding extra connectivity to East Midlands Hub Station.
  • Leeds and East Midlands Hub could have a six tph service courtesy of High Speed Two and Midlands Rail Engine.

Using High Speed Two’s web site, the following times should be possible.

  • Sheffield and East Midlands Hub – 27 minutes
  • Sheffield and Birmingham Curzon Street – 47 minutes.

Both services allow time for an efficient service.

There are certainly many options to create a Turn-Up-And-Go service between Sheffield and East Midlands Hub and also improve connections to other locations across the area.

Capacity Of The Eastern Leg Between East Midlands Hub And Leeds

The section is between East Midlands Hub and Leeds, will be running 5 tph

High Speed Two between Midlands Hub and Leeds is a totally new high speed line.

  • As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives plenty of room for more trains.
  • The Southern section of the leg closely follows the M1 Motorway.
  • Leeds, York and Newcastle will be 27, 36 and 93 minutes from East Midlands Hub, respectively.

This map of High Speed Two, which shows the route of the line in Yorkshire, was captured from the interactive map on the High Speed Two web site.

Note.

  1. Sheffield is marked by the blue dot in the South.
  2. Leeds is marked by the blue dot in the North West.
  3. York is marked by the blue dot in the North East.
  4. New routes are shown in orange.
  5. Upgraded routes are shown in blue.

The route seems to open up several possibilities for extra routes.

  • Leeds and Sheffield will be used by Northern Powerhouse Rail and there will be four tph, taking 28 minutes.
  • Leeds and Bedford via East Midlands Hub has been proposed by Midlands Rail Engine.
  • Services between Sheffield and the North via York must be a possibility.

This map of High Speed Two, which shows the routes to the East of Leeds, was captured from High Speed Two’s interactive map.

I think that two things might be missing.

  • A full triangular junction would surely allow services between Leeds and the North via York.
  • A high speed connection to Hull.

We shall see in the future.

Capacity Of The Eastern Leg Between York And Newcastle

The section between  York and Newcastle, will be running at a frequency of 3 tph.

Over this section the services will be running on an improved East Coast Main Line.

Conclusion

I shall split the conclusions into various sections.

Route And Track Layout

I think there may be places, where the route and track layout might need to be improved.

  • The Manchester Branch probably needs a triangular junction with the Western Leg of High Speed Two.
  • How Liverpool is served by Northern Powerhouse Rail needs to be decided.
  • The approach to Leeds probably needs a triangular junction with the Eastern Leg of High Speed Two.
  • It is not clear how services will reach Hull.

Hopefully, these issues will become clear in the next year or so.

Capacity

The sections with the highest levels of capacity would appear to be the following.

  • London Euston and Birmingham Interchange.
  • The Manchester Branch
  • The section shared with the East Coast Main Line between York and Newcastle.
  • The section shared with the West Coast Main Line between Wigan and Scotland.

But on these sections extra trains can be run.

  • Birmingham and North West England
  • Birmingham and East Midlands Hub
  • East Midlands Hub and Leeds
  • East Midlands Hub and Sheffield
  • East Midlands Hub and York

I can see, this capacity being filled by high speed local services, like those proposed by Midlands Rail Engine.

Rolling Stock

The only comment, I will make, is that there could be a need for a shorter Classic-Compatible train to work local services.







October 22, 2020 Posted by | Design, Transport/Travel | , , , , , , , , , , , , , , , , , , , | 6 Comments

Testing Begins On Midland Main Line Electrification

The title of this post, is the same as that of this article on Rail Magazine.

  • From the article, it looks like the first part of mechanical testing has been completed as planned and unpowered pantograph runs have been performed at up to 110 mph.
  • It does seem to me, that this thirty  miles of electrification has avoided the troubles that have plagued similar projects in recent years.

Perhaps the good progress on this electrification, is making the government think again about early electrification of all of the  Midland Main Line

In Hopes Rekindled Of Full Midland Main Line Electrification. I showed how battery electric Class 810 trains would be able to work the route.

This was my conclusion of that earlier post.

It appears that both the Nottingham and Sheffield services can be run using battery electric Class 810 trains.

  • All four diesel engines in the Class 810 trains would need to be replaced with batteries.
  • The route between Clay Cross North Junction and Sheffield station, which will be shared with High Speed Two, will need to be electrified.
  • Charging facilities for the battery electric trains will need to be provided at Nottingham.

On the other hand using battery electric trains mean the two tricky sections of the Derwent Valley Mills and Leicester station and possibly others, won’t need to be electrified to enable electric trains to run on the East Midlands Railway network.

Will it be the first main line service in the world, run by battery electric trains?

There was one thing, that wasn’t available, a month ago, when I wrote that post – A charging system for battery electric trains, that could be installed at Nottingham.

In Vivarail’s Plans For Zero-Emission Trains, I report on Adrian Shooter’s plans for Vivarail, which are outlined in a video by Modern Railways.

Ar one point he says this   see about Vivarail’s Fast Charge system.

The system has now been given preliminary approval to be installed as the UK’s standard charging system for any make of train.

I may have got the word’s slightly wrong, but I believe the overall message is correct.

So could we see a Hitachi Class 810 train using Vivarail’s patented Fast Charge system at Nottingham?

In Interview: Hitachi’s Nick Hughes On Driving Innovation In Rail Propulsion, Nick Hughes of Hitachi is quoted as saying.

Rail is going to become increasingly digitised and integrated into other sectors involved in smart cities, mobility-as-a-service and flexible green grid. Therefore, Hitachi Rail won’t be able to stay at the forefront of innovation by its self. This is why we are focused on building partnerships with other like-minded, innovative, clean tech companies like Hyperdrive Innovation, Perpetuum and Hitachi group companies such as Hitachi ABB.

Does Vivarail fit that philosophy? In my view, it does!

This Hitachi infographic gives the specification of their Regional Battery Train.

Note.

  1. The range on battery power is 90 km or 56 miles at up to 100 mph.
  2. Class 810 trains could be converted to battery electric trains by replacing the diesel engines with batteries.
  3. As the electrification has reached Kettering. there is only 55 miles between London St Pancras and Nottingham without electrification.

I could see Class 810 trains running between St. Pancras and Nottingham on delivery, provided the following projects have been completed.

  • Hitachi have been able to give the Class 810 trains a range of say 60 miles on batteries.
  • Hitachi have modified their trains, so they can be recharged by a Vivarail Fast Charge system in fifteen minutes.
  • Vivarail have installed a Fast Charge facility at Nottingham station.

Network Rail are planning to extend the electrification from Kettering to Market Harborough, which would reduce the distance without electrification to under 50 miles. This would make running battery electric trains between London St. Pancras and Nottingham even easier.

Expanding The Network

If I am putting two and two together correctly and Hitachi have turned to Vivarail to provide a charging system or a licence for the use of the technology, I am sure, it would be possible to create a comprehensive network of battery electric trains.

Consider.

  • Hitachi should be able to squeeze a sixty mile range at 90-100 mph from a battery-equipped Class 810 trains.
  • Market Harborough and Derby are about 47 miles apart.
  • Derby and Sheffield are about 36 miles apart
  • Sheffield and Leeds are about 48 miles apart
  • Corby and Leicester are about 41 miles apart.

Vivarail Fast Charge systems at Derby, Leicester and Sheffield would enable the following routes to be run using battery electric trains.

  • London St. Pancras and Sheffield via Derby – Fast Charging at Derby and Sheffield
  • London St. Pancras and Leeds via Derby and Sheffield – Fast Charging at Derby and Sheffield
  • London St. Pancras and Sheffield via the Erewash Valley Line – Fast Charging at Ilkeston (?) and Sheffield
  • London St. Pancras and Leicester via Corby – Fast Charging at Leicester

Note.

  1. The only extra electrification needed for the initial network would be between Kettering and Market Harborough.
  2. The Class 810 trains would all be identical.
  3. The Class 810 trains might even be built and delivered as battery electric trains
  4. Trains would also charge the batteries between London St. Pancras and Market Harborough, between London St. Pancras and Corby. and between Leeds and Wakefield Westgate.

The network can be extended by adding more electrification and Fast Charge systems.

Conclusion

The technologies of Hitachi and Vivarail seem complimentary and could result in a fully electric main line train network for East Midlands Railway.





October 19, 2020 Posted by | Transport/Travel | , , , , , , , , , | 1 Comment

Hopes Rekindled Of Full Midland Main Line Electrification

The title of this post, is the same as that of this article on Rail Magazine.

This is the key section of the article.

During a House of Commons debate on transport on September 17, HS2 Minister Andrew Stephenson said in response to a question from Alex Norris (Labour/Co-op, Nottingham North): “We are currently delivering the Midland Main Line upgrade, which includes electrification from London to Kettering, with additional electrification to Market Harborough being developed.

“Further electrification of the MML is currently at an early stage, but it is being examined by Network Rail.”

Stephenson said the DfT will continue to work closely with NR on the development of a proposal that would include approaches to advancing the delivery of electrification across the route.

The title of the article, probably sums it up well.

Electrification Of The Midland Main Line

Having read lots of stories about electrification of Midland Main Line, I think the following must be born in mind.

  • Electrification on the line will reach as far North as Market Harborough station.
  • The route between Sheffield station and Clay Cross North Junction will be shared with High Speed Two. It will obviously need to be electrified for High Speed Two.
  • The section of the Midland Main Line between Derby and Clay Cross North Junction, runs through the World Heritage Site of the Derwent Valley Mills. The Heritage Taliban will love the electrification, with a vengeance.
  • Electrification through Leicester station could be tricky, as the station building and the A6 road are over the tracks and there is limited clearance. Electrification could involve major disruption to the trains for some time.

These are some of the distances involved of sections of the route that are not electrified.

  • Market Harborough and Derby are 54 miles apart.
  • Market Harborough and Clay Cross North Junction are 67 miles apart.
  • Market Harborough and Chesterfield are 70 miles apart.
  • Market Harborough and Nottingham are 44 miles apart
  • Market Harborough and Leicester are 16 miles apart.
  • Derby and Clay Cross North Junction are 21 miles apart.

Since 2017, when electrification for the full route was originally abandoned, there have been big changes in rolling stock technology.

The biggest change has been the development of battery trains.

Hitachi’s Regional Battery Trains

This infographic from Hitachi gives the specification for their Regional Battery Train.

Note.

  1. The trains have a range of 56 miles on battery power.
  2. The trains can cruise at 100 mph on battery power.
  3. Hitachi have said that all of their AT-300 trains can be converted into Regional Battery Trains.
  4. Trains are converted by removing the diesel engines and replacing them with battery packs.
  5. I suspect these battery packs look like a diesel engine in terms of control inputs and performance to the driver and the train’s computer.

It is extremely likely, that the bi-mode Class 810 trains, which are a version of the AT-300 train, that have been ordered for the Midland Main Line can be converted into Regional Battery Trains.

These trains have four diesel engines, as opposed to the Class 800 and Class 802 trains, which only have three.

These are reasons, why the trains could need four engines.

  • The trains need more power to work the Midland Main Line. I think this is unlikely.
  • Four engine positions gives ,more flexibility when converting to Regional Battery Trains.
  • Four battery packs could give a longer range of up to 120 kilometres or 75 miles.

It could just be, that Hitachi are just being conservative, as engines can easily be removed or replaced. The fifth-car might even be fitted with all the wiring and other gubbins, so that a fifth-engine or battery pack can be added.

I suspect the train’s computer works on a Plug-And-Play principle, so when the train is started, it looks round each car to see how many diesel engines and battery packs are available and it then controls the train according to what power is available.

London St. Pancras And Sheffield By Battery Electric Train

Any battery electric train going between London St. Pancras and Sheffield will need to be charged, at both ends of the route.

  • At the London end, it will use the electrification currently being erected as far as Market Harborough station.
  • At the Sheffield end, the easiest way to charge the trains, would be to bring forward the electrification and updating between Sheffield station and Clay Cross North Junction, that is needed for High Speed Two.

This will leave a 67 mile gap in the electrification between Market Harborough station and Clay Cross North junction.

It looks to me, the Class 810 trains should be able to run between London St. Pancras and Sheffield, after the following projects are undertaken.

  • Class 810 trains are given four battery packs and a battery range of 75 miles.
  • Electrification is installed between Sheffield station and Clay Cross North Junction.

Trains would need to leave Market Harborough station going North and Clay Cross Junction going South with full batteries.

Note.

  1. Trains currently take over an hour to go between Chesterfield to Sheffield and then back to Chesterfield, which would be more than enough to fully charge the batteries.
  2. Trains currently take around an hour to go between London St. Pancras and Market Harborough, which would be more than enough to fully charge the batteries.
  3. Chesterfield station is only three miles further, so if power changeover, needed to be in a station, it could be performed there.
  4. Leeds and Sheffield are under fifty miles apart and as both stations would be electrified, London St. Pancras and Sheffield services could be extended to start and finish at Leeds.

London St. Pancras and Sheffield can be run by battery electric trains.

London St. Pancras And Nottingham By Battery Electric Train

Could a battery electric train go from Market Harborough to Nottingham and back, after being fully-charged on the hour-long trip from London?

  • The trip is 44 miles each way or 88 miles for a round trip.
  • Services have either three or eight stops, of which two or three respectively are at stations without electrification.
  • Trains seem to take over thirty minutes to turnback at Nottingham station.

Extra power North of Market Harborough will also be needed.

  • To provide hotel power for the train, during turnback at Nottingham station.
  • To compensate for power losses at station stops.

If 75 miles is the maximum battery range, I doubt that a round trip is possible.

I also believe, that Hitachi must be developing a practical solution to charging a train during turnback, at a station like Nottingham, where trains take nearly thirty minutes to turnback.

If the Class 810 trains have a battery range of 75 miles, they would be able to handle the London St. Pancras and Nottingham service, with charging at Nottingham.

Conclusion

It appears that both the Nottingham and Sheffield services can be run using battery electric Class 810 trains.

  • All four diesel engines in the Class 810 trains would need to be replaced with batteries.
  • The route between Clay Cross North Junction and Sheffield station, which will be shared with High Speed Two, will need to be electrified.
  • Charging facilities for the battery electric trains will need to be provided at Nottingham.

On the other hand using battery electric trains mean the two tricky sections of the Derwent Valley Mills and Leicester station and possibly others, won’t need to be electrified to enable electric trains to run on the East Midlands Railway network.

Will it be the first main line service in the world, run by battery electric trains?



September 28, 2020 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , | 1 Comment

Beeching Reversal – Increased Services To Nottingham And Leicester, via Syston And Loughborough From Melton Mowbray

This is one of the Beeching Reversal projects that the Government and Network Rail are proposing to reverse some of the Beeching cuts.

It is one of a pair of submissions from the local MP; Alicia Kearns. The other is More Stopping Services At Radcliffe-on-Trent And Bottesford Stations On The Poacher Line Between Grantham And Nottingham.

When I heard of the MP’s submissions, I wrote MP Campaigns To Extend Train Services For Melton Borough and the following uses that post as a starting point.

Wikipedia says this about services at Melton Mowbray station.

  • There is an hourly off-peak service in both directions between Stansted Airport and Birmingham, that calls at Cambridge, Peterborough, Oakham and Leicester.
  • East Midlands Railway and their predescessor have added services to London via Corby and to Derby and East Midlands Parkway.

When you consider, that both Bottesford and Melton Mowbray are the same Council and Parliamentary constituency, it does seem that a more direct train service is needed between Bottesford and Melton Mowbray stations.

It does seem to me that some innovative thinking is needed.

If the current plans to fulfil British Rail’s ambition of an Ivanhoe Line running from Lincoln to Burton-on-Trent via Nottingham, East Midlands Parkway, Loughborough and Leicester, are carried out, that will give important towns to the West of Leicester much better rail connections.

Given that High Speed Two is coming to East Midlands Hub station at Toton and there will be a Bedford and Leeds service run by Midlands Connect using High Speed Two classic-compatible trains, that I wrote about in Classic-Compatible High Speed Two Trains At East Midlands Hub Station, I wonder if in the interim, there should be more trains between Derby and Melton.

  • Intermediate stations would be Syston, Sileby, Barrow-upon-Soar, Loughborough, East Midlands Parkway Long Eaton and Spondon.
  • An hourly frequency would double the service frequency at smaller stations like Sileby and Barrow-upon-Soar.
  • The Southern terminal could be Melton station, but I feel Corby or Peterborough stations would be better, as this would improve services at Oakham station. We should not forget Rutland!
  • As Corby will be an electrified two-platform station with a two trains per hour (tph) service to London, this could work quite well as a Southern terminus.
  • Peterborough would have advantages and give a good connection to Cambridge, London and Scotland, but improvements to the current Birmingham and Stansted Airport service would have similar effects.

This route would be just as valuable after High Speed Two opens through the East Midlands Hub station, as it will give fast ongoing connections to Birmingham, Leeds, Newcastle and York.

Electrification Of The Midland Main Line

I feel strongly, that full electrification of the Midland Main Line could be a step to far.

  • Electrification, through Leicester station will mean a complete closure of the station for a couple of years.
  • Electrification of the route North of Derby, through the Derwent Valley Mills, which is a World Heritage Site, will be opposed by the Heritage Taliban with all their might.

But.

  • Electrification of the route between Clay Cross North Junction and Sheffield via Chesterfield will take place in conjunction with High Speed Two
  • Electrification to Market Harborough, which is sixteen miles South of Leicester will happen.
  • East Midlands Railway’s new Class 810 trains could be fitted with a battery option giving a range of between 55 and 65 miles.
  • Pantographs on these trains can go up and down with all the alacrity of a whore’s drawers.

If the easier section of electrification between Leicester and Derby stations, were to be installed, this would enable the following routes to be run using battery-equipped Class 810 trains.

  • London and Derby, where battery power would be used through Leicester.
  • London and Nottingham, where battery power would be used through Leicester and between East Midlands Parkway and Nottingham.
  • London and Sheffield, where battery power would be used through Leicester and between Derby and Clay Cross Junction.
  • Lincoln and Burton-on-Trent, where battery power would be used South of Leicester and North of East Midlands Parkway.
  • Derby and Corby, where battery power would be used between Syston and Corby.

There would also be the service between Derby and Norwich, which might be able to be run by a similar train.

Conclusion

I think the ideal way to achieve the MP’s objective would be to extend a proportion of London St. Pancras and Corby services to  the Midland Main Line.

But the problem with this, is that the Corby trains will be Class 360 trains, which are electric, so the thirty-six mile route between Corby and the Midland Main Line would need to be electrified.

On the other hand, a shuttle train could be used between Corby and Leicester.

They would call at Oakham, Melton Mowbray and Syston stations.

If the Midland Main Line to the North of Leicester were to be electrified, Battery electric trains could be used on the route, with charging at Leicester and Corby.

August 22, 2020 Posted by | Energy Storage, Transport/Travel | , , , , , , , , , , | 3 Comments

« Previous Entries
