The Anonymous Widower

1.5GW Of Irish PV To Receive Grid Connection Offers Through ECP Process

The title of this post is the same as that of this article on Solar Power Portal.

Note.

  1. There are 85 projects in total.
  2. Several also involve energy storage
  3. Gresham House and Gore Street Energy Storage Funds are involved.

It all seems to be happening in Ireland.

November 23, 2021 Posted by | Energy, Energy Storage | , , | Leave a comment

Digital Signalling Work Outlined By Network Rail For Northern City Line

The title of this post, is the same as that of this article on Rail Business Daily.

This is the first paragraph.

Network Rail has detailed work due to be delivered on the Northern City Line to Moorgate.

I use this line regularly and I believe that with digital signalling the Northern City Line could see a large increase in frequency.

Currently, the service from Moorgate is as follows.

  • 4 tph to Welwyn Garden City via Potters Bar
  • 4 tph to Hertford North of which 2 tph extending to Watton-at-Stone and 1tph of those continuing to Stevenage.

Note.

  1. tph is trains per hour.
  2. Although the service is reduced from that shown, because of the pandemic and lower passenger demand.

But eight tph means a train every seven minutes and thirty seconds.

If you look at London’s high frequency lines, they have or will have passenger frequencies as follows.

  • Crossrail – 24 tph on dedicated tracks with digital signalling.
  • East London Line – 16 tph on dedicated tracks.
  • North London Line – 8 tph on tracks shared with freight trains.
  • Thameslink – 24 tph on dedicated tracks with digital signalling.

Note.

  1. The East London Line is planned to go to 20 tph with two extra tph to Clapham Junction and Crystal Palace.
  2. 20 tph means a headway between trains of three minutes.
  3. 24 tph means a headway between trains of two minutes and thirty seconds.

It should also be noted that the Victoria Line runs upwards of thirty tph on a fully digitally-signalled line.

What Level Of Service Would Be Possible?

These are my thoughts on various aspects of the Northern City Line.

How Many Trains Could Be Handled Between Finsbury Park And Moorgate?

This section of track is a simple double-track with a diamond crossing to the North of the two platforms at Moorgate, so that trains can use either platform.

This layout is used at Brixton and Walthamstow Central on the Victoria Line and Battersea Power Station on the Northern Line to name just three of many.

So I suspect that the track layout at the terminus at Moorgate can handle well-upwards of twenty tph.

The new Class 717 trains that run into Moorgate have an operating speed of 85 mph, which is faster than the previous Class 313 trains, which appear to have run at 30 mph South of Drayton Park.

I suspect that eventually twenty or even twenty-four tph will be possible on a digitally-signalled route between Finsbury Park and Moorgate.

But in the interim, sixteen tph would be a good compromise.

How Many Trains Could Be Handled On The Current Routes?

Currently, four tph use the both the Welwyn Garden City and the Hertford East/Stevenage routes.

I am fairly sure that both routes could handle eight tph, with the only proviso, that there is enough terminal capacity to turn the trains.

Looking at the layout of Welwyn Garden City station, I am certain that it could be modified to be able to handle eight tph.

I would hope that the new platform at Stevenage station, built to handle trains to and from Moorgate, can cater for four tph. As there are turnback platforms at Gordon Hill and Hertford North stations, I’m sure the other four tph could be handled.

The Piccadilly Line And The City of London

It has always been difficult to get between the Northern section of the Piccadilly Line and the City of London.

In the 1960s, I used to use my bicycle. By public transport, you generally had to use the bus or the 641 trolley bus to Moorgate.

With the improvement of the Northern City Line and Finsbury Park station, the fastest route to Moorgate is probably to change between the Piccadilly and Northern City Lines at Finsbury Park station.

Increasing the frequency of Northern City Line services between Finsbury Park and Moorgate would create a high-capacity route to the City for those commuting from the Northern section of the Piccadilly Line.

The Piccadilly Line And Crossrail

There is no connection between the Piccadilly Line and Crossrail.

A trip between Oakwood and Canary Wharf would be difficult.

As with getting to the City of London, the improvement of the Northern City Line and Finsbury Park station offers a route to Crossrail.

Oakwood and Canary Wharf would probably be done with changes at Finsbury Park and Moorgate.

The Victoria Line And The City of London

There is a cross-platform interchange at Highbury & Islington station between the Victoria and Northern City Lines.

With an increased frequency of Northern City Line services between Finsbury Park and Moorgate, I would expect that more people would use this route.

The Victoria Line And Crossrail

There is no connection between the Victoria Line and Crossrail.

The easiest route will be to take the route in the previous section and join Crossrail at Moorgate.

Conclusion

It does look that with the current routes sixteen tph to and from Moorgate could be a practical limit.

But that would still be a train every three minutes and forty-five seconds between Finsbury Park and Moorgate.

This increased frequency could be needed to create a high capacity link between the Northern sections of the Piccadilly and Victoria Lines and the City of London and Crossrail.



November 23, 2021 Posted by | Transport/Travel | , , , , , , , | 11 Comments

KEPSA Signs Large-Scale Green Energy Projects MoU In Kenya

The title of this post, is the same as that of this article on ESI Africa.

This is the first paragraph.

The Kenya Private Sector Alliance (KEPSA) has signed a Memorandum of Understanding (MoU) with green energy company Fortescue Future Industries (FFI) to help facilitate its members participation in new large scale green energy projects in Kenya.

FFI are planning a possible green hydrogen and green ammonia facility in the country, that will use renewable energy.

Andrew Forrest is building up the air miles again.

November 23, 2021 Posted by | Energy, Hydrogen | , , , , , | Leave a comment

Is The Alstom Hydrogen Train Powered By A Fuel Cell?

In Alstom And Eversholt Rail Sign An Agreement For The UK’s First Ever Brand-New Hydrogen Train Fleet, I mentioned that Alstom’s Hydrogen Aventra could be powered by either a small gas turbine or a fuel cell or cells, but I didn’t plump for one or the other. I said this.

If you look at the proportions of the Alstom hydrogen train and the pictures of Class 710 trains, I feel that the Alstom train could have the longer twenty-four metre cars.

It may be a tight fit compared to creating the Alstom Coradia iLint hydrogen train, but I would feel it is possible to install a fuel cell or cells, the required cooling and the hydrogen tanks, having seen cutaway drawings of hydrogen-powered double-deck buses on the Wrightbus web site.

Interestingly, the Alstom press release doesn’t mention fuel cells, so could the train be powered by a small gas turbine?

I think it is unlikely, but it is technically feasible.

I had forgotten one important factor. Both the Aventra factory and Rolls-Royce are in Derby and I know from talking to a retired British Rail engineer, that there is a lot of contact between the two companies at an informal level.

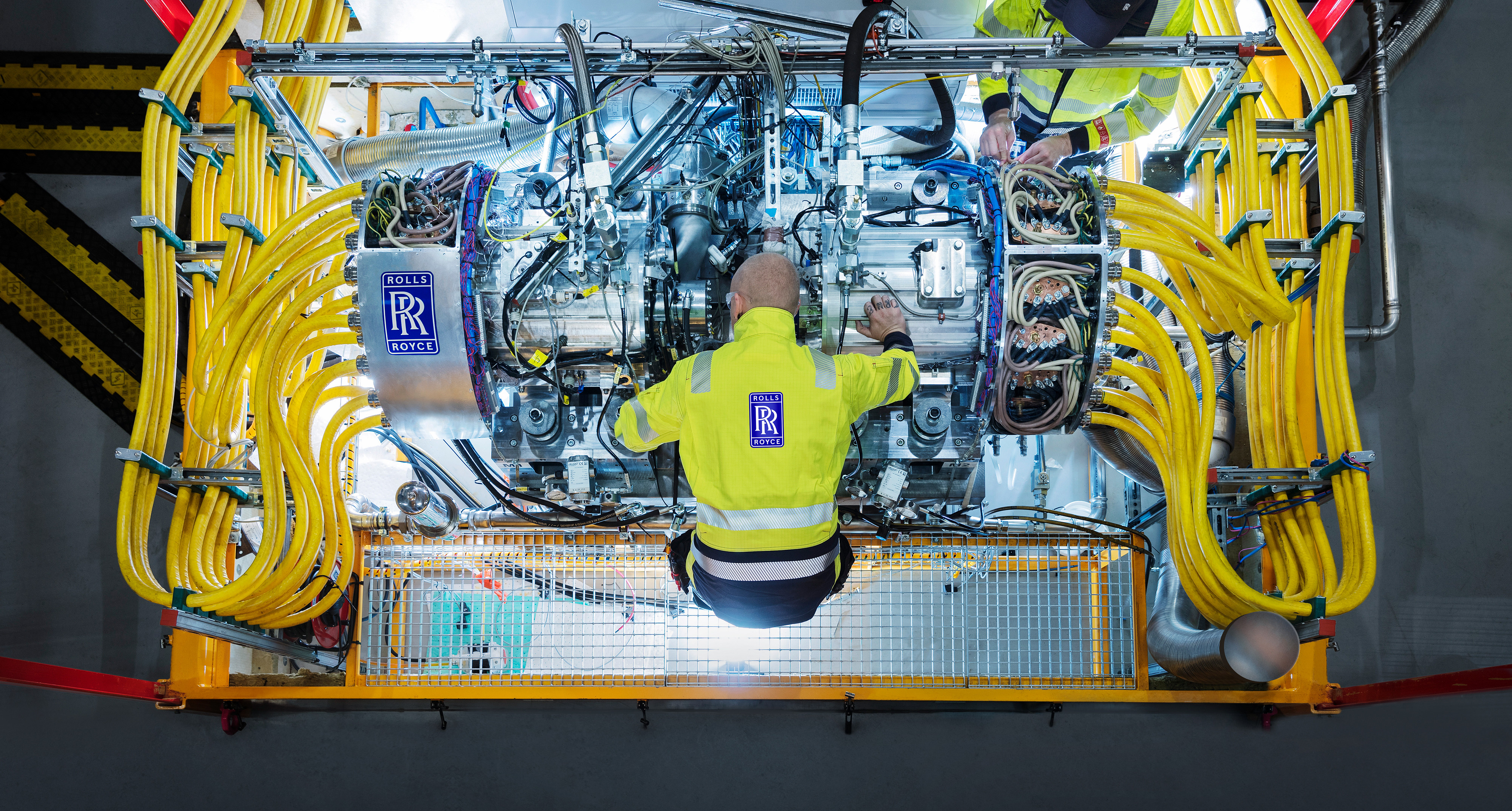

Rolls-Royce have published this picture of their beer keg-sized generator.

Would it need the cooling system, which appears to be needed with a fuel-cell?

The Rolls-Royce Advantage

There would surely be advantages in using a Rolls-Royce gas turbine to power the train.

  • Having a Rolls-Royce power unit must help sales of your plane or train.
  • There is the Derby connection.
  • Alstom already deal with Rolls-Royce subsidiary; MTU for diesel engines for freight locomotives.

Could we be seeing a hydrogen multiple unit powered by a gas turbine?

November 23, 2021 Posted by | Hydrogen, Transport/Travel | , , , | 6 Comments

‘Spirit of Innovation’ Stakes Claim To Be The World’s Fastest All-Electric Vehicle

The title of this post is the same as that of this press release on the Rolls-Royce web site.

This is the first paragraph.

We believe our all-electric ‘Spirit of Innovation’ aircraft is the world’s fastest all-electric aircraft, setting three new world records. We have submitted data to the Fédération Aéronautique Internationale (FAI) – the World Air Sports Federation who control and certify world aeronautical and astronautical records – that at 15:45 (GMT) on 16 November 2021, the aircraft reached a top speed of 555.9 km/h (345.4 mph) over 3 kilometres, smashing the existing record by 213.04 km/h (132mph). In further runs at the UK Ministry of Defence’s Boscombe Down experimental aircraft testing site, the aircraft achieved 532.1km/h (330 mph) over 15 kilometres – 292.8km/h (182mph) faster than the previous record – and broke the fastest time to climb to 3000 metres by 60 seconds with a time of 202 seconds, according to our data. We hope that the FAI will certify and officially confirm the achievements of the team in the near future.

Rolls-Royce also claim that the maximum speed achieved of 387.4 mph make it the world’s fastest all-electric vehicle.

To put that speed into perspective, it is faster than a Mark V Spitfire, which was powered by a legendary Rolls-Royce Merlin engine. These aircraft were powered by a Merlin 45 engine that generated 1074kW.

By comparison the Spirit of Innovation has a maximum power of just 400 kW.

Why Do It?

This paragraph from the press release gives an explanation.

As well as a stunning technical achievement, the project and world record runs provided important data for our future electric power and propulsion systems for all-electric urban air mobility and hybrid-electric commuter aircraft. The characteristics that ‘air-taxis’ require from batteries, for instance, are very similar to what was developed for the ‘Spirit of Innovation’.

I’ll go with that, as Rolls-Royce seem to be associated with several electric aviation projects.

But I can’t help feeling that there are parallels with the 1930s, when Supermarine and Rolls-Royce teamed up to produce the Supermarine S 6B, that won the Schneider Trophy outright in 1931. It is generally accepted that the knowledge gained at the time helped to design the Spitfire and the Merlin engine.

November 23, 2021 Posted by | Transport/Travel | , , , , , | 6 Comments

Whitelee Green Hydrogen Facility To Power Public Transport

The title of this post, is the same as that of this article on the BBC.

Some points from the article.

It will be the country’s largest electrolyser. Is that Scotland or the UK?

The facility is being built by Scottish Power, ITM Power and BOC.

Friends of the Earth think it’s wrong and the electricity should be used immediately.

In ScottishPower’s Green Hydrogen Project Looks To Build UK’s Largest Electrolyser, the title says that the Whitelee project will be the UK’s largest electrolyser.

November 23, 2021 Posted by | Energy, Hydrogen, Transport/Travel | , , , , , | Leave a comment

Could The Standedge Tunnels Be Part Of A High Speed Line?

This article on Rail Technology Magazine is entitled Warrington Borough Council React To Integrated Rail Plan, where this is said about improvements between Liverpool and Manchester via Warrington.

One such promise is the delivery of a new high-speed line between Warrington, Manchester and Marsden as part of NPR.

The IRP will also introduce a fully electrified upgraded line between Liverpool and Warrington as part of NPR.

Note NPR is Northern Powerhouse Rail.

Where Is Marsden?

This Google Map shows the rail line between the Standedge Tunnels and Marsden station.

Note.

  1. Standedge Tunnels and the Visitor Centre in the West.
  2. Marsden station in the South-East corner of the map.
  3. The railway between them is the Huddersfield Line.
  4. The distance between Marsden station and the Eastern Portals of the Standedge Tunnels is about a mile.

Huddersfield station is seven miles to the East of Marsden station.

The Eastern End Of The Standedge Tunnels

This Google Map shows the Eastern end of the Standedge tunnels.

Note.

  1. This is a 3D image tilted to give a possibly better view.
  2. Only a double-track railway and a canal tunnel are in daily use.
  3. There are two other disused but intact single-track rail tunnels.
  4. I suspect that the Tunnel End Reservoir keeps the canal water at the right level.

It looks to me that the Standedge Tunnels will be part of the proposed high speed route.

Greenfield Station

Greenfield station is to the West of the Western portal of the Standedge tunnels.

The distance between Greenfield and Marsden stations is six miles.

The Standedge Tunnels

Wikipedia has a very comprehensive description of the canal tunnel and the three rail tunnels that form the Standedge tunnels complex.

These are points from the entry.

  • The canal tunnel is the oldest and was opened in 1811.
  • The two single-track rail tunnels were opened in 1848 and 1871
  • The double-track rail tunnel opened in 1894.
  • The rail tunnels were all built using the canal tunnel for access.
  • All the tunnels are parallel to each other.
  • The tunnels are level.
  • All tunnels appear to be connected together with cross passages.
  • For safety reasons some diesel-powered boats are towed through the canal tunnel using electric tugs.
  • The railway tunnels were the only level section of the route and were fitted with water troughs for steam engines.
  • Drainage of the rail tunnels appears to be good, with water draining into the canal.
  • Only the 1894 tunnel is in use by trains, but all three rail tunnels are maintained.
  • The 1848 tunnel can be used for emergency access and is accessible to fire engines and ambulances.

The complex appears to be a masterpiece of nineteenth century engineering.

There are several factors that could enable the conversion of the rail tunnels into a high-capacity modern railway with speeds up to at least 100 mph.

  • The tunnels are level.
  • The tunnels are well-drained.
  • The access to the tunnels is good.
  • Slab track, which allows higher speeds could be installed in the tunnels, as it was in the Bowshank Tunnel on the Borders Railway.

But the biggest factor could be the possibility of using battery-electric trains to avoid electrification of the main lines, which as now would probably be in the double-track tunnel.

This Hitachi infographic describes their Intercity Battery Hybrid Train, which is based on a Class 802 train and they are developing in partnership with TransPennine Express.

Note.

  1. Greenfield and Marsden stations are only six miles apart.
  2. The tunnels are only a few metres longer than 5000 metres.
  3. The train may only be able to cover 5 km now, but I believe this could be increased.

I also wonder, if the electrification on either side could get as close to the tunnel as possible.

This would enable trains to drop pantograph at speed and switch to battery power a few metres from the tunnel and get to the other side using a mix of battery-power and kinetic energy. Once under the wires at the other side of the tunnel and they had slowed to a safe speed at which they could raise the pantograph, it would be raised and trains would continue using the electrification.

The operating speed would probably be determined by any curves at the ends of the straight and level tunnel.

This method of operation may be OK for expresses, but what about other passenger and freight trains?

I wonder, if it would be possible to put a third track in one of the other rail tunnels.

  • Slab-track would probably be installed.
  • This third track could be electrified.
  • It would be signalled to allow bi-directional running.

This by-pass tunnel could keep the main lines free for the expresses.

Conclusion

I am fairly sure that the Standedge Tunnels could be incorporated in a high speed line.



November 23, 2021 Posted by | Transport/Travel | , , , , , , , | 12 Comments
