A First Trip To Barking Riverside Station

I took a first trip to Barking Riverside station this morning and took these pictures.

I have a few thoughts and observations.

July 18, 2022 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , | 5 Comments

Through Barking To Barking Riverside

The excellent maps from carto metro now show full details of the route of the Barking Riverside Extension of the Gospel Oak to Barking Line.

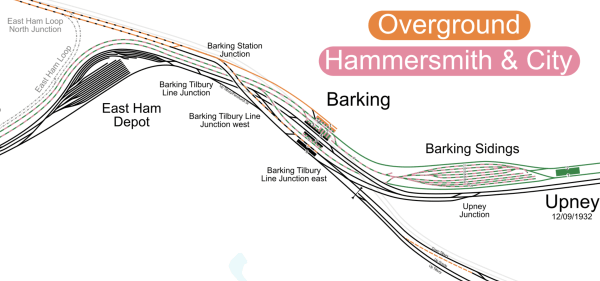

This map shows the tracks going through Barking station.

Note.

  1. The District Line is shown in green.
  2. The Hammersmith & City Line is shown in mauve.
  3. The London Overground is shown in orange.
  4. Where lines are shared, they are shown dotted in both colours.
  5. The two tracks going North West are the Gospel Oak to Barking Line to the West.
  6. There is a flyover linking these two tracks to Platforms 7 and 8 on the South side of the station.

All Overground trains currently terminate in Platform 1, which is the Northernmost of the seven platforms.

After services to Barking Riverside start, some or all of the services will use the flyover and share Platforms 7 and 8 with c2c’s half-hourly service between Fenchurch Street and Grays.

  • Platform 7 will handle c2c services to Grays and Overground services to Barking Riverside.
  • Platform 8 will handle c2c services to Fenchurch Street and Overground services to Gospel Oak.

Passengers who need to reverse direction to perhaps go from Barking Riverside to Purfleet would just walk across the island platform shared by Platforms 7 and 8.

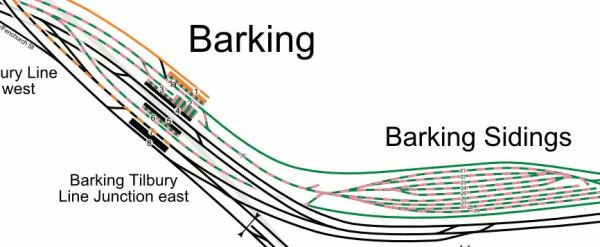

This second map shows the tracks to the East of Barking station.

Note.

  1. The Overground tracks sit between the existing lines.
  2. If Renwick Road station is added to the extension, will it have an island platform between the tracks?

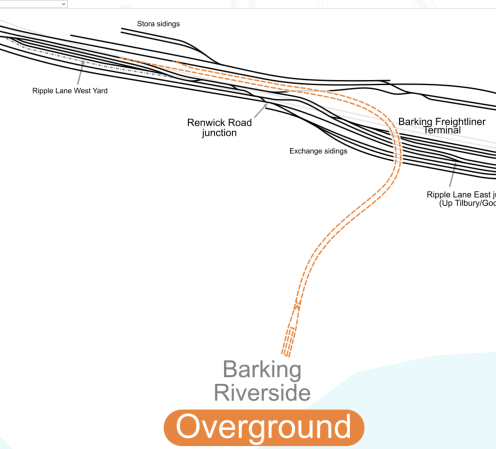

This third map shows the route to Barking Riverside station.

Note.

  1. Barking Riverside station is a two-platform station.
  2. There is a crossover outside the station to allow both platforms to be used to terminate trains.

Strictly speaking to handle the four trains per hour (tph) that are likely to use the station, one platform could be enough, but it looks like the station has been designed for extension across the river to Abbey Wood and Thamesmead.

September 2, 2021 Posted by | Design, Transport/Travel | , , , | 3 Comments

Could Tram-Trains Connect Barking, Barking Riverside, Thamesmead And Abbey Wood?

This is an old idea, I wrote about in An Open Letter To London Mayor Candidates About East London River Crossings.

This is what I said.

TfL has talked about a tunnel extending the GOBLin from Barking Riverside to Thamesmead and Abbey Wood.

After a visit to Karlsruhe specifically to see their tram-trains, I now believe that these could be the way to create a universe-class connection across the Thames. Tram-trains like those in Karlsruhe, which are soon to be trialled between Sheffield and Rotherham, could run on the GOBLin and then perhaps do a little loop at Barking Riverside before returning to Gospel Oak.

Note that we’re not talking untried technology here as you can see the tram-trains running on the streets and railway tracks of several German cities. Undoubtedly, if the Germans were extending the GOBlin, they would use tram-trains, as they could serve build several stops with the money needed to build Barking Riverside station. And all the stops, like those on the London Tramlink would be fully step-free.

The loop in Barking Riverside, could extend across the river.

I think that a tunnel under the Thames would be a case of hiding your biggest light under an enormous bushel.

So why not create a high bridge to allow the biggest ships underneath, with a tram track or two, a cycle path and a walking route?

It would have some of the best views in London. Forget the Garden Bridge! This would create a transport link, that those living on both sides of the river could use and enjoy every day to get to work or for leisure reasons. Tourists would come to view London, as they do on large entry bridges in cities like New York and Lisbon.

Effectively, you have a conventional tram connecting Barking, Barking Riverside, Thamesmead and Abbey Wood. At Barking and Abbey Wood, the tram-trains become trains and could go to Gospel Oak and perhaps Merindian Water, Romford, Upminster or Tilbury in the North and perhaps Woolwich, Lewisham, Dartford or Bluewater in the South.

Everything you would need to create such a link is tried and tested technology or designs that have been implemented in either the UK or Germany over the last few years.

Tram-trains have one big advantage over trains and that is that they can take much tighter curves.

This would enable intricate routes to serve large areas of Thamesmead.

A simple route between Barking and Abbey Wood stations could serve a lot of people and might even call at the iconic Crossness

November 11, 2020 Posted by | Transport/Travel | , , | Leave a comment

Three-Year Nightmare Is Over! Full Service Resumes On Gospel Oak To Barking Overground Line

The title of this post is the same as that of this article on the Barking and Dagenham Post.

There is little more to say!

I went to Barking today and every time, I used a train, the displays were showing the next train was fifteen minutes behind.

I also rode both types of trains, so the Class 378 trains are still being used.

June 24, 2019 Posted by | Transport/Travel | , , , , | 2 Comments

Thoughts On Barking To Grays And Barking To Barking Riverside Train Services

c2c’s Fenchurch Street And Grays Service

This service runs at a frequency of two trains per hour (tph).

  • Each journey takes about 34-36 minutes each way.
  • If ten minutes is allowed at each end, that gives a ninety minute round trip.
  • The service will need three trains.

A four tph service would need.

  • Six trains.
  • The ability to handle  extra two tph at Fenchurch Street station and in the bay platform at Grays station.

Grays station can probably handle the extra trains, but Fenchurch Street station may need extra capacity.

London Overground’s Gospel Oak And Barking Riverside Service

This service runs at a frequency of four tph.

Changing At Barking Station

Both service will use.

  • Platform 7 At Barking Station When Running Eastbound
  • Platform 8 At Barking Station When Running Westbound

Both platforms will have to handle six tph.

Would It Be Better For Changing If Both Services Were Four tph?

This would mean.

  • Passengers would never wait more than fifteen minutes to their desired destination.
  • The combined frequency would be eight tph or a train every seven-and-a half minute.
  • There would be a lot of scope for optimising the timetable for the convenience of passengers.

As an example, consider a passenger going from Barking Riverside to Fenchurch Street.

If trains were equally-spaced at Barking station, passengers would wait a maximum of seven-and-a-half minutes, if trains were on time.

On balance, if both services were four tph would be better.

Conclusion

If c2c and London Overground co-operate, customers will benefit.

April 9, 2019 Posted by | Transport/Travel | , , , , , | Leave a comment

Riding The 9:09 From Harringay Green Lanes to Barking

On my trip to Grays station this morning, I took the 9:09 train from Harringay Green Lanes station to Barking station, where I got a direct train to Grays.

The three Class 378 trains seem to be coping and the four-car train was not overly full.

  • In the short trip, a lot of passengers don’t seem to do more than one or two stations.
  • There were even several big cases and a couple of buggies.
  • There were spare seats all of the way.

If nothing else Bombardier’s late delivery of the Class 710 trains, has brought the qualities of the Class 378 trains to the fore.

As the Class 710 trains will have the same layout, I suspect when they are in service, there will be loads of space all day, until new passengers fill them up! As they always do!

April 9, 2019 Posted by | Transport/Travel | , , , , | Leave a comment

A Ride On The 16:03 From Barking To Gospel Oak

This afternoon, I went to see if there was any progress on the Barking Riverside Extension. The easiest way to see the works is to take a train to Dagenham Dock station and then cross over to the other platform and take a train back to where you started. It’s a two trains per hour (tph) service and usually you wait about six minutes at Dagenham Dock station, for the return train.

Nothing much seems to have happened by the bridge where Renwick Road goes over the line, except a bit of tidying up of junk left by British Rail.

The Interchange At Barking

Back at Barking, I just had time to join a surprising number of passengers, who were intending to catch the 16:03 between Barking and Gospel Oak stations.

One thing that should be noted, is that when the Barking Riverside Extension opens, the following services will share the  island Platform 7/8 at Barking station.

  • 2 tph – Platform 7 – Fenchurch Street to Grays
  • 4 tph – Platform 7 – Gospel Oak to Barking Riverside
  • 2 tph – Platform 8 – Grays to Fenchurch Street
  • 4 tph – Platform 8 – Barking Riverside to Gospel Oak

This is a well-designed same-platform interchange, that enables journeys like the following..

  • Barking Riverside and Grays
  • Barking Riverside and Fenchurch Street
  • Barking Riverside and Blackhorse Road (for the Victoria Line!)
  • Grays and Gospel Oak (for the North London Line!)

There are a lot of possibilities.

I do think, that the service between Fenchurch Street and Grays, should be doubled in frequency to four tph, if this is possible, to make the interchange more efficient.

Although, this might increase the number of passengers needing to use the Gospel Oak to Barking Line (GOBLIN).

The Full Four-Car Class 378 Train

The train was a four-car Class 378 train and nearly all seats were taken. There were a few standees and a dog lying in the middle, so it was a good demonstration of the advantages of the train’s longitudinal seating.

It does appear to me, that more passengers are using the GOBLIN.

Possible reasons could include.

  • Some services being run by four-car electric instead of two-car diesel trains.
  • A fifty percent increase in seats on the route.
  • The step-free interchange with the Victoria Line at Blackhorse Road station.
  • Passengers trying out the improved route.

I also wonder, if all the negative publicity has persuaded passengers to give it a try.

All Change At Blackhorse Road Station

A surprising number of passengers seemed to get off at Blackhorse Road station, as the train was much less full after the station.

On other trips recently, I’ve seen large number of passengers waiting to go East in the late afternoon.

It obviously has a lot of attraction as an interchange.

First Time Travellers

In my travels along the GOBLIN in the last few weeks, I have asked a lot of passengers, whether they like the current mixed service.

I have heard only a few moans about cancellations and unreliability, but I have been very surprised at how many first time travellers on the GOBLIN, that I have encountered.

Transport for London must be doing something right.

Conclusion

I am led to the conclusion, that the GOBLIN is stirring and that more and more travellers are using the line.

My only worry, is that in a couple of years, when the Barking Riverside Extension opens, that the line will need extra passenger capacity.



February 28, 2019 Posted by | Transport/Travel | , , , | 4 Comments

Could Metropolitan Line Trains Run Between Uxbridge In The West And Barking/Upminster In The East?

I read somewhere in Wikipedia, that Transport for London (TfL) were thinking of extending Uxbridge Branch trains on the Metropolitan Line from Aldgate to Barking and/or Upminster stations.

Current Frequencies Between Wembley Park And Upminster Stations

These are the Off Peak frequencies on the various sections of the route in trains per hour (tph)

Wembley Park To Baker Street

  • 2 tph – Amersham to Aldgate
  • 2 tph – Chesham to Aldgate
  • 8 tph – Uxbridge to Aldgate
  • 4 tph – Watford to Baker Street

This gives a total of 16 tph

Baker Street To Liverpool Street

  • 2 tph – Amersham to Aldgate
  • 2 tph – Chesham to Aldgate
  • 8 tph – Uxbridge to Aldgate
  • 6 tph – Hammersmith to Barking
  • 6 tph – Circle Line

This gives a total of 24 tph

Aldgate East to Barking

  • 6 tph – Hammersmith to Barking
  • 6 tph – Richmond to Upminster
  • 6 tph-  Ealing Broadway to Upminster
  • 3 tph – Wimbledon to Barking

This gives a total of 21 tph

Barking to Upminster

  • 6 tph – Richmond to Upminster
  • 6 tph – Ealing Broadway to Upminster

This gives a total of 12 tph

Current Frequencies Between Hammersmith And Baker Street

I’ll add this, in case I need it later.

  • 6 tph – Hammersmith to Barking
  • 6 tph – Circle Line

This gives a total of 12 tph

Current District Line Frequencies Between Hammersmith And Upminster

These are the Off Peak frequencies on the various sections of the route.

Hammersmith to South Kensington

  • 6 tph – Richmond to Upminster
  • 6 tph – Ealing Broadway to Upminster

This gives a total of 12 tph

South Kensington to Tower Hill

  • 6 tph – Richmond to Upminster
  • 6 tph – Ealing Broadway to Upminster
  • 3 tph – Wimbledon to Barking
  • 6 tph – Circle Line

This gives a total of 21 tph

Aldgate East to Barking

  • 6 tph – Hammersmith to Barking
  • 6 tph – Richmond to Upminster
  • 6 tph-  Ealing Broadway to Upminster
  • 3 tph – Wimbledon to Barking

This gives a total of 21 tph

Barking to Upminster

  • 6 tph – Richmond to Upminster
  • 6 tph – Ealing Broadway to Upminster

This gives a total of 12 tph

Four Lines Modification

The Four Line Modification is a project to upgrade the following lines.

  • Circle Line
  • District Line
  • Hammersmith & City Line
  • Metropolitan Line

New S7 and S8 Stock trains have been delivered and new track and drainage has been installed, but the biggest change will be in the new signalling. TfLsays this abut the new signalling.

Work to install a new signalling and control system began in summer 2016. This will eventually allow the trains to be driven automatically, with a train operator in the cab to open and close the doors. The train operator will be responsible for managing customer information and safety.

Similar technology introduced in recent years on the Jubilee and Northern lines improved performance. The new signalling system allows trains to be run closer together, meaning a more frequent service and shorter waiting times, allowing more people to be carried. This new technology will enable us to reduce delays and improve reliability.

If 32 tph can be run on sections of the four lines, it is an impressive upgrade of capacity.

Currently the frequencies are.

  • Wembley Park to Baker Street – 16 tph
  • Baker Street to Liverpool Street – 24 tph
  • Aldgate East to Barking – 21 tph
  • Barking to Upminster – 12 tph

For completeness these frequencies will be added.

Hammersmith to Baker Street – 12 tph

Note

  1. The frequencies are all at least eight tph below the maximum future operating frequency.
  2. The busiest section is between Baker Street and Liverpool Street stations.
  3. The frequency on the two end sections of the Northern East-West section between Hammersmith and Upminster stations is only 12 tph.

It looks like TfL have scope to increase the capacity on the four lines.

Are The Circle/District Line Platforms At Edgware Road Station At Maximum Capacity?

Currently, the following services terminate at Edgware Road station.

As there are only two platforms to turn the twelve tph, I wouldn’t be surprised if someone told me, that Edgware Road station was at maximum capacity.

If this is the case, then no more trains can be run on the Circle Line, without reducing the frequency to Wimbledon, unless the station were to be rebuilt.

This Google Map shows the station.

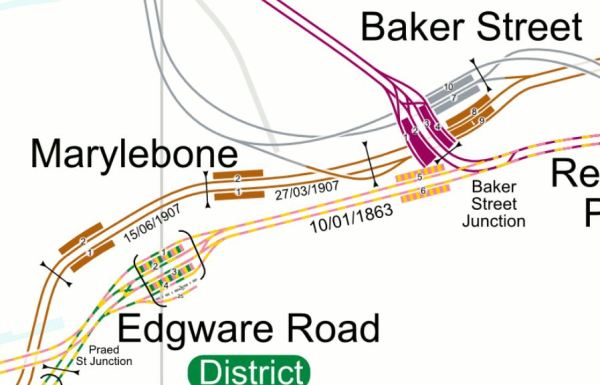

And this map from carto.metro.free.fr shows the lines through Edgware Road and Baker Street stations.

Edgware Road station lies in a cutting, in the midst of some very expensive real estate.

  • It is not step-free.
  • According to the carto.metro.free.fr map, there used to be or still is a siding or platform to the South of the current four platforms.
  • The junctions to the West of the stations are complicated.
  • As trains often wait for a few minutes in the station, I suspect it is not operationally efficient.

Could at some time in the future, the station be rebuilt?

  • The East-West services might go straight through in two Northern platforms.
  • The junction to the West of the station would be simplified, with no crossing of tracks.
  • Three terminal platforms could be built for trains coming from the South, which would allow an increase in services.
  • Hopefully, the East-West and terminating services could be separated and wouldn’t cross each other.
  • Development of tower blocks over the top would provide some funds for the new station.

Would it be possible to increase Circle Line services to ten tph?

Frequencies along the route would be as follows.

  • Baker Street to Liverpool Street – 28 tph
  • Tower Hill to South Kensington – 25 tph
  • High Street Kensington to Edgware Road – 16 tph

My scheduling nous says yes! I also feel, that using good project planning, the station could be built without disrupting services.

Baker Street Issues

Is Aldgate Station At Maximum Capacity?

Currently, the following services terminate at Aldgate station.

  • 2 tph from Amersham
  • 2 tph from Chesham
  • 8 tph from Uxbridge

As there are only two platforms to turn the twelve tph, I wouldn’t be surprised if someone told me, that Aldgate station was at maximum capacity.

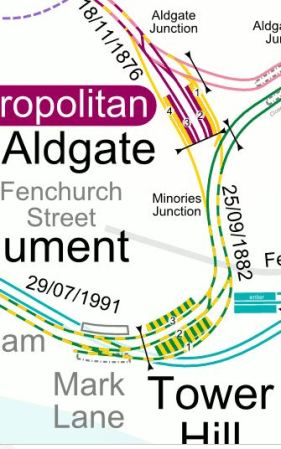

This map from carto.metro.free.fr shows the lines at Aldgate station.

Note

  1. The two platforms at Aldgate station are sandwiched between the two Circle Line tracks.
  2. The platforms are curved, which makes step-free access difficult.

I suspect fitting in three straight platforms and full step-free access in the existing station will be very difficult.

This Google Map shows the general area around Aldgate station.

Certainly South of Aldgate High Street, there seems to be a site that could be ripe for development.

Are the District and Circle Lines underneath?

In a comment to this post, Melvyn says that the station could be redeveloped. He said this.

I did read a proposal to make Aldgate accessible linked to property development so this would mean a redesign of the station which could lead to removal of one of the terminal tracks.

I think I will conclude, that whatever happens at Aldgate station, there is no way, the station can handle more than twelve tph.

Could Extra Trains Be Turned At Barking?

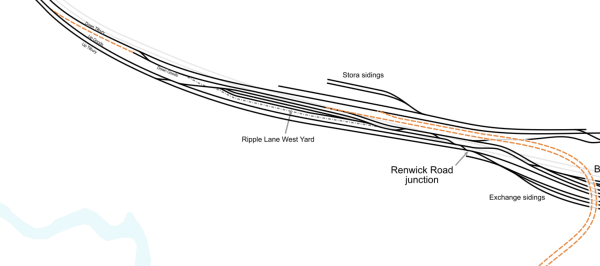

This map from carto.metro.free.fr shows Barking station and the sidings to the East.

If the eight tph from Uxbridge turned back at Barking, that would mean that seventeen tph would need to be handled at the station.

I’m fairly certain, that this number of trains could be turned at Barking.

It is also worth noting in the map, the cross-platform interchange with c2c.

Could Extra Trains Be Turned At Upminster?

Upminster station has a depot with an impressive maze of sidings to the East.

As the station also has three platforms for District Line trains, I believe the station can handle more than the twelve tph, that it does now!

Increasing The Core Frequency

Suppose extra trains were to be run between Baker Street and Liverpool Street stations.

Ideally, eight extra tph would need to be run to use the maximum capacity of the route.

Where Would The Extra Trains Go In The West?

Extra trains could possibly be run to Hammersmith station, as the three-platform station can probably handle more trains than the twelve tph it does now.

If Edgware Road station is at maximum capacity, then no more Circle Line trains could be run.

But with a rebuild of Edgware Road station in the future, would allow perhaps up to an extra four tph on the Circle Line.

But there could be a few more Hammersmith & City Line services.

There would also be the possibility of more Metropolitan Line services to Amersham, Chesham Uxbridge and Watford stations.

Where Would The Extra Trains Go In The East?

Consider.

  • There are four bay platforms at Moorgate station,but are they currently the wrong side of the important Liverpool Street station.
  • Moorgate station is being rebuilt for Crossrail and this may open up possibilities for using the bay platforms.
  • Aldgate station is at full capacity.
  • Extra trains can’t take the Circle Line as Edgware Road station is at frill capacity.
  • With a rebuild of Edgware Road station, it might be possible to add four tph to the Circle Line.

So I come to the conclusion, that some extra services must go on to Barking and/or Upminster.

A Possible Timetable

If I assume the extra eight tph go all the way between Wembley Park and Upminster, this gives the following frequencies along the line.

  • Wembley Park to Baker Street – 24 tph
  • Baker Street to Liverpool Street – 32 tph
  • Aldgate East to Barking – 29 tph
  • Barking to Upminster – 20 tph

The terminals of the various services could be shared between Aldgate and Upminster.

I also suspect, that the new signalling will allow twelve tph instead of the current eight tph to be terminated at Baker Street station.

Uxbridge To Barking/Upminster Timings

These are the timings for various section of the route.

  • Uxbridge to Baker Street – 38 minutes
  • Baker Street to Liverpool Street – 13 minutes
  • Liverpool Street to Barking – 25 minutes
  • Barking to Upminster – 18 minutes

This means that Uxbridge to Upminster could take 94 minutes, with Uxbridge to Barking taking 76 minutes.

These may translate into the following round-trips.

  • Uxbridge and Upminster – Four hours, which would need 32 trains.
  • Uxbridge and Barking – Three hours, which would need 24 trains.

The current service between Uxbridge and Aldgate has a round trip of two hours, which needs 16 trains.

It would appear that if Uxbridge services go to an alternative terminal, then Barking would be a better choice.

Conclusion

It looks like, that it is very likely, that Metropolitan Line trains will run as far as Barking and/or Upminster stations.
