Two Platform Stations With 125 mph Trains

Increasingly, we are seeing stations in the UK, where there is only two platforms and trains pass through the station without stopping at 125 mph.

If HS4Air is built, there will be several stations between Gatwick Airport and Ashford, where this will happen.

I must admit, that I don’t like being on a platform, where trains past through, so perhaps it is a personal thing.

With me it’s not just 125 mph trains, but freight trains as well.

But for reasons of safety, I think we could come up with a better design of station.

I shall use Penshurst station on the Redhill to Tonbridge Line as an example.

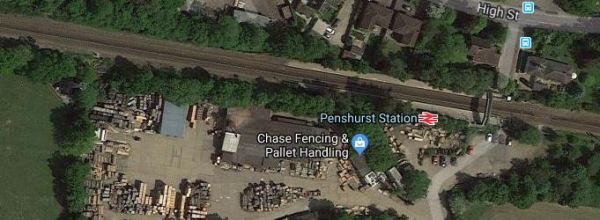

This Google Map shows the station.

Note that it is very simple with a platform on each line.

Currently, it gets a single train per hour (tph) in both directions.

HS4Air would probably mean that at least another four tph, passed through the station at 125 mph.

Platform-edge doors would be a difficult and expensive solution, but why not make access to the platform only possible, when a train is stopping?

Looking at Penshurst station, this station also needs some more facilities, like a fully accessible footbridge.

The footbridge would be outside the secure area.

For slower passing trains and heavy freight trains, the use of wide platforms and rear access will suffice as these pictures from Hackney Wick station show.

If more stations were built to the rules used at Hackney Wick, the UK’s railways would probably be safer.

August 19, 2018 Posted by | Travel | , , , , , | 2 Comments

Hackney Wick Station Opens

Hackney Wick station is now almost fully rebuilt and the new facilities are open to passengers

It is a design, that draws heavily on brutalist architecture, but the general feeling is that people seem to like the station.

The station is simple in layout, with a double subway through the embankment, which was built alongside and inserted at Easter 2017, as I wrote about in A Tough Way To Spend Easter.

  • One side of the subway is reserved for ticketed passengers and the other when it opens will be a new route under the railway.
  • Access to the platforms on top of the embankment is by well-designed high capacity staircases and two lifts.
  • The staircases have similar hand-rails with built-in LED lighting, as I saw yesterday at Abbey Wood station.
  • The station does not have ticket gates and relies on passengers to just touch in, as at several stations on the London Overground.
  • But then the station will be used for large sporting events at the Olympic Stadium.
  • It also has wider platforms than it used, to accommodate large numbers of passengers.

There is still some work to do, like adding the signage and opening the subway for those not using the railway.

I only met one person, who didn’t like the station. He struck me as an artistic type and said the money should have been spent on other things.

But Hackney Wick needed a new high-capacity station and a high-capacity walking route under the railway.

  • It is the nearest station to the Olympic stadium.
  • There is a large amount of housing development in the area.

Currently, the station handles two million passengers a year and this will surely rise.

A Comparison With The New White Hart Lane Station

Various sources say that the rebuilding of Hackney Wick station will cost £25million.

White Hart Lane station is also being rebuilt in conjunction with Tottenham Hotspur’s new ground and redevelopment of the area.

This also needs to give access to a high railway line, which is on a brick viaduct, that can be incorporated into the structure, rather than replaced, as at Hackney Wick.

According to this article in Construction Enquirer, the budget is £18million.

Modern step-free stations to handle two million passengers per year, don’t come cheap!

On the other hand, once built most stations last for at least a hundred years.

White Hart Lane opened in 1872, whereas Hackney Wick opened in 1980.

So it looks like the Victorians did a longer lasting job, than British Rail!

May 22, 2018 Posted by | Travel | , , , | Leave a comment

Hackney Wick Station – 12th May 2018

The builders now seem to be on the home straight at Hackney Wick station.

The fitting out is well underway on the platforms and it appears that the ground level works are progressing.

Because of today’s weather, I didn’t really want to have a look at ground level.

Building A Station Without Closing The Railway Line

After the initial closure at Easter 2017, to install the subway, which I wrote about in A Tough Way To Spend Easter, I’m pretty certain, there has not been a major closure of the line and work to build the station has continued, whilst trains have continued to run on the railway and stop at the platforms for passengers.

I suspect that project managers have learned a lot from this project.

May 12, 2018 Posted by | Travel | , , | Leave a comment

Hackney Wick Station And The Florida International University Pedestrian Bridge Collapse

The title of this post might seem a bit unusual, as the two locations are in different continents and thousands of miles apart.

But there is a connection, in that the new Hackney Wick station and the Florida International University bridge, were built using the same construction method called accelerated bridge construction.

There are some major differences.

  • At Hackney Wick a short, fat subway was built alongside the railway and moved in using self-propelled modular transporters. In Florida a long thin span was installed , in a similar way.
  • The Hackney Wick station subway, probably weighs a lot more than the pedestrian footbridge.
  • The Hackney Wick subway and the platforms and track on top, was fully reinstated before trains could cross, whereas the Florida span was part of a cable-stay bridge, which hadn’t been completed.
  • The Hackney Wick subway will be carrying trains of several hundred tons, whereas the Florida bridge will be carrying people.

It looks to me, that there has been some inaccurate calculations, which led to the collapse of the Florida International University bridge.

March 16, 2018 Posted by | World | , , , | Leave a comment

How To Build Railway Stations

With all the troubles caused by the failure of Carillion, it is good to report on a company, that is providing new and improved railway infrastructuresubstantially  on time and on budget.

This article on Rail Engineer is entitled VolkerFitzpatrick: Upgrading Stations.

This is the first two paragraphs.

With Network Rail’s comprehensive Railway Upgrade Plan well underway and the modernisation of Britain’s railways firmly in the spotlight, there is a growing need and expectation for first-class stations and infrastructure to accommodate growing numbers of passengers nationwide.

One business with a huge role in the modernisation programme has developed a reputation as an exceptional multi-disciplinary contractor, with extensive capabilities in civil engineering, building and rail, meeting the demands of a wide range of clients across multiple disciplines. It is this consolidated approach that has helped VolkerFitzpatrick deliver several high-profile UK railway station schemes in the last 10 years.

The article then goes on to describe how the company tackled the following stations.

It then goes on to detail the company’s omvolvement in the Lea Valley Improvement Program, which will deliver new stations at Tottenham Hale, Northumberland Park and Meridian Water.

Read the Rail |Engineer article, as it gives a good insight into design and construction.





January 21, 2018 Posted by | Uncategorized | , , , , , , , , | Leave a comment

Hackney Wick Station – 27th September 2017

These pictures were taken on the North Side of the station.

The scaffolding and wood construction is the temprary ramp for passengers.

September 28, 2017 Posted by | Travel | | Leave a comment

I Can Clearly See Through The Hackney Wick Subway

A couple of days and they’re really pushed on at Hackney Wick station.

It looks like after the May Bank Holiday, they may have opened up the subway for pedestrians, as barriers seem to be ready to create a walkway.

April 24, 2017 Posted by | Travel | , , | Leave a comment

The Subway Is Finally Exposed

These pictures show the subway and a few other things at Hackney Wick station.

It looks to my untrained eye, that now, the builders can get on with putting in the stairs and lifts and then fit out the station ready for opening.

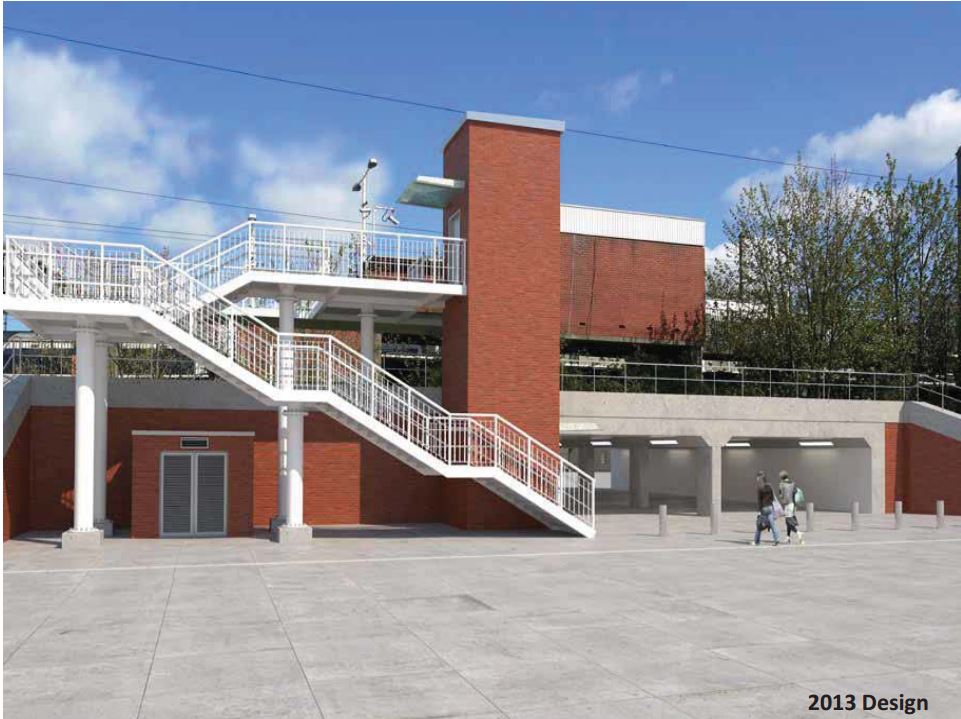

This visualisation shows how the station will look on completion.

Hackney Wick Station South Elevstion

I do hope they leave the approach to the station clear, as in the visualisation.

April 20, 2017 Posted by | Uncategorized | , , | Leave a comment

The Sun God Has Blessed Hackney Wick

If you look at my pictures over the weekend of the Hackney Wick Station Subway Installation, there’s two common factors – The sun and no rain.

Imagine having to do all that heavy work in an intense storm named Jeremy or Nigel.

Obviously, the Queen too, hasn’t been near Hackney Wick.

April 19, 2017 Posted by | Travel | , , | Leave a comment

The Mammoths Are Leaving

I went back to Hackney Wick station in the afternoon and the mammoths were lined up, with the 2,000 tonne subway standing on its own feet.

The mammoths really are impressive beasts.
