It’s Time To Detopsify Stratford Station

Stratford Station has grown like Topsy for too long and has several problems and possible future expansions.

Not least of these include.

  • The final arrival of Crossrail.
  • A direct connection to Chingford.
  • A Stansted Express service.
  • Massive housing developments in the area.
  • More hotels
  • New cultural developments like the branch of the Victoria and Albert Museum.
  • A new campus for University College London.

This article on IanVisits is entitled Stratford Station Set For Massive Transformation.

This is his opening paragraph.

Stratford station could be radically redeveloped under plans being worked on by the rail companies and local council.

That is rather understated!

The station will become several times busier and needs a complete rethink, many more services and deTopsification.

These are my thoughts.

The Development Of The High Meads Loop

The High Meads Loop exists and is a double-track loop that can turn trains arriving at Stratford station via Lea Bridge station.

  • It is underneath the Eastfield Shopping Centre – Westfield is in the West of London.
  • Each track of the loop has its own long platform in the station. – Platform 11 is for clockwise trains and Platform 12 is for anti-clockwise.
  • It has been used in the past for a Stansted Express service.

The Wirral Line in Liverpool like the High Meads Loop is now a modern loop for turning trains.

  • The Wirral Loop is only single-track.
  • It gives connections for over thirty stations on the Wirral and in Cheshire and North Wales to Liverpool City Centre.
  • It is run by fifty-year-old Class 507 and Class 508 trains.
  • The loop has now been improved and can handle upwards of the fourteen trains per hour (tph) it currently does.

Merseyrail will soon be introducing new Class 777 trains on the Wirral Line in the near future and will be increasing services and the number of destinations.

British Rail’s vision for Liverpool, that was cruelly cut-short by Liverpool MP; Harold Wilson, is finally coming to fruition.

Newcastle also got its British Rail tunnel which is now being used by the Metro, but what would have happened in Manchester if British Rail had been allowed to build the Picc-Vic Tunnel?

I have a strong belief, that a Lea Valley Metro can be developed on the West Anglia Main Line.

  • It would have two Southern terminals – Liverpool Street station and the High Meads Loop at Stratford.
  • When it opens, Crossrail will mean that Liverpool Street and Stratford stations will be seven or eight minutes apart with a frequency of at least 12 tph.
  • Northern terminals would include Broxbourne, Cheshunt, Chingford, Enfield Town and Hertford East.
  • Crossrail 2 was planned to have a frequency of 10 and 15 tph between Tottenham Hale and Broxbourne stations.

I believe that if services in East London are thoroughly reorganised, that all the benefits of Crossrail 2 can be brought to East London by the use of the High Meads Loop and the upgrading of existing lines.

Stansted Express Services

Go to Stratford station and there is an out-of-date sign at the end of Platform 1 and 2, where the Overground trains terminate.

It directs passengers to Platform 12 for Stansted Airport.

The picture was taken in 2017, but there is still a walk-through to Platform 12, that I use regularly, if I’m changing between London Overground and Greater Anglia or TfL Rail services to destinations on both the West Anglia or Great Eastern Main Lines.

I believe that there is still a need for a Stansted Express services from Stratford, as for some people, including myself, it is easier to get to Stratford, than Liverpool Street.

From some places the connections to and from Stansted are not very good. Try going between London Bridge, Canterbury, Euston, Victoria or Waterloo and Stansted with a few mobility issues like a heavy suitcase and/or a baby, without a degree in Ducking-and-Diving!

An additional Stansted Express service from Stratford would make things a lot easier to get to the airport for many travellers, because of Stratford’s connections to the Central, Jubilee and North London Lines and SouthEastern’s Highspeed services.

Better Connection Between High Speed One And The High Meads Loop For Passengers

Some passenger connections are missing at Stratford.

This is indicated in the IanVisits article.

This map from cartometro.com shows the Topsy-like nature of the platforms at Stratford.

Note.

  1. The Docklands Light Railway is shown in turquoise.
  2. The DLR platforms in the North-West corner of the map are those of Stratford International station.
  3. High Speed One and the four platforms of Stratford International station are shown in black.
  4. The North London Line of the London Overground is shown in orange.
  5. The North London Line terminates in Platforms 1 and 2, which have a level link to Platform 12.
  6. Platform 12 is on the anti-clockwise platform for the High Meads Loop and has step-free access to the subway system underneath the station.
  7. Platform 11 is on the clockwise platform for the High Meads Loop and has level access to Platform 10a and full step-free access,
  8. Platform 10a is used by some services to East Anglia.
  9. Crossrail is shown in blue.
  10. The Central Line is shown in red.
  11. The Jubilee Line is shown in silver.

It is not the best passenger-friendly station layout.

  • Inevitability, you often find yourself trudging a long way at Stratford station.
  • Changing to or from any high speed services is supremely difficult.
  • Often you have to walk through the busy Eastfield Shopping Centre.

Particularly annoying for me is coming back from Kent on High Speed One and needing to take the North London Line, as I do several times a year.

As it involves a long walk through the Shopping Centre, I now take the easy way out and carry on to St. Pancras and get a taxi home.

As Stratford International is one of the draughtiest stations in England, the station is a real Design Crime and it needs a serious makeover.

Conclusion

Sort it!















May 16, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , , | 11 Comments

Does Harlow Need An Improved Train Service?

I ask this question, because I am increasingly seeing articles like this one on My London, which is entitled The Large Town Just Outside London Desperate For A London Underground Station.

The town is Harlow.

This Google Map shows the West Anglia Main Line, as it runs through the North of the town.

Note.

On the face of it the town seems well-served by the trains.

Harlow Town Station

This Google Map shows Harlow Town station to a larger scale.

Note.

  1. The station has four platforms.
  2. The station has full step-free access.
  3. The station has 697 parking spaces with 18 fully accessible spaces.

The station was built in the 1950s and is a Grade II Listed building.

Train services at the station are as follows.

  • Stratford and Bishops Stortford – 2 tph – via Lea Bridge, Tottenham Hale, Waltham Cross, Cheshunt, Broxbourne and Sawbridgeworth
  • London Liverpool Street and Cambridge North – 1 tph – via Tottenham Hale, Cheshunt, Broxbourne, Bishop’s Stortford, Audley End, Whittlesford Parkway and Cambridge
  • London Liverpool Street and Cambridge North – 1 tph – via Tottenham Hale, Cheshunt, Broxbourne, Roydon, Sawbridgeworth, Bishop’s Stortford, Stansted Mountfitchet, Elsenham, Newport, Audley End, Great Chesterford, Whittlesford Parkway, Shelford and Cambridge
  • London Liverpool Street and Stansted Airport – 1 tph – via Tottenham Hale
  • London Liverpool Street and Stansted Airport – 1 tph – via Tottenham Hale and Stansted Mountfitchet

Note.

  1. tph is trains per hour
  2. The Stansted services are fast services and take 29 minutes between London Liverpool Street and Harlow Town.
  3. The other services seem to take a few minutes longer.
  4. London Liverpool Street or Stratford and Tottenham Hale both get six tph.
  5. Bishop’s Stortford gets a four tph service from Harlow Town.
  6. The two Cambridge stations only get two tph.

Harlow Town station has a fairly good service, but it could probably be improved.

Harlow Mill Station

This Google Map shows Harlow Mill station to a larger scale.

Note.

  1. The station has two platforms.
  2. The station has step-free access to the London-bound platform only.
  3. The station has 29 parking spaces with 1 fully accessible space.

The station was built in the 1840s and gets about 13 % of the passengers compared to Harlow Town station.

Train services at the station are as follows.

  • Stratford and Bishops Stortford – 1 tph – via Lea Bridge, Tottenham Hale, Waltham Cross, Cheshunt, Broxbourne and Sawbridgeworth
  • London Liverpool Street and Cambridge North – 1 tph – via Tottenham Hale, Cheshunt, Broxbourne, Roydon, Sawbridgeworth, Bishop’s Stortford, Stansted Mountfitchet, Elsenham, Newport, Audley End, Great Chesterford, Whittlesford Parkway, Shelford and Cambridge

Note.

  1. tph is trains per hour
  2. London Liverpool Street or Stratford and Tottenham Hale both get only two tph.
  3. Bishop’s Stortford gets two tph service from Harlow Mill.
  4. The two Cambridge stations only get one tph.

Unless you lived or worked nearby, I doubt you would be likely to use Harlow Mill station.

Recent And Planned Improvements

These improvements are planned and it is very unlikely they won’t happen.

Class 710 Trains

London Overground now runs new four-car Class 710 trains between London Liverpool Street and Cheshunt.

  • Each has 189 seats and can accept 489 standing passengers.
  • Busy services to Cheshunt will probably are pair of trains.
  • There are four tph between Cheshunt and London.
  • Will the trains shave a few minutes from journey times?

This massive increase in capacity and train quality must attract some passengers to change to and from the London Overground at Cheshunt.

Class 720 Trains

Greater Anglia has 133 new five-car Class 720 trains on order.

  • Each has 540 seats and can accept 145 standing passengers.
  • They are 100 mph trains.
  • Busy services through Harlow will probably be a pair of these trains.

These new trains will be a massive increase in capacity and should attract more passengers to the route.

Class 745 Trains

Greater Anglia has recently introduced ten new twelve-car Class 745 trains on Stansted Express services.

  • Each has 767 seats.
  • They are 100 mph trains.
  • They run a two tph service between Harlow Town and London Liverpool Street station and Stansted Airport.

These new trains should attract more passengers to the route.

Crossrail

Services through Harlow will connect to Crossrail at both London Liverpool Street and Stratford.

Will this mean that some passengers will switch from the Victoria Line to Crossrail for their onward journeys?

  • Crossrail will have more capacity than the Victoria Line.
  • Bond Street, Canary Wharf, Heathrow, Paddington and West London will be easier by Crossrail.
  • Victoria and Waterloo will probably be easier by the Victoria Line.
  • London Liverpool Street station’s new connection to the Northern Line will give easier access to parts of South London.
  • London Liverpool Street station will have much improved step-free connections to all London Underground lines.

Crossrail will certainly change the way many people travel between Harlow and London.

Four Lines Modernisation

This page on the Transport for London web site explains the Four Lines Modernisation. This is the first paragraph.

We’re transforming the Circle, District, Hammersmith & City and Metropolitan lines. When the work is done we’ll be able to run trains more frequently and reliably to make journeys faster and more comfortable.

The project should increase Peak Hour capacity by 33 %.

This will benefit those who change trains at London Liverpool Street between the West Anglia Main Line and the Circle and Metropolitan Lines.

Possible Improvements

These are possible improvements that may happen.

Crossrail 2

It is unlikely, that a start will be made on Crossrail 2 in the near future.

Victoria Line Improvements

The Victoria Line will continue to do, what it has done reliability for over fifty years.

But there could be improvements.

I also suspect that engineers will find a way to increase the frequency to forty tph.

Four Tracks On The West Anglia Main Line

There are two reasons for four-tracking sections of the West Anglia Main Line.

  • To separate Crossrail 2 trains from fast expresses to Stansted and Cambridge.
  • To speed up services to and from Stansted Airport.

However four-tracking the route between Tottenham Hale and Broxbourne stations would probably be very beneficial.

  • Stansted Airport and Cambridge services could be speeded up.
  • Extra services could be run on the West Anglia Main Line.
  • It could make it easier to extend the Overground from Cheshunt.

Four-tracking will be needed for Crossrail 2, so there is surely the possibility, that it could be done earlier to bring benefits to those living along the Lea Valley.

ERTMS Signalling On The West Anglia Main Line

ERTMS Signalling could speed up services and increase their number on the West Anglia Main Line.

It might also enable four-tracking, which would be very disruptive to both train services and road traffic to be delayed.

Station Improvements On The West Anglia Main Line

The stations between London Liverpool Street and Cambridge are a poor bunch with only Tottenham Hale, Northumberland Park, Meridian Water, Waltham Cross, Broxbourne, Harlow Town, Bishop’s Stortford and Audley End having full step-free access.

Some of the other stations need refurbishment and step-free access.

As step-free access will be needed for Crossrail 2, why not setup a rolling program of station improvements.

Level Crossings On The West Anglia Main Line

There are four level crossings on the route to the South of Broxbourne, including three at Cheshunt, Enfield Lock and Brimsdown stations.

They all need to be removed for safety reasons.

New Trains And Capacity

The new trains being rolled out by Greater Anglia and the London Overground will certainly have effects on the services on the West Anglia Main Line.

  • The better performance could speed up services by a few minutes.
  • The capacity increase on the new trains should be welcome.
  • The trains will be of better quality than those they replace.

I also wonder, if the better quality of the trains and their facilities will surely attract more passengers. I suspect the train companies hope so!

Extending The London Overground

This map from cartometro.com shows Cheshunt station and Cheshunt Junction just to the South.

Note.

  1. The two platforms on the West Anglia Main Line and the single bay platform for the London Overground.
  2. The level crossing to the North of Cheshunt station.
  3. The comprehensive Cheshunt Junction which trains to go between the Southbury Loop and the West Anglia Main Line.

Cheshunt Junction is occasionally used by Greater Anglia trains to access the Southbury Loop.

It certainly seems to me, that the Overground could connect to the West Anglia Main Line.

  • All trains from London going to the North of Cheshunt could use Platform 2.
  • All trains to London coming from the North of Cheshunt could use Platform 1.
  • The bay Platform 3 would still be available to turn local trains on the Southbury Loop.
  • An extra crossover could probably be inserted to allow trains from London on the West Anglia Main Line to use Platform 3.

London Overground trains could run to a terminal further North.

Trains Between Cheshunt And London

It is worth looking at the number of trains between Cheshunt and London.

  • Greater Anglia -2 tph – London Liverpool Street and Hertford East via West Anglia Main Line
  • Greater Anglia – 2 tph – Stratford and Bishop’s Stortford via West Anglia Main Line
  • Greater Anglia – 2 tph – London Liverpool Street and Cambridge North via West Anglia Main Line
  • Greater Anglia – 4 tph – London Liverpool Street and Stansted Airport via West Anglia Main Line
  • London Overground – 4 tph – London Liverpool Street and Cheshunt via the Southbury Loop

This means that the West Anglia Main Line has 10 tph and the Southbury Loop has 4 tph.

This suggests possibilities.

  • Move some services from the West Anglia Main Line to the Southbury Loop.
  • Extend some or all of the London Overground trains to the North of Cheshunt.
  • Stations like Bishop’s Stortford, Broxbourne, Harlow, Hertford East and Ware could get extra services to London.
  • The new services would connect to extra stations without changing trains.

Very little new infrastructure would be required.

Bishop’s Stortford Station As A London Overground Destination

Bishop’s Stortford station has these trains to and from London.

  • Greater Anglia – 2 tph – Stratford and Bishop’s Stortford
  • Greater Anglia – 2 tph – London Liverpool Street and Cambridge North
  • Greater Anglia – 2 tph – London Liverpool Street and Stansted Airport

Consider.

  • Bishop’s Stortford station could probably easily handle up to an extra two tph.
  • London Overground’s Class 710 trains only have an operating speed of only 75 mph.
  • The trains may need a speed upgrade to serve Bishop’s Stortford, as their speed could slow the Cambridge and Stansted Airport expresses.

If the London Overground services ran to Bishop’s Stortford station, all the smaller stations South of Bishop’s Stortford, could travel to and from Stansted Airport with a single change.

Bishop’s Stortford station may be a possibility, as a destination of two tph on the London Overground route to London.

Broxbourne Station As A London Overground Destination

Broxbourne station has these trains to and from London.

  • Greater Anglia -2 tph – London Liverpool Street and Hertford East
  • Greater Anglia – 2 tph – Stratford and Bishop’s Stortford
  • Greater Anglia – 2 tph – London Liverpool Street and Cambridge North

Consider.

  • Broxbourne station could probably easily handle up to an extra two tph.
  • As Broxbourne is only 3.2 miles and six minutes to the North of Cheshunt, the 75 mph speed of the London Overground’s Class 710 trains may not be a problem.

Broxbourne station may be a possibility, as a destination of up to two tph on the London Overground route to London.

Harlow Town Station As A London Overground Destination

Harlow Town station has these trains to and from London.

  • Greater Anglia – 2 tph – Stratford and Bishop’s Stortford
  • Greater Anglia – 2 tph – London Liverpool Street and Cambridge North
  • Greater Anglia – 2 tph – London Liverpool Street and Stansted Airport

Consider.

  • Harlow Town station could probably easilyhandle up to an extra four tph.
  • If one is needed there would appear to be space for a turnback facility or an extra platform.
  • As Harlow Town is only 5.4 miles and eight minutes to the North of Cheshunt, the 75 mph speed of the London Overground’s Class 710 trains may not be a problem.

If the London Overground services ran to Harlow Town station, all the smaller stations South of Harlow Town, could travel to and from Stansted Airport with a single change.

Harlow Town station may be a possibility, as a destination of up to four tph on the London Overground route to London.

Hertford East Station As A London Overground Destination

Hertford East station has these trains to and from London.

  • Greater Anglia -2 tph – London Liverpool Street and Hertford East
  • There is an extra tph in the Peak.

Consider.

  • Hertford East station has platforms long enough for eight-car trains and may need modification to accommodate a pair of Greater Anglia’s Class 720 trains.
  • Ware station would need to be remodelled to increase frequency above three tph.
  • As the route from Broxbourne is on a branch line, the 75 mph speed of the London Overground’s Class 710 trains may not be a problem.

Hertford East station may be a possibility, as a destination of up to two tph on the London Overground route to London.

Conclusion

I think the best two destinations of the London Overground service to the North of Cheshunt would be Harlow and Hertford East.

  • Trains could terminate at Harlow Town station to connect with Stansted Express and Cambridge trains.
  • It appears that the slightly shorter Class 710 trains may have advantages when using the short platforms at Hertford East station.

Perhaps each destination should receive two tph.

  • Harlow Town would be connected to the Overground.
  • Passengers using stations between Hackney Downs and Cheshunt on the Southbury Loop would change at Harlow Town to and from Cambridge and Stansted Airport.
  • But the biggest benefit would be that two paths on the West Anglia Main Line would be released, as the two tph to Hertford East would be using the Southbury Loop.

I feel there are possibilities to increase the number of trains on the West Anglia Main Line without adding expensive extra tracks.





April 29, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , | 1 Comment

Could London Overground Extend To Hertford East Station?

London Overground’s Future Plans

This table summarises London Overground’s improvements and future plans

Note that in 2019, it is proposed that two extra trains per hour (tph) are added to services between Liverpool Street and Enfield Town stations.

I was also told at the weekend, a strong rumour, that in 2020, London Overground will be taking over the following services.

The first has been mooted for some time, but is supposedly stalled because of differences between Chris Grayling and Sadiq Khan. The second was rather a surprise.

So what will be the result of the Hertford East services being the responsibility of the London Overground?

Greater Anglia’s Services

Greater Anglia‘s current services along the West Anglia Main Line (WAML) are as follows.

  • Two tph between Liverpool Street and Hertford East stations.
  • Two tph between Stratford and Bishops Stortford stations.
  • Two tph between Liverpool Street and Cambridge/ambridge North stations.
  • Four tph between Liverpool Street and Stansted Airport.

In the past Greater Anglia have run Stansted services to and from Stratford and have said they may do so again.

This means that Greater Anglia run ten tph along the WAML between Tottenham Hale and Broxbourne stations.

Compare this with the measly two tph, that run between Edmonton Green and Cheshunt stations using the alternative Southbury Loop. The only other movements on this line appear to be a few empty stock movements and freight trains. But not many!

Judging by some of the empty stock movements, I suspect that Greater Anglia have problems positioning their extra trains before and after the Peak.

Rolling Stock To Hertford East

Currently, Greater Anglia run eight-car Class 317 trains to Hertford East station. These are 160 metres long and seat nearly 600 passengers in two classes.

Their new Class 720 trains come in two sizes.

  • Five cars – 122 metres long, seating 540
  • Ten cars – 243 metres long, seating 1100

Could it be that the five-car trains are too small and the ten-car trains are too long for the platforms on the Hertford East Branch?

These pictures show that the platforms at Hertford East station are just long enough for two four-car Class 317 trains working as an eight-car formation. I doubt that a ten-car Class 720 train will fit these platforms and it appears that lengthening the platforms could be difficult.

On the other hand, London Overground’s four-car Class 710 trains are the same length as Class 317 trains.

So could it be that Greater Anglia would prefer that they didn’t have a service to Hertford East station?

Liverpool Street Or Stratford?

Crossrail will have one big effect on the planning of services on the WAML and the Lea Valley Lines, in that the new line will call at both Liverpool Street and Stratford stations, when it eventually opens.

Connectivity

It will be a two-stop journey between the two stations, which in addition are both well-connected to the Underground.

There is very little difference in connectivity between the two stations.

Capacity

Liverpool Street is getting to be full and given more services will be run along the Great Eastern Main Line, it could do with some capacity enhancement.

Stratford though has only two platforms connected to the WAML.

But there is the little-used High Meads Loop under the Eastfield Shopping Centre, which has been used in the past to turn Stansted Express trains, when they served Stratford.

Loops like this can easily handle at least 12 tph, as they do in Liverpool with the Wirral Line.

The High Meads Loop was well-designed to accept a lot of trains.

  • It is double-track.
  • Both tracks have a platform at Stratford capable of accepting a twelve-car Class 745 or Class 720 train.
  • Both platforms are wide and step-free with lifts.
  • The driver doesn’t have to change ends, when using the loop, so the loop will be efficient.
  • An extra stop could be added at Stratford International station.

It is London’s forgotten terminal station.

Operators Would Get Extra Capacity

The two train operators; London Overground and Greater Anglia would gain extra capacity in London.

Travellers Would Choose

If travellers were able to have a choice of London terminals, I suspect that most would choose the one they liked best, but because of Crossrail, it wouldn’t matter if they ended up at the wrong terminal.

Sorting Out West Anglia Main Line And Lea Valley Lines Local Services

I know there needs to be a bit of a sort-out on the WAML to run four tph between Stratford and Meridian Water stations, but could something more radical be on the cards.

Reasonable objectives based on London Overground’s principles would see the following stopping services.

  • Four tph between Seven Sisters and Cheshunt stations via Edmonton Green station.
  • Four tph between Seven Sisters and Enfield Town stations
  • Four tph between Tottenham Hale and Cheshunt stations via Waltham Cross station
  • Four tph between Cheshunt and Hertford East stations.

At the Northern end of the route, there would be three terminal platforms controlled by London Overground, one at Cheshunt and two at Hertford East.

The Aventra Effect

The high-performance Aventras, used by London Overground and Greater Anglia, are ready for digital signalling and designed around fast station stops.

The trains should be able to stop at all stations and maintain the current timetable on the route.

So the timetable could become more passenger friendly, with everything station getting four tph in both directions!

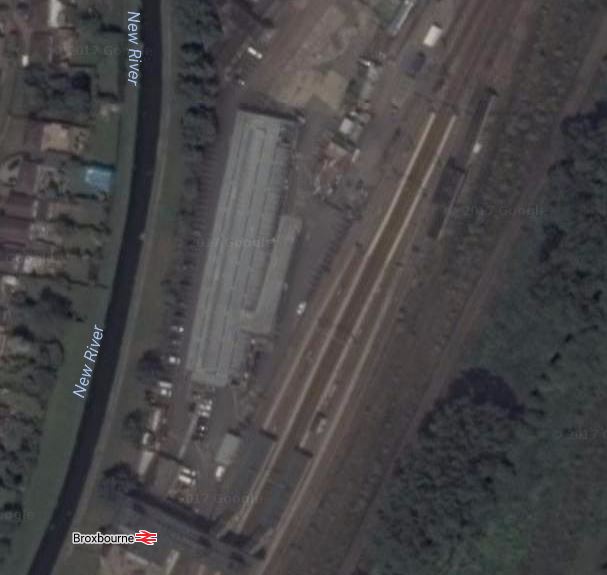

Broxbourne Station Could Be Key

The key at the Northern end could be Greater Anglia’s Broxburne station.

  • It has four platforms.
  • There would be space for an extra platform and/or a turnback for trains from the South.
  • Overground services to and from Hertford East station will call.
  • It is planned to be the terminal of Crossrail 2.

Services between Liverpool Street and Stratford stations and Bishops Stortford, Cambridge and Stansted Airport generally stop at Broxbourne.

So could we see cross-platform interchanges between London Overground’s local services calling at all stations to London and Greater Anglia’s fast services?

The Hertford East Difficulty!

At present one difficulty, is that the Hertford East Branch can only handle three tph, which it does in the Peak, so running the required four tph might need dualling the single-track section through Ware station.

These pictures show Ware station and the level crossing.

Note.

  1. The platform can accept a twelve-car train.
  2. There would be space to install a second platform.
  3. To the East the single track becomes double after the bridge at the end of the platform and is double all the way to the WAML.
  4. To the West the single track becomes double after the level crossing at the end of the platform and is double all of the way to Hertford East station.

Laying a second track and adding a second platform at Ware station, is probably the ultimate solution, to provide four tph all day between London and Hertford East.

But I also feel that with precision driving, the nimble Aventras will be able to do four tph, with a procedure something like this.

  • The level crossing closes to road traffic.
  • A Westbound train arrives in the station and an Eastbound train stops at a signal at the end of the Eastbound track from Hertford East station.
  • When the Westbound train has unloaded and loaded the passengers, it leaves the station and takes the Westbound track to Hertford East station.
  • When the Westbound train has safely passed the stationary Eastbound train, the points are changed and the Eastbound train moves into the station.
  • The level crossing opens to road traffic.

There would be four level crossing closures per hour, which is the same as now, but they could be slightly longer.

I suspect there is a better absolutely safe operating procedure than my naive example.

Eight Tph At Cheshunt Station

As eight tph will be going South from Cheshunt station; four each via Edmonton Green and Waltham Cross, Broxbourne station could turn any that couldn’t be handled at Cheshunt and Hertford East stations.

So we might see the following Northern terminals, if the four tph can run to Hertford East station.

  • Four tph at Hertford East; two via Edmonton Green and two via Waltham Cross.
  • Two tph at Cheshunt via Edmonton Green
  • Two tph at Broxbourne; via Waltham Cross.

All stations between London and Hertford East will get four tph.

Cheshunt station needs a certain amount of rebuilding to make it step-free and possibly remove the level crossing.

A step-free station is essential.

  • The station is not a sleepy rural halt.
  • Changes between trains from the North to London Overground services mean crossing the footbridge.
  • It would give pedestrians, wheelchair users, buggy pushes and others an easy way across the railway, when the level crossing in closed.

Southbound trains from Cheshunt could be.

  • Two tph from Cheshunt via Edmonton Green
  • Two tph from Hertford East via Edmonton Green
  • Two tph from Broxbourne via Waltham Cross
  • Two tph from Hertford East via Waltham Cross

Northbound trains from Cheshunt could be.

  • Four tph to Hertford East.
  • Two tph to Broxbourne.

Judicious timing of Northbound trains could mean that passengers arriving via Edmonton Green at Cheshunt could change to a Hertford East train by walking across the platform.

There are a lot of possibilities to get the best connectivity at the Northern end.

The Southern End

At the Southern End, there will be the following services.

  • , Tottenham Hale station will receive four tph from Cheshunt.
  • Seven Sisters station will receive four tph from Cheshunt and four tph from Enfield Town.

Both stations will be able to send trains to either Stratford or Liverpool Street.

Seven Sisters Services

Seven Sisters station is easier to sort.

  • Half of each group of trains go in each direction.
  • Four tph go direct to Liverpool Street stopping at all stations en route.
  • Four tph go to Stratford via South Tottenham and Lea Bridge stations.

,Trains to Stratford should turn in the  High Meads Loop under Eastfield.

South Tottenham Interchange

This map from carto.metro.free.fr shows the lines at South Tottenham station.

Note.

  1. The orange line going across the from left to right is the Gospel Oak to Barking Line
  2. The blue line is the Victoria Line.
  3. The orange line going down the map is the Lea Valley Line, between Liverpool Street in the South and Cheshunt and Enfield Town stations in the North.
  4. The single-track; Seven Sisters Chord, which connects the two Overground lines.
  5. The black line going down the map on the right is the WAML, between Stratford and Lea Bridge stations in the South and Tottenham Hal station in the North.

What is not shown on the map is the massive double-ended Crossrail 2 station, that will link South Tottenham and Seven Sisters stations, which are about five hundred metres apart.

This Google Map shows the area of the two stations.

Note how much green space there is alongside the tracks.

If four tph went via South Tottenham and Lea Bridge stations, this would mean that South Tottenham station has the following services.

  • Four tph to Barking
  • Four tph to Gospel Oak
  • Four tph to Stratford
  • Two tph to Enfield Town
  • Two tph to Broxbourne, Cheshunt or Hertford East.

Timings could be arranged to give a user-friendly interchange at South Tottenham station, which is a step-free station.

Note that it is probably likely, that the Seven Sisters Chord shown in the first map, would need to be improved.

But there is certainly enough space to do it properly!

Tottenham Hale Services

These are trickier, but I believe they could be sorted if the new third track from Meridian Water station was used exclusively for Southbound services going to Stratford.

This would mean that platform usage at Tottenham Hale station would be as follows.

  • Existing Platform 1 – Services to Liverpool Street station.
  • Existing Platform 2 – Services to Cheshunt, Broxbourne, Stansted Airport and Cambridge.
  • New Platform 3 – Services to Stratford station.

Platforms 1 and 3 would be a cross-platform interchange to allow passengers to change terminal.

Splitting Of Stratford And Liverpool Street Services

Stratford and Liverpool Street services would split somewhere North of the new Meridian Water station.

Services to Liverpool Street would include.

  • London Overground – Two tph from Cheshunt, Broxbourne or Hertford East.
  • Greater Anglia – Two tph from Cambridge/Cambridge North
  • Greater Anglia – Four tph from Stansted Airport.

This is much the same as the current timetable, with a change of operator on the Hertford East service.

Services to Stratford would include.

  • London Overground – Two tph from Cheshunt, Broxbourne or Hertford East.
  • Greater Anglia – Two tph from Bishops Stortford.

If all these services stopped at Meridian Water, Northumberland Park, Tottenham Hale and Lea Bridge stations, the STAR service has been implemented.

These Stratford services would be turned in the High Meads Loop.

As there would be four tph coming to Stratford from Seven Sisters station, this would mean that eight tph were being turned in the loop.

I can see two problems with this arrangement.

  • The merging of Northbound trains South of Tottenham Hale station could be tricky.
  • The Cambridge and Stansted expresses use the same route to Liverpool Street as London Overground’s Chingford services, as they do now!

Both problems could be lessened by perhaps running half of the Cambridge and Stansted services to Stratford.

This would mean the following.

  • Five tph that served the WAML would use Liverpool Street station.
  • Seven tph that served the WAML would use Stratford station.
  • Eleven tph would need to be turned in the High Meads Loop.

Trains on the High Mead Loop would be as follows.

  • London Overground – Two tph to Enfield Town
  • London Overground – Two tph to Broxbourne, Cheshunt or Hertford East via Edmonton Green
  • London Overground – Two tph to Broxbourne, Cheshunt or Hertford East via Waltham Cross
  • Greater Anglia – Two tph to Bishops Stortford
  • Greater Anglia – One tph to Cambridge/Cambridge North
  • Greater Anglia – Two tph to Stansted Airport

It could be that the expresses could use one track of the High Meads Loop, with the local services using the other.

I also think, that there is sufficient capacity in the High Meads Loop to terminate all services on the WAML at Stratford.

But would that be a step too far?

Possibly for some passengers, but I suspect it would be liked by train operators.

Services Between Tottenham Hale And Broxbourne

Currently, the following services run between Tottenham Hale and Broxbourne stations on the WAML.

  • Two tph between Liverpool Street and Hertford East stations.
  • Two tph between Stratford and Bishops Stortford stations.
  • Two tph between Liverpool Street and Cambridge/Cambridge North stations.
  • Four tph between Liverpool Street and Stansted Airport.

This gives a total of ten tph in both directions.

If you go to my first scenario of providing four tph to Cheshunt/Broxbourne/Hertford East, this gives the following services between Tottenham Hale and Broxbourne stations.

  • Two tph between Liverpool Street and Hertford East stations.
  • Two tph between Stratford and Bishops Stortford stations.
  • Two tph between Liverpool Street and Cambridge/Cambridge North stations.
  • Four tph between Liverpool Street and Stansted Airport.
  • Two tph between Stratford and Broxbourne stations.

The extra service between Stratford and Broxbourne is to ensure that all stations on the route get four stopping services, of which two tph go to either Liverpool Street or Stratford at the Southern end.

This gives a total of twelve tph in both directions.

By adding just two tph, there is a vastly improved stopping service along the WAML, with all stations getting at least a four tph service.

Could The West Anglia Main Line Handle Twelve Tph?

In 2020, Greater Anglia will be running Class 745 and Class 720 trains on this route.

  • They will both be 100 mph trains.
  • They will have fast station dwell times.
  • They may even have level access between platform and train, which will help speed boarding.
  • They will have a quality Driver Assist System.
  • Electronic in-cab digital signalling is a possibility.
  • The WAML may allow some 100 mph running.
  • Removing the remaining level crossings would surely speed up services.

The Greater Anglia trains will be limited stop and most will only stop at Tottenham Hale, Cheshunt and Broxborne.

London Overground will also be running Class 710 trains, which will be faster than current trains, with very good dwell times.

So I expect that with new trains, some improvement to the infrastructure, the following will be possible.

  • Four tph, which stop at all stations between Tottenham Hale and Broxbourne.
  • Six tph, which are limited stop expresses, only stopping at Tottenham Hale and Broxbourne and a couple of other occasional stations.
  • Time saving for all services.
  • I suspect that the current Stratford to Bishops Stortford service will become limited stop North of Meridian Water station.

It would hopefully be a timetable, that appealed to both passengers and train companies.

Services At Meridian Water

Meridian Water station has been promised four tph to Stratford, that call at Northumberland Park, Tottenham Hale and Lea Bridge stations.

So what services will call at Meridian Water station, in the scenario I have outlined, that follows from four tph between London and Hertford East being transferred from Greater Anglia to London Overground.

It could be something like this.

  • Two tph to Hertford East, calling at all stations.
  • Two tph to Bishops Stortford, calling at selected stations.
  • Two tph to Cheshunt or Broxbourne, calling at all stations.
  • Four tph to Stratford, calling at all stations.
  • Two tph to Liverpool Street, calling at all stations.

It’s certainly better and more comprehensive than promised.

As Meridian Water will be such an important station, could some of the Cambridge and Stansted services call?

Four-Tracking Of The West Anglia Main Line

This project is needed to both increase capacity to Cambridge and Stansted Airport and in the future for Crossrail 2, which will reach as far as Broxbourne station.

But it will be a very disruptive project, not just for rail users, but for road users, when they close several level crossings.

The Underused Southbury Loop

The limited triple-tracking around Tottenham Hale station has been moderately disruptive at weekends and services have run using the Southbury Loop.

The Southbury Loop is underused and I believe that if services were increased permanently on the diversion route, that it would have the beneficial effects on the WAML.

Extra services could be added to the existing double-track route.

Between Cheshunt and Broxbourne

There is one section that could be easier than most to four-track and that is the section between Cheshunt and Broxbourne stations.

This Google Map shows the line North of Cheshunt station.

I have flown my helicopter along this route and just as in the map, the two-tracks sit on a wide site, with space for extra tracks.

I am fairly certain,that four-tracking this section would not be difficult.

South Of Cheshunt

If the Southbury Loop were to be used to handle some trains, I think the four-tracking could be done in a more relaxed series of small projects over a longer period of time.

There are various problems.

  • Waltham Cross station
  • Enfield Lock station and level crossing.
  • Brimsdown station and level crossing.

But South from Ponders End station should be a lot easier,

  • There are no buildings in the way.
  • There will already be a third-track between Tottenham Hale and Meridian Water stations.
  • Northumberland Park and Meridian Water stations will be fourth-track ready.

I very much feel, that the four-tracking can be done piecemeal without too much disruption to rail pr road traffic.

Other Issues

Over the years, other issues have been raised with the WAML and Crossrail 2.

A Turnback At Enfield Lock Station

I’ve read in a couple of places, that there could be a bay platform at Enfield Lock station, which could turnback trains to the South..

Under the current plans for the STAR service, this will terminate at Meridian Water station and I’ve heard station staff, say it will be a bi-directional shuttle between Tottenham Hale and Meridian Water stations.

The bi-directional shuttle would.

  • Not be using the new infrastructure in a worthwhile manner.
  • Bring more passengers to the overloaded Victoria Line.
  • Not take passengers to the transport hub at Stratford with Crossrail.
  • Not be an efficient use of a train and crew.

I also think, it would struggle for passengers until the building of housing at Meidian Water gets under way.

But supposing, two tracks were built North from Meridian Water to Enfield Lock station, where there would be a bay platform.

  • A fourth track would need to be added alongside the third-track between Lea Bridge and Meridian Water stations.
  • Another platform would be needed at Tottenham Hale station.
  • There is a lot of space on the Eastern side of the WAML, between Meridian Water and Ponders End station.
  • Two extra tracks through Brimsdown station, should be possible with the purhase of some low-grade commercial property.

Note that currently a train from Enfield Lock to Stratford takes twenty-four minutes, if it stops at the little-used Angel Road station.

If a train turned in the High Meads Loop at Stratford, it could be back at Enfield Lock within the hour.

  • Four tph would be possible.
  • This would provide a much needed service for all those who do and will live, work and enjoy themselves allow the Lea Valley.
  • Four trains would be needed for a four tph service.

I can understand, why Enfield Lock station has been talked about as a place for a possible bay platform.

There would also be the possibility of extending to Enfield Lock, without closing the level crossing at the station, if a step-free bridge were to be provided.

The station could become a valuable interchange between Greater Anglia’s Bishop’s Stortford services  and the four tph to Stratford, stopping at all stations.

Eventually, though, the level crossing will be removed and four tracks will be extended Northwards.

Hackney Downs Issues

If as I proposed the following trains run through Seven Sisters station.

  • Two tph between Liverpool Street and Cheshunt/Broxbourne or Hertford East.
  • Two tph between Stratford and Cheshunt/Broxbourne or Hertford East.
  • Two tph between Liverpool Street and Enfield Town.
  • Two tph between Stratford and Enfield Town.

This means that Hackney Downs would have the following services.

  • Two tph between Liverpool Street and Cheshunt/Broxbourne or Hertford East.
  • Two tph between Liverpool Street and Enfield Town.
  • Four tph between Liverpool Street and Chingford.

Would it not be more efficient, if all of these services used the slow tracks into Liverpool Street?

This would give the expresses exclusive use of the fast lines into Liverpool Street.

An Alternative Strategy

Suppose Greater Anglia were to acquire some eight-car trains, then they could carry on as normal.

They wouldn’t actually change the order, but shuffle some of the stock to create eight-car trains.

As the Class 720 trains are cut-and-paste, they can put any number of trailer and motor cars between the two driver cars, a motor car and a pantograph car.

As Greater Anglia could need perhaps ten eight-car trains, this would be

  • Driver cars – 20
  • Pantograph cars – 10
  • Motor cars – 10
  • Intermediate cars – 40

The right number of cars can be found in six ten-car trains and four five-car trains..

Have Greater Anglia purchased a set of ten- and five-car trains, that can also be run as a sub-fleet of eight-car trains?

Conclusion

This post has been speculation on a rumour.

But I now believe that Hertford East services can be run under two different methods.

Transfer To The London Overground

The service could transfer to the London Overground.

  • London Overground have trains suitable for the service and Greater Anglia doen’t!
  • Greater Anglia services may be simpler to operate.
  • Ware station needs to be rebuilt to enable a decent service and Funding the work might be easier for London Overground in partnership with Hertfordshire County Council, than for Greater Anglia.
  • Large numbers of stations in the London Borough of Enfield get a four tph service.
  • By using the Southbury Loop, extra services can be run, without adding to traffic on the West Anglia Main Line.

In a few years time operation of the West Anglia Main Line would be very different.

The Class 710 Trains Can Be Shuffled Into An Eight-Car Sub-Fleet

This is the carry-on as before solution and is possible by just shuffling the required number of trains.





















December 14, 2018 Posted by | Transport/Travel | , , , , , , , , , , , | 3 Comments

West Anglia Route Improvement – Timings Between Tottenham Hale And Broxbourne Stations

How long do various trains take between Tottenham Hale and Broxbourne stations?

The Line

The distance between the two stations is 11.2 miles or 18 kilometres and there are the following stations.

The stations marked with an asterisk (*) have level crossings.

The line has an operating speed of 100 mph in places, but a lot of places are much slower.

Slow Services

The slowest service takes twenty minutes  stopping at all stations except for Northumberland Park and Angel Road stations.

Fast Services

The fastest service takes thirteen minutes with just a stop at Cheshunt, which gives an average speed of about 52 mph.

Fast Services Using A Dedicated Line

If a dedicated line between Tottenham Hale and Broxbourne were to be built where trains perhaps only stopped at Broxbourne, averaging 80 mph would mean a time of 8.4 minutes.

So there is potential if the dedicated fast line were to be built as a 100 mph line and trains ran non-stop to make savings of several minutes.

Slow Services Stopping At All Stations With Modern Trains

Crossrail is replacing elderly Class 315 trains with new Class 345 trains and it might be worth looking at these times for between Goodmayes and Brentwood stations, where there are four stops.

  • Class 315 train – 21 minutes
  • Class 345 train – 15 minutes

Greater Anglia are swapping elderly Class 317 trains with new Aventras, which are designed for quick stops, as are Crossrail’s Class 345 trains.

So I suspect that if a minute is saved for each stop, that would mean with the same stopping pattern, a time of 15 minutes could be possible.

I just wonder, if with a few tweaks, that trains can could match the current fastest time of thirteen minutes stopping at everywhere except for Northumberland Park and Angel Road stations.

Consider.

  • All stations will be made step-free, so once passengers learn the ropes, loading and unloading delays will be minimised.
  • Platforms will be aligned to the trains for fast loading and unloading.
  • STAR will handle Angel Road and Northumberland Park stations.
  • Four level crossings will be closed, which must help.
  • Both types of trains on the route would have similar performance and they would just run slower for slow services.
  • Fast trains will have their own line.
  • Help from the signalling and Driver Assistance Systems.

In addition, we mustn’t underestimate the contribution driver skill will make.

An Ideal World

In an ideal world the following could happen.

  • Every fast train to London, would be met at Broxbourne station by a paired slow train and passengers would take a train according to their needs, by just walking across the platform.
  • The next stop for the fast train would be Liverpool Street or Stratford, after running down the new fast line at a speed approaching 100 mph.
  • The slow train would stop everywhere, but arrive at Tottenham Hale in a time, that fast trains achieve today.

Coming out from London, the process would reverse.

No journeys would take longer than now, but some would be several minutes quicker.

All changes would be cross-platform at Broxbourne.

The Design Of The Fast Lines

If the fastest route between A and B, where there is no direct train, is to change at Broxbourne, there would never be a need to change anywhere else, so the only station with platforms on the fast and slow lines is Broxbourne.

Conclusion

I’m probably not exactly right here, but if the Crossrail actual and proposed timings are correct, there is a substantial time saving to be made.

The fast lines can also be very simple without platforms, which means that at stations like Tottenham Hale, Enfield Lock and Waltham Cross, it might be possible to squeeze the lines in.



February 26, 2017 Posted by | Transport/Travel | , , | 1 Comment

West Anglia Route Improvement

I have decided to bring all of my posts on the following subjects together under a tag of West Anglia Route Improvement.

  • STAR – The local Stratford-Tottenham-Angel Road service connecting the Meridian Water development to Tttenham Hale and Stratford stations.
  • Crossrail 2 along the Lea Valley.
  • Four tracking of the West Anglia Main Line between Tottenham Hale and Broxbourne.
  • Station Improvements between Tottenham Hale and Broxbourne.

I also suspect other subjects connected with the improvement of the West Anglia Main Line and other related rail routes will also be added.



February 26, 2017 Posted by | Transport/Travel | , , , , | Leave a comment

West Anglia Route Improvement – Broxbourne Station – 22nd February 2017

I took these pictures at Broxbourne station.

This Google Map shows the layout of the station.

broxbourne Station

broxbourne Station

It is almost as if when the station was moved to its current site in 1959, that it was designed to be the Northern terminal of a line like Crossrail 2.

  • The site is generous with lots of space for stabling sidings and parking for cars.
  • The fast trains stop in the middle two platforms giving cross-platform access with the local services on the two outside lines.
  • The station has full step-free access with a waiting area, a cafe and toilets on the massive bridge over the lines.
  • Platforms appear to be ready for 12-car trains.
  • It is a Grade 2 Listed building with a prominent water feature, built in the early-1600s.

Greater Anglia And Broxbourne Station

I don’t think the potential has been lost on Greater Anglia.

  • They have been very vocal about about getting Broxbourne to Yottenham Hale four-tracked as soon as is practically possible. And it appears to be starting.
  • With the splitting of fast and slow services onto separate lines, it must be possible to run say 10 tph on the slow lines.
  • Fast trains to and from Cambridge, Ely and Stansted could probably interchange better with local services.
  • The station is virtually mid-way between the scientific powerhouse of Cambridge and the financial powerhouse of London.
  • Could the station have new a North-facing platform to accept new services from Cambridge, Norwich, Peterborough and perhaps even Lincoln?

Broxbourne must be one of the best mid-line interchanges anywhere in the UK.

It would not need a massive amount of money to be spent at Broxbourne to make the station a superb Northern terminus for Crossrail 2. It makes Shenfield and Abbey Wood look decidedly second-class now.

Greater Anglia’s Plans For Fast Broxbourne Services

But Crossrail 2 is some years away, so how will Greater Anglia maximise the use of this priceless asset?

Greater Anglia have ordered a fleet of 12-car Stadler electric multiple units for Cambridge and Stansted services. After the four-tracking of Broxbourne to Tottenham Hale, you can imagine these trains stopping in the middle two platforms, before or after a fast uninterrupted run to either Liverpool Street or Stratford.

As there are ten of these expresses, I suspect that will see five Stadler trains per hour (tph) to and from London. But we’ll also be seeing some Aventras with a similar performance taking the fast lines.

Greater Anglia’s Plans For Slow Broxbourne Services

I feel that to maximise traffic at all the intermediate stations, there will be a regular service of something like 4 tph all the way between Broxbourne and Tottenham Hale.

The slower trains take about 20 minutes with typically five stops. But the trains are thirty-year-old Class 317 trains. and will be replaced by faster Aventras, which are optimised to minimise dwell times at stations.

A similar change is happening on Crossrail, which means that Romford to Liverpool Street stopping at eight stations will go from 31  to 17 minutes.

So I think we’ll see slow Broxbourne to Tottenham Hale services serveral minutes faster than they are now, despite stopping everywhere.

But 4 tph will increase ridership substantially.

Competition For Greater Anglia

It is between Cambridge and London, that Greater Anglia will face the greatest competition as they do now.

But the new trains may be able to almost match the fastest Cambridge to Kings Cross times.

Greater Anglia will also offer other sdvantages.

  • Access to the City of London through Liverpool Street.
  • Access to Crossrail at Liverpool Street and Stratford.
  • Easy access to Canary Wharf, the West End and Heathrow.

The effects of the new Stadler trains shouldn’t be underestimated.

Stansted is a monopoly, so that will do well!

Changing at Broxbourne between fast and slow services may mean that they generate traffic for Stansted, as currently for many it’s easier to drive.

There is also competition from London Overground’s route from Cheshunt to Liverpool Street, especially as with new trains, this will be route with new Aventra trains.

I do wonder if Greater Anglia will invite London Overground to extend their Cheshunt service by one station to a dedicated platform at Broxbourne station, as this would mean that they would have less need to stop fast Cambridge trains at Cheshunt.

Also before Crossrail 2 is up and running, it would create an eight tph service to London on two separate routes from Broxbourne.

February 22, 2017 Posted by | Transport/Travel | , , , | 2 Comments

West Anglia Route Improvement – Works Around Coppermill Junction And Along The West Anglia Main Line

There is a lot of work going on around Coppermill Junction and on the West Anglia Main Line between the junction and Northumberland Park station.

The map from carto.metro free.fr shows the lines around the junction.

Coppermill Junction

Coppermill Junction

Tottenham Hale station is on the West Anglia Main Line, which effectively starts and runs North West from Coppermill Junction.

In Rumours Of Curves In Walthamstow, I talked about how I’d heard rumours of the following.

  • The Hall Farm Curve would be reinstated as a single bi-directional track to allow rains to go between Stratford in the Soithe and Walthamstow and Chingford in the East.
  • The Coppermill Curve would be reinstated as a double-track curve to allow empty stock movements to Chingford, where there are several sidings.

There’s also the problem of Crossrail 2 going through the area, which will need a connection to the Central Tunnel and four-tracking of the West Anglia Main Line from Coppermill Junction North to Broxbourne station.

In the next few sections, I shall show the pictures I took this morning.

The Hall Farm Curve From The Chingford Branch

I took these pictures going between Clapton and St. James Street stations on the Chingford Branch Line.

Note how the area is quite large.

The work seems to have cleared all the old track, which in typical British Rail fashion seems to have been abandoned to the wildlife.

Tottenham Hale Station

I took these pictures around Tottenham Hale station.

There is quite a bit going on.

A helpful station man told me the following was happening.

  • Space is being created, so that two tracks can go through between the station and Hale Village.
  • The taxi rank in the forecourt of the station is being moved Northwards.
  • The current footbridge over the lines is going.
  • A new step-free footbridge is going to be built.

Effectively, there seems to be a cunning plan to rebuild the station around the working railway, which is confirmed in this document on the Transport for London web site. This is said about works on the bridge.

We plan to keep the station open during the work so that any potential disruption will be kept to a minimum.

That is a good start.

Obviously, the architects and engineers, who have designed the replacement station, but it does seem to me, that squeezing two tracks into the space behind Platform 2 at the station will need a very large and strong shoehorn.

From Tottenham Hale To Lea Bridge

I took these pictures between Tottenham Hale and Lea Bridge stations.

Note.

  • A new cable duct has certainly been installed.
  • The Hall Farm Curve has been cleared of rubbish and vintage track.
  • It also looks like the route of the replacement Coppermill Curve is being cleared through the scrub.
  • There didn’t appear to be any electrification piles or gantries.

I can’t believe Network Rail would clear the two curves unless they were going to reinstate them.

From Tottenham Hale To Enfield Lock

I took these pictures between Tottenham Hale and Enfield Lock stations.

Note.

  • It would appear that there is space to the East of the current two-track West Anglia Main Line to squeeze in two extra tracks.
  • There are level crossings at Northumberland Park, Brimsdown and Enfield Lock stations.
  • The quality of some of the buildings that would probably be demolished is best described as suspect.
  • Meridean Way, which runs alongside the railway from Angel Road Northwards is an inadequate highway.
  • I wonder how many people have booked the Premier Inn because it is close to Angel Road station, only to find that there are few trains.

I say more about the level crossings in Level Crossing Issues.

The Current Stations

These posts describe the current state of the stations between Tottenham Hale and Broxbourne around the 22nd February 2017.

Northumberland Park Station

Ponders End Station

Brimsdown Station

Enfield Lock Station

Waltham Cross Station

Broxbourne Station

There are also some relevant related posts.

How Many Fast Services Will Go Through Tottenham Hale Station?

How Many Slow Services Will Go Through Tottenham Hale Station?

Level Crossing Issues

A Level Crossing Replacement Station

What Is STAR?

Hopefully, this will mean I can add content without making this post overly long.

What Frequency Will Crossrail 2 Trains Have On The West Anglia Main Line?

The Crossrail 2 entry on Wikipedia says this about the Northern Regional branches.

Running at between 10 and 15 trains per hour on new rails above ground, connected to a junction north of Dalston:

I can’t see any space being found for two new tracks and I don’t think Greater Anglia will want this number of trains mixing with their fast services, so I must assume that they will share the two slow lines to Broxbourne with Greater Anglia’s slow services.

What Will Be The Platform Layout At Tottenham Hale?

The station looks to be gaining two new lines on the East side of the station.

But will they be slow or fast lines?

My pictures show that it will be very tight to put new platforms on these lines, as there just isn’t enough space.

I have read the planning documents  on the Harringey Council web site for Tottenham Hale station and came to these conclusions.

  • There are no definite plans for a platform 3 and/or 4.
  • There is controversy about if they are built, as to if or when they will get lifts.
  • There is talk of starting STAR, which would provide four trains per hour (tph) between Stratford and Angel Road stations.

This page on the Crossrail 2 web site says this.

In order to accommodate Crossrail 2 services at Tottenham Hale, we would add at least one new platform and carry out other station improvement works too.

Wikipedia says that a third platform is being worked on.

I suspect that it could be necessary that fast services will stop at Tottenham Hale, to allow  passengers to change to and from services on the following lines.

  • Victoria Line
  • Crossrail 2
  • Local services to Liverpool Street.
  • Local services to Stratford.

It should also be born in mind, that Crossrail will call at both Stratford and Liverpool Street, s say you’re going shopping at Oxford Street, to work at anary Wharf or to New York via Heathrow, would you mind which terminus you used in London, provided it was efficient?

At present both fast and slow services on the  main line all share the same platform at ottenham Hale, using 1 to go South and 2 to go North.

If this arrangement was to continue, after the new lines are built, the following would apply.

  • Interchange between services would be as now.
  • Fast services for London would stop in platform 1 before going to either Liverpool Street or Stratford.
  • Both platforms could be made step-free with lifts and a bridge at the London end of the platform.

It is workable, but you would still have the crowded platforms you get today, although the step-free bridge would make passenger circulation easier.

But what happens when Greater Anglia decide to increase fast frequencies or Crossrail 2 arrives.

Exclusive Fast Lines Between Tottenham Hale And Broxbourne Stations

One arrangement that could work, would be to use the two new lines exclusively for fast services from Tottenham Hale to Broxbourne, with trains stopping only at Broxbourne and Tottenham Hale as required.

  • With more Stansted services, some could be non-stop from Liverpool Street to Stansted to reduce the load on Tottenham Hale station.
  • Some Cambridge services might make their first stop at Broxbourne.
  • Fast commuter services not stopping South of Broxborne are possible.

Greater Anglia will be replacing their current trains on the line with new Stadler or Aventra trains, which will in some ways compensate.

At some point hopefully Crossrail 2 will arrive.

Using the two new lines exclusively for fast traffic, with slow services on the exiting lines  would have the following effects.

  • Speed up services by a few minutes.
  • Double capacity between Broxbourne and Tottenham Hale.
  • All trains on the slow lines would be Crossrail’s or Greater Anglia’s Aventras, which can probably run together efficiently.
  • 20 plus tph could probably run on the slow lines
  • The only trains on the fast lines would be Greater Anglia’s Stadler expresses, which could do Broxbourne to Tottenham Hale inperhaps eiht minutes, travelling all the way at 100 mph or possibly more.

Removing fast trains from the slow lines would probably mean that a frequency of upwards of 10 tph could run on Crossrail 2 between Broxbourne and Tottenham Hale. South of Tottenham Hale they would be out of the way in the Central Tunnel.

South Of Tottenham Hale Station

Trains between Tottenham Hale station and Stratford or Liverpool Street stations, take one of the three following routes.

  1. To and from Lea Bridge and Stratford station
  2. To and from Hackney Downs and Liverpool Street stations taking the fast lines South of Hackney Downs.
  3. To and from Hackney Downs and Liverpool Street stations taking the slow lines South of Hackney Downs.

To complicate matters trains to and from the Chingford Branch and some Greater Anglia slow services  use the fast lines South of Hackney Downs and change over around Bethnal Green station.

So could we see a bit of a reorganisation, so that all slow services are moved to the slow lines, through Hackney Downs station, so that the fast services to and from Cambridge and Stansted get a clear run between Clapton and Liverpool Street. That must save a minute or two.

It also looks like that with the opening of Lea Bridge station, some services will go to Stratford rather than Liverpool Street. These could include some services from the Chingford Branch, if the Hall Farm Curve is reopened, which some of my pictures indicate might be happening.

It should be born in mind, that Stratford has two platforms 11 and 12, connected to the lines to Lea Bridge station but only platform 11 is used.

After Crossrail opens will it matter if some of Greater Anglia’s suburban services go to Stratford rather than Liverpool Street?

In fact, it’s starting to happen, as today coming back from Cheshunt, I was on a train between Bishops Stortford and Stratford.

The Problem Of Clapton Station

Clapton station is not a massive problem, but it is on the route taken by fast Cambridge and Stansted trains to and from Liverpool Street.

Last year, Clapton station handled 1.6 million passengers, which is probably just about average or slightly above average for the Chingford Branch Line.

So there is probably not much to be gained by cutting services, as there are a lot of people to complain. But the Overground’s new Class 710 trains will have a better stop-start performance and could reduce the problem, especially if they used the slow lines through Hackney Downs.

A Pseudo-Crossrail 2

We might even see a pseudo-Crossrail 2, between Tottenham Hale and Broxbourne.

Suppose Greater Anglia on their slow lines ran something like the following services.

  • 4 tph between Liverpool Street or Stratford and Hertford East.
  • 2 tph between Liverpool Street or Stratford and Cambridge
  • 4 tph between Liverpool Street or Stratford and Bishops Stortford

This would give a ten tph service between Tottenham Hale and Broxbourne stopping at all stations.

As the slow lines would be for exclusive use of these services, except for a few freight trains, the  lines would cope admirably.

Everybody on the line would have a superb Turn-Up-And-Go-Service.

The Design Of Broxbourne Station

It could  be arranged that at Broxbourne, there was cross-platform interchange between fast and slow services going in the same direction. So a passenger between say Brimsdown station and Stansted Airport, would have the one change at Broxbourne.

The Design of The Fast Line Platforms At Tottenham Hale Station

The space limitiations at Tottenham Hale would probably mean that only one extra platform could be squeezed in. Perhaps it could be an island platform between the two lines. Being an island it would only need one lift and this would save all-important width and cost.

If it was thought a narrow island platform with fast trains that might run through, the platform could surely be fitted with platform edge doors.

But the required step-free change to Crossrail 2, Victoria Line and local services would be created.

I’m suspicious that my pictures show that through Tottenham Hale station, there is only room for a single extra line, if a platform is needed. It certainly looks as if, the cable ducts have been moved to only allow only one line.

So could we see platform 2 extended to have a second platform 3 on the opposite face, which gave access to a single bi-directional line through the station?

  • It would use the lift on Platform 2.
  • There would be cross-platform access from a fast train to London to a slow one.
  • Only access from a slow train out of London to a fast one would need the bridge.
  • Bi-directional working is increasing being used.

Once through Tottenham Hale station, the fast lines would result to normal double-track working.,

I suspect that when Tottenham Hale station was rebuilt in the 1990s, no-one thought that the station would be on a line with four-tracks.





February 20, 2017 Posted by | Transport/Travel | , , , , , , , , , | 1 Comment
