Could There Be An Elizabeth Line Extension To Grays?

This article on My London is entitled London Underground Tube Map: The Towns That Could Be Added To The Elizabeth Line As New Giant Loop Through London, Essex And Kent Is Proposed.

This paragraph described the proposal.

The proposal, which is part of its Vision 2050 local transport plan, would see the current Elizabeth line service from Romford take over the Overground branch to Emerson Park and Upminster, then join c2c services continuing via Chafford Hundred Lakeside to Tilbury. It would then head under a new tunnel beneath the Thames to Gravesend, connecting with the reintroduced Eurostar at Ebbsfleet International/Northfleet.

It’s certainly a bold idea and you can view the report to Thurrock Council here.

These are my thoughts.

The Frequency Of Trains

Currently, these services have a frequency of two trains per hour (tph) in both directions.

  • Romford and Upminster.
  • Upminster and Tilbury Town.

It would seem sensible that this frequency is preserved, thus giving every station on the loop four tph to and from the Eastern End of the Central Tunnel at Whitechapel station. Two tph would go via Romford and Stratford and two tph would go via Ebbsfleet and Abbey Wood.

What Would Be The Western Terminal?

It would probably be the two busiest terminals in the West.

I suspect that these will be Heathrow Terminal 4 and Heathrow Terminal 5

  • Two tph would go between Heathrow Terminal 4 and Heathrow Terminal 5 via the loop.
  • Two tph would go between Heathrow Terminal 5 and Heathrow Terminal4 via the loop.
  • Two tph would go clockwise.
  • Two tph would go anticlockwise.

I suspect the digital signalling can sort it out, just as it does the loop in Thameslink.

The Connection At Romford To The Romford and Upminster Line

Consider.

  • The Romford and Upminster Line is single-track.
  • A well-signalled single-track railway can handle two tph in both directions in an hour.
  • Trains take five minutes to go between Romford and Emerson Park stations.
  • Trains between Romford and Upminster will use Platform 5 at Romford station.
  • Trains between Upminster and Romford will use Platform 4 at Romford station.

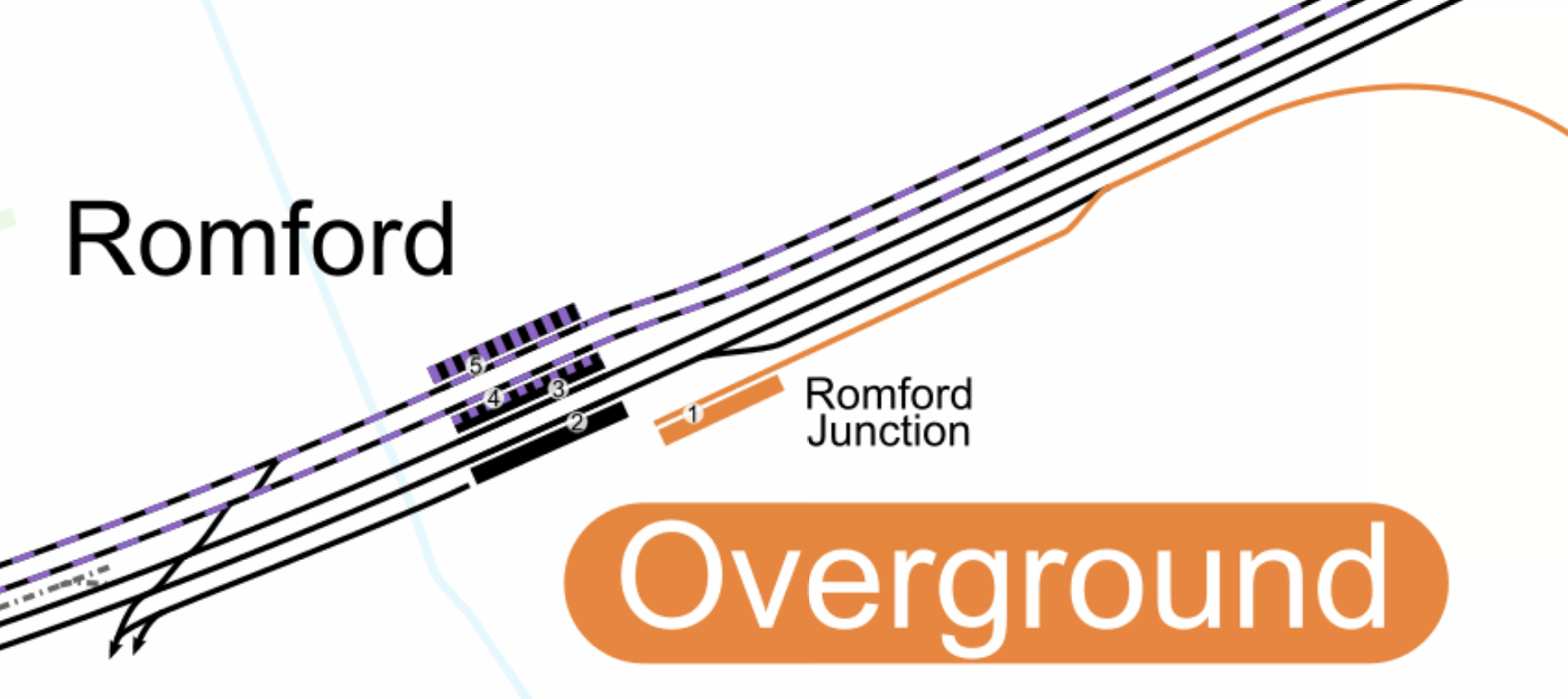

This map from cartometro shows the track layout at Romford station.

Note.

  1. The orange lines are the Overground tracks of the Romford and Upminster Line, which connects to Platform 1 in Romford station.
  2. The black and purple lines are the Elizabeth Line, which go through Platforms 4 and 5 at Romford station.
  3. The black lines are the fast lines of the Great Eastern Main Line, which go through Platforms 2 and 3 at Romford station.
  4. There is no connection between the Elizabeth Line and the Romford and Upminster Line.

I believe it is possible to build a single-track flyover or dive-under that connects both Platforms 4 and 5 at Romford station to the Romford and Upminster Line.

A similar double track flyover was built to connect the Barking Riverside branch to the main lines through Barking.

  • But this track layout would only need to be single-track.
  • I also suspect that there may not be enough space to put in a full double-track flyover.
  • It would avoid the inconvenience and danger of using flat junctions to cross the fast lines of the Great Eastern Main Line.

As it only takes five minutes to go between Romford and Emerson Park stations, there is plenty of time to fit two tph in both directions in an hour.

Platform Extension In Platform 1 At Romford Station

Platforms 4 and 5 at Romford regularly take nine-car Class 345 trains, but I think that Platform 1 should be lengthened, to provide a bay platform on the route to help out when the service needs to recover.

Platform Extension At Emerson Park Station

The platform at Emerson Park station will need to be lengthened to take nine-car Class 345 trains.

Some commentators claim, that the passing loop at the station needs to be rebuilt. But I suspect, this isn’t needed as the expanded layout at Romford station effectively creates a passing loop.

The Connection At Upminster Between The Romford and Upminster Line And The Upminster And Tilbury Town Line

Consider.

  • Both lines are single-track.
  • But there is a passing loop at Ockenden station.
  • There are three tracks between West Thurrock junction and Grays.
  • Trains take five minutes to go between Emerson Park and Upminster stations.
  • Trains take ten minutes to go between Upminster and Chafford Hundred stations.
  • Trains take four minutes to go between Chafford Hundred and Grays stations.
  • Trains take thirteen minutes to go between Upminster station and West Thurrock junction.

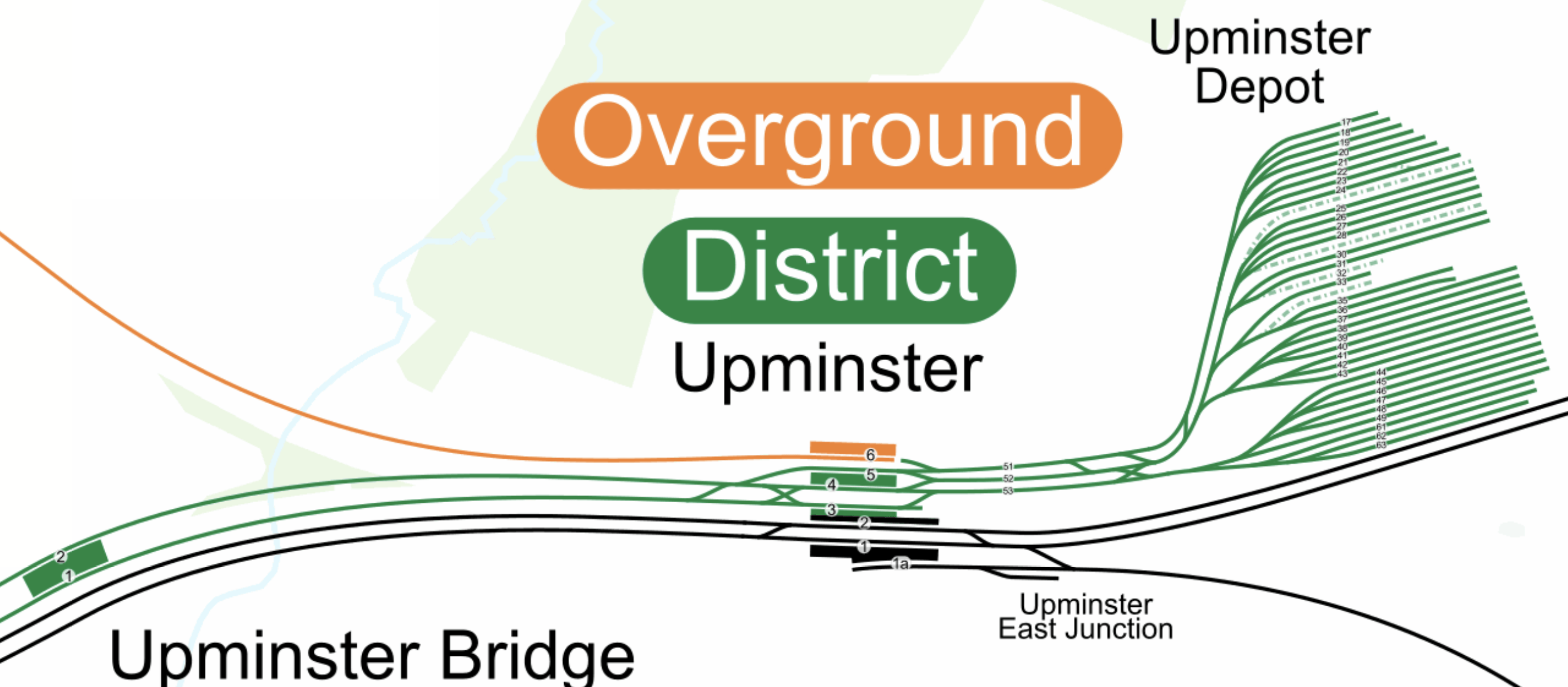

This map from cartometro shows the track layout at Upminster station.

Note.

  1. The orange lines are the Overground tracks of the Romford and Upminster Line, which connects to Platform 6 in Upminster station.
  2. The green lines are the District Line tracks that handle the services that terminate at Upminster station.
  3. The black lines are the c2c tracks between Fenchurch Street and Southend Central stations go through Platforms 1 and 2 at Upminster station.
  4. The Upminster and Tilbury Town Line leaves Upminster station in a South-Easterly direction.
  5. The Upminster and Tilbury Town Line connects to Platforms 1 and 2 at Upminster station.

I believe it is possible to build a single-track flyover or dive-under that connects both Platforms 1 and 2 at Upminster station to the Romford and Upminster Line.

This would connect the following.

  • The Romford and Upminster Line to the the Upminster and Tilbury Town Line.
  • The Romford and Upminster Line to the the Fenchurch Street and Southend Central Line.

Upminster station would be a much improved interchange.

Two tph Between Tilbury Town and Romford Stations

Consider.

  • The route is fully electrified.
  • The route is a mixture of single and double-track.
  • There is a passing loop at Ockendon station.
  • The platform at Emerson Park and possibly others may need to be extended to take nine-car Class 345 trains.

I believe single-track flyovers or dive-unders at Romford and Upminster stations would enable two tph on the route.

The only downside I can see, is that passengers going between Fenchurch Street and Chafford Hundred or Ockendon stations would need to change at Grays or Upminster stations.

Alternatively, they could take the Elizabeth Line, which would have a 4 tph direct service between the Central Tunnel of the line and Chafford Hundred and Ockendon stations.

Under The Thames

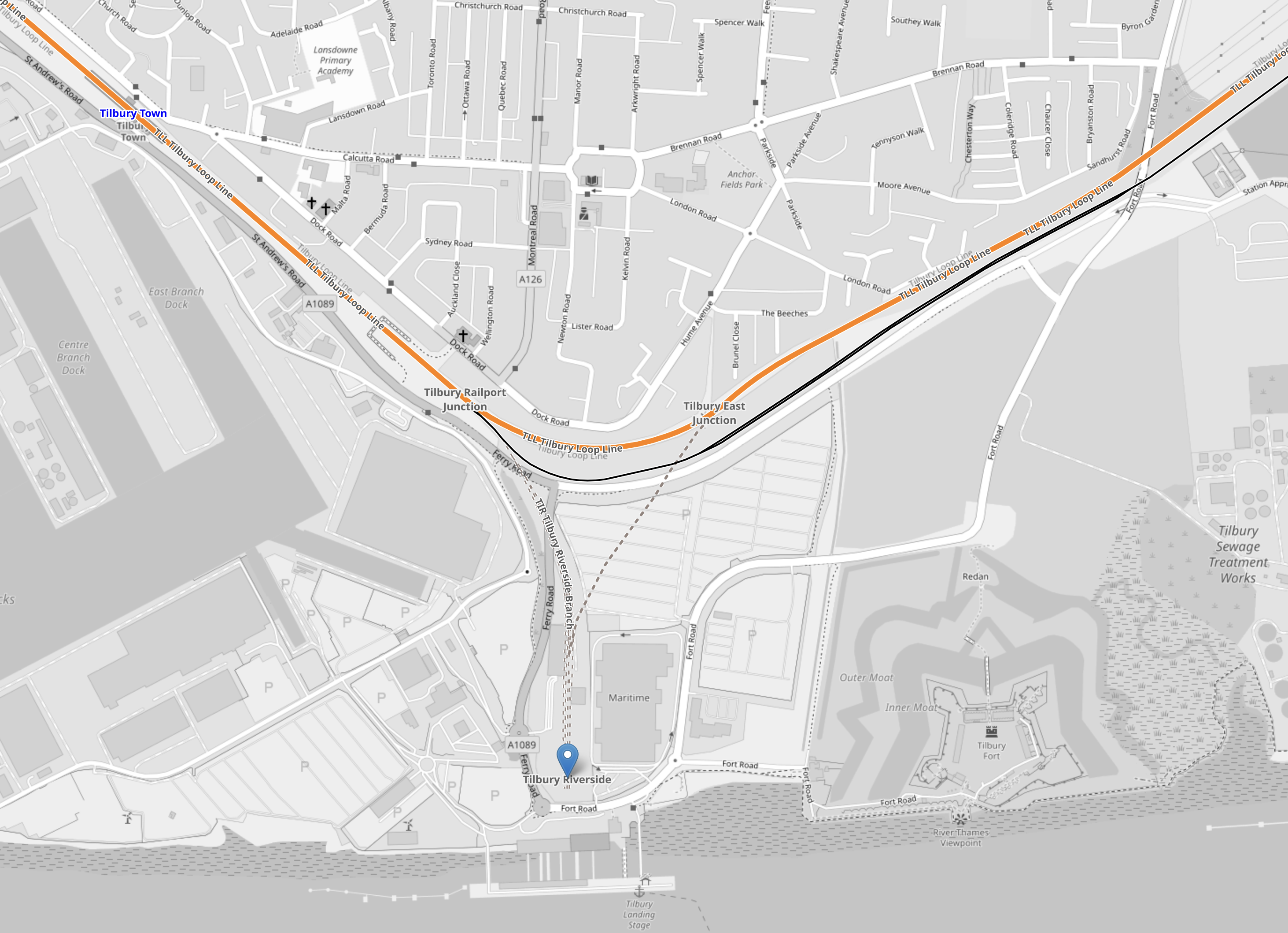

This map from OpenRailwayMap shows the lines on the North bank of the Thames.

Note.

  1. The orange line is the double-track Tilbury Loop Line between Fenchurch Street and Southend Central stations.
  2. Tilbury Town station is in the North-West corner of the map.
  3. There is a proposal for a Tilbury Fort station in the North-East corner of the map.
  4. The blue arrow at the bottom of the map indicates the former Tilbury Riverside station, which is next to the London International Cruise Terminal.

I believe the North portal of the tunnel under the river could be at the site of the former Tilbury Riverside station.

Would it be an idea to rebuild the station and connect it to the cruise terminal, so that passengers on the cruise ships would have excellent access to Central London, Ebbsfleet International station for High Speed One and Heathrow Airport?

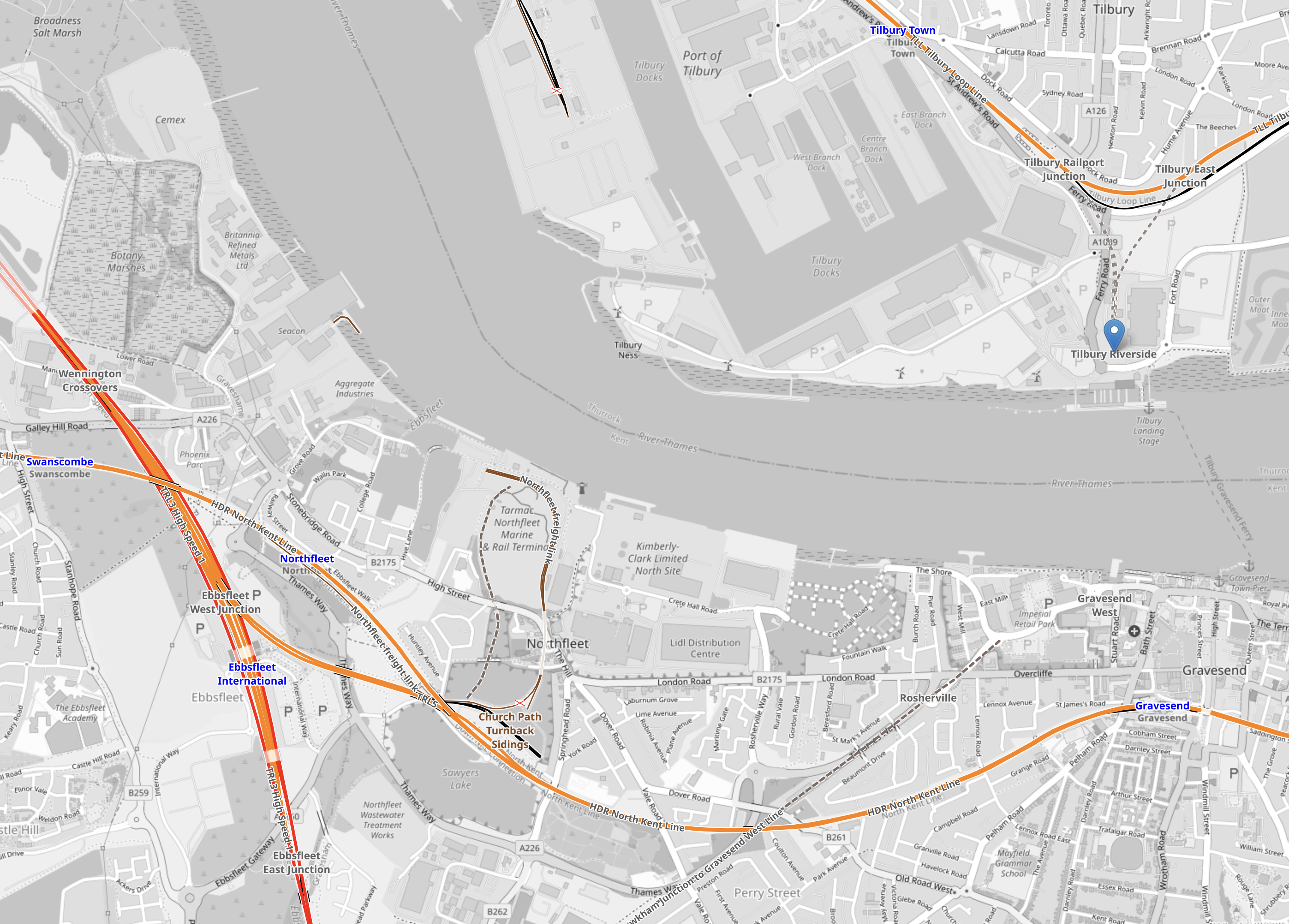

This map from OpenRailwayMap shows the lines on the South bank of the Thames.

Note.

  1. Tilbury Town station, the former Tilbury Riverside Riverside station and the Tilbury Loop Line are in the North-East corner of the map.
  2. Gravesend station is in the South-East corner of the map.
  3. The wide orange line going vaguely North-South at the Western side of the map is High Speed One going through Ebbsfleet International station.
  4. Connecting Gravesend and Ebbsfleet International stations is the North Kent Line.

I suspect it would be possible to bore a tunnel from Tilbury Riverside, that passed under Gravesend station and joined the North Kent Line to the West of the station.

How Would The River Crossing Connect To Gravesend Station?

The platform or platforms on the Elizabeth Line Loop would have to be underground, as there is not much space at Gravesend station as these pictures show.



Note.

  1. Gravesend has SouthEastern HighSpeed services to St. Pancras International station and North-East Kent.
  2. The route to Gravesend has been safeguarded for the Elizabeth Line.
  3. The railway under the Thames could replace the Tilbury and Gravesend Ferry.

There also could be operational advantages in not terminating Elizabeth Line services at Gravesend.

Abbey Wood And Gravesend

In Elizabeth Line To Ebbsfleet Extension Could Cost £3.2 Billion, I looked at the Transport for the South East proposal for extending the Elizabeth Line to Kent.

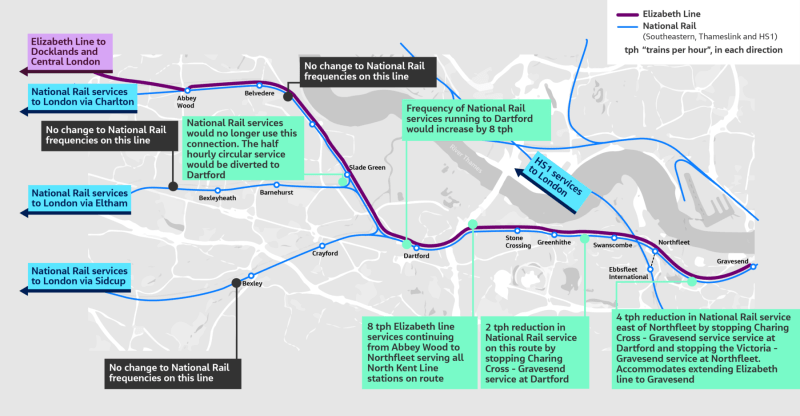

This image from the Abbeywood2Ebbsfleet consultation, shows the proposal.

Note, that there doesn’t appear to be too much new infrastructure, except for a proper connection between Northfleet and Ebbsfleet stations. References on the Internet, say that the similar-sized Luton DART connection at Luton Airport, cost around £225 million, but we now know it was well upwards of that.

The TfSE proposal says that trains would terminate as follows.

  • Abbey Wood – 4 tph
  • Northfleet – 4 tph
  • Gravesend – 4 tph

As space is limited at Gravesend and there is money for extending a railway service to a new Hoo station, I feel that proposing a two tph service to Hoo station would be a prudent action to take.

This would leave a handy two tph to take the loop back to Central London.

Could A Large Parkway Station Be Built Between Romford and Tilbury Riverside Stations?

Ebbsfleet International station, which is to the South-East of London, has 5,000 parking spaces and is the only large Park-and-Ride site around the capital.

Could another large Park-and-Ride site be opened on the Elizabeth Line North of the Thames?

One place could be at Chafford Hundred station and the nearby Lakeside Shopping Centre.

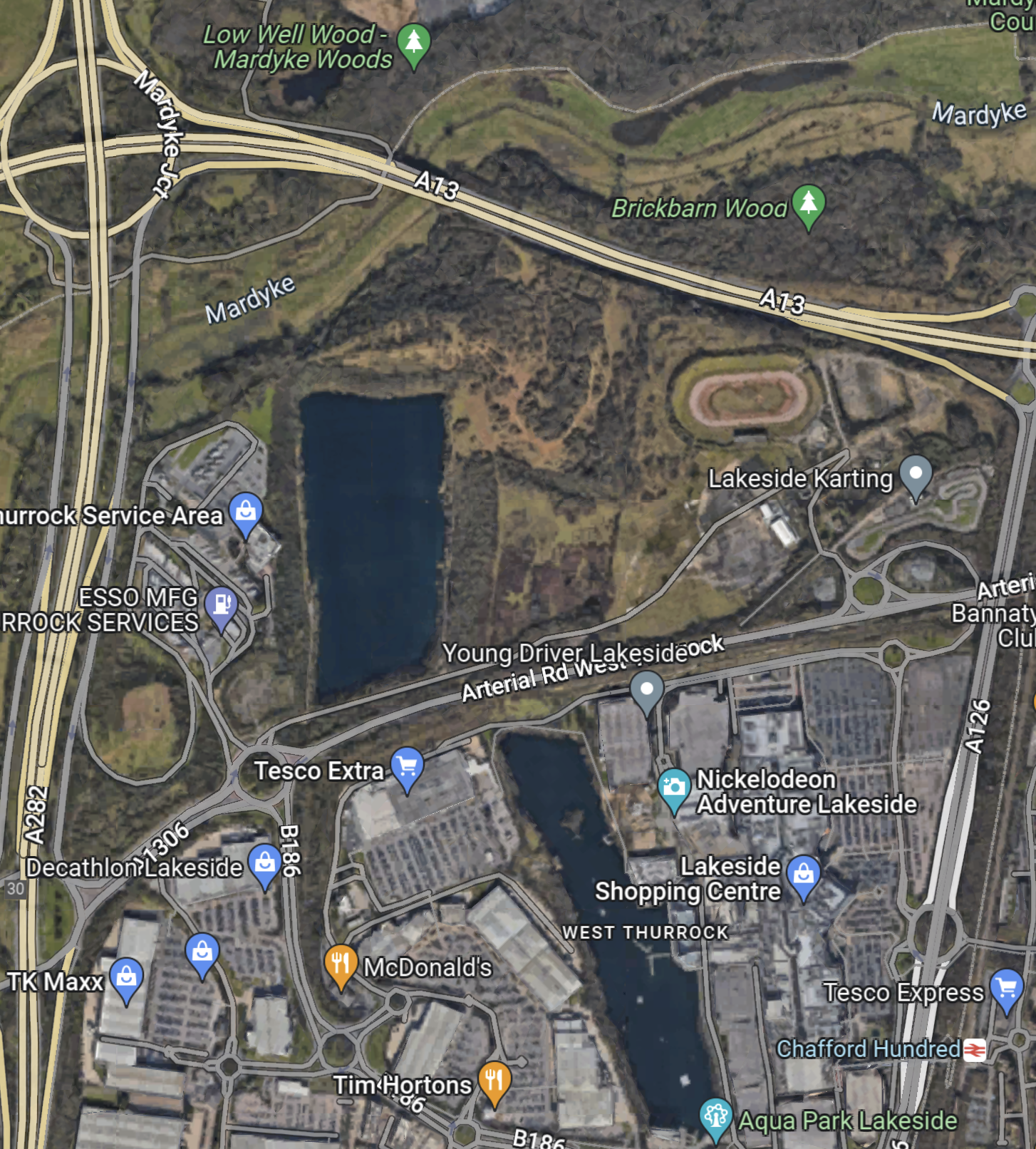

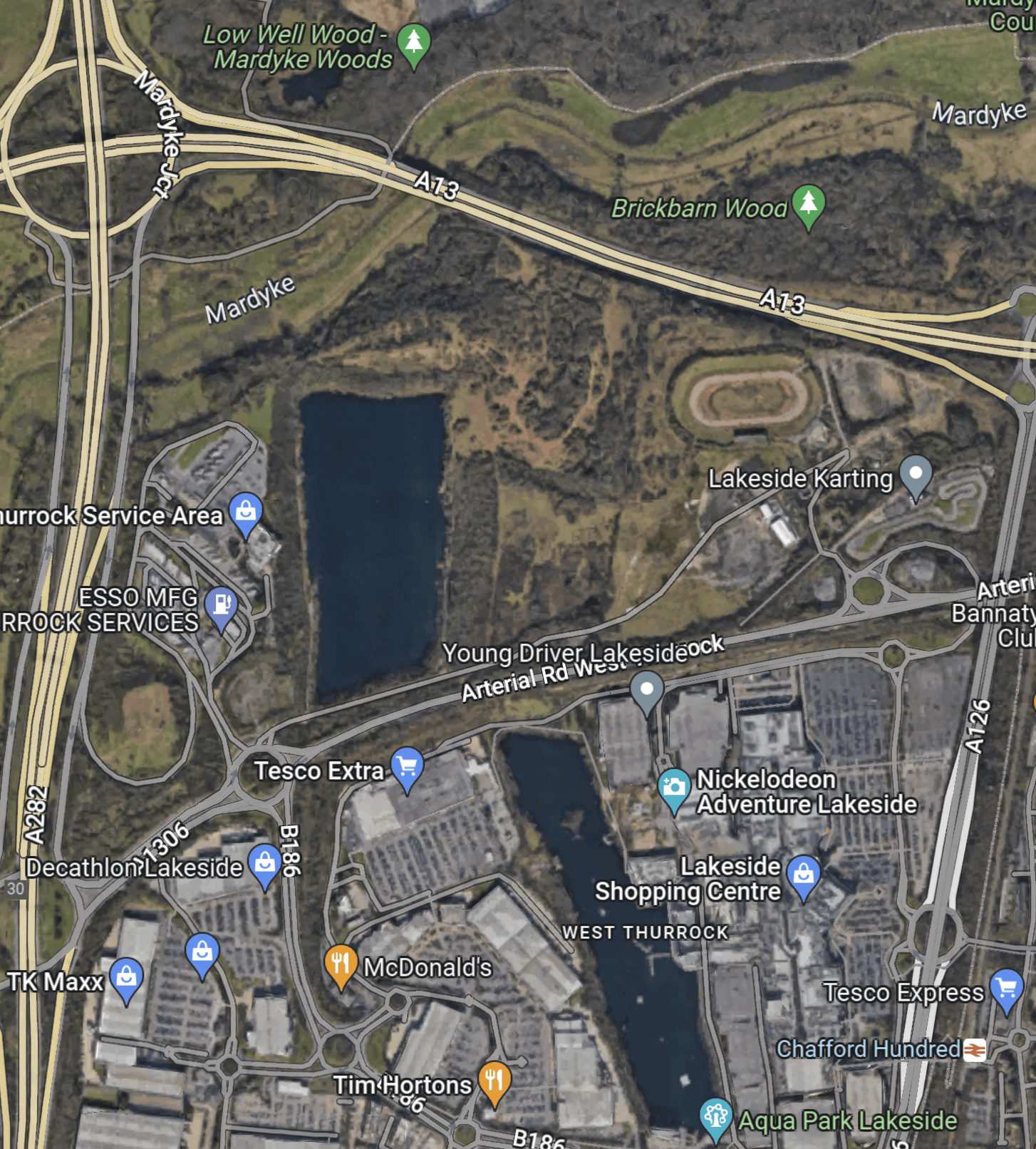

This Google Map shows the area.

Note.

  1. The M25 runs North-South up the Western side of the map.
  2. Chafford Hundred station is in the South-East corner of the map.
  3. The shopping centre is next to the station.

Last time I went, Lakeside was looking tired.

Timings To And From Whitechapel

These are estimated timings to and from Whitechapel.

  • Romford – 26 mins – 81 mins
  • Emerson Park – 31 mins – 76 mins
  • Upminster – 35 mins – 72 mins
  • Ockendon – 41 mins – 66 mins
  • Chafford Hundred – 45 mins – 62 mins
  • Grays – 49 mins – 58 mins
  • Tilbury Town – 52 mins – 55 mins
  • Tilbury Riverside – 58 mins – 49 mins
  • Gravesend – 62 mins – 45 mins
  • Northfleet – 65 mins – 42 mins
  • Swanscombe – 68 mins – 39 mins
  • Greenhithe for Bluewater – 71 mins – 36 mins
  • Stone Crossing – 73 mins – 34 mins
  • Dartford – 81 mins – 26 mins
  • Slade Green – 86 mins – 21 mins
  • Erith – 88 mins – 19 mins
  • Belvedere – 89 mins – 18 mins
  • Abbey Wood – 92 mins – 15 mins

Note.

  1. The times between Tilbury Town and Gravesend are my best estimates.
  2. All other times are taken from current services.
  3. The first time is the time to Whitechapel via Romford.
  4. The second time is the time to Whitechapel via Abbey Wood.

It does appear that the best times from all stations are under an hour.







February 26, 2023 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , , , , , , , , , | 8 Comments

Extending The Elizabeth Line – Connection To Southeastern High Speed One Services

The Two Stratford Stations

In this post, Stratford station is the station handling Greater Anglia and London Overground, Underground and Docklands Light Railway services, with Stratford International station handles High Speed services.

The Elizabeth Line And The Great Western Railway Services

One of the most important stations on the Elizabeth Line is Paddington, where it connects to the London terminus of the Great Western Railway.

I would expect that quite a few passengers going to the West and Wales on the Great Western Railway, will be transported to Paddington by the Elizabeth Line.

The Elizabeth Line And Greater Anglia Services

Another of the important stations on the Elizabeth Line is Liverpool Street, where the station is the London terminus of the Greater Anglia.

I would expect that quite a few passengers going to East Anglia on the Greater Anglia, will be transported to Liverpool Street by the Elizabeth Line.

Southeastern High Speed One Services

Southeastern runs some High Speed services  on High Speed One to provide Kent with an improved service to London.

Current services are

  • London St Pancras International to Ramsgate via Faversham.
  • London St Pancras International to Ramsgate via Dover Priory.
  • London St Pancras International to Margate via Canterbury West.

Note

  1. All trains are one train per hour (tph).
  2. All trains stop at Stratford International and Ebbsfleet International.
  3. All trains are run by 140 mph Class 395 trains.

There has also been talk of running a fourth service to Hastings and Eastbourne via Stratford International, Ebbsfleet International and Ashford International.

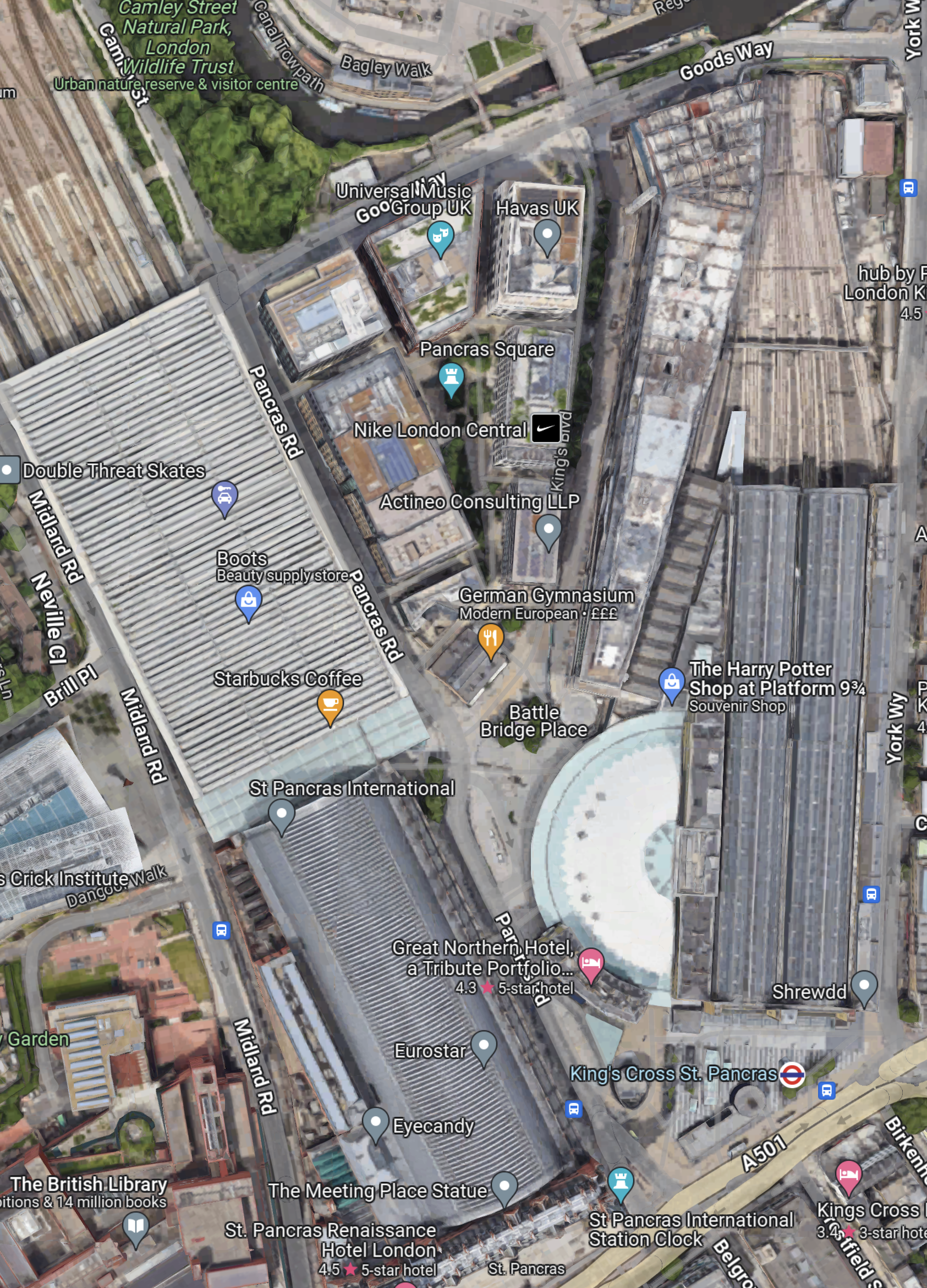

St. Pancras Station

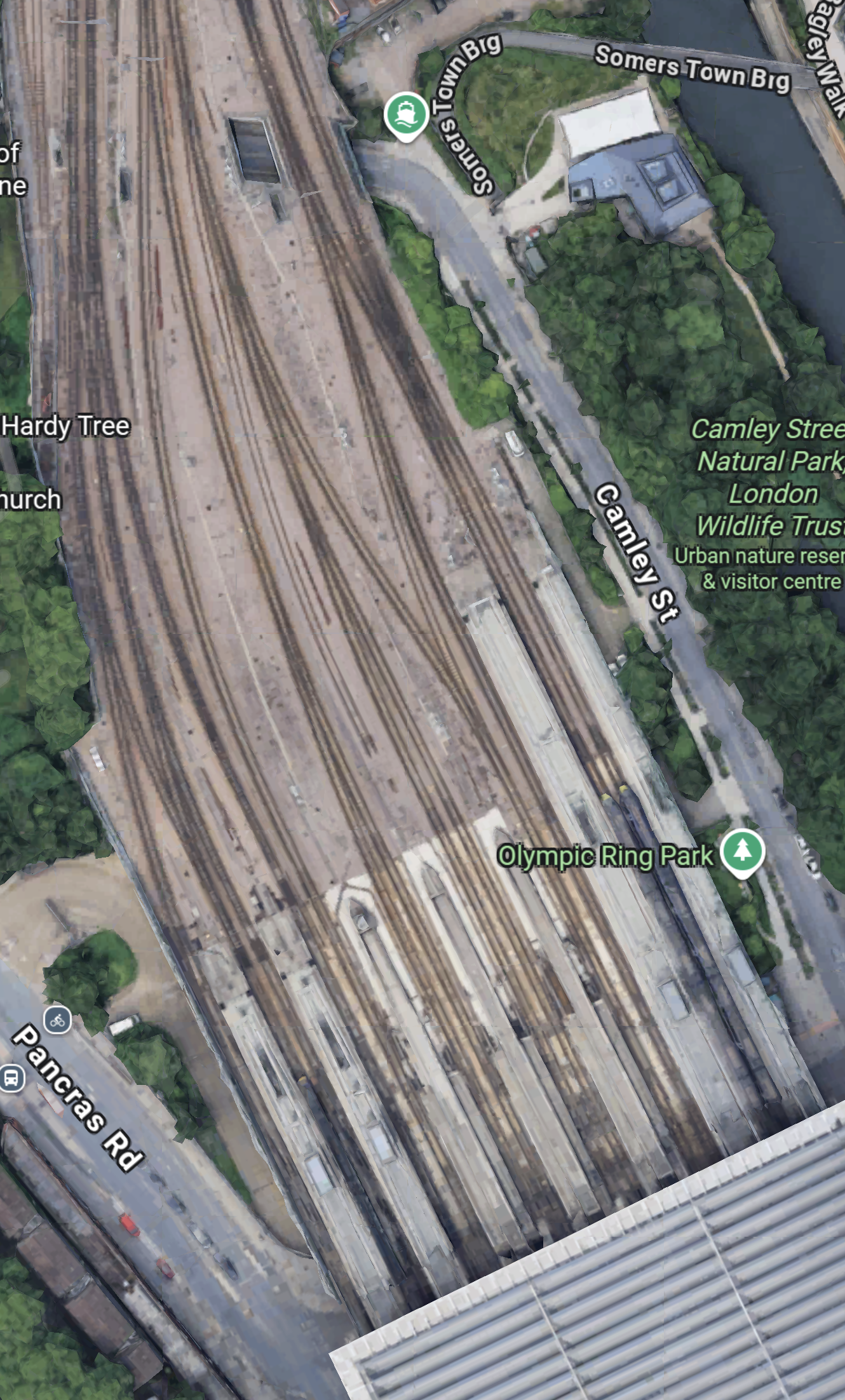

All of these trains terminate in three platforms; 11 to 13 at St. Pancras International station.

St. Pancras is not the ideal terminal for the Southeastern High Speed services.

  • St. Pancras is not on the Elizabeth Line.
  • St.Pancras doesn’t have good connections to Heathrow.
  • All connections to the Underground are a long walk.
  • Eurostar services are a longer walk.
  • East Midland services are also a longer route, with stairs and escalators for good measure.

St. Pancras station was designed by a committee, as a museum to Victorian architecture, rather than as a working station.

Ebbsfleet International Station Must Be The Largest Parkway Station In The UK

It holds nearly five thousand cars and it is served by Southeastern High Speed Services.

Thanet Parkway Station Will Open This Year

Thanet Parkway station is under construction.

  • It will have nearly three hundred parking spaces.
  • It will be served by Southeastern High Speed Services.
  • It should open in May 2023.

This station will need a good connection to London.

Could An Interchange Between The Elizabeth Line And Southeastern High Speed Services Be Provided At Stratford?

Such an alternative interchange would be popular with passengers.

  • The Elizabeth Line from Stratford currently serves the West End, the Northern section of the City of London, East London, Liverpool Street, Paddington and the West End directly.
  • The Elizabeth Line from Stratford currently serves Canary Wharf, Cannon Street, Charing Cross, Euston, Heathrow, King’s Cross. Reading, St. Pancras and Victoria with a change at Whitechapel.
  • The Central Line, which shares platforms with the Elizabeth Line  serves Bank and the West End directly.
  • The Overground is easily accessed for travel across North London to Richmond.
  • The Jubilee Line is easily accessed for travel to London Bridge, Waterloo and Westminster.

It would be connected to two large parkway stations and lots of parking all over Kent.

I believe that Stratford must be promoted as an alternative terminus for Southeastern High Speed Services.

Today, I walked both ways between two Stratford stations.

These pictures show the route I took between Stratford and Stratford International stations, through the Eastfield Shopping Centre.

Note.

  1. I went through the Shopping Centre.
  2. I passed Marks & Spencer’s large food hall, excellent toilets and a Food Court.
  3. By the Food Court is an exit that leads to an entrance to Stratford International station.
  4. The walk took about 10 minutes.
  5. It was vaguely level.
  6. Lifts by-passed the escalators.
  7. One thing that makes the journey to London easier, is to travel in the Eastern end of the train, as the lifts and escalators at Stratford International station, are at that end.

It does need some better signage, but they were doing a bit of refurbishment, so that may already be underway.

It could be a very high quality interchange and it is already better than St. Pancras.

Coming back I took the longer route outside the Shopping Centre.

Note.

  1. I just turned left out of the entrance, walked along the road and turned right past the bus station.
  2. If the weather had been colder or wetter, I’d have gone back via the Shopping Centre.
  3. The walk took about 12 minutes.

I think normally, I’d go back through the Shopping Centre, as there’s a Marks and Spencer Food Hall on the route and it’s slightly quicker and often warmer.



Could Stratford Station Be A London Superhub Station?

When you consider the stations connected to Stratford in London, East Anglia and Kent, it has an excellent collection.

  • Airports – Gatwick, Heathrow, Luton, Southend and Stansted
  • Cities – Cambridge, Canterbury, Chelmsford, Colchester, Ipswich, Norwich and Southend-on-Sea
  • London Main and Terminal Stations – Cannon Street, Charing Cross, Clapham Junction, Euston, Farringdon, King’s Cross, London Bridge, Liverpool Street, Marylebone, Moorgate, Paddington, Victoria and Waterloo
  • Major Areas – Canary Wharf, City of London, Hampstead, Olympic Park and West End
  • Ports – Dover, Felixstowe, Folkestone and Harwich

You can even get a train to Slough, with a change at Whitechapel.

I would think it already is a London Superhub Station.

January 30, 2023 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , , , , , , , , , , | Leave a comment

Extending The Elizabeth Line – Serving South-East London

The Inadequacies Of Abbey Wood Station

Abbey Wood station is the Elizabeth Line’s main terminus in South-East London.

The architecture is impressive, as the pictures taken before the station was finished show.

But other things are less than impressive.

  • There is no station parking.
  • Central London rail terminals served by Elizbeth Line services are only Liverpool Street/Moorgate and Paddington.
  • Central London rail terminals served by National Rail services are Cannon Street, London Bridge, King’s Cross and St. Pancras.

In my view, Abbey Wood is a lost cause, as a commuter station, unless substantial parking is built at the station.

Parking At Stations In West Kent

This list shows the number of car parking spaces at stations in West Kent and South East London.

  • Barnehurst – 162 *
  • Belvedere – None *
  • Bexleyheath – 83 *
  • Chatham – 276 *
  • Dartford – 186 *
  • Ebbsfleet International – 4945 #
  • Erith – None *
  • Eynsford – 15
  • Farningham Road – None
  • Gillingham – 152 *
  • Gravesend – 94 *
  • Greenhithe – 8 *
  • Longfield – 88
  • Meopham – 167
  • Northfleet – None *
  • Plumstead – None *
  • Rochester – None *
  • St. Mary Cray – 31
  • Slade Green – 25
  • Sole Street – 61
  • Stone Crossing – None *
  • Strood – 112 *
  • Swanley – 106
  • Swanscombe – None *
  • Welling – 117

Note.

  1. An asterisk (*) indicates direct trains to and from Abbey Wood station for the Elizabeth Line.
  2. An hash(#) indicates direct trains to and from Stratford International for the Elizabeth Line.

These figures are according to the National Rail web site.

It looks like unless you can walk to your nearest station and that has an easy connection to Abbey Wood, you’re probably better off going to Ebbsfleet and parking there.

Travelling Between Ebbsfleet International And The Elizabeth Line At Stratford International

Consider.

  • Southeastern’s Highspeed service between Ebbsfleet International and Stratford International has a frequency of three trains per hour (tph)
  • It takes less than twelve minutes between the two stations.
  • It takes ten minutes to walk between Stratford International and Stratford Station for the Elizabeth Line and Greater Anglia services.
  • There are eight Elizabeth Line tph to Paddington, calling at all stations. For Heathrow change at Whitechapel station.

Note.

  1. From these points, it should be possible to estimate the time you should park at Ebbsfleet to get to an event in London or East Anglia, if you live in Kent and are parking at Ebbsfleet International.
  2. I think four tph between Ebbsfleet International and Stratford International would make the route more attractive.
  3. If you’re going to Norwich or Ipswich be careful, as only one of the two tph stop at Stratford.

I catch the 12:30 from Liverpool Street for matches at Ipswich on Saturdays. This is the 12:38 from Stratford, so I suspect if you parked at parked at Ebbsfleet before 12:00, you’d make it.

Who’d have thought, that when they built the massive car parks at Ebbsfleet international, that they would be a Park-and-Ride for football at Ipswich. And Norwich too!

Changing Trains At Stratford

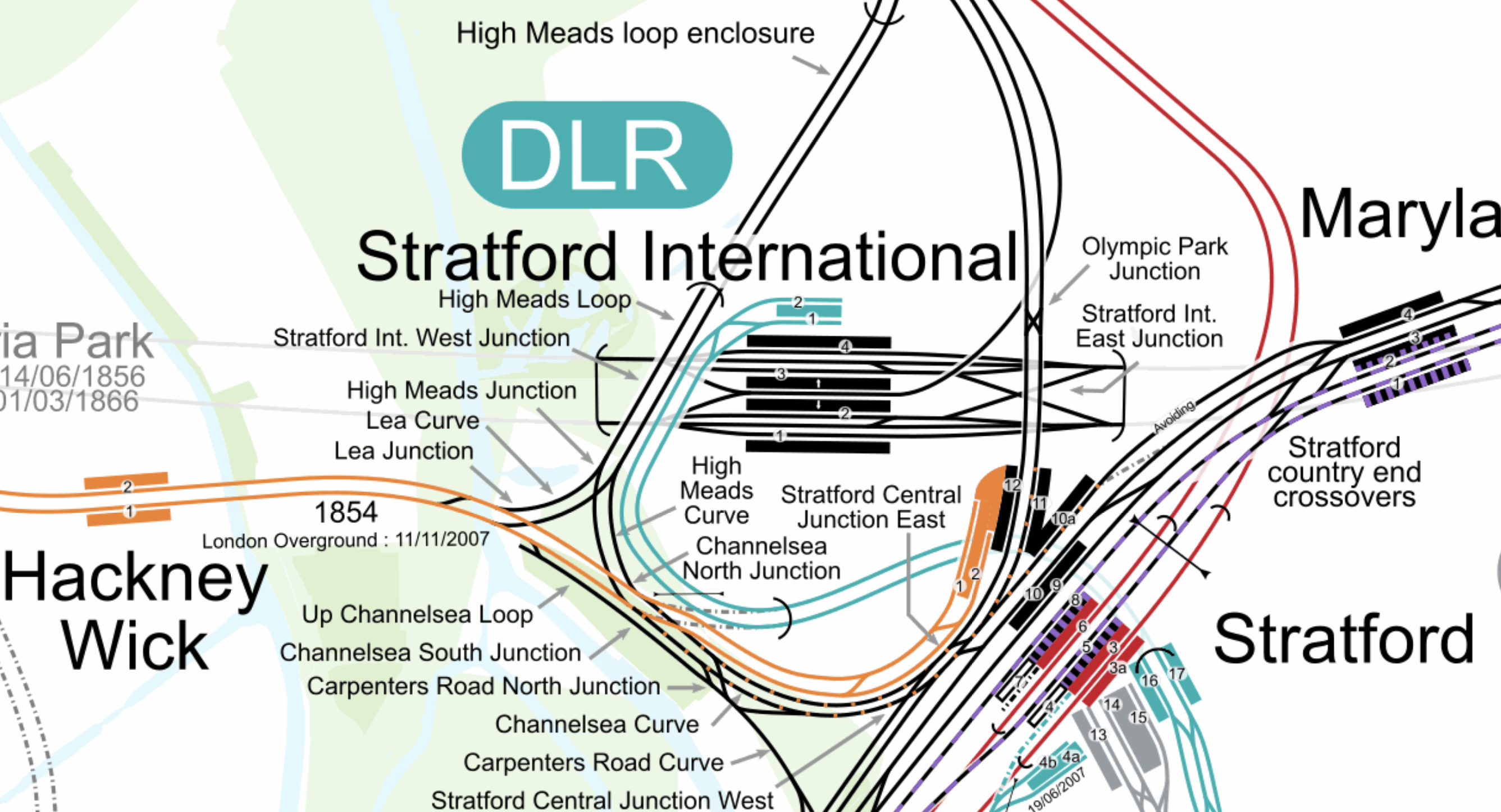

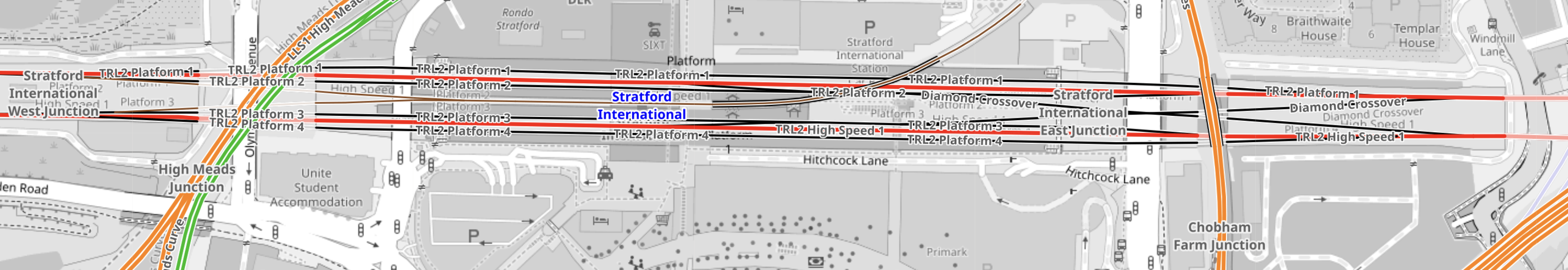

This map from Cartometro shows the two Stratford stations.

Note.

  1. The Elizabeth Line is shown in purple.
  2. The Central Line is shown in red.
  3. The Jubilee Line is shown in silver.
  4. The Overground is shown in orange.
  5. Lifts and escalators take passengers to and from the surface from between platforms 2 and 3 at Stratford International station.

Two pedestrian tunnels connect all the platforms in Stratford station.

  • Elizabeth Line trains use platforms 5 and 8.
  • Central Line trains use platforms 3, 3a and 6.
  • Great Eastern Main Line trains use platforms 9, 9a and 10.
  • Overground trains use platforms 1 and 2.

All platforms have lifts.

I suspect, that when you get to know the Stratford complex well, it’s easier than it looks.

But it does need better signage.

Full Step-Free Route Between Ebbsfleet And Heathrow Central

I have just used Transport for London’s Journey Planner, as if I was in a wheelchair and need full step-free access to go from Ebbsfleet to Heathrow Central.

This was the route.

  • Southeastern to Stratford International station – 10 mins
  • Walk to Stratford station – 21 mins
  • Jubilee Line to Bond Street – 24 mins
  • Bond Street to Heathrow Central – 32 mins

Note.

  1. The times are slower than say myself.
  2. I think it is possible to pick up the Elizabeth Line at Stratford.

But the route is certainly possible in a wheel-chair.

The Penge Interchange

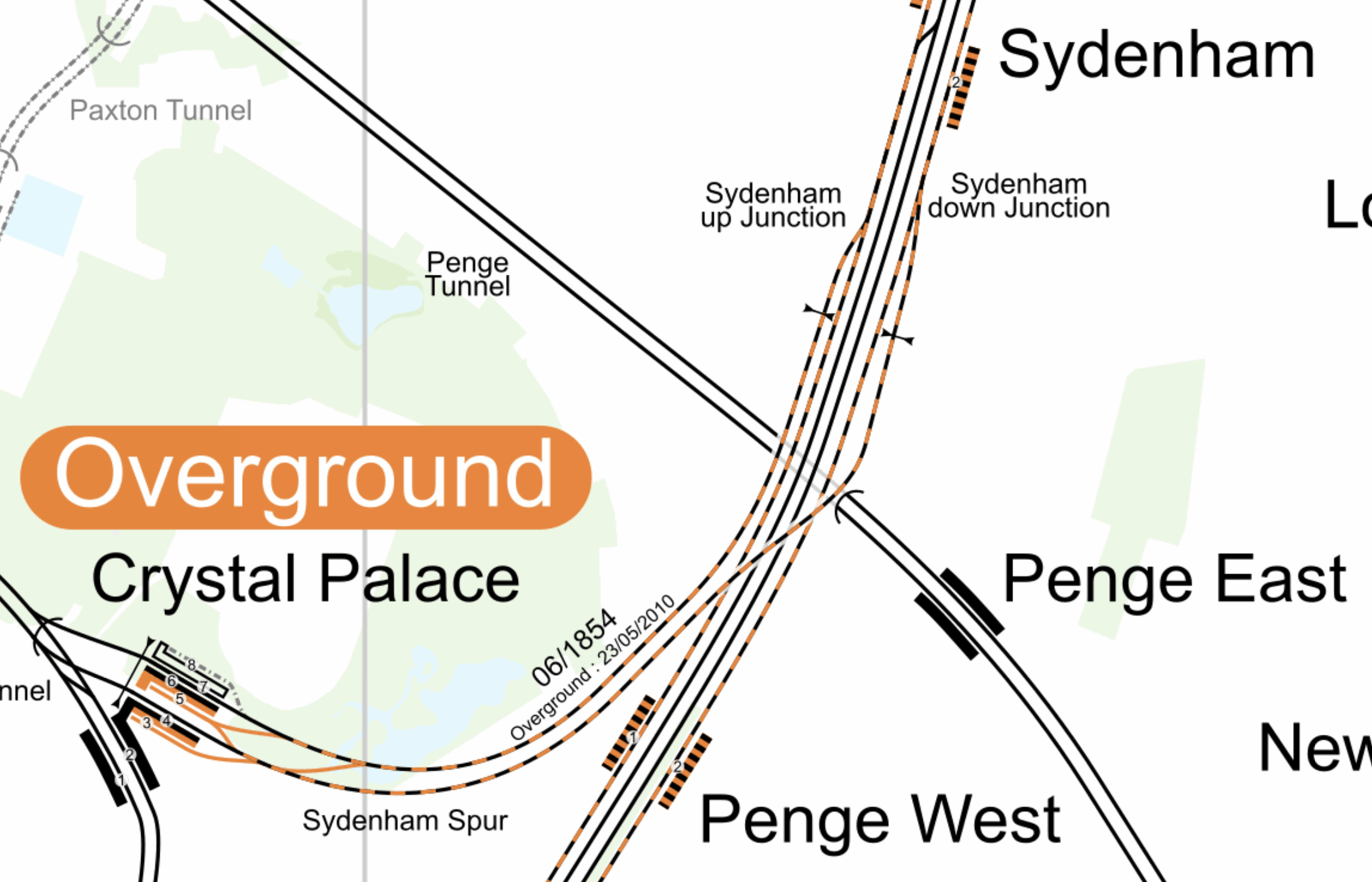

This map from Cartometro shows where the East London Line of the London Overground and the Chatham Main Line between Victoria and Chatham cross in Penge.

Note.

  1. The East London Line runs North-South through Sydenham and Penge West stations.
  2. The Chatham Main Line runs through Penge East station.

There is a plan by Transport for London to create a Penge Interchange station on railway land, where the two lines cross.

  • The station could replace Penge West and Penge East stations.
  • It would be fully step-free.
  • Interchange would be allowed between the East London Line and the Chatham Main Line.

This would increase connectivity for those travelling to and from South-East London and West Kent.

I brlieve that this one interchange could help level-up a large area of South-East London.



January 29, 2023 Posted by | Sport, Transport/Travel | , , , , , , , , , , , , , , , , , , , , | 2 Comments

Extending The Elizabeth Line – Linking To The Chatham Main Line

Preamble

I believe that everybody in the South East of England needs the best access possible to the Elizabeth Line, by train from where they live.

  • The Elizabeth Line serves the important places like Brick Lane, Canary Wharf, the City of London, Heathrow Airport, Liverpool Street station, the Olympic Park, Oxford Street and Paddington station directly.
  • Because of its connection to Thameslink, the Elizabeth Line also serves important places like Bedford, Brighton, Cambridge, Gatwick Airport, Luton Airport and Tate Modern with a single change at Farringdon station.
  • Using the Elizabeth Line, Thameslink and perhaps a bus, it is possible to get to most important places in Central London.
  • The more passengers that use the Elizabeth Line and Thameslink, the more London’s businesses will thrive creating employment and tax revenues.
  • It should also be remembered, that using a train to visit central London, probably cuts your carbon footprint.
  • The Elizabeth Line also cost a fortune, so perhaps by using it, you will be getting some of your portion of what it cost you back.

This post is one of several, where I discuss how to bring more passengers into the Elizabeth Line network.

The Chatham Main Line

This is the introduction to the Wikipedia entry for the Chatham Main Line.

The Chatham Main Line is a railway line in England that links London Victoria and Dover Priory / Ramsgate, travelling via Medway (of which the town of Chatham is part, hence the name).

Services to Cannon Street follow the route as far as St Mary Cray Junction where they diverge onto the South Eastern Main Line near Chislehurst.

Thameslink services to Luton run in parallel from Rainham to Rochester, diverging once across the River Medway at Rochester Bridge Junction onto the North Kent Line via Gravesend and Dartford.

A shuttle service operates on the Sheerness Line which starts at Sittingbourne.

Note.

  1. The main London terminals for trains to London on the Chatham Main Line are Cannon Street (Peak only), St. Pancras and Victoria.
  2. Services stop at Rainham station, so passengers can change to the two trains per hour (tph) Thameslink service to Luton.
  3. St. Pancras has one tph from Strood, Rochester, Chatham, Gillingham, Rainham, Sittingbourne and Faversham stations.
  4. Victoria has two tph from Strood, Rochester, Chatham, Gillingham, Rainham, Sittingbourne and Faversham stations.
  5. Rochester, Gillingham, Rainham and Faversham can turnback trains to London.

The only connections to the Elizabeth Line are.

  • The HighSpeed service to St. Pancras calls at Stratford International, where the connection is tortuous.
  • The Thameslink service calls at Farringdon, where the connection is easy.

As an example say you were going from Chatham to Heathrow Terminal 4.

The National Rail timetable suggests this route.

  • Southeastern HighSpeed – Chatham to St. Pancras
  • Thameslink – St. Pancras to Farringdon
  • Elizabeth Line – Farringdon to Heathrow

Note that the change at St. Pancras is not the easiest.

Extending The Elizabeth Line To The Chatham Main Line

In Elizabeth Line To Ebbsfleet Extension Could Cost £3.2 Billion, I talk about this proposal as described in this article on Ian Visits.

One of the key features of Crossrail To Ebbsfleet (C2E) project is that instead of all trains terminating at Abbey Wood, trains will terminate as follows.

  • Abbey Wood – 4 tph
  • Northfleet – 4 tph
  • Gravesend – 4 tph

This will mean that 8 tph would pass through Abbey Wood station.

Gravesend is not the best place to turn trains, so why not turn two tph at somewhere like Rochester, Gillingham, Rainham or Faversham?

If two tph to Rainham is good enough for Thameslink, surely two tph to Faversham could be good enough?

Extending The Elizabeth Line To A New Hoo Station

In Effort To Contain Costs For Hoo Reopening, I discussed opening the new Hoo station.

Consider.

  • Hoo junction to Hoo station is no more than five or six miles.
  • Aventras have been designed to run on battery power, so I suspect Lizzie’s Class 345 trains could be so fitted.
  • Range would be sufficient for one return trip from Hoo junction to Hoo station
  • Two tph at Hoo station could be handled by a single platform.

It looks to me, that of the four tph to Gravesend if C2E is built, two tph could go to both of Hoo and Faversham.

This assumes of course that digital signalling can fit all the trains on the North Kent Line between Abbey Wood and Faversham.

Chatham And London Main Line Stations

In these routes, I am assuming that there are two tph on the Lizzie Line between Faversham and Heathrow.

  • Chatham and Cannon Street – Lizzie Line to Whitechapel and then District Line
  • Chatham and Charing Cross – Lizzie Line to Whitechapel and then District Line
  • Chatham and Euston – Lizzie Line to Whitechapel and then Hammersmith & City Line
  • Chatham and Farringdon – Lizzie Line direct – Thameslink direct
  • Chatham and Fenchurch Street – Lizzie Line to Whitechapel and then District Line
  • Chatham and Liverpool Street – Lizzie Line direct
  • Chatham and Marylebone – Lizzie Line to Paddington and then Bakerloo Line
  • Chatham and Paddington – Lizzie Line direct
  • Chatham and Kings Cross – Thameslink direct – Lizzie Line to Whitechapel and then Hammersmith & City Line
  • Chatham and St. Pancras – Thameslink direct – Southeastern HighSpeed direct
  • Chatham and Victoria – Southeastern direct – Lizzie Line to Whitechapel and then District Line
  • Chatham and Waterloo – Lizzie Line to Paddington and then Bakerloo Line

Note how Whitechapel is an important interchange, as I said in Whitechapel Station Is The Preferred Interchange.

Conclusion

I do believe that the Elizabeth Line could be successfully extended to Kent.





December 18, 2022 Posted by | Transport/Travel | , , , , , , , , , , , , | Leave a comment

Battery EMUs Envisaged In Southeastern Fleet Procurement

The title of this post, is the same as that of this article on Railway Gazette.

This is the first paragraph.

Southeastern has invited expressions of interest for the supply of new electric multiple-units with an optional battery capability for operation away from the 750 V DC third-rail network.

This article on bidstats is entitled Supply Of And Maintenance Support For New Rolling Stock For Southeastern, and gives more details.

These are my thoughts.

Southeastern HighSpeed Services

There would appear to be no changes in this contract to the Class 395 trains, that work on High Speed One, as this is said in the bidstats article.

Full compatibility with Southeastern infrastructure (excluding High Speed 1 infrastructure)

which appears to rule out running on High Speed One.

In addition, this article on Rail Magazine is entitled Southeastern’s Class 395 Javelin Train Sets Are To Receive A £27 million Facelift.

Southeastern Have Both 75 and 100 mph Trains

In addition to their Class 395 trains, Southeastern have the following trains in their fleet.

Note.

  1. Running a mixed fleet of 75 and 100 mph trains can’t be very efficient.
  2. The Class 465 and 466 trains are the oldest trains and date from 1991-1994.
  3. They are often to be seen in ten-car formations of 2 x 465 trains and a Class 466 train.
  4. Another twelve Class 707 trains are planned to join Southeastern.

I would expect the Class 465 and Class 466 trains to be replaced first.

What Length Will The New Trains Be?

If you look at the new suburban electric trains, they have the following lengths.

Note.

  1. Southeastern already run five-car trains as pairs.
  2. A significant proportion of existing suburban trains are five-car trains.
  3. Great Western, Hull Trains, LNER, Lumo and TransPennine Express run five-car Hitachi trains, with more companies  to follow.
  4. A pair of five-car trains make a pair of a convenient length for most platforms.

I would be fairly confident, that the new trains will be five-car trains, with the ability to run as pairs.

What Will Be The Operating Speed Of The New Trains?

To match the speed of the Class 375 and Class 707 trains, I would expect them to be 100 mph trains.

The Quietness Of Battery-Electric Trains

All of the battery-electric trains I have ridden, have been mouse-quiet, with none of the clunking you get for a lot of electric trains.

This is said in the bidstats article says this about the interiors

Interiors suitable for metro & mainline operation.

I wouldn’t be surprised to see a lot of these trains on commuter routes to attract passengers.

Battery Power

This is said in the bidstats article about battery power.

Inclusion of options for traction batteries with capability for operation in depots and sidings without the need for external power supply, and with the capability to operate on the main line where power supply is not available due to isolations or incidents, or for non-electrified line sections of up to 20 miles.

Although Merseyrail’s new Class 777 trains are not in service yet, I find it interesting that the proposed Southeastern trains will be similarly-fitted with a small battery for depot and siding operation.

The twenty mile battery range is specific and I wonder if it will be used innovatively. I suspect it could be a bit longer in the future, as battery technology improves.

Possible Electrified Routes Using Battery Power

These are a few possibilities.

The Hoo Branch

In Effort To Contain Costs For Hoo Reopening, I discussed running electric trains to a proposed Hoo station.

I made these two points.

  • Hoo junction to Hoo station is no more than five or six miles.
  • There are also half-a-dozen level crossings on the route, which I doubt the anti-third rail brigade would not want to be electrified.

It would appear that a battery-electric train with a range of twenty miles would handle this route easily.

  • Charging would be on the nearly thirty miles between Hoo junction and Charing Cross station.
  • No charging would be needed at Hoo station.

There may be other possibilities for new routes locally to open up new housing developments.

The Sheerness Line

The Sheerness Line has the following characteristics.

  • It is double-track
  • It is electrified
  • It is less than eight miles long.
  • For most of the day, the service is one train per hour (tph)
  • There are two tph in the Peak.
  • Would two tph attract more passengers to the line?
  • Does the power supply on the Sheerness Line limit the size and power of trains that can be run on the line?
  • Is there a need for one train per day to London in the morning and a return in the evening?
  • Could the Sheerness Line be run more economically with battery trains. providing a two tph service all day?

The Isle of Sheppey needs levelling up, perhaps 100 mph trains to London using battery power on the Sheerness Line, might just make a difference.

The Medway Valley Line

The Medway Valley Line has the following characteristics.

  • It is double-track
  • It is electrified
  • It is less than twenty-six and a half miles long.
  • For most of the day, the service is two tph.
  • In the Peak there are HighSpeed services between Maidstone West and St.Pancras International stations.

If electrification was removed between Paddock Wood and Maidstone West stations, the HighSpeed services could still be run and battery-electric trains with a twenty mile range could still run the Tonbridge and Strood service.

The Marshlink Line

The Marshlink Line has the following characteristics.

  • It is mainly single-track with a passing loop at Rye station.
  • It is not electrified
  • It is 25.4 miles between the electrified Ashford International and Ore stations.
  • Services are irregular and less than one tph.

If the proposed battery-electric train had a range of thirty miles, it should be able to handle the Marshlink Line.

The service between Eastbourne and Ashford International stations would need to be moved between the Southern and Southeastern operations.

The Uckfield Branch

The Uckfield Branch has the following characteristics.

  • It is a mixture of single- and double-track.
  • It is not electrified South of Hurst Green Junction.
  • It is 24.7 miles between the electrified Hurst Green Junction and Uckfield station
  • Services are one tph.

If the proposed battery-electric train had a range of thirty-miles, it should be able to handle the Uckfield Branch, with a charging system at Uckfield station.

Will Battery-Electric Trains Allow Some Lines To Have Their Electrification Removed?

There are several reasons, why electrification might be removed.

  1. It is on a line, where the electrification needs upgrading.
  2. It is on a line, where there are lots of trespassers.
  3. Possibly at a level-crossing or a stretch of track with several.
  4. Possibly in a tunnel, with a large inflow if water.
  5. It is a depot or siding, where safety is important to protect the workforce.

Obviously, the electrification would not be removed unless  battery-electric trains can handle all possible services.

These are surely some possibilities for electrification removal.

The Hayes Line

The Hayes Line has the following characteristics.

  • It is double-track
  • It is electrified
  • It is less than eight miles to Ladywell Junction, where the branch joins the main line at Lewisham.
  • It is currently run by Class 465 and Class 466 trains, which will likely be changed for the new trains with a battery capability.
  • Services are four tph.

If the proposed battery-electric train had a range of twenty-miles, it would be able to handle the route between Ladywell junction and Hayes station.

Erith Loop, Crayford Spur and Slade Green Depot

This map from Cartometro.com shows the Erith Loop, the Crayford Spur and the Slade Green Depot.

Note.



Not many trains take the Erith Loop or the Crayford Spur.

  • The distance between Slade Green and Barnehurst is less than a mile-and-a-half.
  • Dartford station is off the South-East corner of the map.
  • The distance between Barnehurst and Dartford is less than three miles.
  • The distance between Slade Green and Crayford is less than two miles-and-a-half.
  • The distance between Crayford and Dartford is less than two miles.
  • The main line through Slade Green would need to remain electrified, as electric freight trains use the line.

I suspect, that quite a lot of electrification could be removed here, much to the disgust of the copper thieves.

It might even be possible to build on top of the depot.





November 14, 2022 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , | 10 Comments

A Trip To Northfleet

Yesterday, I went to Northfleet station.

Partly, it was to have a drink with my old friend; Ian, but mainly it was to take some pictures to add to Elizabeth Line To Ebbsfleet Extension Could Cost £3.2 Billion.

Normally, when I go to see Ian I take the HighSpeed service out of St. Pancras.

But this service is expensive and as I was leaving from Moorgate, I decided to take the Elizabeth Line to Abbey Wood and get a train to Northfleet station instead.

I have a few thoughts on my journey.

Cost

I used my Freedom Pass to Abbey Wood and then bought an Off Peak Day Return between Abbey Wood and Northfleet for just £4.95 with a Senior Railcard.

Convenience

As you have to use one of the bridges at Abbey Wood to change to and from the Elizabeth Line, I used the one at the station end and popped through the barrier to buy my onward ticket from a machine.

Surely, Freedom Passes should be linked to a bank account, so if you want to stray outside Zone 6, you are automatically charged.

Elizabeth Line Messages On Southeastern

At Swanscombe station today, whilst waiting for my Thameslink train to take me back to Abbey Wood, I noticed that the displays were telling passengers to change at Abbey Wood for the Elizabeth Line.

You certainly wouldn’t use the dreadful Swanscombe station with heavy cases, but stations like Abbey Wood, Dartford, Gravesend and others would enable granny or grandpa to take a sensible-size wheeled case to Heathrow Airport with reasonable ease, once the Elizabeth Line becomes a fully-connected railway between Abbey Wood and Heathrow.

Onward Trains At Abbey Wood

There are two easy onward Thameslink tph at Abbey Wood, that run at sixteen and forty-six minutes past the hour.

You can also take the first Dartford train and then take the first train from there.

If you get the Thameslink train from Abbey Wood timings are as follows.

  • Slade Green – 6 minutes
  • Dartford – 11 minutes
  • Stone Crossing – 16 minutes
  • Greenhithe – 18 minutes
  • Swanscombe – 21 minutes
  • Northfleet – 23 minutes
  • Gravesend – 27 minutes
  • Higham – 33 minutes
  • Strood – 39 minutes
  • Rochester – 42 minutes
  • Chatham – 45 minutes
  • Gillingham – 50 minutes
  • Rainham – 55 minutes

Note.

  1. There are also two Southeastern tph between Charing Cross and Gravesend, but they don’t serve Abbey Wood.
  2. The timings appeared sensible in my two trips; yesterday and today.
  3. Travellers also have a choice in that they can use the more expensive HighSpeed services to selected stations.

After just missing a Thameslink train today by a few seconds, and then had to wait thirty minutes for the next train, I am convinced that there needs to be a four tph service between Abbey Wood and Rainham.

Four tph Between Rainham And Abbey Wood

In Crossrail Ltd Outlines Plan To Complete The Elizabeth Line, I said this about Western branch services.

When Crossrail is fully open, the Western Branch frequencies are planned to be as follows.

  • Reading and Abbey Wood – 4 tph in the Peak and 2 tph in the Off Peak
  • Maidenhead and Abbey Wood – 2 tph all day
  • Heathrow Terminal 4 and Abbey Wood – 4 tph all day.
  • Heathrow Terminal 5 and Abbey Wood – 2 tph all day.

This includes 6 tph between Heathrow and Abbey Wood all day.

Crossrail To Ebbsfleet is proposing that the South-Eastern branch will terminate as follows.

  • 4 tph – Abbey Wood
  • 4 tph – Northfleet
  • 4 tph – Gravesend

So will this mean that the six tph to Heathrow will be split equally between Abbey Wood, Northfleet and Gravesend, with two Heathrow tph terminating at each terminal?

The North Kent Metro

My naive mind thinks, why don’t the two Heathrow and Gravesend services terminate at Rainham?

This would give the following.

  • The minimum four tph between Abbey Wood and Rainham.
  • Rainham should be able to turnback for tph.
  • Services would call at Belvedere, Erith, Slade Green, Dartford, Stone Crossing, Greenhithe, Swanscombe, Northfleet, Gravesend, Higham, Strood, Rochester, Chatham and Gillingham.

North Kent would have its own metro running under London Overground rules.

It could even start as soon as Class 345 trains are allowed to run to Rainham.

Airport Connect

Consider

  • The Elizabeth Line service between Abbey Wood and Rainham could serve Heathrow at its Western end.
  • The Thameslink service would serve Luton Airport Parkway.
  • Both services would serve Liverpool Street for the Stansted Express and services to and from Southend Airport.
  • Both services would serve Farringdon for services to and from Gatwick Airport.
  • An extra station at Silvertown could serve London City Airport.
  • In future, there could even be a connection to High Speed Two at Old Oak Common.

One service on the Elizabeth Line would connect all these together.

June 28, 2022 Posted by | Transport/Travel | , , , , , , , , , , | 2 Comments

Elizabeth Line To Ebbsfleet Extension Could Cost £3.2 Billion

The title of this post, is the same as that of this article on Ian Visits.

These is the first paragraph.

A report looking at transport upgrades across the southeast of England suggests that extending the Elizabeth line into Kent would cost around £3.2 billion. The report, by Transport for the South East (TfSE) also supports the proposal and looks at how it could be funded.

This image from the Abbeywood2Ebbsfleet consultation, shows the proposal.

Note, that there doesn’t appear to be too much new infrastructure, except for a proper connection between Northfleet and Ebbsfleet stations. References on the Internet, say that the similar-sized Luton DART connection at Luton Airport, cost around £225 million.

As the quoted cost is £3.2 billion, I would assume, that  installation of digital signalling on the North Kent Line and the trains that use it, is one of the major costs.

I have some thoughts.

Improvement Is Needed

There are endless jokes, which have a punchline something like, “If you want to go to X, I wouldn’t start from here.”

On Monday, I intend to go to visit my friend; Ian, who lives at Longfield in Kent. Abbey Wood is the nearest Elizabeth Line station to Longfield and it is only seventeen miles away from Abbey Wood, but the quickest way you can do it by train is 64 minutes with a change at Rochester or 79 minutes going back into London and coming out from Victoria.

As before, I leave London, I will be having breakfast with another friend in Moorgate, the Elizabeth Line to Abbey Wood will be a good place to start.

If I got the trains right, I can get between Moorgate and Northfleet in 41 minutes. Northfleet is just 5.5 miles from Longfield.

If Ian, wants to go to London, he usually drives to Ebbsfleet, where there is lots of parking and gets the Highspeed trains to Stratford or St. Pancras. Trains take 12 and 19 minutes to and from the two London termini, but go nowhere near to Canary Wharf, the City of London, Liverpool Street, Oxford Street, Paddington, West London and Heathrow.

I believe that for Ian and the other nearly million residents of West Kent, that the following should be done as soon as possible.

  • Extend the Elizabeth Line to Gravesend, which would give 300,000 more people a local Elizabeth Line station.
  • Build a people-mover between Northfleet and Ebbsfleet stations, which would create a high-capacity rail hub for North-West Kent, with connections to London, Heathrow and the Continent, and massive parking.

Heathrow and Northfleet would take under an hour and a quarter on a direct train.

Current Services Between Abbey Wood And Gravesend

Currently, these services run at some point on the North Kent Line between Abbey Wood And Gravesend stations.

  • Southeastern – London Cannon Street and London Cannon Street  – 2 tph – Via Abbey Wood, Belvedere, Erith and Slade Green.
  • Southeastern – London Cannon Street and Dartford – 2 tph – Via Abbey Wood, Belvedere, Erith, Slade Green and Dartford.
  • Southeastern – London Charing Cross and Gravesend – 2 tph – Via Dartford, Stone Crossing, Greenhithe, Swanscombe, Northfleet and Gravesend.
  • Southeastern HighSpeed – London St Pancras and Ramsgate via Faversham – 1 tph – Via Ebbsfleet International and Gravesend.
  • Thameslink – Luton and Rainham – 2 tph – Via Abbey Wood, Slade Green, Dartford, Stone Crossing, Greenhithe, Swanscombe, Northfleet and Gravesend.

Note.

  1. tph is trains per hour.
  2. I have only indicated stations, where trains stop between Abbey Wood and Gravesend stations.

Aggregating these trains gives the following totals for each station.

  • Abbey Wood – 6 tph
  • Belvedere – 4 tph
  • Erith – 4 tph
  • Slade Green – 6 tph
  • Dartford – 6 tph
  • Stone Crossing – 4 tph
  • Greenhithe – 4 tph
  • Swanscombe – 4 tph
  • Northfleet – 4 tph
  • Gravesend – 5 tph

As stations get at least four tph, with more important ones getting 5 or 6 tph, it appears to be a well-constructed timetable.

Effect Of Changing The London Cannon Street And London Cannon Street From The Erith Loop To A Dartford Service

This should make no difference to the numbers, as the service is now clear of the Elizabeth Line after Slade Green.

Effect Of Cutting Back The London Charing Cross and Gravesend Service To Dartford

This service between London Charing Cross and Gravesend has a frequency of 2 tph and calls at Dartford, Stone Crossing, Greenhithe, Swanscombe, Northfleet and Gravesend.

Cutting it back to Dartford adjusts the totals as follows.

  • Abbey Wood – 6 tph
  • Belvedere – 4 tph
  • Erith – 4 tph
  • Slade Green – 6 tph
  • Dartford – 4 tph
  • Stone Crossing – 2 tph
  • Greenhithe – 2 tph
  • Swanscombe – 2 tph
  • Northfleet – 2 tph
  • Gravesend – 3 tph

Some of the frequencies have halved.

Effect Of Adding Eight tph To Northfleet And Four tph To Gravesend On The London Charing Cross and Gravesend Service

The Elizabeth Line Extension is proposed to add the following trains to the service.

  • 8 tph will continue from Abbey Wood to Northfleet.
  • 4 tph will continue from Abbey Wood to Gravesend.

This adjusts the totals as follows.

  • Abbey Wood – 6 tph
  • Belvedere – 12 tph
  • Erith – 12 tph
  • Slade Green – 14 tph
  • Dartford – 12 tph
  • Stone Crossing – 10 tph
  • Greenhithe – 10 tph
  • Swanscombe – 10 tph
  • Northfleet – 10 tph ( 4 tph – Terminating, 6 tph – Passing through)
  • Gravesend – 7 tph ( 4 tph – Terminating, 3tph – Passing through)

Note.

  1. These surely are frequencies, that will satisfy the most picky traveller.
  2. There are freight trains running on the route.
  3. The tightest section would appear to be between Abbey Wood and Dartford, although Dartford and Northfleet is only two tph less.
  4. West of Northfleet it gets easier.
  5. But I do think though, that full digital signalling between Abbey Wood and Gravesend would be able to handle it.
  6. 14 tph is a frequency that is less than that of the central sections of the East London Line, the Elizabeth Line and Thameslink.
  7. I have flown my virtual helicopter along the line and there may be places to add a third track, which would add more capacity.

I believe that it is possible to achieve the passenger train frequencies in the last table.

Abbey Wood East Junction

This Google Map shows the track layout to the East of Abbey Wood station.

Note.

  1. There are crossovers so trains can run between the Elizabeth Line platforms on the North side of Abbey Wood station and the North Kent Line.
  2. There is space on either side of the railway.
  3. I have my doubts that the current track layout would be able to handle twelve Elizabeth Line, six North Kent Line and possibly a freight train in every hour, especially where flat junctions are involved.

I can see a flyover or dive-under being built in this area to handle the trains efficiently.

Abbey Wood Power Change-Over

Some thoughts.

  • I will assume, that the change-over between 25 KVAC overhead and 750 VDC third-rail power will take place in or near Abbey Wood station.
  • This would avoid any erection of electrification gantries to the East of Abbey Wood station.
  • If the Office of Road and Rail refuse to allow any more third rail, I could see a Headbolt Lane solution being applied, where batteries are used to bridge the 1.4 mile gap between Abbey Wood station with its 25 KVAC overhead electrification and Belvedere station with its 750 VDC third-rail electrification.
  • North Kent Line trains would take their existing route between Abbey Wood and Belvedere stations.
  • Also, if a comprehensive and efficient track layout is used here, then there might be cost savings if the Elizabeth Line trains supplied their own power from batteries.

An efficient junction to the East of Abbey Wood station, coupled with well-thought out electrification could be key to successfully handling the nearly 20 tph at Abbey Wood station.

Belvedere, Erith And Slade Green Stations

Belvedere, Erith and Slade Green stations are on a double-track section of the line.

  • The three stations are not step-free.
  • There appear to be a lot of industrial sites, that could be developed for housing.
  • There might be the possibility of adding an extra track in places.
  • Luckily, there are no level crossings.
  • There are some footbridges over the railway, that probably need updating to step-free

I suspect that developing the housing on this route will be most important.

Slade Green Depot

This Google Map shows Slade Green depot and the large triangular junction opposite the depot.

Note.

  1. Slade Green station is at the top of the map.
  2. Slade Green depot is in the South-East corner of the map.
  3. The West point of the junction leads to Bexleyheath.
  4. The West and North points of the junction are connected by the Erith Loop.
  5. The South point of the junction leads to Dartford.

There are rail capacity problems in this area.

  • Slade Green depot is not big enough.
  • One train service goes both ways on the Erith Loop between Slade Green and Bexleyheath every thirty minutes, which could be a block on increasing train frequencies between Abbey Wood and Dartford stations.
  • The proposal is saying that the Slade Green and Bexleyheath service will go via Dartford station, where it will probably reverse.

I can see comprehensive redevelopment of the depot and the junction to remove the capacity problems and perhaps build a lot of housing.

  • If the Erith Loop is not used could the centre of the junction be developed with a much-needed extension to the depot?
  • The depot might be moved elsewhere or perhaps rebuilt with tower blocks on the top.

I think that moving the Slade Green and Bexleyheath service via Dartford could mean that the Erith Loop isn’t needed, so this might free up space to increase the size of the depot.

Dartford Station

This Google Map shows Dartford station and the area around the station.

Note.

  1. The station has four long platforms.
  2. It should be able to handle the 12 tph in both directions.
  3. There is a lot of new developments by the station.
  4. The station is step-free.
  5. There are some pictures of Dartford station in Dartford Station – June 27th 2022.

But I do suspect that the station probably needs extra capacity and a substantial rebuild.

Stone Crossing, Greenhithe And Swanscombe Stations

Stone Crossing, Greenhithe and Swanscombe stations will be handling 10 tph.

  • Greenhithe is a new station with full step-free access.
  • But Stone Crossing and Swanscombe stations may need improvement to bring them up to Elizabeth Line standards.
  • More details of Stone Crossing station are given in Stone Crossing Station – June 27th 2022.
  • More details of Greenhithe station are given in Bluewater Shopping Centre By Train.
  • More details of the current state of Swanscombe station are given in Swanscombe Station – June 27th 2022.
  • The one level crossing in the area was closed in 2018.
  • There may be scope to add an extra track at places in this section.

I feel that these three stations could be fairly easy to bring up to the required standards.

Northfleet Station

Northfleet station is a station, which in the words of estate agent; Roy Brooks, would have a lot of potential.

This Google Map shows the station.

Note.

  1. The two tracks through the station are the North Kent Line.
  2. The other two tracks are freight sidings.
  3. The car-parks at Ebbsfleet station are in the South-West corner of the map.
  4. There appears to be a large cleared site to the North-West of the station.

These pictures show the station.

The requirements for the station will be as follows.

  • The ability to handle 6 tph passing through.
  • The ability to be able to handle 4 tph, that terminate at the station.
  • Terminating four tph, will probably need two platforms for all eventualities.
  • Full step-free access.
  • An interchange with Ebbsfleet International station is also needed.
  • Is car parking needed?

There is certainly enough space.

The Pedestrian Link Between Northfleet And Ebbsfleet Stations

This is part of the plan and is shown on the first map in this post.

This Google Map shows Northfleet and Ebbsfleet stations.

Note.

  1. The large Ebbsfleet International station towards the bottom of the map.
  2. Northfleet station on the North Kent Line in the North East corner of the map.
  3. The two stations are about five hundred  metres apart as the  crow flies.

There has been a lot of pressure in the past to build a pedestrian link between the two stations, as reported by the Wikipedia entry for Northfleet station.

The station is very close to Ebbsfleet International station (the NNE entrance is only 334 yards (305 m) from Northfleet’s station), but passengers (using public transport) will find it far easier to access Ebbsfleet International from Gravesend or Greenhithe, as these stations are more accessible and offer easy access to Fastrack bus services. The walking route between the two stations is 0.6 miles (1 km) or 0.8 miles (1.3 km) and a suitable pedestrian link has not been built because of funding issues and objections from Land Securities.

Why when Ebbsfleet International station was built in the early 2000s for opening in 2007, was a pedestrian link not built between the two stations?

How much did omitting the link save?

Luton Airport are building the Luton DART, which is a people mover to  connect Luton Airport Parkway station with the airport.

  • It is 1.4 miles long.
  • It is fully automated.
  • It might have an extra station serving the mid-stay parking.
  • It appears to be taking three years to build.

All of this very comprehensive system appears to be costing around £200 million.

I doubt that a simple pedestrian link, like a bridge with travellators,  would have cost more than a few tens of million pounds.

Will Northfleet/Ebbsfleet Become A Major Railway Hub?

If Northfleet station and the connection to Ebbsfleet is well designed,, I can see this station becoming a major railway hub.

  • It would have Eurostar Continental services.
  • It would have HighSpeed services to London and Kent.
  • It would have Elizabeth Line services to London and Heathrow.
  • It would have Thameslink and Southeastern services.
  • The station would have lots of parking.

I also feel in the future that more Continental services will be developed.

  • Adding extra platforms for Continental services could be easier than at St. Pancras.
  • It could be an ideal terminus for sleeper trains to and from the Continent.
  • I might be the ideal terminus for very long distance trains to and from the Continent.

Northfleet/Ebbsfleet has something that St. Pancras lacks – space.

Gravesend Station

Gravesend station is a rebuilt step-free station with three platforms, as these pictures show.

But is it the right station, for the end of the Elizabeth Line?

These points are in favour.

  • There is a bay platform, that could handle 4 tph.
  • The station is step-free.
  • The station has had a recent refurbishment.
  • It has HighSpeed services to London and East Kent.
  • Gravesend is a town of 74,000 people.
  • Passengers can change between through trains by just staying on the same platform.

But these points are against.

  • The station is on a cramped site in the town centre.
  • There is no train stabling nearby.
  • Adding lots of car parking may be difficult.
  • Suppose adding the Elizabeth Line to the town was very successful and it was felt more services were needed. Could Gravesend station cope?

These are the times for the various services.

  • HighSpeed to St. Pancras – 25 minutes
  • HighSpeed to Stratford – 17 minutes
  • Southeastern to Charing Cross – 65 minutes
  • Thameslink to Abbey Wood- 28 minutes
  • Thameslink to London Bridge – 60 minutes

I estimate that the Elizabeth Line will take just over 50 minutes to Tottenham Court Road.

This last timing in itself is a good reason for the Elizabeth Line to serve Gravesend.

But I don’t think the Elizabeth Line has to start there.

I am worried that the Elizabeth will be too successful.

  • It serves Central London, Paddington and Heathrow.
  • It will have a frequency of four tph from and to Gravesend.
  • It will have trains with a very large capacity.
  • The trains will have wi-fi and 4G connections.

I don’t think the cramped Gravesend station will be able to cope with the needs of expansion.

  • An extra platform.
  • Handling trains that need to be turned back to London.
  • More car parking.

Northfleet/Ebbsfleet will have the parking and eight tph on the Elizabeth Line, so surely the best solution is to have the actual Elizabeth Line terminal station to the East of Gravesend.

  • Travellers to the West of Gravesend will use Northfleet/Ebbsfleet.
  • Travellers in Gravesend will use Gravesend station by walking, cycling or using a local bus.
  • Travellers to the East of Gravesend will use the new terminal station.

The Elizabeth Line extension is supposedly costing £3.2 billion, so it should serve as many potential passengers as possible.

The Elephant In The Garden Of England

It is proposed that the new Lower Thames Crossing is built to the East of Gravesend.

This map from the Department of Transport, shows the route.

Note.

  1. The new crossing, which is shown in red, bypasses the Dartford Crossing on the M25.
  2. The A226 runs between Gravesend and Higham via a junction with the new crossing at Chalk.
  3. Northfleet is to the West of Gravesend.

This Google Map shows the area between Chalk and Higham.

Note.

  1. Chalk in the North-West corner of the map.
  2. Higham in the South-East corner of the map.
  3. The A226 running between Chalk and Higham.
  4. Higham station on the North Kent Line about half-way up the East side of the map.
  5. The North Kent Line running across the top of the map between Gravesend and Higham stations via Hoo Junction.

The Lower Thames Crossing will run North-South across this map to the East of Chalk and according to the Department of Transport map to the West of Thong.

I should admit, that I don’t drive, so the Lower Thames Crossing will be of no use to me, but I have friends in Kent and most seem to be in favour of the new crossing.

Reopening The Hoo Branch To Passenger Trains

In Effort To Contain Costs For Hoo Reopening, I wrote about an article in the April 2022 Edition of Modern Railways with the same title.

This is the first paragraph of the Modern Railways article..

Medway Council is working with Network Rail and other industry players in an effort to make restoration of a passenger service to Hoo on the Isle of Grain branch feasible. The Council was awarded £170 million from the Housing Infrastructure Fund in 2020 to support schemes to facilitate building of 12,000 new houses in the area, with £63 million of the HIF money for reinstatement of services on the Hoo Branch.

The article mentions, this new infrastructure.

  • A new station South of the former Sharnal Street station.
  • Works to level crossings, of which there are six between Gravesend station and proposed site of the new Hoo station.
  • A passing place at Hoo Junction, where the branch joins the North Kent Line.
  • A passing place at Cooling Street.

It looks like we may have the smaller project of reopening the Hoo branch railway, whilst a major road and tunnel is built through the area.

This OpenRailwayMap shows the North Kent Line between Gravesend and Higham stations.

Note.

  1. Gravesend station is in the North-West corner of the map.
  2. Higham station is at the Eastern edge of the map.
  3. The railway shown in orange is the North Kent Line.
  4. The railway shown in yellow is the Hoo branch.
  5. The railway shown in red is the Channel Tunnel Rail Link.

It looks like the path of the new crossing could follow a similar path to the overhead power cable shown on this map.

According to Modern Railways, the main reason for reopening the Hoo Branch for passenger trains is to provide rail access for new housing on the Isle of Grain.

  • Improving the Hoo branch will also help the freight services to the various docks and installations on the Isle of Grain.
  • Will the builders of the new crossing, use the Isle of Grain for the supply of aggregates and the disposal of tunnel spoil?
  • Remember that barges on the Thames were used to remove the tunnel spoil from London for both Crossrail and the Battersea extension to the Northern Line.

My knowledge of major projects is saying to me, that before the major works of the new crossing are started, this branch railway must be updated, otherwise it will cause problems in the future.

Could this be why, the Hoo branch reopening has been mentioned in both the April and July 2022 Editions of Modern Railways? Perhaps a sensible decision has been made, that means the Hoo branch will be improved first, to speed the construction of the new Lower Thames Crossing.

Could The Elizabeth Line Be Extended To The Proposed Hoo Station?

The proposed Hoo station is to be just South of the former Sharnal Street station.

  • This is under ten kilometres from Hoo Junction, where the North Kent Line is electrified.
  • A single platform could handle 4 tph, but provision for two platforms would be prudent.
  • A couple of sidings could provide stabling.
  • Services would join the North Kent Line at Hoo Junction.
  • Services would use battery power between Hoo Junction and Hoo station.
  • If charging were needed at Hoo station a short length of 25 KVAC overhead electrification would be needed.
  • There is plenty of power available locally to power any electrification.

This Google Map shows the possible location of the station.

Note.

  1. The A 289 road running NE-SW across the map from a roundabout in the North-East corner of the map.
  2. The A 289 leads from the roundabout in the South-West corner of the map to the Medway Tunnel to Chatham.
  3. Sharnal Street is between the two roundabouts.
  4. The single-track railway crosses the A 289 at right-angles, about 500 metres South of Sharnal Street.
  5. There is even a high voltage power line  going through the area to the South of the railway.

It seems to be an ideal place for a station with good road access, space and plenty of power to charge battery vehicles and trains.

I took these pictures of where the A289 crosses over the railway on June 27th 2022.

Note.

  1. The substation site, which is marked with Network Rail logos. It looks like power has been provided to the site.
  2. The high-voltage line passing to the South of the site.
  3. There were trucks carrying tunnel segments. Is there a factory on the Isle of Grain and will it produce segments for the Lower Thames Crossing?
  4. The Sharnal Street bridge over the railway.

It certainly looks like Network Rail have been planning a station there for some time.

Around The Isle Of Grain

I took these pictures of the Isle of Grain on June 27th 2022.

Note.

  1. There is a lot of housing planned on the island.
  2. Someone wants to build a theme park.
  3. The road past the station leads to the Medway Tunnel.

All these factors would add to the case for the station.

Battery-Electric Class 345 Trains

There would be a need to develop a third-rail battery/electric version of the Class 345 trains.

In this article in Global Rail News from 2011, which is entitled Bombardier’s AVENTRA – A new era in train performance, gives some details of the Aventra’s electrical systems. This is said.

AVENTRA can run on both 25kV AC and 750V DC power – the high-efficiency transformers being another area where a heavier component was chosen because, in the long term, it’s cheaper to run. Pairs of cars will run off a common power bus with a converter on one car powering both. The other car can be fitted with power storage devices such as super-capacitors or Lithium-ion batteries if required. The intention is that every car will be powered although trailer cars will be available.

Unlike today’s commuter trains, AVENTRA will also shut down fully at night. It will be ‘woken up’ by remote control before the driver arrives for the first shift

This was published over eleven years ago, so I suspect Bombardier have refined the concept.

A Simple Extension Of The Elizabeth Line

The branch to Hoo station could be a very simple extension of the Elizabeth Line.

  • There appear to be no challenging engineering problems.
  • Parking and cycling routes could be provided as required at the station.
  • The centre of Gravesend would be under ten minutes from Hoo station.
  • There would be a same-platform change for HighSpeed services at Gravesend station.
  • The developers of the housing would be over the moon.
  • Workers for the Lower Thames Crossing and the big energy projects on the Isle of Grain could reverse commute from London.
  • The station would only be a few minutes more than an hour from Central London.
  • The station could also double as a Park-and-Ride for Chatham and Gillingham.
  • Buses could connect Hoo station to Chatham and Gillingham.

It could prove to be a very valuable station for the Isle of Grain and the Medway Towns.

The Contactless Ticketing Conundrum

This is said on the Transport for London website.

Contactless pay as you go is accepted throughout the Elizabeth line.

So it’s just a case of Have Card Will Travel!

So this will mean, that contactless ticketing will have to be accepted at all stations East of Abbey Wood.

Everybody will love that!

Are There Any Other Possible Elizabeth Line Destinations In Kent?

Train companies, since the days of British Rail have run Peak time commuter trains to bring workers into London in the morning and take them home in the evening.

There will be four tph passing through Gravesend and they don’t all have to go to and from Hoo station.

Digital signalling will give flexibility as to which stations the trains could serve.

Possibilities include.

Gillingham

Gillingham station may be a possibility.

Maidstone West

Maidstone West station may be a possibility.

Rainham

Rainham station has three platforms and is already served by two Thameslink tph to Luton through Central London, which use the bay Platform 0

Some might argue that two Elizabeth Line tph should extend from Abbey Wood to Rainham, to give a four tph service between Abbey Wood and Rainham.

This would be a North Kent Metro.

Rochester

Rochester station has three platforms and Platform 3 can turn trains back to London.

It is already used by Thameslink to turn Peak services.

Project Management

The project may be budgeted to cost £3.2 billion, but it is a small number of independent projects.

  • Digital signalling
  • Electrification changeover at Abbey Wood station.
  • An efficient junction East of Abbey Wood.
  • Rebuild Belvedere station with step-free access.
  • Rebuild Erith station with step-free access.
  • Rebuild Slade Green station with step-free access.
  • Extend Slade Green depot.
  • Upgrade Dartford station.
  • Rebuild Stone Crossing station with step-free access.
  • Upgrade Greenhithe station.
  • Upgrade Swanscombe station.
  • Rebuild Northfleet station with step-free access and two extra bay platforms.
  • Install people mover between Northfleet and Ebbsfleet stations.
  • Upgrade the Hoo Branch.
  • Build Hoo station.

Note.

  1. Gravesend station would only need minimal updating.
  2. As I said before, I suspect the digital signalling will be the biggest cost.
  3. Choosing the optimal order is good project management!
  4. Projects that create fare revenue should be done early, especially if they don’t interfere with services on the railway.

The first projects, that I would develop would be these.

  • Rebuild Northfleet station with step-free access and two extra bay platforms.
  • Install people mover between Northfleet and Ebbsfleet stations.
  • Upgrade the Hoo Branch.
  • Build Hoo station.

As I said earlier, this project needs to be developed with the Lower Thames Crossing.

Conclusion

This seems an excellent plan.











June 25, 2022 Posted by | Transport/Travel | , , , , , , , , , , , , , , , | 4 Comments

Council ‘Talking’ To Government On Improving Train Provision, Leader Says

The title of this post, is the same as that of this article on the Barking and Dagenham Post.

These are the introductory paragraphs.

Barking and Dagenham Council leader Darren Rodwell said the authority is “talking” to the government about improving train provision through the borough.

Last week saw the opening of the Elizabeth line, which stretches more than 100km from Reading and Heathrow in the west to Shenfield and Abbey Wood in the east.

But none of its stations are in Barking and Dagenham – with the nearest being Chadwell Heath – and Cllr Rodwell does not believe the borough stands to benefit from the line at the moment.

He has a point and is asking for extra stations in the borough.

Dagenham East on c2c is mentioned.

This paragraph also talks about HS1 domestic.

Cllr Rodwell, who is beginning a third term as council leader, also said HS1 domestic should stop in the borough.

At the moment, the domestic services that run on the line are operated by Southeastern and travel between London and Kent.

The sole stops in the capital are St Pancras and Stratford International.

“It should be Ebbsfleet, Purfleet, Barking, Stratford International” before terminating at St Pancras, Cllr Rodwell said.

“That would be massive for the ability of our young people to get jobs.

I feel he’s right about the jobs, but would the extra stations be possible.

Dagenham East

This map from cartometro.com shows the location of Dagenham East station.

Note.

  1. The Elizabeth Line passing through Romford at the North of the map.
  2. The District Line and c2c passing through Upminster across towards the bottom of the map.
  3. Upminster is in the London Borough of Havering, as are all stations after Dagenham East.
  4. Dagenham East station is the second station on the line and used to be a c2c station until 1962.

This Google Map shows Dagenham East station.

These pictures show the station.

Note.

  • The c2c platforms appear to be still in place. Although, some work needs to be done.
  • A new bridge will be required to access the far platform.
  • six c2c trains per hour (tph) pass through the station.

I feel that perhaps a two tph service between Dagenham East and Fenchurch Street could be possible.

A Thought About High Speed One

High Speed One links London and the Channel Tunnel.

  • Every time a train stops, it increases the total journey time by a couple of minutes.
  • So two extra stops on Southeastern Highspeed services at Purfleet and Barking, would slow the service and take up capacity on High Speed One.
  • If you read the Wikipedia entry for the link, there are several operators, who seem to be hoping to run extra services on the route.
  • In addition Thalys and Eurostar have merged and surely, they will bring London more into their routes.

I feel that what spare capacity, there is on High Speed One will more likely be allocated to European services than domestic services in East London. It’s probably more profitable for the operator of High Speed One for a start.

Purfleet

This Google Map shows Purfleet station and its location in relation to High Speed One.

Note.

  1. Purfleet station is in the South-West corner of the map.
  2. High Speed One runs across the North-East corner of the map.
  3. Purfleet station is served by two tph between Fenchurch Street and Grays.
  4. In Purfleet Station – 19th August 2021, there is a gallery of pictures of Purfleet station.
  5. In that post, I also describe planned developments at Purfleet station.

Given the distance between the current Purfleet station and High Speed One, and the planned developments, I think that an interchange between c2c and High Speed One at the current Purfleet station, would not be a very practical one.

But there may be possibilities to the East, where c2c and High Speed One cross.

This Google Map shows the location of their crossing by the QE2 bridge.

Note.

  1. High Speed One going diagonally NW-SE across the map
  2. The A 282 crossing over the QE2 bridge going North-South.
  3. The c2c line going East-West across the map.

Could the proposed station be built, where the two rail lines cross?

Probably, but!

  • High Speed One would only connect to the Fenchurch Street and Grays service running at two tph.
  • Passengers for the City of Southend would have to change at Grays.
  • There would probably need to be separate lines for expresses to pass stopping trains.
  • Stations on viaducts are expensive to build.

I don’t think a station at Purfleet would be the most practical or affordable of projects.

Barking

This OpenRailwayMap shows the routes of High Speed One and c2c through Barking.

Note.

  1. The red line is High Speed One.
  2. High Speed Two is shown in pink, when it is in tunnel.
  3. The orange line is the c2c line between Fenchurch Street and Grays.
  4. Dagenham Dock station is in the London Borough of Barking and Dagenham.
  5. Rainham station is in the London Borough of Havering.

It looks like Dagenham Dock station would be the only station, where an interchange could be built.

This Google Map shows Dagenham Dock station.

Note.

  1. The top pair of lines are the c2c lines.
  2. The next pair of lines are High Speed One.
  3. The lines below High Speed One are a freight link between High Speed One and the Barking freight hub.

There certainly would appear to be space for two platforms on High Speed One.

But then we still have the problem of an extra station using up valuable space on High Speed One.

The only solution, that I can think of, is that Southeastern HighSpeed services would perhaps stop only at Dagenham Dock or Stratford, but not both.

Conclusion

In this simple analysis, it looks like an extra stop on c2c at Dagenham East is possible, but extra stations on High Speed One might be difficult to fit in.

May 31, 2022 Posted by | Transport/Travel | , , , , , , , , , , | 5 Comments

An Analysis Of The Train Service On The East Kent Line With Respect To The Three Options For Crossrail To Ebbsfleet (C2E)

Much of the analysis is an update of a post called Up To £3 Billion For Crossrail To Ebbsfleet, that I wrote in June 2019.

Current Services Along The North Kent Line

I shall start by looking at current services on the North Kent Line.

Thameslink – Luton And Rainham (Kent)

A Thameslink service

  • Two trains per hour (tph)
  • South of the Thames, the service calls at London Bridge, Deptford, Greenwich, Maze Hill, Whatcombe Park, Charlton, Woolwich Arsenal, Plumstead, Abbey Wood, Slade Green, Dartford, Stone Crossing, Greenhithe for Bluewater, Swanscombe, Northfleet, Gravesend, Higham, Strood, Rochester, Chatham and Gillingham.
  • Eight-car Class 700 trains work the route, which have a 100 mph operating speed.
  • The service calls at Northfleet for a possible interchange with services running from Ebbsfleet International station
  • The service calls at Abbey Wood for interchange with Crossrail.

If there needed to be more capacity on this service, I suspect Thameslink could run twelve-car trains.

Southeastern – London Charing Cross And Gravesend

Southeastern Metro service.

  • Two tph
  • Calls at Waterloo East, London Bridge, Hither Green, Lee, Mottingham, New Eltham, Sidcup, Albany Park, Bexley, Crayford, Dartford, Stone Crossing, Greenhithe for Bluewater, Swanscombe and Northfleet
  • The service calls at Northfleet for a possible interchange with services running from Ebbsfleet International station.
  • The service calls at Gravesend for interchange with Southeastern HighSpeed services between St. Pancras International station and North-East Kent, East Kent and soon-to-be East Sussex.
  • Class 465 trains work the route, which have a 75 mph operating speed.

This picture shows a train for Gravesend in London Bridge station.

My feeling, is that the service would be improved by modern 100 mph trains, as these antique slow-coaches must restrict the speed of faster trains.

Southeastern – London Cannon Street And Dartford Loop Line

A Southeastern Metro service.

  • Four tph in both directions.
  • Calls at London Bridge, Deptford, Greenwich, Maze Hill, Westcombe Park, Charlton, Woolwich Dockyard, Woolwich Arsenal, Plumstead, Abbey Wood, Belvedere, Erith and Slade Green.
  • Two tph return to Cannon Street via Crayford and Sidcup and two tph return to Cannon Street via Barnehurst and Bexleyheath.
  • The service calls at Abbey Wood for a planned interchange with Crossrail.
  • Class 465 trains work the route.

As I said with the previous service, these 75 mph trains need replacing with 100 mph trains.

Southeastern – London Charing Cross And Dartford

A Southeastern Metro service.

  • Two tph
  • Calls at Waterloo East, London Bridge, Lewisham, Blackheath, Charlton, Woolwich Dockyard, Woolwich Arsenal, Plumstead, Abbey Wood, Belvedere, Erith and Slade Green.
  • The service calls at Abbey Wood for a planned interchange with Crossrail.
  • Class 465 trains work the route.

As I said with the two previous services, these 75 mph trains need replacing with 100 mph trains.

Southeastern – London Victoria And Dover

A Southeastern Mainline service.

  • Two tph
  • Calls on the North Kent Line at Rochester, Chatham, Gillingham and Rainham.
  • Class 465 trains work the route.

As I said with previous services, these 75 mph trains need replacing with 100 mph trains.

Southeastern – London Victoria And Ramsgate

A Southeastern Mainline service.

  • One tph
  • Calls on the North Kent Line at Rochester, Chatham, Gillingham and Rainham.
  • Class 465 trains work the route.

As I said with previous services, these 75 mph trains need replacing with 100 mph trains.

Southeastern – London St. Pancras And Faversham

A Southeastern HighSpeed service.

  • One tph
  • Calls at Stratford International, Ebbsfleet International, Gravesend, Strood, Rochester, Chatham, Gillingham, Rainham and Sittingbourne.
  • The service calls at Ebbsfleet International for an interchange with Continental services.
  • Class 395 trains work the route, which have a 100 mph operating speed on lines electrified using a third-rail.

This picture shows a Class 395 train at Gravesend station.

East of Ebbsfleet International, this service can be considered a 100 mph local train, that gets slowed by the 75 mph services.

Southeastern – London St Pancras International Loop Service

A Southeastern HighSpeed service.

  • One tph
  • Calls at Stratford International, Ebbsfleet International, Gravesend, Strood, Rochester, Chatham, Gillingham, Rainham, Sittingbourne, Faversham, Whitstable, Herne Bay, Birchington-on-Sea, Margate, Broadstairs, Ramsgate, Sandwich, Deal, Walmer, Martin Mill, Dover Priory, Folkestone Central, Folkestone West, Ashford International, Ebbsfleet International and Stratford International.
  • The service calls at Ebbsfleet International and Ashford International for an interchange with Continental services.
  • Class 395 trains work the route.

East of Ebbsfleet International, this service can be considered a 100 mph local train, that gets slowed by the 75 mph services.

Southeastern – London St Pancras International And Ramsgate

A Southeastern HighSpeed service.

  • One tph
  • Calls at Stratford International, Ebbsfleet International, Ashford International, Canterbury West, Ramsgate and Broadstairs
  • The service calls at Ebbsfleet International and Ashford International for an interchange with Continental services.
  • Class 395 trains work the route.

East of Ashford International, this service can be considered a 100 mph local train, that gets slowed by the 75 mph services.

A Summary Of Services By Station

I will look at the current number of trains at stations between London Bridge and Faversham.

  • Deptford – 6 tph
  • Greenwich – 6 tph
  • Maze Hill – 6 tph
  • Westcombe Park – 6 tph
  • Charlton – 8 tph
  • Woolwich Dockyard – 6 tph
  • Woolwich Arsenal – 8 tph
  • Plumstead – 8 tph
  • Abbey Wood – 8 tph
  • Belvedere – 6 tph
  • Erith – 6 tph
  • Slade Green – 6 tph
  • Dartford – 12 tph to London and 6 tph to the East
  • Stone Crossing – 4 tph
  • Greenhithe for Bluewater – 6 tph
  • Swanscombe – 4 tph
  • Northfleet – 4 tph
  • Gravesend – 6 tph to London and 5 tph to the East
  • Higham – 2 tph
  • Strood – 4 tph
  • Rochester – 7 tph
  • Chatham – 7 tph
  • Gillingham – 7 tph
  • Rainham – 7 tph to London and 5 tph to the East
  • Sittingbourne – 5 tph
  • Faversham – 5 tph

Note.

  1. This is almost a train every ten minutes all the way from London to Faversham.
  2. Between Gravesend and Faversham one tph is a Southeastern HighSpeed service.
  3. In addition Ebbsfleet International has four tph to and from London St. Pancras International.

This can be considered the base service to which Crossrail services can be added.

Service Frequency Of Option 1

The first option provides for an extension of Crossrail from Abbey Wood to Northfleet/Ebbsfleet and Gravesend, sharing the existing tracks with National Rail services.

  • Of the 12 trains per hour (tph) that are planned to run to Abbey Wood. four tph will terminate at each of Abbey Wood, Northfleet/Ebbsfleet and Gravesend.
  • Crossrail trains would call at all stations on the North Kent Line between Abbey Wood and Gravesend stations.

This gives a summary as follows.

  • Deptford – 6 tph
  • Greenwich – 6 tph
  • Maze Hill – 6 tph
  • Westcombe Park – 6 tph
  • Charlton – 8 tph
  • Woolwich Dockyard – 6 tph
  • Woolwich Arsenal – 8 tph
  • Plumstead – 8 tph
  • Abbey Wood – 20 tph
  • Belvedere – 14 tph
  • Erith – 14 tph
  • Slade Green – 14 tph
  • Dartford – 20 tph to London and 14 tph to the East
  • Stone Crossing – 12 tph
  • Greenhithe for Bluewater – 14 tph
  • Swanscombe – 12 tph
  • Northfleet – 12 tph
  • Gravesend – 10 tph to London and 5 tph to the East
  • Higham – 2 tph
  • Strood – 4 tph
  • Rochester – 7 tph
  • Chatham – 7 tph
  • Gillingham – 7 tph
  • Rainham – 7 tph to London and 5 tph to the East
  • Sittingbourne – 5 tph
  • Faversham – 5 tph

Note.

  1. Train frequencies between Abbey Wood and Northfleet have increased by 8 tph
  2. Train frequencies at Gravesend have increased by 4 tph.
  3. Train frequencies to the East of Gravesend are unchanged.
  4. Between Gravesend and Faversham one tph is a Southeastern HighSpeed service.
  5. Crossrail has a direct interchange at Gravesend with the Southeastern HighSpeed services.

I am fairly certain that signalling must be improved and train speeds must be increased for Option 1.

Service Frequency Of Option 2

The second option is to draw out Crossrail from south east London to Dartford using new dedicated tracks built next to the existing North Kent line, with increased rail service frequency between Dartford and Northfleet.

  • All the 12 tph, that currently are planned to run ro Abbey Wood, all will terminate at Dartford station.
  • Crossrail trains would call at all stations on the North Kent Line between Abbey Wood and Dartford stations.
  • I will assume that Southeastern run an extra 4 tph between Dartford and Northfleet.

This gives a summary as follows.

  • Deptford – 6 tph
  • Greenwich – 6 tph
  • Maze Hill – 6 tph
  • Westcombe Park – 6 tph
  • Charlton – 8 tph
  • Woolwich Dockyard – 6 tph
  • Woolwich Arsenal – 8 tph
  • Plumstead – 8 tph
  • Abbey Wood – 20 tph
  • Belvedere – 18 tph
  • Erith – 18 tph
  • Slade Green – 18 tph
  • Dartford – 24 tph to London and 10 tph to the East
  • Stone Crossing – 8 tph
  • Greenhithe for Bluewater – 10 tph
  • Swanscombe – 8 tph
  • Northfleet – 8 tph
  • Gravesend – 6 tph to London and 5 tph to the East
  • Higham – 2 tph
  • Strood – 4 tph
  • Rochester – 7 tph
  • Chatham – 7 tph
  • Gillingham – 7 tph
  • Rainham – 7 tph to London and 5 tph to the East
  • Sittingbourne – 5 tph
  • Faversham – 5 tph

Note.

  1. There is a big increase in services to between Abbey Wood and Dartford.
  2. There is an increase of 4 tph in services between Dartford and Northfleet.
  3. There is no increase in services at Gravesend.
  4. Between Gravesend and Faversham one tph is a Southeastern HighSpeed service.
  5. Crossrail has no direct interchange with the Southeastern HighSpeed services.

I am fairly certain that signalling must be improved and train speeds must be increased for Option 2.

Service Frequency Of Option 3

A third option consists of improving the National Rail service between Abbey Wood and Northfleet, combined with a new Bus Rapid Transit service.

  • It appears Crossrail services would stay the same at Abbey Wood, with all twelve tph terminating at the station, as are currently planned.
  • Southeastern services to Dartford via Abbey Wood would be extended to Northfleet. This would increase the number of Southeastern trains to/from London serving stations between Northfleet and Dartford for connection to Crossrail at Abbey Wood from four to eight tph.

This gives a summary as follows.

  • Deptford – 6 tph
  • Greenwich – 6 tph
  • Maze Hill – 6 tph
  • Westcombe Park – 6 tph
  • Charlton – 8 tph
  • Woolwich Dockyard – 6 tph
  • Woolwich Arsenal – 8 tph
  • Plumstead – 8 tph
  • Abbey Wood – 20 tph
  • Belvedere – 6 tph
  • Erith – 6 tph
  • Slade Green – 6 tph
  • Dartford – 8 tph to London and 10 tph to the East
  • Stone Crossing – 8 tph
  • Greenhithe for Bluewater – 10 tph
  • Swanscombe – 8 tph
  • Northfleet – 8 tph
  • Gravesend – 6 tph to London and 5 tph to the East
  • Higham – 2 tph
  • Strood – 4 tph
  • Rochester – 7 tph
  • Chatham – 7 tph
  • Gillingham – 7 tph
  • Rainham – 7 tph to London and 5 tph to the East
  • Sittingbourne – 5 tph
  • Faversham – 5 tph

Note.

    1. There is a 4 tph increase in services between Abbey Wood and Northfleet.
    2. There is no increase in services at Gravesend.
    3. Between Gravesend and Faversham one tph is a Southeastern HighSpeed service.
    4. Crossrail has no direct interchange with the Southeastern HighSpeed services.

I am fairly certain that signalling must be improved and train speeds must be increased for Option 3.

Conclusion

I have come to several small conclusions about future services on the North Kent Line.

Improved Signalling

To handle the number of trains required, I am fairly certain that modern digital signalling as used on the central sections of Crossrail and Thameslink, should be installed on the route.

Faster Trains

The operating speed of the North Kent Line is 90 mph, which is not a good fit to the operating speed of the trains.

I’m sure that train capacity would be increased if trains could operate at 90 mph or even 100 mph on the route.



Only Option 1 Allows Interchange Between Crossrail And Southeastern HighSpeed Services

Option 1 allows this interchange at Gravesend and it could prove useful, when travelling between North-East Kent and Crossrail stations, including Paddington and Heathrow.

More Services East Of Gravesend

I suspect that there could be extra paths to the East of Gravesend.

These could be either classic or HighSpeed services.

In Kent On The Cusp Of Change – Highspeed Routes, I said this.

The Kent On The Cusp Of Change article in the July 2017 Edition of Modern Railways talks about the Southeastern Highspeed routes through Kent.

Some principles are laid down.

The article gives an estimate that at least another twenty Class 395 trains are needed of which perhaps three would have batteries for operation along the Marshlink Line between Ashford International and Ore stations.

The new timetable proposed in the article is similar to that now, with the following changes in each hour.

  • All Day – A St. Pancras – Ashford – Dover Priory service runs once per hour and splits at Ashford with one six-car train going to and from Hastings and the other six-car train going to and from Dover Priory.
  • Off Peak – A new St. Pancras – Ashford – Canterbury West service runs once per hour.
  • All Day –  A new St. Pancras – Ebbsfleet service runs twice per hour.
  • Off Peak – A new St. Pancras – Gravesend – Strood – Maidstone West service runs once per hour.

In addition all trains passing Thanet Parkway station will stop after it opens.

Note.

  1. Southeastern HighSpeed services will serve Hastings.
  2. Gravesend gets a second Southeastern HighSpeed service to St. Pancras.

I also wrote Kent On The Cusp Of Change – Fawkham Junction Link, which is about a Network Rail proposal to use Victoria as a second terminal for Southeastern HighSpeed services.

Little has been said about using Victoria as a second terminal, but if it was, it could free up space on the North Kent Lines, which would allow more paths for Crossrail.



August 1, 2021 Posted by | Transport/Travel | , , , , , , , , | 2 Comments

It’s Time To Detopsify Stratford Station

Stratford Station has grown like Topsy for too long and has several problems and possible future expansions.

Not least of these include.

  • The final arrival of Crossrail.
  • A direct connection to Chingford.
  • A Stansted Express service.
  • Massive housing developments in the area.
  • More hotels
  • New cultural developments like the branch of the Victoria and Albert Museum.
  • A new campus for University College London.

This article on IanVisits is entitled Stratford Station Set For Massive Transformation.

This is his opening paragraph.

Stratford station could be radically redeveloped under plans being worked on by the rail companies and local council.

That is rather understated!

The station will become several times busier and needs a complete rethink, many more services and deTopsification.

These are my thoughts.

The Development Of The High Meads Loop

The High Meads Loop exists and is a double-track loop that can turn trains arriving at Stratford station via Lea Bridge station.

  • It is underneath the Eastfield Shopping Centre – Westfield is in the West of London.
  • Each track of the loop has its own long platform in the station. – Platform 11 is for clockwise trains and Platform 12 is for anti-clockwise.
  • It has been used in the past for a Stansted Express service.

The Wirral Line in Liverpool like the High Meads Loop is now a modern loop for turning trains.

  • The Wirral Loop is only single-track.
  • It gives connections for over thirty stations on the Wirral and in Cheshire and North Wales to Liverpool City Centre.
  • It is run by fifty-year-old Class 507 and Class 508 trains.
  • The loop has now been improved and can handle upwards of the fourteen trains per hour (tph) it currently does.

Merseyrail will soon be introducing new Class 777 trains on the Wirral Line in the near future and will be increasing services and the number of destinations.

British Rail’s vision for Liverpool, that was cruelly cut-short by Liverpool MP; Harold Wilson, is finally coming to fruition.

Newcastle also got its British Rail tunnel which is now being used by the Metro, but what would have happened in Manchester if British Rail had been allowed to build the Picc-Vic Tunnel?

I have a strong belief, that a Lea Valley Metro can be developed on the West Anglia Main Line.

  • It would have two Southern terminals – Liverpool Street station and the High Meads Loop at Stratford.
  • When it opens, Crossrail will mean that Liverpool Street and Stratford stations will be seven or eight minutes apart with a frequency of at least 12 tph.
  • Northern terminals would include Broxbourne, Cheshunt, Chingford, Enfield Town and Hertford East.
  • Crossrail 2 was planned to have a frequency of 10 and 15 tph between Tottenham Hale and Broxbourne stations.

I believe that if services in East London are thoroughly reorganised, that all the benefits of Crossrail 2 can be brought to East London by the use of the High Meads Loop and the upgrading of existing lines.

Stansted Express Services

Go to Stratford station and there is an out-of-date sign at the end of Platform 1 and 2, where the Overground trains terminate.

It directs passengers to Platform 12 for Stansted Airport.

The picture was taken in 2017, but there is still a walk-through to Platform 12, that I use regularly, if I’m changing between London Overground and Greater Anglia or TfL Rail services to destinations on both the West Anglia or Great Eastern Main Lines.

I believe that there is still a need for a Stansted Express services from Stratford, as for some people, including myself, it is easier to get to Stratford, than Liverpool Street.

From some places the connections to and from Stansted are not very good. Try going between London Bridge, Canterbury, Euston, Victoria or Waterloo and Stansted with a few mobility issues like a heavy suitcase and/or a baby, without a degree in Ducking-and-Diving!

An additional Stansted Express service from Stratford would make things a lot easier to get to the airport for many travellers, because of Stratford’s connections to the Central, Jubilee and North London Lines and SouthEastern’s Highspeed services.

Better Connection Between High Speed One And The High Meads Loop For Passengers

Some passenger connections are missing at Stratford.

This is indicated in the IanVisits article.

This map from cartometro.com shows the Topsy-like nature of the platforms at Stratford.

Note.

  1. The Docklands Light Railway is shown in turquoise.
  2. The DLR platforms in the North-West corner of the map are those of Stratford International station.
  3. High Speed One and the four platforms of Stratford International station are shown in black.
  4. The North London Line of the London Overground is shown in orange.
  5. The North London Line terminates in Platforms 1 and 2, which have a level link to Platform 12.
  6. Platform 12 is on the anti-clockwise platform for the High Meads Loop and has step-free access to the subway system underneath the station.
  7. Platform 11 is on the clockwise platform for the High Meads Loop and has level access to Platform 10a and full step-free access,
  8. Platform 10a is used by some services to East Anglia.
  9. Crossrail is shown in blue.
  10. The Central Line is shown in red.
  11. The Jubilee Line is shown in silver.

It is not the best passenger-friendly station layout.

  • Inevitability, you often find yourself trudging a long way at Stratford station.
  • Changing to or from any high speed services is supremely difficult.
  • Often you have to walk through the busy Eastfield Shopping Centre.

Particularly annoying for me is coming back from Kent on High Speed One and needing to take the North London Line, as I do several times a year.

As it involves a long walk through the Shopping Centre, I now take the easy way out and carry on to St. Pancras and get a taxi home.

As Stratford International is one of the draughtiest stations in England, the station is a real Design Crime and it needs a serious makeover.

Conclusion

Sort it!















May 16, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , , | 11 Comments
