FIRST TO THE FUTURE: Lumo Owner Bids To Turbo-Charge UK Rail With New Routes

The title of this post, is the same as that of this press release from First Group.

These first three paragraphs introduce FirstGroup’s application for the first phase of three separate applications to the Office of Rail and Road (ORR) for new and extended open access rail services.

FirstGroup plc plans to expand its open access rail operations through its successful Lumo business, boosting connectivity, improving UK productivity and passenger choice across the UK.

The expansion aims to replicate the success of Lumo’s Edinburgh to London service in driving material growth on the East Coast Main Line. Lumo operates without government subsidy and contributes more per train mile to infrastructure investment than any other long-distance operator – delivering growth on the railway and connectivity to local communities, at a substantial benefit to the taxpayer.

FirstGroup has submitted the first phase of three separate applications to the Office of Rail and Road (ORR) for new and extended open access rail services, which are described in these bullet points.

  • A revised application to run new services between Rochdale and London Euston via Manchester Victoria from December 2028;
  • An extension to Lumo’s current Stirling to London Euston track access agreement to operate services beyond 2030;
  • A new route between Cardiff and York via Birmingham, Derby, and Sheffield from December 2028; and
  • Purchase of new trains meaning continued investment in UK manufacturing of c.£300 million, and long-term jobs.

This paragraph from the press release describes the philosophy of the rolling stock.

Should these applications be successful, FirstGroup will make use of its option to commit further investment in new Hitachi trains built in County Durham. This investment will include five battery electric trains for the Stirling route and three battery electric trains for Rochdale, supporting jobs at Hitachi’s Newton Aycliffe plant. For the services between Cardiff and York, it will deploy refurbished Class 222s.

Note.

  1. The Class 222 trains will run the Euston and Stirling service until the future Hitachi trains are delivered in 2028.
  2. The Class 222 trains will run the Cardiff and York service from 2028.
  3. The Class 222 trains have a maximum speed of 125 mph
  4. Avanti West Coast’s Class 390 trains have a maximum speed of 125 mph.
  5. Avanti West Coast’s Class 805 trains have a maximum speed of 125 mph on electrification.
  6. Avanti West Coast’s Class 807 trains have a maximum speed of 125 mph.
  7. Grand Central Trains’s future Hitachi trains have a maximum speed of 125 mph.
  8. Hull Trains’s Class 802 trains have a maximum speed of 125 mph.
  9. Lumo’s current Class 803 trains have a maximum speed of 125 mph.
  10. LNER’s current Class 800 and 801 trains have a maximum speed of 125 mph.
  11. LNER’s current InterCity 225 trains have a maximum speed of 125 mph.
  12. LNER’s future Class 897 trains have a maximum speed of 125 mph.
  13. All of the trains, with the exception of the Class 222 trains are electric and have been designed for 140 mph running and can do this if there is appropriate 140 mph signalling.

If the Class 222 trains don’t run on the East and West Coast Main Lines, then these lines could introduce 140 mph running in stages to speed up rail travel between London and the North of England and Scotland.

Rochdale And London

These three paragraphs from the press release describe the proposed Rochdale and London service.

The new Lumo service will operate the first direct service since 2000 between Rochdale and London. Services will call at Manchester Victoria, Eccles, Newton-le-Willows and Warrington Bank Quay. Eccles station connects other parts of the city of Salford, including the fast-growing MediaCity area, via the nearby interchange with Metrolink. Services to Newton-le-Willows will deliver greater rail connectivity for St Helens.

There will be three new return services on weekdays and Sundays, and four return services on Saturdays, which will provide 1.6 million people in the north-west with a convenient and competitively priced direct rail service to London, encouraging people to switch from cars to train as well as providing additional rail capacity. It will also deliver material economic benefits for the communities along the route, including regeneration areas such as Atom Valley and the Liverpool City Region Freeport scheme.

The application has been revised to address the ORR’s concerns about network capacity set out in its letter of July 2025 rejecting FirstGroup’s original application. Supported by extensive modelling, the company has identified sufficient space on the network to accommodate the proposed services. Services will also make use of the Government’s recent investment in power supply for the West Coast Mainline (WCML).

In FirstGroup’s Lumo Seeks To Launch Rochdale – London Open Access Service, I gave my thoughts for Lumo’s application last year.

Differences between the two applications include.

  • The service will be run by Lumo’s standard battery-electric Hitachi trains.
  • The original application was for six return journeys per day, whereas the new application is for three return services on weekdays and Sundays, and four return services on Saturdays.

Note.

  1. The battery-electric trains will be able bridge the 10.4 mile gap between Manchester Victoria and Rochdale, and return after charging on the West Coast Main Line.
  2. The battery-electric trains could be useful during engineering works or other disruptions.
  3. The trains would be ready for 140 mph running on the West Coast Main Line, when the digital signalling is installed.
  4. Is the extra return service on a Saturday to cater for football and rugby fans?

I still feel, that with Lumo’s battery-electric trains one or more services could extend across the Pennines to Hebden Bridge, Bradford Interchange or Leeds. Trains would be recharged for return at Leeds.

Stirling And London

This  paragraph from the press release describes the proposed Stirling and London service.

Stirling has a wide catchment area, with an estimated three million people living within an hour’s drive. Extending the current track access agreement for the Stirling route from May 2030 will support the shift from car to rail, and investment in the city, as well as in the service’s intermediate stations which include Larbert, Greenfaulds and Whifflet, thanks to greater connectivity to London. The four return services weekdays and Saturdays, and three on Sundays, on the new route are expected to start early in the company’s 2027 financial year.

In Lumo To Expand Scotland’s Rail Network With New London-Stirling Rail Route From Spring 2026, I gave my thoughts for Lumo’s application in June 2025.

Differences between the two applications include.

  • The service will only be run initially by Class 222 trains.
  • The service will be run by Lumo’s standard battery-electric Hitachi trains after 2028.
  • The original application was for five return journeys per day, whereas the new application is for four return services on weekdays and Saturdays, and three return services on Sundays.
  • In the original application, Lumo’s new route was to link London Euston directly to Stirling, also calling at Milton Keynes, Nuneaton, Crewe, Preston, Carlisle, Lockerbie, Motherwell, Whifflet (serving Coatbridge), Greenfaulds (serving Cumbernauld) and Larbert.

Note.

  1. The battery-electric trains could be useful during engineering works or other disruptions.
  2. The trains would be ready for 140 mph running on the West Coast Main Line, when the digital signalling is installed.
  3. Is the extra return service on a Saturday to cater for football and rugby fans?

It should be noted that there are always more return services per day going to Stirling, than Rochdale.

Could The Rochdale and Stirling Services Share A Path?

Consider.

  • The two services use the West Coast Main Line South of Warrington Bank Quay station.
  • Pairs of Class 803 trains can split and join.
  • A pair of Class 803 trains are shorter than an 11-car Class 390 train.
  • An 11-car Class 390 train can call in Warrington Bank Quay or Crewe stations.

I believe that the Rochdale and Stiring services could share a path.

  • One Weekday service per day would be a single train.
  • Going South, the trains would join at Warrington Bank Quay or Crewe stations.
  • Going North, the trains would split at Warrington Bank Quay or Crewe stations.
  • The pair of trains would share a platform at Euston station.

Operating like this would increase the connectivity and attractiveness of the services, and probably increase the ridership and profitability.

Cardiff And York  via Birmingham, Derby And Sheffield

These four paragraphs from the press release describe the proposed Cardiff and York service.

Lumo’s new route between Cardiff and York will join up the entire Great British Railway network, connecting all four main lines from the Great Western Main Line to the East Coast Main Line. The plans will also deliver more capacity and drive passenger demand on a previously underserved corridor.

The application proposes six return services each weekday – a significant increase from the current single weekly service.

Bringing Lumo’s popular low-cost model to the corridor will support local communities between Cardiff, Birmingham, Derby, Sheffield, and York. These cities alone have a combined population of more than 2.5 million people. The new services will give local communities access to jobs and services along the route, in support of significant investment that has already been committed by the Government and private sector. This investment includes the Cardiff Capital Regional Investment Zone, the £140million proposed refurbishment at Cardiff Central station, the West Midlands Investment Zone which is expected to create £5.5 billion of growth and 30,000 new jobs, as well as investment plans in Derby, Sheffield and York.

The ORR will now carry out a consultation exercise as well as discuss the applications with Network Rail to secure the required approvals.

Note.

  1. Only minimal details are given of the route.
  2. The TransPennine Upgrade will create a new electrified route across the Pennines between York and Huddersfield via Church Fenton, Leeds and Dewsbury.
  3. The Penistone Line is being upgraded, so that it will handle two trains per hour.
  4. In the 1980s, the Penistone Line took InterCity 125s to Barnsley.
  5. The connection with the Penistone Line at Huddersfield has been upgraded.

I am reasonably certain, that FirstGroup intend to route the York and Cardiff service over this partially electrified route.

Sections of the route will be as follows.

  • Cardiff and Westerleigh junction – 38 miles – Electrified
  • Westerleigh junction and Bromsgrove – 65.2 miles – Not Electrified
  • Bromsgrove and Proof House junction – 15 miles – Electrified
  • Proof House junction and Derby – 40.6 miles – Not Electrified
  • Derby and Sheffield – 36.4 miles – Not Electrified
  • Sheffield and Huddersfield – 36.4 miles – Not Electrified
  • Huddersfield and York – 41.9 miles – Electrified

There are only two sections of track, that is not electrified.

  • Westerleigh junction and Bromsgrove – 65.2 miles
  • Proof House junction and Huddersfield – 113.4 miles

Out of a total of 273.5 miles, I believe in a few years, with a small amount of extra electrification or more powerful batteries, Hitachi’s battery-electric high-speed trains will have this route cracked and the Class 222 trains can be sent elsewhere to develop another route.

October 30, 2025 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , , , , , , , , , | Leave a comment

How Will The East Coast Main Line Timetable Change Affect Sheffield?

This article in the October 2025 Edition of Modern Railways is entitled Industry Gears Up For December ECML Timetable Change.

This is the first paragraph.

Major changes are planned to trains along the East Coast main line from 14 December as the long-heralded timetable takes effect.

In this post, I will see how the changes detailed in the article in Modern Railways will affect Sheffield and Doncaster.

Aberdeen-Edinburgh

This is said about Aberdeen and Edinburgh services.

Monday-Saturday services will not change between Aberdeen and Edinburgh, with all intermediate stations served at similar times.

The LNER service to and from King’s Cross will call additionally at Doncaster, Newark Northgate and Peterborough; the last LNER Monday-Friday departure from Aberdeen will terminate at Doncaster instead of Leeds, and the first LNER Monday-Saturday train to Aberdeen will start from King’s Cross at 05:48 instead of Leeds.

Note.

  1. An hourly fast train between Edinburgh and King’s Cross will have a journey time of 4 hours and 10 minutes, which is a saving of at least 12 minutes.
  2. There is an Aberdeen-Manchester air service, but no Edinburgh-Manchester or Leeds-Scotland air services.
  3. In Could London And Central Scotland Air Passengers Be Persuaded To Use The Trains?, I speculated about how air passengers could be tempted to use the trains between London and Central Scotland.
  4. It looks to me, that LNER are strengthening their services between Doncaster and Scotland.
  5. Will that 05:48 King’s Cross departure for Aberdeen, enable a working day in Aberdeen and return?

Is LNER’s aim to get travellers to use the trains between Doncaster and Scotland, as an alternative to driving or trains from Leeds?

Alnmouth and Berwick

This is said about Alnmouth services.

Quicker LNER journey times are promised to stations South of York, with King’s Cross-Alnmouth journey times up to 15 minutes quicker.

More TPE trains will run between Newcastle, Morpeth, Alnmouth, Berwick, Reston, Dunbar, East Linton and Edinburgh Waverley.

The number of trains calling at Durham on weekdays will fall from 18 to 13 Southbound and from 15 to 10 Northbound.

This is said about Berwick services.

LNER trains will call every two hours during the middle of the day, and the number of weekday trains to King’s Cross falls from 15 to 11 Southbound with a 13 to nine fall Northbound. More TPE trains will call.

Note.

  1. Lumo serves Newcastle, Morpeth and Edinburgh.
  2. Reston and East Linton are new stations.
  3. The stations between Newcastle and Edinburgh need adequate parking to attract commuters.

It looks to me, that LNER are timing the trains to attract day trips along the East Coast Main Line.

Bradford Forster Square/Interchange

This is said about Bradford Forster Square services.

The number of weekday trains will remain as per May 2025, but on Sundays, the number of trains serving Forster Square increases from two to six each way on a two-hourly interval. LNER stopping patterns change, with fewer trains calling at Peterborough and none at Grantham or Retford.

Trains currently stop at Peterborough, Doncaster, Wakefield Westgate, Leeds and Shipley, but surely a more regular six trains per day (tpd) is preferable.



This is said about Bradford Interchange services.

At Interchange, Grand Central Trains will run at different times to the May 2025 timetable, with King’s Cross journeys up to 20 minutes quicker. One GC each way will call at Peterborough, while some will stop at Pontefract Monkhill on Sundays for the first time.

Note.

  1. Trains currently stop at Peterborough, Doncaster, Pontefract Monkhill, Wakefield Kirkgate, Mirfield, Brighouse, Halifax and Low Moor
  2. Is the twenty minutes time saving due to the new digital signalling to the South of Doncaster?
  3. Is this another open access operator being allowed to do what they do best?

This looks to be a very useful service, which serves several stations, with no other service to London.

Doncaster

This is said about Doncaster services.

Additional trains calling at destinations including Birmingham New Street, Sheffield, York, Newark and Berwick-upon-Tweed. LNER Aberdeen/Inverness trains will call at Doncaster. EMR trains will be retimed at Doncaster to provide better connections with LNER’s revised timetables, but journeys from Doncaster to Sleaford and Spalding will require a change at Lincoln. This change has been made to “enable improved connections” at Peterborough, Sleaford, Lincoln and Doncaster. The number of trains calling at Stevenage falls from 24 to 19 Southbound and 24 to 21 Northbound, with Grantham stops dropping by seven trains to 28 Southbound and 4 to 29 Northbound.

If CrossCountry Trains were to switch their trains to Hitachi InterCity Battery trains, I believe that a version of these trains could handle routes like Plymouth and Aberdeen.

  • This would speed up services.
  • Trains would run close together and thus increase capacity.
  • Services could even be faster.

So expect a replacement order for CrossCountry Trains diesel multiple units soon.

Glasgow

LNER gave up serving Glasgow Central from King’s Cross in the December 2024 timetable change.

In Lumo Will Extend Its King’s Cross And Edinburgh Service To Glasgow, I talked about Lumo extending their King’s Cross and Edinburgh service to Glasgow Central station.

Hull

This is said about Hull services.

On Mondays-Fridays, Hull Trains will provide an extra train from London.

The LNER Monday-Friday Hull-Doncaster train will be withdrawn;

Northern will operate a 20:25 departure to Doncaster; calling at Brough and Selby.

Note.

  1. It looks like Great British Railways have surrendered Hull and Beverley to Hull Trains.
  2. Hull Trains are converting their Class 802 trains to battery-electric power.
  3. It is likely that Hull Trains upgraded trains will be able to use the Great Northern and Great Eastern Joint Line via Lincoln on battery power.

The new timetable appears to be ready for the future of Hull Trains.

Leeds

This is said about Leeds services.

LNER services will depart to King’s Cross at xx.10 and xx.40.

Northern will introduce an extra mostly hourly service between  Leeds and Sheffield calling at Wakefield Westgate. They will depart about 30 minutes earlier or later than the CrossCountry service.

Note.

  1. I would expect the two King’s Cross and Leeds services which would both stop at Doncaster and Wakefield Westgate would set the timings between Doncaster and Leeds.
  2. Currently, of the four trains that run to and from Leeds every two hours, two are planned to terminate at Leeds, one at Harrogate and one at Bradford Forster Square.
  3. There is also a daily service between King’s Cross and Skipton via Leeds.
  4. I can envisage another service between  King’s Cross and Ilkley via Leeds, Kirkstall Forge, Guiseley, Burley-in-Wharfedale and Ben Rhydding.
  5. I can envisage another service between King’s Cross and Huddersfield, via Leeds, White Rose, Morley, Batley, Dewsbury, Ravensthorpe, Mirfield and Deighton.
  6. I can envisage another service between King’s Cross and Hebden Bridge, via Leeds, White Rose, Morley, Batley, Dewsbury, Ravensthorpe, Mirfield, Sowerby Bridge, Mytholmroyd and Brighouse.
  7. An alternative to Hebden Bridge would be Rochdale, which already has four platforms and is on the Manchester Metrolink
  8. It appears that Bradford Forster Square, Harrogate, Huddersfield, Leeds and Skipton stations can turn nine or ten-car trains and Ilkley can turn five-car trains.
  9. I also believe that one of Hitachi’s InterCity Battery trains could use battery power to take the spectacular Settle and Carlisle Line to Carlisle or even Glasgow Central.
  10. If needed pairs of five-car trains could split and join at Leeds, with one train waiting at Leeds and the other train going on to another destination.
  11. The CrossCountry and Northern Trains services on the Sheffield and Leeds route via Doncaster and Wakefield Westgate would probably need to be modern battery-electric trains to maximise the capacity on the route.

There certainly seem to be opportunities to give a number of stations in Yorkshire an all-electric service to King’s Cross with a two-hourly frequency, in a time of a few minutes over two hours.

Lincoln

This is said about Lincoln services.

One more LNER train from King’s Cross will run, with the first train arriving earlier and the last train later. There will no longer be an LNER train serving Stevenage with passengers having to change at Newark Northgate or Peterborough. An improved service will run to and from Nottingham, with an increase from one to two trains per hour on Mondays-Saturdays. An hourly service will run to Crewe, and a new Matlock-Nottingham-Lincoln-Cleethorpes service will run. EMR will cease all bar morning peak direct trains to/from Leicester. Newark Northgate-Lincoln trains will be reduced from five to four on Mondays-Fridays, eight to four on Saturdays and ten to eight on Sundays.

Note.

  1. Travellers between Lincoln/Nottingham and the North/Scotland will have two trains per hour to Newark Northgate, where there will be two tph to the North/Scotland.
  2. The hourly Crewe service will give access to Liverpool Manchester and the West Coast Main Line.
  3. Will there still be a Liverpool and Norwich service or will this be replaced by East-West Rail?

There seems to be a big sort out to EMR services.

Newcastle

This is said about Newcastle services.

The number of trains serving King’s Cross increases from 35 to 53 Southbound on weekdays and from 36 to 52 Northbound. One train every hour will run non-stop to York. More TPE trains will run Northbound (see Alnmouth and Berwick), while Northern is retiming services on the Northumberland Line in anticipation of Northumberland Park and Bedlington stations opening in early 2026. A semi-fast hourly service between Newcastle and Middlesbrough will run on Mondays-Saturdays and there will be an hourly stopping service between them.

Note.

  1. There will be a big increase in services between King’s Cross and Newcastle.
  2. Is the aim to persuade travellers to use trains rather than airlines?
  3. LNER also runs one train per day (tpd) between King’s Cross and Middlesbrough.
  4. Grand Central Trains will be running at a frequency of six tpd between King’s Cross and Sunderland via Thirsk, Northallerton, Eaglescliffe, Hartlepool and Seaham.

Hull appears to have been left to Hull Trains and Glasgow to Lumo, and Sunderland appears to be left for Grand Central Trains.

Conclusions

I am coming to some conclusions about services on the East Coast Main Line, with respect to Sheffield.

Doncaster Is A Well-Equipped Station

Doncaster is the nearest station to Sheffield on the East Coast Main Line.

  • Over the last few years, Doncaster station has been improved.
  • It has a subway with a more than adequate number of lifts.
  • The station has nearly 600 parking spaces.
  • There is a taxi rank.
  • There is no Marks & Spencer’s food store, which is important for a coeliac like me.
  • There are thirty bus stands close to Doncaster station.
  • Doncaster station is well-equipped with cafes, a pub and coffee stalls.
  • All trains to Aberdeen, Bradford Forster Square, Bradford Interchange, Edinburgh, Hull, King’s Cross, Leeds, Sheffield and Wakefield seem to stop at the station.
  • There are several local trains per hour.
  • Changing trains is not a strenuous exercise.

Doncaster is one of the UK’s better regional stations.

Doncaster Needs A Connection To The Sheffield Supertram

One of the first things, I do when I arrive in a strange town or city is look for the local public transport network.

In 2019, Sheffield published an ambitious plan for their tram network, which I wrote about in Sheffield Region Transport Plan 2019 – Doncaster Sheffield Airport.

The post contained this map, of Sheffield’s plans for the trams.

Doncaster and Doncaster Sheffield Airport are connected to the current end of the tram-train route at Rotherham Parkgate.

This OpenRailwayMap shows the rail lines between Rotherham Parkgate and Doncaster.

Note.

  1. Doncaster station is in the North-East corner of the map.
  2. Rotherham Central station is in the South-West corner of the map.
  3. The blue arrow in the South-West corner indicates Rotherham Parkgate tram stop.
  4. Swinton, Mexborough and Conisbrough stations can be picked out.
  5. The dotted red line running North-South across the map is the route of the ill-fated Eastern Leg of High Speed Two.

It is a simple application of tram-train technology to connect Doncaster station and Doncaster Sheffield Airport to the Sheffield Supertram.

With all the comings and goings on the East Coast Main Line at Doncaster station, I believe that the tram-train connection to Sheffield and Rotherham is essential.

The Cities Of Bradford, Doncaster, Leeds, Sheffield and Wakefield Can Have a High-Frequency Rail Connection

Consider.

  • Four stations are all step-free with a bridge or subway served by lifts.
  • Bradford Forster Square station has level access to the platforms from the street.
  • The rail lines between the five stations are electrified, with the exception of Sheffield and Doncaster.
  • Services between the cities are run by CrossCountry Trains, Grand Central Trains, Hull Trains, LNER and Northern Trains.
  • Most maximum speeds are not unduly slow.

Consequently the five cities can have a high-frequency rail connection in excess of four tph.

Could this be the basis of a Five-Cities Metro?

Open Access Services

There are six open access services running on the East Coast Main Line.

  • Grand Central Trains – King’s Cross-Bradford Interchange via Peterborough, Doncaster, Pontefract Monkhill, Wakefield Kirkgate, Mirfield, Brighouse, Halifax and Low Moor – 4 tpd
  • Grand Central Trains – King’s Cross-Sunderland via Peterborough, York, Thirsk, Northallerton, Eaglescliffe and Hartlepool – 6 tpd
  • Hull Trains – King’s Cross-Hull via Stevenage, Grantham, Retford, Doncaster, Selby, Howden, Brough – 4 tpd
  • Hull Trains – King’s Cross-Beverley via Stevenage, Grantham, Retford, Doncaster, Selby, Howden, Brough, Hull and Cottingham  – 2 tpd
  • Lumo – King’s Cross-Edinbugh via Stevenage, Newcastle and Morpeth – 5 tpd
  • Lumo – King’s Cross-Glasgow Queen Street via Stevenage, Newcastle, Morpeth, Edinburgh and Falkirk High – 2 tpd

Note.

  1. tpd is trains per day.
  2. All seem to serve an exclusive area, except Lumo.
  3. In a couple of years, all could be using Hitachi trains.
  4. I suspect some services will swap their diesel generators for batteries.

Battery-power would allow some services to be zero-carbon, even when using the GNGE diversion.









September 22, 2025 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , , , , , , , , , , , , | Leave a comment

Hebden Bridge Station

Hebden Bridge Station is Grade II Listed and is a busy station in West Yorkshire on the Calder Valley Line.

The service through the station is being improved.

The Wikipedia entry for the station has a section called Future Improvements. This is said.

The station will see a variety of improvements to facilities and train services from March 2017 onwards, as part of an investment package for the Calder Valley line as a whole. New lifts are finally to be installed to make both platforms fully accessible, whilst track and signalling upgrades will help reduce journey times in both directions and allow more trains to run to/from Bradford. This will result in the closure of the listed signal box here by October 2018, with control passing over to the Rail Operating Centre at York. New rolling stock and timetable improvements will then follow, with regular through trains to Liverpool Lime Street, Manchester Airport and Chester by late 2019.

Note the parcel lifts in the pictures, which will be converted for passenger use.

Turnback Facility

The pictures also show the turnback facility at the station, which allows trains to arrive from the West in the Westbound platform and then changeover to the Eastbound platform to go back to Manchester or Preston or perhaps other destinations in the future.

Electrification

When I first saw this Victorian station, I came to the conclusion, that it would be difficult to electrify in a sympathetic manner with 25 KVAC overhead wires, without upsetting English Heritage.

Now the Government has decided that there will only be selective electrification, I suspect Network Rail will file Hebden Bridge station in the tray marked Too Difficult.

But I also think that the station could be electrified using innovative methods to improve the passenger service in terms of frequency and times.

Consider.

  • Modern bi-mode trains can switch between power sources automatically.
  • Modern electric trains can raise and lower the pantograph quickly and automatically.
  • Most modern electric trains made for the UK, can be fitted with third-rail contact shoes.
  • To the West of the station, there are a succession of tunnels, that might be possible to electrify using overhead rails.
  • Zero-carbon power sources for short lengths of electrification exist, as I wrote about in Solar Power Could Make Up “Significant Share” Of Railway’s Energy Demand.
  • Although solar power might not be appropriate here, short lengths of third-rail electrification may be suitable.
  • The turnback facility could also be electrified with third-rail to charge trains fitted with batteries.

Somewhere in my ramblings, I’m sure a solution exists to make Hebden Bridge an environmentally-friendly power station in the heart of the Pennines.

The Ordsall Effects

There is now a large brown steel elephant in the North, in the shape of the Ordsall Chord in Manchester, that connects most of Central Manchester’s stations together and to the Airport.

  • Hebden Bridge is between thirty and forty-five minutes from Manchester Victoria station, depending on if you get a  semi-fast or stopping train.
  • Northern have plans to extend these Manchester Victoria to Leeds services all the way to the Airport.
  • In fact from Monday, some of these services now terminate at Manchester Oxford Road station.
  • When I mentioned to the lady in the cafe, that services would go to Manchester Airport within months, she was surprised and very pleased.

I suspect that Hebden Bridge will be one of the tourism centres of the North that will substantially benefit from a direct link to Manchester Airport created by the Ordsall Chord.

But this could only be the start.

To maximise the benefits of the Ordsall Chord, Northern and Network Rail will want to connect services that go North and South of Manchester, back-to-back across the City.

Northern have already said, that they’ll be trains going from Hebden Bridge to Chester and Liverpool by late 2019.

But I suspect these two cities won’t be the only ones getting a quality service from Hebden Bridge.

If the service ran directly over the Ordsall Chord, then historic Buxton and well-connected Crewe must be possibilities.

That turnback facility is starting to look important, as not all services will be needed to cross the Pennines.

Westwards To Preston, Blackpool and Liverpool

Currently, the only Westbound service is an hourly train to Preston and Blackpool North.

It is not enough.

The proposed Liverpool service from Hebden Bridge, that starts in late 2019, can either go via Manchester or Preston.

If it were to be the latter, a second fast train every hour, connecting Burnley, Blackburn and Preston would certainly be welcomed on what can be a very overcrowded line.

As all Calder Valley Line services stop at Hebden Bridge, the Ordsall Chord and Northern’s plans seem to be giving the town, a more than worthwhile economic boost.

December 12, 2017 Posted by | Transport/Travel | , , , | Leave a comment

A Double Crossing Of The Ordsall Chord

I caught the first morning train from Manchester Victoria station across the Ordsall Chord to Manchester Oxford station, where after buying hot chocolate, I took the same diesel multiple unit back to Hebden Bridge station.

A few points about the Ordsall Cord and its effects.

Mancunians Have Been Quick To Use The Chord To Their Advantage

It was only the second weekday of this Ordsall Chord service, but what surprised me was that quite a few of the early travellers went to the extra two added stations on the service.

This bodes well for the future in that when Piccadilly and the Airport are added, the passengers will surely travel.

Manchester Victoria Is An Inadequate Station For The Number Of Passengers

The station may have improved in recent years, since the new roof, better tram access and more retail facilities have been added, but it is still a rather poor station for passengers to walk around, compared to others with similar amounts of trains.

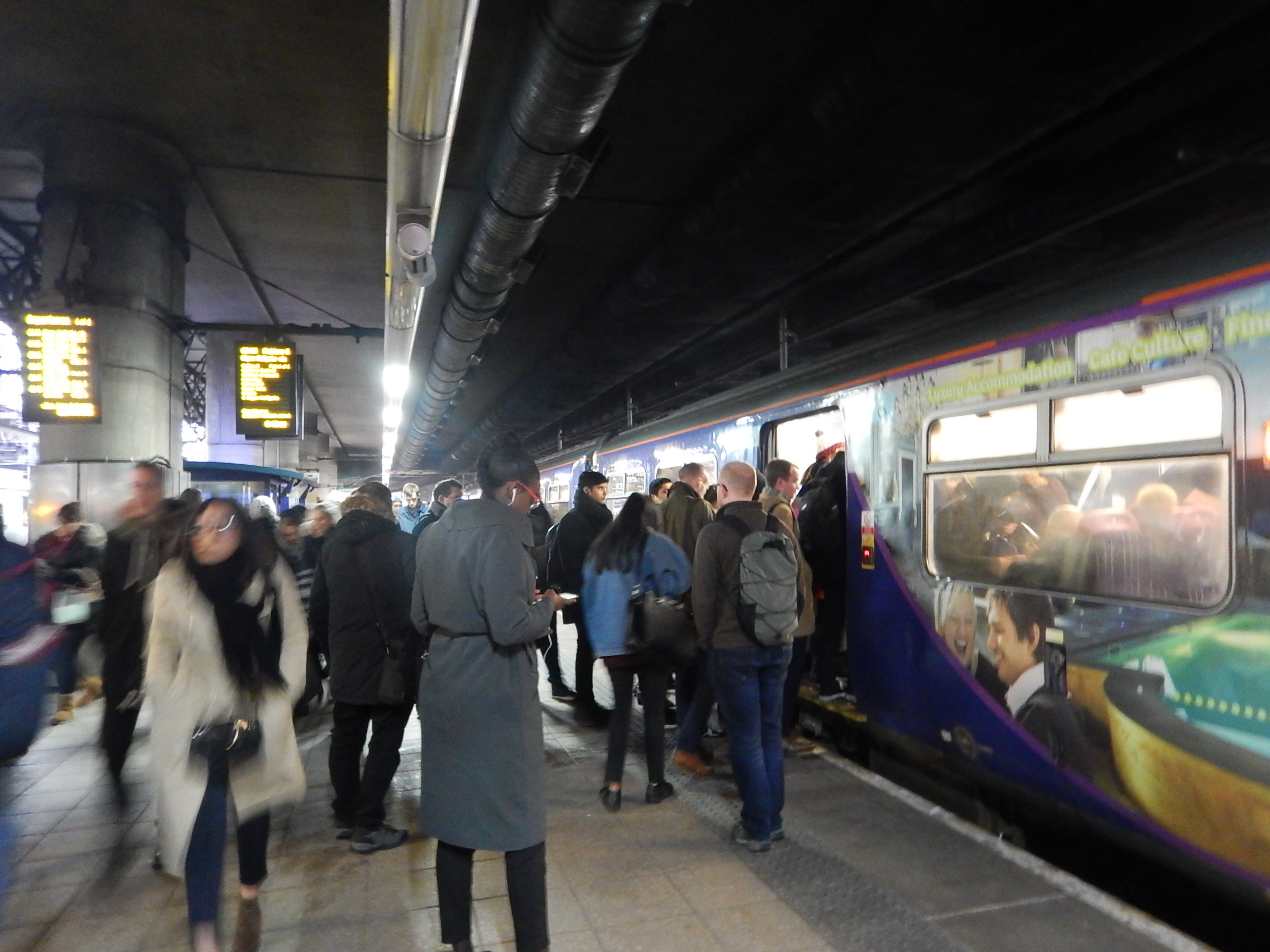

I took this picture as the train before mine unloaded passengers at Victoria station.

It is the typical scrum that you get at busy stations in the North.

The Ordsall Chord will affect Victoria in the following ways.

  • There will be more trains passing through. This will increase the number of passengers entering and leaving the station.
  • Passengers will change trains but not platforms at Victoria. This will mean that passengers will regularly wait for 15-30 minutes on the platform.
  • Ideally services like Liverpool to Leeds and Newcastle, should have same or cross platform interchange with local services using the Ordsall Chord.

So what needs to be addressed?

Platforms

The Ordsall Chord is currently served by Plstforms 5 and 6.

These platforms are totally inadequate for the extra numbers of passengers and especially the extra passengers, who will wait on the platform, whilst changing trains.

  • A coffee kiosk is needed on both Ordsall platforms.
  • The platforms are not wide enough.
  • There are not enough seats.

Both platforms are used to terminate services, which is totally against the philosophy of the Ordsall Chord. This must and hopefully will stop.

Ideally, Ordsall Chord services and important cross-Manchester services should have a platform layout, that means as many changes as possible are level.

Take the case of the elderly passenger with their presents in a bulky case going from say Liverpool to perhaps Rochdale for Christmas. They will not want to negotiate the bridge at Victoria, even by lift to change trains. And neither will staff.

But a cross or same platform interchange would be ideal for everyone.

The layout would all depend on how many services are going through the station..

Currently, the station has the following services.

  • Five tph terminating at the station going West
  • Six tph terminating at the station going East
  • Three tph cross-Manchester services stopping at the station.

If these services could be simplified by joining East and West services back-to-back, we are looking at perhaps ten tph.

As there are many stations in London that handle fourteen to sixteen tph on two platforms, the following would surely be possible.

  • Use one platform for all Westbound cross-Manchester and Ordsall Chord services.
  • Use one platform for all Eastbound cross-Manchester and Ordsall Chord services.

Platform 5 and 6 would not be ideal for this, as the services should be on either side of a wide island platform, to allow passengers to reverse direction without changing level.

Lighting

I know it was early in the morning, but the picture shows how dark and dingy the station still is. Surely, just on the grounds of Health and Safety, the lighting levels must be improved.

The Overbridge

Surely, if the rebuilt Reading and Leeds stations can have escalators for their overbridges, then the equally important. but smaller Manchester Victoria, should have some on the busy overbridge.

The Interchange Between Tram And Train At Deansgate

Did people get off the train at Deansgate station to use the Metrolink?

Changing from train to tram at Victoria, involves a fight through crowds to get up the stairs to the bridge and then another another set of stairs to get to the Metrolink.

But at Deansgate station coming from Victoria, it is just a level walk across to the major Deansgate-Castlefield Metrolink interchange.

It would appear that 2015 redevelopment of the tram stop and its link to the station were designed for the extra passengers, that the Ordsall Chord will surely bring.

Deansgate-Castlefield with its three platforms, also has a comprehensive list of services.

  • 5 trams per hour to Altrincham
  • 5 trams per hour to Ashton-under-Lyne
  • 5 trams per hour to East Didsbury
  • 5 trams per hour to Eccles via MediaCityUK
  • 5 trams per hour to Etihad Campus
  • 5 trams per hour to Manchester Airport
  • 5 trams per hour to Rochdale Town Centre
 And these are just the Off Peak, before the important Trafford Park Line opens in 2021.

Avoiding Piccadilly

Manchester Piccadilly station is one of my least favourite stations in the UK for using the trains.

  • I always travel to and from Manchester in Standard Class, to avoid the crowded walk up and down the platform at Piccadilly.
  • I know there’s a bridge at the London end of the train, but it is not directly connected to the Metrolink underneath.
  • Buying a ticket for the Metrolink is a tiresome business, when I should just be able to touch in and out with my bank card.
  • The forecourt of the station is always crowded.
  • Only the above average food offerings for a coeliac give me any cheer.

Hopefully, when the services across the Ordsall Chord are fully developed, a lot of places I want to go will be available by changing trains at Crewe or Stockport.

Manchester’s Third City Crossing

In some ways the nearest London has to the Ordsall Chord is the railway across the South Bank connecting London Bridge, Blackfriars, Waterloo East and Charing Cross stations, which carries in excess of twelve tph. It appears to me and staff I have talked to, that passengers are using this route  between Westminster and London Bridge, instead of the Jubilee Line. Especially, if they have bicycles!

Will Mancunians use the frequent service on the Ordsall Chord across the city, as a Third City Crossing?

Platforms At Salford Central Station

I hope the planned extra platforms at Salford Central station are built in the near future, as this would surely increase the use of the Ordsall Chord

Tickets To Manchester Stations

My ticket to Manchester from Euston was to Manchester Stns, which means i can get out at Deansgate, Oxford Road, Piccadilly or Victoria.

Surely, it should include Salford Central station.

Platforms At

There’s Still A Few Snags

In my trip, I went across the Orsall Chord four times.

Each time, the train waited a minute or so before proceeding over the bridge. Were there signalling issues, the trains were not quite to time or were the drivers just being cautious.

Conclusion

Now that the difficult phase is complete, it will be interesting to see how the swervices build up.

December 12, 2017 Posted by | Transport/Travel | , , , | 2 Comments
