Could We See Between London And Much Of The North By Train In Under Two Hours?

I shall write about each route in order starting from Euston and working East.

Avanti West Coast And Euston

These are services from Euston, that I feel could be under two hours.

London Euston And Liverpool Lime Street

On Thursday, I went to Liverpool by train.

  • My train took two hours and thirteen minutes between London Euston and Liverpool Lime Street stations.
  • There were stops at Stafford, Crewe and Runcorn.
  • The Class 390 train was travelling at 125 mph for a lot of the way.
  • The distance between the two terminals is 193.6 miles.
  • The start to stop average including the stops was 87.3 mph.

So could London Euston and Liverpool Lime Street be achieved in the magic two hours?

A few thoughts.

Average Speed

To do the journey in this time  would need an average speed of 96.8 mph.

Accelerating And Stopping

Ideally, the train will run as fast as it can only changing speed for the station stops.

  • The train will accelerate from stop to cruising speed at Euston, Stafford, Crewe and Runcorn or four times.
  • The train will decelerate from cruising speed to stop at Stafford, Crewe, Runcorn and Liverpool Lime Street or four times.

Effectively, the train goes through four complete station stops, although one will be split between the two ends of the journey.

These figures are from Wikipedia and the Internet

  • The acceleration of the Class 390 train is 1.0 mph/sec which means that it takes 125 seconds to get to 125 mph.
  • The deceleration of a Class 390 train is 2.0 mph/sec, which means that it takes 63 seconds to stop from 125 mph.
  • The acceleration of a Class 801 train is 1.6 mph/sec which means that it takes 78 seconds to get to 125 mph.
  • The deceleration of a Class 801 train is 2.2 mph/sec, which means that it takes 57 seconds to stop from 125 mph.

These figures would appear to show, that a Class 801 train can decelerate and accelerate at a stop in nearly a minute faster than a Class 390 train.

So how can we increase the acceleration and deceleration? The two obvious ways are more power and less weight.

Form the Internet, I estimate that the average car in a Class 390 train is around 52 tonnes, as opposed to 41 tonnes for the Hitachi trains.

So does this weight difference explain some of the difference in acceleration and deceleration times?

Consider.

  • The Class 390 trains have all the extra weight of the tilt mechanism. More weight means slower acceleration.
  • Avanti West Coast’s new Class 807 trains have no diesel engines or batteries. Have the trains been put on a diet?
  • They also have a reprofiled nose. Is it more aerodynamic?

So if these trains can save time on the four accelerate/decelerate cycles compared to the Class 390 trains, they must be getting nearer to the magic two hours.

If two minutes a stop can be saved that would save eight minutes on the journey between London Euston and Liverpool Lime Street.

140 Mph Running

The time to do a mile at various speeds are as follows.

  • 100 mph – 36 seconds
  • 125 mph – 29 seconds
  • 140 mph – 26 seconds

So running at 140 mph, as opposed to the current 125 mph would save three seconds for every mile.

To save five minutes would mean the train would have to run for a hundred miles at 140 mph instead of 125 mph.

As Stafford is 133.5 miles from London, it could be that full digital signalling should be installed on the West Coast Main Line all the way to Stafford or even Crewe, which is 158 miles from London.

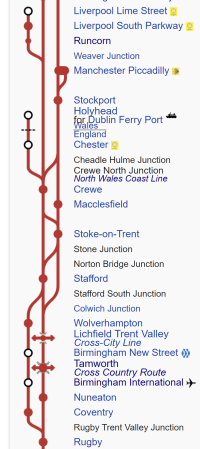

This schematic map of the West Coast Main Line was clipped from Wikipedia.

Note.

  1. Trains between London Euston and Liverpool Lime Street take the Trent Valley Line through Nuneaton and Lichfield Trent Valley and stop at Stafford, Crewe and Runcorn.
  2. Trains between London Euston and Manchester take a variety of routes and all go via Stockport.
  3. One train per hour (tph) between London Euston and Glasgow Central takes the Trent Valley Line and goes non-stop between London Euston and Warrington Central.
  4. Norton Bridge Junction just to the North of Stafford has recently been remodelled.

I believe there is potential to enable up to at least a hundred miles of 140 mph running to the South of Crewe. Especially as most of the track South of Crewe is quadruple track.

This should enable the shaving of five or more minutes off the time of any train capable of 140 mph running that uses the Trent Valley Line through Nuneaton, Lichfield Trent Valley and Stafford.

Norton Bridge Junction

Norton Bridge junction, which is five miles North  used to be a bottleneck, but it has now been remodelled.

I wrote about it in The New Norton Bridge Junction In Action.

The new junction has probably been designed so that it can save a few seconds for trains going between Stafford and Crewe, whether or not they stop at either or both stations.

Non-Stop Between London Euston and Runcorn

If you look at the times of a London Euston and Glasgow Central train via the Trent Valley Line , it travels the 174.7 miles between London Euston and Weaver Junction non-stop in one hour and forty minutes. This is an average speed of 104.8 mph.

By comparison, my train on Thursday took one hour and forty-seven minutes with the two stops at Stafford and Crewe.

So there is at least six minutes to be saved by going non-stop.



Two Trains Per Hour Between London Euston And Liverpool Lime Street

Wikipedia says this about an additional service.

Subject to approval by the Office of Rail and Road, an additional hourly service will be introduced between London Euston and Liverpool Lime Street with a stop at Liverpool South Parkway from December 2022.

I have a few thoughts and questions on extra services between London Euston and Liverpool Lime Street,

  • In my view the second service is much needed.
  • I also think, that a later train back to London is needed.
  • Does the Wikipedia statement mean that only one train will stop at Liverpool South Parkway?
  • Does Runcorn need two tph to and from London?
  • Would the platforms at Liverpool South Parkway be lengthened to accept eleven-car Class 390 trains?

I feel that if a train stopped at both Liverpool South Parkway and Runcorn, this would make a two-hour journey more difficult to achieve.

London Euston And Liverpool Lime Street In Two Hours

The new Class 807 trains will be delivered by 2022. Because of the pandemic, I’ll assume that of the ten trains on order, some, but not all, will be available by the December 2022 timetable change.

The time savings needed for a two-hour journey will come from four improvements.

  1. The increased performance of the Class 807 trains.
  2. Full digital signalling South of Crewe.
  3. The track improvements already completed like Norton Bridge Junction.
  4. Cutting out stop on the second service.

There may also be time savings to be obtained at the intermediate stops, by better working practices.

I doubt that the full digital signalling will have been installed, but all trains will be capable of 125 mph running.

Avanti West Coast probably have a good idea of the time they could achieve without digital signalling and I feel that they could be about five minutes over two hours with the Class 807 trains.

As the eleven-car Class 390 trains are too long for Liverpool South Parkway station, could we see the following service?

  • 1 tph – Class 390 train – London Euston And Liverpool Lime Street via Runcorn, Crewe and Stafford.
  • 1 tph – Class 807 train – London Euston And Liverpool Lime Street via Liverpool South Parkway.

Note.

  1. The Class 390 train would run the existing timetable in two hours and thirteen minutes.
  2. The Class 807 train would be a two-hour express service if possible.
  3. Going from three stops to one could save the express at least seven minutes, as I showed earlier by looking at train timings South of Weaver Junction.
  4. There would be time savings of at least two minutes on the express service due to the better performance of the Class 807 train.

To save the final four minutes, there would need to be at least eighty miles of 140 mph running, as each mile saves three seconds.

I am fairly certain, that London Euston and Liverpool Lime Street can be regularly achieved in two hours.

London Euston And Warrington Bank Quay

The hourly London Euston and Glasgow Central expresses seem to take one hour and forty-five minutes for the non-stop trip of 182.1 miles, which is an average speed of 104 mph.

As this service is non-stop, I believe that this service would get the maximum benefit from digital signalling and this service will only get faster, as more and more of the route allowed 140 mph-running.

I wouldn’t be surprised to see almost ten minutes lopped off this service by signalling and other improvements.

I am fairly certain, that London Euston and Warrington Bank Quay can be regularly achieved in well under two hours, by a Class 390 train.

London Euston And Wigan North Western

The hourly London Euston and Glasgow Central expresses seem to take one hour and fifty-six minutes for the single-stop trip of 193.9 miles, which is an average speed of 100.3 mph.

As this service just a single stop at Warrington Bank Quay, I believe that this service would get the maximum benefit from digital signalling and this service will only get faster, as more and more of the route allowed 140 mph-running.

As with Warrington Bank Quay, I wouldn’t be surprised to see almost ten minutes lopped off this service by signalling and other improvements.

I am fairly certain, that London Euston and Wigan North Western can be regularly achieved in comfortably under two hours, by a Class 390 train.

London Euston And Preston

The hourly London Euston and Glasgow Central expresses seem to take two hours and eleven minutes for the two -stop trip of 209 miles, which is an average speed of 95.7 mph.

As this service just stops at Warrington Bank Quay and Wigan North Western, I believe that this service would get the maximum benefit from digital signalling and this service will only get faster, as more and more of the route allowed 140 mph-running.

As with Warrington Bank Quay and Wigan North Western, I wouldn’t be surprised to see almost ten minutes lopped off this service by signalling and other improvements.

I am fairly certain, that London Euston and Preston can be regularly achieved in just under two hours, by a Class 390 train.

London Euston And Blackpool North

Avanti West Coast have indicated that their new Class 807 trains will run between London Euston and Blackpool North.

Consider.

  • I am fairly certain that a Class 390 train will be able to run between London Euston and Preston in under two hours, once digital signalling is installed South of Crewe.
  • Currently, Class 390 trains take twenty minutes between Preston and Blackpool North stations.
  • The Class 807 trains have better acceleration and deceleration and should be able to execute faster stops than the Class 390 trains.

I wonder if Avanti West Coast, Hitachi, Network Rail and Rock Rail have thought up a cunning plan to run Class 807  trains between  London Euston And Blackpool North, in under two hours.

Trains would go via the Trent Valley.

Trains might only stop at perhaps Milton Keynes Central, Warrington Bank Quay, Wigan North Western and Preston.

Trains would run at up to 140 mph using digital signalling, in as many places as possible.

Is the performance of the Class 807 trains sufficient to achieve London Euston and Blackpool North in under two hours via the Trent Valley?

London Euston And Manchester Piccadilly via Wilmslow

Consider.

  • Most trains between London Euston and Manchester Piccadilly via Wilmslow seem to take around six or seven minutes over two hours.
  • I believe that if the 158 miles between London Euston and Crewe were to be digitally signalled, then this could save up to eight minutes by allowing trains to run at 140 mph rather than the current 125 mph.

This could be enough to bring the London Euston and Manchester Piccadilly via Wilmslow below two hours.

I am not surprised at this, as the trains were built for 140 mph and because there is no digital signalling, they are limited to 125 mph, which slows the trains by six or seven minutes.

London Euston And Manchester Piccadilly via Stoke-on-Trent

Everything I said about trains between London Euston and Manchester Piccadilly via Wilmslow probably apply, except that the services via Stoke-on-Trent are a few minutes slower.

But I do feel, that this could be enough to bring the London Euston and Manchester Piccadilly via Stoke-on-Trent below two hours.

East Midlands Railway And St. Pancras

These is only one service from St. Pancras, that is not comfortably under two hours.

London St. Pancras And Sheffield

A typical service between London St. Pancras And Sheffield takes a few minutes over two hours..

  • There are two tph
  • There are stops at Leicester, Loughborough, East Midlands Parkway, Long Eaton, Derby or Chesterfield depending on the service.
  • The Class 222 trains travel at 125 mph for most of the way.
  • The distance between the two terminals is 164.7 miles.
  • The start to stop average including the stops is 81 mph.

I would suspect that East Midlands Railway’s new bi-mode Class 810 trains will be able to easily break the two-hour barrier.

  • They have four diesel engines so they can cruise at 125 mph on diesel.
  • They have electric power for South of Market Harborough.
  • Some diesel engines will be changed for batteries.

As electrification increases on the Midland Main Line, these trains will use less and less diesel.

I also suspect that digital signalling will start to creep into the route, starting from Bedford, where it is used on Thameslink.

LNER And King’s Cross

These are services from King’s Cross, that are or I feel will be under two hours.

London King’s Cross And Doncaster

A typical service between London King’s Cross And Doncaster takes around one hour and thirty-seven minutes.

  • There are four tph
  • There are stops at Stevenage, Peterborough, Grantham, Newark and Retford depending on the service.
  • The Class 80x trains travel at 125 mph for most of the way.
  • The distance between the two stations is 156 miles.
  • The start to stop average including the stops is 96.5 mph.

Digital signaling is being installed on this section of the East Coast Main Line and I suspect that this will reduce timings between London King’s Cross And Doncaster.

A simple estimate based on the maximum operating speed, indicates a time of one hour and twenty-six minutes should be possible.

But as a Control Engineer, I believe that digital signalling will lead to faster running over the Digswell Viaduct and through the flat crossing at Newark.

The timing will certainly be under one hour and thirty minutes between London King’s Cross And Doncaster.

London King’s Cross And York

A typical service between London King’s Cross And York takes around one hour and forty-eight minutes.

  • There are two tph
  • There are stops at Stevenage, Peterborough, Grantham, Newark, Retford and Doncaster depending on the service.
  • The Class 80x trains travel at 125 mph for most of the way.
  • The distance between the two stations is 188.5 miles.
  • A non-stop service takes one hour and fifty-two minutes, which is a start to stop average including the stops is 101 mph.

If my crude estimate of time savings because of digital signalling South of Doncaster can be applied, this would imply a reduction in journey time of at least eleven minutes.

London King’s Cross And Leeds

A typical service between London King’s Cross And Leeds takes around two hours and thirteen minutes.

  • There are three tph
  • There are stops at Stevenage, Peterborough, Grantham, Newark, Doncaster and Wakefield Westgate depending on the service.
  • The Class 80x trains travel at 125 mph for most of the way.
  • The distance between the two terminals is 185.9 miles.
  • This is a start to stop average including the stops is 83.9 mph.

If my crude estimate of time savings because of digital signalling South of Doncaster can be applied, this would imply a reduction in journey time of at least eleven minutes, which would put a time between London King’s Cross and Leeds of around two hours.

London King’s Cross And Bradford Forster Square

LNER run some services on this route

  • The services take thirty minutes between Leeds and Bradford Forster Square stations.
  • The services do not reverse at Leeds.

Given that two hours should be possible between London Kings Cross and Leeds, it would appear that two hours and thirty minutes should be possible between Leeds and Bradford Forster Square stations.

London King’s Cross And Bradford Interchange

Grand Central run some services on this route

  • The services call at Doncaster, Wakefield Kirkgate, Mirfield, Brighouse and Low Moor
  • The services take two hours and fifty-four minutes between London King’s Cross and Bradford Interchange stations.
  • The services take one hour and seventeen minutes between Doncaster and Bradford Interchange stations.

The services are run by Class 180 diesel trains, which will have to be replaced to decarbonise the route.

I suspect that Hitachi will have a train for this route, that could use diesel or batteries to the North of Doncaster.

  • My estimate for the best time between King’s Cross and Doncaster is one hour and twenty-six minutes.
  • The current time between Doncaster and Bradford Interchange stations is one hour and seventeen minutes.

This gives a best time of perhaps two hours and forty-three minutes between Doncaster and Bradford Interchange stations.

The route to Bradford via Leeds is perhaps fifteen minutes faster, but it serves different stations.

London King’s Cross And Harrogate

LNER has been running to Harrogate for some time.

  • There is one train per two hours (tp2h)
  • The service calls at Stevenage, Grantham, Doncaster, Wakefield Westgate and Leeds.
  • some services reverse at Leeds.
  • The service takes two hours and fifty-five minutes between London King’s Cross and Harrogate stations.
  • The service takes thirty minutes between Leeds and Harrogate stations.

Given that two hours should be possible between London Kings Cross and Leeds, it would appear that two hours and thirty minutes could be possible between London King’s Cross and Harrogate stations.

London King’s Cross And Huddersfield

In LNER Expands To Huddersfield, I described LNER’s new service to Huddersfield.

  • There will be one train per day (tpd)
  • The service will call at Peterborough, Newark North Gate, Doncaster, Wakefield Westgate, Leeds and Dewsbury.
  • The service will split and join with the London King’s Cross and Skipton service at Leeds.
  • The service will reverse at Leeds.
  • The service take two hours and fifty-five minutes between London King’s Cross and Huddersfield stations.
  • The service will take twenty-five minutes between Leeds and Huddersfield stations.
  • Improvements are planned, which include electrification, between Dewsbury and Huddersfield

Given that two hours should be possible between London Kings Cross and Leeds, it would appear that two hours and thirty minutes could be possible between London King’s Cross and Huddersfield stations.

London King’s Cross And Hull

The fastest Hull Trains service between London King’s Cross And Hull takes around two hours and thirty minutes.

  • There are seven tpd
  • There are stops at Stevenage, Grantham, Retford, Doncaster, Selby, Howden and Brough depending on the service.
  • The Class 80x trains travel at 125 mph for most of the way.
  • The distance between the two terminals is 205.3 miles.
  • This is a start to stop average including the stops is 82.1 mph.

If my crude estimate of time savings because of digital signalling South of Doncaster can be applied, this would imply a reduction in journey time of at least eleven minutes, which would put a time between London King’s Cross and Hull of around two hours and twenty minutes.

London King’s Cross And Middlesbrough

LNER have announced a Middlesbrough service, which I wrote about in LNER’s Middlesbrough And London Service. Starts On December 13th.

  • There will be one tpd in both directions
  • Intermediate stops will be at Thornaby and York.
  • The Middlesbrough and London service will leave Middlesbrough from Platform 1 at 07:08 and arrive in King’s Cross at 10:22.
  • The London and Middlesbrough service will leave King’s Cross at 15:25 and arrive in Middlesbrough in Platform 2 at 18:18.

There appear to be some curiosities in the timetabling of these trains, which I may explore later.

I would assume that is because LNER want a competitive time of three hours between King’s Cross and Middlesbrough.

These are Southbound times between Eaglescliffe and King’s Cross in the morning.

  • Grand Central –  Two hours and thirty-nine minutes
  • LNER – Three hours and two minutes

Is this because the Class 180 train is a genuine 125 mph train on diesel and the Class 800 train is not?

If my crude estimate of time savings because of digital signalling South of Doncaster can be applied, this would imply a reduction in journey time of at least eleven minutes, which would put a time between London King’s Cross and Middlesbrough of around three hours.

Conclusion

Of the cities and towns in the North, that I have discussed only Bradford, Harrogate, Huddersfield, Hull and Middlesbrough, are ones that will be difficult to be provided with a two-hour journey time to and from London. But all should be possible in close to or under two hours and thirty minutes.





October 17, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , , , , | 7 Comments

A Trip To Corby

I took these pictures on a trip to Corby this morning.

These are my thoughts.

Trains To And From Corby

I got a Class 222 train to Corby and an eight-car Class 360 train back.

Brent Cross West Station

There was a lot of constructruction activity at the new Brent Cross West station.

Luton Airport Parkway Station

The extensions to Luton Airport Parkway station look to be comprehensive, with several escalators.

The Luton DART connection to Luton Airport appears to be under test, so should open in 2022.

But will there be any air passengers to use it?

I last used it in 2008, when I went to see England play in Belarus.

Electrification North Of Bedford

The electrification North of Bedford station is obviously complete on the slow lines, but on the fast lines, as the pictures show, the gantries are all erected, but there are still wires to be installed.

But as the Class 810 trains won’t be in service until 2023, there’s still a bit of time.

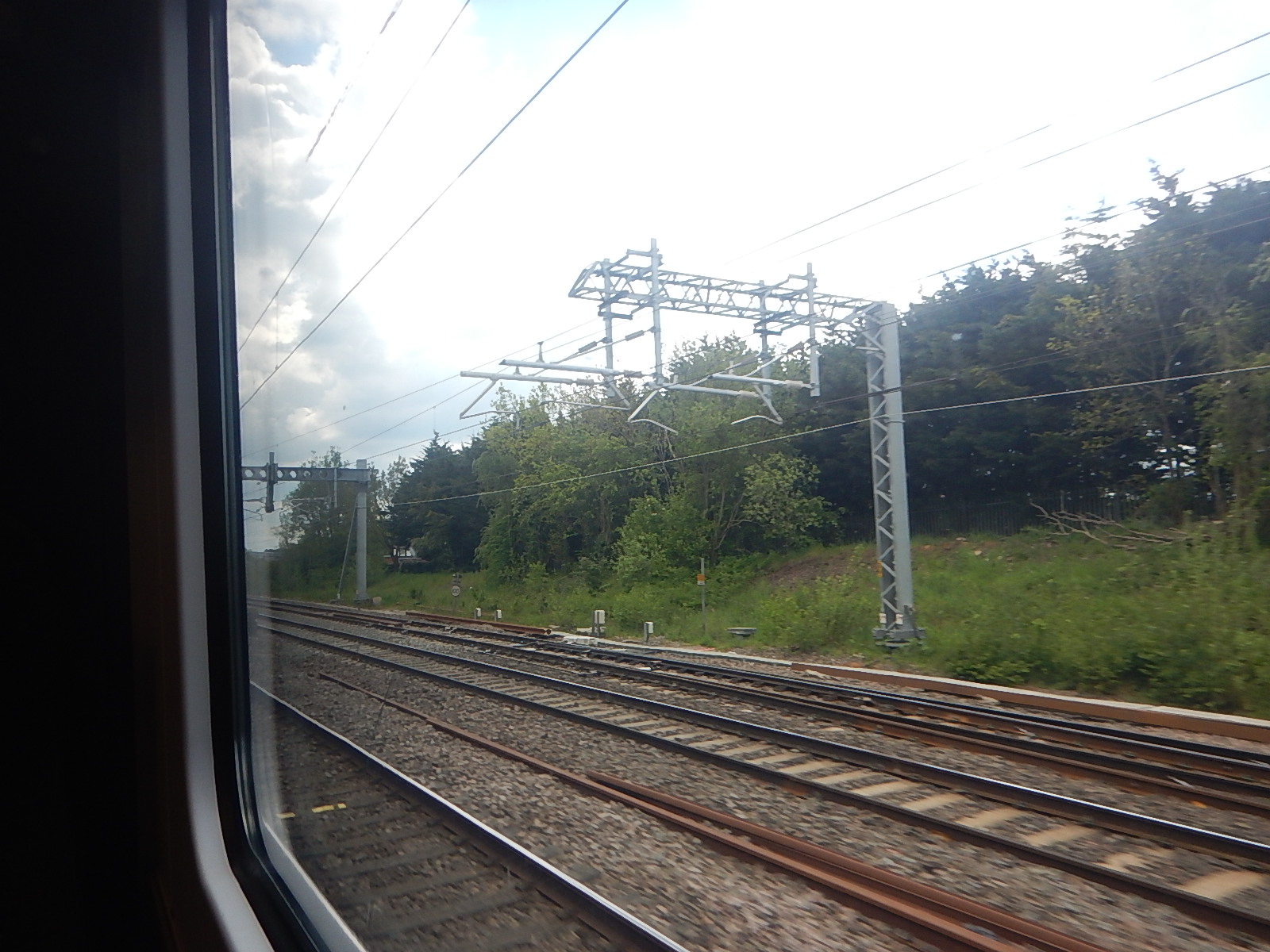

The gantries certainly look sturdy, as this picture shows.

They’re certainly built for 125 mph, but as the Class 810 trains will be capable of 140 mph with full digital in-cab signalling, I would hope that the electrification has been installed to that standard. Or at least to a standard, that can be easily upgraded!

Corby Station

Corby station has been finished to a single-platform station, which is able to accept a twelve-car Class 360 train.

This should be adequate for the current half-hourly service, as a single platform can handle a least four trains per hour (tph) and several around the country regularly do.

Both tracks through the station are electrified and I suspect with a second platform bridge, both could be used by electric trains to create a two-platform station.

But there would appear to be no need at the moment.

Even, if it were to be decided to extend one tph to Oakham and Melton Mowbray stations, this could probably be accommodated on the single-platform.

Network Rail seem to have already installed a crossover South of Corby station, so that trains can use the single platform.

Serving Oakham And Melton Mowbray

I discussed this extension in detail in Abellio’s Plans For London And Melton Mowbray Via Corby And Oakham.

In the related post, I said this.

This page on the Department for Transport web site is an interactive map of the Abellio’s promises for East Midlands Railway.

These are mentioned for services to Oakham and Melton Mowbray.

    • After electrification of the Corby route there will continue to be direct service each way between London and Oakham and Melton Mowbray once each weekday, via Corby.
    • This will be operated with brand new 125mph trains when these are introduced from April 2022.

This seems to be a very acceptable minimum position.

When my Class 222 train arrived in Corby at 1154, it waited a couple of minutes then took off to the North.

I then took the next train to London, which was an eight-car Class 360 train which formed the 1211 service back to St. Pancras.

Meanwhile the Class 222 train, that I’d arrived on did a reverse in the Corby North Run Around Loop finally arriving back in Corby at 1345. The train had taken one hour and forty-nine minutes to return to Corby.

It might be just coincidence, but are East Midlands Railway doing timing tests to see if services can be extended to Oakham And Melton Mowbray?

It should be noted that service times North of Corby are as follows.

  • Corby and Oakham – 19 mins – 14.3 miles
  • Corby and Melton Mowbray – 31 mins – 25.7 miles
  • Melton Mowbray and Leicester – 17 mins – 12.8 miles (estimate) – CrossCountry service

My logic goes like this.

  • It looks to me that it would not be unreasonable that a Class 222 train could run between Corby and Leicester in forty-eight minutes.
  • Double that and you get one hour and thirty eight minutes, for a journey from Corby to Leicester and back.
  • Subtract that time from the one hour and forty-nine minutes that my train took to reverse and there is eleven minutes for a turnback at Leicester station.
  • Eleven minutes would certainly be long enough to tidy a train and for the crew to change ends.

I also believe that the 35.8 miles would be possible for a Class 810 train fitted with one or more battery power-packs instead of a similar number of the four diesel engines.

So are East Midlands Railway doing tests to find the most efficient way to serve Oakham And Melton Mowbray?

On The Corby Branch

I travelled North on a Class 222 diesel train and South on an electric Class 360 train.

On the Corby branch, I was monitoring the train speed on an app on my phone and both trains travelled at around 90 mph for most of the way.

There were sections at up to 100 mph and the track was generally smooth.

I was left with the impression, that trains might be able to go faster on the branch.

Average speeds for the 2.5 miles of the branch were as follows according to these timings from realtimetrains.

  • Class 222 train – Arriving – 5.25 mins – 28.6 mph
  • Class 222 train – Leaving – 5 mins – 30 mph
  • Class 360 train – Arriving – 7.5 mins – 20 mph
  • Class 360 train – Leaving – 5 mins – 30 mph

It doesn’t appear that there are much difference in the timings, although it might be said, that the electric approach is more cautious.

The Class 360 Trains

The Class 360 trains have not been refurbished yet although as my pictures show, some have been given a new livery.

In Are Class 360 Trains Suitable For St. Pancras And Corby?, I said this about the train refurbishment.

This page on the Department for Transport web site is an interactive map of the Abellio’s promises for East Midlands Railway.

These features are mentioned for Midland Main Line services to Corby.

    • Increased capacity
    • Twelve-car trains in the Peak.
    • More reliable service
    • Improved comfort
    • Passenger information system
    • Free on-board Wi-Fi
    • At-seat power sockets
    • USB points
    • Air conditioning
    • Tables at all seats
    • Increased luggage space
    • On-board cycle storage

What more could passengers want?

It certainly hasn’t happened in full.

I did ask a steward, when the new interiors will be installed and he said they were running late because of the pandemic.

Performance Of The Class 360 Trains

I used my app to follow the speed of the Class 360 train, that brought me back to London.

  • The train hit a maximum speed of about 105 mph.
  • The train arrived in London a minute late.

I feel that as the drivers get used to their new charges, they will match the timetable.

Conclusion

I have a feeling that in a couple of years, these trains will fulfil Abellio’s promises.

May 19, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , | Leave a comment

Thoughts On The Class 360 Trains On The London St. Pancras And Corby Route

In May the Class 360 electric trains will be introduced by East Midlands Railway on the service between St. Pancras and Corby stations.

The Class 360 train is on the left.

The following data has come from Real Time Trains.

  • St. Pancras and Corby are 79.3 miles apart.
  • The current service stops at Kettering, Wellingborough, Bedford and Luton.
  • The new electric service stops at Kettering, Wellingborough, Bedford and Luton and Luton Airport Parkway.
  • Current services take between 67 and 73 minutes
  • The new electric services take between 71 minutes
  • Services leave St. Pancras at XX:15 and XX:45
  • Services leave Corby at XX:11 and XX:40
  • Turnround at St. Pancras appears to be about 23-25 minutes
  • Turnround at Corby appears to be about 12-16 minutes.
  • St. Albans and St. Pancras takes 14 minutes.

Note.

  1. The Class 222 train has a top speed of 125 mph and a maximum acceleration: of 0.80 ms-2
  2. The Class 360 train has a top speed of 110 mph and a maximum acceleration: of 0.98 ms-2

Looks like a case of swings and roundabouts to me!

I can deduce the following.

Average Speed

Consider.

  • Assuming a trip time of seventy minutes for the Class 222 train, gives an average speed of 68 mph including stops.
  • Assuming a trip time of seventy-one minutes for the Class 360 train, gives an average speed of 62 mph including stops.

These speeds don’t seem to be too difficult to achieve. Especially, as the Midland Main Line is a series of straight line between a number of stations., which are ideal for a quick dash in between.

It’s A Three Hour Round Trip

Add up the two 71 minute trips and the turnaround times and it looks to be a comfortable three hour round trip.

So for a two trains per hour (tph) service, you will need six formations of Class 360 trains.

As it looks like each formation will be twelve cars long, that will mean that eighteen of the current twenty-one trains will be needed.

The three spare trains will be very useful, whilst the trains are refurbished with new liveries and interiors.

Route Capacity

This picture shows a five-car Class 222 train at Corby station.

Consider.

  • The current five-car Class 222 trains have a capacity of 50 First Class and 192 Standard Class seats
  • Four-car Class 222 trains have a capacity of 33 First Class and 132 Standard Class seats.
  • A four-car Class 360 train has a capacity of 16 First Class and 264 Standard Class seats.

I can do a simple calculation.

  • The current one tph service, if run by a five-car Class 222 trains would have an hourly capacity of 50 First Class and 192 Standard Class seats.
  • The planned two tph service if run by twelve-car 360 trains has an hourly capacity of 96 First Class and 1584 Standard Class seats.

First Class capacity on the route has doubled and Standard Class accommodation has gone up by a massive 8.25 times.

The latter figure will probably be reduced as some of the seats are to be removed for a more spacious interior with tables.

Serving Luton Airport

It looks like these trains will enable a quick journey to Luton Airport.

  • The St. Pancras and Corby train will take 22 minutes between St. Pancras and Luton Airport Parkway stations.
  • There will be the Luton DART connecting Luton Airport Parkway to the Airport from 2022.
  • I suspect Luton Airport will be aiming for a thirty minute journey between St. Pancras and the Airport.
  • The fast service will have a frequency of two tph.

It will not compare badly with rail times from London to Gatwick of 35 minutes and to Stansted of 50 minutes.

Services To Oakham And Melton Mowbray

Consider.

  • Oakham and Melton Mowbray stations are on the route between Corby station and the Midland Main Line North of Leicester.
  • Oakham and Melton Mowbray stations have a one train per day (tpd) in both directions to London via Corby.
  • In Beeching Reversal – Increased Services To Nottingham And Leicester, via Syston And Loughborough From Melton Mowbray. I wrote about how the local MP wants better services at Melton Mowbray.
  • Oakham is 11.5 miles from Corby.
  • Melton Mowbray is 25.8 miles from Corby.
  • Leicester is just over forty miles from Corby and could be covered in under an hour.
  • A pair of Class 810 trains are the same length as a trio of Class 360 trains, so both trains would fit all platforms.

I think that there are a lot of possibilities for services through Corby.

  • Class 810 trains could use Corby as a diversion, when the Midland Main Line is closed for engineering works.
  • Class 810 trains could run a service between St. Pancras and Leicester via Corby, Oakham and Melton Mowbray.
  • If the Class 360 trains could be fitted with batteries, they should be able to provide a service from St. Pancras to Melton Mowbray and perhaps Leicester.

It could even provide an alternative route to London, if Leicester station has to be substantially rebuilt for electrification..

Conclusion

This not the longest of electric services, but I can see it carrying a lot of passengers.

It will also give a boost to Luton Airport.

April 7, 2021 Posted by | Transport/Travel | , , , , , , | 12 Comments

Thoughts On Faster Trains On Thameslink

The Class 700 trains used by Thameslink only have an operating speed of 100 mph.

I do wonder, if that is a fast enough operating speed for all Thameslink routes.

Sharing The Midland Main Line With 125 mph Trains

A couple of years ago, I travelled back into St. Pancras with a group of East Midlands drivers in a Class 222 train.

They told me several things about the route including that the bridge at the South of Leicester station would be difficult to electrify, as it was low and the track couldn’t be lowered as one of Leicester’s main sewers was under the tracks at the bridge. Perhaps, this is one place, where discontinuous electrification could be used on the Midland Main Line.

They also told me, that sometimes the Thameslink trains were a nuisance, as because of their 100 mph operating speed, the 125 mph Class 222 trains had to slow to 100 mph.

Upgrading Of The Midland Main Line South Of Bedford

The electrification of the Midland Main Line South of Bedford is being updated, so that it is suitable for 125 mph running.

An Analysis Of Services On The Midland Main Line South Of Bedford

The current Class 222 trains are capable of 125 mph and will be replaced by Class 810 trains capable of the same speed on both diesel and electricity.

Currently, a Class 222 train is capable of doing the following on a typical non-stop run between St. Pancras and Leicester.

  • Covering the 30 miles between St. Albans and Bedford in 17 minutes at an average speed of 106 mph.
  • Covering the 50.3 miles between Bedford and Leicester in 30 minutes at an average speed of 100.6 mph.
  • Maintaining 125 mph for long stretches of the route, once the trains is North of London commuter traffic at St. Albans

I can estimate the timings on the 79.2 miles between Leicester and St. Albans, by assuming the train runs at a constant speed.

  • 100 mph – 47.5 minutes
  • 110 mph – 43.2 minutes
  • 125 mph – 38 minutes
  • 140 mph – 34 minutes

Note.

  1. I have done the calculation for 140 mph, as that is the maximum operating speed of the Class 810 train with full in-cab digital signalling.
  2. Trains have been running at 125 mph for a couple of decades on the Midland Main Line.
  3. To get a St. Pancras and Leicester time add another 14 minutes, which is the current time between St. Pancras and St. Albans of a Class 222 train.
  4. Some Off Peak trains are timed at 62-63 minutes between St. Pancras and Leicester.
  5. A time of under an hour between St. Pancras and Leicester might be possible and the Marketing Department would like it.
  6. As Thameslink trains between Bedford and St. Albans stop regularly, they are on the slow lines of the four-track railway, to the North of St. Albans.
  7. South of St. Albans, Thameslink trains often run on the fast lines.

I can expect that East Midlands Railway will want to be running their new Class 810 trains as far as far South as they can at 125 mph, to speed up their services. When the signalling allows it, they’ll want to run at 140 mph.

So they won’t want to see Thameslink’s slow trains on the fast lines.

  • But if you look at the Thameslink trains that do run on the fast lines between St. Albans and St. Pancras, they appear to be the four trains per hour (tph) that run to and from Bedford.
  • Of these trains, two tph terminate at Brighton and two tph terminate at Gatwick Airport.
  • The average speed of a Class 222 train between St. Albans and St. Pancras assuming 14 minutes for the 19.7 miles is 84.4 mph.

So it looks to me that a 100 mph Thameslink train could be able to get away without slowing the East Midland Railway expresses.

But then that is not surprising, as for many years, the Class 222 trains worked happily with 100 mph Class 319 trains.

Is There Scope For Extra And Faster Services Into St. Pancras?

I have only done a simple calculation, but I do wonder if there is scope for the following.

  • Increasing the frequency of trains for both Thameslink and East Midlands Railway.
  • Saving a few minutes on East Midlands Railway services.

Consider.

  • The new Class 810 electric trains will probably have better acceleration and deceleration than the current Class 222 diesel trains, when working using electric power.
  • East Midlands Railway is introducing Class 360 trains that were built as 100 mph trains by Siemens, who are now upgrading them to 110 mph trains.
  • Can Siemens do the same for the Class 700 trains and create a sub-fleet capable of 110 mph running?
  • All trains will be running under full in-cab digital signalling with a large degree of automatic train control.

I feel that if the Class 700 trains had the extra speed, they would make the planning of services South of St. Albans easier and allow the Class 810 trains to both run faster and provide more services.

Sharing The East Coast Main Line With 125 mph Trains

The following Thameslink services run up the East Coast Main Line past Stevenage.

  • Cambridge And Brighton – Two tph – Stops at Royston, Ashwell and Morden (1 tph), Baldock, Letchworth Garden City, Hitchin, Stevenage, Finsbury Park, London St Pancras International, Farringdon, City Thameslink, London Blackfriars, London Bridge, East Croydon, Gatwick Airport, Three Bridges, Balcombe, Haywards Heath and Burgess Hill
  • Cambridge and Kings Cross – Two tph – Stops at Foxton, Shepreth, Meldreth, Royston, Ashwell and Morden, Baldock, Letchworth Garden City, Hitchin, Stevenage, Knebworth, Welwyn North, Welwyn Garden City, Hatfield, Potters Bar and Finsbury Park
  • Peterborough and Horsham – Two tph – Stops at Huntingdon, St Neots, Sandy, Biggleswade, Arlesey, Hitchin, Stevenage, Finsbury Park, London St Pancras International, Farringdon, City Thameslink, London Blackfriars, London Bridge, East Croydon, Coulsdon South, Merstham, Redhill, Horley, Gatwick Airport, Three Bridges, Crawley, Ifield, Faygate (limited) and Littlehaven

Note.

  1. Services are generally run by Class 700 trains, although lately the Kings Cross service seems to use Class 387 trains, which have a maximum speed of 110 mph and a more comfortable interior with tables.
  2. It is intended that the Cambridge and Kings Cross service will be extended to Maidstone East by 2021.

In addition there are two Cambridge Express and Fen Line services.

  • Kings Cross and Ely – One tph – Stops at Cambridge and Cambridge North.
  • Kings Cross and King’s Lynn – One tph – Stops at Cambridge, Cambridge North, Waterbeach, Ely, Littleport, Downham Market and Watlington

Note.

  1. These services are generally run by Class 387 trains.
  2. Cambridge and King’s Cross is timetabled at around fifty minutes.

Adding all of this together means that slower services on the East Coast Main Line are comprised of the following in both directions.

  • Three tph – 110 mph – Class 387 trains
  • Four tph – 100 mph – Class 700 trains

These seven trains will have to be fitted in with the 125 mph trains running services on the East Coast Main Line, for LNER, Grand Central, Hull Trains and East Coast Trains.

There are also the following problems.

  • All trains must navigate the double-track section of the East Coast Main Line over the Digswell Viaduct and through Welwyn North station.
  • The King’s Cross and Cambridge service stops in Welwyn North station.
  • Full in-cab digital signalling is being installed on the East Coast Main Line, which could increase the speed of the expresses through the double-track section.

Could the introduction of the Class 387 trains on the Cambridge and King’s Cross service have been made, as it easier to fit in all the services if this one is run by a 110 mph train?

However, the full in-cab digital signalling with a degree of automatic train control could be the solution to this bottleneck on the East Coast Main Line.

  • Trains could be controlled automatically and with great precision between perhaps Hatfield and Stevenage.
  • Some expresses might be slowed to create gaps for the Cambridge and Peterborough services.
  • The Hertford Loop Line is also getting full in-cab digital signalling, so will some services be sent that way?

In Call For ETCS On King’s Lynn Route, I talked about a proposal to improve services on the Fen Line. This was my first three paragraphs.

The title of this post, is the same as that on an article in Edition 849 of Rail Magazine.

The article is based on this document on the Fen Line Users Aoociation web site, which is entitled Joint Response To Draft East Coast Main Line Route Study.

In addition to ETCS, which could improve capacity on the East Coast Main Line, they would also like to see journey time reductions using trains capable of running at 125 mph or faster on the King’s Lynn to Kings Cross route.

My scheduling experience tells me that a better solution will be found, if all resources are similar.

Hence the proposal to run 125 mph trains between King’s Cross and King’s Lynn and probably Ely as well, could be a very good and logical idea.

If the Class 700 trains were increased in speed to 110 mph, the trains through the double-track section of the East Coast Main Line would be.

  • One tph – 110 mph – Class 387 trains
  • Four tph – 110 mph – Class 700 trains
  • Two tph – 125 mph – New trains

Note.

  1. This would probably be an easier mix of trains to digest with the high speed services, through the double-track section.
  2. I like the idea of extending the Ely service to Norwich to give Thetford, Attleborough and Wymondham an improved service to London, Cambridge and Norwich.

The new trains would probably be a version of Hitachi’s Regional Battery Train.

  • It would need to be capable of 125 mph on the East Coast Main Line.
  • If the Ely service were to be extended to Norwich, this section would be on battery power.

There are certainly a lot of possibilities.

But as with on the Midland Main Line, it looks like for efficient operation, the operating speed of the Class 700 trains on the route needs to be increased to at least 110 mph.

Could Faster Class 700 trains Improve Services To Brighton?

These are the Thameslink services that serve Bedford, Cambridge and Peterborough, that I believe could be run more efficiently with trains capable of at running at speeds of at least 110 mph.

  • Bedford and Brighton – Two tph
  • Bedford and Gatwick Airport – Two tph
  • Cambridge and Brighton – Two tph
  • Cambridge and Maidstone East – Two tph
  • Peterborough and Horsham – Two tph

Note.

  1. I have assumed that the Cambridge and King’s Cross service has been extended to Maidstone East as planned.
  2. Eight tph serve Gatwick Airport.
  3. Four tph serve Brighton.

The Gatwick Express services have a frequency of two tph between London Victoria and Brighton calling at Gatwick Airport is already run by 110 mph Class 387 trains.

It would appear that if the Bedford, Cambridge and Peterborough were run by uprated 110 mph Class 700 trains, then this would mean that more 110 mph trains would be running to Gatwick and Brighton and this must surely improve the service to the South Coast.

But it’s not quite as simple as that, as the Cambridge and Maidstone East services will be run by eight-car trains and all the other services by twelve-car trains.

Conclusion

There would appear to be advantages in uprating some or possibly all of the Class 700 trains, so that they can run at 110 mph, as it will increase capacity on the Brighton Main Line, East Coast Main Line and Midland Main Line.





April 6, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , | Leave a comment

DfT and Arriva CrossCountry Sign Agreement

The title of this post, is the same as that of this article on Railway News.

This is the introductory paragraph.

The franchisee CrossCountry, which is owned by Arriva, has signed a three-year agreement with the Department for Transport to bring the franchise in line with the Emergency Recovery Measures Agreements (ERMAs).

CrossCountry has the following trains in its fleet.

34 x Class 220 trains

24 x Class 221 trains

This gallery shows Class 220 trains and the closely related Class 222 trains, which are in service with East Midlands Railways.

Note that these three fleets of Bombadier Voyager trains are now twenty years old and will probably need a makeover soon.

If they have a problem it is that they are diesel multiple units and create a lot of noise and pollution in stations and depots.

This is said in the Railway News article.

One element of this new contract is a focus on reducing the environmental impact of the operator’s diesel fleet.

, Two separate projects are mentioned.

  • Using a separate electrical supply to Turbostars during cleaning.
  • Use of on-train batteries on the Voyagers in stations.

In Have Bombardier Got A Cunning Plan For Voyagers?, I gave my thoughts on the second project, when Bombardier proposed it in 2018.

I can see the following scenario happening.

  • When the new Class 805 trains are delivered, Avanti West Coast’s Class 220 trains are transferred to Arriva CrossCountry.
  • When the new Class 810 trains are delivered, East Midland Railway’s Class 222 trains are transferred to Arriva CrossCountry.
  • CrossCountry update their Voyagers with batteries.
  • CrossCountry retire their InterCity 125 trains.

CrossCountry may have enough trains to run a mainly Voyager fleet, backed up by a few Turbostars.

Could Bombardier’s Plan Be Revived In A Different Form?

If CrossCountry had all the Voyages, they would have the following fleet.

  • 34 x four-car Class 220 trains – Currently with CrossCountry.
  • 20 x five-car Class 221 trains – Currently with Avanti West Coast
  • 20 x five-car Class 221 trains – Currently with CrossCountry
  • 4 x four-car Class 221 trains – Currently with CrossCountry
  • 6 x seven-car Class 222 trains – Currently with East Midlands Trains
  • 17 x five-car Class 222 trains – Currently with East Midlands Trains
  • 4 x four-car Class 222 trains – Currently with East Midlands Trains

This totals to eighty-five trains with a total of 285 intermediate cars, of which 128 were built with tilt for Class 221 trains.

Currently CrossCountry has a total of 58 four- and five-car Voyagers and enough Class 43 power cars for six InterCity 125 trains.

If they rearranged the non-tilting intermediate cars of the Voyagers, 157 intermediate cars is enough for one of the following.

  • 78 – four-car trains
  • 52 – five-car trains
  • 39 – six-car trains
  • 26 – eight-car trains
  • 22 – nine-car trains

Add in forty five-car Class 221 trains and there is more than enough trains for CrossCountry to run their current services without the retired InterCity 125s.

CrossCountry would also be able to form the trains into the lengths they needed for efficient services.

This formation photographed at Basingstoke could be formed of a single train, if they wished, as they have more than enough coaches.

I suspect in true design engineering fashion, engineers at CrossCountry have got the toy trains or Lego bricks out to shuffle the coaches on a big table to see what are the best train lengths for their network.

If they decided to go the eight-car route, which could give up to twenty-six trains, this would be more than enough to be able to retire the InterCity 125s.

Could one of the Intermediate cars be converted into a pantograph and battery car?

  • If the diesel engine and the associated gubbins were to be removed, this would save around two tonnes in weight.
  • A two-tonne battery could probably have a capacity of 200 kWh.
  • Bombardier probably have ideas about how a car could be converted.

Someone could have a lot of fun playing musical carriages and the following trains could be created.

  • A fleet of Voyager bi-mode  trains of optimum length for CrossCountry’s route network.
  • Most services would be run by single trains, which must give advantages to the operator, their staff and passengers.
  • All braking would be regenerative braking to battery to save energy.
  • Where electrification exists, the trains could use it.
  • All station stops would be performed on battery power.

There might even be some left over driving cars and some intermediate cars to be converted into battery electric trains for another route.

Conclusion

There is a route there for CrossCountry to have a much more environmentally-friendly fleet, better suited to their needs

  • The Turbostars would be given a local electricity supply to cut noise and pollution during overnight cleaning.
  • The InterCity 125s would be retired.
  • CrossCountry acquires as many Voyagers as it needs after Avanti West Coast and East Midlands Railway get their new trains.
  • The Voyagers carriages would be shuffled so that they could handle all routes and replace the InterCity 125s.
  • The design exists to convert the Voyagers into diesel-electric-battery tri-mode high speed trains.

Note.

  1. There are enough trains to do a gradual conversion, with CrossCountry having enough trains for a full service at all times.
  2. All trains will probably have been built this century or nearly so!

I also feel, that the fleet would be a marketing asset, rather than a bit of a discouragement to use CrossCountry’s services again.







October 16, 2020 Posted by | Transport/Travel | , , , , , , , , , | 5 Comments

Are Class 360 Trains Suitable For St. Pancras And Corby?

It appears that East Midlands Railway will be using Class 360 trains on the route between St. Pancras and Corby stations running them under the branch name of EMR Electrics.

The London And St. Pancras Route

The route has the following characteristics.

  • It is just short of 80 miles long.
  • The current Class 222 trains take one hour and fifteen minutes for the journey.
  • This means these trains have a start to stop average at 64 mph.
  • Much of the route is cleared for 125 mph running.
  • The route is being made a complete double track.
  • The whole route is being electrified with 25 KVAC overhead wires.

In December 2020, the route will host a new electric service.

East Midlands Railway’s Train Specification For The Route

This page on the Department for Transport web site is an interactive map of the Abellio’s promises for East Midlands Railway.

These features are mentioned for Midland Main Line services to Corby.

  • Increased capacity
  • Twelve-car trains in the Peak.
  • More reliable service
  • Improved comfort
  • Passenger information system
  • Free on-board Wi-Fi
  • At-seat power sockets
  • USB points
  • Air conditioning
  • Tables at all seats
  • Increased luggage space
  • On-board cycle storage

What more could passengers want?

How Well Do Class 360 Trains Fit The Specification?

These are a few pictures of a Class 360 train, which I took today.

Some problems and strengths are immediately obvious.

  • There are no tables.
  • Will two+three seating e acceptable, considering that the current trains on the route have two+two seating.
  • There is no space for bicycles.
  • There are no luggage racks, which will be needed as the Corby service will also double as a service to Luton Airport.
  • The trains are in reasonably good condition.
  • There ia a fully-accessible toilet.

A lot of work will need to be done to update the interior of the trains to a standard, that fits East Midland Railway’s specification and their customers expectations.

But there is a full twelve months before the trains will be needed to run on the newly electrified route between St. Pancras and Corby stations.

This may seem enough time, but many current train refurbishment projects are running late.

Is The Performance Of Class 360 Trains Good Enough?

The current Class 222 trains have the following performance.

  • 125 mph maximum speed.
  • An acceleration rate of 0.80 m/sec/sec

By comparison the Class 360 trains have the following performance.

  • 100 mph maximum speed.
  • An acceleration rate of 0.98 m/sec/sec.

Given that much of the route between St. Pancras and Corby stastions will be constructed for 125 mph running, will the top speed of the Class 360 trains be high enough?

Will The Class 360 Trains And The Hitachi AT-300 Bi-Modes Be Compatible?

East Midlands Railway has ordered thirty-three AT-300 bi-modes, which will be able to run at 125 mph on the fully-electrified Midland Main Line to the South of Market Hsrborough station.

As thetwo trains will share the fast lines, with the Class 360 trains, will there be conflicts, as the Class 360 trains are only capable of 100 mph?

Ideally, the Class 360 trains should be upgraded to their highest speed possible.

Some of similar Class 350 trains are capable of 110 mph.

This could be enough, but surely for ease of operation, all of East Midlands Railway’s services into St. Pancras should be run by trains capable of running at 125 mph.

Will The Class 360 Trains Need Digital Signalling?

The Hitachi AT-300 trains will probably be able to run using digital signalling, which could be a valuable way of creating more paths on the Midland Main Line.

So will the Class 3560 trains be fitted with digital signalling?

Conclusion

In my view there is a lot of upgrade work to be done to the Class 360 trains to make them suitable for working on the services between St. Pancras and Corby.

  • They need a new upgraded interior.
  • The trains need upgrading to at least 110 mph.
  • A possible upgrading with digital signalling.

I can’t help feeling that the Class 360 trains would make a good stop-gap, but in the long-term it might be better to have a small fleet of electric trains.

Electric AT-300 trains must be one of the favourites, although Class 745 trains, similar to those that Abellio will run between Liverpool Street and Stansted Airport, would do nicely.



August 22, 2019 Posted by | Transport/Travel | , , , , , | 10 Comments

East Midlands Railway Announces Three Brands

The title if this article is the same as that of this article on Railway Gazette.

This is a quote about their electric trains to Corby, which will run under the brand name of EMR Electrics.

EMR said that once various developments had been completed, passengers would be able to reach the terminal at Luton Airport in ‘a little under half an hour’ from central London.

Currently, the fastest services going to between St. Pancras and Luton Airport Parkway stations take twenty-four minutes using 125 mph Class 222 trains with Luton Airport Parkway as the first stop.

Thameslink using 100 mph Class 700 trains take 30 minutes and more!

I question, whether the 100 mph Class 360 trains, running with Luton Airport Parkway as the first stop, can do the trip in the 24-26 minutes to get to the terminal in under half an hour, even with Luton Airport’s  DART shuttle train working!

In Are Class 360 Trains Suitable For St. Pancras And Corby?, I looked at Class 360 trains running the service between St. Pancras and Corby stations.

I came to this conclusion.

In my view there is a lot of upgrade work to be done to the Class 360 trains to make them suitable for working on the services between St. Pancras and Corby.

  • They need a new upgraded interior.
  • The trains need upgrading to at least 110 mph.
  • A possible upgrading with digital signalling.

I can’t help feeling that the Class 360 trains would make a good stop-gap, but in the long-term it might be better to have a small fleet of electric trains.

Electric AT-300 trains must be one of the favourites, although Class 745 trains, similar to those that Abellio will run between Liverpool Street and Stansted Airport, would do nicely.

So will East Midlands Railway have updated and faster Class 360 trains or will they be bringing in 125 mph trains to hit the required schedule to Luton Airport Parkway?

Conclusion

Luton Airport will have a real Airport Express!

But will the Class 360 trains, be able to deliver it? I have my doubts!

August 21, 2019 Posted by | Transport/Travel | , , , , , , , , | Leave a comment

Are East Midlands Railway Jumping The Gun?

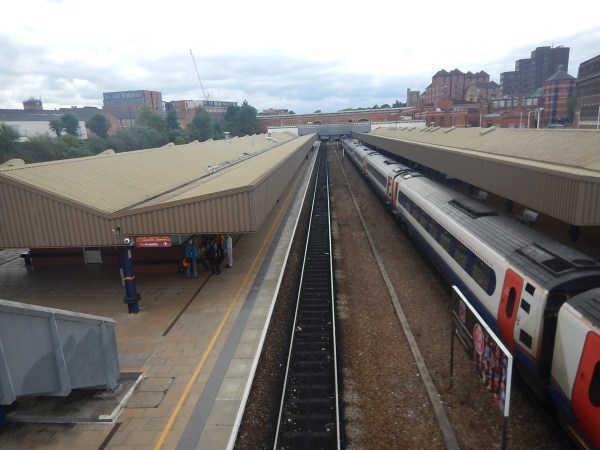

The pictures show the Class 222 train, that I rode from Sheffield to London, after my trip to Huddersfield

I thought East Midlands Railway don’t take over the franchise until the 18th of August!

I suppose it’s only an interim livery.

August 13, 2019 Posted by | Transport/Travel | , | 3 Comments

How Will Abellio East Midlands Railway Maximise Capacity On The Midland Main Line?

In this post, I will try and get a feel to how Abellio East Midlands Railway, will maximise capacity on the Midland Main Line.

The Current Service

There are currently two trains per hour (tph) to both Nottingham and Sheffield and one tph to Corby from London.

Ignoring the Corby service, which will be using electric trains, intermediate calls have these frequencies, from South to North.

  • Bedford – One tph
  • Wellingborough – One tph
  • Kettering – One tph
  • Market Harborough – Two tph
  • Leicester – Four tph
  • Loughborough – Two tph
  • East Midlands Parkway – Two tph
  • Long Eaton – One tph
  • Beeston – One tph
  • Derby – Two tph
  • Chesterfield – Two tph

As the new bi-mode trains will be more modern, with probably shorter dwell times at each station, I suspect that when Abellio East Midlands Railway implement their ultimate timetable, there will be more stops, without degrading journey times.

These are fastest times.

  • London and Nottingham is one hour forty minutes
  • London and Sheffield is two hours

I feel that round trips to both destinations will be four hours with some speed increases and shorter station dwell times.

  • The current two tph to Nottingham and Sheffield needs eight trains to each destination.
  • This is a total of sixteen trains.

As each train could be two five-car trains working as a ten-car train, train numbers for the current service could be as high as thirty-two trains.

A first look seems to indicate that there .will be no overall increase in train frequency, although, as I said earlier, the performance of the new trains should allow extra station stops.

It also indicates to me, that any increases in frequency between London and Nottingham/Sheffield will need extra trains.

The Electrified High Speed Line South Of Kettering

Midland Main Line services South of Kettering are as follows.

  • Two tph to London and Nottingham
  • Two tph between London and Sheffield
  • One tph between London and Corby.

From December 2021, there will be two tph between London and Corby.

The maximum number of services between London and Kettering on the electrified section currently envisaged is only six tph or one train every ten minutes.

As the Class 700 trains on Thameslink are capable of using digital signalling and all the new trains will also be similarly equipped, I wouldn’t be surprised that the theoretical capacity of the electrified fast lines could be higher than the proposed six tph. |Especially, when digital signalling is installed.

The number of trains in the fleet, is much more of a limit on services, than the capacity of the Midland Main Line.

If all trains were ten cars, the following numbers of trains would be needed.

  • Current two tph – 32 trains
  • Increase to three tph – 48 trains
  • Increase to three tph – 64 trains

Are there enough passengers to fill all these trains?

Does St. Pancras Have Enough Capacity?

St. Pancras station has four platforms for Midland Main Line services.

  • The platforms are long enough to take two five-car Class 222 trains,.
  • They would surely accommodate a ten-car formation of the new Hitachi trains.
  • Each platform can probably handle three or four tph, giving a total capacity of 12-16 tph.

As four tph to Nottingham and Sheffield and two tph to Corby is only a total of ten tph, there is enough platform capacity for several years to come.

If there is a problem, it is that the large numbers of passengers would overwhelm the stairs and escalators between the ground level of the station and the platforms.

I am certain, that just like the Eurostar platforms at St. Pancras, the Midland Main Line platforms will need better passenger access and facilities.

Will it even be enough, when up to six tph, all of which could be 240 metres long, start to arrive in December 2021?

What could be done to help solve the capacity problem at St. Pancras station in the future?

Better Access To The Midland Main Line Platforms

Consider.

  • Space is limited to add extra escalators, lifts and places to wait
  • St. Pancras is a Grade I Listed Building.
  • As I don’t travel through the station in the Peak, the escalators seem to always be going the wrong way.

Improving the current access will be very difficult.

This Google Map shows the Northern End of the station.

Note.

  1. The Midland Main Line platforms are the two island platforms on the left.
  2. The Southeastern HighSpeed platforms are the two island platforms on the right.
  3. The Eurostar platforms are the three island platforms in the middle.

Could a second entrance to some of the platforms be built here?

It would be very difficult, unless the extension was future-proofed when it was built.

Underground Improvements

Getting between the Midland Main Line platforms and the Underground is an obstable course.

As a Londoner, who’s had the operation to have the Underground Map implanted in my brain, I generally go to the Midland Main Line platforms at St. Pancras by taking one of the following.

A bus from close to my house to outside the station.

  • A Metropolitan Line train from Moorgate
  • A Northern Line train from Angel.
  • A Piccadilly Line train from Manor House
  • A Victoria Line train from Highbury & Islington

The last four need a bus to get to the Underground.

I usually come back home, by spending just over a tenner on a black cab!

Crossrail 2

Crossrail 2 should improve matters, but will it ever be built?

Will The New Brent Cross Thameslink Station Allow Cross Platform Interchange Between Midland Main Line and Thameslink Services?

Consider.

  • The proposed Brent Cross Thameslink will be just North of Cricklewood station.
  • Midland Main Line services through the station would be six tph.
  • Thameslink services through the station would be fourteen tph
  • The West London Orbital Railway could be built to connect the station to High Speed Two and Heathrow

Would it take the pressure off St. Pancras?

It might do, if a cross-platform interchange could be arranged.

Could Some Midland Main Line Services Use Thameslink?

Consider.

  • The obvious service to go through Thameslink would be the two tph service between Corby and St. Pancras.
  • Thameslink is currently setup to handle 24 tph, but it has been designed for 30 tph.
  • The Corby service will stop at Kettering, Luton and Luton Airport Parkway, to the North of London.
  • It could perhaps terminate at the soon-to-be-rebuilt Gatwick Airport station in the South.

It might work!

Especially, if Kettering station were to be rebuilt to have cross-platform interchange between Corby sewrvices and the bi-mode ones going further North.

Splitting And Joining Trains

In Rock Rail Wins Again!, I gave this simple example of how the splitting and joining capability of Hitachi AT-300 trains can be used.

A ten-car train might leave St. Pancras as two five-car units running as a pair. It could split at East Midlands Parkway station and one train could go to Nottingham and the other to Derby. Coming South the two trains would join at East Midlands Parkway.

I feel that Derby, East Midlands Parkway and Leicester are ideal stations on the Midland Main Line, where services could be split and joined.

  • They have at least four platforms.
  • The platforms are long and straight.

The two terminals at Nottingham and Sheffield could also probably be used to enable services to serve more destinations.

Shorter trains must have advantages on some routes.

  • Capacity is better matched to demand.
  • Platforms may not need to be extended.
  • Services can be run by a driver and a conductor.

Will Abellio East Midlands Railway use splitting and joining to increase the coverage of their services?

Great Western Railway’s Class 800, 801 and 802 trains have the capability to split and join and the operator doesn’t seem to use it. Although, they do split and join Class 387 trains.

Extended Services To And From The North And East

The ability to split and join, that could be used to extend services to the North And East.

Serving Barnsley, South Yorkshire And Leeds

Consider.

I wonder if there are paths and need for a London and Sheffield service to split at Sheffield with, the two five-car trains going to different destinations.

  • Leeds via Rotherham, Barnsley Dearne Valley and Wakefield Westgate, is one possibility.
  • Could a service go to Huddersfield?
  • Hull is probably too far.

One tph could terminate at Sheffield and one splitting and one tph could split and serve other destinations.

Advantages could include.

  • Barnsley and Rotherham get a direct hourly service to London.
  • South Yorkshire and Leeds have a direct hourly service to the East Midlands.
  • Sheffield and Leeds have an hourly fast service.

I’m sure Abellio have a very workable plan to improve services North of Sheffield.

Serving Lincolnshire And Nottinghamshire

Consider.

  • Splitting and joining at Nottingham may allow an increase in direct services to and from Lincoln.
  • Perhaps parts of North Lincolnshire could be well-served by a fast train from Nottingham.
  • Would Mansfield and Worksop benefit from a direct service from London on the Robin Hood Line, after a reverse at Nottingham.

The five-car trains give the flexibility to do the previously unthinkable.

Conclusion

There is a lot of developments that can or will happen with Midland Main Line services.

August 1, 2019 Posted by | Transport/Travel | , , , , , , | 4 Comments

Rock Rail Wins Again!

This article on the Railway Gazette, is entitled Abellio Orders East Midlands Inter-City Fleet.

The order can be summarised as follows.

  • The trains will be Hitachi AT-300 trains
  • There will be thirty-three bi-mode trains of five cars.
  • The trains will be 125 mph capable.
  • Unlike the similar Class 802 trains, the trains will have 24 metre long cars, instead of 26 metres.
  • They will have a slightly modified nose profile.
  • The new trains will have an extra diesel engine.
  • The new trains will cost a total of £400 million.

A few of my thoughts.

I shall constantly refer to an earlier post called Vere Promises East Midlands Bi-Modes In 2022.

Cost Of The Trains

In the earlier post, I calculated that the five five-car AT-300 all-electric trains, ordered by First Group for London and Edinburgh services cost four million pounds per car.

Thirty-three trains at this four million pounds per car, works out at £660 million, which is sixty-five percent higher than the price Abellio is quoted as paying.

Abellio are actually paying just £2.42 million per car or forty percent less than First Group.

So are Abellio buying a cut price special?

As Abellio East Midlands Railway will be competing up against LNER’s Azumas on some journeys, I can’t see that running a second class train would be a sound commercial decision.

I am left to the conclusion, that Abellio have got a very good deal from Hitachi.

What Diesel Power Is Used?

In a five-car Class 802 train, there are three MTU 12V 1600 R80L diesel engines, each of 700 kW , which gives a total power of 2,100 kW.

If the Abellio train needs this power, with four diesel engines, each must have 525 kW.

Not sure yet, but this could save a couple of tonnes in weight.

I doubt that Hitachi are dissatisfied with the performance of the MTU diesel engines in the current Class 800, 801 and 802 trains, as there are no media reports of any ongoing problems. So I feel that they could go with the same supplier for the trains for Abellio East Midlands Railway.

If you type “Class 800 regenerative braking” into Google, you will find this document on the Hitachi Rail web site, which is entitled Development of Class 800/801 High-speed Rolling Stock for UK Intercity Express Programme.

The only mention of the R-word is in this paragraph.

An RGS-compliant integrated on-train data recorder (OTDR) and juridical recording unit (JRU), and an EN-compliant energy
meter to record energy consumption and regeneration are fitted to the train.

If you search for brake in the document, you find this paragraph.

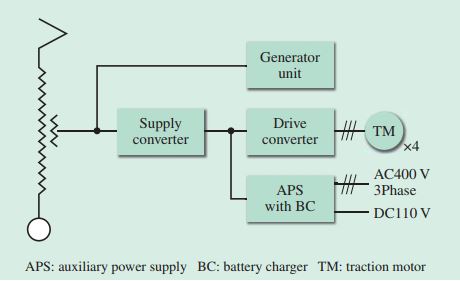

In addition to the GU, other components installed under the floor of drive cars include the traction converter, fuel tank, fire protection system, and brake system.

Note that GU stands for generator unit.

The document provides this schematic of the traction system.

Note BC which is described as battery charger.

Braking energy doesn’t appear to be re-used to power the train, but to provide hotel power for the train.

I talk about this in more detail in Do Class 800/801/802 Trains Use Batteries For Regenerative Braking?.

In my view, it is an outdated design compared to some of those seen in the latest road vehicles and trains from other manufacturers.

This is a sentence from the Railway Gazette article.

According to Hitachi, the EMR units will be an ‘evolution’ of the AT300 design supplied to other UK operators, with 24 m long vehicles rather than 26 m, and a slightly modified nose profile.

So does that evolution include regenerative braking to batteries on the train?

This could have advantages.

  • improved acceleration and smoother braking
  • Less electricity and diesel consumption.
  • No running of diesel engines in stations.

I’m only speculating, but could the batteries or supercapacitors be under the car without a diesel engine? A balanced design might make this the middle car of the train

There must also be the possibility, that instead of using MTU diesel engines, the trains use MTU Hybrid PowerPacks.

Why shouldn’t Hitachi get their respected supplier to do as much of the hard work as possible?

Train Length

A five-car Class 222 train, which work the Midland Main Line now, consists of two 23.85 metre and three 22.82 metre cars. So it is 116.16 metres long.

The article says the cars in the new trains will be 24 metres long,, so a new train will be 120.0 metres long or 3.84 metres longer.

This will probably mean that there will be no need for costly and disruptive platform lengthening at a couple of stations.

Capacity

Abellio have stated that passengers like having a table and that they will be offering a catering service

So will we see most seats having a table?

Chiltern have proved it’s a philosophy that works for all stakeholders!

This means that capacity comparisons with the current trains will be difficult, as you’re comparing apples with oranges.

Hopefully, we’ll get more details soon!

Splitting And Joining

I would assume the new trains will have the ability to split and join an route like the other Hitachi trains.

This could be very useful in organising trains in the limited number of paths South of Kettering.

A ten-car train might leave St. Pancras as two five-car units running as a pair. It could split at East Midlands Parkway station and one train could go to Nottingham and the other to Derby. Coming South the two trains would join at East Midlands Parkway.

A Nose Job

I’m intrigued by the phrase “slightly different nose profile” in the extract I quoted earlier.

Have Hitachi’s champion origamists found a way of designing a train which can split and join with both an aerodynamic nose and a corridor connection?

After their experience with the Class 385 train and its curved windows, I suspect Hitachi have learned a lot. Could for instance one end of the five-car train have a Class 800-style nose and the other an improved Class 385-style front end?

Trains would mate blunt-to-blunt, so the Southern train would always point towards London and the Northern train would always point towards Sheffield.

I used to have a friend, who learned origami skills at Hiroshima in the 1950s, whilst doing National Service in the Army.

I don’t think my proposal is impossible, but I’ll admit it’s unusual!

  • The blunt end might have a pair of doors, each with a flat window, thus giving the driver an uninterrupted view, when driving from that end.
  • When the trains connected the doors would open and swing forward. The gang way would unfold probably from under the cab The driver’s desk would probably fold away, as the two cabs wouldn’t be needed in a ten-car train.
  • Connect and disconnect would be totally automatic.

Effectively, two five-car trains would convert into a ten-car train.

The Number Of Trains

In my earlier post, I estimated that Abellio East Midlands Railway would buy 140 bi-mode carriages.

This works out as 35 trains, as against the thirty-three actually ordered.

This is close enough to say, that these new trains are only for main line services and will not be used on the electric services to Corby, which I estimate will be another seven 240 metre-long electric trains

A Complete Fleet Renewal

This is a paragraph from the Railway Gazette article.

Abellio UK Managing Director Dominic Booth said the new trains would ‘form the centrepiece of our ambitious plans for a complete replacement of all the trains on the East Midlands Railway’, representing ‘a more than £600m investment to really improve the region’s railway’.

When Abellio say renewal, they mean renewal.

So will Bombardier or another manufacturer receive a consolation prize of the seven high-capacity 240 metre long electric trains for the St. Pancras and Corby service?

A version of the Abellio part-owned, West Midlands Trains‘s, Class 730 train, would surely do just fine.

The Role Of Rock Rail

The trains will be leased from Rock Rail.

The Rock Rail web site gives this insight.

Rock Rail’s game changing approach to rolling stock funding has:

  • Enabled long term institutional investors to invest directly into a new sector.
  • Driven better value for government, operators and passengers.
  • Extended the market for infrastructure finance.

Rock Rail works closely with the franchise train operators and manufactures to ensure a collaborative approach to design, manufacture and acceptance of the new state of the art trains on time and to budget as well as to manage the long-term residual value and releasing risks.

It’s obviously an approach that has worked, as they have been behind three rolling stock deals at they have funded trains for Moorgate services, Greater Anglia and South Western Railway in recent months.

The Abellio East Midlands Railway makes that a fourth major fleet.

Take a few minutes to explore their web site.

Rock Rail say their backers are institutional investors. So who are these faceless institutions with deep pockets.

I have seen Standard Life Aberdeen mentioned in connection with Rock Rail. This Scottish company has £670 billion of funds under management and it is the second largest such company in Europe.

Companies like these need secure long term investments, that last thirty to forty years, so that pension and insurance funds can be invested safely to perhaps see us through retirement. I know that some of my pension is invested in a product from Standard Life Aberdeen, so perhaps I might ultimately own a couple of threads in a seat cover on a train!

As the Government now insists everybody has a pension, there is more money looking for a safe mattress!

Rock Rail allows this money to be used to purchase new trains.

Rock Rail seem to be bringing together train operators, train manufacturers and money to give train operators, their staff and passengers what they want. I seem to remember that Abellio did a lot of research in East Anglia about the train service that is needed.

Conclusion

Abellio have made a very conservative decision to buy trains from Hitachi, but after my experiences of riding in Class 800, 801 and 802 trains in the last few months, it is a decision, that will satisfy everyone’s needs.

Unless of course, Hitachi make a horrendous mess of the new trains!

But the four fleets, they have introduced into the UK, have only suffered initial teething troubles and don’t seem to have any long term problems.

There are some small design faults, which hopefully will be sorted in the new trains.

  • Step-free access between train and platform.
  • The carriage of bicycles and other large luggage.

The second will be more difficult to solve as passengers seem to bring more and more with them every year.

July 31, 2019 Posted by | Finance, Transport/Travel | , , , , , , , , , , | 3 Comments

« Previous Entries
