Does The Elizabeth Line Offer Similar Benefits To The Bakerloo Line Extension?

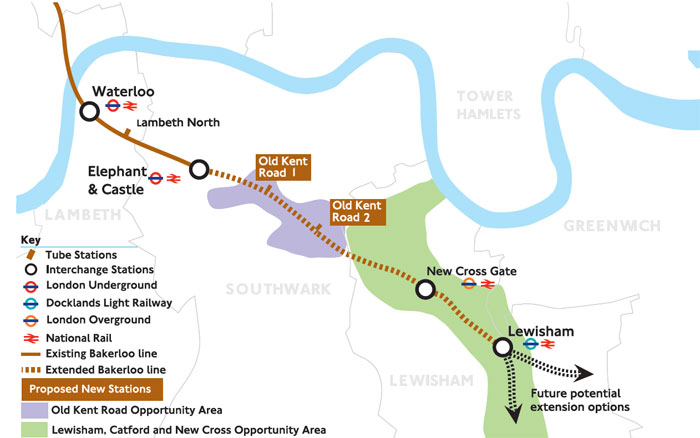

This map shows the proposed Bakerloo Line extension.

Note.

  1. There are new or improved stations at Old Kent Road 1, Old Kent Road 2, New Cross Gate and Lewisham.
  2. New Cross Gate station has Overground and Southern services.
  3. Lewisham station has Docklands Light Railway and Southern services.
  4. The future potential option going South is to take over the Hayes Line.

Could we provide improvements along the line of the Bakerloo Line Extension in a less disruptive and more affordable manner?

I will look at the various stations.

New Cross Gate

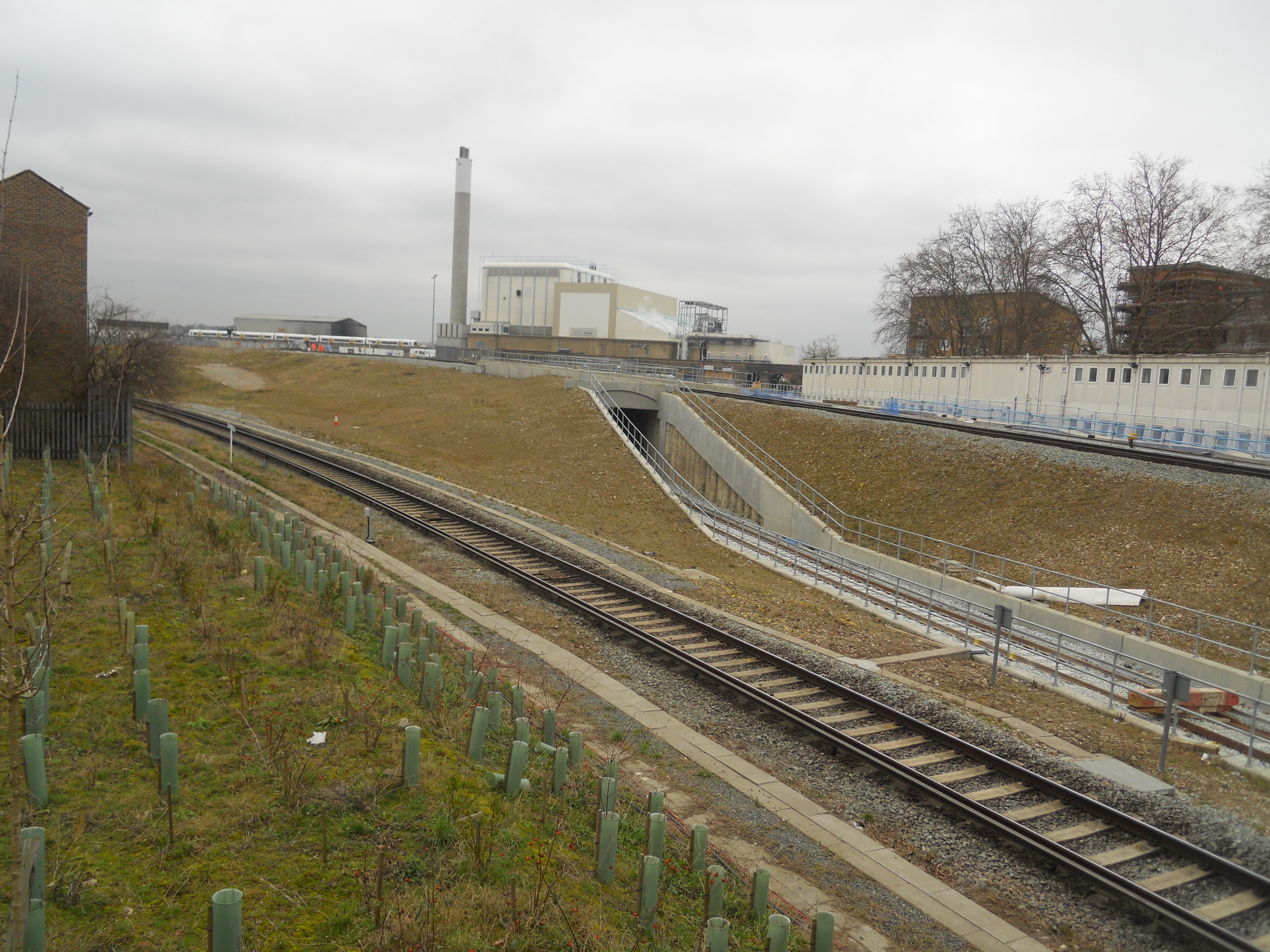

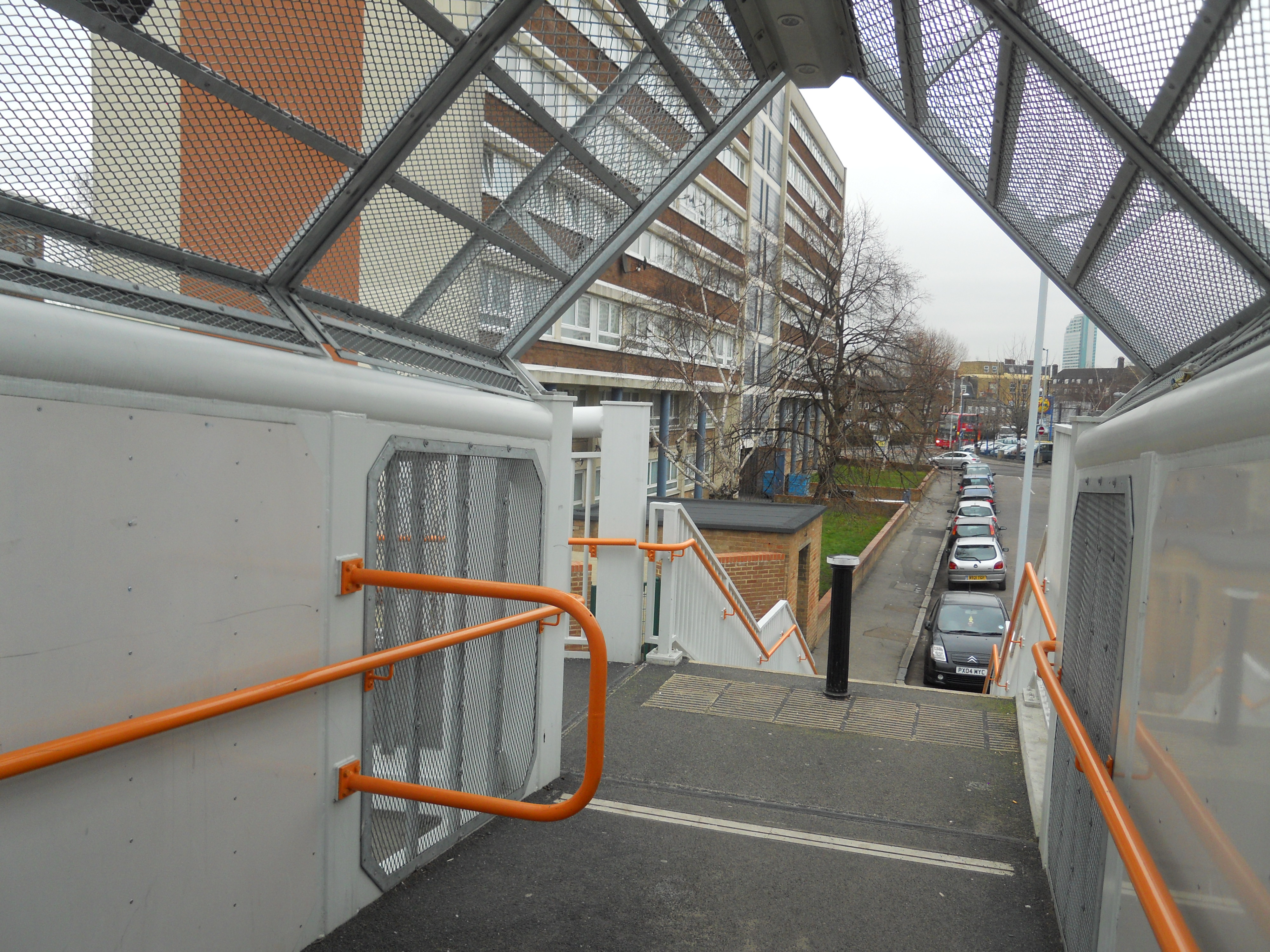

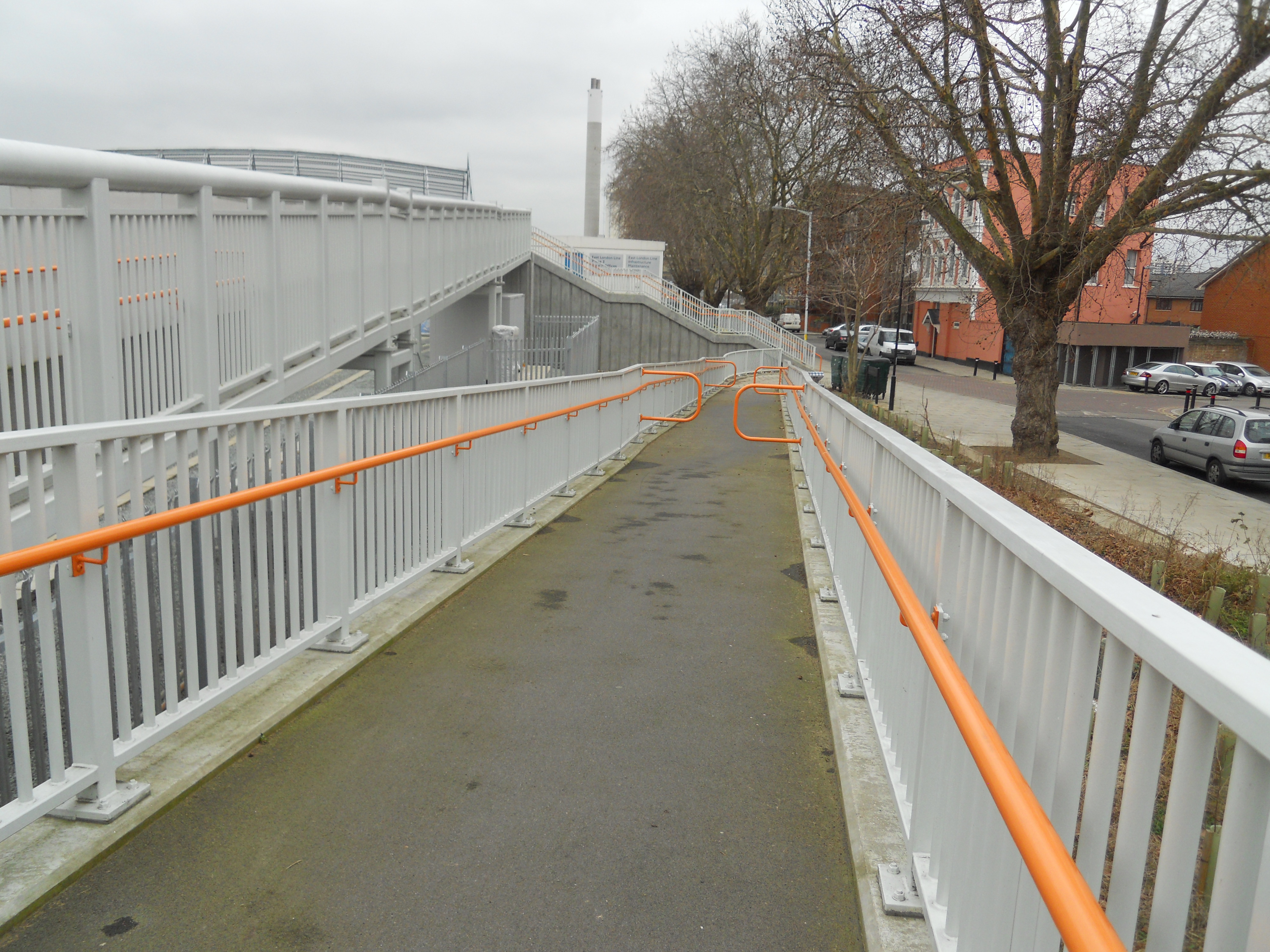

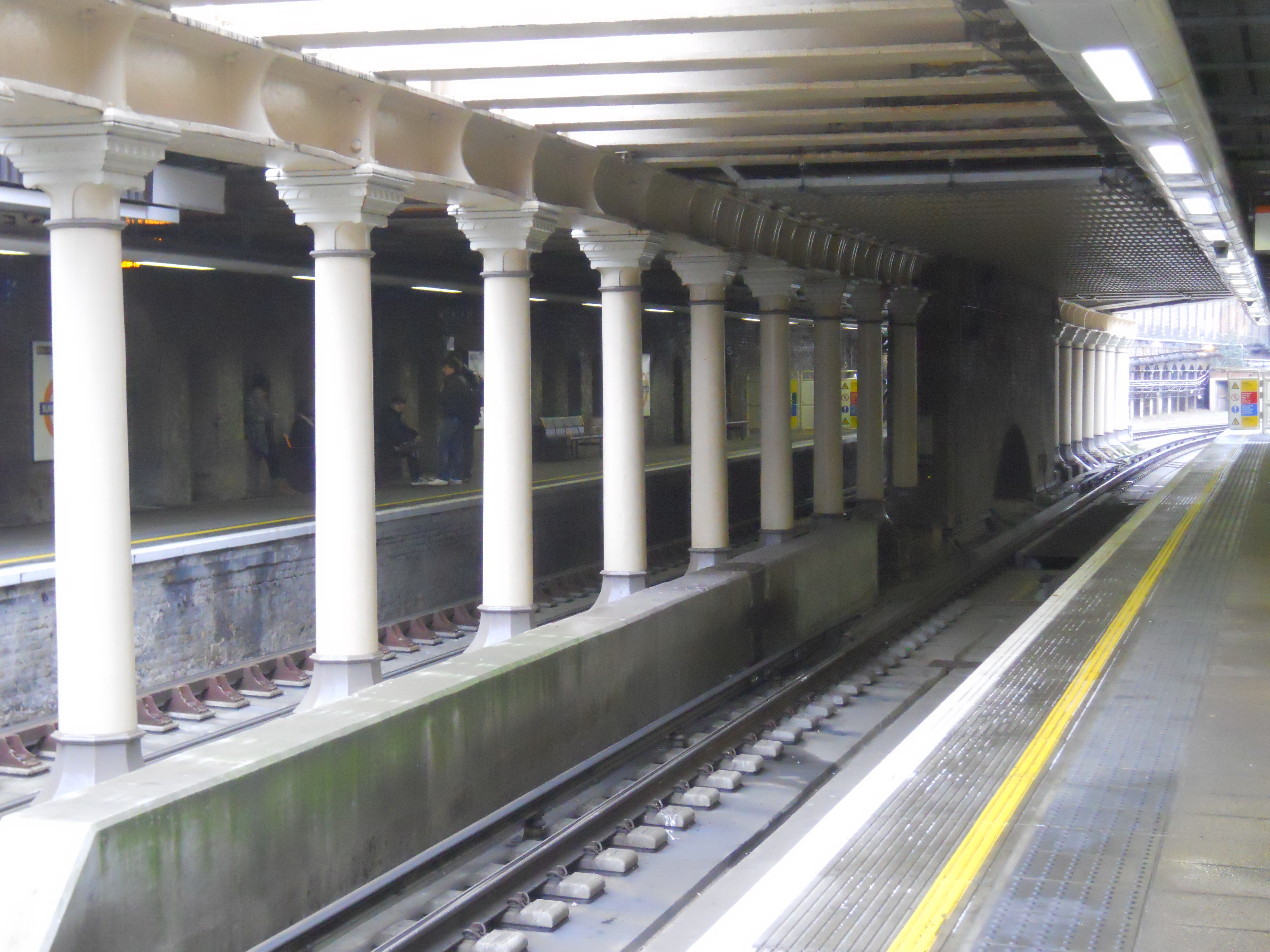

New Cross Gate station is a fully-accessible station, as these pictures show.

The station, currently has the following services.

  • Overground – Highbury & Islington and Crystal Palace – 4 tph
  • Overground – Highbury & Islington and West Croydon – 4 tph
  • Southern – London Bridge and Victoria via Sydenham – 2 tph
  • Southern – London Bridge and Coulsdon Town via Sydenham – 2 tph

Note.

  1. tph is trains per hour.
  2. The Overground services provide an 8 tph service to the Elizabeth Line at Whitechapel station.
  3. TfL may well increase the frequency of the two Overground services to 5 tph.

I suspect that the easiest way between New Cross Gate and Harrow & Wealdstone will be with changes at Whitechapel and Paddington.

  • New Cross Gate and Whitechapel – Overground – 13 minutes.
  • Whitechapel and Paddington – Elizabeth Line – 14 minutes.
  • Paddington Interchange – 15 minutes
  • Paddington and Harrow & Wealdstone – Bakerloo Line – 29 minutes

This gives a total time of 71 minutes.

As Bakerloo Line trains go between Elephant & Castle and Harrow & Wealdstone, which is 24 stations and the journey takes 48 minutes, this gives a figure of two minutes per station.

  • This seems to fit Irene’s Law, which I wrote about in Irene’s Law – Estimating Tube Journey Times.
  • So it looks like a direct train on the extension would take 54 minutes.
  • That time fits well with the 71 minutes via the Elizabeth Line if fifteen minutes is allowed for the walk at Paddington.

I will do the trip for real today.

Lewisham

There are two ways to get between Lewisham and the Elizabeth Line.

  • Take the Dockland’s Light Railway to Canary Wharf. Estimated at 15 minutes.
  • Take a train to Whitechapel, which needs a change of train at New Cross station. Estimated at 17 minutes minimum.

Neither are perfect.

I will try out these two trips soon.

Hayes

The Hayes Line is often talked about as the final destination of the Bakerloo Line.

In More Frequent Trains And A New Station For The London Overground, I put forward a plan for connecting the Hayes Line to the New Cross branch of the London Overground.

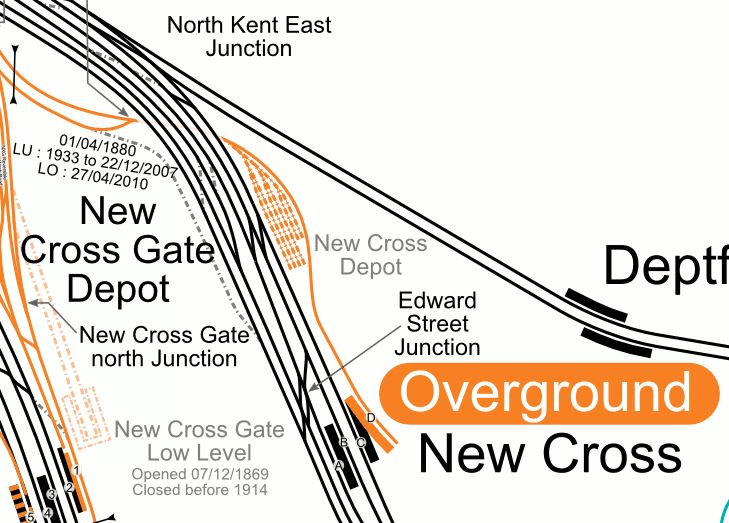

This map from carto.metro.free.fr shows the lines at New Cross station.

Note.

  1. The double-track East London Line, shown in orange, arrives from Surrey Quays station arrives in the North-Western corner of the map, becomes a single-track and then goes under the main lines before going into the bay platform D.
  2. Hayes Line services use Platform C going South and Platform A going North.
  3. Could the Overground going South divert into Platform C for Hayes?
  4. It would appear there used to be a line connecting Platform A to the East London Line of the Overground. Could this line be reinstated?

This Google Map shows the same area.

Note.

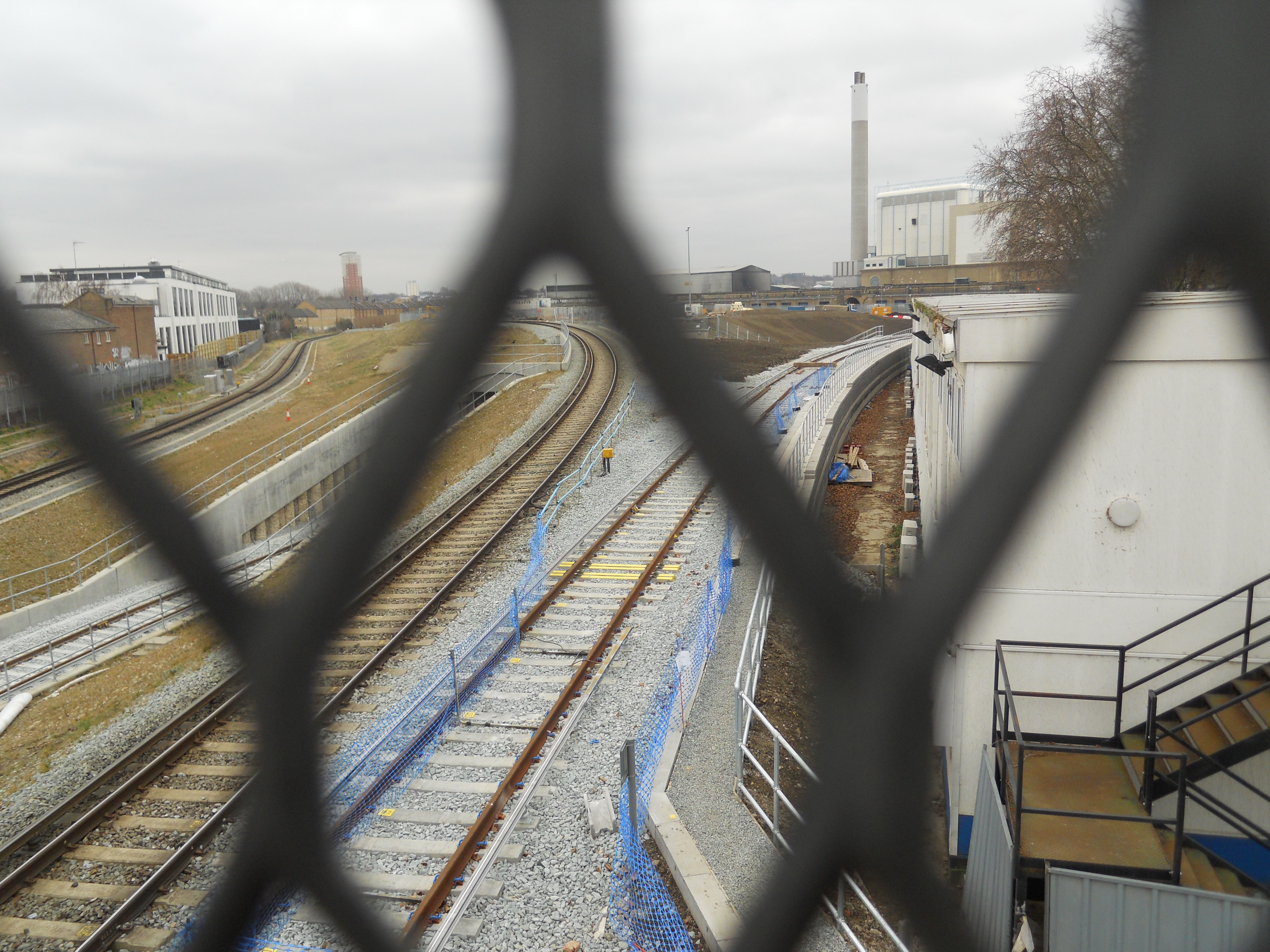

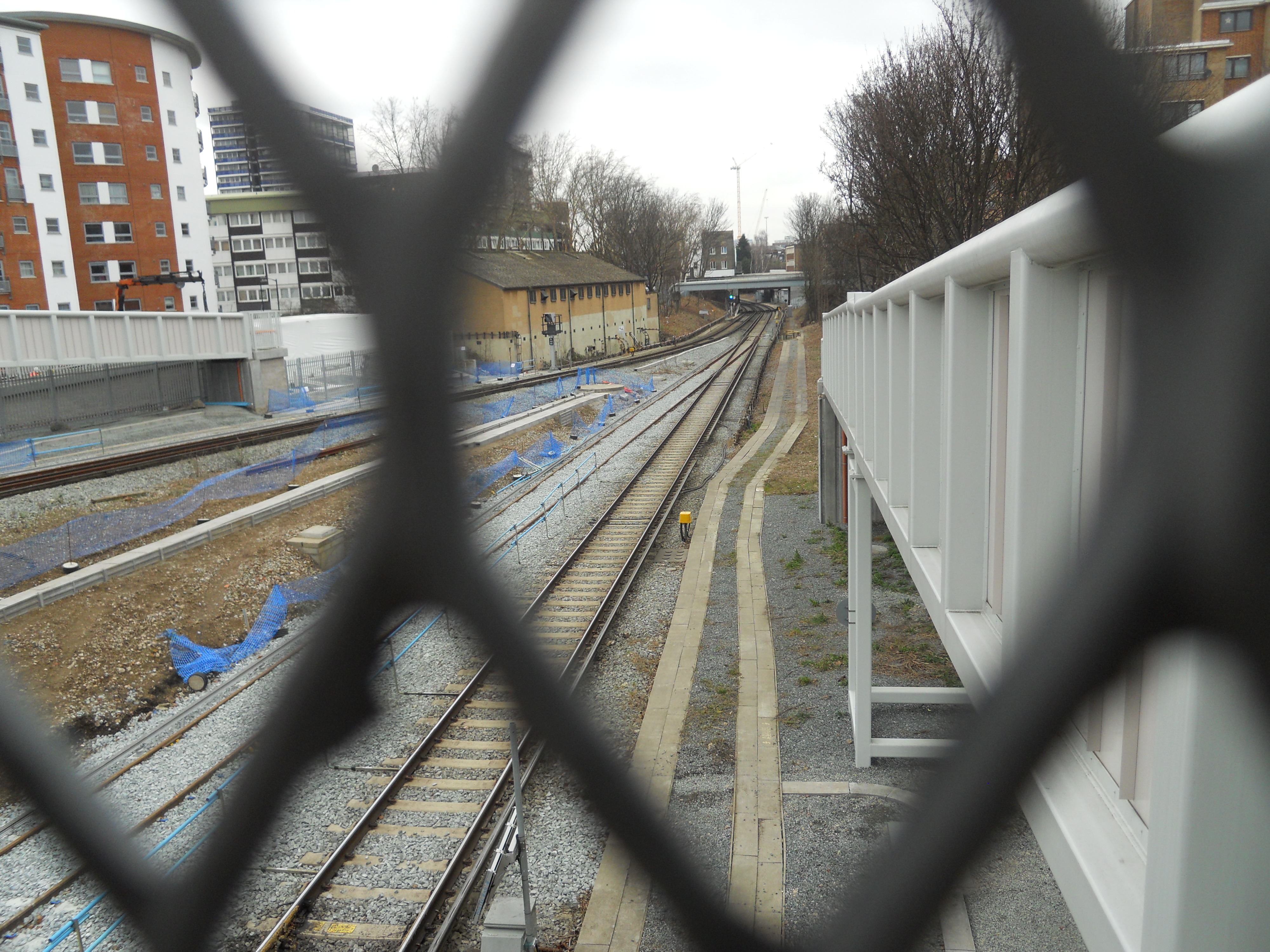

  1. The London Overground track is clearly visible.
  2. The needed connection certainly looks possible, without too much heroic engineering.
  3. Although, I suspect it could need digital signalling to get everything to work smoothly. But that will happen anyway!

The big advantage of this approach, is that all stations between Whitechapel and Hayes, would have a direct connection to the Elizabeth Line.

Hayes Line services would still continue to Victoria and Cannon Street, although the frequency might be reduced, depending on how many Overground services used the route.

Old Kent Road 1 And Old Kent Road 2

I think there are two ways to serve this important area.

  • The first would be to run a high-frequency bus service between Elephant & Castle and the two stations at New Cross.
  • I also suspect, it would be possible to have a short extension of the Bakerloo Line to a double-ended station at New Cross Gate and New Cross stations.

I went into the second way in More Frequent Trains And A New Station For The London Overground, where I came to these conclusions.

I am drawn to these two conclusions.

  • The Bakerloo Line should be extended via two new Old Kent Road stations to a double-ended terminal station in New Cross with interchange to both New Cross Gate and New Cross stations.
  • The New Cross branch of the London Overground should be extended through Lewisham to Orpington and/or Hayes.

My preferred destination for the London Overground service could be Hayes, as this would surely help to free up paths through Lewisham and London Bridge.

I also feel, that the scheme would be much more affordable if high-specification buses were used between Elephant & Castle and the two stations at New Cross.

Conclusion

There are certainly possibilities to create an alternative route, with the same objectives as the Bakerloo Line Extension.

May 28, 2022 Posted by | Transport/Travel | , , , , , , , , , , , | 1 Comment

Essex Councillors Call For Underground Link

The title of this post, is the same as that of this article on Railnews.

This is the first paragraph.

Councillors in Harlow are calling for a new Underground link, saying that they are examining ‘all possibilities for improving and modernising transport connections’.

I’ve tackled this subject before in Does Harlow Need An Improved Train Service?, but this time I’m starting with what is possible and working backwards.

Harlow’s Current Train Service

Currently, these trains serve Harlow Town station.

  • Stratford and Bishops Stortford – 2 tph – via Lea Bridge, Tottenham Hale, Waltham Cross, Cheshunt, Broxbourne and Sawbridgeworth
  • London Liverpool Street and Cambridge North – 1 tph – via Tottenham Hale, Cheshunt, Broxbourne, Bishop’s Stortford, Audley End, Whittlesford Parkway and Cambridge
  • London Liverpool Street and Cambridge North – 1 tph – via Tottenham Hale, Cheshunt, Broxbourne, Roydon, Sawbridgeworth, Bishop’s Stortford, Stansted Mountfitchet, Elsenham, Newport, Audley End, Great Chesterford, Whittlesford Parkway, Shelford and Cambridge
  • London Liverpool Street and Stansted Airport – 1 tph – via Tottenham Hale
  • London Liverpool Street and Stansted Airport – 1 tph – via Tottenham Hale and Stansted Mountfitchet

In addition these services run through Harlow Town station without stopping.

  • London Liverpool Street and Stansted Airport – 2 tph – via Tottenham Hale

Note.

  1. tph is trains per hour
  2. The Stansted services are fast services and take 29 minutes between London Liverpool Street and Harlow Town.
  3. The other services seem to take a few minutes longer.

Summarising the services gives the following.

  • Eight tph pass through the station of which six tph stop.
  • Cambridge and Cambridge North has a 2 tph service.
  • London Liverpool Street has a 4 tph service.
  • Stansted Airport has a 2 tph service.
  • Stratford has a 2 tph service.
  • Tottenham Hale has a 6 tph service.

Each of Greater Anglia’s new Class 720 trains, when working as a ten-car formation can carry well over a thousand passengers.

Harlow Town station has a fairly good service, but it could probably be improved.

What Are Harlow’s Councillors Suggesting

This paragraph in the Railnews article gives the councillors wish list.

Harlow Councillor Michael Hardware is portfolio holder for strategic growth. He said: ‘With Harlow’s close proximity to London our plans include investigating the potential for the extension of the central line to Harlow, lobbying to extend London Transport Zones to Harlow, examining connectivity to Crossrail 2 and promoting four tracking of the main line to Stansted Airport as well as improving existing public transport links in and out of the town.

I’ll look at each proposal in turn.

Extending The Central Line To Harlow

Epping and Harlow are about nine miles apart.

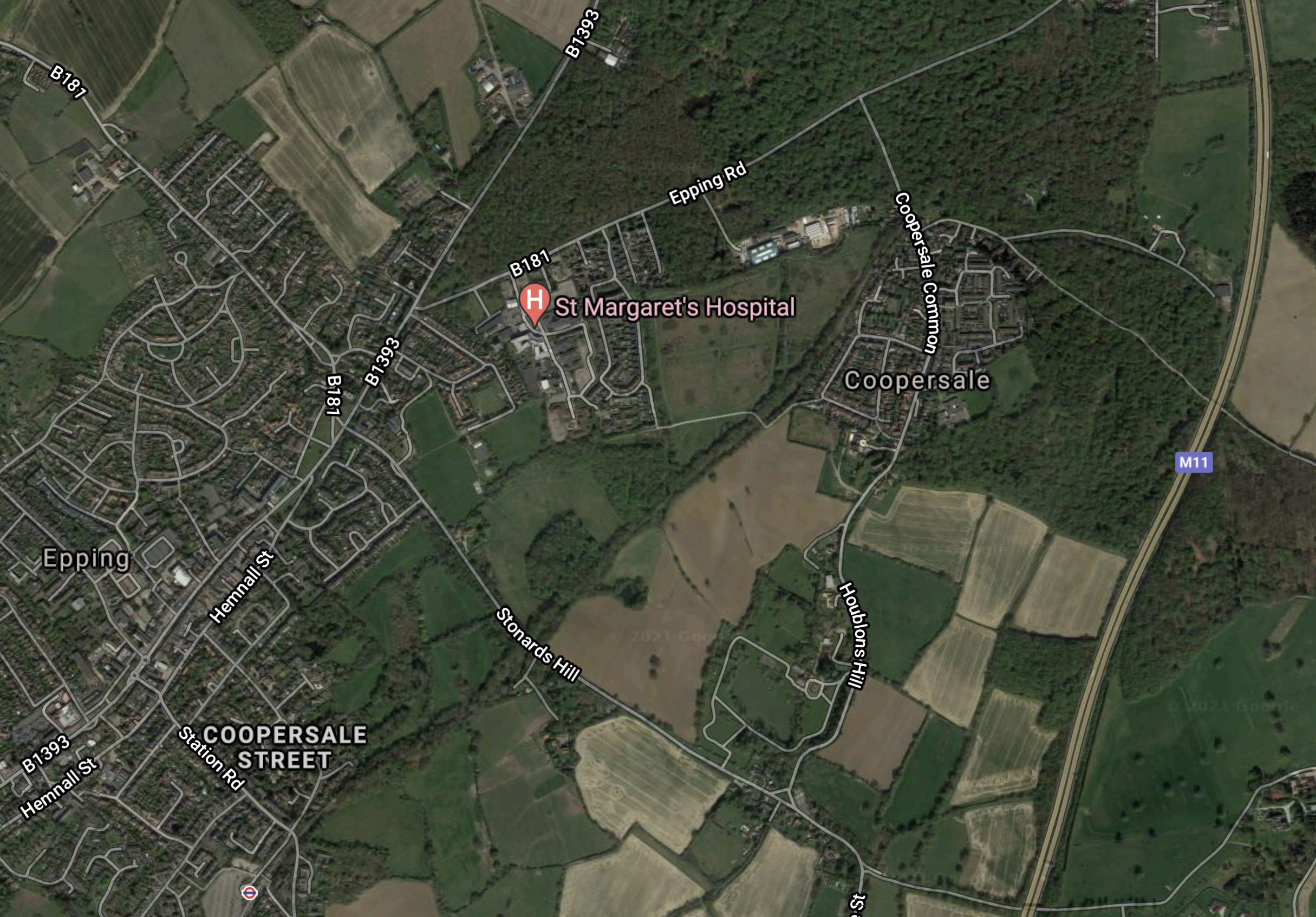

This Google Map shows the two towns and the M11 that runs to the East of both towns.

Note.

  1. Epping is in the South-West corner of the map.
  2. Harlow, which is a large town of nearly 90,000 residents is at the top of the map.
  3. The M11 runs North-South across the map to the East of both towns.
  4. North Weald Airfield lies to the East of the motorway.

Would it be possible to run an extension of the Central Line from Epping to Harlow?

It could run up the West side of the motorway.

  • The terminus could be in South-East Harlow close to Junction 7 of the M11.
  • Any plans for the development of North Weald Airfield could have a big effect on any plans.

This Google Map shows the location of Epping station with respect to the motorway.

Note Epping station is in the South-West corner of the map.

Running North-East from the station, the dark green scar of the single-track Epping Ongar Railway can be picked out, as it runs between St. Margaret’s Hospital and the village of Coopersale.

This third Google Map shows the railway as it passes under the M11.

Would it be possible to use the route of this line to connect to a new line alongside the motorway?

This fourth Google Map shows Epping tube station.

Note.

  1. The station has two platforms, but is not step-free.
  2. It has a large car-park.
  3. Trains take thirty-seven minutes between Epping and Liverpool Street stations.
  4. Trains have a frequency of nine tph.

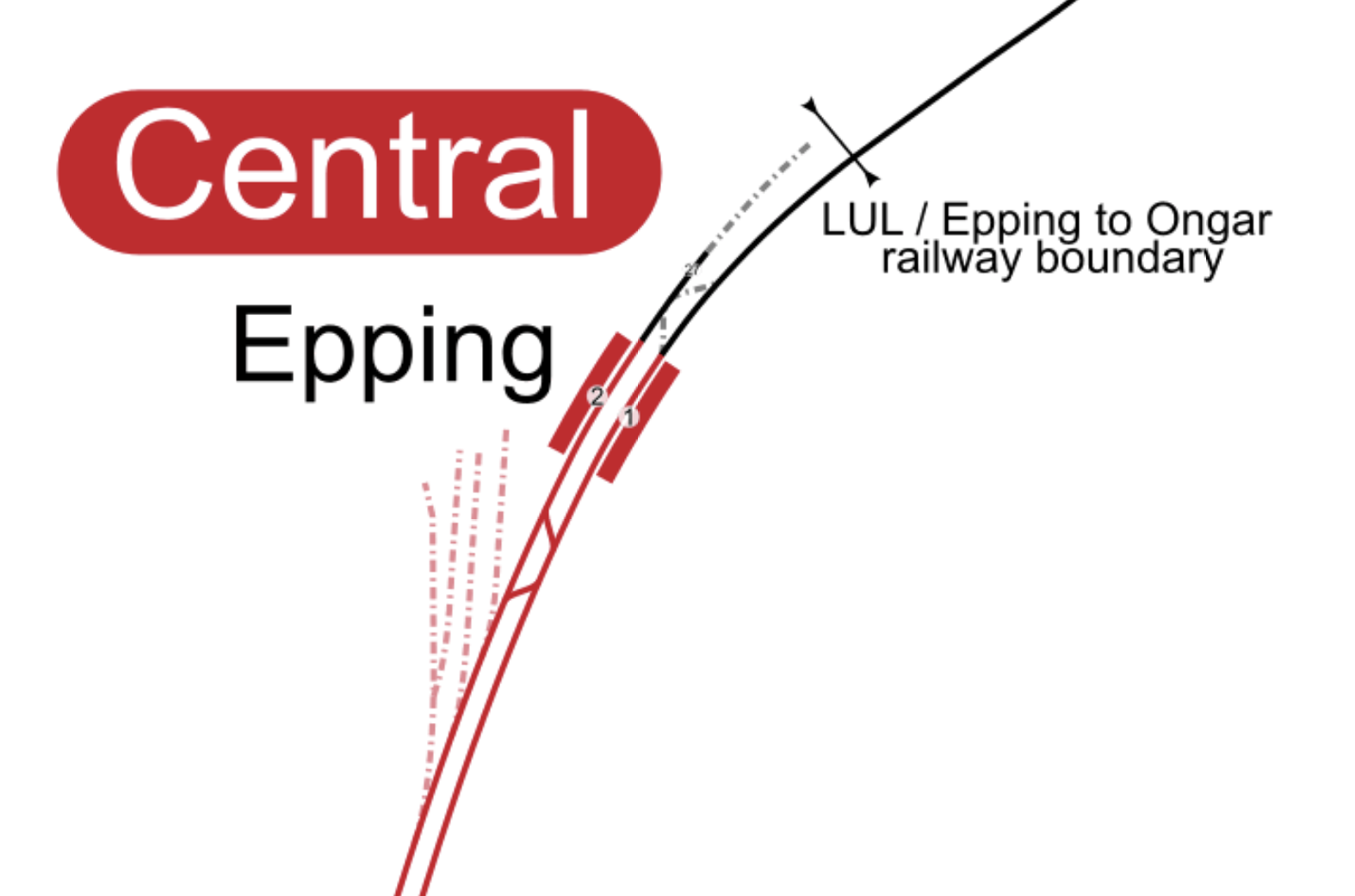

This map from cartometro.com shows the track layout at Epping station and the interface with the Epping Ongar Railway.

Note.

  1. The Epping Ongar Railway has always been single track.
  2. The crossovers to the South of Epping station allow either platform to be used for Central Line services.
  3. When the Central Line ran to Ongar, it looks like all services used Platform 1 at Epping.

I feel that it might be possible to create an extension to Harlow, by doing something like the following.

  • Add a second bi-directional  track alongside the Epping Ongar Railway between Epping station and the M11.
  • Extend Platform 1 to the North, so that the heritage trains can load and unload passengers at Epping station.
  • The Central Line platforms would be unaltered, so could still handle the nine tph they currently handle.
  • Trains to and from Harlow would always use Platform 2.

At the M11, the new bi-directional track would turn North and become double-track to Harlow.

  • The double-track would allow trains to pass.
  • If the rolling stock for the Central Line has been renewed, it might be possible to run the extension on battery power.
  • If Harlow had a single platform, it would be possible to run four tph to Harlow.
  • The current 2012 Stock trains have a capacity of around a thousand passengers.
  • I estimate that trains would take about ten minutes between Epping station and the new Harlow station.

I feel something is possible, but building the line might be easier if new battery-electric trains were available, as this would probably allow the extension to be built without electrification.

On the other hand, it might not have the greatest financial case.

  • It could be difficult to add large numbers of passengers to the Central Line.
  • At around forty-seven minutes, the Central Line service will be slower than the main line trains, which currently take around a dozen minutes less.

I’ll be interested to see what the professionals say.

Extending London Transport Zones To Harlow

Harlow Town station has ticket barriers, but I don’t think it is part of London’s contactless card zone.

Adding Harlow Town and all stations between Harlow Town and the zone could be very beneficial to passengers and train companies.

Examining Connectivity To Crossrail 2

I think that in the current economic situation this should be discounted.

  • It is a very expensive project.
  • Building it will cause tremendous disruption on the West Anglia Main Line.
  • It is only planned to go as far as Broxbourne station.

But I don’t think politicians from outside London and the South-East would sanction another massive project for London.

I don’t think Crossrail 2 will ever be build in its currently proposed form.

Four Tracking Of The Main Line To Stansted Airport

Consider.

  • Currently, the numbers of trains on the West Anglia Main Line is under twelve tph.
  • Modern double-track railways with the latest digital in-cab signalling like Thameslink and Crossrail can handle twice this number of trains.
  • The West Anglia Main Line will be getting new trains with better acceleration.

Four-tracking is mainly needed to cut times to Cambridge and Stansted Airport, but I suspect that with some clever design and improved signalling, the current double-track can be improved significantly.

Improving Existing Public Transport Links In And Out Of The Town

I think that this could be a fruitful area.

  • As I said earlier, Harlow has only 6 tph trains stopping in the station.
  • I believe this could be increased to at least 10 tph, if the West Anglia Main Line were to be modernised.
  • Extending London Transport Zones To Harlow, which I discussed earlier would surely help.
  • Is there enough car parking?
  • Are there enough buses to the stations?
  • Would a fleet of zero-carbon buses tempt people to use them?
  • Would it be possible to run a hydrogen commuter bus service up and down the M11 between say Harlow and Ilford for Crossrail?, as is being done in Dublin, that I wrote about in Three Hydrogen Double Decker Buses Set For Dublin.

Hopefully, Harlow’s councillors would have a few good ideas.

A Few Thoughts On What Is Possible

These are a few of my thoughts on what is possible.

Digital Signalling Could Increase The Number of Trains Per Hour Significantly

Consider.

  • Currently, the West Anglia Main Line handles ten tph between Liverpool Street and Bishops Stortford.
  • Thameslink handles 24 tph with digital signalling.
  • Crossrail will handle 24 tph with digital signalling.
  • High Speed Two will handle eighteen tph.

I certainly believe that another four tph could be easily handled through the two Harlow stations, with full digital signalling.

Perhaps a frequency of eight tph, that would match TfL Rail between London Liverpool Street and Shenfield would be ideal.

If it works for Shenfield it should work for Harlow!

Rebuild Cheshunt Station

Cheshunt station with its level crossing is a bottleneck and any increase in the number of trains through the station will need the level crossing to be replaced by a bridge.

But developers are talking of high class housing in the area and removal of the level crossing appears to be in their plans.

New High-Capacity Class 720 Trains

Pairs of five-car Class 720 trains are coming to the West Anglia Main Line and each pair will carry over a thousand passengers.

These will be used on four tph, that call at Harlow Town station.

Turn Trains In The High Meads Loop at Stratford Station

The single-track Wirral Line Loop under Liverpool handles up to sixteen tph.

Network Rail built a double-track loop under the Eastfield Shopping Centre, which calls at Platforms 11 and 12 in Stratford.

If this loop was used to turn trains it could probably handle at least twelve tph on one platform.

Liverpool Street currently handles these trains that go up the West Anglia Main Line or the Lea Valley Lines.

  • 6 tph – Greater Anglia
  • 6 tph – London Overground

It looks to me that the terminal capacity in London could be as high as 20 tph.

Run More Trains On A Digitally-Signalled Route Through Seven Sisters

Just four tph run on the London Overground route through Seven Sisters station.

Compare that with the East London Line of the London Overground, where sixteen tph run between Dalston Junction and Surrey Quays stations.

The London Overground has ambitions to run four tph to Cheshunt and Enfield Town, as they do to Chingford, but that would only up the frequency through Seven Sisters to eight tph.

The tracks in the area also allow trains from Stratford to use the lines through Seven Sisters stations to go North.

Run West Anglia And Lea Valley Services Together

Currently, Greater Anglia and London Overground seem to do their own things, but surely properly integrated and with the moving of more services to the London Overground, I suspect that everything could be more efficient.

I believe that by using Liverpool Street and Stratford as twin London terminals for Lea Valley services, that upwards of twenty tph can on digitally-signalled West Anglia Main Line and the Lea Valley Lines.

These are the current trains.

  • Bishops Stortford – 2 tph
  • Cambridge North – 2 tph
  • Cheshunt – 2 tph
  • Chingford – 4 tph
  • Enfield Town – 2 tph
  • Hertford East – 2 tph
  • Stansted Airport – 4 tph

Note.

  1. This is a total of eighteen tph
  2. The pinch point is surely the stretch between Bethnal Green and Clapton stations, which handles 14 tph including a mix of fast expresses and London Overground services.
  3. On the other hand the route through Seven Sisters is handling just four tph.
  4. Ten tph run between Tottenham Hale and Cheshunt stations on the West Anglia Main Line.
  5. Only two tph terminate in Stratford.

If the Cheshunt and Enfield Town services are increased to 4 tph, as is London Overground’s aspirations we get the following.

  • Bishops Stortford – 2 tph
  • Cambridge North – 2 tph
  • Cheshunt – 4 tph
  • Chingford – 4 tph
  • Enfield Town – 4 tph
  • Hertford East – 2 tph
  • Stansted Airport – 4 tph

Note.

This is a total of twenty-two tph.

But there is still plenty of spare capacity at Stratford and through Seven Sisters.

If our objective is more trains through Harlow, why not double up the Stratford and Bishops Stortford service.

  • Bishops Stortford – 4 tph
  • Cambridge North – 2 tph
  • Cheshunt – 4 tph
  • Chingford – 4 tph
  • Enfield Town – 4 tph
  • Hertford East – 2 tph
  • Stansted Airport – 4 tph

Note.

  1. This is a total of twenty-four tph.
  2. Harlow will have eight tph to and from London.
  3. There will be 8 tph through Seven Sisters.
  4. There will be twelve tph between Tottenham Hale and Cheshunt stations on the West Anglia Main Line.
  5. Four tph will terminate at Stratford.

Perhaps to reduce the trains on the West Anglia Main Line, the Hertford East trains could go via Seven Sisters.

But that would mean that stations like Brimsdown and Ponders End would lose a lot of their service.

So why not add extra stops to the Bishops Stortford services?

Conclusion

I believe that by doing the following.

  • Adding digital signalling to all lines.
  • Turning more trains at Stratford.
  • Using the route through Seven Sisters at a much higher frequency.
  • Rebuilding Cheshunt station and level crossing.
  • Reorganising stops on the West Anglia Main Line.

That it would be possible to create a high-frequency Metro up the Lea Valley.

Except for the digital signalling and Cheshunt station, there is not much work to do on the infrastructure.











August 14, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , | 4 Comments

Will Clapham Junction Station Get A Platform 0?

London has a rail capacity problem, for both freight and passenger trains.

This report from Network Rail is entitled The London Rail Freight Strategy (LRFS).

One of the recommendations of the report is to build a Platform 0 at Clapham Junction station. It says this about that that platform.

Creation of additional bay platform capacity at the northern end of Clapham Junction station, for the use
of London Overground WLL services.

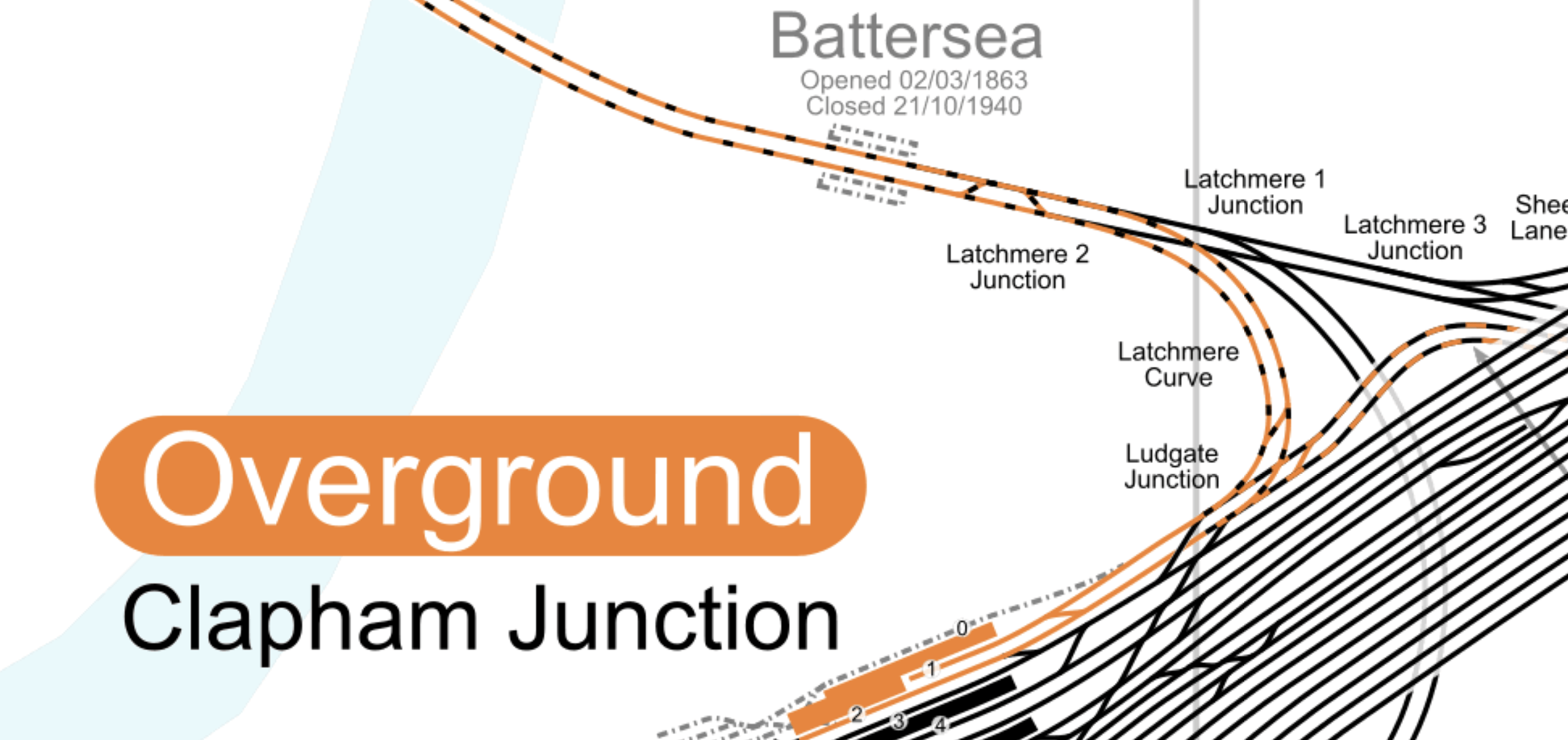

This map from cartometro.com shows the track layout as the orange tentacles of the London Overground approach Clapham Junction station.

Note.

  1. The West London Line approaches Clapham Junction station through Imperial Wharf station.
  2. The South London Line approaches Clapham Junction station through Clapham High Street and Wandsworth Road stations.

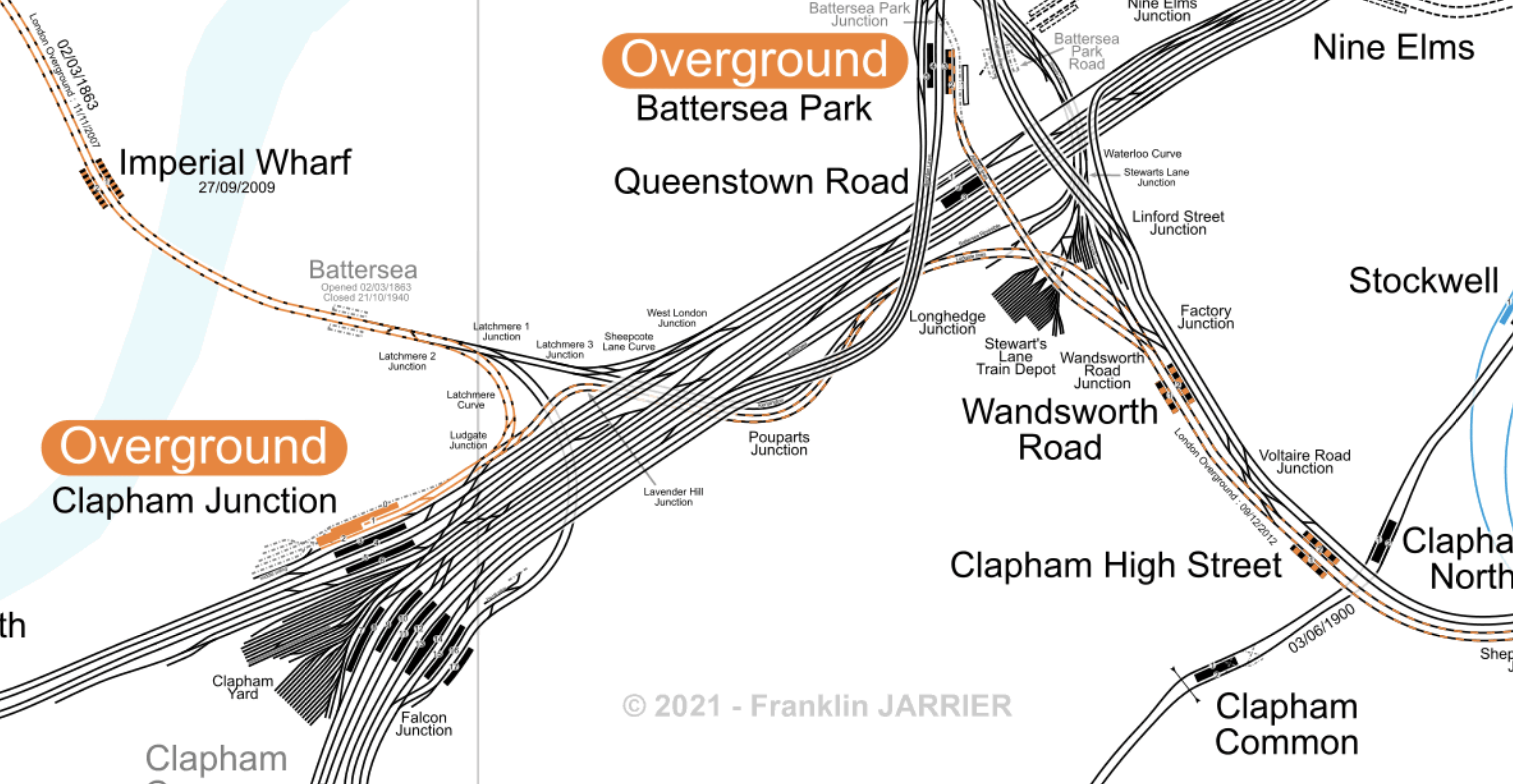

This second map from cartometro.com shows the track layout of the current two Overground platforms at Clapham Junction station and how the third one will fit in.

Note.

  1. It appears that there are crossovers to allow trains from either South or West London Lines to enter any of Platforms 0, 1 or 2.
  2. A typical bay platform can turn four trains per hour (tph) or possibly six tph, if the signalling is tip-top.

These pictures show the current state of Platform 0 at Clapham Junction station.

And these show Platforms 1 and 2 at Clapham Junction station.

The current two-platform system seems to work well.

Clapham Junction Station Is A Super-Interchange

Clapham Junction is already a super-interchange on the London Overground with lots of services to Central and Outer London and the wider South of England.

The London Overground probably needs more super-interchanges on its circular route around London.

  • Whitechapel and Stratford, which are one stop apart on Crossrail, could develop into one in East London.
  • As it grows, Old Oak Common, will develop into one in West London.

Other super-interchanges could develop at Croydon, Hackney (Central/Downs) and West Hampstead.

Network Rail’s Reasons For The New Platform

I’ll start with some information.

Current Overground Services

Current Overground services are as follows.

  • 4 tph – Stratford via Willesden Junction
  • 4 tph – Dalston Junction via Surrey Quays

The total of 8 tph, is generally easily handled by two platforms, unless something goes wrong.

Future Overground Services

It is expected that in the future services could be as follows.

  • 6 tph – Stratford via Willesden Junction
  • 6 tph – Dalston Junction via Surrey Quays

As I regularly use the service between Dalston Junction and Clapham Junction to get a connection to places like Portsmouth and Southampton, I know at least one regular traveller, who is looking forward to the increase in frequency.

But there could be another London Overground in the future.

In Gibb Report – East Croydon – Milton Keynes Route Should Be Transferred To London Overground, I wrote how in his report, Chris Gibb recommended that this hourly service should be transferred to the London Overground.

This is said in the Network Rail document about Platform 0 at Clapham Junction station.

The longstanding proposal for the creation of additional bay platform capacity at the northern end of Clapham Junction station, for the use of London Overground West London Line services, is supported by this strategy.

The scheme would reinstate the disused former platform 1 to create a newly designated ‘Platform 0’, adjacent to the present platforms 1 and 2.

This intervention has been recognised as key to long-term growth on the West London Line by several previous pieces of work for both Network Rail and Transport for London, which have consistently concluded that additional platform capacity at Clapham Junction is needed, if TfL’s aspiration to increase the WLL Overground service to 6 trains per hour is to be met.

Capacity analysis for the LRFS has reaffirmed that the desire to operate this level of service throughout the day cannot be achieved with a single bay platform.

Although this scheme would clearly be of direct benefit to the London Overground passenger service, the positive impact it would have on the capacity and performance of the WLL overall means that it is also very much in the interest of freight that Platform 0 be delivered. Without a new bay platform, the main alternative means to increase Overground train frequencies involves the use of platform 17 at the far end of the station, where freight and GTR trains pass through towards the BML. This is a sub-optimal solution for both freight and passenger operations.

Note.

  1. Platform 0 will share an island platform with Platforms 1 and 2, so there will be short level walks between trains.
  2. Platform 1 and 2 are already fully accessible, so Platform 0 will be as well.

The report feels that increasing passenger and freight services are often two sides of the same coin.

Questions

I have some questions.

Would Three Platforms Be Enough To Handle Twelve tph?

As two platforms seem to handle eight tph, at most times in the present, I suspect the answer is in the affirmative.

Would Three Platforms Be Enough To Handle Thirteen tph?

This would be needed, if the Milton Keynes service were to be transferred to the Overground and it used Clapham Junction station as a Southern terminus.

If it still went through Clapham Junction station to Croydon, then it would probably use Platform 17, as it tends to do now!

I do suspect that three platforms will be enough, as otherwise the LRFS would be proposing something else.

What Will Be The Length Of The New Platform 0?

Under Future Proposals in the Wikipedia entry for Clapham Junction station, this is said.

In a Network Rail study in 2015, it was proposed that platform 0 could reopen for 8-car operations of the West London Line.

An eight-car platform would allow the current eight-car Class 377 trains, that work the Milton Keynes service to use the platform.

Note that as an eight-car Class 377 train is 163.2 metres long, a platform that will accomodate this train, will be long enough to accomodate a five-car Class 378 train, which is only 102.5 metres long.

But should the platform be built long enough to handle two Class 378 trains working as a pair?

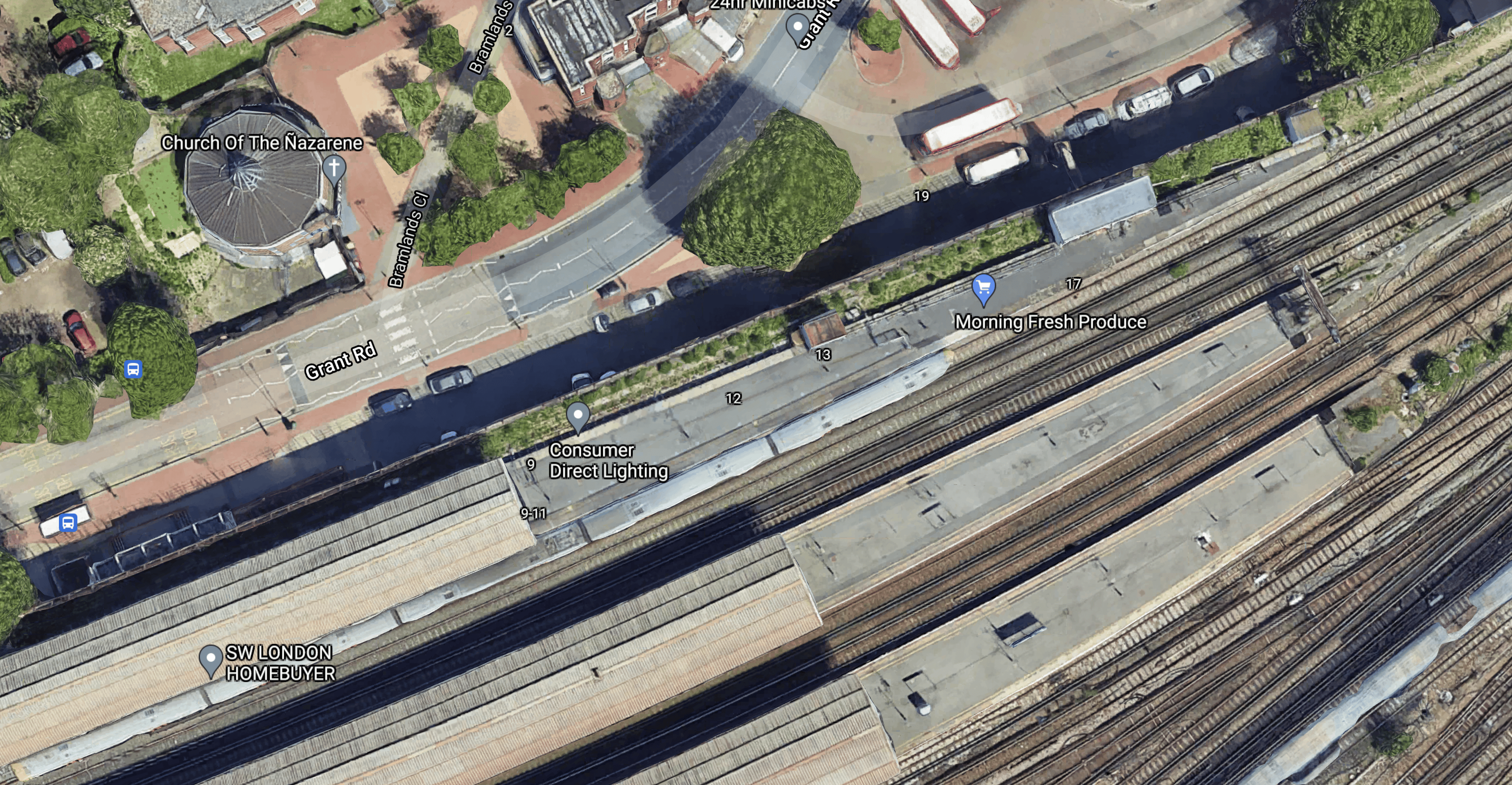

This Google Map shows Platform 1 and the current state of the future Platform 0 at Clapham Junction station.

Note.

  1. a five-car Class 378 train is standing in Platform 1.
  2. There are some minor obstructions along Platform 0.

I don’t think it would be impossible to create an eight-car Platform 0. Although, Platforms 0 and 1 might need to be extended by perhaps ten or twenty minutes towards London.

Does The Milton Keynes and Clapham Junction Service Need 110 mph Trains?

I have talked to several drivers, who drive trains on the four 125 mph lines out of London and some have complained about slower 100 mph trains, that get in their way and slow them down.

If the drivers get miffed, I suspect the train operating companies are more annoyed.

But over the last few years, the following has happened.

I wouldn’t be surprised to see 110 mph trains running between Milton Keynes and Clapham Junction, as they would just be following a sensible practice to increase capacity.

Conclusion

I have no problems with creating a new Platform 0 at Clapham Junction, but suspect that faster trains would be needed for the Milton Keynes and Clapham Junction, that would use it.

Work Appears To Have Already Started On Platform 0

With the installation of the all-important site hut and the fact that there were several engineers around with laser-measurement tools, I suspect that work is already underway to prepare everything for the construction of Platform 0 at Clapham Junction station.

Related Posts

These are related posts about the London Rail Freight Strategy (LRFS).

Decarbonisation Of London’s Freight Routes

Doubling Harlesden Junction

East Coast Main Line South Bi-Directional Capability

Gauge Improvements Across London

Gospel Oak Speed Increases

Headway Reductions On The Gospel Oak To Barking, North London and West London Lines

Heavy Axle Weight Restrictions

Kensal Green Junction Improvement

Longhedge Junction Speed Increases

Moving The West London Line AC/DC Switchover To Kensington Olympia

Moving The West London Line AC/DC Switchover To Shepherd’s Bush

Nunhead Junction Improvement

Stratford Regulating Point Extension

Will Camden Road Station Get A Third Platform?



June 20, 2021 Posted by | Transport/Travel | , , , , , , , , , | 19 Comments

Could Highbury & Islington And Canada Water Stations Be Connected By A Twelve Trains Per Hour Service?

This article on IanVisits, is entitled More Frequent Trains And A New Station For The London Overground.

This is said.

In a statement, the government agreed to requests for £80.8 million from the GLA to support transport upgrades so that 14,000 homes can be built along the East London Line.

Upgrades include

  • New Bermondsey station, which was originally to be called Surrey Canal Road, will be built.
  • A second entrance will be built at Surrey Quays station.
  • Frequency between Dalston Junction and Clapham Junction stations will be increased from four trains per hour (tph) to six tph.
  • Frequency between Highbury & Islington and Crystal Palace stations will be increased from four tph to six tph.

The frequency upgrades will mean twenty tph between Dalston Junction and Surrey Quays stations, or a tyrain every three minutes as opposed to the  current three minutes and forty-five seconds.

Consider the section of the East London Line that I use most between Highbury & Islington and Canada Water stations via Whitechapel station.

  • Highbury & Islington station has good connections to the Victoria Line, the Northern City Line and the North London Line.
  • Highbury & Islington station is the thirteenth busiest station in the UK.
  • Whitechapel station has good connections to the District and Hammersmith & City Lines, which have recently been increased in Frequency.
  • Whitechapel station will be on Crossrail, when it opens.
  • Canada Water station has a good step-free connection to the Jubilee Line.
  • Canada Water station is the seventeenth busiest station in the UK.
  • Currently, the frequency between Highbury & Islington and Canada Water station is eight tph and after the improvements it will be ten tph.

The frequency increase is to be welcomed but I wonder if it could be better.

Would it be possible that in addition to the proposed changes, the West Croydon and Clapham Junction services should swap Northern terminals, as they do on Sundays.

This would not affect any services South of Dalston Junction, but it would increase the number of services between Dalston Junction and Highbury & Islington via Canonbury to twelve tph.

This would give several benefits.

  1. Passengers changing from the North London Line to go South, would have an easier change at the less-crowded Canonbury station, rather than Highbury & Islington. Canonbury has only one Southbound platform, simpler passenger flows, is fully step-free and as the trains on the East London Line, will be at a higher frequency, the waiting time would be less and a maximum of just five minutes.
  2. Passengers could avoid the cramped Dalston Kingsland, which is not step-free, on many journeys.
  3. Half the trains going North through Dalston Junction would have a cross-platform interchange with the Westbound North London Line at Highbury & Islington.
  4. Passengers going South from Dalston Junction wouldn’t dither about at the bottom of the stairs, trying to ascertain, which train is going first. As there would be sixteen trains per hour leaving on the left island Platform 3/4, only passengers going to New Cross would go right.
  5. Dalston Kingsland and Highbury & Islington is one of the busiest Peak Hour services in the UK. Twelve trains per hour on the alternative route might ease the congestion.
  6. The increased frequency might help, when Arsenal are playing at home.
  7. In some ways, maximising the service between Dalston Junction and Highbury & Islington, compensates for the annoying cut-back of the 277 bus service.

I do feel that swapping the two services so that both six train per hour services terminate at Highbury & Islington could be beneficial.

Hopefully, TfL have got there first! Unless of course, there’s an operational reason, why the swap can’t be done!



October 30, 2019 Posted by | Transport/Travel | , , , , , , , | Leave a comment

Still Going For A Quart In A Pint Pot

The title of this post is the same as that of an artticle in the November 2019 Edition of Modern Railways.

The article describes the problems of running trains through the Castlefield Corridor through Manchester Piccadilly, Manchester Oxford Road and Deansgate stations.

It is a comprehensive article, that gets to the heart of the problem of the route.

It comes to the conclusion, that there is a need for either more infrastructure or less trains, than the current fifteen trains per hour (tph).

Under more infrastructure, the author lists these projects.

  1. Grade separated junctions at Castlefield and other junctions.
  2. A centre turnback at Manchester Oxford Road station.
  3. A West-facing bay platform at Manchester Victoria
  4. Four through platforms at Manchester Oxford Road and Manchester Piccadilly.
  5. Improvement at Manchester Airport station.

These points should be noted.

  • Options One and Four will be expensive and will probably cause massive disruption during construction for both rail and road traffic.
  • The author suspects Option Four would cost almost a billion pounds and would need the grade-separated junctions to get best value.

I shall deal with options Two, Three and Five later.

Trains Through The Castlefield Corridor

Current passenger trains through the Castlefield Corridor are as follows.

  • East Midlands Railway – One tph – Liverpool Lime Street and Norwich
  • Northern – One tph – Hazel Grove and Blackpool
  • Northern – One tph – Liverpool Lime Street and Crewe
  • Northern – Two tph – Liverpool Lime Street and Manchester Oxford Road
  • Northern – One tph – Manchester Airport and Blackpool
  • Northern – One tph – Manchester Airport and Cumbria
  • Northern – One tph – Manchester Airport and Liverpool Lime Street
  • Northern – One tph – Wigan North Western and Alderly Edge
  • Trains for Wales – One tph – Manchester Airport and Llandudno
  • TransPennine Express – One tph – Manchester Airport and Middlesbrough
  • TransPennine Express – One tph – Manchester Airport and Newcastle
  • TransPennine Express – One tph – Manchester Airport and Glasgow Central or Edinburgh

This gives the following totals.

  • Eleven tph – Deansgate and Manchester Piccadilly
  • Two tph – Deansgate and Manchester Oxford Road

Add in a couple of freight trains and that gives 15 tph, which according to the author is the design limit.

These are frequencies from Manchester Airport.

  • There are seven tph between Manchester Airport and Oxford Road via Piccadilly.
  • There are three tph between Manchester Airport and Preston via Piccadilly and Oxford Road.
  • There are two tph between Manchester Airport and Leeds via Piccadilly, Oxford Road and Victoria.

The author of the article also points out that Bradford is pushing for a direct service to Manchester Airport.

Frequency is important, but so is train length.

  • Transpennine Express services will generally be five cars in the future.
  • East Midlands Railway, Northern and Trains for Wales services will be between two and four cars.

Nothing too taxing to handle here, although Northern might decide to double trains of eight cars at times.

Comparison Of The Castlefield Corridor And The East London Line

Consider these facts about the Castlefield Corridor

  • Four Southern routings; Crewe, Hazel Grove, Stockport and Manchester Airport.
  • Five Northern routings; Bolton, Liverpool, Manchester Victoria, Trafford Park and Wigan North Western
  • Fifteen tph of which thirteen tph are passenger trains.
  • Three stations designed by Topsy, two of which are step-free.
  • Not step-free between train and platform.
  • Three interchange stations.
  • Conventional signalling.
  • Fully electrified with 25 KVAC overhead.
  • Four train companies, with at least four types of passenger train.
  • Bad timekeeping.
  • Low customer satisfaction.

For comparison, consider these facts about the East London Line between Shoreditch High Street and Surrey Quays stations.

  • Four Southern routings; Clapham Junction, Crystal Palace, New Cross and West Croydon.
  • Two Northern routings; Dalston Junction and Highbury & Islington
  • Sixteen tph of which all are passenger trains. Soon to be raised to twenty tph.
  • Seven stations designed by various architects, two of which are step-free, with Whitechapel to soon make this three step-free.
  • Some stations are step-free between train and platform.
  • Two interchange stations.
  • More bespoke signalling.
  • Fully electrified with 750 VDC third rail.
  • One train company and one type of passenger train.
  • Good timekeeping.
  • High customer satisfaction.

The route complexity and frequencies are fairly similar, so what are the big differences?

  • Is the East London Line’s signalling better?
  • The East london Line doesn’t have freight trains.
  • Does one type of train with wide doors and walk-through interiors, work wonders?
  • Does London’s step-free between train and platform make a difference?

I think the following actions should be looked at for the Castlefield Corridor.

  • Modern digital signalling.
  • All Northern services to be run using Class 195 or Class 331 trains, which look the same to passengers, despite one being electric and the other diesel.
  • TransPennine Express will be running three different type of train all with single doors, through the Castlefield Corridor. Ways of reducing the number of types must be found.

What idiot decided to buy three incompatible fleets? Surely, an order for a larger number of Hitachi trains would have been better?

My Behaviour In Manchester

I know Manchester’s trams and trains, but I haven’t a clue about the City’s buses, which seem to be reserved for the locals.

I regularly find myself using stations in the Castlefield Corridor and I have developed certain rules.

  • Never use Oxford Road, unless you’re lost and end up there by chance. It must be the worst designed modern station in Europe.
  • Never use the route unless you’ve already bought the ticket some time before.
  • Use Deansgate if possible, as it has a good connection to Manchester Metrolink.
  • Give yourself plenty of time to catch a train from platforms 13 and 14 at Piccadilly.
  • Make sure you know what platform your train is using at Piccadilly.

I also tend to avoid catching any train from platform 13 or 14 at Piccadilly.

Passenger Problems On Platforms 13 and 14 At Manchester Piccadilly

One of the reasons, I avoid these platforms, is that they are always crowded and at weekends, there seems to be a lot of occasional travellers, often with heavy cases and babies in buggies.

I remember having a chat with a station guy there in a quiet time and it turned out that he’d also worked on platforms on the London Underground.

One point he made was that Londoners get back from the platform edge, when told, but Mancunians are slower to act.

He said trains were often delayed because of passengers struggling to get on.

Could Other Actions Be Taken To Ease The Overcrowding?

These are various ideas suggested in the article or some of my own.

Run Less Trains Through The Castlefield Corridor

This would ease the problem, but it would make it more difficult for passengers to travel where they wanted and needed.

Build A Centre Turnback At Manchester Oxford Road

Consider

  • It would mean that trains turning back at Oxford Road, wouldn’t have to cross tracks, entering or leaving the turnback.
  • It could probably turn up to four tph.
  • It might also help in service recovery.

The author obviously likes this idea and I suspect it is possible, because he mentions it more than once.

Completely Rebuild Manchester Oxford Road Station

Manchester Oxford Road is certainly not fit for purpose.

This is an extract from the Wikipedia entry.

The station, a Grade II listed structure, requires frequent maintenance. In 2004, the station roof was partially refurbished to prevent leaking. In 2011, the platform shelters, seats and toilets were refurbished at a cost of £500,000.[36] In 2013, the station received a £1.8 million renovation to improve access, including lifts and an emergency exit.

In my view, the station needs the following.

  • Step-free access.
  • Longer platforms.
  • Higher capacity platforms.
  • Much better signage and maps.
  • The turnback described earlier.

No wonder I avoid it like the plague.

A completely rebuilt station with excellent step-free access might encourage more passengers to use the station, rather than the overcrowded Piccadilly.

Improve Deansgate Station

Deansgate station is not bad, but it could be improved to encourage more passengers.

Over the next few years, as the Metroilink expands, It could become a better interchange.

Step-Free Access Between Train And Platform Must Be Achieved

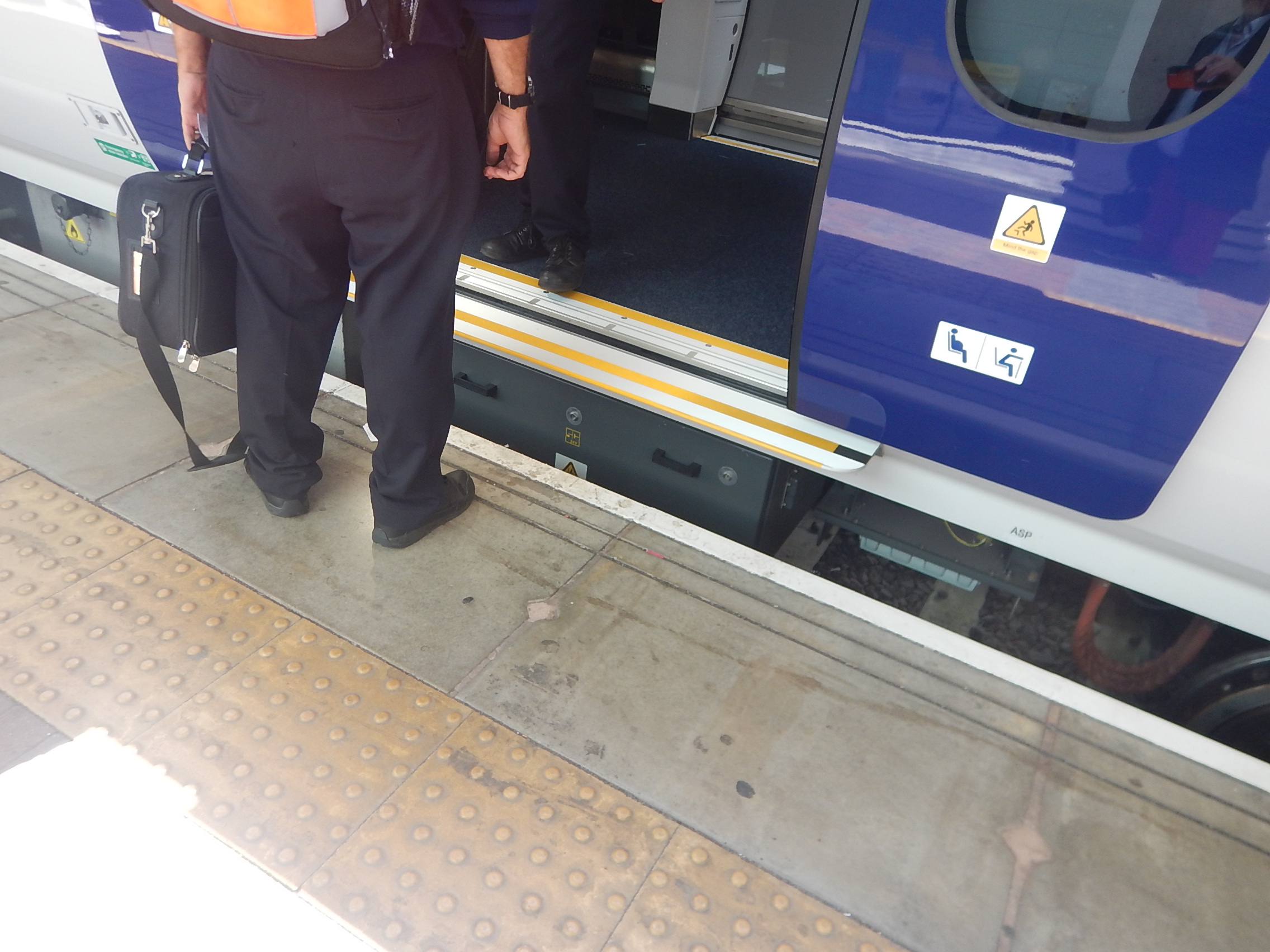

This picture shows access to a new Class 195 train at Manchester Airport.

With new trains, there is no excuse for not having level access, where someone in a wheelchair can just wheel themselves across.

Level access should reduce loading delays, as it eases loading of buggies, wheelchairs and wheeled cases.

If Merseyrail, Greater Anglia and some parts of the London Overground can arrange it, then surely Manchester can?

Nova Problem

The author also talks about possible problems with TransPennine’s new Nova trains, which have single end doors, which could prove inadequate in busy times.

Build A West-Facing Bay Platform At Manchester Victoria Station

The author suggests this could be used to run a frequent shuttle service between Manchester Victoria and Manchester Airport via Deansgate, Oxford Road and Piccadilly.

It might mean that TransPennine services stopped short in Manchester and passengers would change for the Airport.

But it would solve the problems of the capacity in the Castlefield Corridor and platform availability at Manchester Airport

Could Passengers Be Nudged Towards The Metrolink?

I have watched the sheer number of passengers delay trains at Manchester Piccadilly, several times.

Would it ease delays if passengers used the Metrolink to Manchester Airport?

Perhaps, the journey by Metrolink could be made more affordable?

Conclusion

It’s a mess and as the author says in his title, quarts don’t fit into pint pots.

At least though, if High Speed Two is built to link up with Northern Powerhouse Rail and together they run London, Birmingham or Liverpool to Hull via Manchester Airport, Manchester City Centre, Huddersfield, Bradford and Leeds, this would solve the problem of the Castlefield Corridor by bypassing it for long-distance trains.







October 27, 2019 Posted by | Transport/Travel | , , , , , , , , , | 2 Comments

Walking Between Surrey Quays And Queen’s Road Peckham Stations

My walk this morning was between Surrey Quay station and Queen’s Road Peckham station along the South London Line.

I wanted to look at progress on the Bermondsey dive-under and also the New Bermondsey station site.

Nothing was happening at the station site and this Network Rail video makes a bit of sense of the work at the dive-under.

I would appear that the long concrete ramp has now been completed and there has been some demolition of the brick viaducts in the site.

October 19, 2015 Posted by | Transport/Travel | , , | Leave a comment

Looking at the New Junctions South of Surrey Quays

At present two lines meet south of Surrey Quays station on the East London line  of the London Overground.

  1. The New Cross Gate/Crystal Palace/Croydon branch.
  2. The New Cross branch.

These pictures show how the new extension to Clapham Junction station is being threaded through.

It has been reported that all the track has now been laid to connect from Surrey Quays to the southern part of the East London line.

This engineering has all been accomplished in a few months, which just shows how much better we art at this type of work, than a few years ago.

Although the bridge over the line, shown in the pictures,  is rather simple, it has been designed so that no-one can throw anything onto the track, get access onto it, without completely stopping pedestrians watching the trains. Perhaps, the man who designed it, was a train spotter in his youth. It was certainly well-used in the ten minutes or so, I was there.

February 17, 2012 Posted by | Transport/Travel | , , , , | 1 Comment
