The Connection Between The Northern And Lizzie Lines At Tottenham Court Road Station

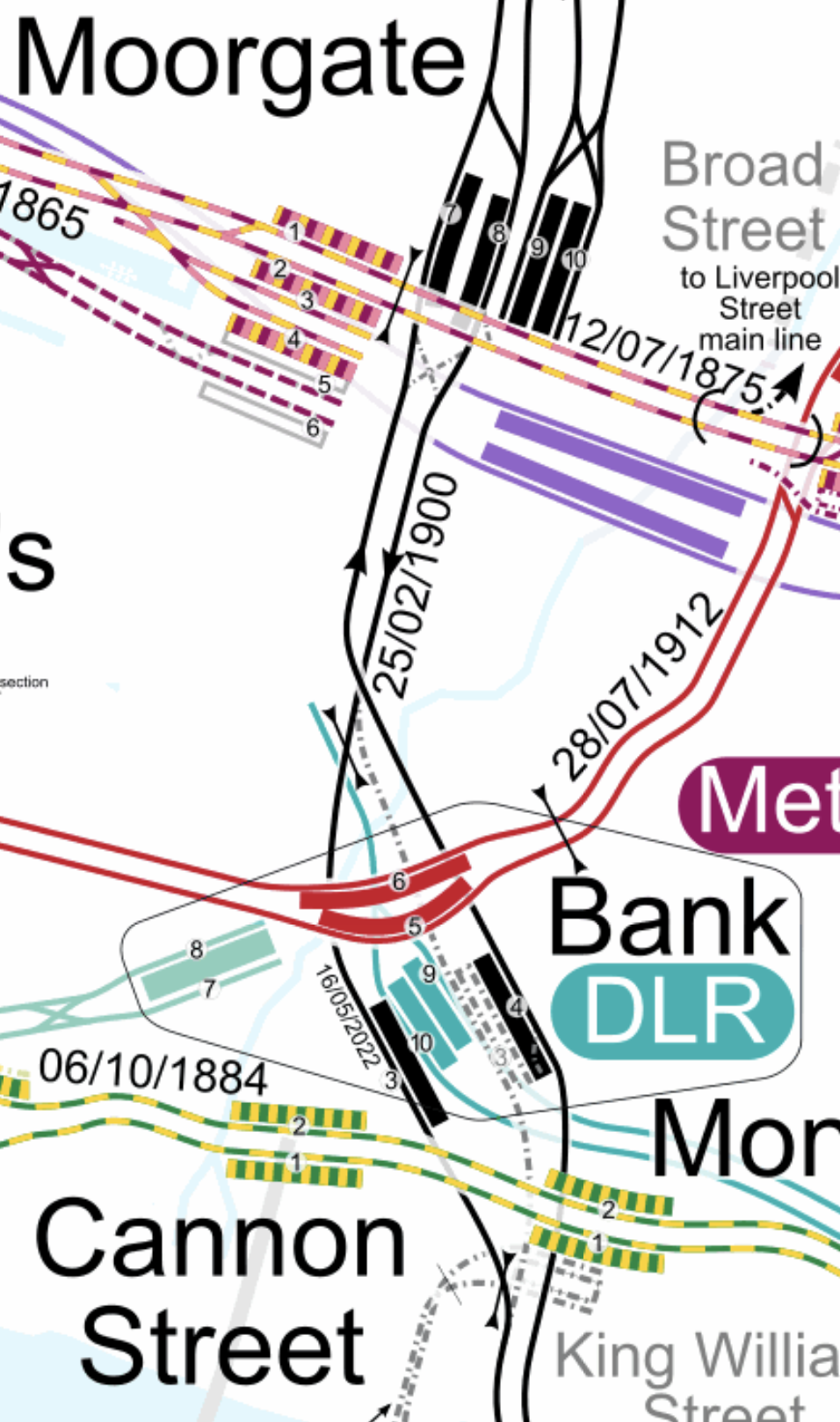

In Elizabeth Line To Northern Line At Moorgate Station, I described how I was rather underwhelmed with the connection between the Bank branch of the Northern Line and the Lizzie Line.

It’s just too far to walk in the long tunnel, which is not as well fitted out as the connection to the Bakerloo Line at Paddington.

At least it can be improved, without a major amount of expense.

So what is the connection between the Lizzie Line and the Northern Line like at Tottenham Court Road?

There is access to stairs and a lift at the Southern end of the Northern Line platforms, that lead to the pedestrian tunnel between the two platforms of the Lizzie Line.

These pictures show  the connection.

Note.

  1. It is certainly a lot easier than the connection at Moorgate.
  2. You have a choice of stairs or a lift between lines.
  3. Both Northern branches and both Southern branches of the Northern Line all have services through Tottenham Court Road station. Just make sure, that you get a Charing Cross branch train.
  4. If you’re using Tottenham Court Road station for changing to the Lizzie Line from the Northern Line, then make sure you get at the Southern end of the Northern train.
  5. If you’re using Tottenham Court Road station for changing to the Northern Line, then make sure you get at the Eastern end of the Lizzie Line train.

Practice will make perfect, how passengers handle this interchange.

Going Between Euston And Heathrow

There is no problem with the interchange to and from the Elizabeth Line, but getting to and from the Charing Cross branch of the Northern Line is not step-free.

Hopefully, High Speed Two and the rebuilding of Euston station will solve this problem.

August 11, 2022 Posted by | Transport/Travel | , , , , , , | Leave a comment

Does The Paddington Bakerloo Line Link Make The Bakerloo Line A NW-SE Cross-Branch Of The Elizabeth Line?

The Elizabeth Line has these major North-South cross-branches.

  • Jubilee Line at Bond Street station.
  • Charing Cross Branch of the Northern Line at Tottenham Court Road station.
  • Thameslink at Farringdon station.
  • Bank Branch of the Northern Line at Moorgate station.
  • East London Line of the Overground at Whitechapel station.

With the opening of the Paddington Bakerloo Line Link, another North-South cross-branch of the Elizabeth Line has been added.

It could be argued that London has a new NW-SE high frequency link between Harrow & Wealdstone and Abbey Wood stations.

  • Bakerloo Line – Harrow & Wealdstone and Paddington
  • Paddington Bakerloo Line Link – 165 metre level step-free walk
  • Elizabeth Line – Paddington and Abbey Wood via Whitechapel and Canary Wharf

The journey would appear to take 73 minutes from the National Rail journey planner, which allows fifteen minutes for the change at Paddington.

May 28, 2022 Posted by | Transport/Travel | , , , , , , , , , , | Leave a comment

Does The Elizabeth Line Offer Similar Benefits To The Bakerloo Line Extension?

This map shows the proposed Bakerloo Line extension.

Note.

  1. There are new or improved stations at Old Kent Road 1, Old Kent Road 2, New Cross Gate and Lewisham.
  2. New Cross Gate station has Overground and Southern services.
  3. Lewisham station has Docklands Light Railway and Southern services.
  4. The future potential option going South is to take over the Hayes Line.

Could we provide improvements along the line of the Bakerloo Line Extension in a less disruptive and more affordable manner?

I will look at the various stations.

New Cross Gate

New Cross Gate station is a fully-accessible station, as these pictures show.

The station, currently has the following services.

  • Overground – Highbury & Islington and Crystal Palace – 4 tph
  • Overground – Highbury & Islington and West Croydon – 4 tph
  • Southern – London Bridge and Victoria via Sydenham – 2 tph
  • Southern – London Bridge and Coulsdon Town via Sydenham – 2 tph

Note.

  1. tph is trains per hour.
  2. The Overground services provide an 8 tph service to the Elizabeth Line at Whitechapel station.
  3. TfL may well increase the frequency of the two Overground services to 5 tph.

I suspect that the easiest way between New Cross Gate and Harrow & Wealdstone will be with changes at Whitechapel and Paddington.

  • New Cross Gate and Whitechapel – Overground – 13 minutes.
  • Whitechapel and Paddington – Elizabeth Line – 14 minutes.
  • Paddington Interchange – 15 minutes
  • Paddington and Harrow & Wealdstone – Bakerloo Line – 29 minutes

This gives a total time of 71 minutes.

As Bakerloo Line trains go between Elephant & Castle and Harrow & Wealdstone, which is 24 stations and the journey takes 48 minutes, this gives a figure of two minutes per station.

  • This seems to fit Irene’s Law, which I wrote about in Irene’s Law – Estimating Tube Journey Times.
  • So it looks like a direct train on the extension would take 54 minutes.
  • That time fits well with the 71 minutes via the Elizabeth Line if fifteen minutes is allowed for the walk at Paddington.

I will do the trip for real today.

Lewisham

There are two ways to get between Lewisham and the Elizabeth Line.

  • Take the Dockland’s Light Railway to Canary Wharf. Estimated at 15 minutes.
  • Take a train to Whitechapel, which needs a change of train at New Cross station. Estimated at 17 minutes minimum.

Neither are perfect.

I will try out these two trips soon.

Hayes

The Hayes Line is often talked about as the final destination of the Bakerloo Line.

In More Frequent Trains And A New Station For The London Overground, I put forward a plan for connecting the Hayes Line to the New Cross branch of the London Overground.

This map from carto.metro.free.fr shows the lines at New Cross station.

Note.

  1. The double-track East London Line, shown in orange, arrives from Surrey Quays station arrives in the North-Western corner of the map, becomes a single-track and then goes under the main lines before going into the bay platform D.
  2. Hayes Line services use Platform C going South and Platform A going North.
  3. Could the Overground going South divert into Platform C for Hayes?
  4. It would appear there used to be a line connecting Platform A to the East London Line of the Overground. Could this line be reinstated?

This Google Map shows the same area.

Note.

  1. The London Overground track is clearly visible.
  2. The needed connection certainly looks possible, without too much heroic engineering.
  3. Although, I suspect it could need digital signalling to get everything to work smoothly. But that will happen anyway!

The big advantage of this approach, is that all stations between Whitechapel and Hayes, would have a direct connection to the Elizabeth Line.

Hayes Line services would still continue to Victoria and Cannon Street, although the frequency might be reduced, depending on how many Overground services used the route.

Old Kent Road 1 And Old Kent Road 2

I think there are two ways to serve this important area.

  • The first would be to run a high-frequency bus service between Elephant & Castle and the two stations at New Cross.
  • I also suspect, it would be possible to have a short extension of the Bakerloo Line to a double-ended station at New Cross Gate and New Cross stations.

I went into the second way in More Frequent Trains And A New Station For The London Overground, where I came to these conclusions.

I am drawn to these two conclusions.

  • The Bakerloo Line should be extended via two new Old Kent Road stations to a double-ended terminal station in New Cross with interchange to both New Cross Gate and New Cross stations.
  • The New Cross branch of the London Overground should be extended through Lewisham to Orpington and/or Hayes.

My preferred destination for the London Overground service could be Hayes, as this would surely help to free up paths through Lewisham and London Bridge.

I also feel, that the scheme would be much more affordable if high-specification buses were used between Elephant & Castle and the two stations at New Cross.

Conclusion

There are certainly possibilities to create an alternative route, with the same objectives as the Bakerloo Line Extension.

May 28, 2022 Posted by | Transport/Travel | , , , , , , , , , , | 1 Comment

Elizabeth Line – Paddington Station – 24th May 2022

I went to the new Elizabeth Line platforms at Paddington station today and took these pictures.

Note.

  1. It is a double descent from the main Paddington station level to the depths of the Elizabeth Line.
  2. The Paddington Bakerloo Link Link is another level down. See Elizabeth Line – Paddington Bakerloo Line Link – 24th May 2022.
  3. There is a spectacular lift tower in the middle of all the escalators.

One puzzle is that there are three escalators down and two up.

May 24, 2022 Posted by | Transport/Travel | , , | Leave a comment

Elizabeth Line – Paddington Bakerloo Line Link – 24th May 2022

These pictures show the Elizabeth Line end of the Paddington Bakerloo Line Link.

Note.

  1. This pedestrian tunnel connects the Elizabeth Line platforms and the Bakerloo Line platforms at Paddington station.
  2. The tunnel runs under the main pedestrian concourse of Paddington station from one side to the other.
  3. At the start of construction, I wrote about this tunnel in Paddington Bakerloo Line Link Project, London.

In Paddington Is Operational Again, I showed this image, that I found on the web.

The Bakerloo Line Link At Paddington

I also said this.

It looks to be a very well thought out link.

  • It is connected to the Crossrail station by escalators and lifts in the middle of the island platform at that station.
  • The connection at the Bakerloo Line end, would appear to have lifts, stairs and escalators.
  • Wll the lifts go direct to the surface as well?
  • All routes seem to be direct to the central landing in the Bakerloo Line platforms.
  • It may be a hundred and sixty five metres, but the design probably means most passengers will do it fairly fast.But I’m only speculating.

It will certainly be a very powerful interchange, as it will give a much needed connection to London’s least-developed Underground Line.

Having seen one end today, I agree with my statement in the previous post.

Walking The Paddington Bakerloo Line Link

On the 26th May, I walked the Paddington Bakerloo Line Link from the Elizabeth Line to the Bakerloo Line platforms.

Note.

  1. There are two escalators and a lift at both ends.
  2. It appears to be a level walk. Walking the contours around a hill is always easier.
  3. There are two seats at one third and two thirds distance. Do the seats have a mobile phone hotspot?
  4. The seats make each section fifty-five metres, as the tunnel is 165 metres long.
  5. According to this page on the BRE Group web site, it cost just £40 million.
  6. There is a handrail all the way in the middle of the link.
  7. Each direction, is wide enough for the largest pram, wheelchair or stretcher.



The Paddington Bakerloo Line Link has set a high gold standard for below ground pedestrian links.

  • Both ends have escalators and lifts to provide step-free access between platforms and the tunnel.
  • The tunnel is level.
  • There is a handrail.
  • The tunnel is wide.
  • The tunnel has seats for those who need a rest.
  • There are help points.
  • Most importantly, at only £40 million it was not expensive.

Several other long pedestrian links in London, the UK, Europe and the world could borrow ideas from this link, which I would rate as the best I’ve ever seen.

Does The Paddington Bakerloo Line Link Make The Bakerloo Line A North-South Cross-Branch Of The Elizabeth Line?

The Elizabeth Line has these major North-South cross-branches.

  • Jubilee Line at Bond Street station.
  • Charing Cross Branch of the Northern Line at Tottenham Court Road station.
  • Thameslink at Farringdon station.
  • Bank Branch of the Northern Line at Moorgate station.
  • East London Line of the Overground at Whitechapel station.

With the opening of the Paddington Bakerloo Line Link, another North-South cross-branch of the Elizabeth Line been added.

It could be argued that London has a new NW-SE high frequency link between Harrow & Wealdstone and Abbey Wood stations.

  • Bakerloo Line – Harrow & Wealdstone and Paddington
  • Paddington Bakerloo Line Link – 165 metre level step-free walk
  • Elizabeth Line – Paddington and Abbey Wood via Whitechapel and Canary Wharf

The journey would appear to take 73 minutes from the National Rail journey planner, which allows fifteen minutes for the change at Paddington.

Is The Bakerloo Line Extension Still Needed?

So how long would it take for journeys from Harrow & Wealdstone to selected stations, that could be served by the Bakerloo Line Extension.

  • New Cross Gate – 82 minutes – Change at Paddington and Whitechapel
  • Lewisham – 93 minutes – Change at Paddington and Canary Wharf
  • Hayes – 98 minutes – Change at Paddington, Whitechapel and New Cross

Note.

  1. Going South the Hayes train arrives at New Cross, just after the train from Dalston Junction has arrived.
  2. I also feel with some Northbound improvements on the Overground service times could be shortened.
  3. Locations on the Old Kent Road might be better served by frequent buses between Elephant & Castle and New Cross stations.

Improving the Overground and the fast link between Whitechapel and Paddington may allow the Bakerloo Line Extension to be kicked into the long grass.

Wi-Fi And 4G

This page on the TfL web site is entitled Everything You Need To Know About The Elizabeth Line, where this is said about Wi-Fi and 4G.

WiFi access within the tunnels will be introduced later in 2022. Customers on both trains and platforms will have access to 4G connectivity this year too.

Will passengers be more likely to take a route through London with Wi-Fi and 4G?

I very much feel they will and that this will draw more passengers to use the Elizabeth Line.

And once, they start to use it, they’ll keep with it, so long as they’re happy.

Conclusion

The Bakerloo Line Extension can be kicked into the long grass.

May 24, 2022 Posted by | Design, Transport/Travel | , , , , , , | 4 Comments

Crossrail is Over Budget And Very Late – But The End Is Nearly In Sight

The title of this post is a quote from this article on the BBC, which is entitled Elizabeth line: The Ambient Detailing Behind Crossrail’s New Stations.

There have been little signs appearing in the last few days.

  • In Is The Paddington Bakerloo Line Link Opening Soon?, it looked like the new tunnel, that will form the Bakerloo Line Link to Crossrail could be opening soon.
  • In The Covers Are Off At Tottenham Court Road Station, it looked like the builders were finishing off Tottenham Court Road station.
  • I go through Moorgate station about six times a week.This morning, as I normally do, I took the rat-up-the-drainpipe route to the surface, that I described in Up From The Depths At Moorgate Station. The escalators have been reversed and there were a lot of staff around.
  • I’ve also seen guys and gals walking around with clipboards.

This all indicates to me that D-Day is not far-off, when passengers will be allowed to set foot on Crossrail’s platforms and trains.

April 13, 2022 Posted by | Transport/Travel | , , , , , , | 4 Comments

Is The Paddington Bakerloo Line Link Opening Soon?

I took these pictures on the Bakerloo Line platforms at Paddington station yesterday.

Note.

  1. There are new direction signs by the entrance, but they are covered in white plastic.
  2. The lights on the lift were showing sensible messages.
  3. The escalators behind the grill doors were running.
  4. It was only shut off using a barrier and black and yellow tape.
  5. The access between the Northbound Bakerloo Line platform and the escalator lobby, still needed to be opened up.

But it does look to me that this route is getting ready to be used.

In The Crossrail Article That Everyone Must Read, I review this article on Ian Visits, which is entitled A Sneak Preview Of London’s New Elizabeth Line Railway.

In a section, that is entitled The Bakerloo Line Link At Paddington Station, I wrote this.

Ian writes this interesting paragraph.

Something though that was added to Paddington station after the funding was approved was a new direct deep tunnel link from the platforms to the Bakerloo line. London Underground contractors built the link, and Andy Lord suggested that they are considering opening up the link before the Elizabeth line opens fully as it would help with offering step-free access for Bakerloo line customers.

Many people find getting to Paddington difficult, as I do from Dalston.

I typically use some roundabout and slow routes and most end up with arriving at Paddington on the Bakerloo Line.

Opening the link early would have the following effects.

  • It would make things a lot easier for me and probably many other passengers.
  • It would add passengers to London’s least-used Underground line.
  • It would add capacity to the Bakerloo Line station at Paddington.

It would also give a piece of the infrastructure, a good soak testing with real passengers and may flag up some changes that needed to be made to details like signage.

Did Ian call it right?

Conclusion

I think he might have!



April 12, 2022 Posted by | Transport/Travel | , , , , | 5 Comments

The Crossrail Article That Everyone Must Read

This article on Ian Visits is entitled A Sneak Preview Of London’s New Elizabeth Line Railway.

As the title of this post indicates, Ian’s article is very much a must read and it gives everybody something worthwhile to look forward to, after what has been the worst two years of many peoples’ lives.

The Crossrail Opening Date

There are a few more tests to do and Ian says the line could open a few weeks after Easter. With the Bank station upgrade apparently going well as I reported in Final Tunnelling Gets Underway On Bank Station Blockade and likely to open in mid-May, I wonder if TfL would prefer that the two projects opened at different times for management and operational reasons.

Easter is the 17th of April, and two weeks later is May Day, with the Bank Holiday on the Monday.

If they can do all the tests, there would be good reasons to open Crossrail on the first of May.

  • It’s a different day to the opening of the Bank station upgrade.
  • They would have two clear days to get Crossrail open.
  • A lot of people will be going to Central London.
  • Other Mayors would have organised a party.
  • A Bank Holiday would give the new infrastructure a proper test with real passengers and lots of children.
  • Crossrail could also help to cover for a late-opening Bank Station Upgrade.

If I needed to bet on it, my money would be on an opening on Sunday, the first of May.

The Bakerloo Line Link At Paddington Station

Ian writes this interesting paragraph.

Something though that was added to Paddington station after the funding was approved was a new direct deep tunnel link from the platforms to the Bakerloo line. London Underground contractors built the link, and Andy Lord suggested that they are considering opening up the link before the Elizabeth line opens fully as it would help with offering step-free access for Bakerloo line customers.

Many people find getting to Paddington difficult, as I do from Dalston.

I typically use some roundabout and slow routes and most end up with arriving at Paddington on the Bakerloo Line.

Opening the link early would have the following effects.

  • It would make things a lot easier for me and probably many other passengers.
  • It would add passengers to London’s least-used Underground line.
  • It would add capacity to the Bakerloo Line station at Paddington.

It would also give a piece of the infrastructure, a good soak testing with real passengers and may flag up some changes that needed to be made to details like signage.

Opening The Liverpool Street and Moorgate Pedestrian Link

In London’s First Underground Roller Coaster, I described this link, which I believe will be used by more than just rail passengers.

I feel that like the Bakerloo Line Link at Paddington station, that this link could be opened early.

Conclusion

I can’t wait for Crossrail to open.



March 15, 2022 Posted by | Design, Transport/Travel | , , , | 2 Comments

The Bakerloo Line Connection At Paddington Station

I use the Bakerloo Line to get to and from Paddington station for various reasons, and find myself in the narrow two-way passage  between the Underground station entrance in the middle of the Paddington station and the top of the escalators to the Bakerloo Line.

These pictures show the route towards the Bakerloo Line.



It strikes me that a certain amount of reorganisation is needed.

  • In the narrow two-way passage signs tell people to keep left.
  • On the escalators, the escalators are run on a keep right basis.

So everybody has to cross over in the area at the top of the escalators.

I’m sure, it could be better organised.

It should be noted that another pedestrian tunnel is being built to connect the Bakerloo Line to Crossrail.

I wrote about the Paddington Bakerloo Line Link in Paddington Is Operational Again!

August 18, 2019 Posted by | Transport/Travel | , , , | 1 Comment

Paddington Bakerloo Line Link Project, London

The title of this post is the same as that of this page on the Institute Of Civil Engineering web site.

The page contains a video presentation of the building of the Paddington Bakerloo Line Link, that will connect the Bakerloo Line to Crossrail sometime next year.

If you think the golden age of British improvised tunnelling finished with the end of World War Two, with the likes of the Wooden Horse and the Great Escape, then think again.

  • A redundant Royal Mail building stars as the cookhouse, where the tunnel starts under the floor.
  • The old Rail Mail tunnel, doubles for the sewers.
  • Sections were dug by hand.

I wouldn’t be surprised to see more pedestrian tunnels dug with all the ingenuity of this one.

November 26, 2018 Posted by | Transport/Travel | , , | 2 Comments
